SERVICE MANUAL

TECHWIN

DIGIMAX 101

CONTENTS

ⅠⅠ

.. SSPPEECCIIFFIICCAATTIIOONN

1. SPECIFICATION ……………………………………………………………………………………………… 4

2. SYSTEM REQUIRMENT ……………………………………………………………………………………… 5

3. TFT LCD PANEL MARK ………………………………………………………………………………………6

4. CONNECTION DIAGRAM ………………………………………………………………………………………7

5. PRODUCT EXTERIOR …………………………………………………………………………………………8

ⅡⅡ

.. SSOOFFTTWWAARREE IINNSSTTAALLLLAATTIIOONN

………………………………………………………………………10

ⅢⅢ.. EEXXPPLLOODDEEDD VVIIEEWW AANNDD PPAARRTTSS LLIISSTT

FRONT COVER ASSEMBLY

……………………………………………………………………………… 14

2. B

ODY ASSEMBLY

………………………………………………………………………………………… 16

3. BACK COVER ASSEMBLY ………………………………………………………………………………… 18

4. PACKING ITEM ………………………………………………………………………………………………20

5. INITIAL PARTS LIST …………………………………………………………………………………………22

ⅣⅣ.. AADDJJSSUUTTMMEENNTT

REPLACEMENT PARTS AND ADJUSTMENT ITEMS

…………………………………………………… 23

2. ADJUSTMENT TOOLS …………………………………………………………………………………………23

3. FIRMWARE UPGRADE…………………………………………………………………………………………24

4. ADJUSTMENT ITEMS

1) FOCUS ADJUSTMENT ……………………………………………………………………………………24

2) BAD PIXEL ADJUSTMENT ………………………………………………………………………………25

3) AWB ADJUSTMENT ………………………………………………………………………………………28

4) TRIG ADJUSTMENT ………………………………………………………………………………………28

5) LCD ADJUSTMENT…………………………………………………………………………………………29

6) STROBO ADJUSTMENT ……………………………………………………………………………………30

ⅤⅤ.. PPRROODDUUCCTTSS CCOONNSSTTRRUUCCTTIIOONN

1. PARTS ARRANGEMENT FOR EACH PCB ASS’Y

1) MAIN PCB ASSEMBLY ……………………………………………………………………………………31

2) POWER PCB ASSEMBLY …………………………………………………………………………………33

3) TOP PCB ASSEMBLY ……………………………………………………………………………………35

2. BLOCK DIAGRAM ……………………………………………………………………………………………36

3. CIRCUIT DIAGRAM

1) BLOCK DIAGRAM …………………………………………………………………………………………37

2) INTERFACE …………………………………………………………………………………………………38

3) LCD …………………………………………………………………………………………………………39

4) CPU …………………………………………………………………………………………………………40

5) CMOS ………………………………………………………………………………………………………41

6) SDRAM, FLASH & SD CARD …………………………………………………………………………42

7) UI ……………………………………………………………………………………………………………43

11.. SSppeecciiffiiccaattiioonnss

Ⅰ

. SPECIFICATIONS

Type 1/2 CMOS

Effective Pixels Approx. 1.3 Mega pixels

Total Pixels Approx. 1.4 Mega pixels

Focal Length Samsung Lens f=9.0mm

(35mm film equivalent : 46mm)

F No. F3.0

Digital Zoom STILL IMAGE : 2X , PLAY mode : 2X

Optical Viewfinder Optical viewfinder

LCD Monitor 1.6" color TFT LCD

Type Fixed focus

Range 1.0m ~ infinity

Type Electronic shutter

Speed 1/15 ~ 1/2,000 sec..

Control Program AE

Compensation ±2EV (0.5EV steps)

ISO Equivalent Automatic (100, 200)

Modes Auto/ Auto & Red – eye reduction / Flash off

Range 1.0 ~ 3.0 m

Recharging Time Approx. 10 sec.

White Balance Auto / Daylight / Cloudy / Sunset / Tungsten / Fluorescent

Size : 320x240

Recording time : Memory capacity dependent

Self-timer 10 sec.

Media Internal memory : 8MB flash memory

External memory (optional) : SD / MMC card (up to

256MB Guaranteed)

File Format Still image : JPEG(DCF), DPOF

Movie Clip : AVI (MJPEG)

Image Size Large : 1280x1024 pixels, Small : 640x 512 pixe

Capacity Large : Super fine 15, Fine 22, Normal 44

(8/16MB) Small : Super fine 30, Fine 60, Normal 121

These figures are measured by internal memory based.

These figures are measured under Samsung standard

conditions and may vary depending on shooting conditions

and camera settings.

Image Play Single image / Thumbnails / Slide show / Movie Clip

Digital output connector : USB

Video output : NTSC / PAL (User selectable)

DC power input connector : 3.3V

Storage

Flash

Exposure

Focusing

Viewfinder

Shutter

Lens

Image Sensor

Movie Clip

Interface

22.. SSyysstteemm rreeqquuiirreemmeenntt

Specifications are subject to change without prior notice.

FFOORR WWIINNDDOOWWSS

PC with processor better than MMX Pentium 266MHz

(XP : Pentium II 300MHz)

Windows 98/98SE/2000/ME/XP

Minimum 32MB RAM (XP : 128MB)

110MB of available hard-disk space

USB port

CD-ROM drive

800 X 600 pixels, 16-bit color display compatible monitor

(24-bit color display recommended)

FFOORR MMAACCIINNTTOOSSHH

Power Mac G3 or later

Mac OS 8.6 ~ 10.2

Minimum 32MB RAM

110MB of available hard-disk space

USB port

CD-ROM drive

QuickTime 4.0 or later for Movie Clip

ⅠⅠ.. SSPPEECCIIFFIICCAATTIIOONN

2 x AA alkaline / 2 x Ni-MH / CR-V3 batteries

AC adapter(Optional)

Dimensions (WxHxD) 108x56x37mm / 4.3x2.2x1.5in

Weight Approx. 125g / 4.4oz (without batteries and card)

Storage Driver

(Windows98/98SE/2000/ME/XP, Mac OS 8.6~10.2)

Application MGI PhotoSuite

Digimax Viewer

Software

Power Source

Camera Driver

No. Description Icons

1 Battery

2 Camera shake warning

3 Flash

4 Self-timer

5 White balance

6 Exposure compensation +0.5 EV (Exposure Value)

7 Date 2002/09/01

8 Time 03:15

9 Card indicator

10 Quality

11 Image size

Number of available shots remaining(still image)

0015

Recording time(while recording a movie clip)

00:50

Message for canceling a movie clip recording

14 Digital zoom

15 Recording mode

■PLAY mode

44.. TTFFTT LLCCDD PPaanneell MMaarrkk

■SHOT mode

ⅠⅠ.. SSPPEECCIIFFIICCAATTIIOONN

①

⑦

②

③

④

⑤⑧

⑨

⑩

⑪

⑫

⑥

⑮ ⑬⑭

①④

②

③

No. Description Icons

1 Battery

2 Recording date 2002/09/01

3 Card indicator

4 Number of stored images 100-0003

AC Adaptor

USB Cable

SD & MMC

Card.

atteries

Alkarain x2

IBM PC / MACINTOSH

3.3V/2.0A

Digimax 101 camera

55.. CCOONNNNEECCTTIIOONN DDIIAAGGRRAAMM

ⅠⅠ.. SSPPEECCIIFFIICCAATTIIOONN

66..

PPrroodduucctt EExxtteerriioorr

ⅠⅠ.. SSPPEECCIIFFIICCAATTIIOONN

Power switch

Lens

Self-timer lamp

Viewfinder

Flash

DC input connection

point

Video connection

terminal

USB connection

terminal

Shutter button

Battery chamber /

Card cover

Card slot

Battery chamber

Strap eyelet

ⅠⅠ.. SSPPEECCIIFFIICCAATTIIOONN

5-function

button

LCD monitor

Camera

status LED

(p.15)

Tripod socket

MENU button

MODE button

LCD button

Viewfinder

FLASH/ LEFT( ) button

DELETE / DOWN( ) button

SELF-TIMER/ RIGHT( ) button

THUMBNAIL / UP( ) button

OK button (p.38 / 56)

ⅡⅡ

. INSTALLATION

All application programs (Digimax Viewer 1.0 for viewing images, MGI PhotoSuite III SE for editing

images, and DirectX 8.1 for playing back movie clips) will be installed.

If you installed all application programs by clicking the [Driver Storage Driver], you need not

install Digimax Viewer 1.0 and MGI PhotoSuite III SE separately.

2. A [Welcome] window will open.

Click the [Next>] button.

1. Click [Storage Driver] menu on the Autorun frame.

3. A [start Installation] window will open.

Click the [Next>] button. 4. Installation is complete. Click the [Finish] button and the

[Digimax Viewer 1.0] installation will be started.

5. The [Digimax Viewer 1.0] installation window will be

displayed as shown below. Click [Next] button.

·If you select [Cancel] at the step 2, the camera driver

installation will be cancelled and a window for installing

Digimax Viewer 1.0 will be displayed.

If you select [Cancel] at the step 5, the Digimax Viewer 1.0

installation will be cancelled and a window for installing MGI

PhotoSuite III SE will be displayed.

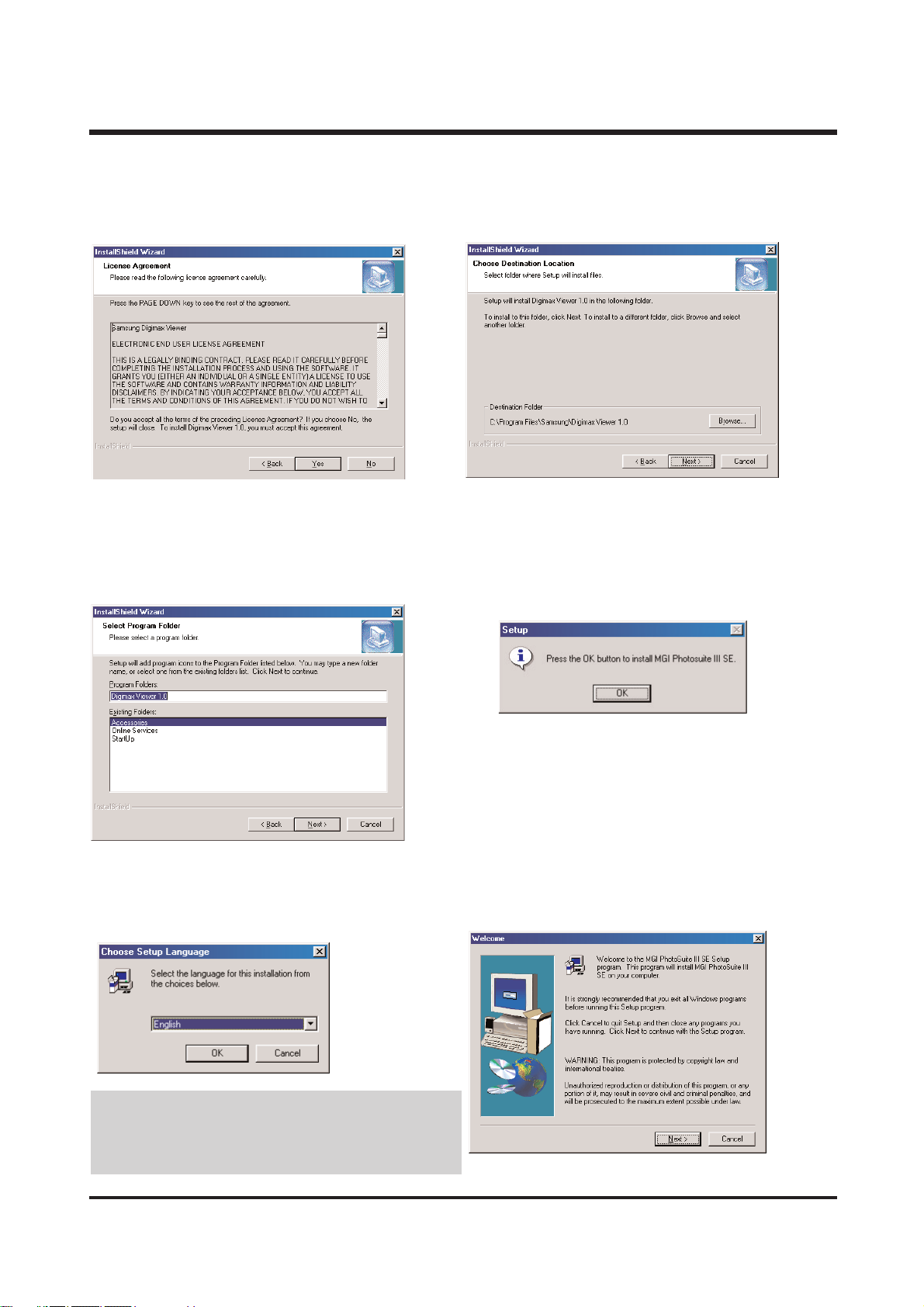

8. Select the Program folder and click [Next].

7. Select a destination folder and click [Next].

9. Installation is completed. Click [OK] button and the [MGI

PhotoSuite III SE] installation will be started.

10. The [Choose Setup Language] window will open.

Select a language and click [OK] button. 11. A [Welcome] window will be displayed. Click [Next>]

to move to the next step.

If you select [Cancel] at the step 10, the MGI PhotoSuite III

SE installation will be cancelled and a window for installing

DirectX 8.1 will be displayed.

6. The Software License Agreement window will display. If

you agree to it, click [Yes].
