Samsung PL10 Manuale di istruzioni

Please refer to the warranty that came with your product

or visit our website http://www.samsungcamera.com/

for after-sales service or inquiries.

AD68-03908A (1.1)

This Quick Start Manual has been specially designed to guide you

through the basic functions and features of your device.

Please read the Quick Start Manual and User Manual carefully to

ensure safe and correct use.

Quick Start Manual

PL10

For more information, refer to

the User Manual included on the

supplied CD-ROM.

ENG / FRE / TUR / T.CHI / IND / ARA / THA / PER

Warhol93_ASIA.indb 2 2009-09-18 오후 4:38:01

Health and safety informationContents

Warnings

Do not use your camera near ﬂammable or explosive

gases and liquids

Do not use your camera near fuels, combustibles, or

ﬂammable chemicals. Do not store or carry ﬂammable

liquids, gases, or explosive materials in the same

compartment as the camera or its accessories.

Keep your camera away from small children and pets

Keep your camera and all accessories out of the reach of

small children and animals. Small parts may cause choking

or serious injury if swallowed. Moving parts and accessories

may present physical dangers as well.

Prevent damage to subjects’ eyesight

Do not use the ﬂash in close proximity (closer than 1m/3

ft) to people or animals. Using the ﬂash too close to your

subject’s eyes can cause temporary or permanent damage.

Health and safety

information…………………… 2

Camera layout ……………… 4

Setting up your camera …… 5

Unpacking ……………………… 5

Inserting the battery and

memory card …………………… 6

Charging the battery …………… 6

Turning on your camera………… 7

Selecting options ……………… 7

Capturing photos or videos 8

Playing ﬁles ………………… 9

Transferring ﬁles to a PC

(Windows) ……………………10

Speciﬁcations ………………11

Warhol93_ASIA.indb 2 2009-09-18 오후 4:38:01

English

Exercise caution when connecting cables or adapters•

and installing batteries and memory cards. Forcing

the connectors, improperly connecting cables, or

improperly installing batteries and memory cards can

damage ports, connectors, and accessories.

Do not insert foreign objects into any of your camera’s•

compartments, slots, or access points. This type of

damage may not be covered by your warranty.

Protect batteries, chargers, and memory cards from

damage

Avoid exposing batteries or memory cards to very•

cold or very hot temperatures (below 0° C/32° F or

above 40° C/104° F). Extreme temperatures can

reduce the charging capacity of your batteries and

can cause memory cards to malfunction.

Prevent memory cards from making contact with•

liquids, dirt, or foreign substances. If dirty, wipe the

memory card clean with a soft cloth before inserting

in your camera.

Handle and dispose of batteries and chargers with

care

Use only Samsung-approved batteries and chargers.•

Incompatible batteries and chargers can cause serious

injuries or damage to your camera.

Never place batteries or cameras on or in heating•

devices, such as microwave ovens, stoves, or

radiators. Batteries may explode when overheated.

Cautions

Handle and store your camera carefully and sensibly

Do not allow your camera to get wet—liquids can•

cause serious damage. Do not handle your camera

with wet hands. Water damage to your camera can

void your manufacturer’s warranty.

Avoid using or storing your camera in dusty, dirty,•

humid, or poorly-ventilated areas to prevent damage

to moving parts and internal components.

Warhol93_ASIA.indb 3 2009-09-18 오후 4:38:01

Shutter button

Microphone

POWER button

Speaker

AF-assist light/timer lamp

Lens

Flash

Multifunction jack

(Accepts USB cable, A/V cable, or earphones)

Camera layout

Status lamp

Zoom button

Mode button

MENU button

Navigation button/OK button

Function button

Playback button

Battery chamber cover

Tripod mount

Display

3 4

Warhol93_ASIA.indb 4 2009-09-18 오후 4:38:01

English

Setting up your camera

Unpacking

Camera AC adapter/

USB cable

Rechargeable battery

Strap Software CD-ROM

(User manual included)

Earphones

Quick Start Manual

Memory cards

Camera case

Optional accessories

A/V cable

Warhol93_ASIA.indb 5 2009-09-18 오후 4:38:01

Setting up your camera

Inserting the battery and memory card Charging the battery

Push gently until the card

disengages from the camera

and then pull it out of the slot.

▼

Removing the battery

▼

Removing the memroy card

Indicator light

Red▪: Charging

Green▪: Fully charged

With the gold-coloured

contacts facing up

With the

Samsung logo

facing down

Before using the camera for the ﬁrst time, you must

charge the battery.

Warhol93_ASIA.indb 6 2009-09-18 오후 4:38:02

English

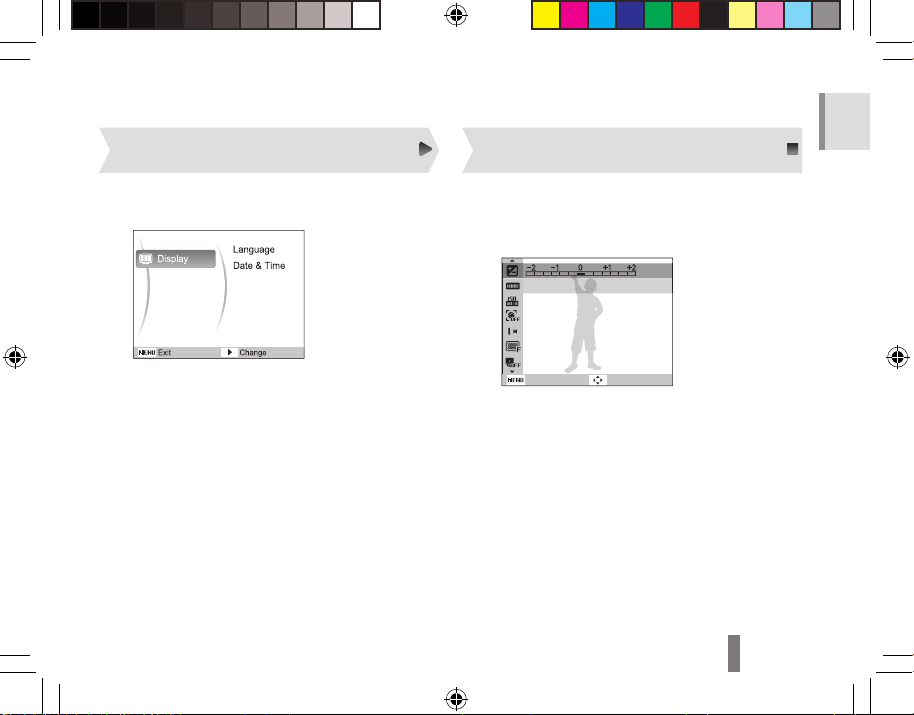

Press [

POWER].

The intial setup screen appears.▪

Press [

t] to select Language and press [t].

Press [

D] or [M] to select a language and

press [o].

Press [

D] or [M] to select Date & Time and

press [t].

Press [

F] or [t] to select an item.

Press [

D] or [M] to change the number or

select another date format and press [o].

In Shooting mode, press [

m].

Use the navigation buttons to scroll to an

option or menu.

Back

Move

To move left or right, press [▪F] or [t].

To move up or down, press [▪D] or [M].

Press [

o] to conﬁrm the highlighted option

or menu.

Press [▪m] again to go back to the previous

menu.

Turning on your camera Selecting options

Warhol93_ASIA.indb 7 2009-09-18 오후 4:38:02

Taking a photo

In Shooting mode, press [

O].

Select

Auto.

Align your subject in the frame.

Press [

Shutter] halfway down to focus

automatically.

A green frame means the subject in focus.▪

Press [

Shutter] all the way down to take the

photo.

Recording a video

In Shooting mode, press [

O].

Select

Movie.

Align your subject in the frame.

Press [

Shutter].

Press [▪o] to pause or resume.

Press [

Shutter] again to stop the recording.

Note

Number of photos by resolution (for 1 GB SD)

Resolution Super ﬁne Fine Normal

3456 x 2592 194 376 546

3456 x 2304 221 426 611

3456 x 1944 264 510 744

2592 x 1944 343 637 870

2048 x 1536 532 895 1,211

1024 x 768 1,716 2,059 2,376

These ﬁgures are measured under Samsung’s standard

conditions and may vary depending on shooting conditions

and camera settings.

Capturing photos or videos

Warhol93_ASIA.indb 8 2009-09-18 오후 4:38:03

English

Playing ﬁles

Viewing photos

Press [

P].

Press [

F] or [t] to scroll through ﬁles.

Press and hold to view ﬁles quickly.▪

Viewing videos

Press [

P].

Press [

o].

Use the following buttons to control playback.

[F]Scan backward

[o]Pause or resume playback

[t]Scan forward

[Zoom] up or

down Adjust the volume level

Playing multimedia ﬁles

You can play music, video, and text ﬁles.

Transfer multimedia ﬁles to your camera.

Plug the supplied earphones into the

multifunction jack.

In Shooting mode, press [

O].

Select

Multimedia →a mode.

U▪: Music

V▪: Videos

T▪: Text Viewer

Select a ﬁle to play.

Playback begins automatically.▪

Warhol93_ASIA.indb 9 2009-09-18 오후 4:38:04

Transferring ﬁles to a PC (Windows)

Insert the installation CD in a CD-ROM drive

and follow the onscreen instructions.

Connect the camera to the PC with the USB

cable.

Turn on the camera.

On your PC, select

My Computer →

Removable Disk →DCIM →100SSCAM.

Select the ﬁles you want and drag or save them

to the PC.

Transferring multimedia ﬁles to the camera

Create new folders named “MP3,” “PMP,” and

“TEXT” in My Computer →Removable Disk.

Copy multimedia ﬁles to the corresponding

folders.

MP3 MP3 ﬁles

PMP SDC ﬁles*

TEXT TXT ﬁles

* Convert with Samsung Converter

Disconnecting safely (for Windows XP)

Click

▼

Click

Warhol93_ASIA.indb 10 2009-09-18 오후 4:38:04
