Samsung SCC-C4253 Manuale utente

User Manual

Power Zoom Camera

SCC-C4253

SCC-C4353

SCC-C4255

SCC-C4355

imagine the possibilities

Thanks you for purchasing this Samsung product.

To receive a more complete service, please visit

our website

www.samsungsecurity.com

NTSC ENGLISH.indd 1 2009-9-22 15:48:26

2_ overview

overview

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER

SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates that dangerous voltage consisting a risk of

electric shock is present within this unit.

This symbol indicates that there are important operating and

maintenance instructions in the literature accompanying this unit.

WARNING

To reduce the risk of ﬁre or electric shock, do not expose this appliance to rain or

moisture.

To prevent injury, this apparatus must be securely attached to the ﬂoor/wall in

accordance with the installation instructions.

WARNING

Be sure to use only the standard adapter that is speciﬁed in the speciﬁcation sheet.

Using any other adapter could cause ﬁre, electrical shock, or damage to the

product.

Incorrectly connecting the power supply or replacing battery may cause explosion,

ﬁre, electric shock, or damage to the product.

Do not connect multiple cameras to a single adapter. Exceeding the capacity may

cause abnormal heat generation or ﬁre.

Securely plug the power cord into the power receptacle. Insecure connection may

cause ﬁre.

When installing the camera, fasten it securely and ﬁrmly. The fall of camera may

cause personal injury.

Do not place conductive objects (e.g. screwdrivers, coins, metal parts, etc.) or

containers ﬁlled with water on top of the camera. Doing so may cause personal

injury due to ﬁre, electric shock, or falling objects.



NTSC ENGLISH.indd 2 2009-9-22 15:48:26

English _3

English

Do not install the unit in humid, dusty, or sooty locations. Doing so may cause ﬁre

or electric shock.

If any unusual smells or smoke come from the unit, stop using the product. In such

case, immediately disconnect the power source and contact the service center.

Continued use in such a condition may cause ﬁre or electric shock.

If this product fails to operate normally, contact the nearest service center. Never

disassemble or modify this product in any way. (SAMSUNG is not liable for

problems caused by unauthorized modiﬁcations or attempted repair.)

When cleaning, do not spray water directly onto parts of the product. Doing so may

cause ﬁre or electric shock.

CAUTION

Do not drop objects on the product or apply strong blows to it. Keep away from a

location subject to excessive vibration or magnetic interference.

Do not install in a location subject to high temperature (over 50°C), low temperature

(below -10°C), or high humidity. Doing so may cause ﬁre or electric shock.

If you want to relocate the already installed product, be sure to turn off the power

and then move or reinstall it.

Remove the power plug from the outlet when there is a lighting storm. Neglecting

to do so may cause ﬁre or damage to the product.

Keep out of direct sunlight and heat radiation sources. It may cause ﬁre.

Install it in a place with good ventilation.

Avoid aiming the camera directly towards extremely bright objects such as sun, as

this may damage the CCD image sensor.

Apparatus shall not be exposed to dripping or splashing and no objects ﬁlled with

liquids, such as vases, shall be placed on the apparatus.

The Mains plug is used as a disconnect device and shall stay readily operable at

any time.

When using the camera outdoors, moisture may occur inside the camera due

to temperature difference between indoors and outdoors. For this reason, it is

recommended to install the camera indoors. For outdoor use, use the camera with

built-in fan and heater.

10.

NTSC ENGLISH.indd 3 2009-9-22 15:48:26

overview

4_ overview

FCC STATEMENT

This device complies with part 15 of the FCC Rules. Operation is subject to the following

two conditions :

1) This device may not cause harmful interference, and

2) This device must accept any interference received including interference that may

cause undesired operation.

Caution

This equipment has been tested and found to comply with the limits for a Class A

digital device, pursuant to part 15 of FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the equipment is operated

in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential

area is likely to cause harmful interference in which case the user will be required to

correct the interference at his own expense.

IC Compliance Notice

This Class A digital apparatus meets all requirements of the Canadian

Interference.-Causing Equipment Regulations of ICES-003.

NTSC ENGLISH.indd 4 2009-9-22 15:48:26

English _5

English

IMPORTANT SAFETY INSTRUCTIONS

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

Do not use this apparatus near water.

Clean only with dry cloth.

Do not block any ventilation openings. Install in accordance with the manufacturer’s

instructions.

Do not install near any heat sources such as radiators, heat registers, or other

apparatus (including ampliﬁers) that produce heat.

Do not defeat the safety purpose of the polarized or grounding-type plug.

A polarized plug has two blades with one wider than the other. A grounding type

plug has two blades and a third grounding prong. The wide blade or the third prong

is provided for your safety. If the provided plug does not ﬁt into your outlet, consult

an electrician for replacement of the obsolete outlet.

Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

Only use attachments/accessories speciﬁed by the manufacturer.

Use only with the cart, stand, tripod, bracket, or table speciﬁed

by the manufacturer, or sold with the apparatus. When a

cart is used, use caution when moving the cart/apparatus

combination to avoid injury from tip-over.

Unplug this apparatus during lightning storms or when unused

for long periods of time.

Refer all servicing to qualiﬁed service personnel. Servicing is required when the

apparatus has been damaged in any way, such as powersupply cord or plug is

damaged, liquid has been spilled or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture, does not operate normally, or has

been dropped.

Apparatus shall not be exposed to dripping or splashing and no objects

filled with liquids, such as vases, shall be placed on the apparatus

10.

11.

12.

13.

14.

NTSC ENGLISH.indd 5 2009-9-22 15:48:27

overview

6_ overview

CONTENTS

OVERVIEW

5Important Safety Instructions

6Contents

7Features

8What’s Included

8At a Glance

INSTALLATION &

CONNECTION

12 Preparing Installation

12 Connecting the Cables

SETUP

15 Main Menu

16 Proﬁle

18 Camera Set

27 Intelligent Video

29 Privacy Zone

30 Preset

31 Other Set

32 Communication

32 System Info

33 Language

APPENDIX

35 Shortcut Keys

36 Speciﬁcations

NTSC ENGLISH.indd 6 2009-9-22 15:48:27

English _7

English

FEATURES

With the state-of-the-art digital signal processing technology, full digital image

processing and special algorithm of 600-line high resolution implemented.

High Sensitivity: It implements images of high sensitivity using the up-to-date

Super-HAD IT CCD(SCC-C4253/C4353)/ExView-HAD PS CCD(SCC-C4255/

C4355).

VPS(Virtual Progressive Scan): This is an advanced technology that reproduces

a sharp progressive image. This is appropriate to high quality recording and ﬁle

transfer via the Internet. (SCC-C4255/C4355 only)

High performance surveillance camera, equipped with x43 zoom lens and digital

zoom IC, enabling monitoring up to 688 times

WDR extends the contrast range as it takes a picture of each of dark and bright areas

before compositing the two, which is useful if you take a picture of windows inside

a building. Namely, it improves the picture quality of the outdoor scenery as well as

indoor.(SCC-C4255/C4355 only)

Low Illumination: It uses the digital signal technologies such as low illumination and

Day/Night functions that make your camera identify objects even in the worst envi-

ronment.

XDR (eXtended Dynamic Range): Actively controls the gamma compensation in the

way it operates the ambient luminance contrast in a certain pixel unit to determine

the optimal visibility.

Digital Power Synchronization: The full digital Line Lock function directly adjusts the

vertical camera synchronization to enhance the operationability and reliability of this

camera.(SCC-C4353/C4355 only)

DAY/NIGHT:

This function can make the IR Cut ﬁltering function inactive under the illumina-

tion below the normal value.

White Balance to control the brightness to the illumination

Superior Backlight Adjustment:When an object has a bright illumination or sunlight

behind it, this camera automatically improves the shaded object picture quality.

Auto Focus to automatically adjust the focus to the subject movement

Privacy zone to hide a speciﬁc area for personal privacy.



NTSC ENGLISH.indd 7 2009-9-22 15:48:27

overview

8_ overview

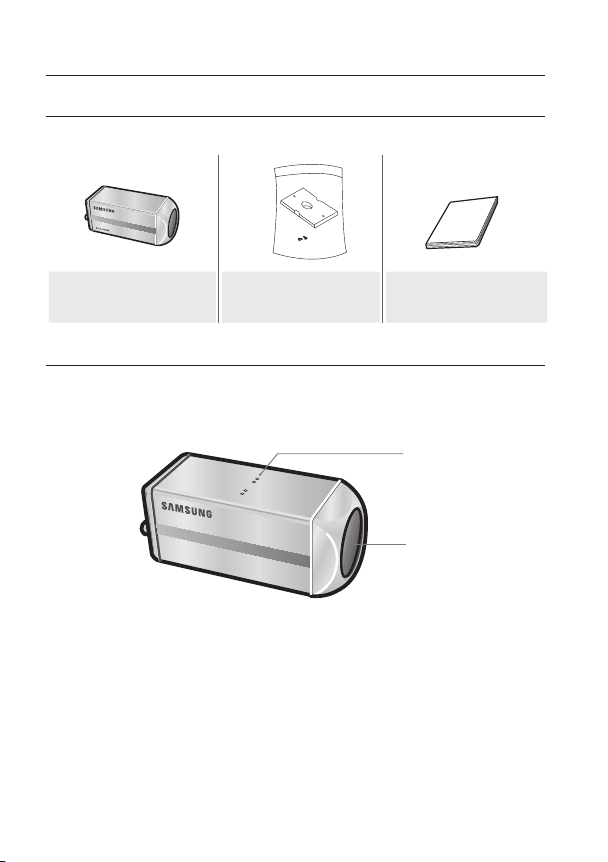

AT A GLANCE

SIDE VIEW

Wipe out a dirty surface of the lens softly with a lens tissue or cloth to which you

have applied ethanol.

M

WHAT’S INCLUDED

Please check if your camera and accessories are all included in the product package.

Camera

Camera Holder

(Mount Adaptor)

2 Screws User's Manual

Mount Adapter

Fixing Grooves

Camera Lens

NTSC ENGLISH.indd 8 2009-9-22 15:48:28

English _9

English

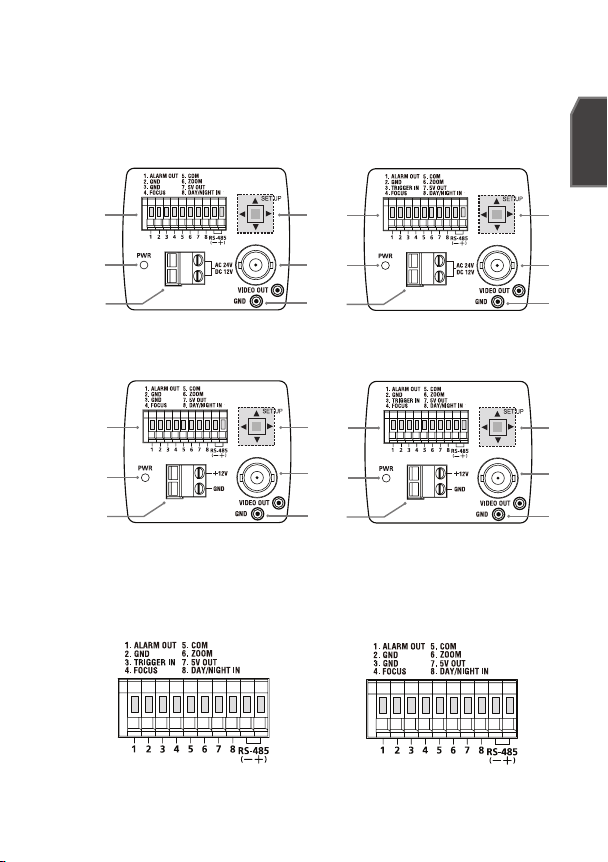

Rear Panel

 









 









[Z\\

[Z\Z

SCC-C4353

 









 









[Y\\

[Y\Z

SCC-C4253

Input/Output Connector

This connector has input and output ports for RS-485 control signals,

DAY/NIGHT switching, and alarm output signals.

[Y\\V[Z\\

[Y\ZV[Z\Z

SCC-C4355

 









 









[Z\\

[Z\Z

 









 









[Y\\

[Y\Z

SCC-C4255

[Y\\V[Z\\

[Y\ZV[Z\Z

SCC-C4255/C4355 SCC-C4253/C4353

NTSC ENGLISH.indd 9 2009-9-22 15:48:30

overview

10_ overview

1. ALARM OUT

Alarm out jack for motion detection. (Open Collector, On Gnd)

2. GND

Grounding jack.

3. TRIGGER IN (SCC-C4255/C4355)

Displays the current still image when it receives the Trigger signal. (Normal

Open Type)

4.5.6 FOCUS, COM, ZOOM

This port is used for ZOOM/FOCUS, MENU CONTROL, HOME

RETURN, and ONEAF by using an external controller.

Depending on the input condition, 4 modes, A, B, C, and D are

available. (SPECIAL - CTRL TYPE)

(Operation Voltage Range : +3V~+13V, -3V~-13V)

1) When the voltage is supplied to either ZOOM or FOCUS port

Function

Code

Tele(Up)

Wide(Down)

Near(Left) Far(Right)

ZOOM Port FOCUS Port

A -6V +6V -6V +6V

B -6V +6V +6V -6V

C +6V -6V -6V +6V

D+6V -6V +6V -6V

*1: During MENU OFF, controls ZOOM/FOCUS and during MENU ON,

changes the direction, Up/Down/Left/Right SETUP switch.

2) When the voltage is supplied to both ports

Function

Code

ENTER/AF *2 HOME RETURN *3

ZOOM Port

FOCUS Port

ZOOM Port

FOCUS Port

A -6V -6V +6V +6V

B -6V +6V +6V -6V

C +6V -6V -6V +6V

D+6V +6V -6V -6V

NTSC ENGLISH.indd 10 2009-9-22 15:48:30

Altri manuali per SCC-C4253

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Samsung Macchina fotografica digitale

Samsung

Samsung WB500 Manuale di istruzioni

Samsung

Samsung GX10 - Digital Camera SLR Manuale utente

Samsung

Samsung L210 - Digital Camera - Compact Manuale utente

Samsung

Samsung WB1101F Manuale utente

Samsung

Samsung PL10 Manuale di istruzioni

Samsung

Samsung TL500 Istruzioni per il montaggio

Samsung

Samsung TL500 Manuale utente

Samsung

Samsung TL240 Manuale di istruzioni

Samsung

Samsung digimax U-CA 501 Manuale utente

Samsung

Samsung S85 - Digital Camera - Compact Manuale utente

Samsung

Samsung WB2100 Manuale utente

Samsung

Samsung WB200F Manuale utente

Samsung

Samsung SAMSUNG ST66 Manuale utente

Samsung

Samsung ST50 Manuale di istruzioni

Samsung

Samsung Galaxy Camera EK-GC100 Manuale utente

Samsung

Samsung VP-MS10 Series Guida all'installazione

Samsung

Samsung Smart Camera WB800F Guida utente

Samsung

Samsung SL605 Manuale utente

Samsung

Samsung SLRS Manuale utente

Samsung

Samsung SL102 - Digital Camera - Compact Manuale utente

Samsung

Samsung PL70 Guida per l'amministratore

Samsung

Samsung L110 Manuale utente

Samsung

Samsung VLUU PL100 Manuale utente

Samsung

Samsung TL34HD - Digital Camera - Compact Manuale utente

Manuali Macchina fotografica digitale popolari di altre marche

Mercury

Mercury 350K Manuale utente

Pentax

Pentax Optio LS 465 Manuale utente

Sanyo

Sanyo VPC-S1085 Manuale utente

GE SMART A1255 Manuale utente

Point Grey

Point Grey Gazelle Manuale utente

Nikon

Nikon COOLPIX A Manuale utente

Pentax

Pentax P-5 Manuale utente

BlazeVideo

BlazeVideo A280 Manuale utente

Sony

Sony MCA-20 Manuale utente

Sony

Sony Alpha DSLR-A290 Manuale utente

ATIK Cameras

ATIK Cameras One Manuale utente

CohuHD Costar

CohuHD Costar 3930 Series Manuale utente

Leica

Leica M10-R Manuale utente

FujiFilm

FujiFilm FinePix A700 Manuale utente

Lorex

Lorex LNZ81P25 Series Manuale utente

GE J1470S Manuale utente

Sony

Sony A6700 Guida utente

Canon

Canon EOS ELAN7 Manuale utente
