Samsung TL220 - DualView Digital Camera Manuale di istruzioni

This Quick Start Manual has been specially designed to guide you

through the basic functions and features of your device.

Please read the Quick Start Manual and User Manual carefully to

ensure safe and correct use.

Quick Start Manual

TL220

For more information, refer to

the User Manual included on the

supplied CD-ROM.

ENG / SPA

FOR TECHNICAL SUPPORT, PLEASE CALL 1-800-SAMSUNG (726-7864)

POR FAVOR LLAMAR 1-800-SAMSUNG (726-7864) PARA ASISTENCIA TECNICA

TL220_QSM_SEA.indb 3 2009-09-15 오후 3:07:11

EN-2

Health and safety informationContents

Warnings

Do not use your camera near ﬂammable or explosive

gases and liquids

Do not use your camera near fuels, combustibles, or

ﬂammable chemicals. Do not store or carry ﬂammable

liquids, gases, or explosive materials in the same

compartment as the camera or its accessories.

Keep your camera away from small children and pets

Keep your camera and all accessories out of the reach of

small children and animals. Small parts may cause choking

or serious injury if swallowed. Moving parts and accessories

may present physical dangers as well.

Prevent damage to subjects’ eyesight

Do not use the ﬂash in close proximity (closer than 1m/3

ft) to people or animals. Using the ﬂash too close to your

subject’s eyes can cause temporary or permanent damage.

Health and safety

information…………………… 2

Camera layout ……………… 4

Setting up your camera …… 5

Unpacking ……………………… 5

Inserting the battery and

memory card …………………… 6

Charging the battery …………… 6

Turning on your camera………… 7

Using the touch screen …………7

Capturing photos or videos 8

Playing ﬁles ………………… 9

Transferring ﬁles to a PC

(Windows) …………………… 10

Speciﬁcations ……………… 11

102

TL220_QSM_SEA.indb 2 2009-09-15 오후 3:07:12

EN-3

English

Exercise caution when connecting cables or adapters•

and installing batteries and memory cards. Forcing

the connectors, improperly connecting cables, or

improperly installing batteries and memory cards can

damage ports, connectors, and accessories.

Do not insert foreign objects into any of your camera’s•

compartments, slots, or access points. This type of

damage may not be covered by your warranty.

Protect batteries, chargers, and memory cards from

damage

Avoid exposing batteries or memory cards to very•

cold or very hot temperatures (below 0° C/32° F or

above 40° C/104° F). Extreme temperatures can

reduce the charging capacity of your batteries and

can cause memory cards to malfunction.

Do not allow liquids, dirt, or foreign substances to•

come in contact with memory cards or the memory

card slot. Doing so may cause memory cards or the

camera to malfunction.

Do not use memory cards that have been formatted•

by other cameras or by a computer. Reformat the

memory card with your camera.

Handle and dispose of batteries and chargers with

care

Use only Samsung-approved batteries and chargers.•

Incompatible batteries and chargers can cause serious

injuries or damage to your camera.

Never place batteries or cameras on or in heating•

devices, such as microwave ovens, stoves, or

radiators. Batteries may explode when overheated.

Cautions

Handle and store your camera carefully and sensibly

Do not allow your camera to get wet—liquids can•

cause serious damage. Do not handle your camera

with wet hands. Water damage to your camera can

void your manufacturer’s warranty.

Avoid using or storing your camera in dusty, dirty,•

humid, or poorly-ventilated areas to prevent damage

to moving parts and internal components.

TL220_QSM_SEA.indb 3 2009-09-15 오후 3:07:12

EN-4

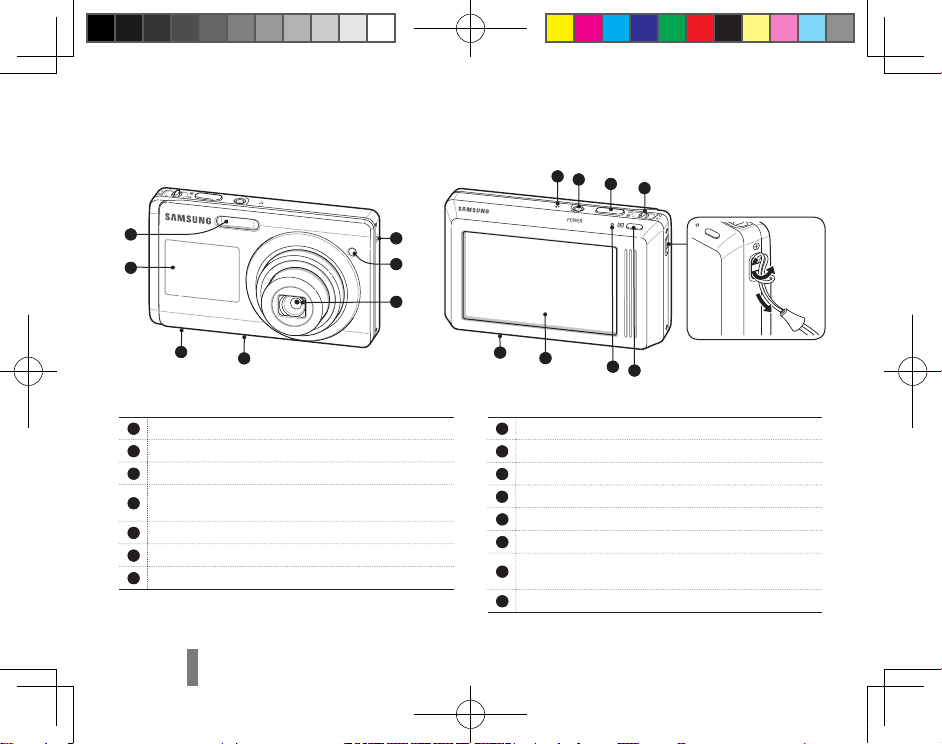

Speaker

AF-assist light/timer lamp

Lens

USB and A/V port (Accepts USB cable and A/V

cable)

Battery chamber cover

Front display

Flash

Camera layout

Microphone

POWER button

Shutter button

Zoom button

Playback button

Status lamp

Main display (Referred to "Touch screen" in this

manual)

Tripod mount

7 1

8 9

TL220_QSM_SEA.indb 4 2009-09-15 오후 3:07:13

EN-5

English

Setting up your camera

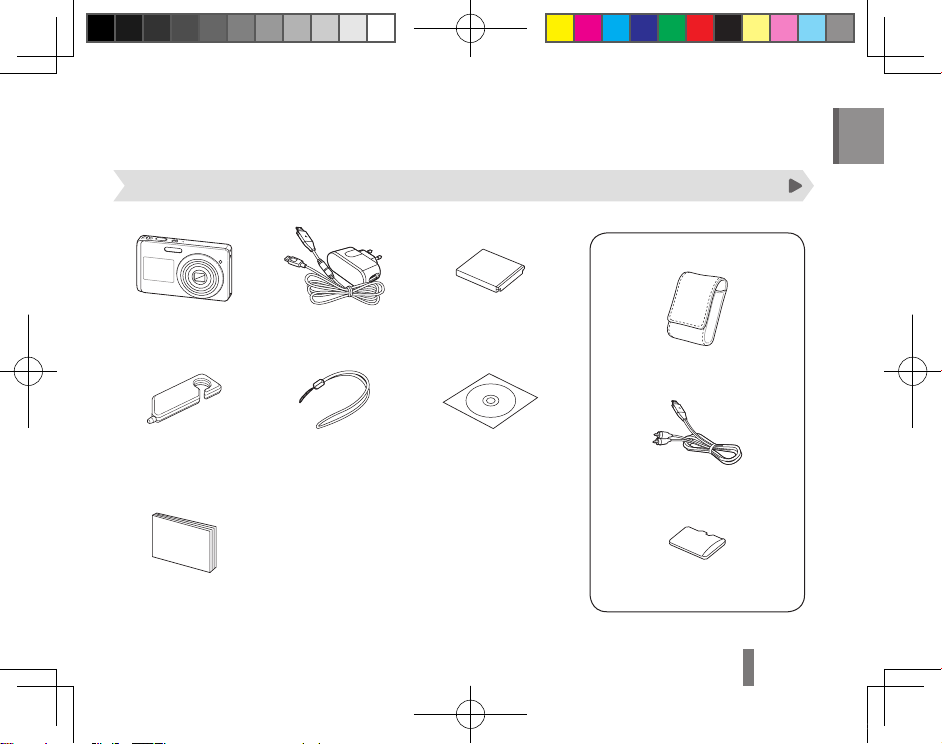

Camera AC adapter/USB cable

(AD44-00143A)/(AD39-00165A)

Rechargeable battery

(4302-001227)

Touch pen

(AD75-00070A)

Strap

(Silver: AD63-02596A)

User Manual CD-ROM

(AD46-00278A)

Quick Start Manual

(AD68-04230A)

Unpacking

Optional accessories

Camera case

A/V cable

(AD39-00146A)

Memory card (microSD

)

TL220_QSM_SEA.indb 5 2009-09-15 오후 3:07:16

EN-6

Setting up your camera

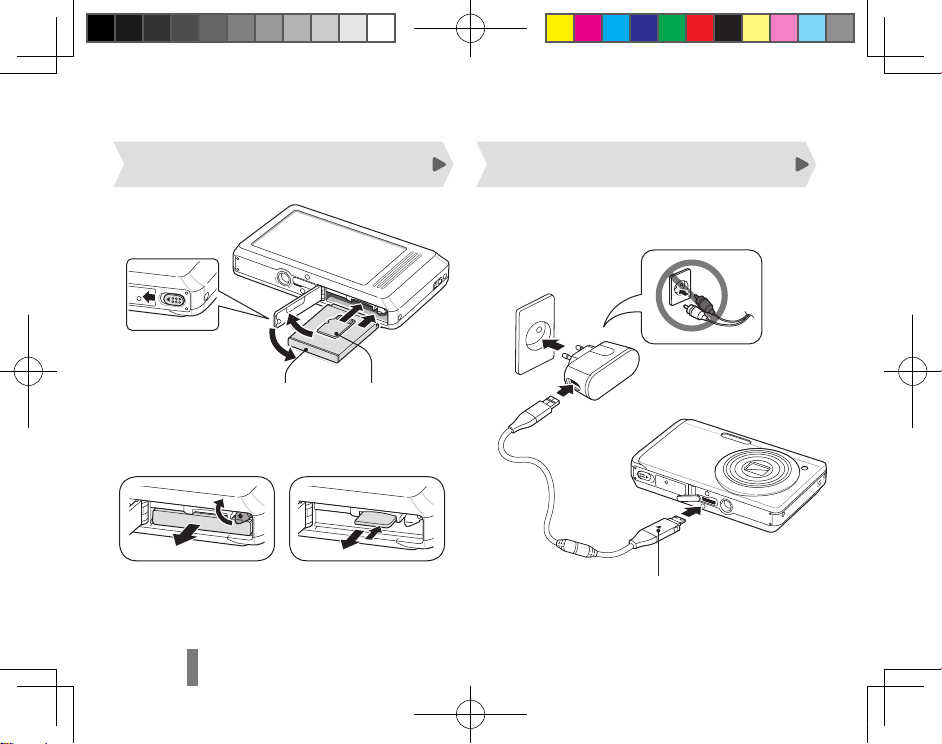

Inserting the battery and memory card Charging the battery

With the Samsung

logo facing up

With the gold-

colored contacts

facing up

▼

Removing the battery

▼

Removing the memory card

Push gently until the card

disengages from the camera

and then pull it out of the slot.

Before using the camera for the ﬁrst time, you must

charge the battery.

Indicator light

Red▪: Charging

Green▪: Fully charged

TL220_QSM_SEA.indb 6 2009-09-15 오후 3:07:18

EN-7

English

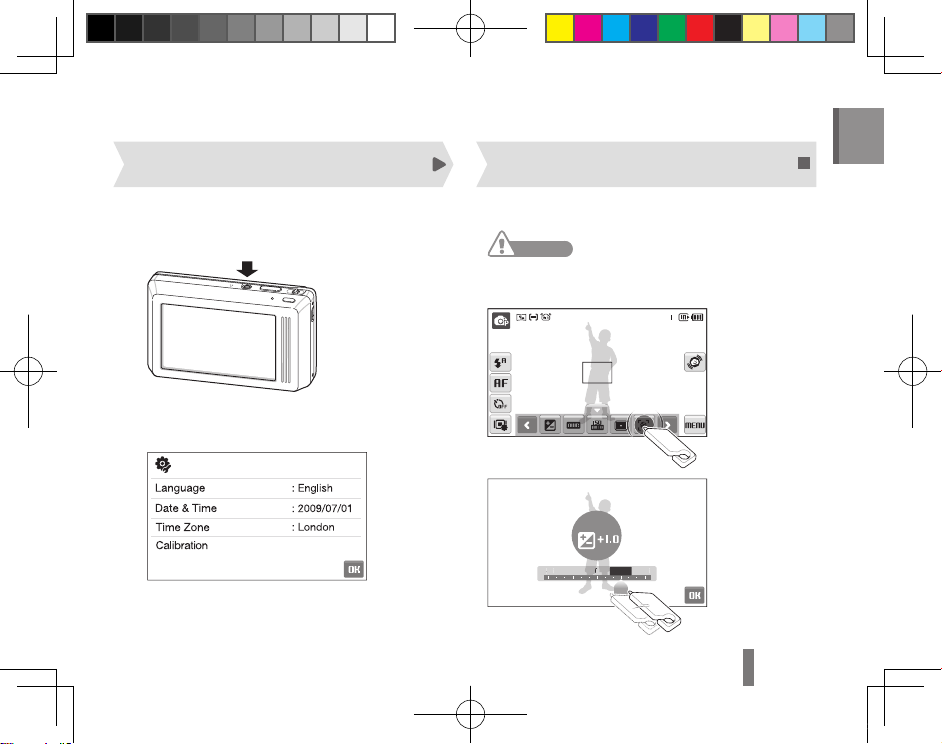

Press [

POWER] to turn your camera on or off.

The initial setup screen appears when you turn on▪

your camera for the ﬁrst time.

Select a language, set the date and time,

select a time zone, and calibrate the screen.

Use the touch pen to touch or drag on the touch screen.

Caution

Do not use other sharp objects, such as pens or pencils,

to touch the screen. Doing so may damage the screen.

Touching

Touch an icon to

open a menu or

set an option.

-2 -1 0+2-2 -

2+1

Dragging

Drag left or

right to scroll

horizontally.

Turning on your camera Using the touch screen

TL220_QSM_SEA.indb 7 2009-09-15 오후 3:07:20

EN-8

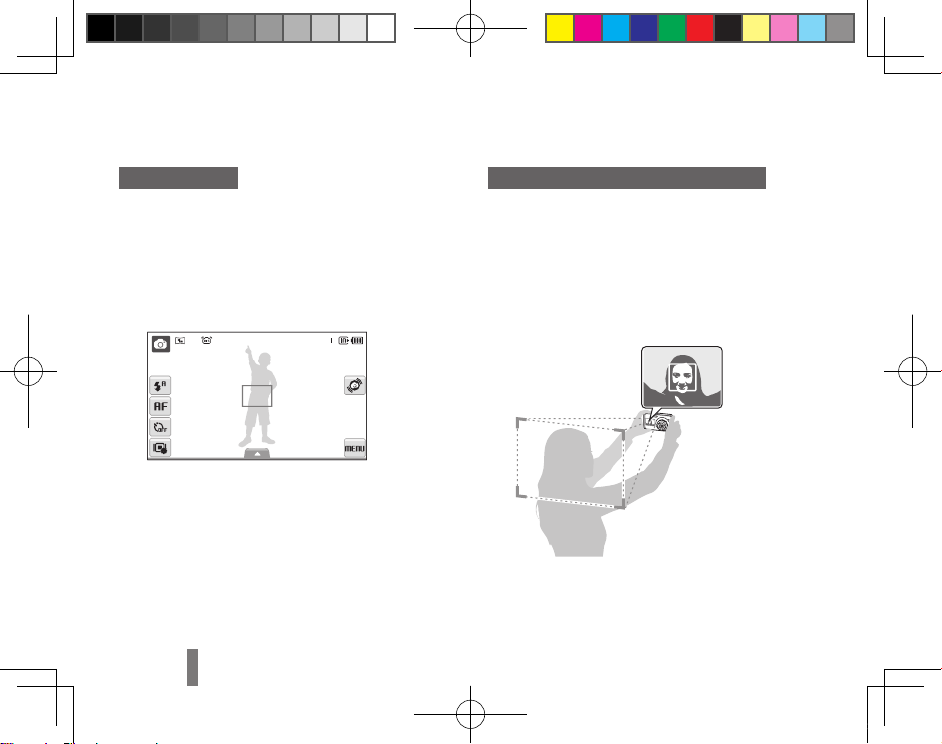

Taking a photo using the front display

Take photos of yourself conveniently using the front

display.

In Shooting mode, tap the front display to turn

it on.

Your camera will detect your face automatically.▪

The camera automatically releases the shutter▪

when it detects a smiling face.

Press [

Shutter] halfway down to focus.

Press [

Shutter] all the way down to take the

photo.

Taking a photo

Make sure that the camera is in the

amode

(Auto mode).

Align your subject in the frame.

Press [

Shutter] halfway down to focus

automatically.

A green frame means the subject in focus.▪

F3.5

1/30s

Press [

Shutter] all the way down to take the

photo.

Capturing photos or videos

TL220_QSM_SEA.indb 8 2009-09-15 오후 3:07:21

EN-9

English

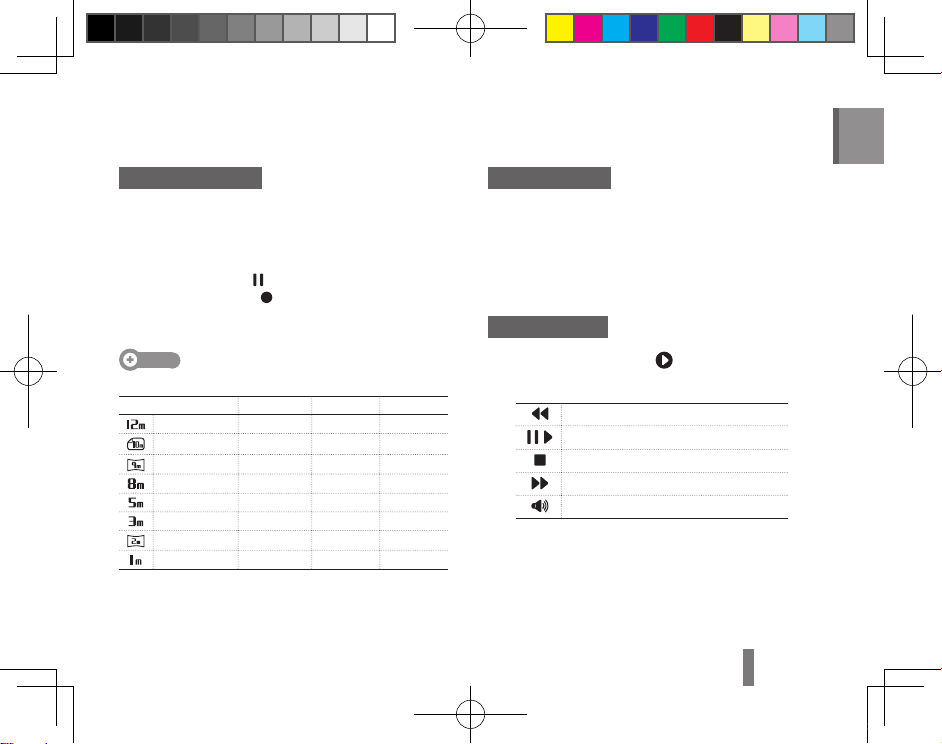

Playing ﬁles

Recording a video

Select

a→v.

Align your subject in the frame.

Press [

Shutter].

To pause, select▪.

To resume, select▪.

Press [

Shutter] again to stop recording.

Note

Number of photos by resolution (for 1 GB microSD

)

Resolution Super ﬁne Fine Normal

4000 X 3000 145 281 399

3984 X 2656 166 310 436

3840 X 2160 200 363 522

3264 X 2448 209 357 531

2560 X 1920 339 630 860

2048 X 1536 526 885 1,198

1920 X 1080 873 1,455 1,909

1024 X 768 1,697 2,037 2,350

These ﬁgures are measured under Samsung’s standard conditions and may

vary depending on shooting conditions and camera settings.

Viewing photos

Press [

P].

Draw a horizontal bar left or right,

or select <or >to scroll through photos.

You can also view ﬁles by tilting your camera.▪

Viewing videos

Press [

P] and select .

Use the following icons to control playback.

Scan backward

Pause or resume playback

Stop playback

Scan forward

Adjust volume or mute sound

TL220_QSM_SEA.indb 9 2009-09-15 오후 3:07:27

EN-10

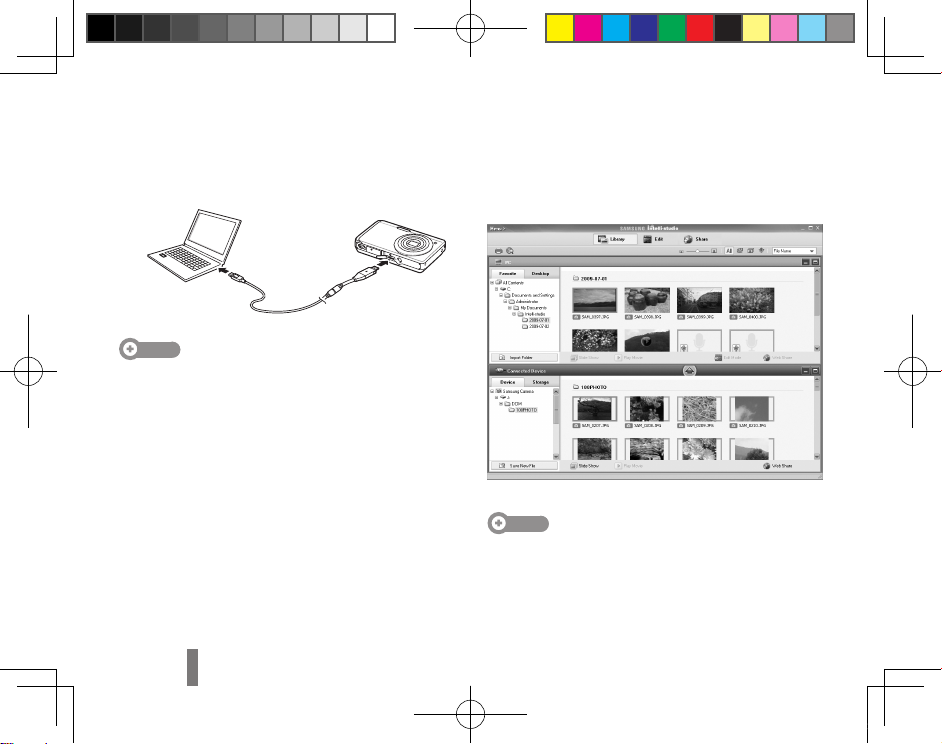

Transferring ﬁles to a PC (Windows)

Connect the camera to your computer with the

USB cable.

Note

Make sure that the PC Software option is set to On in the

settings menu.

Turn on the camera.

The computer recognises the camera automatically.▪

For Windows Vista, select▪Run iStudio.exe from

the AutoPlay window.

Select a folder on your computer to save new

ﬁles.

If your camera has no new ﬁles, the pop-up window▪

for saving new ﬁles will not appear.

Select

Yes.

New ﬁles will be transferred to your computer.▪

You can now use the Intelli-studio program.

Note

About Intelli-studio

Intelli-studio is a built-in program that allows you to play

back and edit ﬁles. You can also upload ﬁles to websites,

such as Flickr or YouTube.

TL220_QSM_SEA.indb 10 2009-09-15 오후 3:07:28
