Quick Start Manual

PL100/PL101

This Quick Start Manual has been specially designed to guide

you through the basic functions and features of your device.

Please read the Quick Start Manual and User Manual carefully

to ensure safe and correct use.

For more information, refer to

the User Manual included on the

supplied CD-ROM.

ENG / GER / FRE / SPA / ITA / DUT / POR

PL100_QSM_EUR1.indb 3 2010-01-27 오후 2:58:36

Health and safety informationContents

Warnings

Do not use your camera near ﬂammable or explosive

gases and liquids

Do not use your camera near fuels, combustibles, or

ﬂammable chemicals. Do not store or carry ﬂammable

liquids, gases, or explosive materials in the same

compartment as the camera or its accessories.

Keep your camera away from small children and pets

Keep your camera and all accessories out of the reach of

small children and animals. Small parts may cause choking

or serious injury if swallowed. Moving parts and accessories

may present physical dangers as well.

Prevent damage to subjects’ eyesight

Do not use the ﬂash in close proximity (closer than 1 m/3

ft) to people or animals. Using the ﬂash too close to your

subject’s eyes can cause temporary or permanent damage.

Health and safety information 2

Camera layout ……………… 4

Setting up your camera …… 5

Unpacking ……………………… 5

Inserting the battery and memory

card ……………………………… 6

Charging the battery ……………6

Turning on your camera………… 7

Selecting options ……………… 7

Capturing photos or videos 8

Playing ﬁles ………………… 9

Transferring ﬁles to a PC

(Windows) ……………………10

Speciﬁcations ………………11

PL100_QSM_EUR1.indb 2 2010-01-27 오후 2:58:36

English

Exercise caution when connecting cables or adapters•

and installing batteries and memory cards. Forcing

the connectors, improperly connecting cables, or

improperly installing batteries and memory cards can

damage ports, connectors, and accessories.

Do not insert foreign objects into any of your camera’s•

compartments, slots, or access points. This type of

damage may not be covered by your warranty.

Protect batteries, chargers, and memory cards from

damage

Avoid exposing batteries or memory cards to very•

cold or very hot temperatures (below 0° C/32° F or

above 40° C/104° F). Extreme temperatures can

reduce the charging capacity of your batteries and

can cause memory cards to malfunction.

Prevent memory cards from making contact with•

liquids, dirt, or foreign substances. If dirty, wipe the

memory card clean with a soft cloth before inserting

in your camera.

Handle and dispose of batteries and chargers with

care

Use only Samsung-approved batteries and chargers.•

Incompatible batteries and chargers can cause serious

injuries or damage to your camera.

Never place batteries or cameras on or in heating•

devices, such as microwave ovens, stoves, or

radiators. Batteries may explode when overheated.

Cautions

Handle and store your camera carefully and sensibly

Do not allow your camera to get wet—liquids can•

cause serious damage. Do not handle your camera

with wet hands. Water damage to your camera can

void your manufacturer’s warranty.

Avoid using or storing your camera in dusty, dirty,•

humid, or poorly-ventilated areas to prevent damage

to moving parts and internal components.

PL100_QSM_EUR1.indb 3 2010-01-27 오후 2:58:36

Camera layout

Shutter button

POWER button

Microphone

Front LCD button

Flash

Lens

Battery chamber cover

Front display

AF-assist light/timer lamp

Zoom button

Speaker

Status lamp

Mode dial

USB and A/V port (Accepts USB cable or A/V cable)

Function button

Playback button

Navigation button/OK button

MENU button

Tripod mount

Main display

PL100_QSM_EUR1.indb 4 2010-01-27 오후 2:58:37

English

Setting up your camera

Unpacking

Camera AC adapter/USB cable Rechargeable battery Strap

Software CD-ROM

(User manual included)

Quick Start Manual

Optional accessories

Camera case Memory card A/V cable Battery charger

PL100_QSM_EUR1.indb 5 2010-01-27 오후 2:58:39

Setting up your camera

Inserting the battery and memory card Charging the battery

With the Samsung logo

facing up

With the gold-

colored contacts

facing up

Indicator light

Red▪: Charging

Green▪: Fully charged

Before using the camera for the ﬁrst time, you must

charge the battery.

▼

Removing the battery

▼

Removing the memory card

Push gently until the card

disengages from the camera

and then pull it out of the slot.

PL100_QSM_EUR1.indb 6 2010-01-27 오후 2:58:40

English

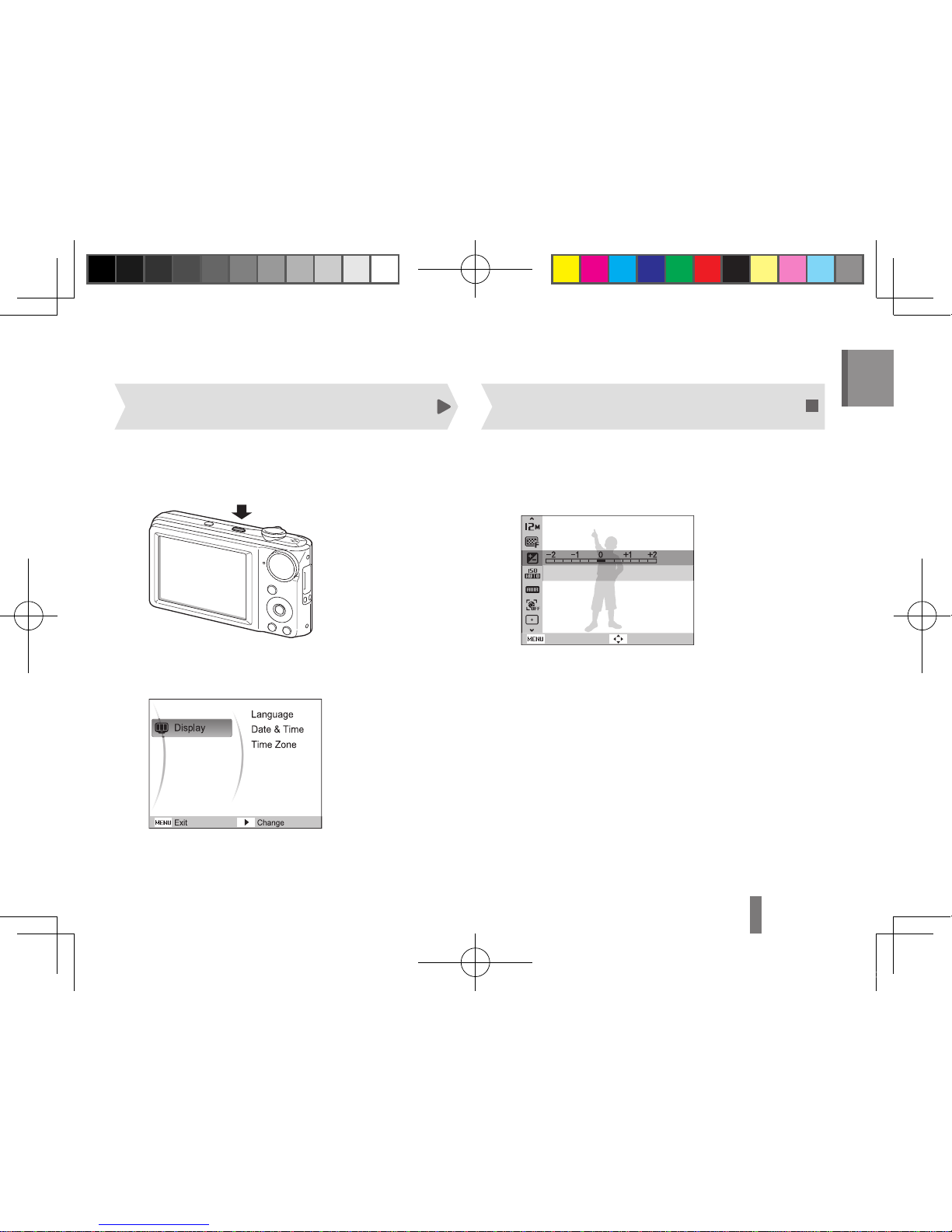

Press [

POWER].

The intial setup screen appears when you turn on▪

your camera for the ﬁrst time.

Select a language, set the date and time, and

select a time zone.

In Shooting mode, press [

m].

Use the navigation buttons to scroll to an

option or menu.

Back

Move

To move left or right, press [▪F] or [t].

To move up or down, press [▪D] or [M].

Press [

o] to conﬁrm the highlighted option

or menu.

Press [▪m] again to go back to the previous

menu.

Turning on your camera Selecting options

PL100_QSM_EUR1.indb 7 2010-01-27 오후 2:58:40

Taking a photo

Rotate the mode dial to

Align your subject in the frame.

Press [

Shutter] halfway down to focus

automatically.

A green frame means the subject in focus.▪

Press [

Shutter] all the way down to take the

photo.

Taking a photo of yourself using the

front display

The front display will help you take self-portraits.

In Shooting mode, press [

Front LCD] once.

The front display turns on in the Self-portrait mode.▪

Press [

Shutter] halfway down to focus.

Press [

Shutter] all the way down to take the

photo.

Capturing photos or videos

PL100_QSM_EUR1.indb 8 2010-01-27 오후 2:58:41

English

Playing ﬁles

Recording a video

Rotate the mode dial to

Align your subject in the frame.

Press [

Shutter].

Press [▪o] to pause or resume.

Press [

Shutter] again to stop the recording.

Note

Number of photos by resolution (for 1 GB SD)

Resolution Super Fine Fine Normal

4000 X 3000 147 284 403

3984 X 2656 167 313 441

3840 X 2160 202 367 528

3264 X 2448 211 374 537

2560 X 1920 339 566 792

2048 X 1536 510 802 1,065

1920 X 1080 735 1,144 1,437

1024 X 768 1,287 1,670 1,872

These ﬁgures are measured under Samsung’s standard

conditions and may vary depending on shooting conditions

and camera settings.

Viewing photos

Press [

P].

Press [

F] or [t] to scroll through ﬁles.

Press and hold to scroll through ﬁles quickly.▪

Viewing videos

Press [

P].

Press [

o].

Use the following buttons to control playback.

[F]Scan backward

[o]Pause or resume playback

[t]Scan forward

[Zoom] left or right Adjust the volume level

PL100_QSM_EUR1.indb 9 2010-01-27 오후 2:58:43

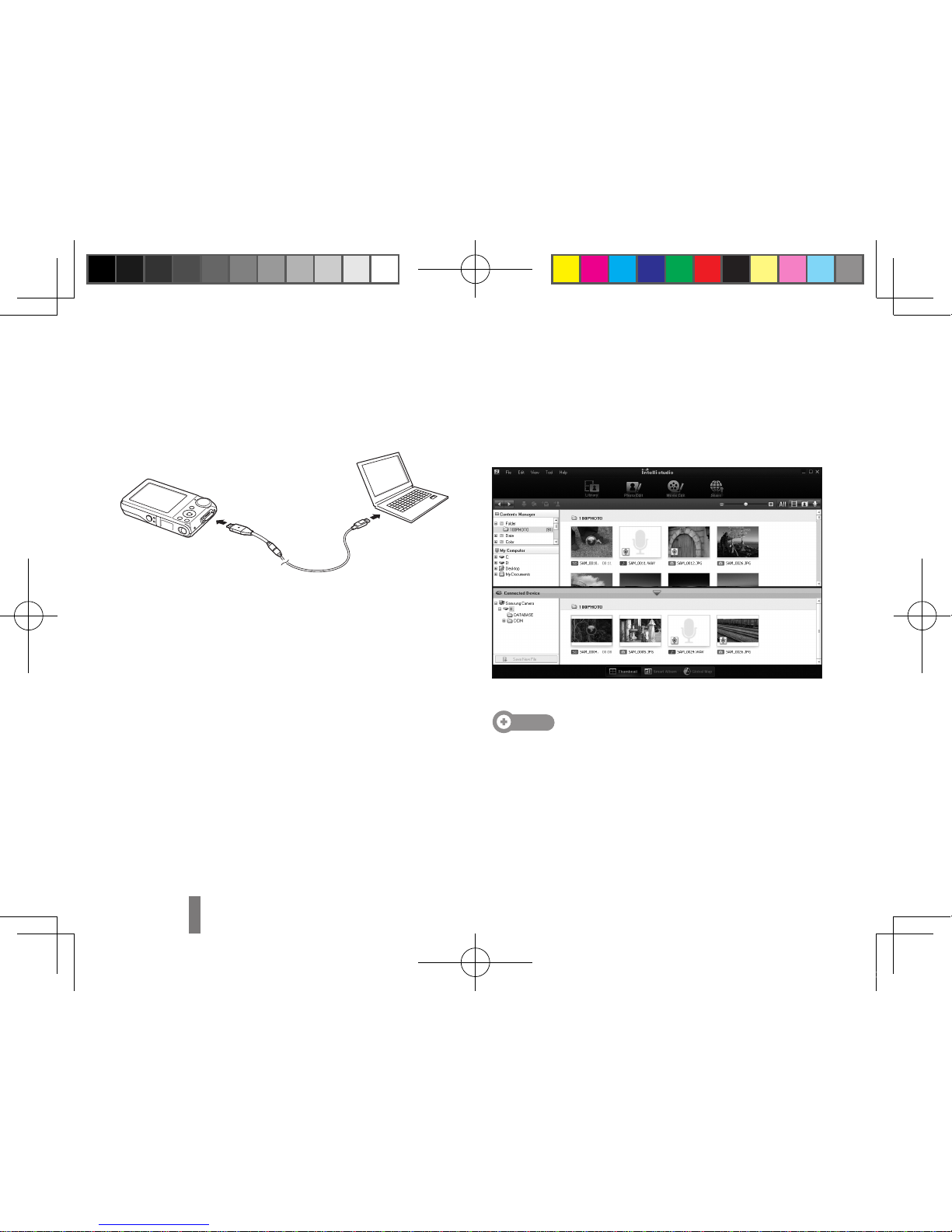

Transferring ﬁles to a PC (Windows)

Connect the camera to your computer with the

USB cable.

Turn on the camera.

The computer recognizes the camera automatically.▪

For Windows Vista, select▪Run Installer.exe from

the AutoPlay window.

Select a folder on your computer to save new

ﬁles.

If your camera has no new ﬁles, the pop-up window▪

for saving new ﬁles will not appear.

Select

Yes.

New ﬁles will be transferred to your computer.▪

You can now use the Intelli-studio program.

Note

About Intelli-studio

Intelli-studio is a program that allows you to play back and

edit ﬁles. You can also upload ﬁles to websites, such as

Flickr or YouTube.

PL100_QSM_EUR1.indb 10 2010-01-27 오후 2:58:43
