Samsung SPF-83H Manuale utente
| System Requirements | Installation | Installing USB
driver |
System Requirements
zOS : Windows XP SP2
zUSB : Extended Host Controller (EHCT) for USB 2.0
zRAM : 256 MB or above
| System Requirements | Installation | Installing USB
driver |
Installation
1. Click Frame Manager icon in the main page of the CD manual to run the install file.
2. Press "Next" button.
3. Click on "Change" button to Select the path on your PC where you want the software to be stored/installed.
Install the Application first before connectin
g
the Di
g
ital Photo Frame to a PC.

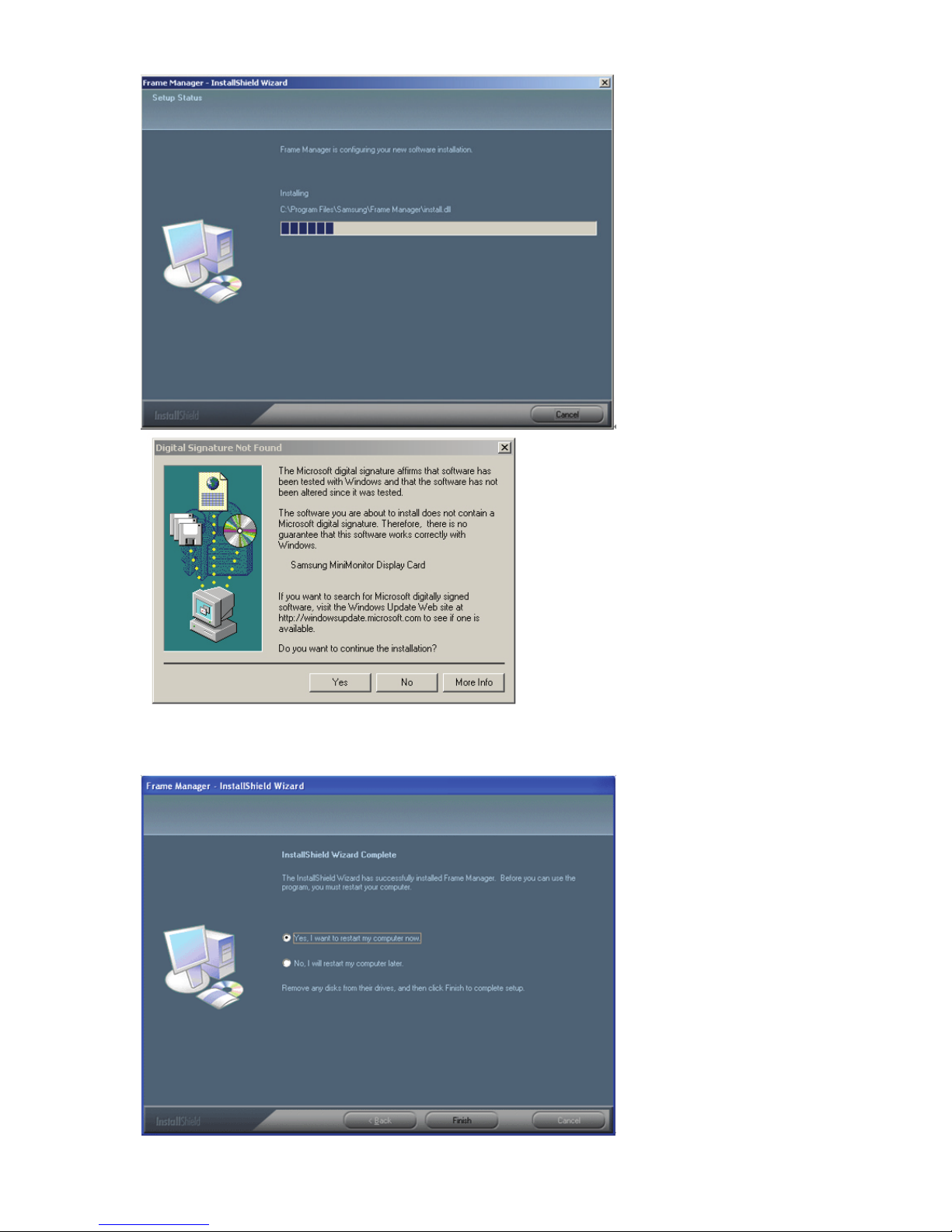

4. Press "Install" button to proceed.
5. Press "Yes" Button.
6. Select "Yes, I want to restart my computer now" to boot the system.
Click on "Finish" button.
7. To use the Samsung Digital Photo Frame as USB Secondary Display -
Go to Control Panel -> Display -> Settings ->Select Samsung Mini-Monitor Display Card.
Check Button "Extend my windows desktop on to this monitor"
8. Press "Ok" or "Apply".
When the PC is restarted the Frame Manager icon will appear in system tray.
NOTE : Applicable for Windows XP users only.
NOTE : Never make this as primary monitor.
| System Requirements | Installation | Installing USB
driver |
Installing USB driver
1. Connect the larger "standard USB" connector to the USB port of the PC. Connect the smaller "mini-USB" connector to the "PC"
connector of the Samsung Digital Photo Fame.
Now Switch on the device (Samsung Digital Photo Player) and connect the USB cable
(provided in the box with the unit) to the PC.

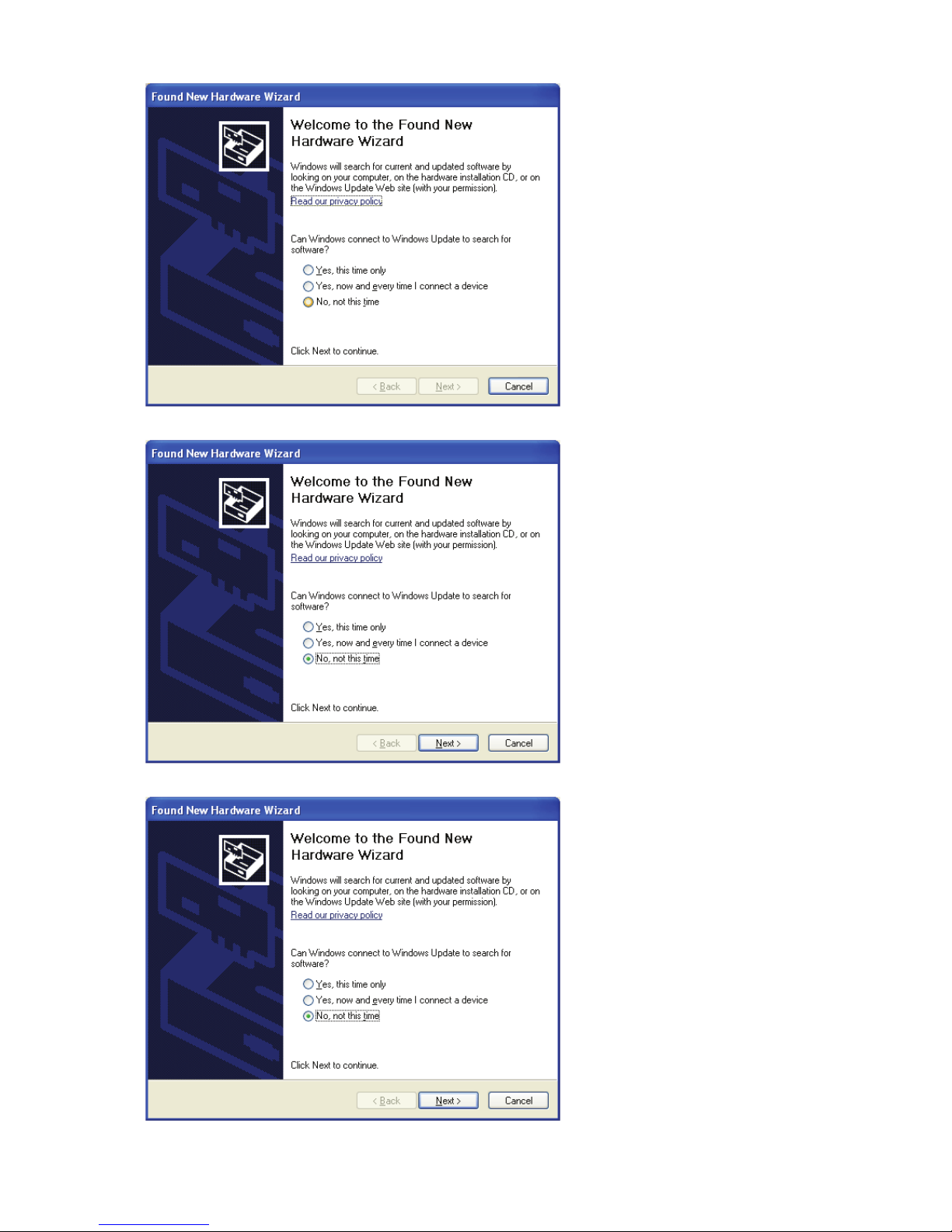

2. Select "No, not this time" button.
3. Click on "Next" button.
4. Click on "Next" button.

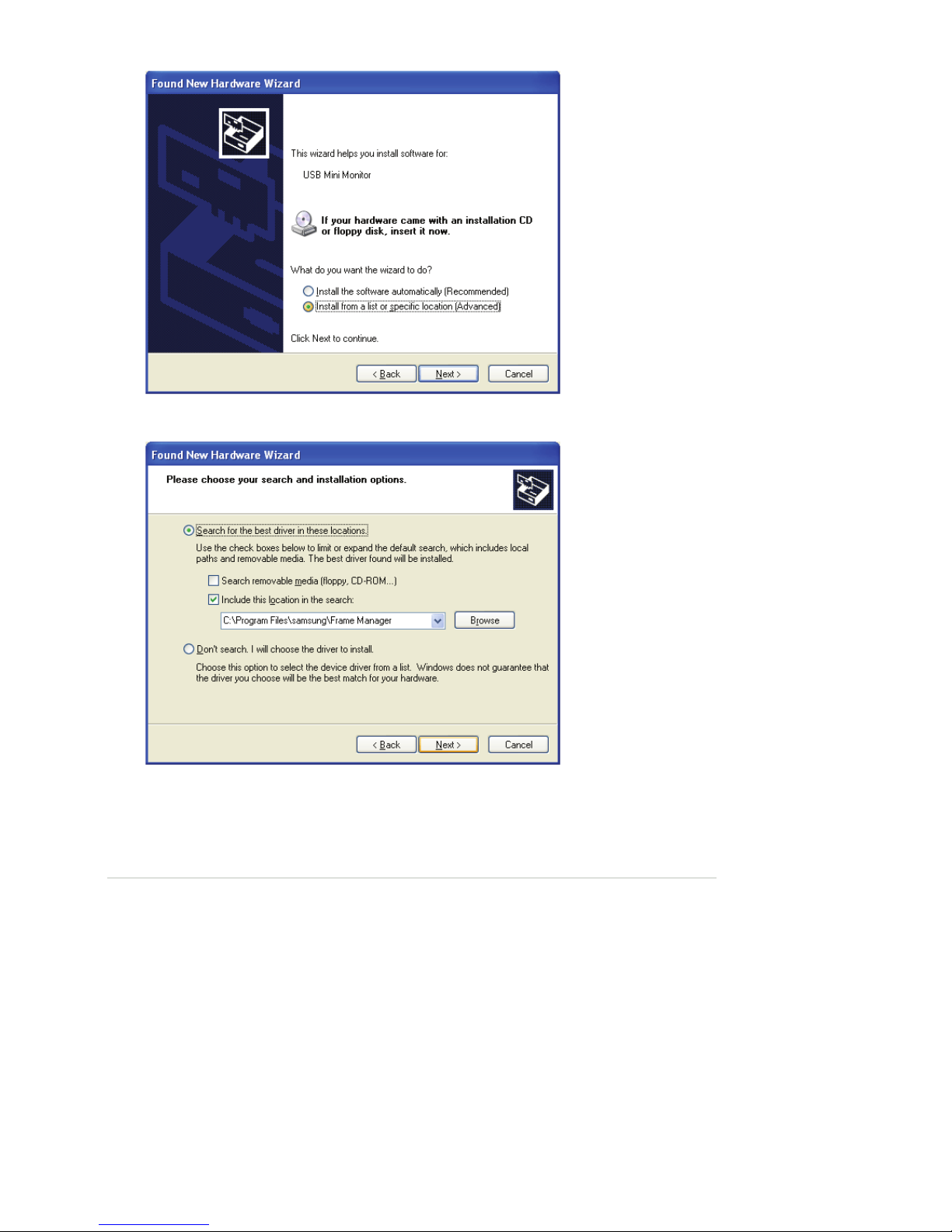

5. Select "Install from a list of specific location (Advanced)".
Click on Next button.
6. Select "Search for the best driver in these locations" option.
Check "Include this location in the search:"
Now click on "Browse" button to select the directory where the Frame Manger software is
installed.
(Refer to Frame Manager Installation step 3).

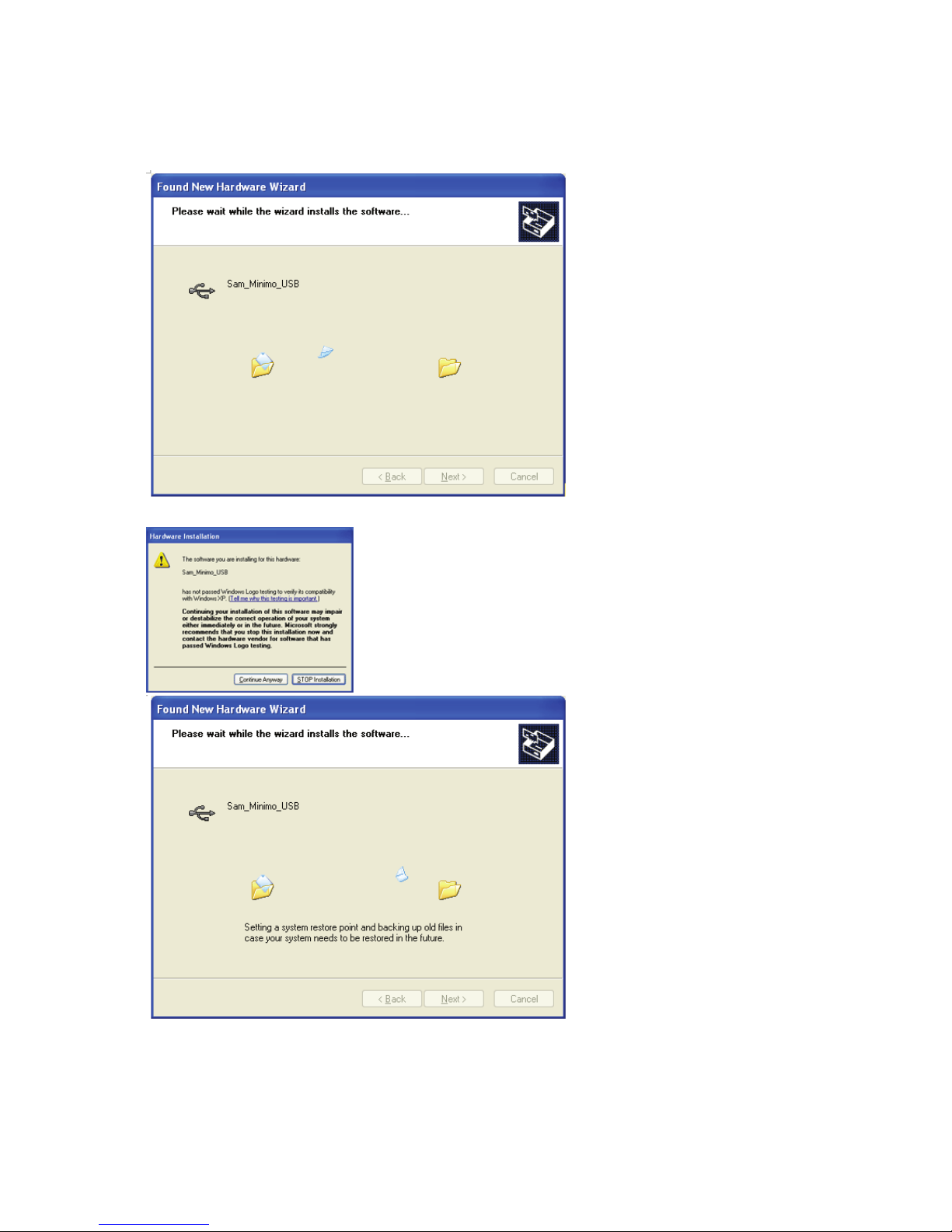

7. Now press "Next" button.
8. Press "Continue Anyway" button.

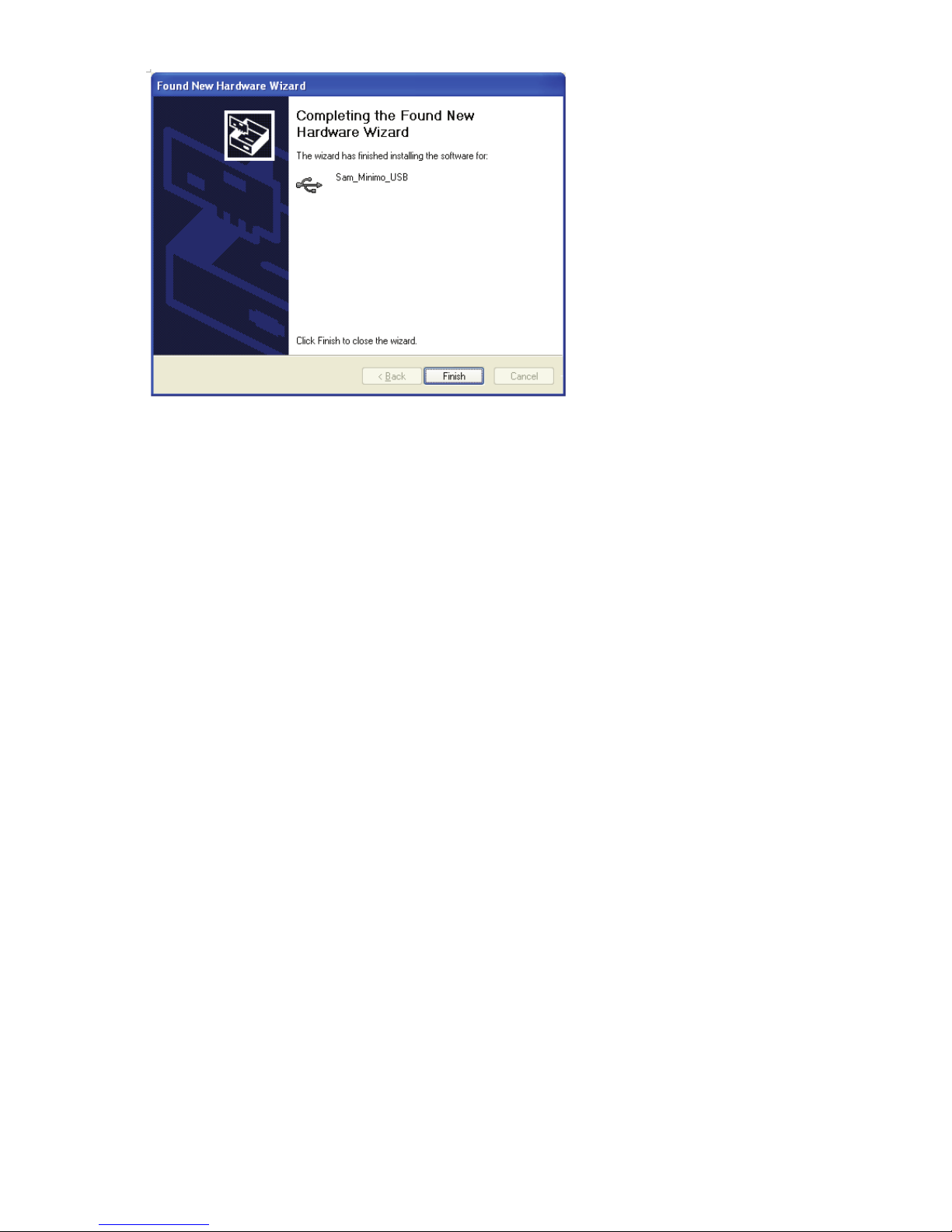

9. Press "Finish" button.
10. Now the system is ready to be used.
The Default Mode of the Samsung Digital Photo Frame is a Photo Album.
To use the Digital Photo Frame as a secondary USB Monitor or USB Mass-storage device, follow the instructions below.
How To Use Digital Photo Frame As Mini-Monitor
If USB cable is not connected and Digital Photo Frame is switched on, it starts working as a Photo Album.
To use the Samsung Digital Photo Frame device as a secondary USB Monitor, first install the frame Manger
on the Windows XP computer. (Follow the Frame Manger Installation Guide for installation).
Use the USB cable to connect the computer’s USB port to the Digital Photo Frame’s USB port.
On Samsung Digital Photo Frame, the following screen will appear:
Select Mini-Monitor option by clicking the button.
On the device desktop will appear.
In Frame Manager System tray menu, Mini-Monitor menu item will appear disabled (i.e. the current mode) and
Mass Storage menu item will appear enabled.
How To Use Digital Photo Frame As Mass Storage
If USB cable is connected to PC, Disconnect and connect again.
Following screen will be shown on Digital Photo Frame.
Select Mass-Stora
g
e option by clickin
g
the button. Use Left / Ri
g
ht (button 5 and button 6 in above fi
g
ure) button on
device for selection and by pressing ENTER button (button 8 in above figure) on device.
A
dialo
g
box (Window Default) will appear and you can open the folder.
How to switch current mode to another
1. Mini-Monitor To Mass-Storage
If the USB Cable is connected and Photo Frame is being used as Monitor,
1. Right click on the Frame Manager System tray icon.
2. From the Menu, Click on menu item Mass Storage.
2. Mass-Storage To Mini-Monitor
If the USB Cable is connected and Photo Frame is being used as Mass-Storage,
1. Right click on the Frame Manager System tray icon.
