Samsung UF-130DX Manuale utente
Samsung Digital PresenterSamsung Digital Presenter
(UF-130DX/ST)(UF-130DX/ST)
HIGH RESOLUTION DIGITAL PRESENTER
RS-232C REFERENCE
HIGH RESOLUTION DIGITAL PRESENTER
RS-232C REFERENCE
Before attempting to operate this product, Please read the instructions carefully.
www.samsungpresenter.com
Before attempting to operate this product, Please read the instructions carefully.
www.samsungpresenter.com
2
2
RS232C Command Code (UF-130DX/ST)
- BaudRate: 9600bps
- Parity Bit: No Parity
- Stop Bit Length: 1-bit
- Character Length: 8-bit
- Start Code: 0xB0
- Stop Code: 0xBF
- Command Code: 4-byte
<Note1 2nd Rx data == 0x80>
What the 2nd-Rx-data ("ACK data") is not 0x80
means that the system is doing other operation.
(Check up page 6)
With the command "Message-Status", you can
check up current status of the system and send
the user command. (AWC, etc)
UF-130DX/ST RS232C PC-side FlowChart
3
3
RS232C Command Code (UF-130DX/ST)
PC Transmit Data to MICOM PC Receive Data from MICOM
Command
1st 2nd 3rd 4th 1st 2nd 3rd 4th
Remark
AWC 0x01 0x00 0x05 0x00 0x01
“ACK data”
0x05 0x00
AF 0x02 0x00 0x05 0x00 0x02
“ACK data”
0x05 0x00
Lamp ON 0x00 0x05 0x00
“ACK data”
0x05 0x00
Lamp OFF
0x03
0x00 0x0A 0x00
0x03
“ACK data”
0x0A 0x00
Internal 0x00 0x05 0x00
“ACK data”
0x05 0x00
External
0x04
0x00 0x0A 0x00
0x04
“ACK data”
0x0A 0x00
Aperture ON 0x00 0x05 0x00
“ACK data”
0x05 0x00
Aperture OFF
0x09
0x00 0x0A 0x00
0x09
“ACK data”
0x0A 0x00
Power On 0x00 0x05 0x00
“ACK data”
0x05 0x00
Power OFF
0x0F
0x00 0x0A 0x00
0x0F
“ACK data”
0x0A 0x00
Rotate OFF 0x00 0x05 0x00
“ACK data”
0x05 0x00
Rotate 90° 0x00 0x08 0x00
“ACK data”
0x08 0x00
Rotate 180° 0x00 0x0A 0x00
“ACK data”
0x0A 0x00
Rotate 270°
0x11
0x00 0x0D 0x00
0x11
“ACK data”
0x0D 0x00
4
4
RS232C Command Code (UF-130DX/ST)
PC Transmit Data to MICOM PC Receive Data from MICOM
Command
1st 2nd 3rd 4th 1st 2nd 3rd 4th
Remark
Freeze ON 0x00 0x05 0x00
“ACK data”
0x05 0x00
Freeze OFF
0x12
0x00 0x0A 0x00
0x12
“ACK data”
0x0A 0x00
Preset Save 0x17 0x00 Number 0x00 0x17
“ACK data”
Number 0 x 00
Preset Exe 0x18 0x00 Number 0x00 0x18
“ACK data”
Number 0 x 00
Range : “1~4”
Iris Up 0x00 0x05 0x00
“ACK data”
0x05 0x00
Iris Down
0x21
0x00 0x0A 0x00
0x21
“ACK data”
0x0A 0x00
Red Up 0x00 0x05 0x00
“ACK data”
0x05 0x00
Red Down
0x23
0x00 0x0A 0x00
0x23
“ACK data”
0x0A 0x00
Blue Up 0x00 0x05 0x00
“ACK data”
0x05 0x00
Blue Down
0x24
0x00 0x0A 0x00
0x24
“ACK data”
0x0A 0x00
Overlay(PIP) 0x48 0x00 0x05 0x00 0x48
“ACK data”
0x05 0x00
<Note1> Transmitting number "9" in image divide command, the system executes 3X3 multi-screen mode.
<Note 2> Overlay(PIP) function is for UF-130DX only.
5
5
RS232C Command Code (UF-130DX/ST)
PC Transmit Data to MICOM PC Receive Data from MICOM
Command
1st 2nd 3rd 4th 1st 2nd 3rd 4th
Remark
Focus Far 0x00 0x05 0x00
“ACK data”
0x05 0x00
Focus Near
0x25
0x00 0x0A 0x00
0x25
“ACK data”
0x0A 0x00
Zoom Tele 0x00 0x05 0x00
“ACK data”
0x05 0x00
Zoom Wide
0x26
0x00 0x0A 0x00
0x26
“ACK data”
0x0A 0x00
Range : “1~120”
Iris Target 0x41 0x00 0x00
“data”
0x41
“ACK data”
0x00
“data”
Range : “1~120”
Red Target 0x43 0x00 0x00
“data”
0x43
“ACK data”
0x00
“data”
Range : “1~200”
Blue Target 0x44 0x00 0x00
“data”
0x44
“ACK data”
0x00
“data”
Range : “1~200”
Focus Target 0x45 0x00
“MSB data” “LSB data”
0x45
“ACK data” “MSB data” “LSB data”
(1)
Range : “0~2225”
Zoom Target 0x46 0x00
“MSB data” “LSB data”
0x46
“ACK data” “MSB data” “LSB data”
Range : “0~1916”
0x00
“zoom data” “zoom LSB” “ACK data” “zoom data” “zoom LSB”
Focus/Zoom
Concurrent Target
0x47
“focus data” “focus LSB”
0x47
“ACK data” “focus data” “focus LSB”
(1)
Focus : “0~2225”
Zoom : “0~1916”
(1)Drive Stop 0x2F 0x00 0x05 0x00 0x2D
“ACK data”
0x05 0x00
<Note1> Depending of the zoom amount, the range of focus data will be changed. You can figure it out
to see page 6. ("Focus-Status[Max]", "Focus-Status[Min]")
<Note2> Above 10 Command (Iris up/down ,Red up/down, Blue up/down, Focus far/near, Zoom
tele/wide) will go to all the way once you execute it.
"Drive Stop" can stop those command in certain point that you want.
6
6
RS232C Command Code (UF-130DX/ST)
PC Transmit Data to MICOM PC Receive Data from MICOM
Command
1st 2nd 3rd 4th 1st 2nd 3rd 4th
Remark
Set-Status(Normal) 0x61 0x00 0x00 0x00 0x61
“ACK data”
Status(MSB) Status(LSB)
Bit definition of Status
represents Page 7,8
Iris-Status 0x65 0x00 0x00 0x00 0x65
“ACK data”
0x00 Status
Range : “1~120”
Red-Status 0x67 0x00 0x00 0x00 0x67
“ACK data”
0x00 Status
Range : “1~200”
Blue-Status 0x68 0x00 0x00 0x00 0x68
“ACK data”
0x00 Status
Range : “1~200”
Zoom-Status 0x69 0x00 0x00 0x00 0x69
“ACK data”
Status(MSB) Status(LSB)
Range : “0~1916”
Focus-Status 0x6A 0x00 0x00 0x00 0x6A
“ACK data”
Status(MSB) Status(LSB)
Range : “0~2225”
(1)Focus-Status[Max] 0x00 0x05 0x00
“ACK data”
Status(MSB) Status(LSB)
Range : “648~2225”
(1)Focus-Status[Min]
0x6B
0x00 0x0A 0x00
0x6B
“ACK data”
Status(MSB) Status(LSB)
Range : “0~1383”
<Note1> This command returns focus maximum/minimum data at current zoom position.
7
7
RS232C Command Code (UF-130DX/ST)
◎Bit Definition of “ACK data”
<Note1> 'Set is executing command by OS' bit is for UF-130DX only.
(0,0,0,0,1): Set is executing command by panel-key
(0,0,0,1,0): Set is executing command by remocon
(0,0,1,0,0): Set is executing command by RS232C
(0,1,0,0,0): Set is executing command by USB
(1,0,0,0,0): Set is executing command by OS
System Boot Completion ("0": Booting, "1": OK)
Acknowledgement Bit ("0": no-ACK, "1": ACK)
8
8

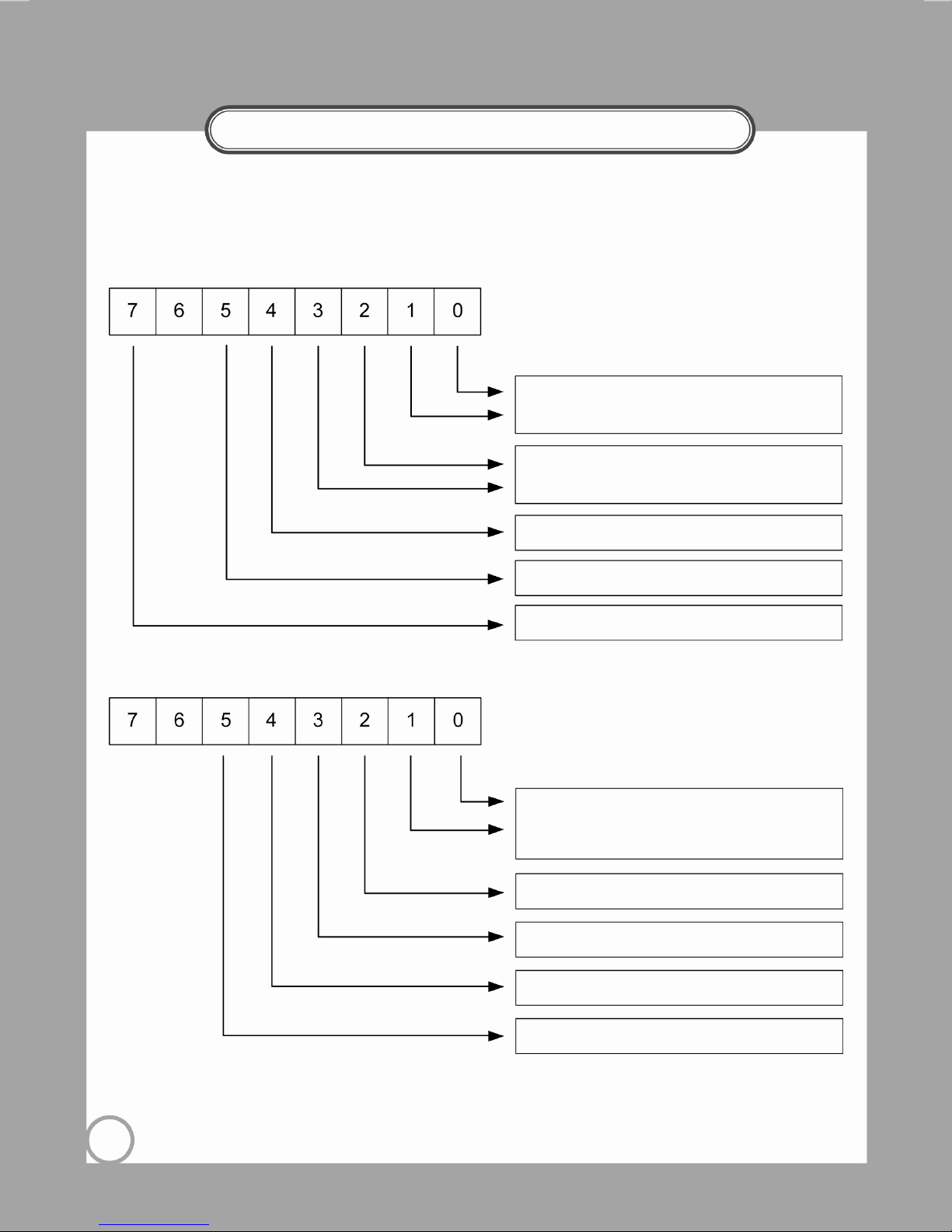

RS232C Command Code (UF-130DX/ST)
◎Status Bit Definition by Set-Status Command
- LSB 8bit
- MSB 8bit
<Note 1> Disable/Enable Control bit is for UF-130DX only.
(0,0): Image Rotate OFF (0,1): Image Rotate 90˚
(1,0): Image Rotate 180˚ (1,1): Image Rotate 270˚
(0): Aperture ON (1): Aperture OFF
(0): DX Model (1): ST Model
(0): Disable Control (1): Enable Control
(0): Image Freeze OFF (1): Image Freeze ON
Single or Dual-DVI output resolution
(0,1): SXGA (1,0): XGA (1,1): HD[1280x720p]
(0): Lamp OFF (1): Lamp ON
(0): Internal Input (1): External Input
(0): System Power OFF (1): System Power ON
(0,0): Single others: Dual-VGA output resolution
(0,1): SXGA (1,0): XGA (1,1): HD[1280x720p]
9
9
RS232C Command Code (UF-130DX/ST)
Memo
10
10
RS232C Command Code (UF-130DX/ST)
Memo
