DISHWASHER

REPAIR

Guide

Basic model : DW60M9970US

Model Name : DW60**8***Series

Model Code :

DW60BG850UB1

DW60BG850I00

DW60BG850FSL

DW60BG850B00

DW60BG830I00

DW60BG830FSL

DW60BB890UAP

DW60BB890FAP

DW60CB895UAP

DW60CG880B00

DW60CB880FSL

DW60BG770FSL

DW60BG770FGL

DW60BG750USL

DW60BG750SSL

DW60BG750FSL

DW60BG750B00

DW60BG730FSL

DW60BG730B00

DW60BB770APT

DW60**7***Series

* For End User.

SAMSUNG PROPRIETARY. DO NOTCOPY OR DISTRIBUTE WITHOUT PERMISSION

This Document can not be usedwithout Samsung’s authorization.

IMPORTANT SAFETY NOTICE

Following the repair by a non-authorized service provider self-repair or non-professional

repair of the product Samsung is not liable for any damage to the product any injury or

any other product safety issue caused by any attempt to repair the product which does

not carefully follow these repair and maintenance instructions. Any damage to the

product caused by an attempt to repair the product by any person other than a

Samsung certified service provider will not be covered by the warranty.

This service guide may not be reproduced in whole or

as a part in any form whatsoever without the written permission of

the SAMSUNG ELECTRONICS Company.

WARNING

Note

1. You can check where to buy replacement parts at http://www.samsung.com/support/

2. Visit the part purchase site and enter the model code of your product to check the parts available

for purchase. The model code is labelled on the edge of the tub. When you open the dishwasher’s

door, you can check the model code and version on the barcode label at the left side of the tub.

3. For replacement parts make sure the part name matches that of the illustration in this manual.

- User-serviceable parts are limited to door hinge and seals other seals spray arms drain lters

interior racks and plastic peripherals such as baskets and lids.

Caution

1. The part name listed on the site may differ from that in this manual. Please make sure you choose

the right part name.

2. Be sure to wear safety gloves while making repairs.

3. Due to the heavyweight it is recommended for 2 or more people to handle the product.

SAMSUNG PROPRIETARY. DO NOTCOPY OR DISTRIBUTE WITHOUT PERMISSION

Disclaimer:

This manual contains condential and proprietary information of Samsung

Electronics Co., Ltd. ("Samsung")

All text, graphics, user interfaces, visual interfaces, photographs,

trademarks, and logos (collectively, "Content"), including but not

limited to the design, structure, selection, coordination, "look and feel"

and arrangement of such Content, contained in this manual is owned,

controlled or licensed by or to Samsung, and is protected by trade dress,

property rights and unfair competition laws.

No part of this manual or the Content may be copied, reproduced,

republished, uploaded, posted, publicly displayed, encoded, translated,

transmitted or distributed in any way (including "mirroring") to anyone, any

entity, any other computer, server, Web site or other medium for publication

or distribution or for any commercial purpose, without Samsung’s express

prior written consent.

Samsung reserves the right, at its sole discretion, to change, modify,

add or remove portions of any part of this manual at any time. It is your

responsibility to check the manual periodically for changes. Your use of the

manual will mean that you accept and agree to this disclaimer. If you do

not agree with any part of this disclaimer, please stop using this manual

immediately.

This Document can not be usedwithout Samsung’s authorization.

4 _ Disassemblyand Reassembly

SAMSUNG PROPRIETARY. DO NOTCOPY OR DISTRIBUTE WITHOUT PERMISSION

This Document can not be usedwithout Samsung’s authorization.

Part Figure Description

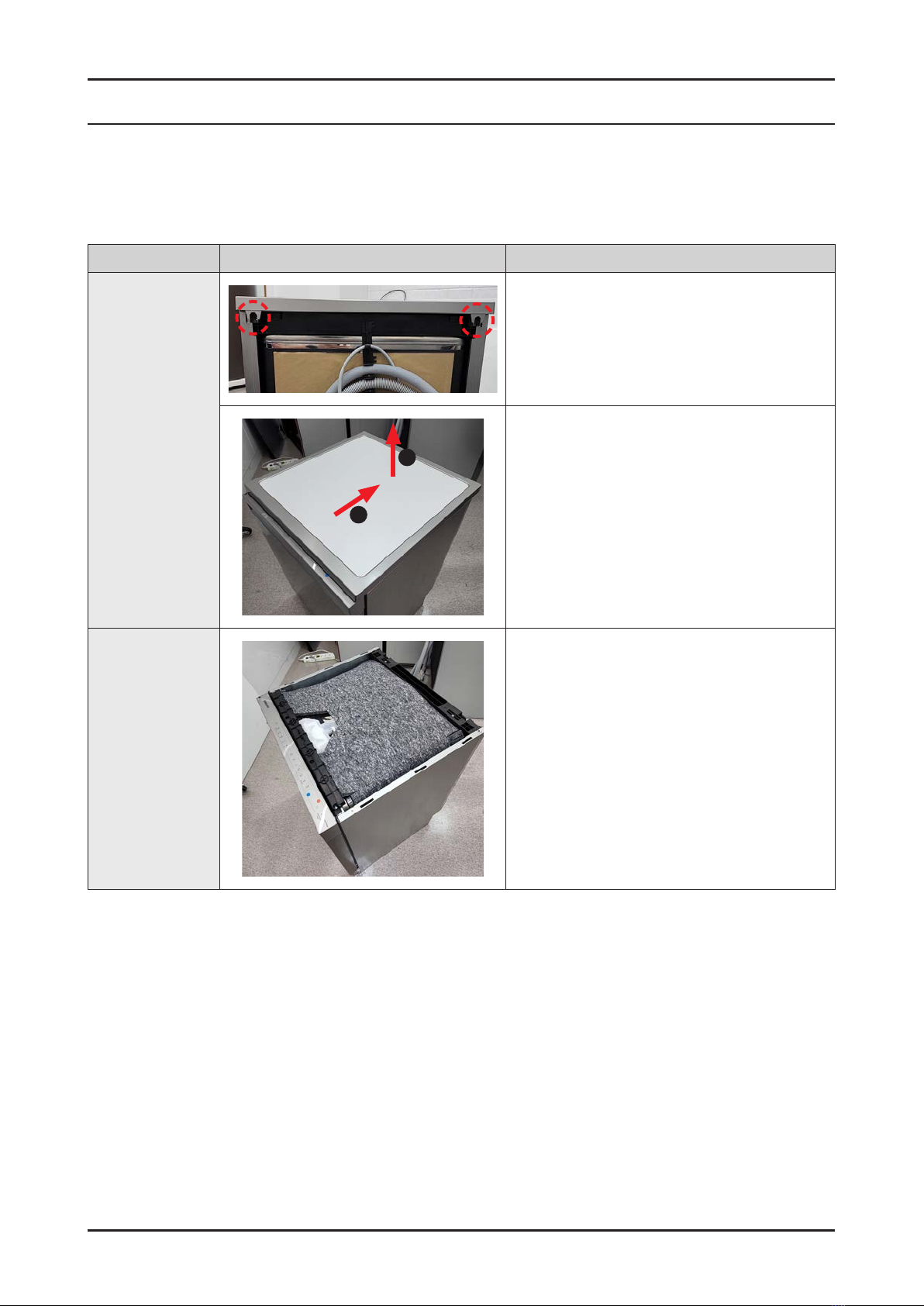

ASSY COVER TOP

[DISASSEMBLY]

1. Remove 2 screws at back of ASSY COVER TOP.

12. PulltheCOVERTOPbackwardrst,andtakeitoff

upward.

ASSY COVER TOP

[ASSEMBLY] *Reassemblyisthereverseorderofdisassembly.

1. DISASSEMBLY AND REASSEMBLY

1-1. DISASSEMBLY AND REASSEMBLY

1-1-1. ASSY COVER TOP



Disassemblyand Reassembly _ 5

SAMSUNG PROPRIETARY. DO NOTCOPY OR DISTRIBUTE WITHOUT PERMISSION

This Document can not be usedwithout Samsung’s authorization.

Part Figure Description

SEALTUB PACKING

[DISASSEMBLY]

BRACKET SEAL TUB

SEAL TUB PACKING

1. Remove the old seal from the BRACKETSEAL TUB.



Besuretoremovethepowerplugbeforeservicing



Be careful to touch the BRACKET SEALTUB afterremoved

theseal.Itmaycauseinjuryfromsharpedges.

SEALTUB PACKING

[ASSEMBLY]

1. PutsomewateronnewSEALTUBPACKINGtoassemble

iteasily.FoldtheSEALTUBPACKINGinhalfwiththetip

ofthesealfacinginward.

CAUTION

Payattentiontothedirectionofseal.Ifitisassembledin

reverse,itmaycauseleakageofsteamorwater.

SEAL TIP

InserttoBracketsealtub

Sealtipfacestoinside

Center

About 20cm

2. AssembletheSEALTUBPACKINGtocenterofthe

BRACKETSEAL TUB. Press seal about 20 cm (red dotted

line)onbothsidesbasedonthecenterline.

About 3~4cm

3. PutSealintheleft&rightsideofthebottom.

 Thefoldedsealisabout3~4cmlong.

1-1-2. SEALTUB PACKING





SAMSUNG PROPRIETARY. DO NOTCOPY OR DISTRIBUTE WITHOUT PERMISSION

This Document can not be usedwithout Samsung’s authorization.

Part Figure Description

SEALTUB PACKING

[ASSEMBLY]

4. Pressthesealfromthetopcornertowardremainingside.

CAUTION

Payattentiontoassemblenottodeformthesealtip

atthecorner.Ifthegapisopened,itmaycausesteam

leakage.



SAMSUNG PROPRIETARY. DO NOTCOPY OR DISTRIBUTE WITHOUT PERMISSION

This Document can not be usedwithout Samsung’s authorization.

Part Figure Description

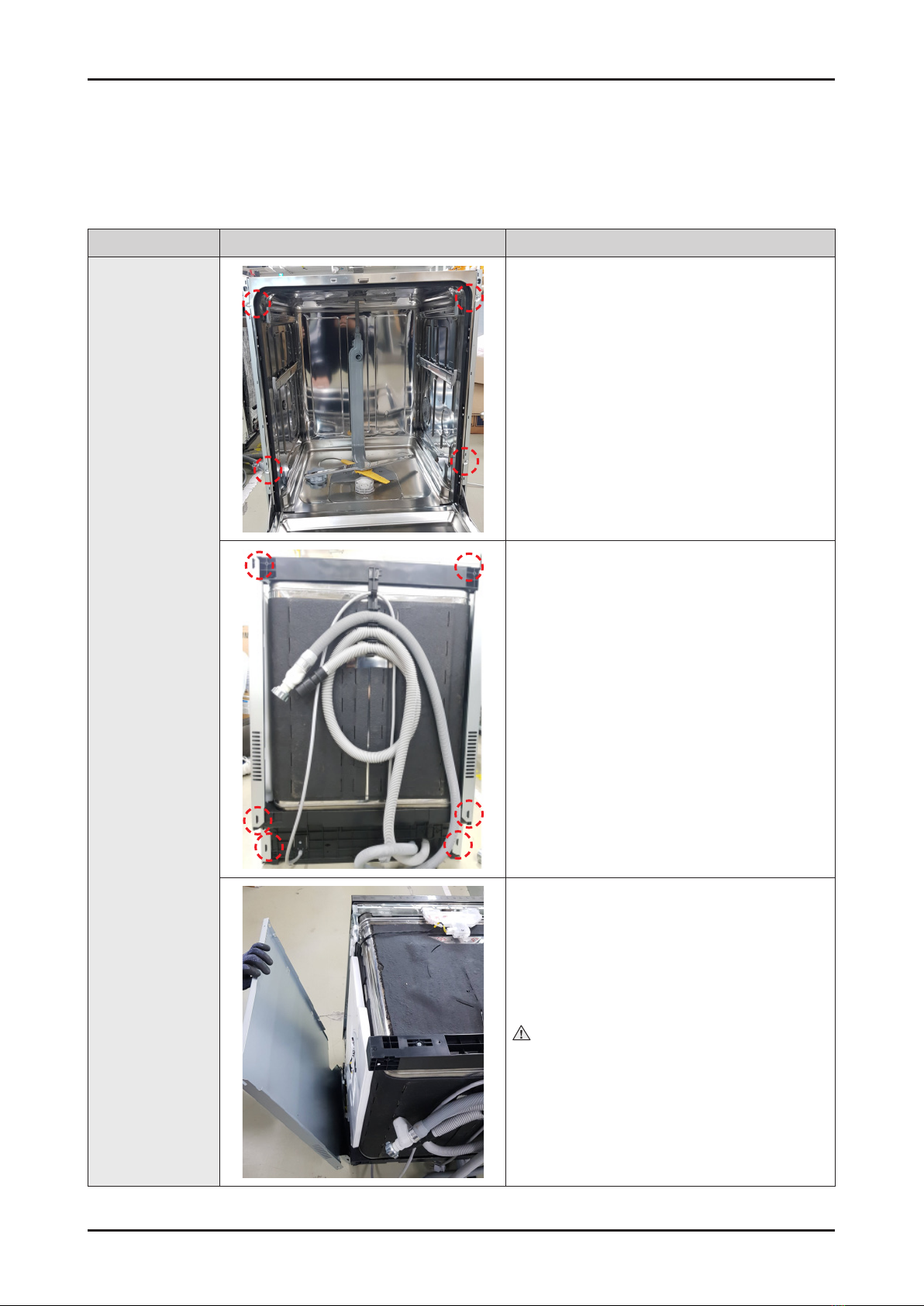

HOUSING

[DISASSEMBLY]

1. Remove4screwsatfrontofHOUSING

2. Release6hooksatbackofDishwashertoremove

HOUSING

3. RemoveHOUSINGfromDishwasher.

CAUTION

Donotdothisworkwithoutsafetygloves.

Itmaycauseinjuryfromsharpedges.

 







SAMSUNG PROPRIETARY. DO NOTCOPY OR DISTRIBUTE WITHOUT PERMISSION

This Document can not be usedwithout Samsung’s authorization.

Part Figure Description

HOUSING

[ASSEMBLY]

1. AssembleHousingtosideofDishwasher

CAUTION

Donotdothisworkwithoutsafetygloves.

Itmaycauseinjuryfromsharpedges.

2. Secure6hooksatbackofDishwasher

3. Fasten4screwsatfrontofHOUISNG



SAMSUNG PROPRIETARY. DO NOTCOPY OR DISTRIBUTE WITHOUT PERMISSION

This Document can not be usedwithout Samsung’s authorization.

Part Figure Description

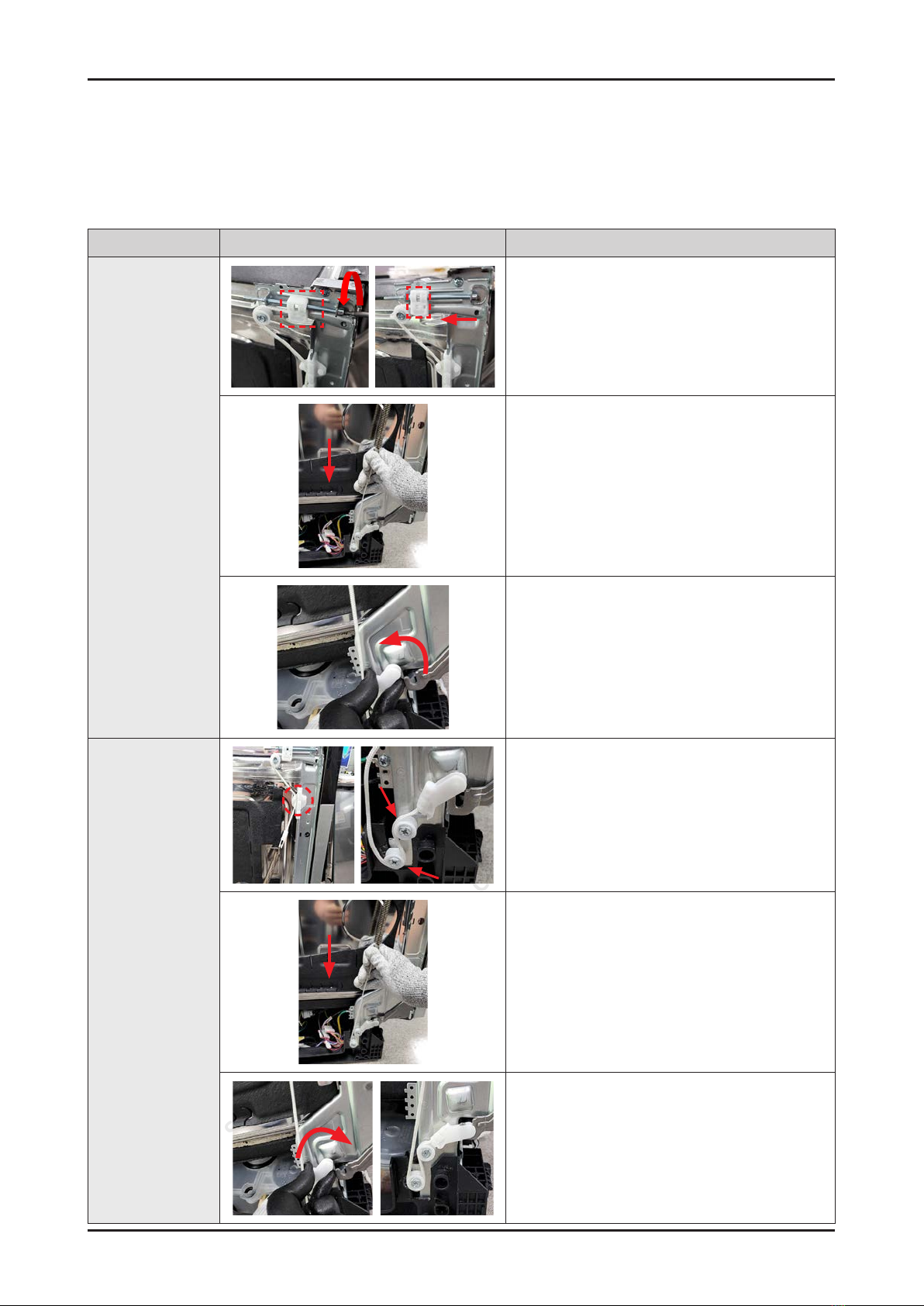

DOOR SPRING

[DISASSEMBLY]

Preparation:DisassembleHOUSINGfromDishwasher

1. TurnSHAFT-ADJUSTERcounterclockwiseto

loosenspring

2. Toloosentheforceonthehinge,pulltheropedown

andhold

3. separateHOLDERROPEfromhinge

DOOR SPRING

[ASSEMBLY]

1. Assemble rope at BRACKETWIRE

2. Assembleropewith2rollers

3. Toloosentheforceonthehinge,pulltheropedown

andhold

4. AssembleHOLDERROPEtoHINGE

1-1-4. DOOR SPRING







SAMSUNG PROPRIETARY. DO NOTCOPY OR DISTRIBUTE WITHOUT PERMISSION

This Document can not be usedwithout Samsung’s authorization.

Part Figure Description

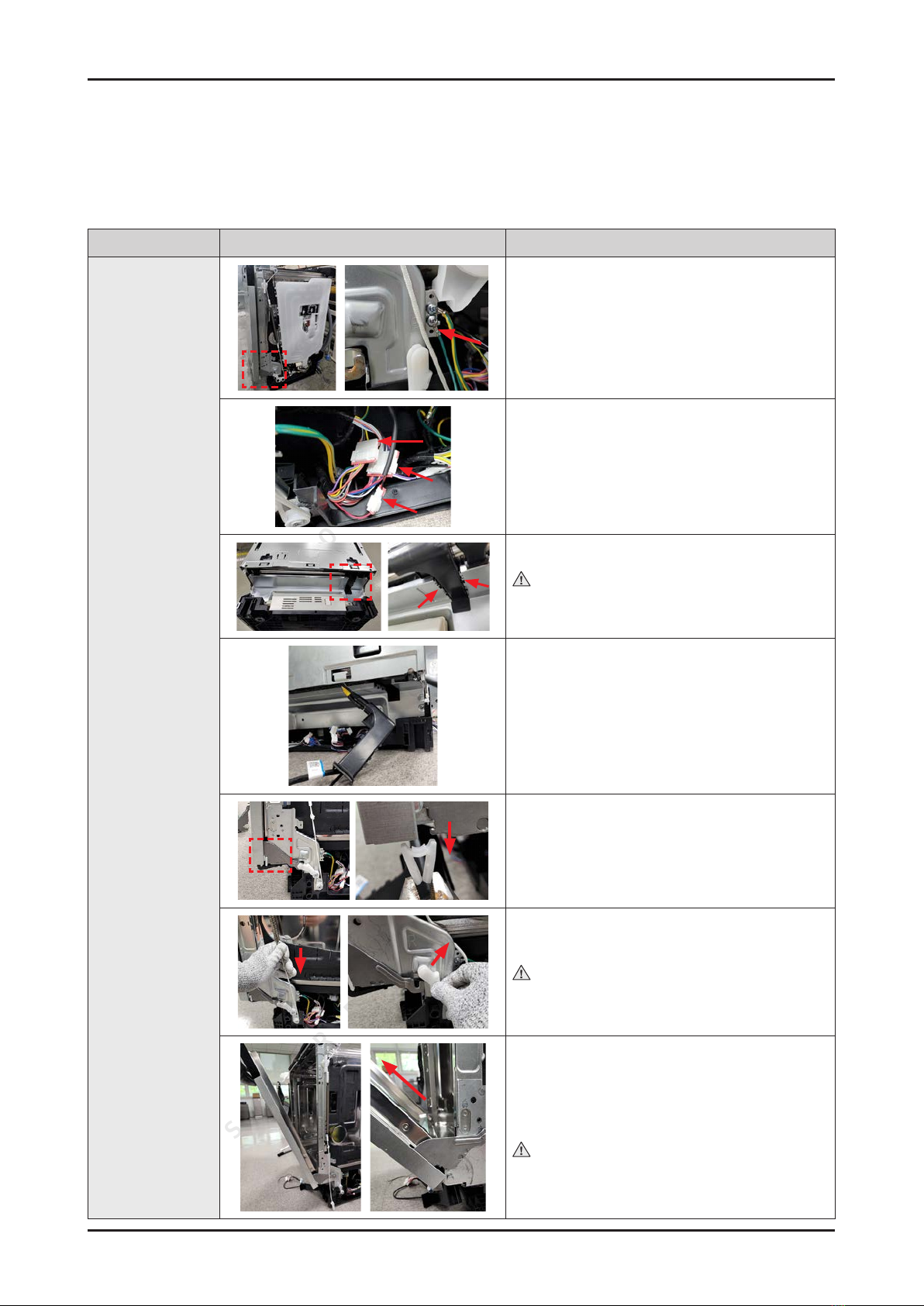

ASSY DOOR

[DISASSEMBLY]

Preparation:DisassembleHOUSINGfromDishwasher

1. Remove1screwatSUPPORTHINGE-RIGHTtoremove

Groundwirefromthedoor

2. Disassemble3connectorsfromthedoor

3. Release2hooksanddisassembleCOVERWIRE



Donotdothisworkwithoutsafetygloves.

Itmaycauseinjuryfromsharpedges.

4. Pulloutwiresfromdishwasher

Preparation:DisassembleHOUSINGfromDishwasher

5. ClampGUIDEHINGEwithPlierandpulloutto

disassemble.Dothesamedisassemblyontheotherside

6. Pullropedown,andtakeoffHOLDERROPEDOORfrom

DOORHINGE.Dothesamedisassemblyontheotherside



Donotdothisworkwithoutsafetygloves.

Itmaycauseinjuryfromsharpedges.

7. OpentheASSYDOOR30~45degree

8. PulloutASSYDOORtodisassemble

CAUTION

BecarefulnottodenttheDOORduringdisassembly.

1-1-5. ASSY DOOR




