Samsung SF-340 Manuale utente

SERVICE

SAMSUNG FACSIMILE

SF-340 Series

SF-340/SF-341P

SF-345TP

Manual

FACSIMILE CONTENTS

1. Precautions

2. Reference Information

3. Specifications

4. Summary of product

5. Disassembly and Reassembly

6. Alignment and Adjustments

7. Troubleshooting

8. Exploded Views and Parts List

9. Block Diagram

10. Connection Diagram

Exploded View & Parts List

Service Manual

8-1

Samsung Electronics

8. Exploded Views and Parts List

8.1 Main Assembly Exploded view ........................................................ page(8-2)

8.2 OPE Unit Assembly Exploded view ................................................ page(8-5)

8.3 Handset Unit Assembly Exploded view .......................................... page(8-7)

8.4 ASF Unit Assembly Exploded view ................................................. page(8-8)

8.5 Engine Unit Assembly Exploded view ............................................ page(8-10)

8.6 Base Unit Assembly Exploded view ............................................... page(8-12)

Up-date On July. 28. 2004

Service Manual

Exploded View & Parts List

8-2

Samsung Electronics

8.1 Main Assembly

13-1

13-2

17-1

17-2

1-1

1-2

1-3

1-4

1-2-1

1-2-2 1-2-3

1-2-4

19-1

19-2

19-3

15-1

Exploded View & Parts List

Service Manual

8-3

Samsung Electronics

Main Assembly Parts List

SA : Service Available

O : Service available X: Service not available

No. Description SEC.Code Q’ty SA Remark

0 SET SF-340/341P/345TP

1 MEA HOU-COVER TOP JB97-01840A 1 O SF-340

MEA HOU-COVER TOP (T) JB97-01840B 1 O SF-345TP

MEA HOU-COVER TOP (P) JB97-01840C 1 O SF-341P

1-1 COVER-M-TOP JB63-00220A 1 O

1-2 MEA-HOU DOOR JB97-01835A 1 O SF-340

MEA-HOU DOOR (T) JB97-01835B 1 O SF-345TP

MEA-HOU DOOR (P) JB97-01835C 1 O SF-341P

1-2-1 COVER-M_DOOR JB63-00221A 1 O SF-340

COVER-M_DOOR (T) JB63-00221C 1 O SF-345TP

COVER-M_DOOR (P) JB63-00221D 1 O SF-341P

1-2-2 GUIDE-M_DOC L JB61-00357A 1 O SF-340

GUIDE-M_DOC L (T) JB61-00357B 1 O SF-345TP

GUIDE-M_DOC L (P) JB61-00357C 1 O SF-341P

1-2-3 GUIDE-M_DOC R JB61-00356A 1 O SF-340

GUIDE-M_DOC R (T) JB61-00356B 1 O SF-345TP

GUIDE-M_DOC R (P) JB61-00356C 1 O SF-341P

1-3 BUTTON-M_HOOK SWICH JB64-00065A 1 O

1-4 SPRING ETC-LEVER JB61-70908A 1 O

2 ELA UNIT-HANDSET JB96-01535A 1 O SF-340

ELA UNIT-HANDSET (TP) JB96-01535B 1 O SF-341P/345TP

3 CBF HARNESS-CR MOTOR-MAIN JB39-00179A 1 O

4 SHEET-INSULATION LIU JB63-00059A 1 O

5 LIU PBA JB92-01248A 1 O SF-340, UK

LIU PBA JB92-01248B 1 O SF-345TP, UK

LIU PBA JB92-01248C 1 O SF-341P, CHINA

LIU PBA JB92-01248D 1 O SF-340, CHINA

LIU PBA JB92-01248E 1 O SF-345TP, RUSSIA

LIU PBA JB92-01248H 1 O SF-340, USA

LIU PBA JB92-01248I 1 O SF-349TP, RUSSIA

LIU PBA JB92-01248J 1 O SF-345TP, USA

LIU PBA JB92-01248K 1 O

SF-345TP, GERMANY

6 CBF HARNESS-MAIN LIU FFC JB39-00181A 1 O

7 ELA UNIT-ENGINE JB96-01540A 1 O

8 PBA MAIN JB92-01247A 1 O SF-340

PBA MAIN JB92-01247B 1 O SF-345TP

PBA MAIN JB92-01247C 1 O SF-341P

* Appendix : see appendix table

Service Manual

Exploded View & Parts List

8-4

Samsung Electronics

Main Assembly Parts List

SA : Service Available

O : Service available X: Service not available

No. Description SEC.Code Q’ty SA Remark

9 SMPS-RHINE_2 (V1) JB44-00035A 1 O 110V

SMPS-RHINE_2 (V2) JB44-00036A 1 O 230V

SMPS-RHINE_2 (V2) China JB44-00037A 1 O 230V

10 CBF HARNESS-SMPS-MAIN JB39-00177A 1 O

11 MEA UNIT-ASF JB97-01621E 1 O

12 ELA UNIT-BASE (BASIC) JB96-01539A 1 O SF-340

ELA UNIT-BASE (TAD) JB96-01542A 1 O SF-345TP

ELA UNIT-BASE (P) JB96-01558A 1 O SF-341P

13 MEA HOU-STACKER TX JB97-01624B 1 O

13-1 TRAY-M_STACKER TX1 JB63-00065D 1 O

13-2 TRAY-M_STACKER TX2 JB63-00047D 1 O

14 COVER-M_FLIP JB63-00222A 1 O

15 ELA UNIT-OPE (BASIC) *Appendix 1 O

15-1 ELA HOU-OPE *Appendix 1 O

16 CHUTE-M_DOC JB61-00358A 1 O

17 ELA HOU-SIDE L JB96-01549A 1 O SF-340

ELA HOU-SIDE L (TP) JB96-01549B 1 O SF-345TP

ELA HOU-SIDE L (P) JB96-01549C 1 O SF-341P

17-1 COVER-M_SIDE L JB63-00215A 1 O SF-340

COVER-M_SIDE L JB63-00215B 1 O SF-345TP

17-2 SPEAKER 3001-001293 1 O

18 COVER-M_SIDE R JB63-00214A 1 O SF-340

COVER-M_SIDE R (TP) JB63-00214B 1 O SF-341P/345TP

19 MEA ETC-ROLLER WHITE JB97-01207A 1 O

19-1 MEA-ROLLER WHITE JB75-00053A 1 O

19-2 PMO-BUSHING WHITE JB72-00137A 1 O

19-3 GEAR-DRIVE JB66-00004A 1 O

* Appendix : see appendix table

Exploded View & Parts List

Service Manual

8-5

Samsung Electronics

8.2 OPE Unit Assembly

1-1

1-2

1-3

1-3 1-3 1-4

1-5

1-6

1-7

1-8

1-9

1-10

1-11

2-2 2-6

2-5 2-4

2-7

2-72-3

2-1

2-9

2-10

2-8

2-11

SF-345TP

SF-340

Service Manual

Exploded View & Parts List

8-6

Samsung Electronics

OPE Unit Assembly Parts List

SA : Service Available

O : Service available X: Service not available

No. Description SEC.Code Q’ty SA Remark

0 ELA UNIT-OPE

*Appendix

1 O SF-340

ELA UNIT-OPE(TAD)

*Appendix

1 O SF-345TP

1 ELA HOU-OPE

*Appendix

1 X SF-340/341P

ELA HOU-COVER OPE_TAD

*Appendix

1 X SF-345TP

1-1 COVER-M_OPE

*Appendix

1 O SF-340/341P

COVER-M_OPE(TAD)

*Appendix

1 O SF-345PT

1-2 COVER-M-OVERLAY OPE

*Appendix

1 O only SF-345TP

1-3 KEY-M_LIGHT JB64-00064A 3 O

1-4 KEY-M_STOP JB64-00026A 1 O

1-5 KEY-M_COPY JB64-00021A 1 O

1-6 KEY-M_START JB64-00022A 1 O

1-7 RUBBER-CONTACT TAM JB73-00123A 1 O

1-8 RUBBER-CONTACT MAIN JB73-00122A 1 O

1-9 PBA SUB-UK(CONTRACT) JB92-01249A 1 O SF-340/341P

PBA SUB-UK(CONTRACT) JB92-01249B 1 O SF-345TP

1-10 RUBBER-MIC ADAPTER JB73-00124A 1 O only SF-345TP

1-11 COVER-M_LCD JB63-00217A 1 O

2 MEA UNIT-SCAN UPPER JB97-01690A 1 O

2-1 FRAME-M_UPPER JB61-00141A 1 O

2-2 CBF HARNESS-OPE-ENGINE JB39-00180A 1 O

2-3 LEVER-M_SENSOR DOC JB66-00168A 1 O

2-4 LEVER-M_SENSOR SCAN JB66-00169A 1 O

2-5 SUPPORT-M_ADF JB61-00142A 1 O

2-6 ICT-SPRING COIL JG70-40514A 1 O

2-7 SPRING ETC-LEVER SENSOR JB61-00107A 2 O

2-8 MEC-ANTISTATIC BRUSH JB75-00051A 1 O

2-9 RUBBER-ADF JB73-00100A 1 O

2-10 HOLDER-M_RUBBER JB61-00143A 1 O

2-11 MEC-ANTISTATIC BRUSH ATT JB75-00382A 1 O

* Appendix : see appendix table

Exploded View & Parts List

Service Manual

8-7

Samsung Electronics

8.3 Handset Unit Assembly

Handset Unit Assembly Parts List

SA : Service Available

O : Service available X: Service not available

No. Description SEC.Code Q’ty SA Remark

0 ELA-UNIT-HANDSET JB96-01535A 1 O SF-340

ELA-UNIT-HANDSET(TP) JB96-01535B 1 O

SF-341P/SF-345TP

1 COVER-M_HANDSET LOWER JB63-00145C 1 X SF-340

COVER-M_HANDSET LOWER(TP) JB63-00145D 1 X

SF-341P/SF-345TP

2 RMO-RUBBER MIC JF73-40501A 1 X

3 CBF HARNESS-HANDSET MODULAR JB39-00026A 1 X

4 PBA SUB-ETC MIC JF92-00625A 1 X

5 AUDIO-RECEIVER 3009-001028 1 X

6 IPR-WEIGHT BALANCE JB70-00007A 1 X

7 COVER-M-HANDSET UPPER JB63-00189A 1 X

Service Manual

Exploded View & Parts List

8-8

Samsung Electronics

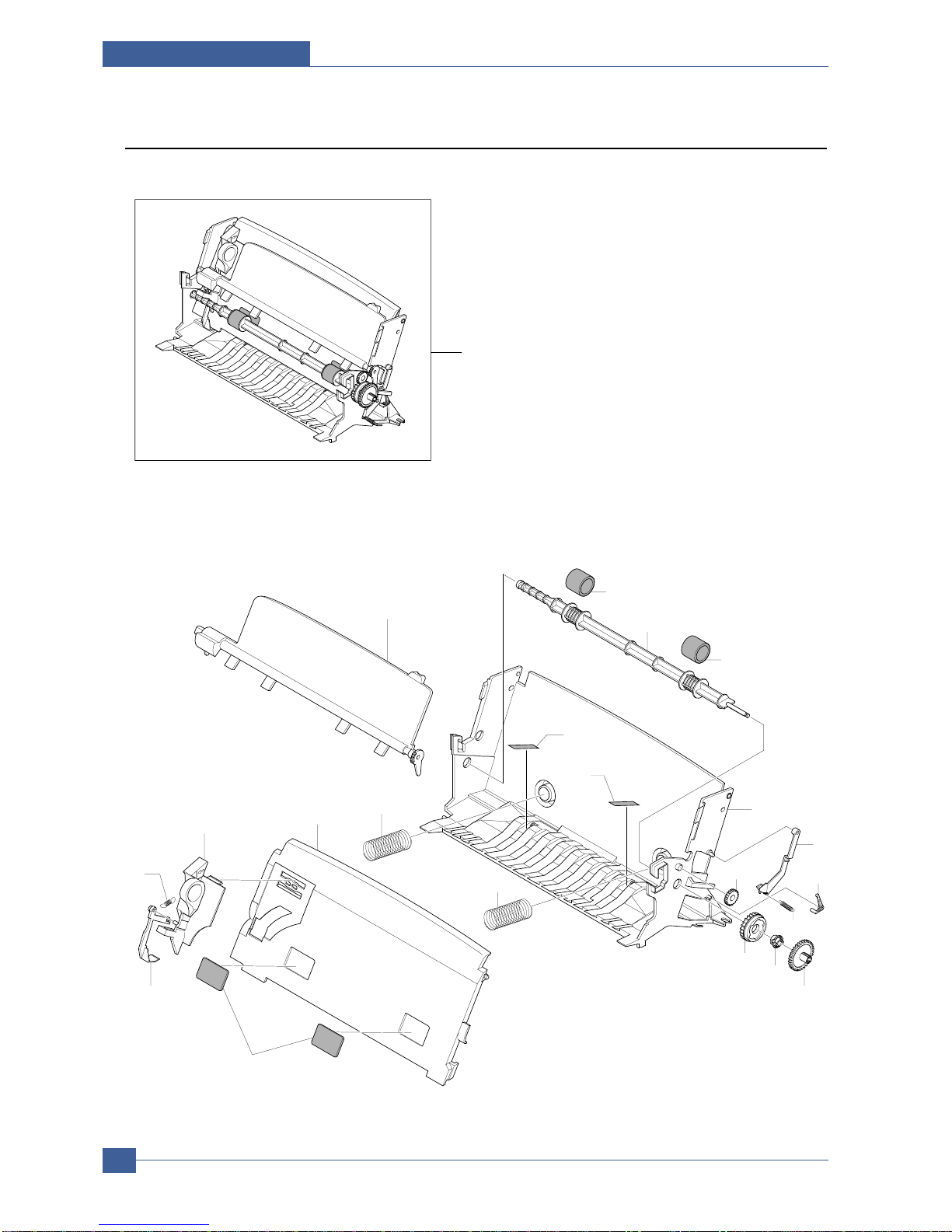

8.4 ASF Unit Assembly

13 3

8910

Exploded View & Parts List

Service Manual

8-9

Samsung Electronics

ASF Unit Assembly Parts List

SA : Service Available

O : Service available X: Service not available

No. Description SEC.Code Q’ty SA Remark

0 MEA UNIT-ASF JB97-01621E 1 O

1 FRAME-M_ASF JB61-00145F 1 O

2 SHAFT-M_PICK UP JB66-00176A 1 O

3 RMO-PICK UP RUBBER JB73-00009A 2 O

4 LEVER-M_FINGER ASF JB66-00174A 1 X

5 GEAR-M_DUST IDLE 21 JB66-00170A 1 X

6 LEVER-M_FINGER ASSI ASF JB66-00175A 1 X

7 SPRING-ES 6107-000011 1 O

8 GEAR-M_PICK UP ROLLER 35 JB66-00172A 1 X

9 LATCH-M DUST JB66-00171A 1 X

10 GEAR-M_PICK UP ROLLER 30 JB66-00173A 1 X

11 SHEET-FILM ASF JB63-00058A 2 X

12 SPRING CS 6107-001136 2 X

13 COVER-M_DUST JB63-00040F 1 O

14 PLATE-M_PRESSURE ASF JB61-00146F 1 O

15 GUIDE-M_PAPER SIDE JB61-00144D 1 O

16 MPR-PAD JF74-10234A 2 O

17 SPRING-ES 6107-001147 1 O

18 LEVER-M_FINGER LH ASF JB66-00191A 1 X
