Samsung LT-P1745 Manuale di istruzioni
English-1
YOUR NEW TV

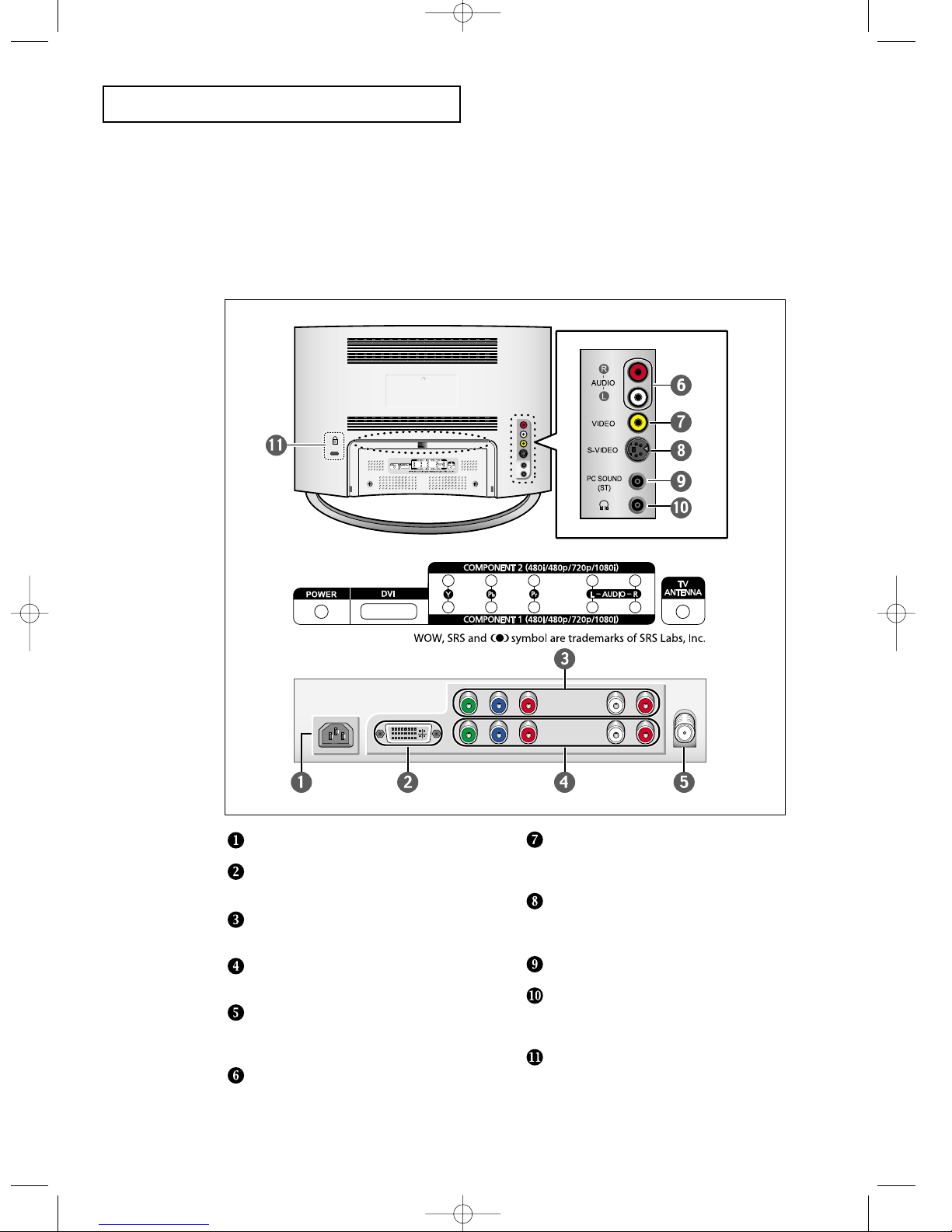

Rear Panel Jacks
Use the rear panel jacks to connect an A/V component that will be connected
continuously, such as a VCR or a DVD player.
POWER INPUT
PC VIDEO INPUT
Connect to the video output port on your PC.
COMPONENT 2
Connect a component video/audio.
COMPONENT 1
Connect a component video/audio.
TV ANTENNA
Connects to an antenna or to a cable
TV system.
AUDIO INPUT
Connect an audio signal(L/R) from a
camcorder or VCR.
VIDEO INPUT
Connect a video signal from a
camcorder or VCR.
SUPER VIDEO INPUT
Connect an S-Video signal from a
camcorder or VCR.
PC SOUND INPUT
HEADPHONE JACK
Connect a set of external headphones to
this jack for private listening.
KENSINGTON LOCK
victoryia 01-14 1/10/04 1:02 AM Page 3
English-2
INSTALLATION
3
Connect a coaxial
cable between the
ANTENNA OUT
terminal on the VCR
and the antenna
terminal on the TV.
4
Connect a set of
audio cables
between the AUDIO
OUT jacks on the
VCR and the AUDIO
jacks on the TV.
5
Connect a video
cable between the
VIDEO OUT jack on
the VCR and the
VIDEO jack on the
TV.
Follow the instructions in “Viewing a VCR or Camcorder Tape” to view your VCR tape.
* Each external input source device has a different back panel configuration.
A coaxial cable is usually included with a VCR. (If not, check your local electronics store).
If you have a “mono” (non-stereo) VCR, use the Y-connector (not supplied) to hook up
to the left or right audio input jacks of the TV.
If your VCR is stereo, you must connect two cables.

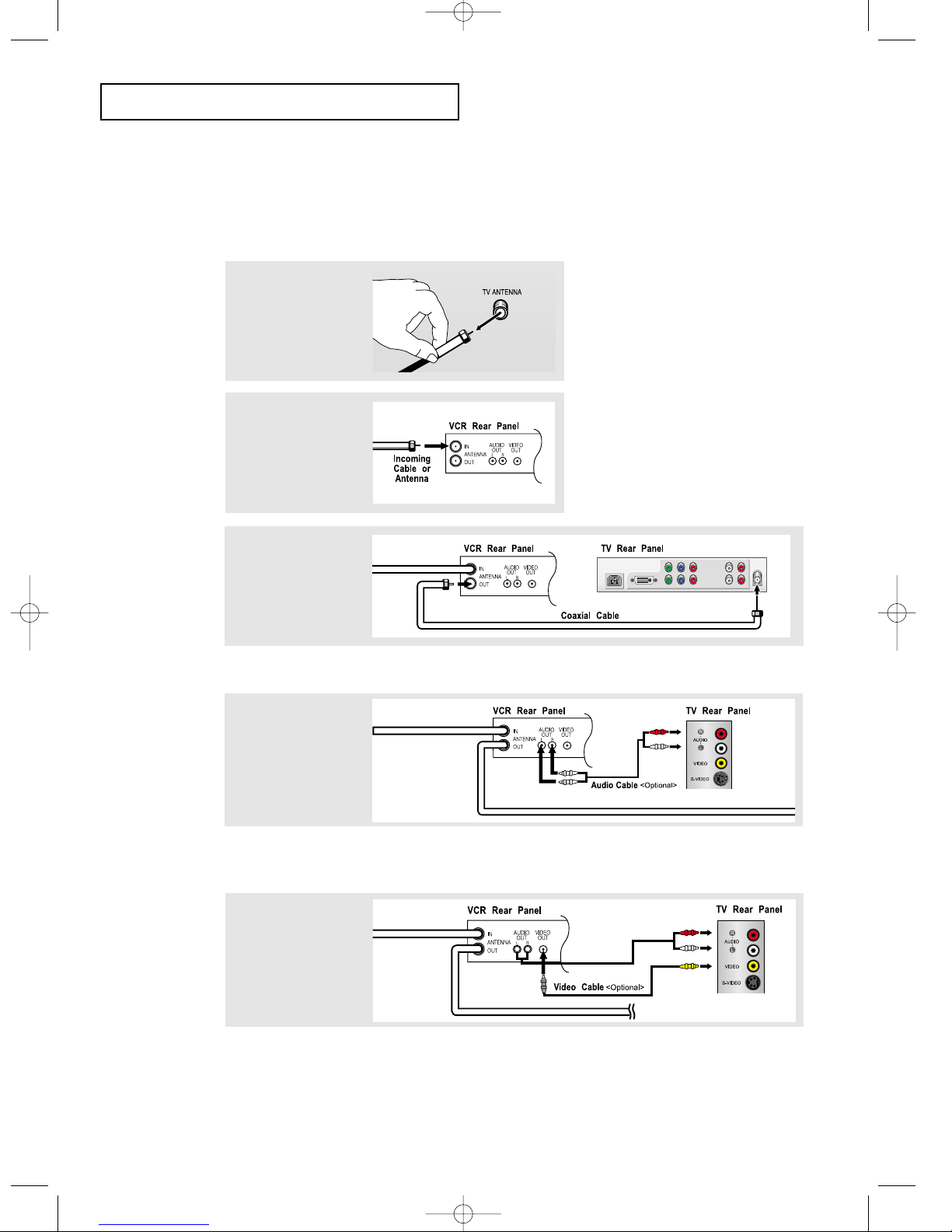

Connecting a VCR
These instructions assume that you have already connected your TV to an antenna or a
cable TV
system .
Skip step 1 if you have not yet connected to an antenna or a cable system.
1
Unplug the cable or
antenna from the
back of the TV.
2
Connect the cable or
antenna to the
ANTENNA IN terminal
on the back of the
VCR.
victoryia 01-14 1/12/04 1:51 AM Page 11

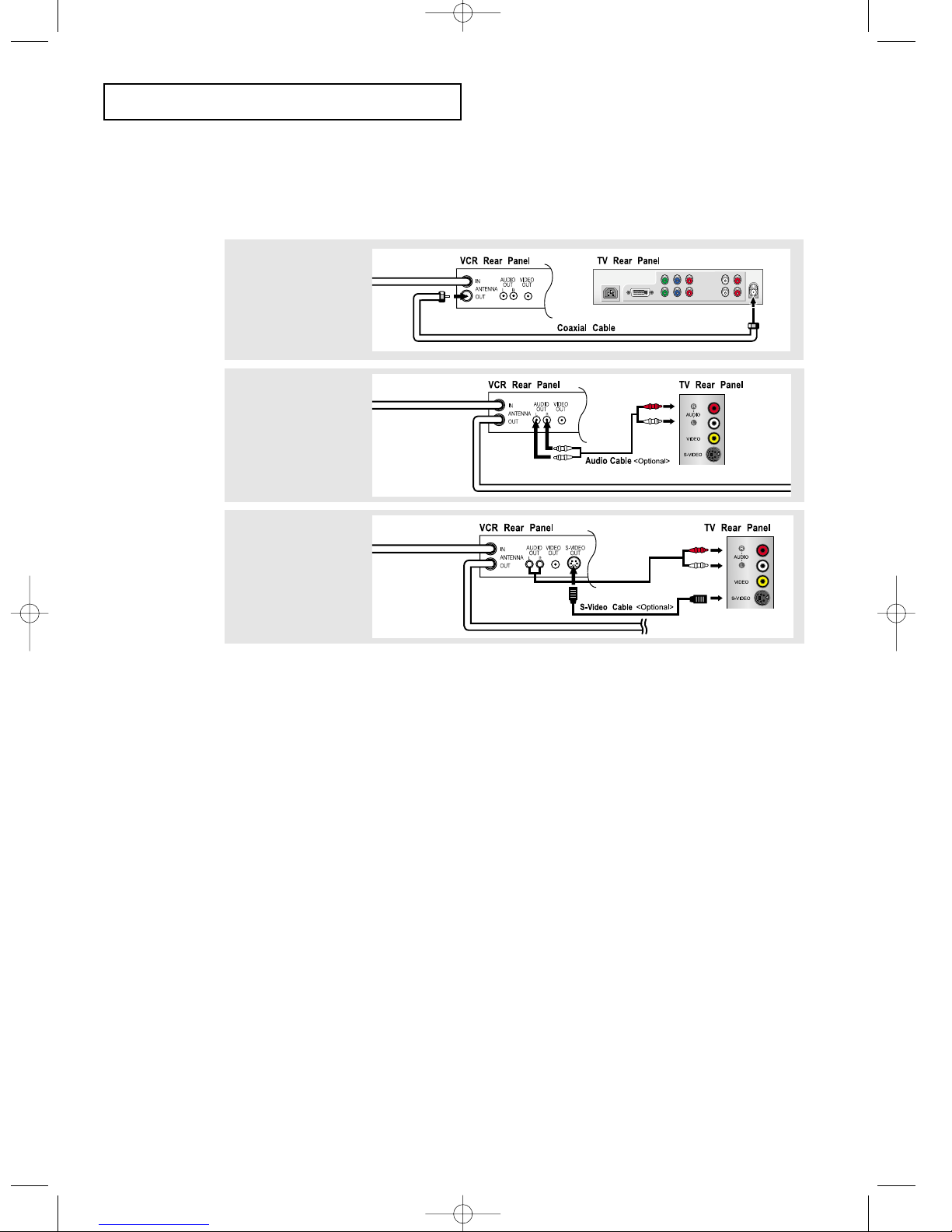

English-3
INSTALLATION
3
Connect an S-video
cable between the
S-VIDEO OUT jack on
the VCR and the
S-VIDEO INPUT jack
on the TV.
An S-video cable is usually included with an S-VHS VCR.
(If not, check your local electronics store).
* Each external input source device has a different back panel configuration.
1
To begin, follow
steps 1–3 in the
previous section to
connect the antenna
or cable to your
VCR and your TV.
Connecting an S-VHS VCR
Your Samsung TV can be connected to an S-Video signal from an S-VHS VCR.
(This connection delivers a better picture as compared to a standard VHS VCR).
2
Connect a set of audio
cables between the
AUDIO OUT jacks on
the VCR and the
AUDIO INPUT jacks
on the TV.
victoryia 01-14 1/12/04 1:51 AM Page 12
English-4
INSTALLATION
Note: For an explanation of Component video, see your DVD player owner's manual.
* Each external input source device has a different back panel configuration.
Note: If you are using a DVI-D cable to connect
1. Be sure to connect the audio cable (sold separately) as shown above to get normal TV sound.
2. See Appendix “Display Modes” for supported resolutions.
3. The screen may have shifted to the right or to the left after connecting the cable.
Don't adjust the screen position in a Digital Signal.
4. Each external input Source device has a different back panel configuration.

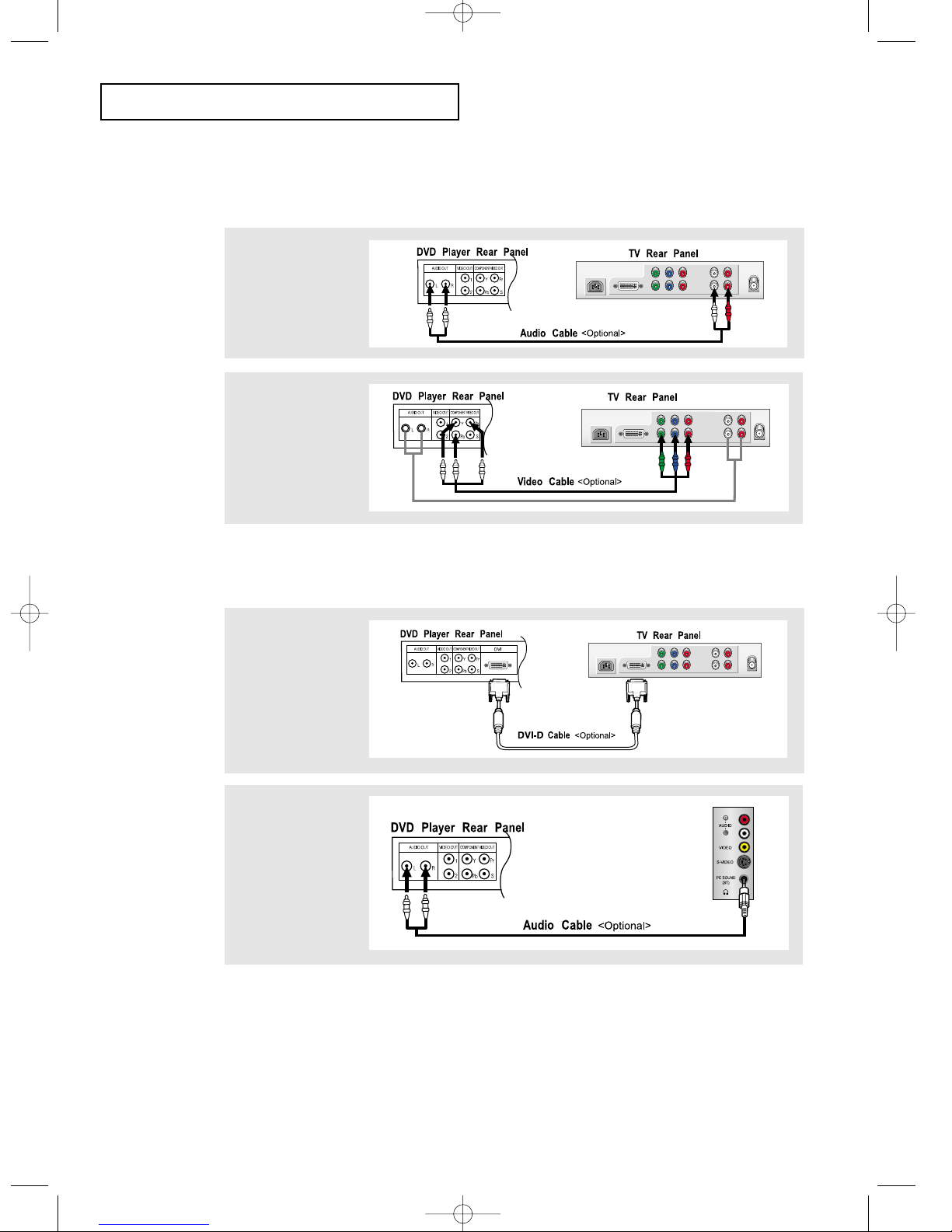

Connecting a DVD Player
The rear panel jacks on your TV make it easy to connect a DVD player to your TV.
1
Connect a set of audio
cables between the
L, R AUDIO INPUT
jacks on the TV and
the AUDIO OUT jacks
on the DVD player.
2
Connect a video cable
between the
COMPONENT1
(Y, Pb, Pr) jacks on
the TV and the Y, Pb,
Pr jacks on the DVD
player.
Connecting a DVD Player or Set-Top Box to the TV with a DVI-D Cable
1
Connect a DVI-D
cable between the
DVI-I INPUT
connector on the TV
and the DVI connector
on the DVD player/
Set-Top BOX.
2
Connect a set of audio
cables between the
PC AUDIO INPUT
jack on the TV and the
AUDIO OUTPUT jacks
on the DVD player/
Set-Top BOX.
victoryia 01-14 1/12/04 1:51 AM Page 13
English-5
INSTALLATION

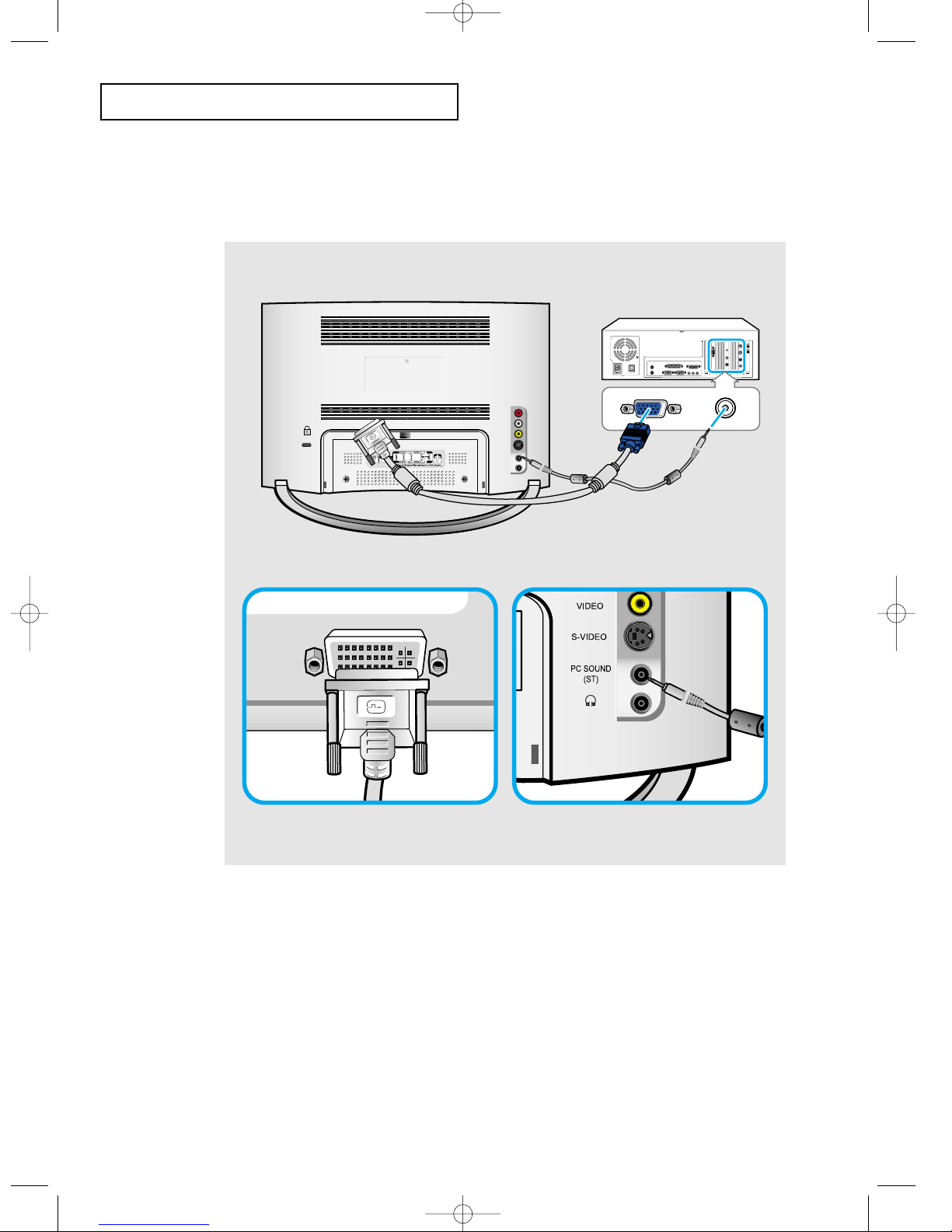

Connecting a PC
Note: This figure shows the Standard Connector-jack panel.
The actual configuration on your TV may be different, depending on the model.
• PC AUDIO INPUT
Connect these to the audio-output jacks on your PC.
• PC VIDEO INPUT
Connect to the video output port on your PC.
* Each external input source device has a different back panel configuration.
TV rear panel
PC VIDEO INPUT (24-pin DVI)
(Optional) PC SOUND INPUT (Optional)
PC rear
victoryia 01-14 1/10/04 1:03 AM Page 14

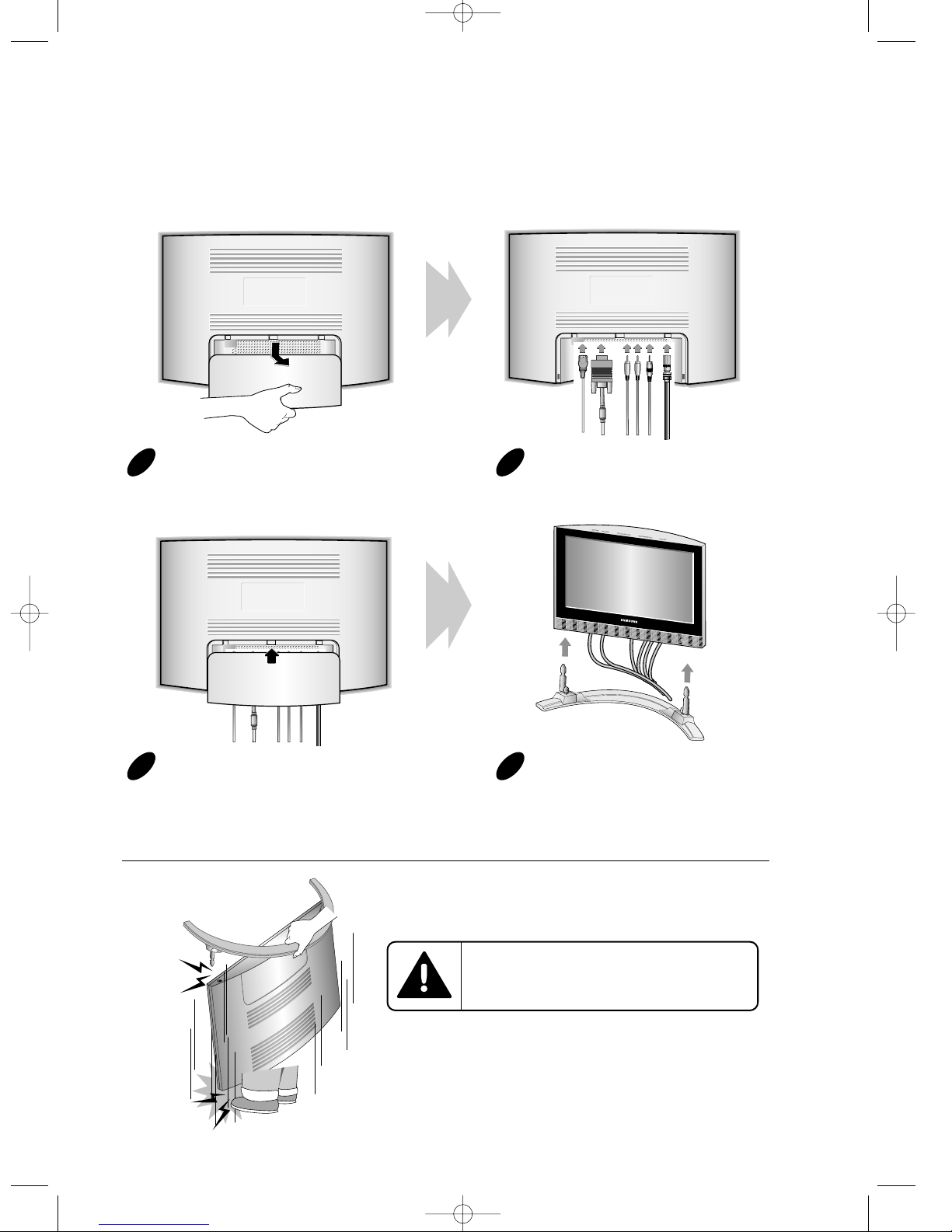

Do NOT lift the TV set by the stand.
The stand is not screwed to the TV set and
lifting the set by the stand may cause injury.
Remove the cover as shown in
the picture.
1Connect the cables as shown in the
picture.
2
Replace the cover.
3Attach the stand to the
TV set as shown in the picture.
Note : The curved side of the stand base should be
placed toward the back of the TV set as
shown in the above figure.
4
How to connect the cables and stand base
English-6
victoryia 62-70 1/10/04 1:05 AM Page 61
