Samsung Max Heat DVM S2 Manuale di istruzioni
Model : AM***BXVTFH/AA, AM***BXVTJH/AA
VRF
Technical
Data Book
Max Heat DVM S2 for America
(R410A, 60Hz, HP)
Version Modification Date Remark
Ver.1.0 Release Max Heat DVM S2 HP TDB for America 23.12.20
History
Nomenclature
(1) Classification
AM DVM
(2) Capacity
(3) Version
B2022
(4) Product Type
XOutdoor Unit
NIndoor Unit
(5) Feature 1
VInverter
(6) Feature 2
AStandard + General Temp.+ Module
HHigh EER + Low Temp. + Module
GHigh EER + General Temp. + Module
DStandard + General Temp. + Non-Module
(7) Rating Voltage
(8) Mode
HHeat Pump
RHeat Recovery
Outdoor Unit
Model Name
(1) (2) (3) (4) (5) (6) (7) (8) Buyer
072 AA
B F
kBtu/h (3 digits)
F
J
3Ø, 3#, 208~230V, 60Hz
3Ø, 3#, 460V, 60Hz
THigh EER+Low Temp.+ Module
T

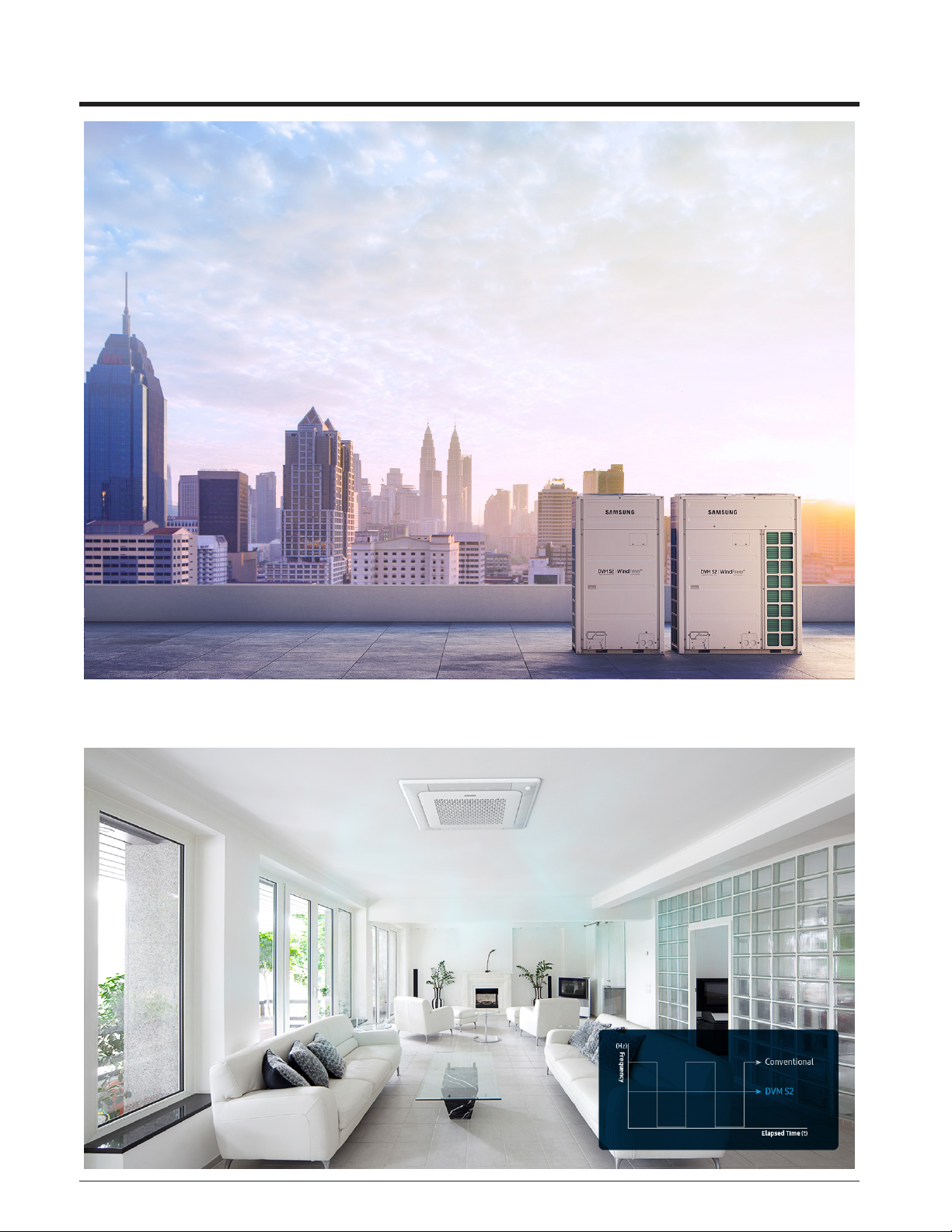

Features & Benefits
Rebuilt on all new innovations
Rethink your approach to air conditioning with the Samsung DVM S2. It delivers
outstanding comfort and energy efficiency, even in extreme climates. Its intelligent
features make installation and maintenance easier and more cost-effective.
Perfectly compatible with WindFree™
Active Frequency Drive 10Hz
Enjoy continuous comfort and avoid wasting energy. Active Frequency Drive 10Hz technology
enables the compressor to precisely control a small amount of refrigerant. So it maintains a more
consistent temperature and is compatible with Samsung’s WindFree™ Cooling.
Features & Benefits
Enabling a new era of consistent comfort

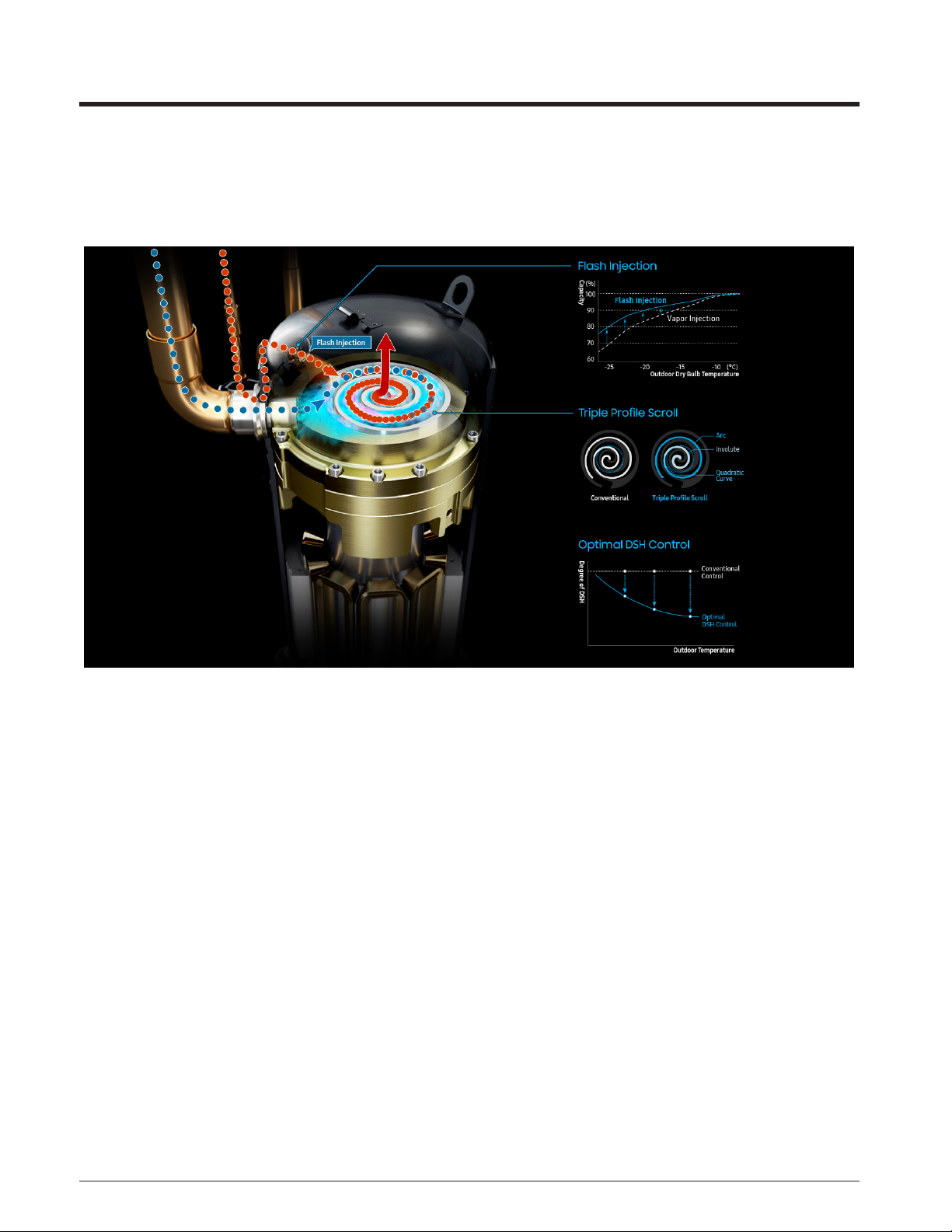

Advanced Flash Injection Compressor
Enter a new era of non-stop comfort and efficiency. The Advanced Flash Injection Compressor
provides the world’s largest capacity*. It combines Flash Injection technology with a strengthened
Triple Profile Scroll and efficient Optimal Discharge Superheat (DSH) Control technology.
* Samsung circulates 14,400cc/sec refrigerant (= 90cc (displacement volume) x 160rps (revolutions per second)), while Company A circulates 12,480cc/sec (= 96cc x 130rps), Company B circulates
14,080cc/sec (= 88cc x 160rps) and Company C circulates 12,320cc/sec (= 88cc x 140rps).
1. Combination Table : Outdoor units
•Make sure to use an indoor unit that is compatible with DVM S2.
•Indoor units can be connected within the range indicated in following table.
•If the total capacity of the connected indoor units exceeds the indicated maximum capacity, cooling and heating
capacity of the indoor unit may decrease.
•The standard allowed combination ratio of the total rated indoor unit capacity over the rated outdoor unit
capacity is 50~130%.
Combination ratio of up to 184% is allowed depending on operation mode, minimum operation ratio and
connected indoor unit models. DVM Pro 2 design software supports designing over 130% based on system
design. Refer to the “Design Procedure & Combination Ratio” section of this document for details
※You can connect maximum 64 indoor units to the outdoor unit. Maximum quantity of connectable indoor unit is set to 64
since outdoor unit only support up to 64 communication address. Indoor unit address can be
assigned from 0~63. If the indoor unit address was assigned from 64~79, E201 error will occur.
※Maximum 32 Wall-mount type indoor units with EEV (AM∗∗∗∗NQD∗∗∗, AM∗∗∗NVD∗∗∗) can be connected.
NOTE
DVM S2 HP (208~230V)
Combined outdoor units
Number of
Model name for Individual
combination outdoor units
Capa
(Ton)
6
8
10
12
14
16
18
20
22
24
AM072BXVTFH/AA
AM096BXVTFH/AA
AM120BXVTFH/AA
AM144BXVTFH/AA
AM168BXVTFH/AA
AM192BXVTFH1AA
AM216BXVTFH1AA
AM240BXVTFH1AA
AM264BXVTFH/AA
AM288BXVTFH/AA
1
1
1
2
2
2
3
3
3
3
072
(6Ton)
1
2
1
2
2
1
096
(8Ton)
1
1
3
1
120
(10Ton)
1
2
1
1
1
1. Combination Table : Outdoor units
Combined outdoor units
Number of
Model name for Individual
combination outdoor units
072 096 120
(6Ton) (8Ton) (10Ton)
AM072BXVTJH/AA 11
AM096BXVTJH/AA 1 1
AM120BXVTJH/AA 1 1
AM144BXVTJH/AA 2 2
AM168BXVTJH/AA 2 1 1
AM192BXVTJH1AA 22
AM216BXVTJH1AA 33
AM240BXVTJH1AA 32
AM264BXVTJH/AA 3 2 1
AM288BXVTJH/AA 3 1 1 1
•Make sure to use an indoor unit that is compatible with DVM S2.
•Indoor units can be connected within the range indicated in following table.
•If the total capacity of the connected indoor units exceeds the indicated maximum capacity, cooling and heating
capacity of the indoor unit may decrease.
•The standard allowed combination ratio of the total rated indoor unit capacity over the rated outdoor unit
capacity is 50~130%.
Combination ratio of up to 184% is allowed depending on operation mode, minimum operation ratio and
connected indoor unit models. DVM Pro 2 design software supports designing over 130% based on system
design. Refer to the “Design Procedure & Combination Ratio” section of this document for details
※You can connect maximum 64 indoor units to the outdoor unit. Maximum quantity of connectable indoor unit is set to 64
since outdoor unit only support up to 64 communication address. Indoor unit address can be
assigned from 0~63. If the indoor unit address was assigned from 64~79, E201 error will occur.
※Maximum 32 Wall-mount type indoor units with EEV (AM∗∗∗∗NQD∗∗∗, AM∗∗∗NVD∗∗∗) can be connected.
NOTE
DVM S2 HP (460V)
Capa
(Ton)
6
8
10
12
14
16
18
20
22
24
1
DVM S2 HP (208~230V)
Capa
[TON] Model Name Model Capa
[TON] Model Name Model
6
8
10
External Appearance
1. Combination Table : Outdoor units
AM072BXVTFH/AA
AM096BXVTFH/AA
AM120BXVTFH/AA
12
14
16
AM144BXVTFH/AA
AM168BXVTFH/AA
18
20
AM192BXVTFH1AA
22 AM264BXVTFH/AA
24 AM288BXVTFH/AA
AM216BXVTFH1AA
AM240BXVTFH1AA
Capa
[TON] Model Name Model Capa
[TON] Model Name Model
6
8
10
External Appearance
1. Combination Table : Outdoor units
AM072BXVTJH/AA
AM096BXVTJH/AA
AM120BXVTJH/AA
12
14
16
AM144BXVTJH/AA
AM168BXVTJH/AA
18
20
AM192BXVTJH1AA
22 AM264BXVTJH/AA
24 AM288BXVTJH/AA
DVM S2 HP (460V)
AM216BXVTJH1AA
AM240BXVTJH1AA
