Connecting a AV device
WY R
WYR
R
GB
WR
W R
RG
B
HD connection
DVD / Blu-Ray player / Cable Box
/ Satellite receiver (STB)
Using a DVI Cable
AUDIO OUTDVI OUT
HD connection
DVD / Blu-Ray player / HD Cable
Box / HD Satellite receiver (STB)
Using an HDMI Cable
HDMI OUT
Audio/Video connection
VCR
Using an Audio/Video Cable
AUDIO OUTVIDEO OUT
Component connection
DVD / Blu-Ray player / Cable
Box / Satellite receiver
Using a Component Cable
AUDIO OUT COMPONENT OUT
HDMI/DVI
PC/COMPONENT
EXT/VIDEO
Best
Normal
VCR / DVD
Using a Scart Cable
EXT
BN68-01902F-01Eng.indd 1 2009-09-09 �� 3:15:17
Downloaded From TV-Manual.com Manuals

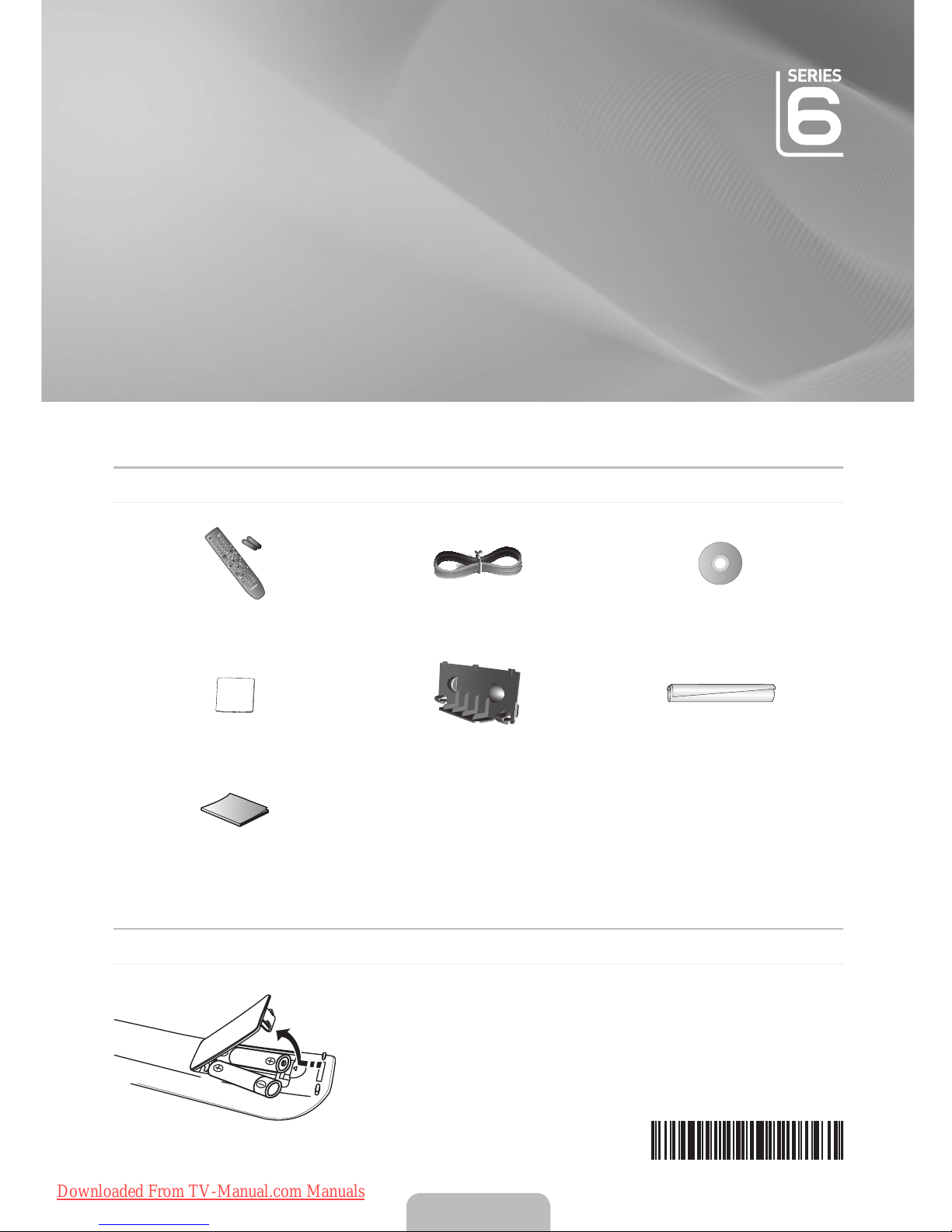

The Supplied Accessories
Remote Control & Batteries (AAA x 2) Power Cord Programme CD
Cleaning Cloth Cover-Bottom Holder-Wire Cable
(Depending on the model)
User Manual
Installing Batteries in the Remote Control
LCD TV
QUICK SETUP GUIDE
English - 1
BN68-01902F-01
BN68-01902F-01Eng.indd 2 2009-09-09 �� 3:15:18
Downloaded From TV-Manual.com Manuals
Installing the Stand
Preset: Place the Guide Stand and Cover Neck onto the stand and fasten it using the screws.
Step 1. Attach your LCD TV to the stand.
Two or more people should carry the TV.
Make sure to distinguish between the front and back of the stand when assembling them.
To make sure the TV is installed on the stand at a proper level, do not apply excess downward pressure to the upper left
of right sides of the TV.
Step 2. Fasten two screws at position 1 and then fasten two screw at position 2.
Stand the product up and fasten the screws. If you fasten the screws with the LCD TV placed down, it may lean to one
side.
Assembling the Cables
Enclose the cables in the Holder-Wire Cable so that the cables are not visible through the
transparent stand.
Using the remote control buttons
MENU Button
Display the main on-screen menu.
ENTER
E
/ DIRECTION Button
Move the cursor and select an
item. Select the currently selected
item. Confirm the setting.
RETURN Button
Return to the previous menu.
EXIT
Exit the on-screen menu.
N
N
N
N
N
English - 2
Back
Front
Front
Back
2
1
Preset Step 1 Step 2
BN68-01902F-01Eng.indd 3 2009-09-09 �� 3:15:19
Downloaded From TV-Manual.com Manuals
English - 3
Plug & Play
When the TV is initially powered on, basic settings proceed automatically and subsequently.
If you want to reset this feature, press the MENU button to display menu.
You can set the Plug & Play by selecting ‘Setup → Plug & Play’.
On the screen, you can set as follows.
The each step may vary depending on the Antenna source.
N
Step 1 Step 2 Step 3
Step 4 Step 5 Step 6
Step 7 Step 8 Step 9
Select the OSD Language.
Menu Language : English
U
Move
E
Enter
Plug & Play
Nederlands
English
Eesti
Select ‘Home Use’ when installing this TV in your
home.
L
Move
E
Enter
Plug & Play
Store Demo Home Use
Select Country.
Country : English
U
Move
E
Enter
Plug & Play
Switzerland
United Kingdom
CIS
Select the Antenna source to memorise.
U
Move
E
Enter
m
Skip
Plug & Play
StartCable
StartAir
Select the Channel source to memorise.
U
Move
E
Enter
m
Skip
Plug & Play
StartDigital
StartDigital & Analogue
StartAnalogue
Auto Store in progress.
E
Enter
m
Skip
Plug & Play
Stop
Digital Channels : 5 Analogue Channels : 6
Channels : 11
15%
Set the Clock Mode.
Clock Mode : English
U
Move
E
Enter
m
Skip
Plug & Play
Auto
Manual
Enjoy your TV.
See Product Guide Watch TV
How to get the best perfotmance from your new HDTV
Step 1. Connect the HD Box to the using HDMI or Component
cables.
r
Next
m
Skip
Plug & Play
1/2
▼
HD box
TV rear view
▶
HDMI Cable
Component Cable
BN68-01902F-01Eng.indd 4 2009-09-09 �� 3:15:20
Downloaded From TV-Manual.com Manuals
