Samsung LE15E31S Manuale utente
LCD TV
LE15E31S
LCD TV
LE15E31S
Owner’s Instructions
Before operating the unit,
please read this manual thoroughly,
and retain it for future reference.
-
AFTER SALES SERVICE
-
Do not hesitate to contact your retailer or service agent if a
change in the performance of your product indicates that a
faulty condition may e present.
BN68-00438V-01
ELECTRONICS
ON-SCREEN MENUS
PC DISPLAY
TELETEXT
This device is a Class B digital apparatus.
LCD TV
LE15E31S
Owner’s Instructions
Before operating the unit,
please read this manual thoroughly,
and retain it for future reference.
ON-SCREEN MENUS
PC DISPLAY
TELETEXT

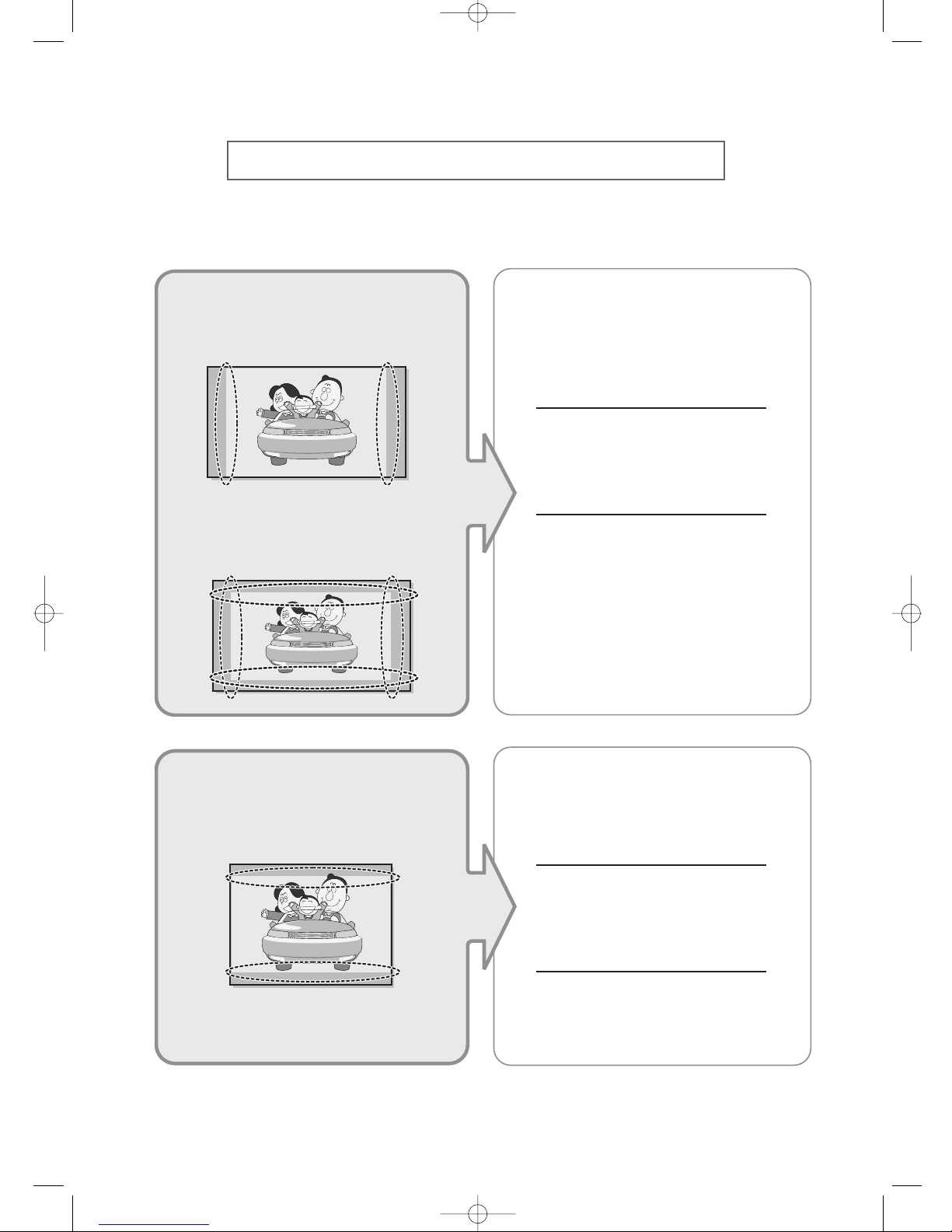

Precautions When Using the Still Image
The still image may cause permanent damage to the TV screen.
•

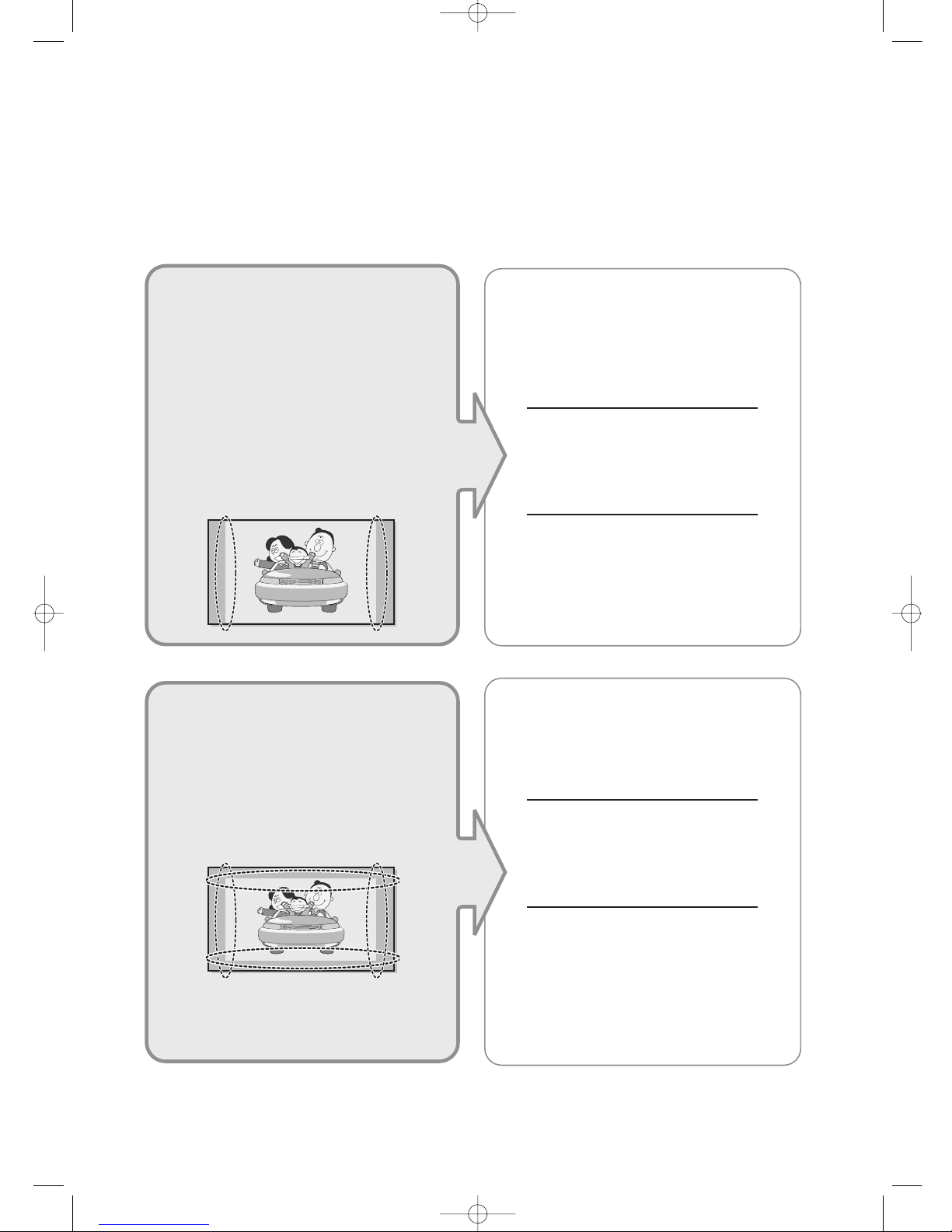

Digital Ready TV: When you
select the regular screen (4:3)
mode to watch an D-grade
digital broadcast (and the set-top
box output is 480p).
Although digital broadcasting must be in the
wide screen (16:9) HD format, broadcasters
sometimes show programs made originally
in the regular screen format (4:3) by
converting the signals into digital form, in
which case the left and right side edges of
the screen are cropped.
Do not leave the screen in pause mode for
extended periods of time as you may
experience the same problem with products
by other manufacturers.
Note : If the borders at the left, right and the
center of the screen remain fixed for
an extended period of time, the
amounts of light transmission will also
remain varied and as a result the
borders may leave traces.
•
Digital Ready TV: When you
select the wide screen (16:9)
mode to watch an D-grade
digital broadcast (and the set-top
box output is 1080i).
•
Digital Ready TV: When the
TV receives HD-grade signals
(and the set-top box output is 1080i).
When you watch a digital HD-grade broadcast
on a regular (4:3) TV with the screen size
"16:9" or "Panorama" selected, you will be
able to watch the program but the top and
bottom edges of the screen will be cropped.
Do not leave the screen in pause mode for
extended periods of time as you may
experience the same problem with products
by other manufacturers.
Note : If the borders at the top, bottom and
the center of the screen remain fixed
for an extended period of time, the
amounts of light transmission will also
remain varied and as a result the
borders may leave traces.
Eng.qxd 6/18/04 8:46 AM Page 1
• Integrated
Digital TV
(Wide-screen): When the TV
receives D-grade (regular)
broadcasting signals (receives
480p regular signals).
•
Digital Ready TV
(wide-screen):
digital TV: When the TV receives
D-grade (regular) broadcasting
signals (with a set-top box).
• When you watch an analogue
(regular) broadcast on a
wide-screen TV (with the 4:3 screen
mode selected).
Although digital broadcasting must be in the
wide screen (16:9) HD format, broadcasters
sometimes show programs made originally
in the regular screen format (4:3) by
converting the signals into digital form, in
which case the left and right side edges of
the screen are cropped.
Do not leave the screen in pause mode for
extended periods of time as you may
experience the same problem with products
by other manufacturers.
Note : If the borders at the left, right and the
center of the screen remain fixed for
an extended period of time, the
amounts of light transmission will also
remain varied and as a result the
borders may leave traces.
•
When you watch a DVD, CD or a
video in wide screen (21:9) format on
a wide-screen (16:9) TV.
• When you connect a computer or a
game console to the TV and select
the 4:3 screen mode.
If you connect a DVD player, computer or a
game console to the wide-screen TV and
watch a movie or play a game in regular
(4:3) or wide (21:9) screen mode, the left
and right side edges, or the top and bottom
edges of the screen will be cropped.
Do not leave the screen in pause mode for
extended periods of time as you may
experience the same problem with products
by other manufacturers.
Note : If the borders at the left, right and the
center of the screen remain fixed for
an extended period of time, the
amounts of light transmission will also
remain varied and as a result the
borders may leave traces.
Eng.qxd 6/18/04 8:46 AM Page 2
English-2
Contents
◆CONNECTING AND PREPARING YOUR TV
■Viewing the Control Panel ............................................................................. 4
■Viewing the Connection Panel ...................................................................... 5
-
Connecting an Aerial or Cable Television Network.................................... 6
-
Connecting a Set-Top Bo , VCR or DVD .................................................. 6
-
Connecting a Computer ............................................................................. 6
-
Connecting E ternal A/V Devices .............................................................. 7
-
Connecting Headphones ........................................................................... 7
-
Kensington Slot.......................................................................................... 7
■Viewing Pictures From E ternal Sources...................................................... 8
■Inserting the Batteries in the Remote Control............................................... 9
■Viewing the Remote Control (All Functions E cept Telete t)........................ 10
■Viewing the Remote Control (Telete t Functions) ......................................... 11
■Switching On and Off .................................................................................... 12
■Placing in Standby Mode .............................................................................. 12
■Becoming Familiar with the Remote Control................................................. 13
■Plug & Play.................................................................................................... 14
■Selecting TV Mode or an Input Source ......................................................... 16
■Editing an Input Source Name ...................................................................... 17
■Choosing Your Language.............................................................................. 18
◆SETTING THE CHANNELS
■Storing Channels Automatically..................................................................... 19
■Storing Channels Manually ........................................................................... 20
■Editing the Channels ..................................................................................... 22
■Sorting the Stored Channels ......................................................................... 23
■Giving Channels Names................................................................................ 24
◆SETTING THE PICTURE
■Changing the Picture Standard ..................................................................... 25
■Adjusting the Custom Picture........................................................................ 26
■Adjusting the Screen Background Colour ..................................................... 27
◆SETTING THE SOUND
■Changing the Sound Standard...................................................................... 28
■Selecting Auto Volume Control...................................................................... 29
English-3
Contents
◆SETTING THE TIME
■Setting the Clock ........................................................................................... 30
■Switching Off Automatically........................................................................... 31
■Switching the Television On and Off Automatically ....................................... 32
◆USING THE VARIOUS UNCTIONS
■Setting the Blue Screen Mode ...................................................................... 33
■Displaying Information................................................................................... 33
◆USING THE TELETEXT EATURE
■Telete t Feature............................................................................................. 34
■Displaying the Telete t Information ............................................................... 35
■Selecting a Page by Number ........................................................................ 36
■Using FLOF to Select a Page ....................................................................... 37
■Storing Telete t Pages .................................................................................. 37
◆USING THE PC UNCTIONS
■Setting Up Your PC Software........................................................................ 38
■Coarse and Fine Tuning of the Image........................................................... 39
■Changing the Image Position ........................................................................ 40
■Initializing the Image Settings ....................................................................... 41
■Adjusting the PC Screen Automatically......................................................... 42
■Picture Mode ................................................................................................. 43
■Adjusting the Custom Picture........................................................................ 43
■Adjusting the Screen Background Colour ..................................................... 44
■Customizing the colour.................................................................................. 45
◆RECOMMENDATIONS OR USE
■Troubleshooting: Before Contacting Service Personnel ............................... 46
■Power Saver.................................................................................................. 47
■Technical and Environmental Specifications ................................................. 48
■Display Modes............................................................................................... 49
■Retractable Stand.......................................................................................... 50
■Using Your TV in Another Country ................................................................ 50
■Using the Anti-Theft Kensington Lock........................................................... 51
■Installing the Wall Mount Kit.......................................................................... 52
Press Important Note
Symbols
English-4

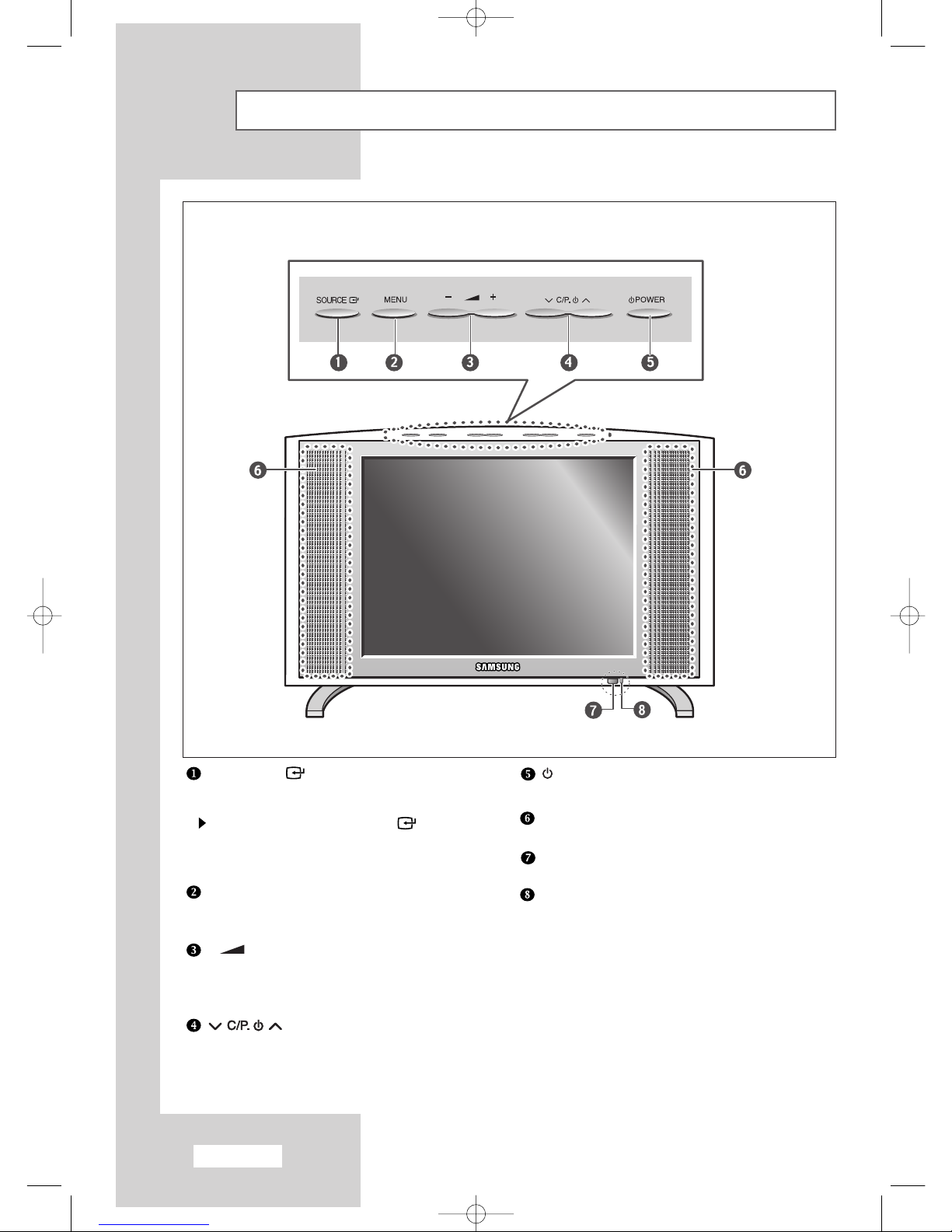

Viewing the Control Panel
SOURCE
Displays a menu of all of the available input sources
(TV - AV1 - AV2 - S-Video - P ).
You can also use the SOURCE()
button on the TV’s control
panel to make selections.
MENU
Press to see an on-screen menu of your TV’s
features.
- +
Moves the selector left or right on the OSD.
Decreases or increases the level of audio
volume and the values of the selected function.
Moves the selector down or up on the OSD.
Decreases or increases the channel number.
POWER
Turns ON/OFF your set.
SPEAKERS
REMOTE CONTROL SENSOR
POWER INDICATOR
Lights up when you turn the power off.
(Red light shows in stand-by mode, Red
shows when you turn the power on, and light
is off after the power is on. Green shows when you
set Timer on or off.)
English-5

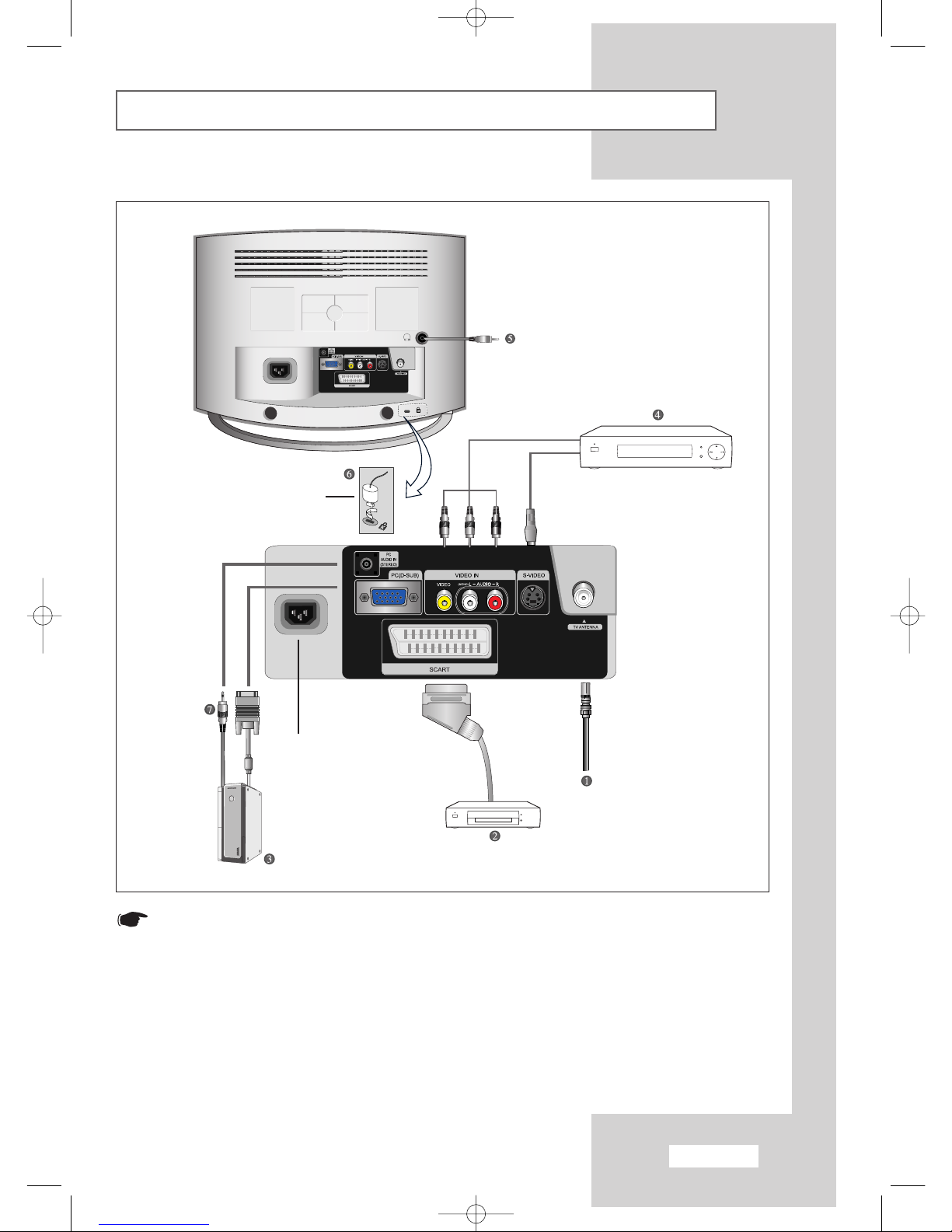

Viewing the Connection Panel
Whenever you connect an audio or video system to your set,
ensure that all elements are switched off.
Refer to the documentation supplied with your equipment for
detailed connection instructions and associated safety precautions.
Power Input
Option
English-6
Viewing the Connection Panel
Connecting an Aerial or Cable Television Network (depending on the model)
To view television channels correctly, a signal must be received by the set from one of the
following sources
- An outdoor aerial
- A cable television network
- A satellite network
Connecting a Set-Top Box, CR or D D
- Connect the VCR, or DVD SCART cable to the SCART connector of the VCR, or DVD.
- If you wish to connect both the Set-Top Box and VCR (or DVD), you should connect the
Set-Top Box to the VCR (or DVD) and connect the VCR (or DVD) to your set.

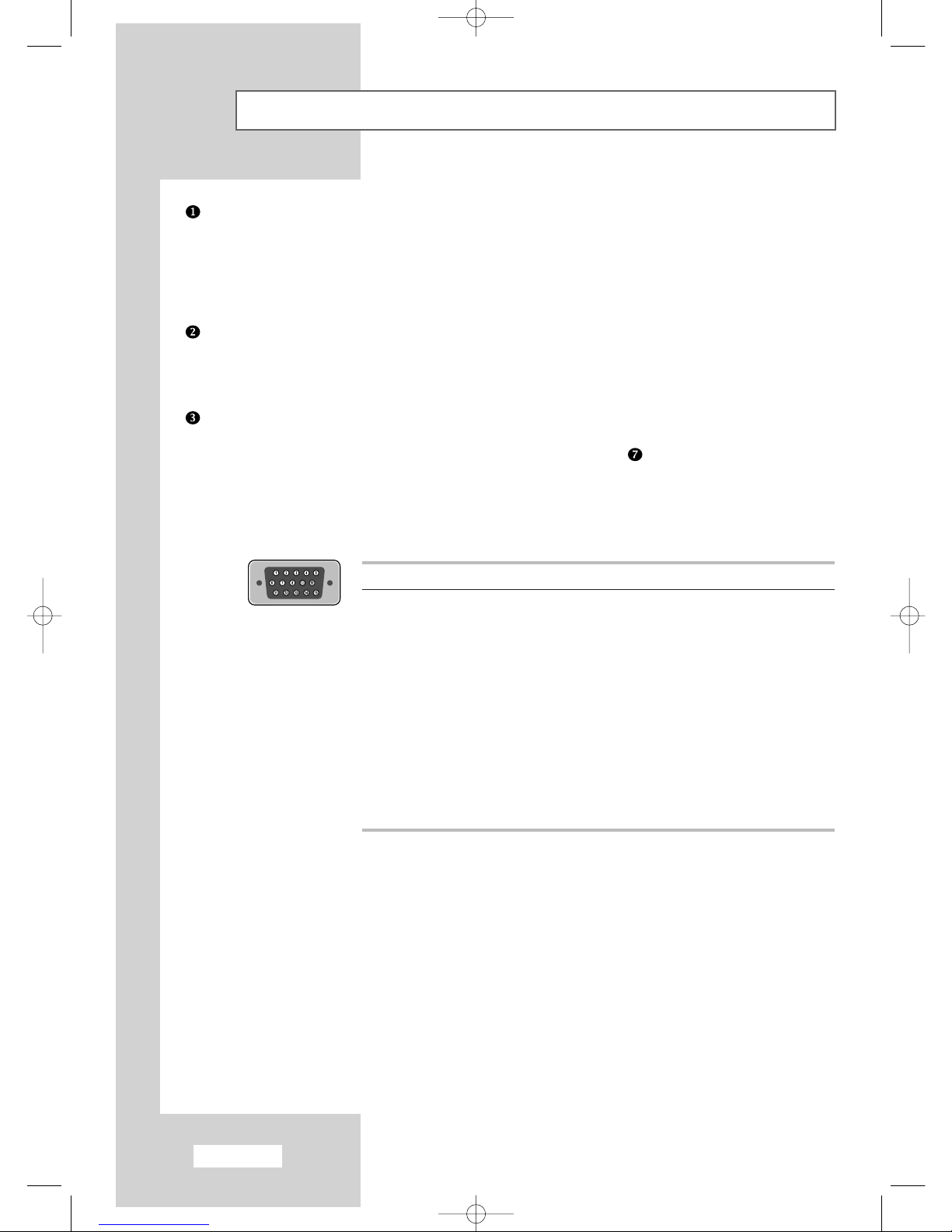

Connecting a Computer
- Connect the 15 Pin D-SUB connector to the PC video connector.
- Connect the stereo audio cable to the “PC AUDIO IN (STEREO)” jack ( ) on the rear of your set and the
other end to the “Audio Out” jack of the sound card on your computer.
Pin Separate H/V Composite H/V
1 Red (R) Red (R)
2 Green (G) Green (G)
3 Blue (B) Blue (B)
4 Grounding Grounding
5 Grounding (DDC return) Grounding (DDC return)
6 Grounding - Red (R) Grounding - Red (R)
7 Grounding - Green (G) Grounding - Green (G)
8 Grounding - Blue (B) Grounding - Blue (B)
9 No connection No connection
10 Grounding - Sync. / Self test Grounding - Sync. / Self test
11 Grounding Grounding
12 DDC - SDA (Data) DDC - SDA (Data)
13 Horizontal Sync. Horizontal/Vertical Sync.
14 Vertical Sync. Not used
15 DDC - SCL (Clock) DDC - SCL (Clock)
➣15 Pin D-SUB connector
English-7
Viewing the Connection Panel
Connecting External A/ Devices
- Connect RCA or S-VIDEO cables to an appropriate external A/V device such as a VCR, DVD
or Camcorder.
- Connect RCA audio cables to “(MONO)L-AUDIO-R” on the rear of your set and the other ends to
corresponding audio out connectors on the A/V device.
Connecting Headphones
- Plug a set of headphones into the 3.5mm mini-jack socket on the right-side of the set.
While the headphones are connected, the sound from the built-in speakers will be disabled.
Kensington Slot
- This television has been designed to apply a burglarproof lock. (See page 51)
Altri manuali per LE15E31S
5
Indice
Altri manuali Samsung TV LCD
Samsung
Samsung LN32B650 Manuale utente
Samsung
Samsung LN46C750 Manuale utente
Samsung
Samsung 5 Series Manuale utente
Samsung
Samsung UN32C6500VF Manuale utente
Samsung
Samsung LTP227W - HD-Ready Flat-Panel LCD TV Guida all'installazione
Samsung
Samsung 5 Series Manuale utente
Samsung
Samsung LN32B460B2DXZA Manuale utente
Samsung
Samsung LE32D550 Manuale utente
Samsung
Samsung LE32D550K1W Manuale utente
Samsung
Samsung 6 series Manuale utente
Samsung
Samsung BN68-01981D-01 Manuale utente
Samsung
Samsung LE32E420E Manuale utente
Samsung
Samsung MO15E Series Manuale utente
Samsung
Samsung LE40C750R2W Manuale utente
Samsung
Samsung LN32B640R3F Manuale utente
Samsung
Samsung BN68-01464D-00 Manuale utente
Samsung
Samsung LN32B640 Manuale utente
Samsung
Samsung LN19C350 Manuale utente
Samsung
Samsung QE65QN800AU Manuale utente
Samsung
Samsung LE26S8 Manuale utente
