Samsung LN22B350 Manuale utente

LCD TV

quick start guide

imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register

your product at

www.samsung.com/register

English - 1

Connections

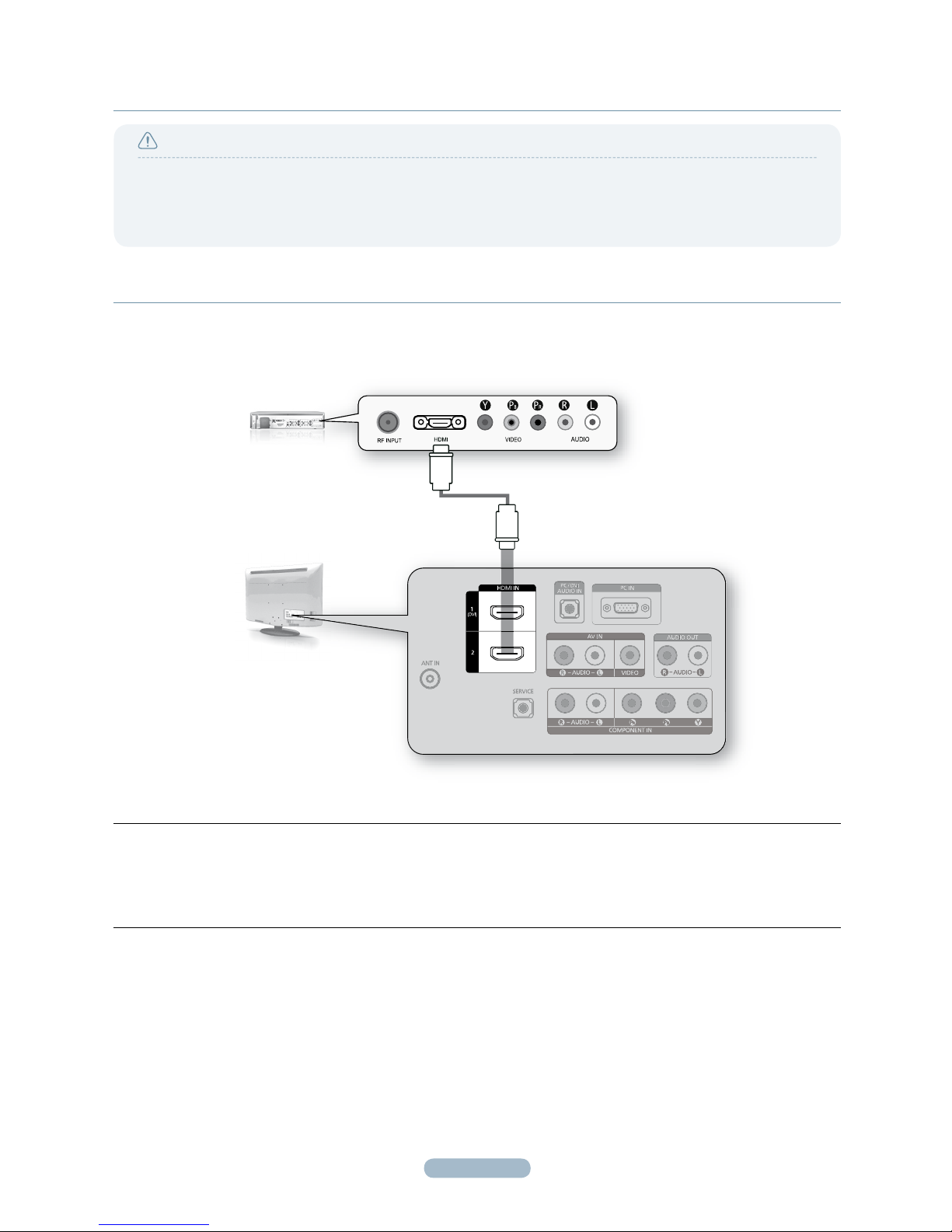

Connect an HDMI Cable (Not supplied) between the HDMI IN (1 or 2) jack on the TV and the HDMI jack on the

Cable Box/Satellite receiver (Set-Top Box).

No additional Audio connection is needed for an HDMI to HDMI connection.

CABLE BOX/SATELLITE

RECEIVER (SET-TOP BOX)

REAR PANEL

TV REAR PANEL

CONNECTING A CABLE BOX/SATELLITE RECEIVER (SET-TOP BOX)

VIA HDMI

Caution

● When connecting an external device, match the colour of the connection terminal to the cable.

● The product colour and shape may vary depending on the model.

● Each Cable Box/Satellite receiver (Set-Top Box) has a different back panel con guration.

● Whenever you connect an external device to your TV, make sure that power on the unit is turned off.

LN26B350 / LN32B350

English - 2

Connect an HDMI Cable (Not supplied) between the HDMI / PC IN [HDMI(DVI)] jack on the TV and the HDMI jack

on the Cable Box/Satellite receiver (Set-Top Box).

No additional Audio connection is needed for an HDMI to HDMI connection.

CABLE BOX/SATELLITE

RECEIVER (SET-TOP BOX)

REAR PANEL

TV REAR PANEL

LN22B350

English - 3

CONNECTING A CABLE BOX/SATELLITE RECEIVER (SET-TOP BOX)

VIA DVI

CABLE BOX/SATELLITE

RECEIVER (SET-TOP BOX)

REAR PANEL

TV REAR PANEL

Connect an HDMI Cable (Not supplied) between the HDMI IN 1 (DVI) jack on the TV and the HDMI jack on the

Cable Box/Satellite receiver (Set-Top Box).

Connect Audio Cables (Not supplied) between the PC / DVI AUDIO IN jack on the TV and the Cable Box/Satellite

receiver (Set-Top Box).

When using an HDMI/DVI cable(Not supplied) connection, you must use the HDMI IN 1 (DVI) jack.

LN26B350 / LN32B350

English - 4

CABLE BOX/SATELLITE

RECEIVER (SET-TOP BOX)

REAR PANEL

TV REAR PANEL

Connect an HDMI Cable (Not supplied) between the HDMI/PC IN [HDMI(DVI)] jack on the TV and the HDMI jack

on the Cable Box/Satellite receiver (Set-Top Box).

Connect Audio Cables (Not supplied) between the HDMI/PC IN [AUDIO] jack on the TV and the Cable Box/

Satellite receiver (Set-Top Box).

LN22B350

English - 5

CONNECTING A CABLE BOX/SATELLITE RECEIVER (SET-TOP BOX)

VIA COMPONENT CABLES

TV REAR PANEL

CABLE BOX/SATELLITE

RECEIVER (SET-TOP BOX)

REAR PANEL

Connect a Component Cable (Not supplied) between the COMPONENT IN [Y, PB, PR ]jacks on the TV and the

COMPONENT jacks on the Cable Box/Satellite receiver (Set-Top Box).

Connect Audio Cables (Not supplied) between the COMPONENT IN [R-AUDIO-L] jacks on the TV and the AUDIO

OUT jacks on the Cable Box/Satellite receiver (Set-Top Box).

LN26B350 / LN32B350

English - 6

TV REAR PANEL

CABLE BOX/SATELLITE

RECEIVER (SET-TOP BOX)

REAR PANEL

Connect a Component Cable (Not supplied) between the COMPONENT IN [Y, PB, PR ]jacks on the TV and the

COMPONENT jacks on the Cable Box/Satellite receiver (Set-Top Box).

Connect Audio Cables (Not supplied) between the COMPONENT IN [R-AUDIO-L] jacks on the TV and the AUDIO

OUT jacks on the Cable Box/Satellite receiver (Set-Top Box).

LN22B350

English - 7

Memorizing the Channels

Selecting the Video Signal-source

Before your television can begin memorizing the available channels, you

must specify the type of signal source that is connected to the TV (i.e. an Air

or a Cable system).

Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Channel, then press the ENTERE

button.

Press the ENTEREbutton to select Antenna.

Press the ▲ or ▼ button to select Air, STD, HRC, IRC or Cable,

then press the ENTEREbutton.

Press the EXIT button to exit.

Storing Channels in Memory (Automatic Method)

First, select the correct signal source (Air, STD, HRC or IRC).

Press the MENU button to display the menu.

Press the ▲ or ▼ button to select Channel, then press the ENTERE

button.

Press the ▲ or ▼ button to select Auto Program, then press the

ENTEREbutton.

If a channel is locked using the Child Lock function, the PIN input window

appears.

Press the ▲ or ▼ button to select the antenna connection, then press

the ENTEREbutton.

STD, HRC and IRC identify various types of cable TV systems. Contact your local cable company to identify the type of

cable system that exists in your particular area. At this point, the signal source has been selected.

The TV automatically cycles through all of the available channels and stores them in memory. This takes about one to two

minutes.

Press the ENTERE button at any time to interrupt the memorization process and return to the Channel menu.

The TV begins memorizing all available stations.

To stop the search before it has nished, press the ENTEREbutton with Stop selected.

After all the available channels are stored, the Auto Program menu reappears.

Press the EXIT button to exit.


Sound

Channel

Setup

Input

Antenna :

Air

�

Auto Program �

Channel List �

Fine Tune �

Color System :

Auto

�

UMove EEnter RReturn

TV Channel


Sound

Channel

Setup

Input

Antenna :

Air

�

Auto Program �

Channel List �

Fine Tune �

Color System :

Auto

�

UMove EEnter RReturn

TV Channel

English - 8

Troubleshooting

My TV is out of order. Why? Try this.

TV HD is displayed, but

the visual quality is not

good.

• The visual quality may be degraded

when the broadcasting stations convert

the analog signal to digital. (Although

you are watching digital broadcasting,

the video source is analog.)

• Check the transmitting signal of the

corresponding cable TV network or

broadcasting station.

The picture on the

TV screen is broken

intermittently (a mosaic or

distorted).

• This may occur when the broadcast

signal received by the TV is too weak

or unstable.

• Check the transmitting signal of the

corresponding cable TV network or

broadcasting station.

• If you are using a publically shared

antenna, check the signal by asking

your apartment manager.

I cannot control the TV

using the remote control.

• When the battery is at.

• When it is not in TV mode.

• When the remote control malfunctions

temporarily.

• Replace the battery and then retry.

• Press the TV button on the remote

control to select TV mode.

A strange sound is

generated by the TV.

• Sound may be generated by the

temporary swelling and shrinking of the

plastics in the TV due to temperature

and humidity changes.

• Temporary electronic oscillation

sounds may be generated due to the

characteristics of the TV

• Some noise can be heard due to the

characteristics of the product.

COUNTRY Customer Care Center

Web Site

ARGENTINE 0800-333-3733 www.samsung.com/ar

BRAZIL 0800-124-421

4004-0000 www.samsung.com

CHILE 800-SAMSUNG(726-7864) www.samsung.com/cl

COLOMBIA 01-8000112112 www.samsung.com.co

COSTA RICA 0-800-507-7267 www.samsung.com/latin

ECUADOR 1-800-10-7267 www.samsung.com/latin

EL SALVADOR 800-6225 www.samsung.com/latin

GUATEMALA 1-800-299-0013 www.samsung.com/latin

HONDURAS 800-7919267 www.samsung.com/latin

JAMAICA 1-800-234-7267 www.samsung.com/latin

PANAMA 800-7267 www.samsung.com/latin

PUERTO RICO 1-800-682-3180 www.samsung.com/latin

REP. DOMINICA 1-800-751-2676 www.samsung.com/latin

NICARAGUA 00-1800-5077267 www.samsung.com/latin

MEXICO 01-800-SAMSUNG(726-7864) www.samsung.com/mx

TRINIDAD & TOBAGO 1-800-SAMSUNG(726-7864) www.samsung.com/latin

VENEZUELA 0-800-100-5303 www.samsung.com/latin

IMPORTADO POR:

AV. PRESIDENTE MASARIK #111 INT701

COL. CHAPULTEPEC MORALES C.P.11570

DELEGACION MIGUEL HIDALGO MEXICO. DISTRITO FEDERAL

Tel: 01-55-5747-5100 / 01-800-726-7864

Contact SAMSUNG WORLDWIDE

If you have any questions or comments relating to Samsung products,

please contact the SAMSUNG customer care centre.
