1
connections

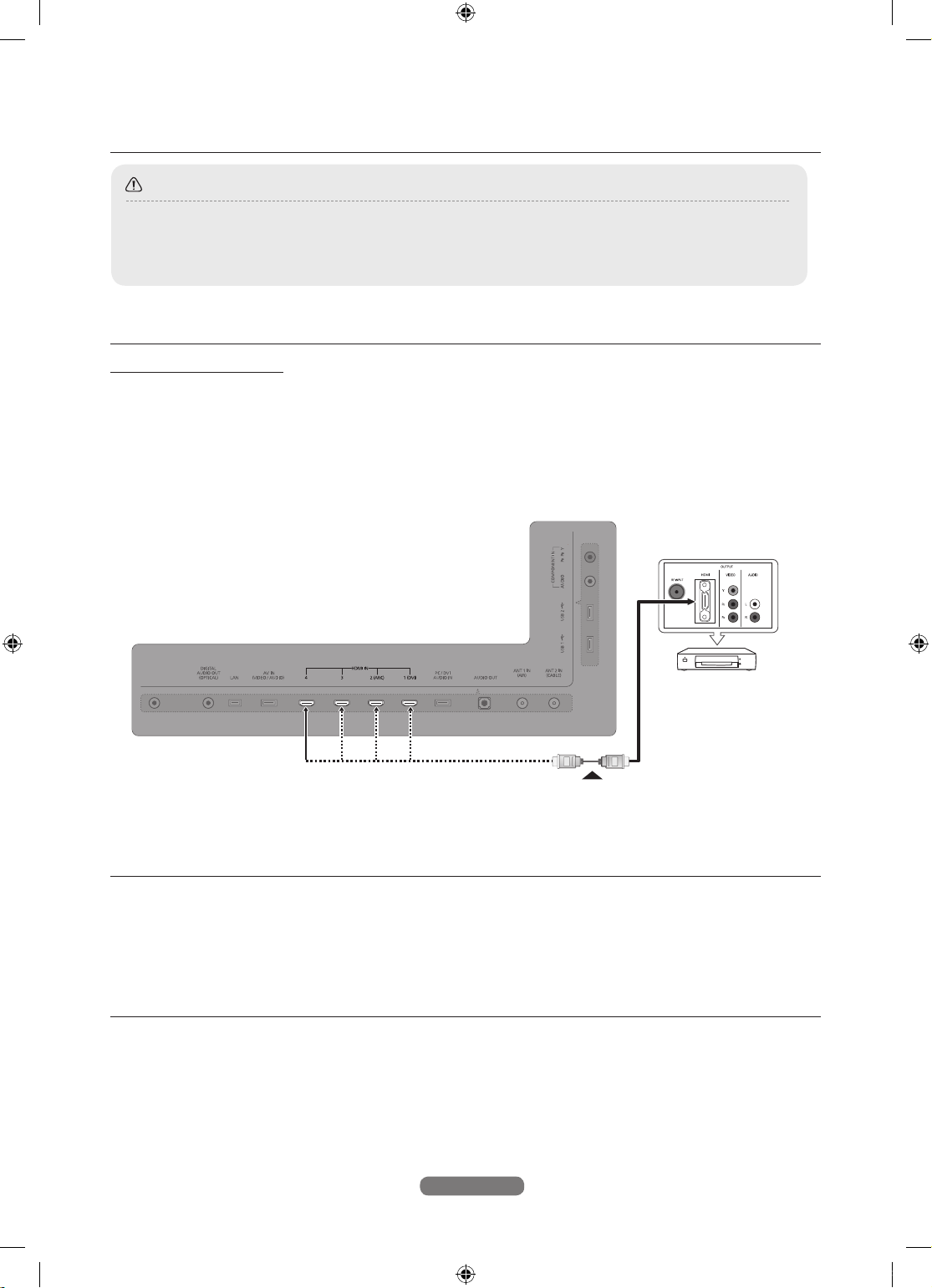

CONNECTING A CABLE BOX/SATELLITE RECEIVER (SET-TOP BOX)
VIA HDMI
UN55C9000ZM / UN55C9000SM
● When connecting an external device, match the colour of the connection terminal to the cable.
● The product colour and shape may vary depending on the model.
● Each Cable Box/Satellite receiver (Set-Top Box) has a different back panel conguration.
● Whenever you connect an external device to your TV, make sure that power on the unit is turned off.
Caution
1.
Connect an HDMI Cable(Not supplied) between the HDMI IN (1(DVI), 2(ARC), 3 or 4) jack on the TV and the
HDMI jack on the Cable Box/Satellite receiver (Set-Top Box).
➢
No additional Audio connection is needed for an HDMI to HDMI connection.
➢
When using an HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) jack.
&9-*/,&
9
-*
/,
DVD Player or Cable Box /
Satellite receiver (Set-Top Box)
TV ReaR Panel
1
[UC9000_Bra]BN68-03027A.indd 1 2010-05-18 오후 4:47:08
2

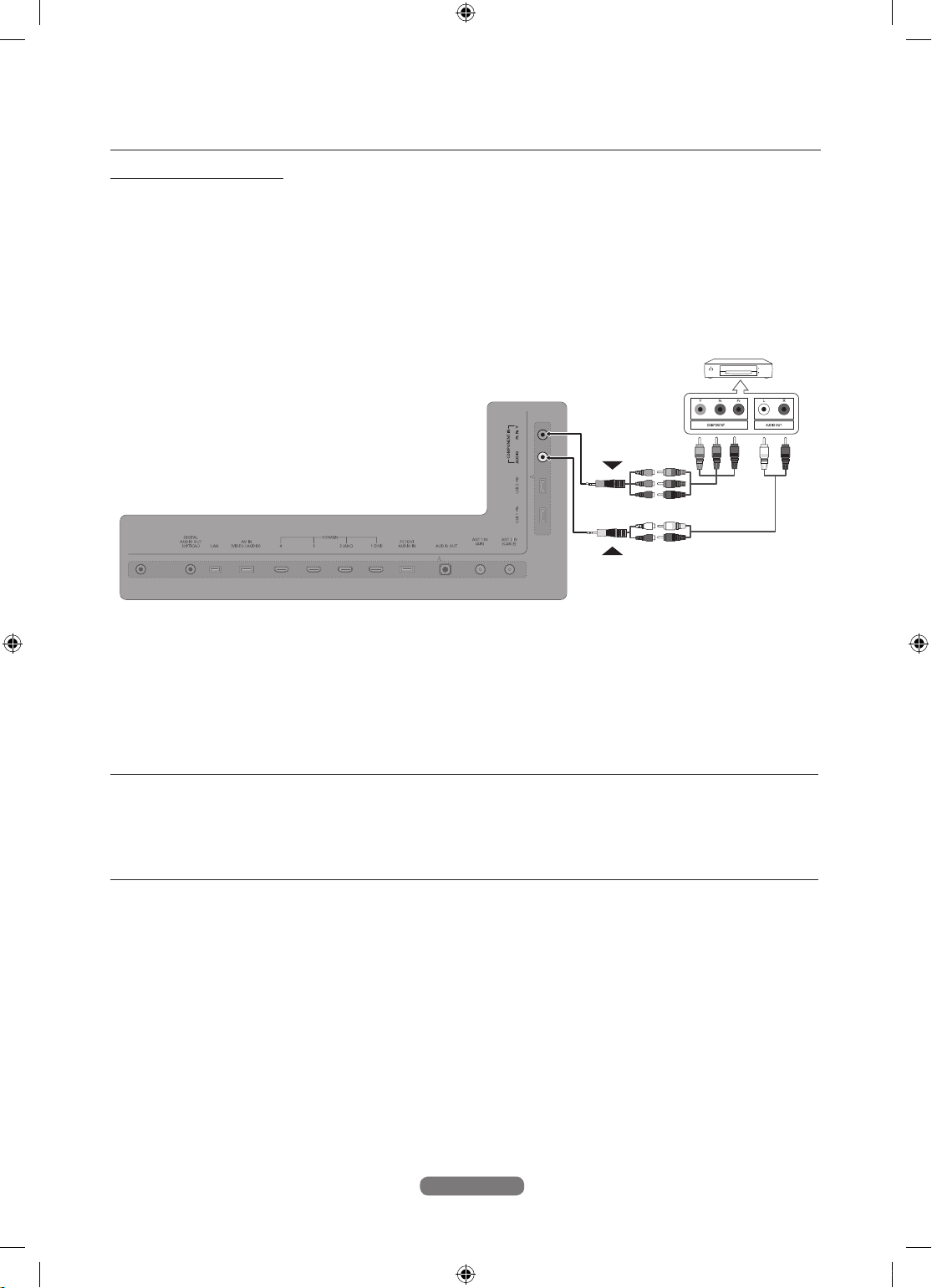

CONNECTING A CABLE BOX/SATELLITE RECEIVER (SET-TOP BOX)
VIA DVI
UN55C9000ZM / UN55C9000SM
1.
Connect an HDMI Cable(Not supplied) between the HDMI IN 1(DVI) jack on the TV and the HDMI jack on the
Cable Box/Satellite receiver (Set-Top Box).
2.
Connect Audio Cables(Not supplied) between the DVI AUDIO IN jack on the TV and the Cable Box/Satellite
receiver (Set-Top Box).
➢
When using an HDMI/DVI cable(Not supplied) connection, you must use the HDMI IN 1 jack.
&9-*/,&
9
-*
/,
DVD Player or Cable Box /
Satellite receiver (Set-Top Box)
TV ReaR Panel
2
1
[UC9000_Bra]BN68-03027A.indd 2 2010-05-18 오후 4:47:09
3

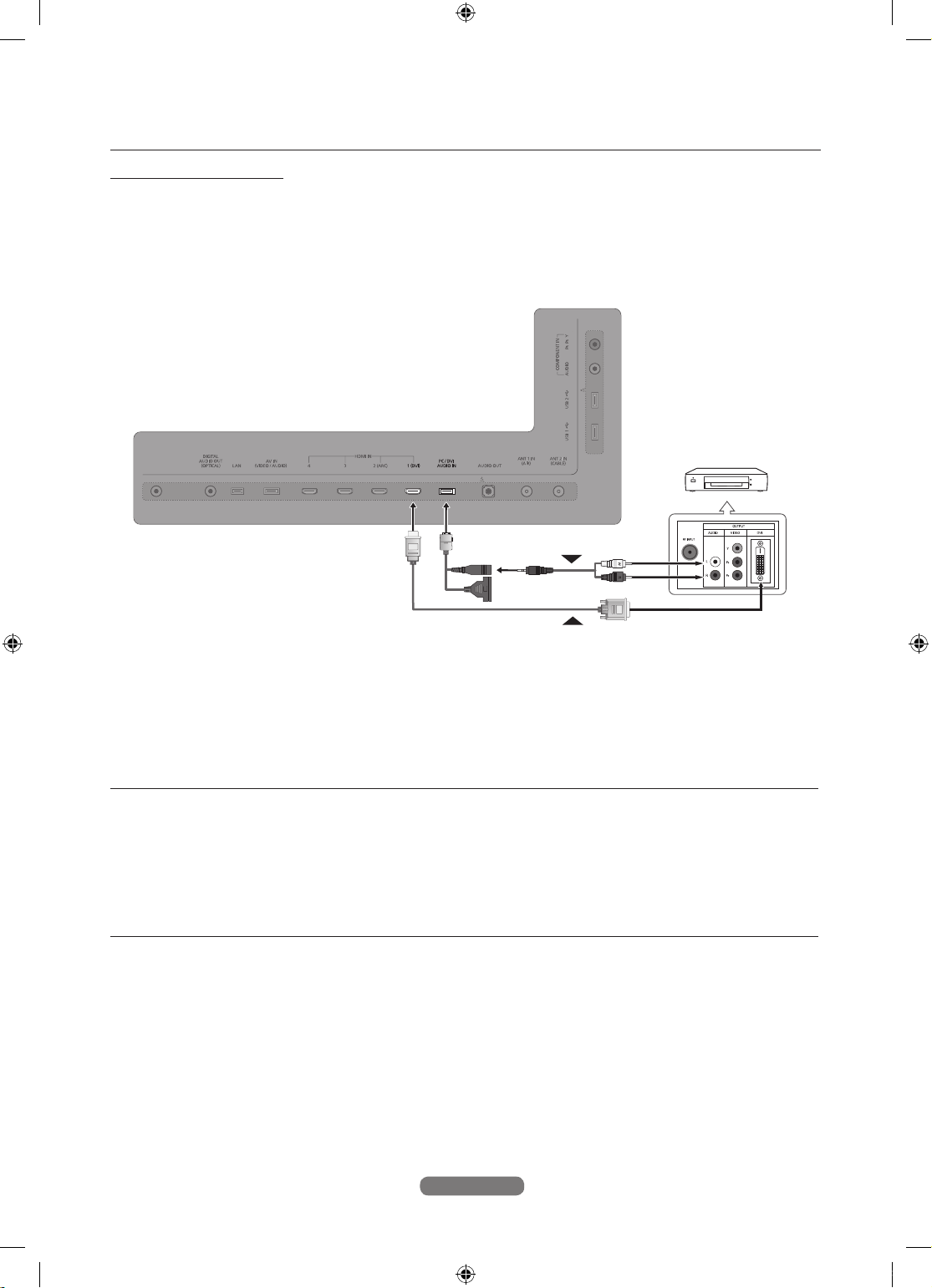

CONNECTING A CABLE BOX/SATELLITE RECEIVER (SET-TOP BOX)
VIA COMPONENT CABLES
UN55C9000ZM / UN55C9000SM
1.
Connect a Component Cable(Not supplied) between the COMPONENT IN [Y, PB, PR] jacks on the TV and the
COMPONENT jacks on the Cable Box/Satellite receiver (Set-Top Box).
2.
Connect Audio Cables(Not supplied) between the COMPONENT IN [R-AUDIO-L] jacks on the TV and the
AUDIO OUT jacks on the Cable Box/Satellite receiver (Set-Top Box).
&9-*/,&9-*/,
R
B
G
W R
R
G
B
W
W
R
R
G
B
R
1
2
DVD Player or Cable Box /
Satellite receiver (Set-Top Box)
TV ReaR Panel
[UC9000_Bra]BN68-03027A.indd 3 2010-05-18 오후 4:47:09
4

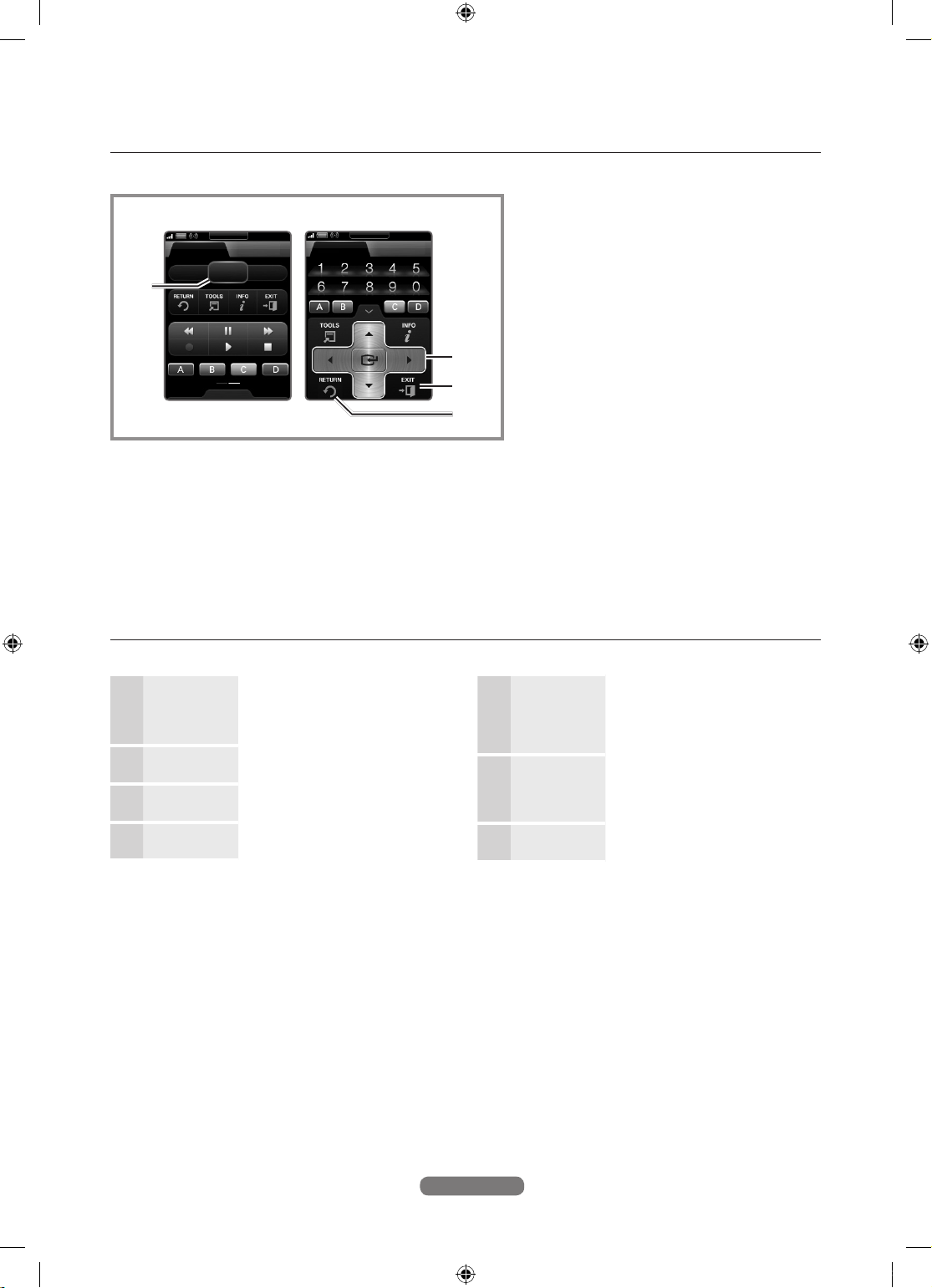

How to Navigate Menus
Before using the TV, follow the steps below to learn how to navigate the menu and select and adjust different functions.
The access step may differ depending on the selected menu.
1MENU button: Displays the main on-screen
menu.
2 ENTERE/ Direction button: Move the cursor
and select an item. Confirm the setting.
3EXIT button: Exits the on-screen menu.
4RETURN button: Returns to the previous menu.
HOW TO OPERATE THE OSD (ON SCREEN DISPLAY)
1MENU
m
The main menu options appears on
the screen:
Picture, Sound, Channel, Setup,
Input, Application, Support.
2▲/ ▼Select an icon with the ▲or ▼
button.
3ENTER
E
Press ENTER
E
to access the sub-
menu.
4▲/ ▼Select the desired submenu with the
▲or ▼button.
5◄/ ►
Adjust the value of an item with the
◄or ►button. The adjustment in
the OSD may differ depending on the
selected menu.
6ENTER
E
Press ENTER
E
to complete the
configuration.
7EXIT
e
Press EXIT.
Keyboard
Navigation
TV Control Services
CONTENT MENU INTERNET
@TV
Keyboard
TV Control Services
1
4
3
2
[UC9000_Bra]BN68-03027A.indd 4 2010-05-18 오후 4:47:09
CMS
Contact SAMSUNG WORLDWIDE
If you have any questions or comments relating to Samsung products,
please contact the SAMSUNG customer care center.
Country Customer Care Center Web Site
ARGENTINA 0800-333-3733 www.samsung.com
BRAZIL 0800-124-421
4004-0000 www.samsung.com
CHILE 800-SAMSUNG(726-7864) www.samsung.com
NICARAGUA 00-1800-5077267 www.samsung.com
HONDURAS 800-7919267 www.samsung.com
COSTA RICA 0-800-507-7267 www.samsung.com
ECUADOR 800-6225 www.samsung.com
EL SALVADOR 1-800-299-0013 www.samsung.com
GUATEMALA 1-800-299-0013 www.samsung.com
JAMAICA 1-800-234-7267 www.samsung.com
PANAMA 800-7267 www.samsung.com
PUERTO RICO 1-800-682-3180 www.samsung.com
REP. DOMINICA 1-800-751-2676 www.samsung.com
TRINIDAD & TOBAGO 1-800-SAMSUNG(726-7864) www.samsung.com
VENEZUELA 0-800-100-5303 www.samsung.com
COLOMBIA 01-8000112112 www.samsung.com
