ii
LCD MONITOR
quick start guide
400MX-2 400MXn-2 460MX-2 460MXn-2
Introduction
Package Contents
Note
Please make sure the following items are included with your LCD Display.
If any items are missing, contact your dealer.
Contact a local dealer to buy optional items.
Note
This stand is not for the Floor Standing Type.
Checking the Contents of the Package
Remove the lock from the package box, as shown in the figure above.
Lift up the package box by
holding the grooves on
both sides of the package
box.
Check the contents of the
package.
Remove the Styrofoam
and vinyl cover.
Note
•After unpacking the package, make sure to check the contents of the package.
• Make sure to keep the package box for transporting the product in the future.
•After unpacking, you may use the lower part of the package box as a temporary stand for
product test or operation check.
Unpacking
LCD Display
Manuals
Introduction
Quick Setup Guide Warranty Card
(Not available in all locations) User's Guide
MagicInfo Software CD
MagicInfo Manual CD
(Applicable to the FPn-2 model
only)
Cables
Power Cord
Others
Remote Control Batteries (AAA X 2)
(Not available in all locations)
HDD Cover
(Applicable to the FPn-2 model
only)
Introduction
Note
zYou can purchase and connect a separate network box or TV tuner box. For information on how to use these, refer to
their respective user manuals.
zYou can only connect one external box.
BNC to RCA Adaptor Jack
Ferrite Core for Lan Cable
(Applicable to the 46-inch network
model only.)
Sold separately
D-Sub Cable DVI Cable Wall Mount KIT
LAN Cable
(Applicable to the FPn-2 model
only)
TV tuner box
NetWork Box
(Applicable to the FP-2 model
only)
Semi Stand KIT BNC Cable
Ferrite Core
zThe ferrite cores are used to shield the cables from interference.
zWhen connecting a cable, open the ferrite core and clip it around the cable near the plug.
Your LCD Display
Front
MENU button [MENU]
Opens the on-screen menu and exits from the menu. Also use to exit the
OSD menu or return to the previous menu.
Navigate buttons (Up-Down buttons)
Moves from one menu item to another vertically or adjusts selected menu
values.
Adjust buttons (Left-Right buttons) / Volume buttons
Moves from one menu item to another horizontally or adjusts selected
menu values. When OSD is not on the screen, push the button to adjust
volume.
ENTER button [ENTER]
Activates a highlighted menu item.
SOURCE button [SOURCE]
Switches from PC mode to Video mode. Changing the source is only al-
lowed for external devices that are connected to the LCD Display at the
time.
[PC] → [DVI] → [AV] → [HDMI] → [MagicInfo] → [TV] → [BNC]→ [Com-
ponent]
Note
•The TV menu is available when a TV tuner box is installed.
•The MagicInfo menu is available when a network box is installed in the
FPn-2 or FP-2 model.
D.MENU
Opens the on-screen D.MENU.
Introduction
Note
•This is available when a TV tuner box is installed.
Power button [ ]
Use this button for turning the LCD Display on and off.
Power indicator
Shows PowerSaver mode by blinking green
Note
See PowerSaver described in the manual for further information regarding
power saving functions. For energy conservation, turn your LCD Display
OFF when it is not needed or when leaving it unattended for long periods.
Remote Control Sensor
Aim the remote control towards this spot on the LCD Display.

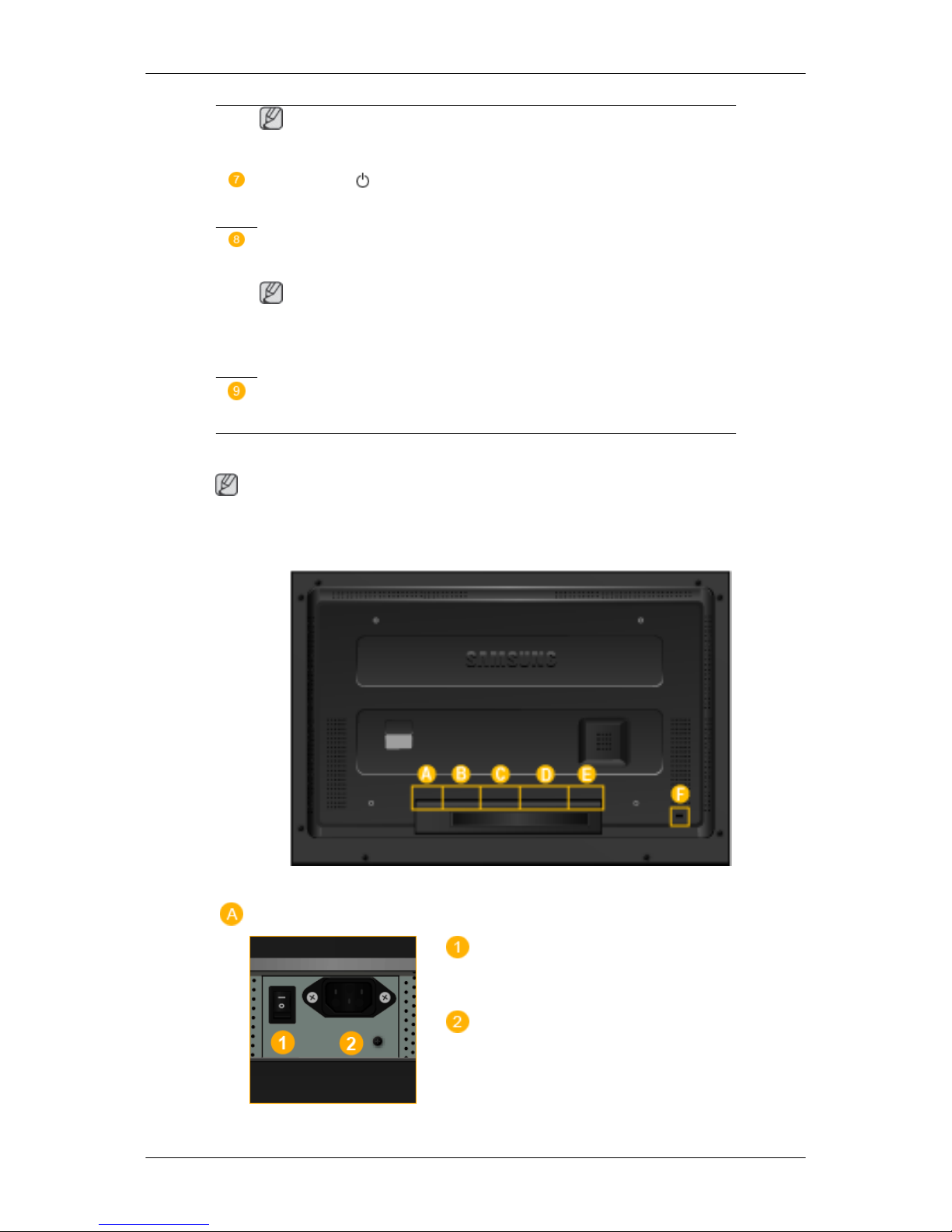

Rear
Note
For detailed information concerning cable connections, refer to Connecting Cables under
Setup. The LCD Display 's configuration at the back may vary slightly depending on the LCD
Display model.
POWER S/W ON [
│
] / OFF [O]
Switches the LCD Display On/Off.
POWER IN
The power cord plugs into the LCD Display
and the wall plug.
Introduction
RS232COUT/IN(RS232C Serial PORT)
MDC(Multiple Display Control) Program Port
DVI / PC / HDMI IN [DVI/PC/HDMI AU-
DIO IN] (PC/DVI/HDMI Audio Connection
Terminal (Input))
DVI / PC / HDMI IN [HDMI]
Connect the HDMI terminal at the back of
your LCD Display to the HDMI terminal of
your digital output device using a HDMI ca-
ble.
DVI / PC / HDMI IN [RGB](PC Video
Connection Terminal)
Using a D-Sub Cable (15 pin D-Sub) - PC
mode (Analog PC)
DVI /PC/ HDMIIN [DVI] (PCVideo Con-
nection Terminal)
Using a DVI Cable (DVI-D to DVI-D) - DVI
mode (Digital PC)
DC OUT
Make sure to use connecting DC-OUT ter-
minal to the authorized TV-Tuner Box[SBB-
DT*].
Otherwise, this may result in damage to the
product.
AV IN [VIDEO] (VIDEO Connection Ter-
minal)
Connect the [ VIDEO ] terminal of your mon-
itor to the video output terminal of the exter-
nal device using a VIDEO cable.
AV AUDIO IN [L-AUDIO-R](LCD Display
Audio Connection Terminal (Input))
Introduction
AV AUDIO OUT [L-AUDIO-R] (LCD Dis-
play Audio Connection Terminal (Output))

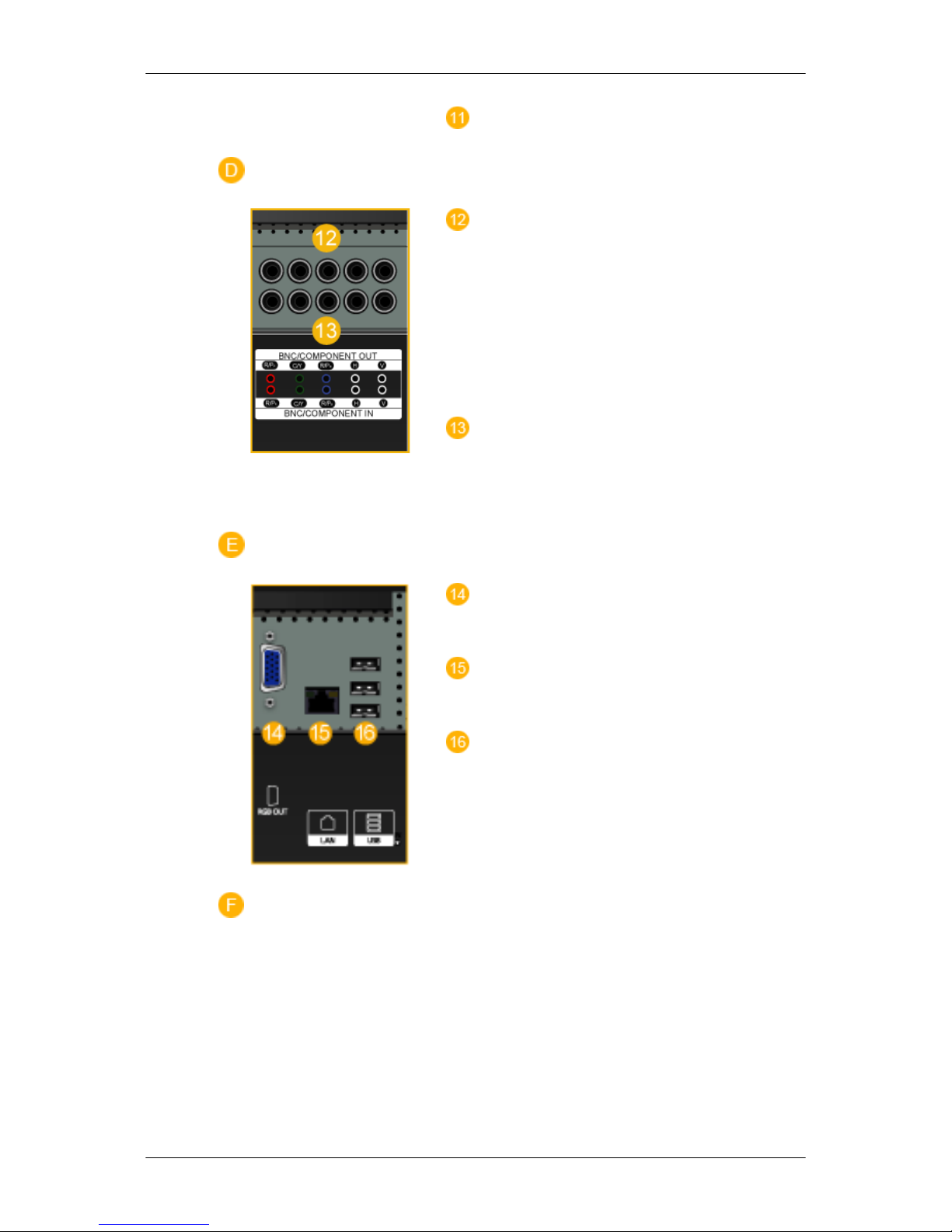

BNC/COMPONENT OUT[R/PR, G/Y, B/
PB, H, V]
(BNC/Component Connection Terminal
(Output))
BNC (Analog PC) Connection: connecting
the R, G, B, H, V ports.
Component Connection: connecting the PR,
Y, PB ports.
BNC/COMPONENT IN[R/PR, G/Y, B/
PB, H, V]
(BNC/Component Connection Terminal (In-
put))
RGB OUT
(Applicable to the FPn-2 model only)
LAN (LAN Connection Terminal)
(Applicable to the FPn-2 model only)
USB(USB Connection Terminal)
Keyboard / Mouse, Mass Storage Device
Compatible.
(Applicable to the FPn-2 model only)
Introduction

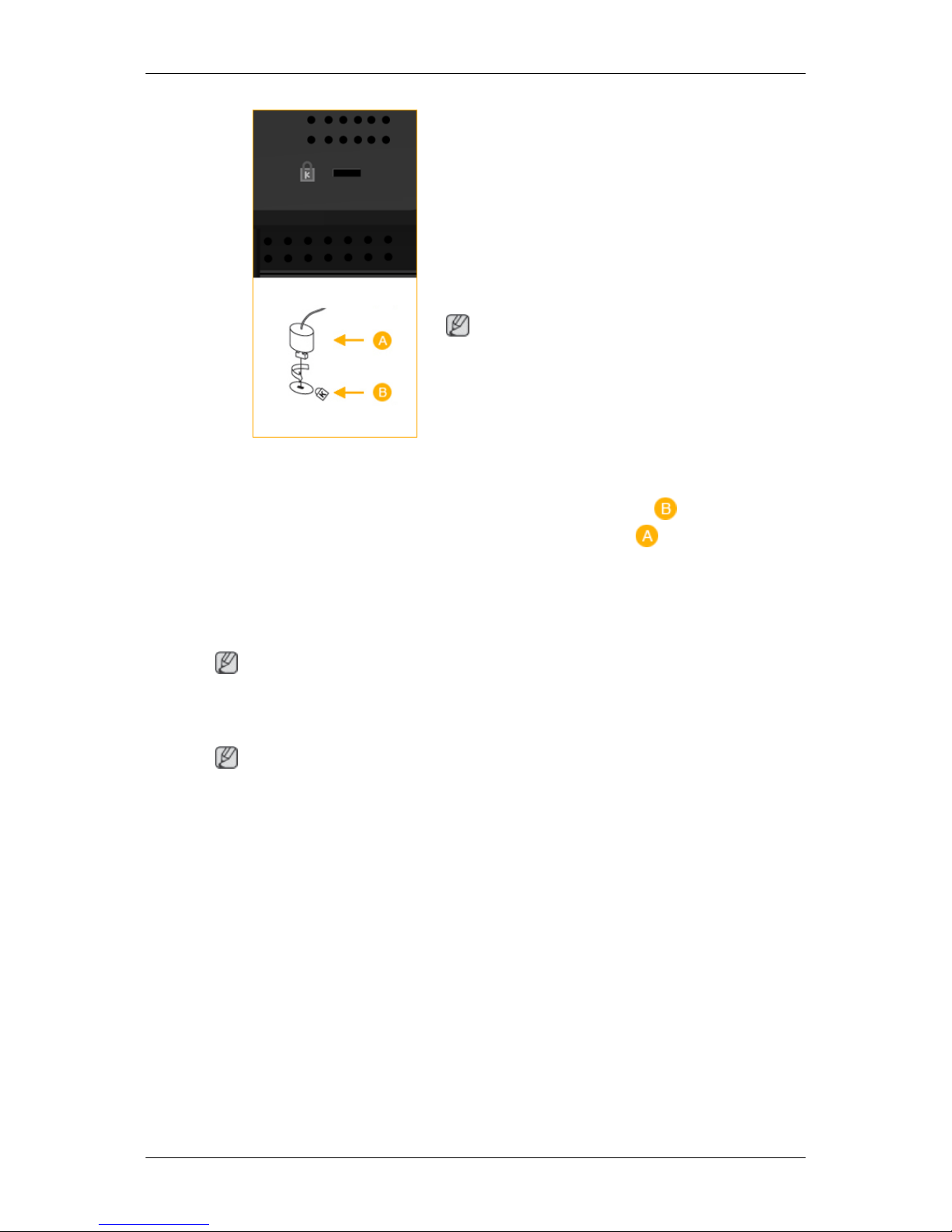

Kensington Lock
The Kensington Lock is a device used to
physically fix the system when using it in a
public place. The locking device has to be
purchased separately. The appearance and
locking method may differ from the illustra-
tion depending on the manufacturer. Refer to
the manual provided with the Kensington
Lock for proper use. The locking device has
to be purchased separately.
Note
The location of the Kensington Lock may be
different depending on its model.
Using the Anti-Theft Kensington
Lock
1. Insert the locking device into the Ken-
sington slot on the Monitor and turn
it in the locking direction .
2. Connect the Kensington Lock cable.
3. Fix the Kensington Lock to a desk or a
heavy stationary object.
Note
See Connecting Cables for further information regarding cable connections.
Remote Control
Note
The performance of the remote control may be affected by a TV or other electronic device
operating near the LCD Display , causing a malfunction due to interference with the frequen-
cy.
Introduction
POWER
OFF
Number Buttons
DEL button
+ VOL -
MUTE
TV/DTV
MENU
INFO
COLOR BUTTONS
TTX/MIX
STILL
AUTO
S.MODE
MDC
LOCK
SOURCE
ENTER/PRE-CH
CH/P
D.MENU
GUIDE
RETURN
Up-Down Left-Right buttons
EXIT
SRS
MagicInfo
P.MODE
DUAL/MTS
PIP
SWAP
1. POWER Turns the product On.
2. Off Turns the product Off.
3. Number Buttons Press to change the channel.
Introduction
