Samsung 400PX - SyncMaster - 40" LCD Flat Panel... Manuale utente

LCD MONITOR

quick start guide

460PXn/460PX/400PXn/400PX

Select Language Main Page

Model

The color and appearance of the product may vary depending on the model, and the product specifications are

subject to change without prior notice for reasons of performance enhancement.

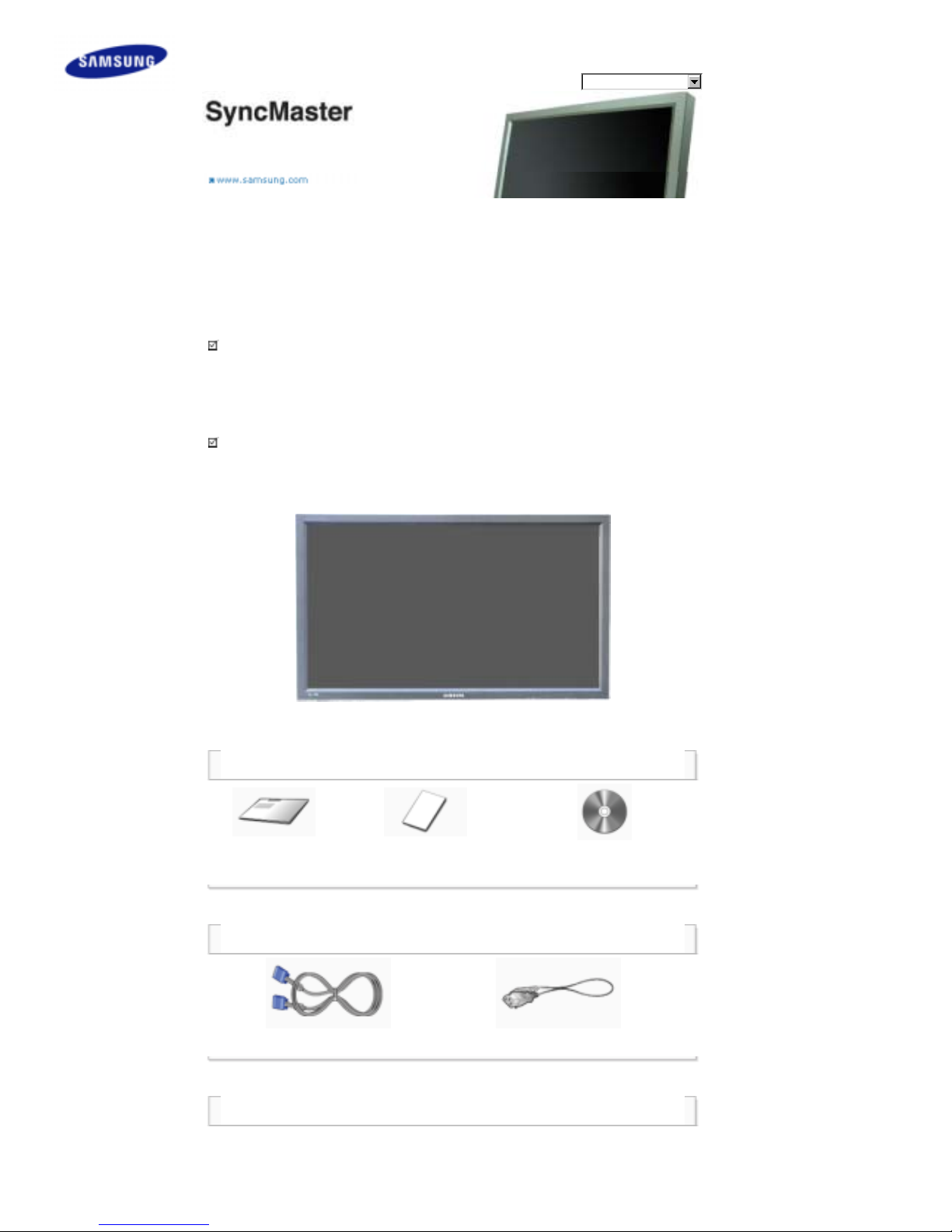

Introduction

Package Contents

Note

• Please make sure the following items are included with your LCD Display.

If any items are missing, contact your dealer.

Contact a local dealer to buy optional items.

Note

• This stand is not for the Floor Standing Type.

LCD Display

Manuals

Quick Setup Guide Warranty Card

(Not available in all locations)

User's Guide, MDC Software,

MagicNet Software

Cables

D-Sub Cable Power Cord

Other

Safety Instructions

Introduction

Package Contents

Your LCD Display

Machanical Layout

Connections

Using the Software

Adjusting the LCD Display

Troubleshooting

Specifications

Information

Appendix

SyncMaster 400PXn / 460PXn

Remote Control Batteries (AAA X 2)

(Not available in all locations) Cover-Hole

BNC to RCA

Adaptor Jack Semi Stand USB Holder & Screw (1EA)

Sold separately

Wall Mount KIT Speaker Set Stand KIT

DVI Cable LAN Cable BNC Cable

Your LCD Display

Front

1) MENU

Opens the on-screen menu and exits from the menu or closes the adjustment menu.

2) Navigate buttons (Up-Down buttons)

Moves from one menu item to another vertically or adjusts selected menu values.

3) Adjust buttons (Left-Right buttons)/ Volume buttons

Moves from one menu item to another horizontally or adjusts selected menu values.

Adjusts the audio volume.

4) ENTER

Activates a highlighted menu item.

5) SOURCE

Switches from PC mode to Video mode.

Changing the source is only allowed for external devices that are connected to the LCD Display at the time.

[PC] →[BNC] →[DVI] →[AV] →[S-Video] →[Component] →[MagicNet]

>> Click here to see an animation clip.

6) PIP

Push the PIP button to turn the PIP screen On / Off.

More than one PIP cannot overlap on screen as BNC and the component use the same terminal.

>> Click here to see an animation clip.

•PC

V / S-Video / Component Mode

•BNC

V / S-Video Mode

•DVI

V / S-Video / Component Mode

•AV / S-Video

PC / BNC / DVI Mode

•Component

PC / DVI Mode

7) Power button

Turns the LCD Display On/Off.

8) Power indicator

Shows PowerSaver mode by blinking green.

9) Remote Control Sensor

Aim the remote control towards this spot on the LCD Display.

Note

•SeePowerSaver described in the manual for further information regarding power saving functions. For

energy conservation, turn your LCD Display OFF when it is not needed or when leaving it unattended for

long periods.

Rear

Note

• For detailed information concerning cable connections, refer to Connecting Cables under Setup. The LCD

Display 's configuration at the back may vary slightly depending on the LCD Display model.

1) POWER S/W ON [ | ] / OFF [O]

Switches the LCD Display On/Off.

2) POWER IN

The power cord plugs into the LCD Display and

the wall plug.

3) RS232C OUT/IN (RS232C Serial PORT)

MDC(Multiple Display Control) Program Port

4) DVI / PC IN [DVI(HDCP)] (PC Video

Connection Terminal)

Using a DVI Cable (DVI-D to DVI-D) - DVI

mode (Digital PC)

5) DVI / PC IN [RGB] (PC Video

Connection Terminal)

Using a D-Sub Cable (15 pin D-Sub) - PC

mode (Analog PC)

6) DVI / PC IN [PC/DVI/BNC AUDIO IN]

(PC/DVI/BNC Audio Connection

Terminal (Input))

7) COMPONENT AUDIO IN [L-AUDIO-R]

(Component Audio Connection Terminal

(Input))

8) BNC/COMPONENT OUT [R/PR, G/Y, B/PB,

H, V] (BNC/Component Connection

Terminal (Output))

BNC (Analog PC) Connection: connecting the R,

G, B, H, V ports

Component Connection: connecting the PR, Y,

PBports

9) BNC/COMPONENT IN [R/PR, G/Y, B/PB, H,

V] (BNC/Component Connection Terminal

(Input))

10) AV AUDIO IN [L-AUDIO-R] (LCD Display

Audio Connection Terminal (Input))

11) AV OUT [VIDEO] (VIDEO Connection

Terminal): AV mode (Output)

12) AV IN [VIDEO] (VIDEO Connection

Terminal) (Input)

13) AV OUT [S-VIDEO] (S-VIDEO Connection

Terminal): S-VIDEO mode (Output)

14) AV IN [S-VIDEO] (S-VIDEO Connection

Terminal) (Input)

15) EXT SPEAKER(8 Ω)[- - L - +, - - R - +] (EXT

Speaker Connection Terminal)

16) AUDIO OUT [L-AUDIO-R] (LCD Display

Audio Connection Terminal (Output))

AUDIO OUT is the terminal for sound output of

PC, DVI or BNC.

Note

• The number of LCD Display s that can be connected to loopout may differ depending on the cables, signal

source etc. With cables where there is no degradation or signal source, up to ten LCD Displays can be

connected.

17) LAN (LAN Connection Terminal)

MS Internet Explorer

18) USB (USB Connection Terminal)

Keyboard / Mouse, Mass Storage Device

Compatible.

19) Kensington Lock

The Kensington lock is a device used to

physically fix the system to something when

using it in a public place. (The locking device has

to be purchased separately.)

For using a locking device, contact the place

of purchase.

Note

•SeeConnecting the LCD Display for further information regarding cable connections.

Remote Control

Note

• The performance of the remote control may be affected by a TV or other electronic device operating near

the LCD Display , causing a malfunction due to interference with the frequency.

1. ON / OFF

2. MAGICNET

3. MDC

4. LOCK

5. MagicNet buttons

6.+100 -/--

7. VOL

8. MUTE

9. TTX/MIX

10. MENU

11. ENTER

12. P.MODE

13. AUTO

14. PRE-CH

15 . CH/P

16. SOURCE

17. INFO

18. EXIT

19. Up-Down Left-Right buttons

20. S.MODE

21. STILL

22. FM RADIO

23. P.SIZE

24. SRS

25. DUAL/MTS

26. PIP

27. SOURCE

28. SWAP

29. SIZE

30. RE

31. STOP

32. PLAY/PAUSE

33. FF

1) ON / OFF

Turns the LCD Display On/Off.

2) MAGICNET

MagicNet Quick Launch Button.

3) MDC

MDC Quick Launch Button.

4) LOCK

Activates or deactivates all function keys on both the remote control and the LCD Display except for the

Power and LOCK buttons.

5) MagicNet buttons

Used for MagicNet.

• Alphanumeric: Used to enter the Internet address.

• DEL: Functions as the backspace.

• SYMBOL: Used to enter the symbols. (.O_-)

• ENTER: Used to enter values.

6) +100 -/--

Press to select channels over 100.

For example, to select channel 121, press "+100", then press "2" and "1".

- This fuction does not work for this monitor.

7) VOL

Adjusts the audio volume.

8) MUTE

Pauses (mutes) the audio output temporarily.

This is displayed on the lower left corner of the screen.

The audio resumes if MUTE or - VOL + is pressed in the Mute mode.

9) TTX/MIX

TV channels provide text information services via teletext.

- This fuction does not work for this monitor.

10) MENU

Opens the on-screen menu and exits from the menu screen or closes the screen adjustment menu.

11) ENTER

Activates a highlighted menu item.

12) P.MODE

When you press this button, current picture mode is displayed on the lower center of the screen.

AV / S-Video / Component : P.MODE

The Monitor has four automatic picture settings that are preset at the factory.

Then push button again to circle through available preconfigured modes.

( Dynamic →Standard →Movie →Custom )

PC/DVI/BNC : M/B (MagicBright)

MagicBright™ is a new feature providing the optimum viewing environment depending on the contents of

the image you are watching.

Then push button again to circle through available preconfigured modes.

(Entertain →Internet →Text →Custom )

13) AUTO

Adjusts the screen display automatically in PC mode.

By changing the resolution in the control panel, auto function is performed.

14) PRE-CH

Returns to the immediately previous channel.

- This fuction does not work for this monitor.

15) CH/P

In TV mode, selects TV channels.

- This fuction does not work for this monitor.

16) SOURCE

Changes the video source.

17) INFO

The current picture information is displayed in the top left corner of the screen.

18) EXIT

Exits from the menu screen.

19) Up-Down Left-Right buttons

Moves from one menu item to another horizontally, vertically or adjusts selected menu values.

20) S.MODE

When pressing this button, the current mode is displayed at the bottom centre of the screen.

The LCD Display has a built-in high fidelity stereo amplifier.

Then press the button again to circle through available preconfigured modes.

( Standard →Music →Movie →Speech →Custom )

21) STILL

Press the button once to freeze the screen. Press it again to unfreeze.

22) FM RADIO

Turns the FM Radio on/off.

In PC/DVI mode, sets the SOUND to FM Radio.

In general Video mode, selects FM Radio, and turns off the screen.

In areas where the signal is weak, noise may occur during FM radio broadcasts.

- This fuction does not work for this monitor.

23) P.SIZE

Press to change the screen size.

24) SRS

SRS

25) DUAL/MTS

- This fuction does not work for this monitor.

DUAL-

STEREO/MONO, DUAL l / DUAL ll and MONO/NICAM MONO/NICAM STEREO can be operated

depending on the broadcasting type by using the DUAL button on the remote control while watching TV.

MTS-

You can select MTS (Multichannel Television Stereo) mode.

Audio Type MTS/S_Mode Default

FM Stereo

Mono Mono

Manual Change

Stereo Mono ↔Stereo

SAP Mono ↔SAP Mono

26) PIP

Every time you press the button, a PIP screen appears.

27) SOURCE

Changes the source of the PIP window signal.

28) SWAP

Swaps the contents of the PIP and main image.

The image in the PIP window will appear on the main screen, and the main screen image will appear in the

PIP window.

29) SIZE

Switches the PIP Picture Size.

30) REW

Rewind

31) STOP

Stop

32) PLAY / PAUSE

Play/Pause

33) FF

Fast forward

Select Language Main Page

Model

The color and appearance of the product may vary depending on the model, and the product specifications are

subject to change without prior notice for reasons of performance enhancement.

Introduction

Package Contents

Note

• Please make sure the following items are included with your LCD Display.

If any items are missing, contact your dealer.

Contact a local dealer to buy optional items.

Note

• This stand is not for the Floor Standing Type.

LCD Display

Manuals

Quick Setup Guide Warranty Card

(Not available in all locations) User's Guide, MDC Software

Cables

D-Sub Cable Power Cord

Other

Safety Instructions

Introduction

Package Contents

Your LCD Display

Machanical Layout

Connections

Using the Software

Adjusting the LCD Display

Troubleshooting

Specifications

Information

Appendix

SyncMaster 400PX / 460PX

Remote Control

Batteries (AAA X 2)

(Not available in all

locations)

Cover-Hole

BNC to RCA

Adaptor Jack Semi Stand

Sold separately

Wall Mount KIT Speaker Set Stand KIT

DVI Cable LAN Cable BNC Cable

Your LCD Display

Front

1) MENU

Opens the on-screen menu and exits from the menu or closes the adjustment menu.

2) Navigate buttons (Up-Down buttons)

Moves from one menu item to another vertically or adjusts selected menu values.

3) Adjust buttons (Left-Right buttons)/ Volume buttons

Moves from one menu item to another horizontally or adjusts selected menu values.

Adjusts the audio volume.

4) ENTER

Altri manuali per 400PX - SyncMaster - 40" LCD Flat Panel...

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Samsung Monitor

Samsung

Samsung 460DX - SyncMaster - 46" LCD Flat Panel... Guida all'installazione

Samsung

Samsung LF32TU870VRXXU Manuale utente

Samsung

Samsung SyncMaster 957p Manuale utente

Samsung

Samsung C27HG70QQ Series Manuale utente

Samsung

Samsung FPT5084 - 50" Plasma TV Manuale utente

Samsung

Samsung SyncMaster 180T Manuale utente

Samsung

Samsung SyncMaster 153V Manuale utente

Samsung

Samsung SyncMaster S23A550H Guida utente

Samsung

Samsung 400UXN-UD - 40IN LCD 5000:1 1366X768 Manuale utente

Samsung

Samsung SyncMaster 2253BW, 2253LW Manuale utente

Samsung

Samsung HP-P5071 Manuale utente

Samsung

Samsung SyncMaster 400CXN Manuale utente

Samsung

Samsung SyncMaster 753Ms Manuale utente

Samsung

Samsung VM55B-R Manuale utente

Samsung

Samsung SyncMaster 220TN Manuale utente

Samsung

Samsung UltraView iAP2600W Manuale utente

Samsung

Samsung SyncMaster 820DXN-2 Manuale utente

Samsung

Samsung OM75R Manuale utente

Samsung

Samsung UH55F-E Manuale utente

Samsung

Samsung S24C650PLS Manuale utente

Samsung

Samsung SyncMaster 210T Manuale utente

Samsung

Samsung T23B550EW Manuale utente

Samsung

Samsung S27B800PXM Manuale utente

Samsung

Samsung 460DX - SyncMaster - 46" LCD Flat Panel... Manuale utente

Manuali Monitor popolari di altre marche

Linear Acoustic

Linear Acoustic LQ-1000 Manuale utente

AOC

AOC I2579V Manuale utente

Gateway

Gateway FPD1520 Manuale utente

Furuno

Furuno Mu 120c Manuale utente

Asus

Asus VB171D - 17" LCD Monitor Manuale utente

Dell

Dell S2230MX Istruzioni utente

Philips

Philips 107C64 Manuale utente

Dell

Dell S2409WFP Manuale utente

EverFocus

EverFocus EN-7517E Manuale utente

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuale utente

Dell

Dell Precision 7680 Manuale di istruzioni

LG 50PM1M - - 50" Plasma Panel Manuale utente

Bosch

Bosch DDU 9 Manuale utente

Acer

Acer A231HL Manuale utente

Philips

Philips 86BDL4152T Manuale utente

NEC

NEC AccuSync LCD5V Manuale utente

Emay

Emay SleepO2 Manuale utente

IBM

IBM 6360 Istruzioni per l'installazione
