Samsung C32R50 Series Manuale utente

User Manual

C27R50* C32R50*

The color and the appearance may differ depending on the product, and the speciﬁcations are subject to change without

prior notice to improve the performance.

The contents of this manual are subject to change without notice to improve quality.

Samsung Electronics owns the copyright for this manual.

Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is prohibited.

Trademarks other than that of Samsung Electronics are owned by their respective owners.

An administration fee may be charged in the following situations:

(a) An engineer is called out at your request, but it is found that the product has no defect (i.e., where the user

manual has not been read).

(b) You bring the unit to a repair centre, but it is found that the product has no defect (i.e., where the user manual

has not been read).

You will be informed of the administration fee amount before a technician visits.

Table of contents

Before Using the Product

Securing the Installation Space 4

Precautions for storage 4

Safety Precautions 4

5gninaelC

Electricity and Safety 5

6noitallatsnI

7noitarepO

Preparations

01straP

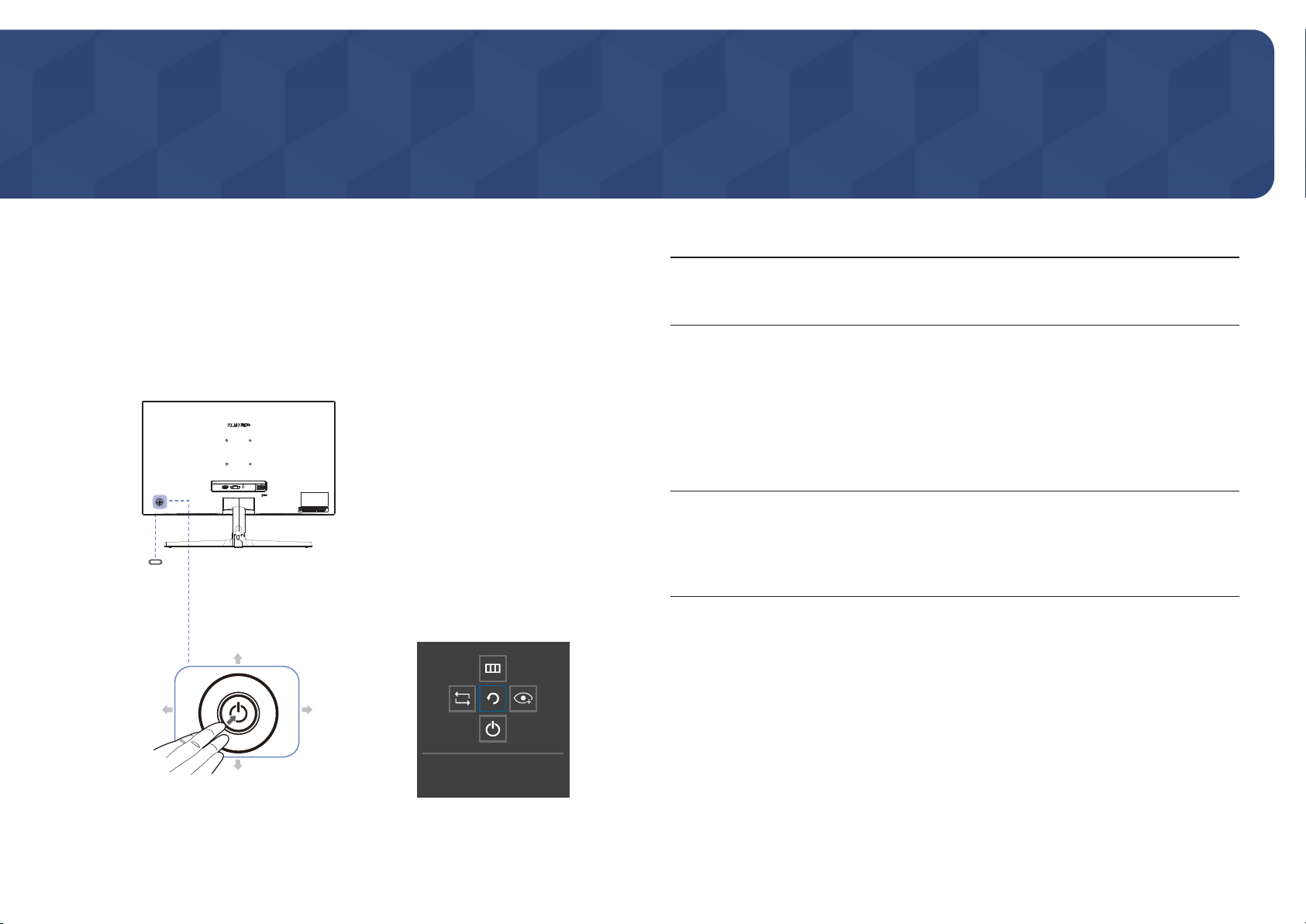

01lenaPlortnoC

11ediugyeKtceriD

21ediuGyeKnoitcnuF

51stroPfosepyT

61tliTtcudorPehtgnitsujdA

61kcoLtfeht-itnA

Precautions for moving the monitor 17

Installing a Wall-mount Kit or Desktop Stand 18

91noitallatsnI

91dnatSehtgnihcattA

02dnatSehtgnivomeR

Connecting and Using a Source Device

Read below before installing the monitor. 21

Connecting and Using a PC 21

Connection Using the HDMI or HDMI-DVI Cable 21

Connection Using the D-SUB Cable

(Analog Type) 22

Connecting to Headphones 22

32rewoPehtgnitcennoC

Correct posture to use the product 24

42noitallatsnIrevirD

Setting Optimum Resolution 24

Screen Setup

SAMSUNG MAGIC Bright 25

62ssenthgirB

62tsartnoC

62ssenprahS

62roloC

Changing Brightness, Contrast and

Sharpness settings

HDMI Black Level 27

Eye Saver Mode 27

Game Mode 27

Response Time 27

Picture Size 28

Screen Adjustment 28

Changing the Volume setting

Table of contents

Setup and Reset

Self Diagnosis 30

Eco Saving Plus 34

FreeSync

Off Timer 34

PC/AV Mode 35

Source Detection 35

Key Repeat Time 35

Power LED On 35

Reset All 35

Information 36

Adjusting OSD (On Screen

Display) settings

Transparency 29

Language 29

Position 29

Display Time 29

Installing the Software

Easy Setting Box 37

Restrictions and Problems with the Installation 37

System Requirements 37

Troubleshooting Guide

Requirements Before Contacting Samsung Customer

Service Center

Testing the Product 38

Checking the Resolution and Frequency 38

Check the following. 38

Q & A 40

Speciﬁcations

General 41

Standard Signal Mode Table 42

Appendix

Responsibility for the Pay Service (Cost to

Customers) 46

Not a product defect 46

A Product damage caused by customer's fault 46

Others 46

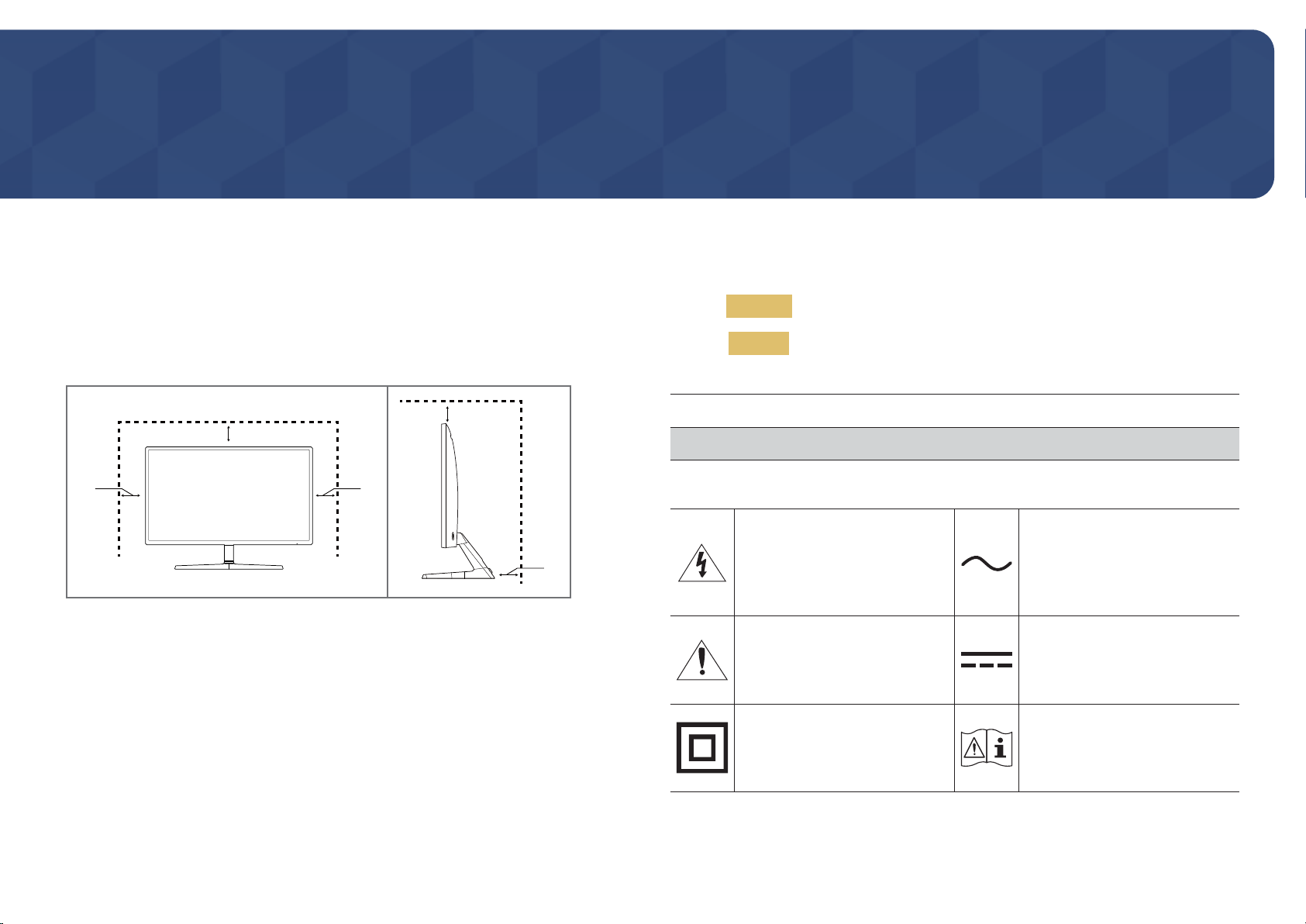

Securing the Installation Space

Ensure some space around the product for ventilation. An internal temperature rise may cause ѣre and

damage the product. Be sure to allow the amount of space as shown below or greater when installing

the product.

ࣖThe exterior may differ depending on the product.

10 cm (3.93 Inches)

10 cm

(3.93 Inches)

10 cm

(3.93 Inches)

10 cm

(3.93 Inches)

Precautions for storage

High-glossy models can develop white stains on the surface if an ultrasonic wave humidiѣer is used

nearby.

ࣖContact your nearest Samsung Customer Service Center if you want to clean the inside of the product

(Service fee will be charged.)

Do not press the monitor screen with hands or other objects. There is a risk of damaging the screen.

Before Using the Product

Chapter 01

Safety Precautions

Warning A serious or fatal injury may result if instructions are not followed.

Caution Personal injury or damage to properties may result if instructions are

not followed.

CAUTION

RISK OF ELECTRIC SHOCK. DO NOT OPEN.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). THERE

ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO QUALIFIED PERSONNEL.

This symbol indicates that high

voltage is present inside. It is

dangerous to make any kind of

contact with any internal part of this

product.

AC voltage: Rated voltage marked

with this symbol is AC voltage.

This symbol indicates that this

product has included important

literature concerning operation and

maintenance.

DC voltage: Rated voltage marked

with this symbol is DC voltage.

Class II product: This symbol indicates

that a safety connection to electrical

earth (ground) is not required.

Caution. Consult instructions for use:

This symbol instructs the user to

consult the user manual for further

safety related information.

Cleaning

ࣖExercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched.

ࣖTake the following steps when cleaning.

Power off the product and computer.

Disconnect the power cord from the product.

ࣖHold the power cable by the plug and do not touch the cable with wet hands. Otherwise, an electric

shock may result.

Wipe the monitorwith a clean, soft and dry cloth.

ࣕDo not apply a cleaning agent that contains alcohol, solvent, or surfactant to the monitor.

ࣕDo not spraywater or detergent directly on the product.

Wet a soft and dry cloth in water and wring thoroughly to clean the exterior of the product.

Connect the power cord to the product when cleaning is ѣnished.

Power on the product and computer.

Electricity and Safety

Warning

࡙Do not use a damaged power cord or plug, or a loose power socket.

࡙Do not use multiple products with a single power socket.

࡙Do not touch the power plug with wet hands.

࡙Insert the power plug all the way in so it is not loose.

࡙Connect the power plug to a grounded power socket (type 1 insulated devices only).

࡙Do not bend or pull the power cord with force. Be careful not to leave the power cord under a heavy

object.

࡙Do not place the power cord or product near heat sources.

࡙

Clean any dust around the pins of the power plug or the power socket with a dry cloth.

The socket-outlet shall be installed near the equipment and shall be easily accessible.

Caution

࡙Do not disconnect the power cord while the product is being used.

࡙Only use the power cord provided with your product by Samsung. Do not use the power cord with

other products.

࡙Keep the power socket where the power cord is connected unobstructed.

ࣕThe power cord must be disconnected to cut off power to the product when an issue occurs.

࡙Hold the plug when disconnecting the power cord from the power socket.

Warning

࡙DO NOT PLACE CANDLES, INSECT REPELLANTS OR CIGARETTES ON TOP OF THE PRODUCT. DO NOT

INSTALL THE PRODUCT NEAR HEAT SOURCES.

࡙Do not install the product in poorly ventilated spaces such as a bookcase or closet.

࡙Install the product at least 10 cm away from the wall to allow ventilation.

࡙Keep the plastic packaging out of the reach of children.

ࣕChildren may suffocate.

࡙Do not install the product on an unstable or vibrating surface (insecure shelf, sloped surface, etc.)

ࣕThe product may fall and become damaged and/or cause an injury.

ࣕUsing the product in an area with excess vibration may damage the product or cause a fire.

࡙Do not install the product in a vehicle or a place exposed to dust, moisture (water drips, etc.), oil, or

smoke.

࡙Do not expose the product to direct sunlight, heat, or a hot object such as a stove.

ࣕThe product lifespan may be reduced or a fire may result.

࡙Do not install the product within the reach of young children.

ࣕThe product may fall and injure children.

࡙Edible oil (such as soybean oil) may damage or distort the product. Keep the product away from oil

pollution. And do not install or use the product in the kitchen or near the kitchen stove.

Caution

࡙Do not drop the product while moving.

࡙Do not set down the product on its front.

࡙When installing the product on a cabinet or shelf, make sure that the bottom edge of the front of

the product is not protruding.

ࣕThe product may fall and become damaged and/or cause an injury.

ࣕInstall the product only on cabinets or shelves of the right size.

࡙Set down the product gently.

ࣕProduct failure or personal injury may result.

࡙Installing the product in an unusual place (a place exposed to a lot of fine dust, chemical

substances, extreme temperatures or a significant presence of moisture, or a place where

the product will operate continuously for an extended period of time) may seriously affect its

performance.

ࣕBe sure to consult Samsung Customer Service Center if you want to install the product at such a

place.

Installation

Warning

࡙There is a high voltage inside the product. Never disassemble, repair or modify the product

yourself.

ࣕContact Samsung Customer Service Center for repairs.

࡙To move the product, first disconnect all the cables from it, including the power cable.

࡙If the product generates abnormal sounds, a burning smell or smoke, disconnect the power cord

immediately and contact Samsung Customer Service Center.

࡙Do not let children hang from the product or climb on top of it.

ࣕChildren may become injured or seriously harmed.

࡙If the product is dropped or the outer case is damaged, turn off the power and disconnect the

power cord. Then contact Samsung Customer Service Center.

ࣕContinued use can result in a fire or electric shock.

࡙Do not leave heavy objects or items that children like (toys, sweets, etc.) on top of the product.

ࣕThe product or heavy objects may fall as children try to reach for the toys or sweets resulting in a

serious injury.

࡙During a lightning or thunderstorm, power off the product and remove the power cable.

࡙Do not drop objects on the product or apply impact.

࡙Do not move the product by pulling the power cord or any cable.

࡙If a gas leakage is found, do not touch the product or power plug. Also, ventilate the area

immediately.

࡙Do not lift or move the product by pulling the power cord or any cable.

࡙Do not use or keep combustible spray or an inflammable substance nearthe product.

࡙Ensure the vents are not blocked by tablecloths or curtains.

ࣕAn increased internal temperature may cause a fire.

࡙Do not insert metallic objects (chopsticks, coins, hairpins, etc) or objects that burn easily (paper,

matches, etc) into the product (via the vent or input/output ports, etc).

ࣕBe sure to power off the product and disconnect the power cord when water or other foreign

substances have entered the product. Then contact Samsung Customer Service Center.

࡙Do not place objects containing liquid (vases, pots, bottles, etc) or metallic objects on top of the

product.

ࣕBe sure to power off the product and disconnect the power cord when water or other foreign

substances have entered the product. Then contact Samsung Customer Service Center.

Operation

Caution

࡙Leaving the screen fixed on a stationary image for an extended period of time may cause

afterimage burn-in or defective pixels.

ࣕActivate power-saving mode or a moving-picture screen saver if you will not be using the

product for an extended period of time.

࡙Disconnect the power cord from the power socket if you do not plan on using the product for an

extended period of time (vacation, etc).

ࣕDust accumulation combined with heat can cause a fire, electric shock or electric leakage.

࡙Use the product at the recommended resolution and frequency.

ࣕYour eyesight may deteriorate.

࡙Do not put AC/DC adapters together.

࡙Remove the plastic bag from the AC/DC adapter before you use it.

࡙Do not let water enter the AC/DC adapter device or get the device wet.

ࣕAn electric shock or fire may result.

ࣕAvoid using the product outdoors where it can be exposed to rain or snow.

ࣕBe careful not to get the AC/DC adapterwet when you wash the floor.

࡙Do not put the AC/DC adapter near to any heating apparatus.

ࣕOtherwise, a fire may result.

࡙Keep the AC/DC adapter in a well-ventilated area.

࡙If you place the AC/DC power adapter so that it is hanging with the cord input facing upwards,

water or other foreign substances could enterthe Adapter and cause the Adapter to malfunction.

Make sure to rest the AC/DC power adapter flat on a table or the floor.

࡙Insert the power plug into the AC/DC adapter until a click sound is heard.

࡙Do not insert only the power plug into the power outlet.

࡙Do not use an AC/DC adapter other than the provided one.
