Samsung PS-42P4H Manuale di istruzioni

Your New Plasma Display Panel

ENG

➢

The actual configuration on your PDP may be different,

depending on your model.

Rear Panel

Side of the TV

➢For further details about connection, refer to pages 51~55.

Audio Input (L, R)

Video Input

S-Video Input

a) DVI INPUT (DVI-D / L-AUDIO-R)

Connect to the digital video and audio output jack

for device with DVI output.

b) MONITOR OUT (VIDEO / L-AUDIO-R)

Outputs for external devices

c) ANT IN VHF/UHF (75Ω)

75ΩCoaxial connector for Aerial/Cable Network.

d) PC INPUT (RGB IN / AUDIO)

Connect to the video and audio output jack on

your PC.

e) ONLY FOR SERVICE

Connector for service only.

f) S-VIDEO1, S-VIDEO2

(S-VIDEO1 or S-VIDEO2 / L-AUDIO-R)

Video and audio inputs for external devices with

an S-Video output, such as a camcorder or VCR.

g) AV1, AV2, AV3

(VIDEO / L-AUDIO-R )

Video and audio inputs for external devices, such

as a camcorder or VCR.

h) COMPONENT1, COMPONENT2

Video (Y/Pb/Pr) and audio (L-AUDIO-R) inputs for

Component.

i) POWER IN

Connect the supplied power cord.

j) EXT SPEAKER (8Ω)

Connectors for external rear speakers.

BN68-00624A-02Eng_0422 5/11/04 3:43 PM Page 7

ENG

Infrared Remote Control

➢The performance of the remote control may be affected by bright light.

PICTURE EFFECT SELECTION

PICTURE SIZE/

TELETEXT SIZE SELECTION

MENU DISPLAY/

TELETEXT INDEX

DNIe ON/DEMO/OFF

MOVE TO THE REQUIRED

MENU OPTION/

ADJUST AN OPTION VALUE

RESPECTIVELY

TURNS THE PDP ON AND OFF

FASTEXT TOPIC SELECTION

INFORMATION DISPLAY

TV MODE SELECTION

EXIT TELETEXT

(DEPENDING ON THE MODEL)

DIRECT CHANNEL SELECTION

EXTERNAL INPUT SELECTION/

TELETEXT PAGE HOLD

AUTOMATIC SWITCH-OFF/

TELETEXT SUB-PAGE

CONFIRM YOUR CHOICE

(STORE OR ENTER)

NEXT CHANNEL/

TELETEXT NEXT PAGE/

SOUND MODE SELECTION

IF YOUR REMOTE CONTROL IS NOT

FUNCTIONING PROPERLY, TAKE

OUT THE BATTERIES AND PRESS

THE RESET BUTTON FOR ABOUT

2~3 SECONDS. RE-INSERT THE

BATTERIES AND TRY USING THE

REMOTE CONTROL AGAIN.

TruSurround XT

MODE SELECTION

PREVIOUS CHANNEL/

TELETEXT PREVIOUS PAGE/

PIP FUNCTIONS;

-PIP ACTIVATING OR DEACTIVATING

(PIP ON)

-SWAPPING THE MAIN AND THE SUB

PICTURE (SWAP)

-LOCATION SELECTION (POSITION)

-SOURCE SELECTION (SOURCE)

-SIZE SELECTION (SIZE)

-SCAN

-SELECTING THE CHANNEL OF SUB

PICTURE (P )

MAKE THE REMOTE CONTROL WORKS

FOR TV, VCR, CATV, DVD PLAYER, STB

SOUND EFFECT SELECTION

TELETEXT CANCEL

VOLUME INCREASE

TEMPORARY SOUND SWITCH-OFF

VOLUME DECREASE

TELETEXT DISPLAY/

MIX BOTH TELETEXT INFORMATION

AND THE NORMAL BROADCAST

PICTURE STILL

WHEN YOU PRESS A BUTTON , ‘

’

APPEARS ALONG WITH SELECTED MODE

(TV, VCR, CATV, DVD OR STB) AND

REMAINING BATTERIES ON LCD

VCR/DVD FUNCTIONS;

-REWIND (REW)

-STOP

-PLAY/PAUSE

-FAST FORWARD (FF)

REMOTE CONTROL SETUP

BN68-00624A-02Eng_0422 5/11/04 3:43 PM Page 8

ENG

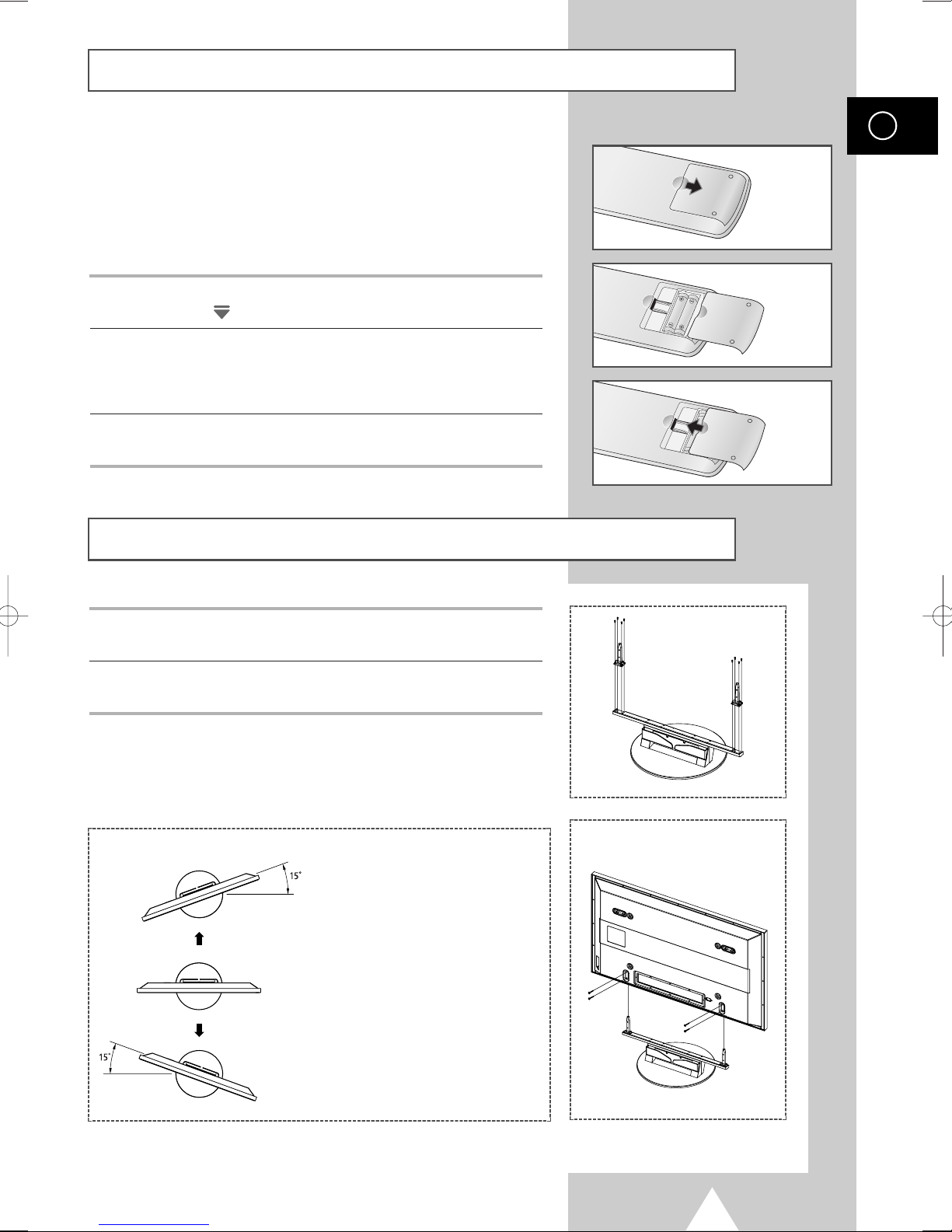

You must insert or replace the batteries in the remote control when

you:

◆Purchase the PDP

◆Find that the remote control is no longer operating

correctly

1Remove the cover on the rear of the remote control by pressing

the symbol ( ) downwards and then pulling firmly to remove it.

2Insert two R03, UM4, “AAA” 1.5V or equivalent batteries taking

care to respect the polarities:

◆

on the battery against

on the remote control

◆

on the battery against

on the remote control

3Replace the cover by aligning it with the base of the remote

control and pressing it back into place.

Inserting the Batteries in the Remote Control

Assembling the Stand-Base

1Assemble two support pins with the stand base and firmly secure

both sides of the support pins using 8 screws provided.

2Assemble the PDP with the stand and firmly secure the PDP using

4 screws provided.

➢◆

Two or more people should carry the PDP. Never lay the

PDP on the floor because of possible damage to the screen.

Always store the PDP upright.

The angle of the PDP can be up to 15

degrees left/right.

(depending on your model)

BN68-00624A-02Eng_0422 5/11/04 3:43 PM Page 9

ENG

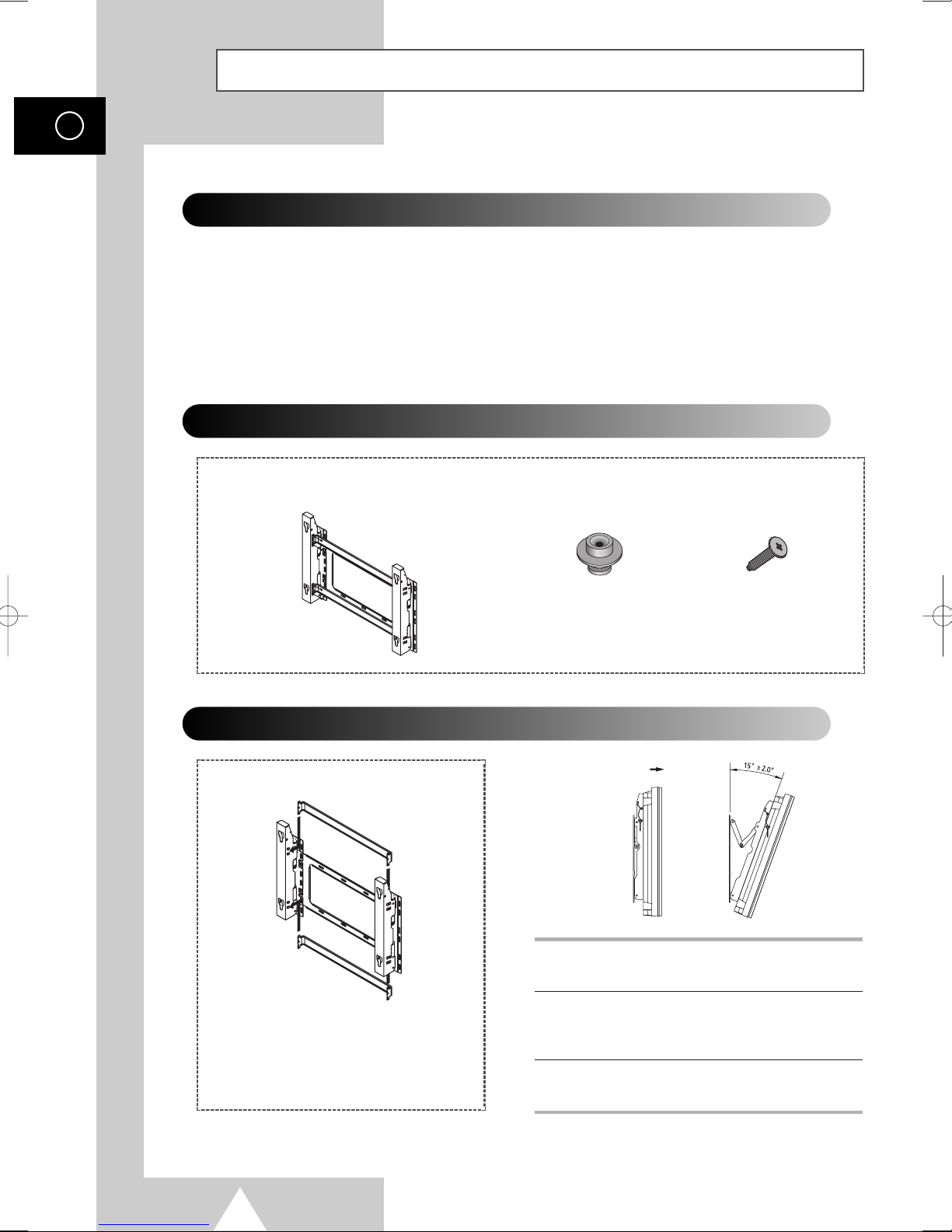

Installing the Display on the Wall Attachment Panel

Wall Mount Bracket

Mounting Kits

4 EA 4 EA

Plastic Hanger Screws

How to Adjust Mounting Angle

1Secure the PDP to the wall mount bracket.

(Please refer to the following instructions.)

2Set the angle by pulling the upper end of the

PDP attached to bracket in the direction of the

arrow.

3The angle can be adjusted from 0° to 15° by

±2°.

The wall mount bracket is delivered

separately. Please tighten the captive

screw in the direction of the arrow after

assembling the bracket.

Installation Notes

◆

Do not install the PDP on any place other than vertical walls.

◆

To protect the performance of the PDP and prevent troubles, avoid the followings:

Do not install next to smoke and fire detectors.

Do not install in an area subjected to vibration or high voltage.

Do not install near or around any heating apparatus.

◆

Use only recommended parts and components.

(depending on your model)

BN68-00624A-02Eng_0422 5/11/04 3:43 PM Page 10

ENG

Installing the Display on the Wall Attachment Panel (continued)

1Remove the screws from the back of the PDP.

3Tighten the screws of the plastic hanger to the

back side of the PDP.

4Put the 4 pegs on the PDP in the grooves of the wall mount bracket and pull down on the PDP (!) to

secure it to the wall mount bracket (@). Tighten the screws as shown (#) so that the PDP cannot be

separated from wall mount bracket.

2Use the screws and assemble the plastic

hanger.

☛◆Please ask the installers to install the

wall mount bracket.

◆Please be sure to check if the plastic

hanger is completely secured on both

the left and right side after hanging

the PDP on the wall mount bracket.

◆Please avoid catching your fingers

while installing and adjusting the

angle.

◆Please tightly secure the wall mount

bracket to the wall to avoid injury

from a falling PDP.

Connecting External Devices to the PDP

1Be sure to remove the safety pins underneath the PDP.

◆If the safety pins are not removed, the angle cannot be adjusted.

Any attempt to do so may cause damage to the PDP.

2Pull out the bottom of the PDP (which has been attached to the Wall

Mount Bracket) in the direction indicated by the arrows (refer to

the illustration) until it clicks.

◆Using the PDP After Connecting External Devices.

Be sure to secure the PDP by inserting the 2 safety pins after

readjusting the angle of the PDP to 0

◆For safety, be sure to secure the PDP using the safety pins.

If the safety pins are not used, the PDP may fall, causing serious

injury.

➢The exterior of the PDP may be different than the picture.

(Assembly and installation of the plastic hanger is the same.)

◆

To connect external devices such as a DVD or a Home Theater System to the PDP, please refer

to following instructions:

PDP panel

Wall attachment panel bracket Wall

BN68-00624A-02Eng_0422 5/11/04 3:43 PM Page 11

ENG

In order to watch television programmes broadcast via a satellite

network, you must connect a satellite receiver to the rear of the

PDP. Also, in order to descramble a coded transmission signal, you

must connect a decoder to the rear of the PDP.

Using a Coaxial cable

Connect a coaxial cable to the:

◆Receiver (or Decoder) output socket.

◆Television aerial input socket.

➢If you wish to connect both a satellite receiver (or decoder)

and a VCR, you should connect the:

◆Receiver (or Decoder) to the VCR

◆VCR to the PDP

Otherwise, connect the receiver (or decoder) directly to the

PDP.

Connecting a Satellite Receiver or Decoder

Rear of the PDP

Satellite receiver/

Decoder

To view television channels correctly, a signal must be received by

the set from one of the following sources:

◆An outdoor aerial

◆A cable television network

◆A satellite network

1In the first three cases, connect the aerial or network input cable to

the 75Ωcoaxial socket on the rear of the PDP.

2If you are using an indoor aerial, you may need to turn it when

tuning your PDP until you obtain a picture that is both sharp and

clear.

For further details, refer to the user manual:

◆“Storing Channels Automatically” on page 18

◆“Storing Channels Manually” on page 19

➢When installing or re-installing your PDP, be sure to use the

supplied coaxial antenna cable. If you connect using a different

coaxial cable, there is risk of noise or interference to the screen

image. (You must not use another general purpose cable.

Use the 3M/5M/7M cable supplied by Samsung.)

Connecting to an Aerial or Cable Television Network

Rear of the PDP

Cable Television

Network

BN68-00624A-02Eng_0422 5/11/04 3:43 PM Page 12

ENG

Connecting to the External Devices

“MONITOR OUT” are used for the equipment with an RGB output, such as

video game devices or video disc players.

Rear of the TV

(Input/Output)

①

This end can be fitted with:

◆Three RCA connectors (VIDEO + AUDIO-L/R)

②

If you have a second VCR and wish to copy cassettes tape, connect the source VCR to

“AV 1, AV 2, AV 3”

and the target VCR to

“MONITOR OUT”

so that you can redirect the signal from

“AV 1, AV 2, AV 3”

“MONITOR OUT”

③

When you wish to record a programme, connect the receiver to

“AV 1, AV 2, AV 3”

and the VCR to

“MONITOR OUT”

so that you can redirect the signal from

“AV 1, AV 2, AV 3”

“MONITOR OUT”

VCR

Decoder /

Video game device

Video disc player

Satellite receiver

DVD

②

①

③

Rear of the TV

(Input/Output)

Camcorder

Video disc player

Video game device

BN68-00624A-02Eng_0422 5/11/04 3:44 PM Page 51

ENG

Connecting to the S-Video Input

The S-VIDEO1 and RCA (AUDIO-L/R) connectors are used for equipment with an S-Video output,

such as a camcorder or VCR.

Rear of the TV

Camcorder

VCR

①

To play picture and sound, both the S-VIDEO and RCA connectors must be used.

and

①

and

①

Side of the TV

☛Whenever you connect an audio or video system to your television,

ensure that all elements are switched off. Refer to the documentation

supplied with your equipment for detailed connection instructions

and associated safety precautions.

BN68-00624A-02Eng_0422 5/11/04 3:44 PM Page 52

ENG

Connecting to the DVI Input

Connecting to the PC Input

The “RGB” (video) and “AUDIO” connectors are used for interfacing with your PC.

Personal Computer

and

Rear of the TV

The “DVI” (video) and “L-AUDIO-R” connectors are used for equipment with a DVI output.

Personal Computer

Rear of the TV

and

BN68-00624A-02Eng_0422 5/11/04 3:44 PM Page 53

ENG

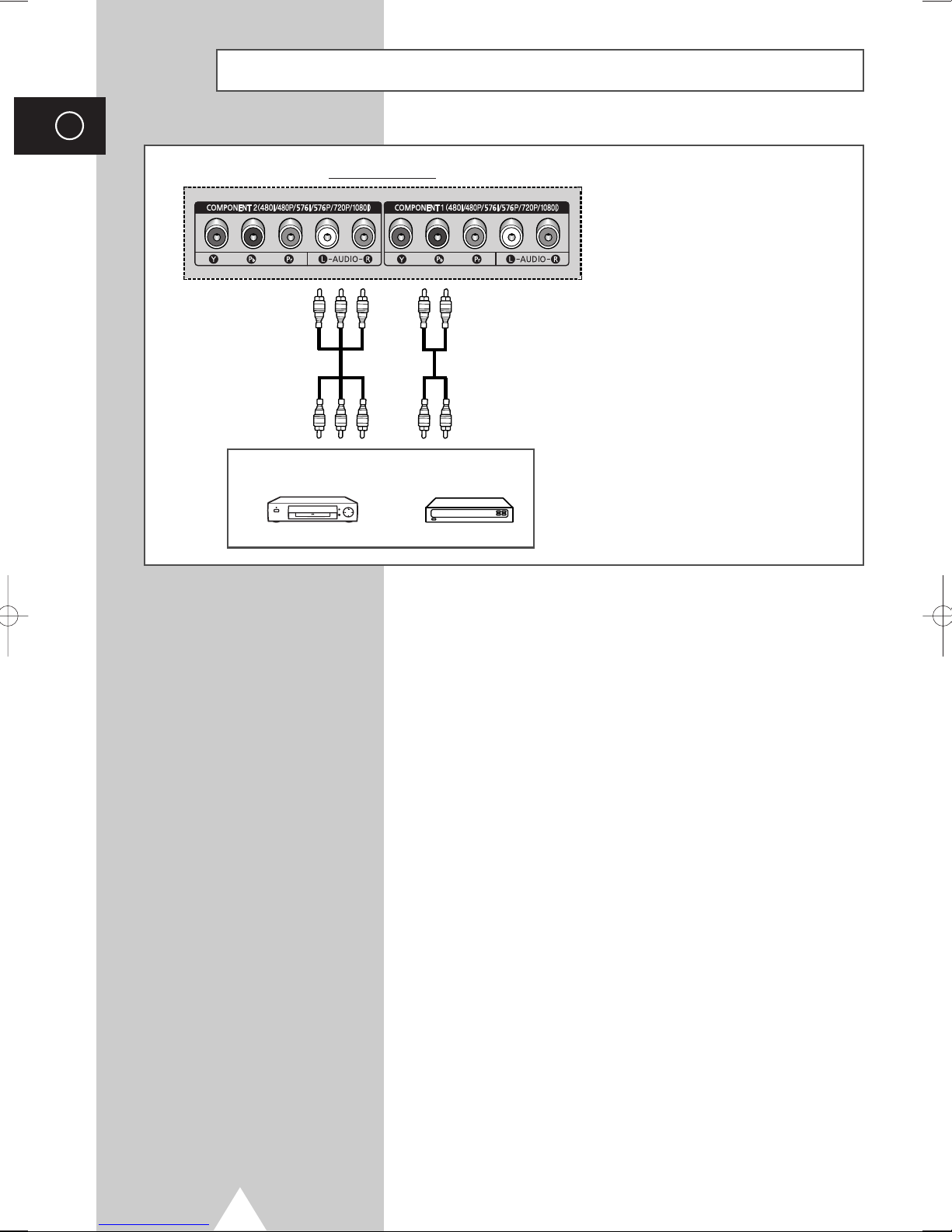

Connecting to the Component Input

①

The “COMPONENT 1” connectors are

used for equipment with a DVD output.

(480i/480P/576i/576P/720P/1080i)

②

The “COMPONENT 2” connectors are

used for DTV receiver.

(480i/480P/576i/576P/720P/1080i)

DVD

Rear of the TV

DTV receiver

①②

BN68-00624A-02Eng_0422 5/11/04 3:44 PM Page 54

Altri manuali per PS-42P4H

Indice

Altri manuali Samsung Monitor

Samsung

Samsung DM40D Manuale utente

Samsung

Samsung SyncMaster 152 B Manuale utente

Samsung

Samsung DC43H Manuale utente

Samsung

Samsung SYNCMASTER DP14LS Manuale utente

Samsung

Samsung SyncMaster 732NPlus Manuale utente

Samsung

Samsung 192T - SyncMaster 192 T Guida utente

Samsung

Samsung SyncMaster 940MG Manuale di installazione e funzionamento

Samsung

Samsung SyncMaster 173VT Manuale utente

Samsung

Samsung QB98R Manuale utente

Samsung

Samsung SYNCMASTER P2050N Manuale utente

Samsung

Samsung 204B - SyncMaster - 20.1" LCD Monitor Guida rapida

Samsung

Samsung SyncMaster 2494SW Manuale utente

Samsung

Samsung SyncMaster 2043SNX Manuale utente

Samsung

Samsung S19F350HN Manuale utente

Samsung

Samsung 720XT - SyncMaster - 256 MB RAM Manuale utente

Samsung

Samsung SyncMaster 920LM Manuale utente

Samsung

Samsung SyncMaster 170MP Manuale utente

Samsung

Samsung SyncMaster BN59-00793D-00 Manuale utente

Samsung

Samsung CHB5707L/5237L Manuale utente

Samsung

Samsung SyncMaster 591s Manuale utente

Samsung

Samsung 932GW - SyncMaster - 19" LCD Monitor Guida utente

Samsung

Samsung LL-T15G1 Manuale utente

Samsung

Samsung 950B - SyncMaster 950 B Guida utente

Samsung

Samsung SyncMaster S19B220B Guida utente

Manuali Monitor popolari di altre marche

Linear Acoustic

Linear Acoustic LQ-1000 Manuale utente

AOC

AOC I2579V Manuale utente

Gateway

Gateway FPD1520 Manuale utente

Furuno

Furuno Mu 120c Manuale utente

Asus

Asus VB171D - 17" LCD Monitor Manuale utente

Dell

Dell S2230MX Istruzioni utente

Philips

Philips 107C64 Manuale utente

Dell

Dell S2409WFP Manuale utente

EverFocus

EverFocus EN-7517E Manuale utente

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuale utente

Dell

Dell Precision 7680 Manuale di istruzioni

LG 50PM1M - - 50" Plasma Panel Manuale utente

Bosch

Bosch DDU 9 Manuale utente

Acer

Acer A231HL Manuale utente

Philips

Philips 86BDL4152T Manuale utente

NEC

NEC AccuSync LCD5V Manuale utente

Emay

Emay SleepO2 Manuale utente

IBM

IBM 6360 Istruzioni per l'installazione
