Samsung S24H851QF Series Manuale utente

User Manual

S*H85*

The color and the appearance may differ depending on the product, and the specifications are subject to change without

prior notice to improve the performance.

The contents of this manual are subject to change without notice to improve quality.

Samsung Electronics owns the copyright for this manual.

Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is prohibited.

Trademarks other than that of Samsung Electronics are owned by their respective owners.

(For India Only)

This product is RoHS compliant.

For more information on safe disposal and recycling visit our

website www.samsung.com/in or contact our Helpline

numbers-1800 40 SAMSUNG(1800 40 7267864) (Toll-Free)

Table of contents

Before Using the Product

Securing the Installation Space 4

Precautions for storage 4

Safety Precautions 4

Cleaning 5

Electricity and Safety 5

Installation 6

Operation 7

Preparations

Parts 9

Control Panel 9

Direct Key guide 10

Function Key Guide 11

Changing Brightness, Contrast and Eye Saver Mode

settings 13

Changing the Volume setting 13

Reverse Side 14

Adjusting the Product Tilt and Height 15

Rotating the Monitor Screen 15

Anti-theft Lock 16

Precautions for moving the monitor 16

Installing a Wall-mount Kit or Desktop Stand

(S24H850QF* / S24H851QF*) 17

Installing a Wall-mount Kit or Desktop Stand

(S27H850QF* / S27H851QF*) 18

Installation 19

Attaching the Stand (S24H850QF* / S24H851QF*) 19

Attaching the Stand (S27H850QF* / S27H851QF*) 20

Removing the Stand (S24H850QF* / S24H851QF*)21

Removing the Stand (S27H850QF* / S27H851QF*) 22

Connecting and Using a Source Device

Read below before installing the monitor. 23

Connecting and Using a PC 23

Connection Using the HDMI Cable 23

Connection Using the HDMI-DVI Cable 24

Connection Using the USB Type-C Cable 24

Connection Using the DP Cable 25

Connecting to Headphones 25

Connecting an External Monitor 25

Connection Using an DP Cable 25

Connecting the Product to a PC as a USB HUB 26

Connecting a PC to the Product 26

Utilizing the Product as a USB HUB 26

Tidying Up the Connected Cables (S24H850QF* /

S24H851QF*) 28

Tidying Up the Connected Cables (S27H850QF* /

S27H851QF*) 29

Connecting the Power 30

Correct posture to use the product 31

Driver Installation 31

Setting Optimum Resolution 31

Screen Setup

SAMSUNG MAGIC Bright 32

Brightness 33

Contrast 33

Sharpness 33

Color 33

SAMSUNG MAGIC Upscale 34

HDMI Black Level 34

Eye Saver Mode 34

Game Mode 34

Response Time 34

Picture Size 35

Screen Adjustment 35

Configuring the PIP/PBP Settings

PIP/PBP Mode 36

Size 37

Position 37

Sound Source 37

Source 38

Picture Size 38

Table of contents

Contrast 39

Adjusting OSD (On Screen

Display) settings

Transparency 40

Language 40

Display Time 40

Setup and Reset

DisplayPort Ver. 41

DP OUT 42

DP OUT (MST/SST) Function Implementation 42

FreeSync 45

Smart ECO Saving 47

Off Timer Plus 47

PC/AV Mode 47

Source Detection 48

Key Repeat Time 48

Power LED On 48

Reset All 48

Information 48

Installing the Software

Easy Setting Box 49

Restrictions and Problems with the Installation 49

System Requirements 49

Troubleshooting Guide

Requirements Before Contacting Samsung Customer

Service Center 50

Testing the Product 50

Checking the Resolution and Frequency 50

Check the following. 50

Q & A 52

Specifications

General 53

Standard Signal Mode Table 54

Appendix

Responsibility for the Pay Service (Cost to

Customers) 56

Not a product defect 56

A Product damage caused by customer's fault 56

Others 56

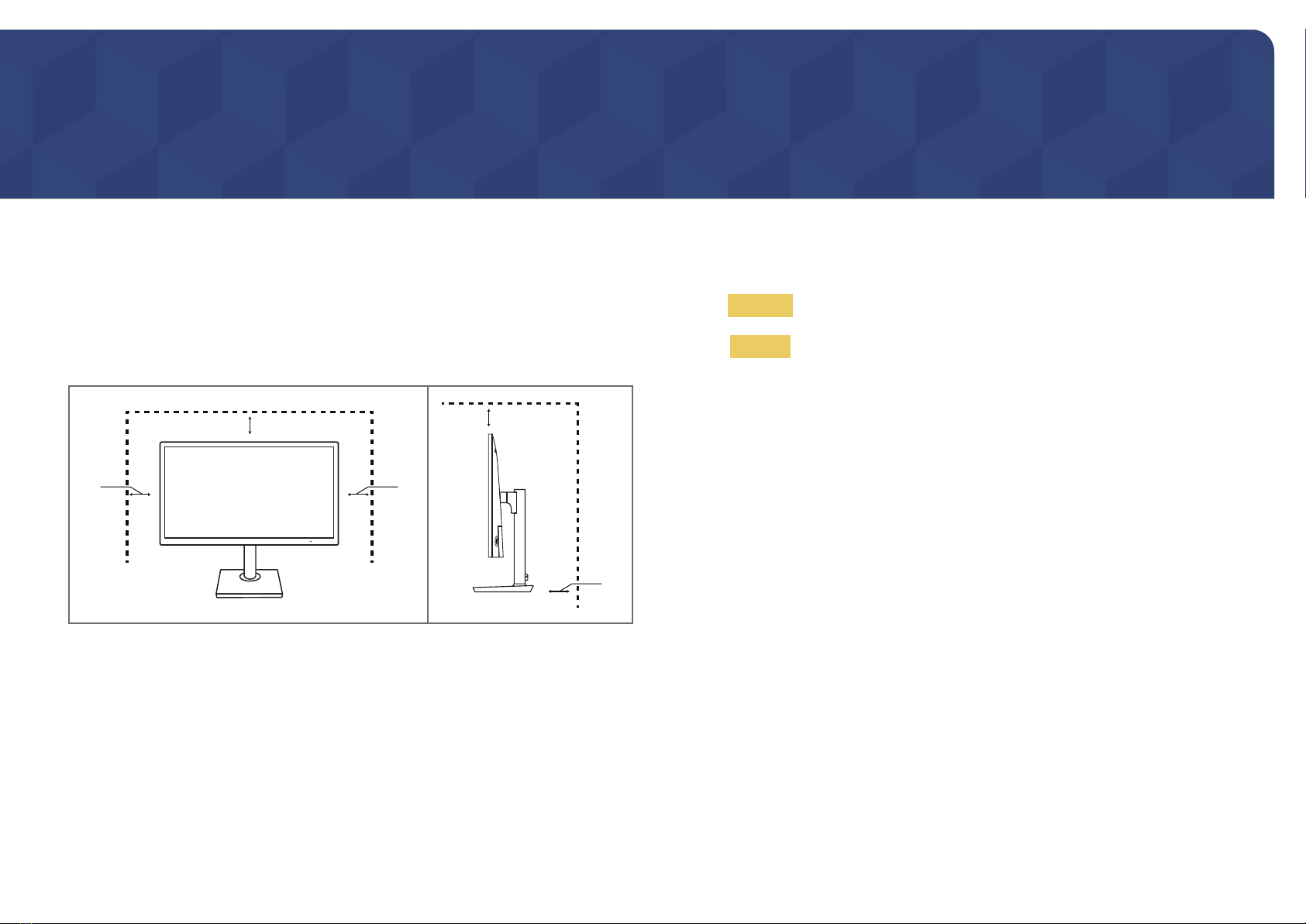

Securing the Installation Space

Ensure some space around the product forventilation. An internal temperature rise may cause fire and

damage the product. Be sure to allow the amount of space as shown below or greaterwhen installing

the product.

―The exterior may differ depending on the product.

10 cm 10 cm

10 cm

Precautions for storage

High-glossy models can develop white stains on the surface if an ultrasonic wave humidifier is used

nearby.

―Contact your nearest Samsung Customer Service Center if you want to clean the inside of the product

(Service fee will be charged.)

Do not press the monitor screen with hands or other objects. There is a risk of damaging the screen.

Safety Precautions

Warning A serious orfatal injury may result if instructions are not followed.

Caution Personal injury or damage to properties may result if instructions are

not followed.

Before Using the Product

Chapter 01

Cleaning

―Exercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched.

―Take the following steps when cleaning.

Power off the product and computer.

Disconnect the power cord from the product.

―Hold the power cable by the plug and do not touch the cable with wet hands. Otherwise, an electric

shock may result.

Wipe the monitorwith a clean, soft and dry cloth.

‒Do not apply a cleaning agent that contains alcohol, solvent, or surfactant to the monitor.

‒Do not spray water or detergent directly on the product.

Wet a soft and dry cloth in water and wring thoroughly to clean the exterior of the product.

Connect the power cord to the product when cleaning is finished.

Power on the product and computer.

Electricity and Safety

Warning

•Do not use a damaged power cord or plug, or a loose power socket.

•Do not use multiple products with a single power socket.

•Do not touch the power plug with wet hands.

•Insert the power plug all the way in so it is not loose.

•Connect the power plug to a grounded power socket (type 1 insulated devices only).

•Do not bend or pull the power cord with force. Be careful not to leave the power cord under a heavy

object.

•Do not place the power cord or product near heat sources.

•Clean any dust around the pins of the power plug or the power socket with a dry cloth.

Caution

•Do not disconnect the power cord while the product is being used.

•Only use the power cord provided with your product by Samsung. Do not use the power cord with

other products.

•Keep the power socket where the power cord is connected unobstructed.

‒The power cord must be disconnected to cut off powerto the product when an issue occurs.

•Hold the plug when disconnecting the power cord from the power socket.

Warning

•DO NOT PLACE CANDLES, INSECT REPELLANTS OR CIGARETTES ON TOP OF THE PRODUCT. DO NOT

INSTALL THE PRODUCT NEAR HEAT SOURCES.

•Do not install the product in poorly ventilated spaces such as a bookcase or closet.

•Install the product at least 10 cm away from the wall to allow ventilation.

•Keep the plastic packaging out of the reach of children.

‒Children may suffocate.

•Do not install the product on an unstable or vibrating surface (insecure shelf, sloped surface, etc.)

‒The product may fall and become damaged and/or cause an injury.

‒Using the product in an area with excess vibration may damage the product or cause a fire.

•Do not install the product in a vehicle or a place exposed to dust, moisture (water drips, etc.), oil, or

smoke.

•Do not expose the product to direct sunlight, heat, or a hot object such as a stove.

‒The product lifespan may be reduced or a fire may result.

•Do not install the product within the reach of young children.

‒The product may fall and injure children.

•Edible oil (such as soybean oil) may damage or distort the product. Keep the product away from oil

pollution. And do not install or use the product in the kitchen or near the kitchen stove.

Caution

•Do not drop the product while moving.

•Do not set down the product on its front.

•When installing the product on a cabinet or shelf, make sure that the bottom edge of the front of

the product is not protruding.

‒The product may fall and become damaged and/or cause an injury.

‒Install the product only on cabinets or shelves of the right size.

•Set down the product gently.

‒Product failure or personal injury may result.

•Installing the product in an unusual place (a place exposed to a lot of fine dust, chemical

substances, extreme temperatures or a significant presence of moisture, or a place where

the product will operate continuously for an extended period of time) may seriously affect its

performance.

‒Be sure to consult Samsung Customer Service Center if you want to install the product at such a

place.

Installation

Warning

•There is a high voltage inside the product. Never disassemble, repair or modify the product

yourself.

‒Contact Samsung Customer Service Centerfor repairs.

•To move the product, first disconnect all the cables from it, including the power cable.

•If the product generates abnormal sounds, a burning smell or smoke, disconnect the power cord

immediately and contact Samsung Customer Service Center.

•Do not let children hang from the product or climb on top of it.

‒Children may become injured or seriously harmed.

•If the product is dropped orthe outer case is damaged, turn off the power and disconnect the

power cord. Then contact Samsung Customer Service Center.

‒Continued use can result in a fire or electric shock.

•Do not leave heavy objects or items that children like (toys, sweets, etc.) on top of the product.

‒The product or heavy objects may fall as children try to reach for the toys or sweets resulting in a

serious injury.

•During a lightning or thunderstorm, power off the product and remove the power cable.

•Do not drop objects on the product or apply impact.

•Do not move the product by pulling the power cord or any cable.

•If a gas leakage is found, do not touch the product or power plug. Also, ventilate the area

immediately.

•Do not lift or move the product by pulling the power cord or any cable.

•Do not use or keep combustible spray or an inflammable substance near the product.

•Ensure the vents are not blocked by tablecloths or curtains.

‒An increased internal temperature may cause a fire.

•Do not insert metallic objects (chopsticks, coins, hairpins, etc) or objects that burn easily (paper,

matches, etc) into the product (via the vent or input/output ports, etc).

‒Be sure to power off the product and disconnect the power cord when water or other foreign

substances have entered the product. Then contact Samsung Customer Service Center.

•Do not place objects containing liquid (vases, pots, bottles, etc) or metallic objects on top of the

product.

‒Be sure to power off the product and disconnect the power cord when water or other foreign

substances have entered the product. Then contact Samsung Customer Service Center.

Operation

Caution

•Leaving the screen fixed on a stationary image for an extended period of time may cause

afterimage burn-in or defective pixels.

‒Activate power-saving mode or a moving-picture screen saver if you will not be using the

product for an extended period of time.

•Disconnect the power cord from the power socket if you do not plan on using the product for an

extended period of time (vacation, etc).

‒Dust accumulation combined with heat can cause a fire, electric shock or electric leakage.

•Use the product at the recommended resolution and frequency.

‒Your eyesight may deteriorate.

•Do not hold the product upside-down or move it by holding the stand.

‒The product may fall and become damaged or cause an injury.

•Looking at the screen too close for an extended period of time can deteriorate your eyesight.

•Do not use humidifiers or stoves around the product.

•Rest your eyes for more than 5 minutes or look at distance objects for every1 hour of product use.

•Do not touch the screen when the product has been turned on for an extended period of time as it

will become hot.

•Store small accessories out of the reach of children.

•Exercise caution when adjusting the product angle or stand height.

‒Your hand or finger may get stuck and injured.

‒Tilting the product at an excessive angle may cause the product to fall and an injury may result.

•Do not place heavy objects on the product.

‒Product failure or personal injury may result.

•When using headphones or earphones, do not turn the volume too high.

‒Having the sound too loud may damage your hearing.

Preparations

Chapter 02

Parts

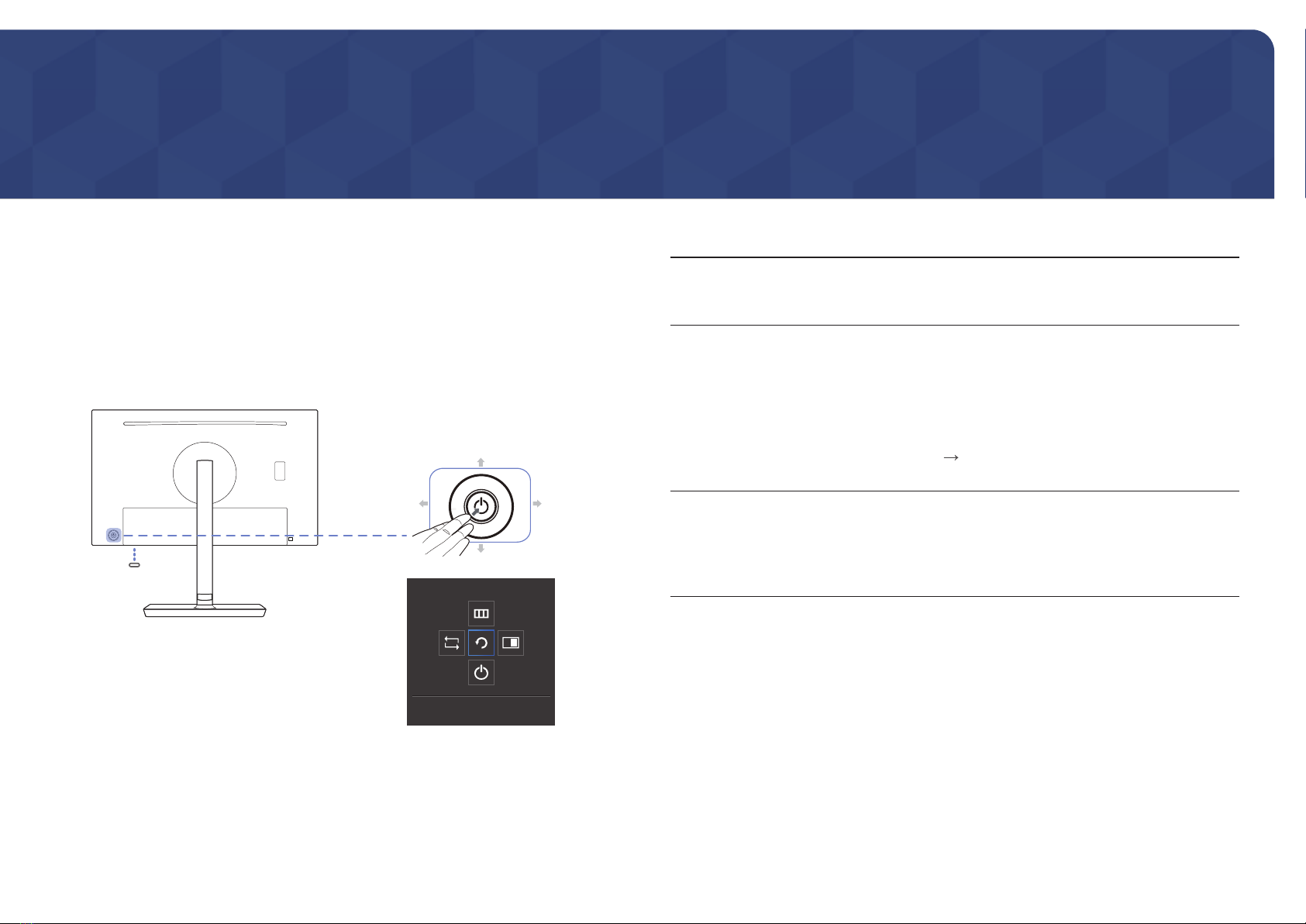

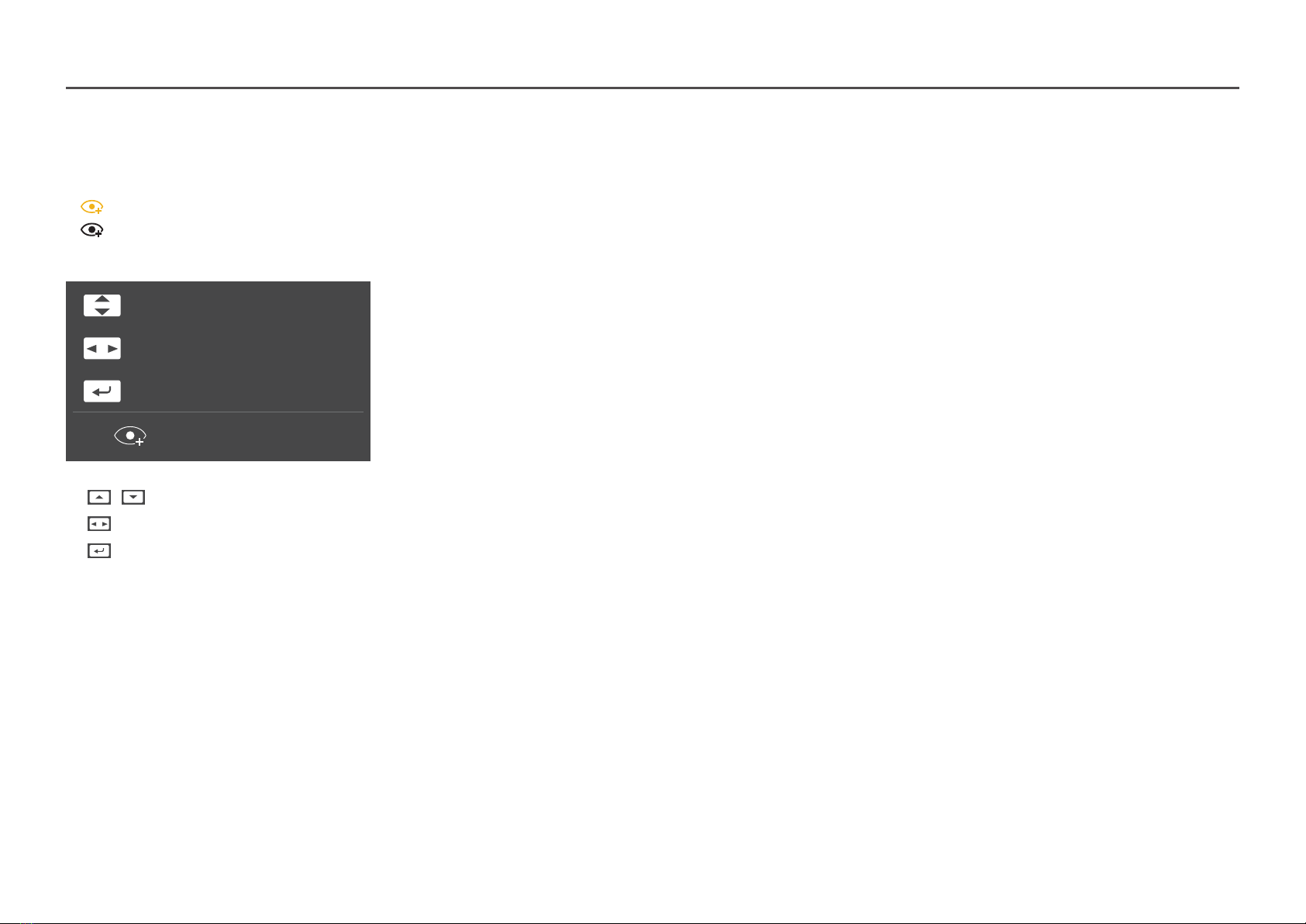

Control Panel

―The color and shape of parts may differ from what is shown. Specifications are subject to change without

notice to improve quality.

LEFT

Return

JOG Button

Function Key Guide

RIGHT

DOWN

PRESS(ENTER)

Power LED

Icons Description

JOG Button

Multi directional button that helps navigate.

―The JOG button is located on the rear left side of the product. The

button can be used to move up, down, left or right, or as Enter.

Power LED

This LED is power status indicator and works as

•Power On (Power button): Off

•Power saving mode: Blinking

•Power Off (Power button): On

―The power Indicator operation can be swapped by changing in the

menu. (System Power LED On) Actual models because of functional

variation maybe haven’t this function.

Function Key Guide

Press the JOG button when the screen is turned on. The Function Key

Guide will appear. To access the onscreen menu when the guide is

displayed, press the corresponding direction button again.

―Function Key Guide may vary depending on the function or product

model. Please refer to the actual product.

Direct Key guide

―The shortcut button screen (OSD menu) shown below is displayed only when the monitor screen is turned on, the computer resolution changes, or the input source changes.

―The function buttons page shows if Eye Saver Mode is enabled.

: On

: Off

Eye Saver Mode

Volume

Features

Eye Saver Mode Off

•/ : Adjust Brightness, Contrast, Eye Saver Mode.

•: Adjust Volume.

•: Display Function Key Guide.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Samsung Monitor

Samsung

Samsung HP-P5031 Manuale utente

Samsung

Samsung SyncMaster 400TSn Manuale utente

Samsung

Samsung SyncMaster 902N Manuale utente

Samsung

Samsung SyncMaster 400CXN Manuale utente

Samsung

Samsung SyncMaster 152T Manuale utente

Samsung

Samsung S19F350HN Manuale utente

Samsung

Samsung S32AG50 Series Manuale utente

Samsung

Samsung LS-15E23C Manuale utente

Samsung

Samsung DP700A7K-K01US Manuale utente

Samsung

Samsung VH55R-R Manuale utente

Samsung

Samsung SyncMaster 510 MP Manuale utente

Samsung

Samsung 2053BW - SyncMaster - 20" LCD Monitor Manuale utente

Samsung

Samsung SyncMaster 753Ms Manuale utente

Samsung

Samsung P50HP - SyncMaster - 50" Plasma Panel Manuale utente

Samsung

Samsung SyncMaster 800TFT Manuale utente

Samsung

Samsung 400PX - SyncMaster - 40" LCD Flat Panel... Manuale utente

Samsung

Samsung SyncMaster 2043SN Manuale utente

Samsung

Samsung 214T - SyncMaster - 21.3" LCD Monitor Manuale utente

Samsung

Samsung SyncMaster 2253BW, 2253LW Manuale utente

Samsung

Samsung VRR P10 Manuale utente

Samsung

Samsung SyncMaster 550v Manuale utente

Samsung

Samsung S27B971D Manuale utente

Samsung

Samsung SyncMaster 172MP Manuale utente

Samsung

Samsung SyncMaster 2333SW Manuale utente

Manuali Monitor popolari di altre marche

Linear Acoustic

Linear Acoustic LQ-1000 Manuale utente

AOC

AOC I2579V Manuale utente

Gateway

Gateway FPD1520 Manuale utente

Furuno

Furuno Mu 120c Manuale utente

Asus

Asus VB171D - 17" LCD Monitor Manuale utente

Dell

Dell S2230MX Istruzioni utente

Philips

Philips 107C64 Manuale utente

Dell

Dell S2409WFP Manuale utente

EverFocus

EverFocus EN-7517E Manuale utente

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuale utente

Dell

Dell Precision 7680 Manuale di istruzioni

LG 50PM1M - - 50" Plasma Panel Manuale utente

Bosch

Bosch DDU 9 Manuale utente

Acer

Acer A231HL Manuale utente

Philips

Philips 86BDL4152T Manuale utente

NEC

NEC AccuSync LCD5V Manuale utente

Emay

Emay SleepO2 Manuale utente

IBM

IBM 6360 Istruzioni per l'installazione
