Samsung S27A60 A Series Manuale utente

LCD Monitor Manual

1. Precautions.................................................................................................................... 2

2. Disassembly................................................................................................................... 4

3. Exploded View ............................................................................................................... 12

4. Spare parts..................................................................................................................... 13

5. Maintenance.................................................................................................................. 14

6. Self Diagnosis................................................................................................................ 15

7. Troubleshooting Guide................................................................................................. 16

Contents

Project Model

S60A S27A60*A**

1. Precautions

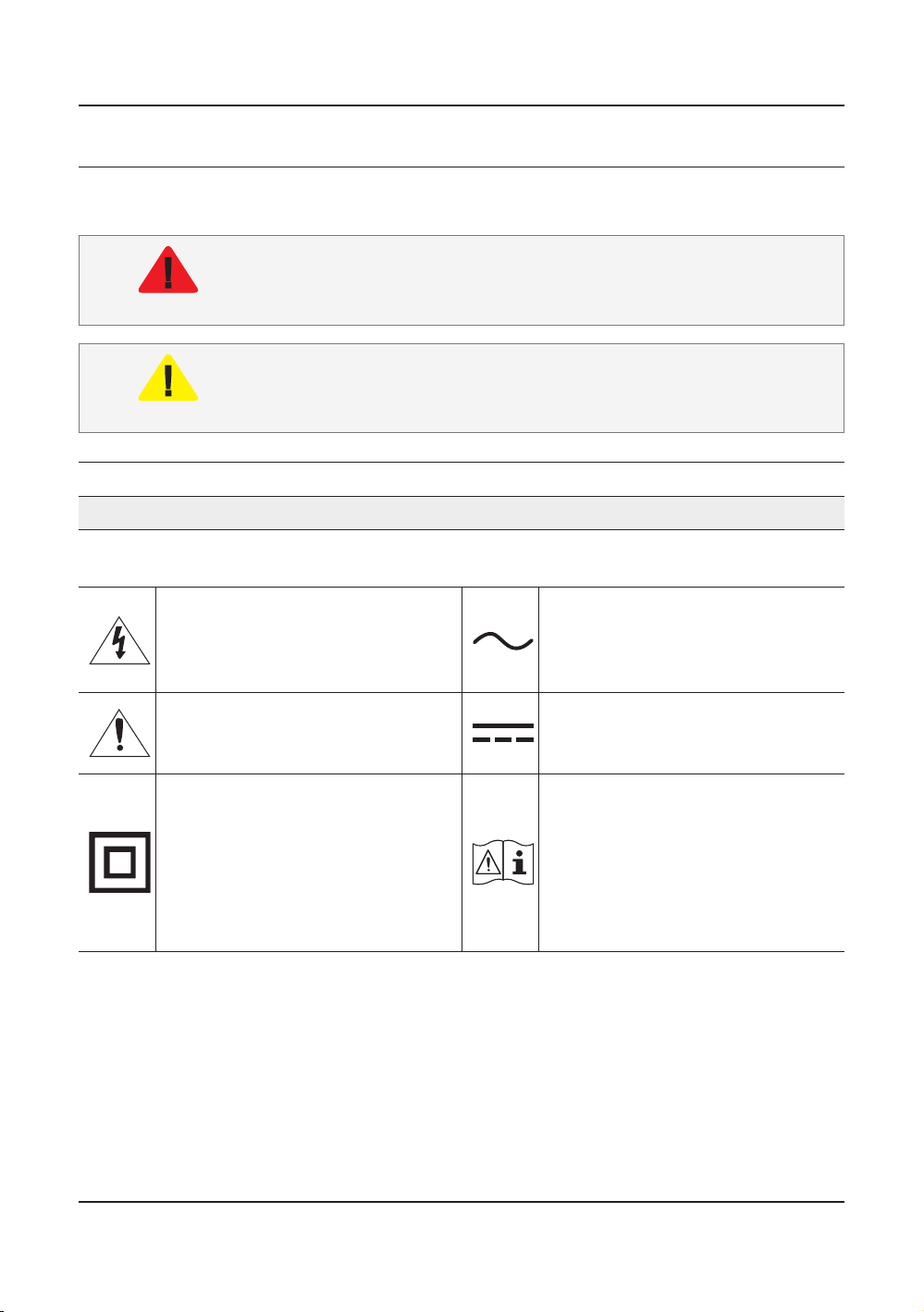

1-1. Safety Precautions

WARNING

•A serious or fatal injury may result if instructions are not followed.

CAUTION

•Personal injury or damage to properties may result if instructions are not

followed.

CAUTION

RISK OF ELECTRIC SHOCK. DO NOT OPEN.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). THERE ARE NO

USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO QUALIFIED PERSONNEL.

This symbol indicates that high voltage

is present inside. It is dangerous to make

any kind of contact with any internal part

of this product.

AC voltage: Rated voltage marked with

this symbol is AC voltage.

This symbol indicates that this product

has included important literature

concerning operation and maintenance.

DC voltage: Rated voltage marked with

this symbol is DC voltage.

Class II product: This symbol indicates

that a safety connection to electrical

earth (ground) is not required. If this

symbol is not present on a product with

a mains lead, the product MUST have a

reliable connection to protective earth

(ground).

Caution. Consult instructions for use:

This symbol instructs the user to consult

the user manual for further safety related

information.

LCD Monitor

1-1-1. Electricity and Safety

WARNING

•Do not use a damaged power cord or plug, or a loose power socket.

•Do not use multiple products with a single power socket.

•Do not touch the power plug with wet hands.

•Insert the power plug all the way in so it is not loose.

•Connect the power plug to a grounded power socket (type 1 insulated devices

only).

•Do not bend or pull the power cord with force. Be careful not to leave the power

cord under a heavy object.

•Do not place the power cord or product near heat sources.

•Clean any dust around the pins of the power plug or the power socket with a dry

cloth.

CAUTION

•Do not disconnect the power cord while the product is being used.

•Only use the power cord provided with your product by Samsung. Do not use the

power cord with other products.

•Keep the power socket where the power cord is connected unobstructed.

– The power cord must be disconnected to cut off power to the product when

an issue occurs

•Hold the plug when disconnecting the power cord from the power socket.

LCD Monitor

2. Disassembly

1•Preparation:

– Place sample on the flat floor

– Prepare open jig

Remark

BN81-14946A

(Open Jig)

2•Rise the stand button follow direction of the arrow.

•Lift up the stand and remove it follow direction of the arrow. Remark

LCD Monitor

3•Put an open JIG in the decomposition hole at the marked part to make a

gap. Remark

BN81-14946A

(Open Jig)

4 •Move an Open JIG follow direction of arrow to make a gap between Cover

Rear and panel. Remark

BN81-14946A

(Open Jig)

LCD Monitor

5 •After making a gap all edges of Cover Rear, hold the COVER-REAR and lift

it. Remark

BN81-14946A

(Open Jig)

6•Check the COVER REAR Top/Left/Right SCREWLESS hook and lift it as

shown in the figure. Remark

LCD Monitor

7•Disassemble the Cover Rear from the side. Remark

BN81-14946A

(Open Jig)

8•Disassemble the screw at 1 point as the picture shown.

•Disassemble the bracket stand link in the direction of the arrow as shown. Remark

6001-003016

(M3xL5)

LCD Monitor

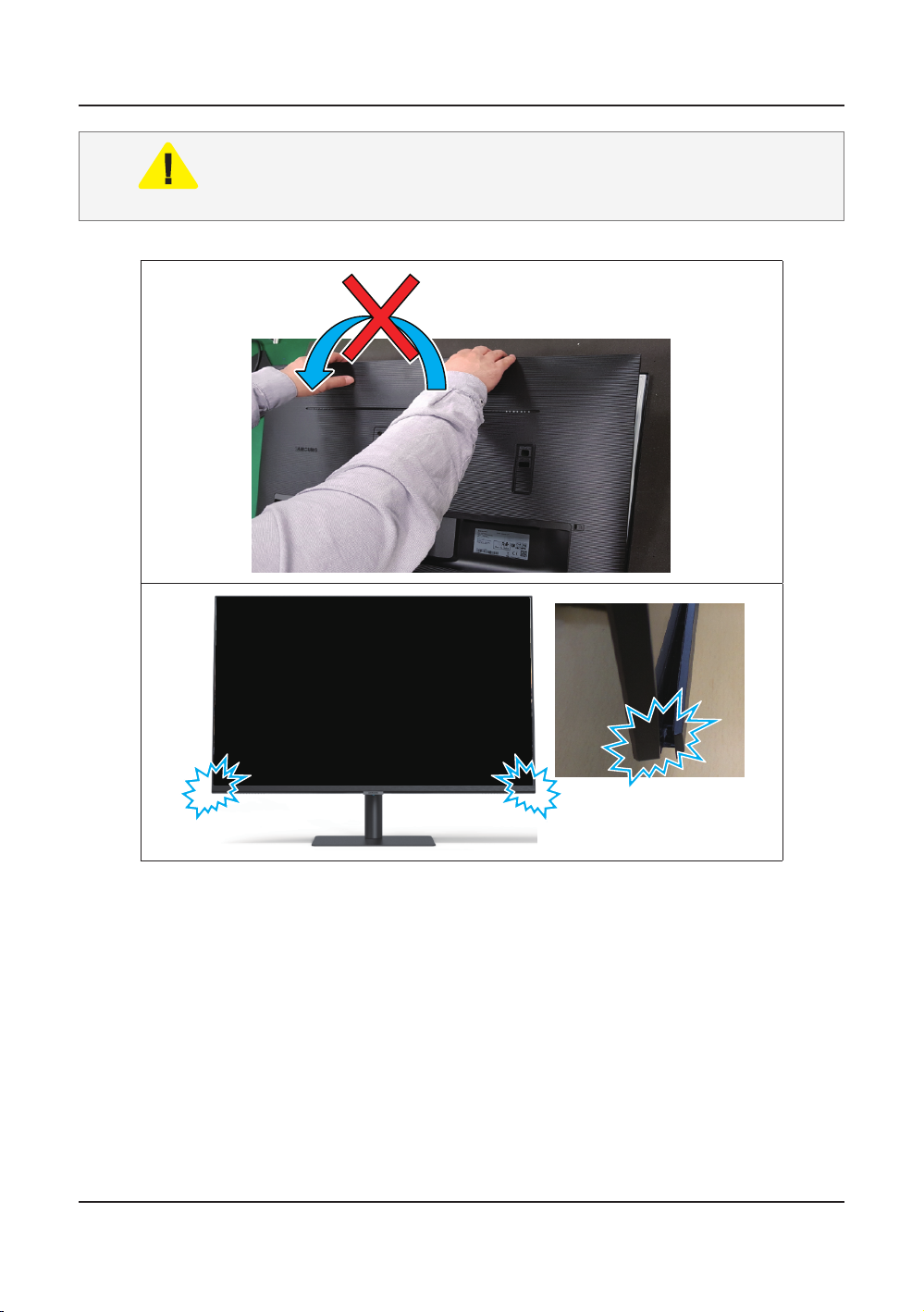

CAUTION

•Please note that the cover decoration may be broken left / right when

decomposed on the top of COVER REAR

LCD Monitor

9 •Remove Jog function follow direction of the arrow. Remark

10 •Remove the Cable from the connector of the main board. Remark

LCD Monitor

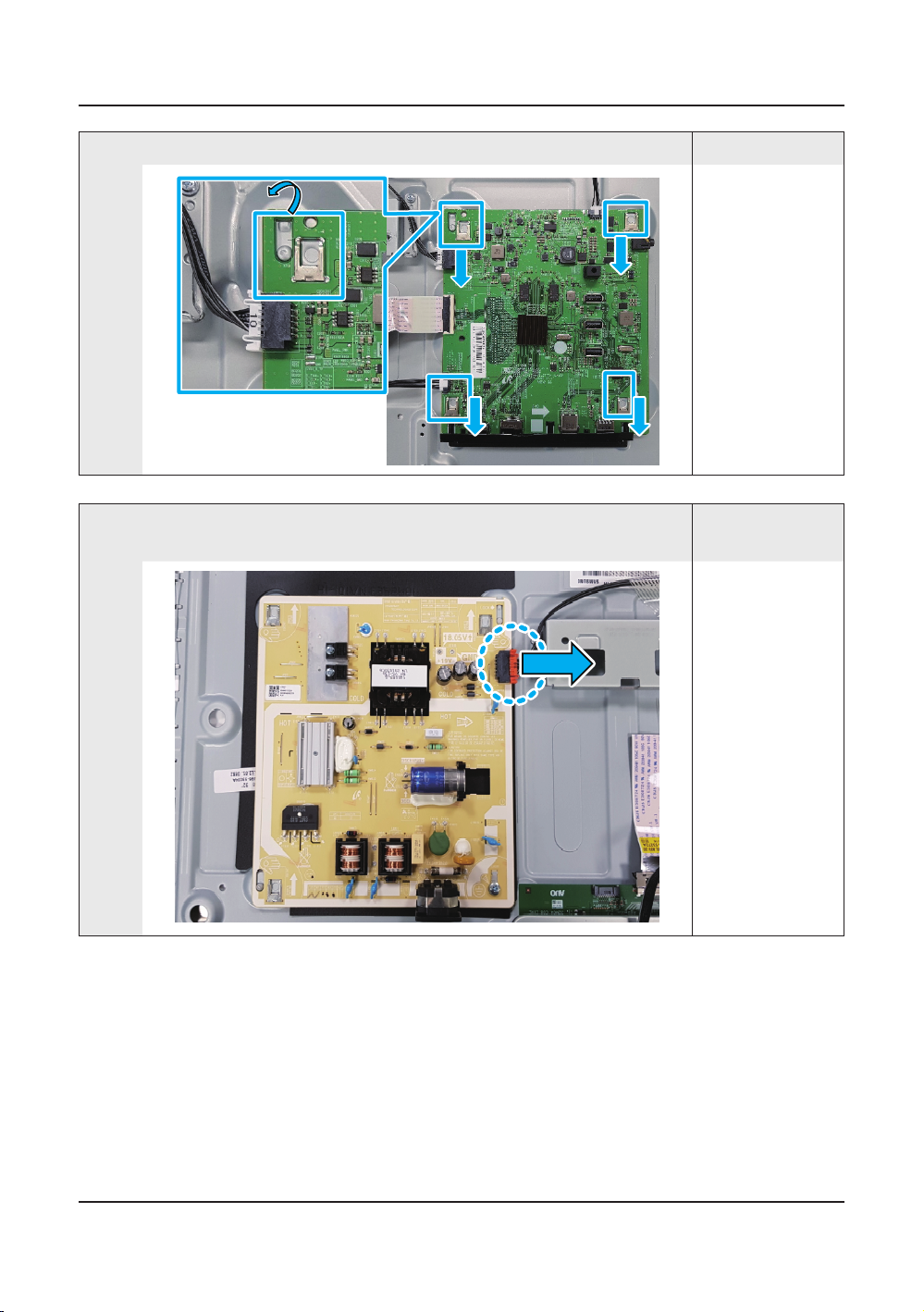

11 •Lift the board down in consideration of the latch. Remark

12 •Hold the marked part by hand and pull it in the direction of the arrow to

disconnect the cable. Remark

LCD Monitor
