Samsung SyncMaster 2043BW Manuale utente

LCD MONITOR

quick start guide

Introduction

Package Contents

Note

Please make sure the following items are included with your monitor.

If any items are missing, contact your dealer.

Contact a local dealer to buy optional items.

Unpacking

Type 1

Monitor & Simple stand

Note

• MagicRotation program can not be provided as Simple Stand does not support Pivot function.

Type 2

Monitor & HAS stand

Type 3

Monitor & Dual Hinge Stand

Type 4

Monitor & HAS stand

23 inches or larger

Manuals

Quick Setup Guide Warranty Card

(Not available in all loca-

tions)

User's Guide

Cables

D-Sub Cable Power Cord DVI Cable (option)

USB Cable

(Applicable to the stand mod-

elsthathaveUSB portsonly.)

Audio Cable

(Supplied for the models that

have speakers only.)

Others

Cleaning Cloth(Option) Cable holding ring

Introduction

Note

Cleaning Cloth is only provided for highly polished black products as a product feature.

Your Monitor

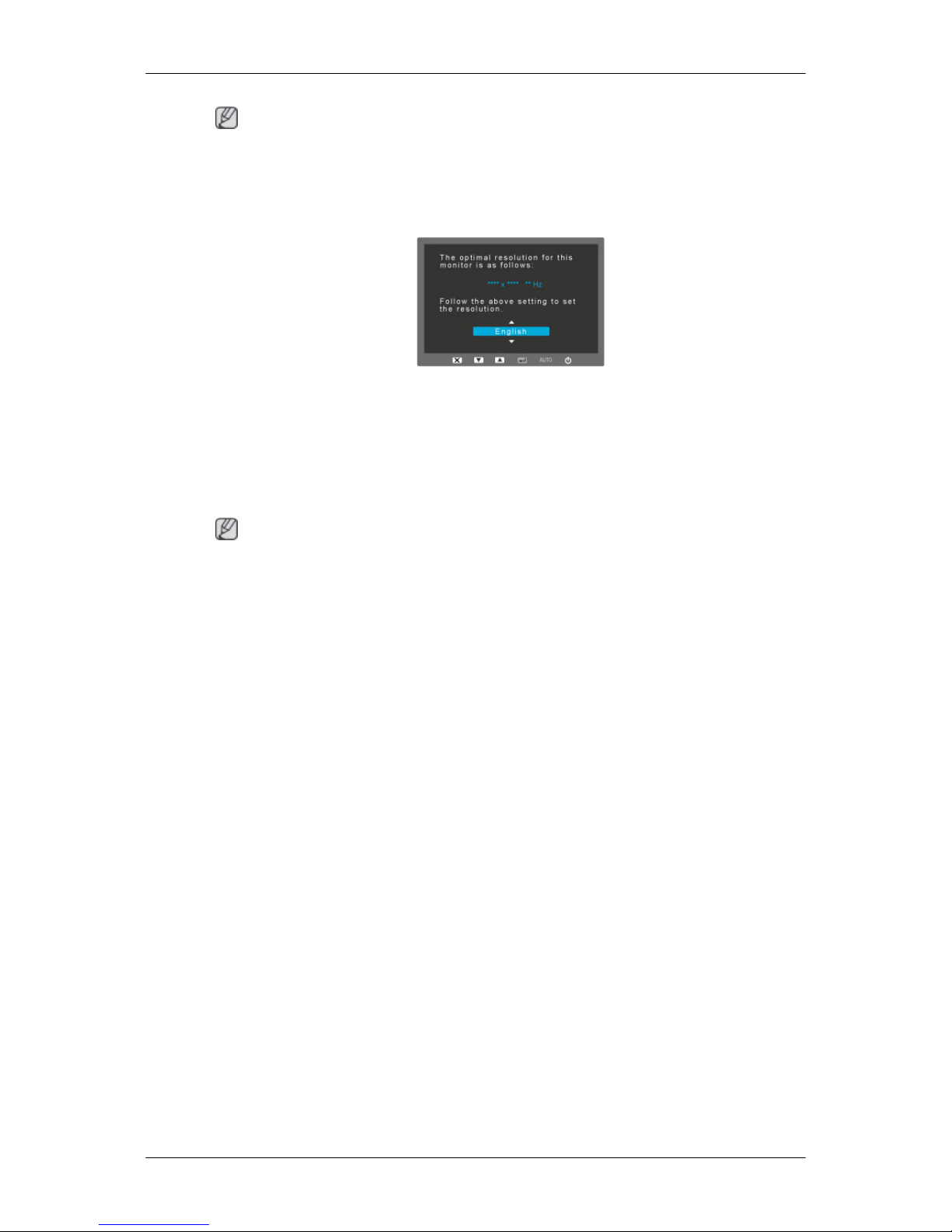

Initial Settings

Select the language using the up or down key.

The displayed content will disappear after 40 seconds.

Turn the Power button off and on. It will be displayed again.

It can be displayed up to three (1) times. Make sure to adjust the resolution of your PC before reaching

the maximum count.

Note

The resolution displayed on the screen is the optimal resolution for this product.

Adjust your PC resolution so that it is the same as the optimal resolution for this product.

Introduction

Front

Note

Touch them lightly with your fingers to use them.

MENU button [MENU/ ]

Openstheon-screen menu andexitsfromthe menu. Alsouseto exit theOSDmenu

or return to the previous menu.

Customized Key[ ]

You can customize key assignment for the Custom button according to your pref-

erences.

Note

You can configure the customized key for a required function via Setup > Cus-

tomized Key.

Adjust buttons [ ]

These buttons allow you to adjust items in the menu.

Brightness button [ ]

When OSD is not on the screen, push the button to adjust brightness.

Introduction

button

Push the ' ', then selects the video signal while the OSD is off. (When the ' '

button is pressed to change the input mode, a message appears in the upper left of

the screen displaying the current mode -- analog or digital input signal.)

Note

•If you select the digital mode, you must connect your monitor to the graphic

card's DVI port using the DVI cable.

• This function is not available for products with an Analog interface only.

Enter button [ ]

Activates a highlighted menu item.

AUTO button

Use this button for auto adjustment.

(Available in Analog mode only)

Power button [ ]

Use this button for turning the product on and off.

Power Indicator

This light is lit when operating normally, and blinks once when your adjustments

are saved.

Note

See PowerSaver described in the manual for further information regarding power

saving functions. For energy conservation, turn your monitor OFF when it is not

needed or when leaving it unattended for long periods.

Volume button[ ]

When OSD is not on the screen, push the button to adjust volume.

Note

Applicable to the models that have speakers only.

Headphone sound output terminal[ ]

Note

Applicable to the models that have speakers only.

Speaker

You can hear sound by connecting the soundcard of your PC to the monitor.

Introduction

Note

Applicable to the models that have speakers only.

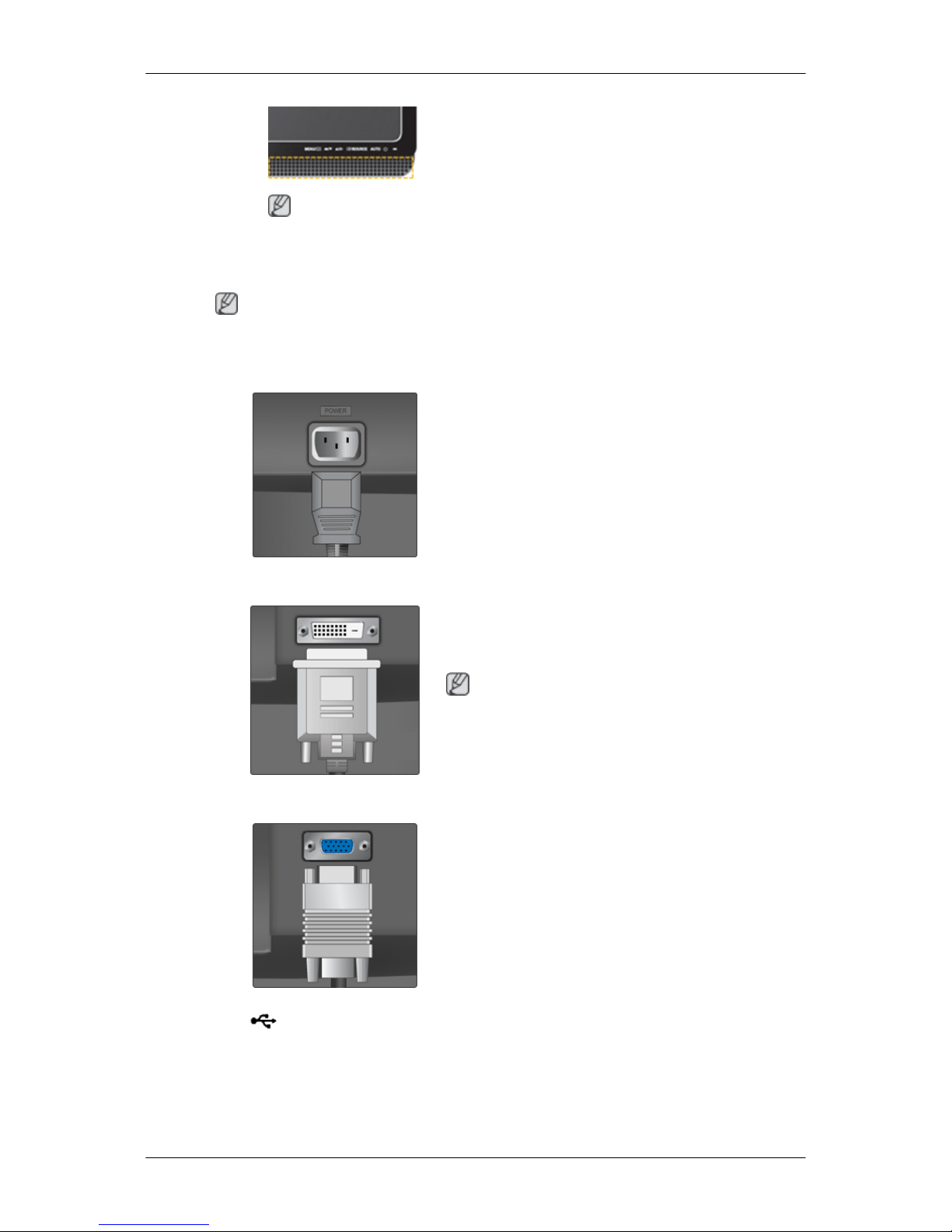

Rear

Note

The configuration at the back of the monitor may vary from product to product.

POWER port

Connect the power cord for your monitor to the

POWER port on the back of the product.

DVI IN

Connect the DVI Cable to the DVI IN port on the

back of your monitor.

Note

Applicable to the digital (DVI)-dedicated models

only.

RGB IN

Connect the D-sub cable to the 15-pin, RGB IN

port on the back of your monitor.

USB connection termi-

nal (Option)

Introduction

UP(USB upstream port)

Connect the UP port of the monitor and the

USB port of the computer with the USB cable.

DOWN(USB downstream port)

Connectthe DOWNportoftheUSBmonitor

and a USB device with the USB cable.

Note

Applicable to the models that have USB ports

only.

AUDIO IN port

Connect the audio cable for your monitor to the

audio port on the back of your computer.

Note

Applicable to the models that have speakers only.

Kensington Lock

The Kensington lock is a device used to physi-

cally fix the system when using it in a public

place. (The locking device has to be purchased

separately.) For using a locking device, contact

where you purchase it.

Note

The location of the Kensington Lock may be dif-

ferent depending on its model.

Using the Anti-Theft Kensington Lock

1. InsertthelockingdeviceintotheKensington

slot on the Monitor and turn it in the

locking direction .

2. Connect the Kensington Lock cable.

3. FixtheKensingtonLockto a deskoraheavy

stationary object.

Note

See Connecting Cables for further information regarding cable connections.

Introduction

Cable holding ring

• Fix the cables using the holding ring, as shown in the figure.

Introduction

Connections

Connecting Cables

Use a connection appropriate for your computer.

Using the D-sub (Analog) connector on the video card.

• Connect the signal cable to the 15-pin, D-sub port on the back of your monitor.

Using the DVI (Digital) connector on the video card.

• Connect the DVI Cable to the DVI IN Port on the back of your Monitor.
