SyncMaster 710T / 910T / 710N / 910N / 510T / 510N / 512N / 515V / 915V

/ 712N / 912N / 711T / 912T / 913N / 701T

Failure to follow directions noted by this symbol could result in bodily harm or damage to

equipment.

Prohibited Important to read and understand at all times

Do not disassemble Disconnect the plug from the outlet

Do not touch Grounding to prevent an electric shock

Power

When not used for extended periods of time, set your computer to DPMS.

If using a screen saver, set it to the active screen mode.

Do not use a damaged or loose plug.

zThis may cause an electric shock or fire.

Do not pull the plug out by the wire nor touch the plug with wet hands.

zThis may cause an electric shock or fire.

Use only a properly grounded plug and receptacle.

zAn improper ground may cause electric shock or equipment damage.

Do not excessively bend the plug and wire nor place heavy objects upon

them, which could cause damage.

zThis may cause an electric shock or fire.

Do not connect too many extension cords or plugs to an outlet.

zThis may cause a fire.

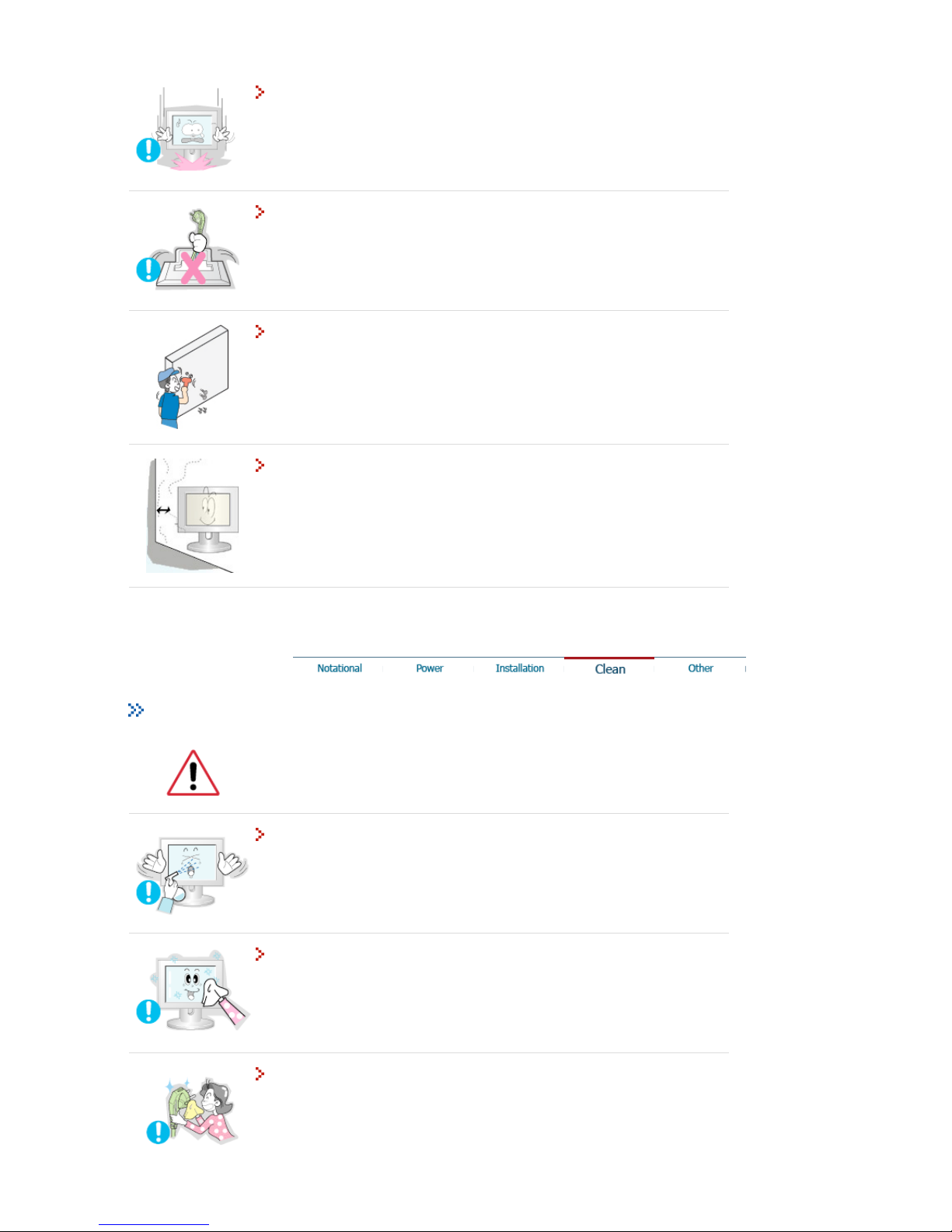

Installation

Put your monitor in a location with low humidity and a minimum of dust.

zAn electric shock or fire could result inside the monitor.

Do not drop the monitor when moving it.

zThis may cause damage to the product or human body.

Place the monitor on a flat and stable surface.

zThe monitor can cause injury by falling.

Set down the monitor carefully.

zIt could be damaged or broken.

Do not place the monitor face down.

zThe TFT-LCD surface may be damaged.

Installing a wall bracket must be done by a qualified professional.

zInstallation by unqualified personnel may result in injury.

zAlways use the mounting device specified in the owner's manual.

Leave a space for ventilation between the product and the wall.

zPoor ventilation may cause the interior temperature to rise and lead to a fire.

Clean

When cleaning the monitor case or the surface of the TFT-LCD screen, wipe with a

slightly moistened, soft fabric.

Do not spray water or detergent directly on the monitor.

zThis may cause damage, electric shock or a fire.

Use the recommended detergent with a smooth cloth.

If the connector between the plug and the pin is dusty or dirty, clean it

properly with a dry cloth.

zA dirty connector can cause an electric shock or fire.

Contact a Service Center or Customer Center for interior cleaning once a

year.

zKeep the product's interior clean. Dust which has accumulated in the interior

over an extended period of time may cause malfunction or a fire.

Other

Do not remove cover (or back). No user serviceable parts inside.

zThis may cause an electric shock or a fire.

zRefer servicing to qualified service personnel.

If your monitor does not operate normally - in particular, if there are any

unusual sounds or smells coming from it - unplug it immediately and

contact an authorized dealer or service.

zThis may cause an electric shock or fire.

Be careful not to let water drip into the monitor or expose the monitor to

moisture.

zThis may cause malfunction, an electric shock or a fire.

zEspecially avoid operating the monitor near water or outdoors where it could

be exposed to snow or rain.

If the monitor is dropped or the casing is damaged, turn the monitor off

and unplug the power cord.

zThe monitor may malfunction, causing an electric shock or a fire.

zThen contact the Service Center .

Disconnect the plug from the outlet during storms or lightening or if it is

not used for a long period of time.

zFailure to do so may cause an electric shock or fire.

Do not try to move the monitor by pulling on the wire or the signal cable.

zThis may cause a breakdown, electric shock or a fire due to damage to the

cable.

Do not move the monitor right or left by pulling only the wire or the signal

cable.

zThis may cause a breakdown, electric shock or a fire due to damage to the

cable.

Do not cover the vents on the monitor cabinet.

zBad ventilation may cause a breakdown or fire.

Do not place water containers, chemical products or small metal ob

ects on

the monitor.

zThis may cause malfunction, an electric shock or a fire.

zIf a foreign substance enters the monitor, unplug the power cord and contact

the Service Center .

Do not use or store inflammable substances near the monitor.

zThis may cause an explosion or fire.

Never insert anything metallic into the monitor openings.

zThis may cause an electric shock, fire or injury.

Do not insert metal objects such as utensils, wire or drill bits, or things

that catch fire easily, such as pieces of paper or matches, into the vents or

the headphone or A/V ports on the monitor.

zThis may cause malfunction, an electric shock or a fire.

zAlways contact the Service Center if foreign substances/objects enter into the

monitor.

If you view a fixed screen for an extended period of time, residual image

or blurriness may appear.

zChange the mode to energy save or set a screensaver to moving picture when

you need to be away from the monitor for an extended period of time.

Adjust the resolution and frequency to the levels appropriate for the

model.

zInappropriate resolution may cause undesirable picture quality.

15 inch - 1024 X 768

17,19 inch - 1280 X 1024

To ease eye strain, take at least a five-minute break after every hour of

using the monitor.

Do not use the monitor where it can be exposed to strong vibrations.

zExposure to strong vibrations can be a fire hazard and shorten the life of the

monitor.

When moving the monitor, turn the power switch off and unplug the

power cord.

Make sure that all cables, including the antenna cable and cables

connecting to other devices, are disconnected before moving the monitor.

zFailure to disconnect a cable may damage it and lead to a fire or an electric

shock.

Sitting too close to the monitor on a continuous basis may damage eyesight.

Please make sure the following items are included with your monitor.

If any items are missing, contact your dealer.

Unpacking

Option 1

Moniter & Simple stand Bottom

Option 2

Monitor & Pivot stand

Manual

User's Guide, Monitor

SyncMaster 510T / 710T / 910T / 711T / 912T / 701T

SyncMaster 510T / 701T

Quick Setup Guide Warranty Card Dirver, Natural Color

software, MagicTune™

software CD

Cable

D-Sub Cable Power Cord DVI Cable(option)

Front

1. Menu button [ ]

Opens the OSD menu. Also used to exit the OSD menu or return to the

previous menu.

2. MagicBright button

[]

MagicBright is a new feature providing optimum viewing environment

depending on the contents of the image you are watching. Currently four

different modes are available: Custom, Text, Internet, and Entertain.

Each mode has its own pre-configured brightness value. You can easily

select one of four settings by simply pressing MagicBright control

buttons.

1) Text : Normal Brightness

For documentations or works involving heavy text.

2) Internet : Medium Brightness

For working with a mixture of images such as text and graphics.

3) Entertain : High Brightness

For watching motion pictures such as a DVD or VCD.

4) Custom

Although the values are carefully chosen by our engineers, the pre-

configured values may not be comfortable to your eyes depending on

your taste.

(Not available in all locations)

If this is the case, adjust the Brightness and Contrast by using the

OSD menu.

3. Brightness button [ ] When OSD is not on the screen, Push the button to adjust brightness.

2,3. Adjust buttons [ ] Adjust items in the menu.

4. Enter button [ ] /

Source button Activate a highlighted menu item. /

Push the 'Source', then Selects the Video signal while the OSD is off.

(When the Source button is pressed to change the input mode, a

message appears in the center of the screen displaying the current mode

-- analog or digital input signal.) Note : If you select the Digital mode,

you must connect your monitor to the graphic card's port using the DVI

cable.

5. Auto button Use this button for auto adjustment direct access.

6. Power button Use this button for turn the monitor on and off.

7. Power indicator

This light glows green during normal operation, and blinks green once as

the monitor saves your adjustments.

See PowerSaver described in the manual for further information regarding power saving functions.

For energy conservation, turn your monitor OFF when it is not needed, or when leaving it

unattended for long periods.

Rear

(The configuration at the back of the monitor may vary from product to product.)

1. Power port Connect the power cord for your monitor to the power port on the back of

the monitor.

2. DVI port Connect the DVI Cable to the DVI Port on the back of your Monitor.

3. D-sub 15-pin port Connect the signal cable to the 15-pin, D-sub connector on the back of your

monitor.

See Connectingthe Monitor for further information re garding cable connections.

>>Click here to see an animation clip
