Samsung SyncMaster P2070 Manuale utente

LCD MONITOR

quick start guide

P2070,P2270,P2370,P2070G,P2270G,P2370G

Introduction

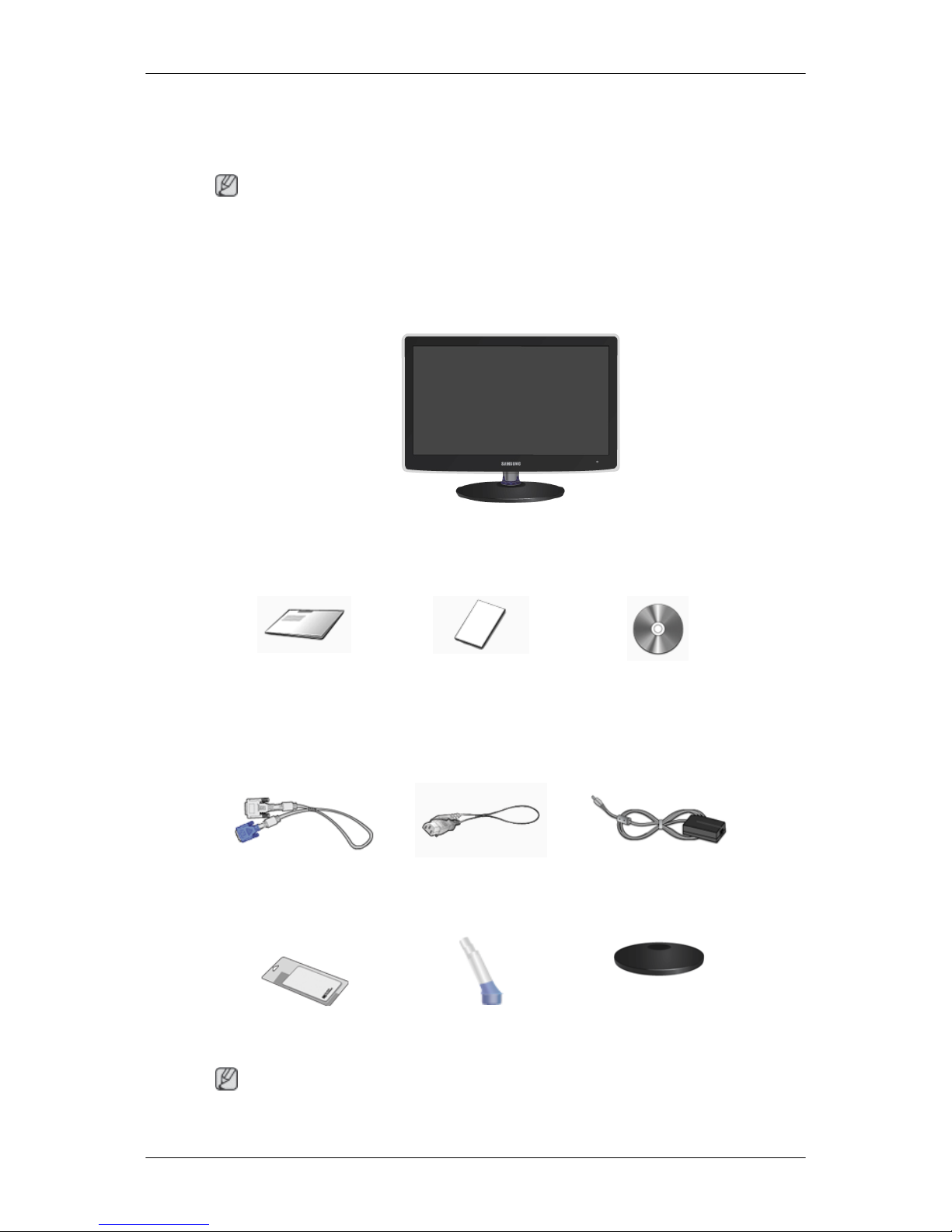

Package Contents

Note

Please make sure the following items are included with your monitor.

If any items are missing, contact your dealer.

Contact a local dealer to buy optional items.

Unpacking

Monitor

Manuals

Quick Setup Guide Warranty Card

(Not available in all loca-

tions)

User's Guide

Cables

'DVI-A to D-Sub' Cable Power Cord DC-Adapter

Others

Cleaning Cloth Stand Body Stand Base

Note

Cleaning Cloth is only provided for highly polished black products as a product feature.

Sold separately

DVI Cable

Your Monitor

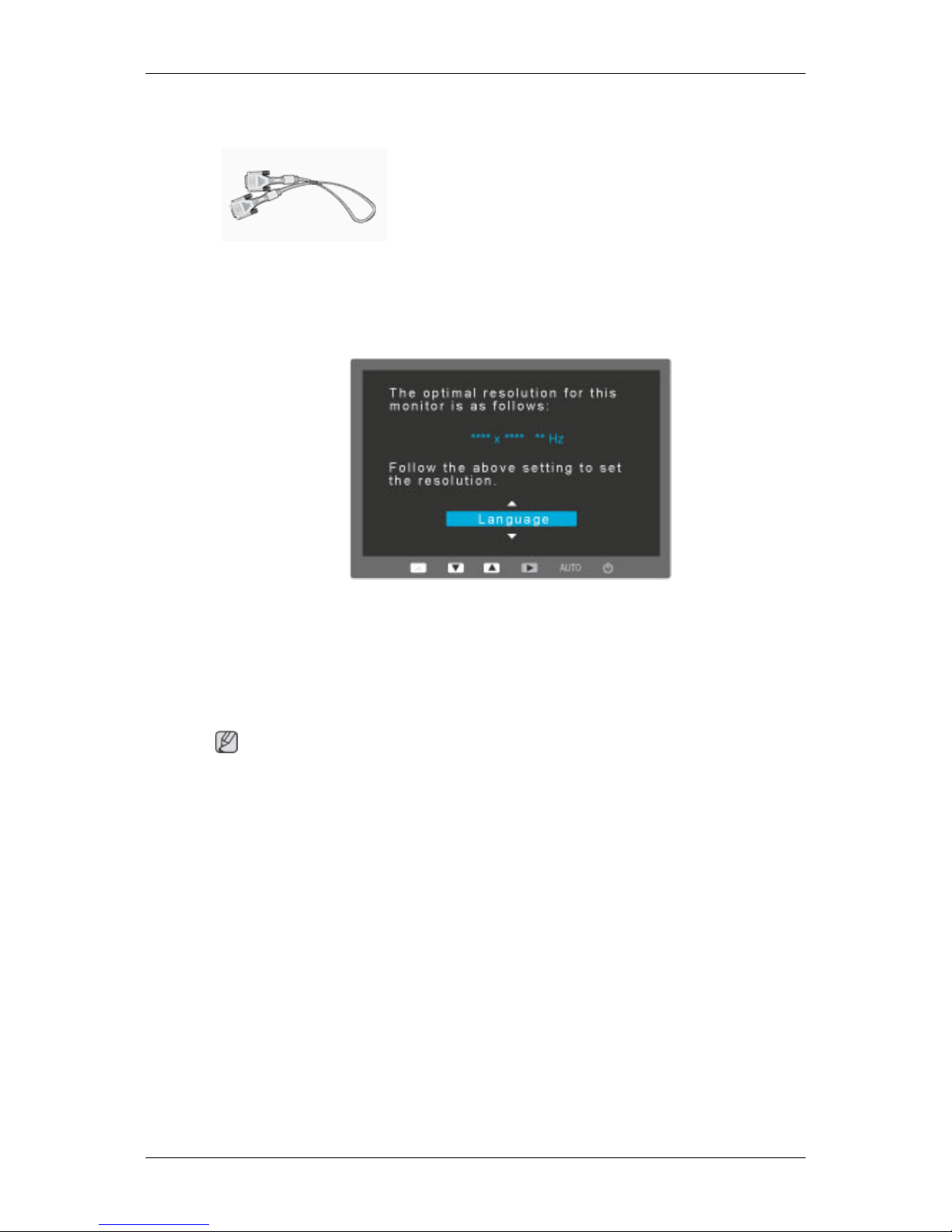

Initial Settings

Select the language using the up or down key.

The displayed content will disappear after 40 seconds.

Turn the Power button off and on. It will be displayed again.

It can be displayed up to three (3) times. Make sure to adjust the resolution of your PC before

reaching the maximum count.

Note

The resolution displayed on the screen is the optimal resolution for this product.

Adjust your PC resolution so that it is the same as the optimal resolution for this product.

Introduction

Front

MENU button [MENU/ ]

Opens the on-screen menu and exits from the menu. Also use to exit the

OSD menu or return to the previous menu.

Customized Key[ ]

You can customize key assignment for the Custom button according to

your preferences.

Note

You can configure the customized key for a required function via Setup >

Customized Key.

Brightness button [ ]

When OSD is not on the screen, push the button to adjust brightness.

Adjust buttons [ ]

These buttons allow you to adjust items in the menu.

[] Button / [ ] Enter button

Activates a highlighted menu item.

Push the ' / ', then selects the video signal while the OSD is off. (When

the / button is pressed to change the input mode, a message ap-

pears in the upper left of the screen displaying the current mode -- analog

or digital input signal.)

Note

If you select the digital mode, you must connect your monitor to the graphic

card's DVI port using the DVI cable.

Introduction

AUTO button

Use this button for auto adjustment.

Power button [ ]

Use this button for turning the product on and off.

Power Indicator

This light is lit when operating normally, and blinks once when your ad-

justments are saved.

Note

See PowerSaver described in the manual for further information regarding

power saving functions. For energy conservation, turn your monitor OFF

when it is not needed or when leaving it unattended for long periods.

Rear

Note

The configuration at the back of the product may vary from product to product.

DC 12V

Connect the DC adapter for your monitor to

the power port on the back of the monitor.

Plug the power cord for the monitor into a

nearby outlet. .

DVI IN port

Introduction

Connect the 'DVI-A to D-Sub' Cable to the

DVI-I port on the back of your monitor.

Kensington Lock

The Kensington Lock is a device used to

physically fix the system when using it in a

public place. The locking device has to be

purchased separately. The appearance and

locking method may differ from the illustra-

tion depending on the manufacturer. Refer to

the manual provided with the Kensington

Lock for proper use. The locking device has

to be purchased separately.

Note

The location of the Kensington Lock may be

different depending on its model.

Using the Anti-Theft Kensington

Lock

1. Insert the locking device into the Ken-

sington slot on the Monitor ( ) and turn

it in the locking direction ( ).

2. Connect the Kensington Lock cable.

3. Fix the Kensington Lock to a desk or a

heavy stationary object.

Note

See Connecting Cables for further information regarding cable connections.

Introduction

Connections

Connecting Cables

Connect the DC adapter for your monitor to the power port on the back of the monitor.

Plug the power cord for the monitor into a nearby outlet.

Use a connection appropriate for your computer.

Using the D-sub (Analog) connector on the video card.

• Connect the 'DVI-A to D-Sub' Cable to the DVI-I port on the back of your monitor.

Monitor [DVI IN] PC [D-sub]

Connected to a Macintosh.

•Connect the monitor to the Macintosh computer using the 'DVI-A to D-Sub' connection

cable.

Note

If you properly connect your monitor using the DVI-I connector but get a blank screen, check

to see if the monitor status is set to analog. Press power button to have the monitor double-

check the input signal source.

Using the Stand

Monitor Assembly

Monitor and Bottom

Folding the base

Note

You can tilt the monitor screen forward to adjust the angle to a particular angle.

Connections

Troubleshooting

Self-Test Feature Check-- P2070, P2070G --

Note

Your monitor provides a self test feature that allows you to check whether your monitor is

functioning properly.

Self-Test Feature Check

1. Turn off both your computer and the monitor.

2. Unplug the video cable from the back of the computer.

3. Turn on the monitor.

If the monitor is functioning properly, you will see a box in the illustration below.

This box appears during normal operation if the video cable becomes disconnected or

damaged.

4. Turn off your monitor and reconnect the video cable; then turn on both your computer

and the monitor.

If your monitor screen remains blank after using the previous procedure, check your video

controller and computer system; your monitor is functioning properly.

Warning Messages

If there is something wrong with the input signal, a message appears on the screen or the

screen goes blank although the power indicator LED is still on. The message may indicate

that the monitor is out of scan range or that you need to check the signal cable.

Environment

The location and the position of the monitor may influence the quality and other features of

the monitor.

If there are any sub woofer speakers near the monitor, unplug and relocate the woofer to

another room.

Remove all electronic devices such as radios, fans, clocks and telephones that are within 3

feet (one meter) of the monitor.

Useful Tips

A monitor recreates visual signals received from the computer. Therefore, if there is a problem

with the computer or the video card, this can cause the monitor to become blank, have poor

coloring, become noisy, and video mode not supported, etc. In this case, first check the source

of the problem, and then contact the Service Center or your dealer.

Judging the monitor's working condition

If there is no image on the screen or a "Not Optimum Mode", "Recommended Mode 1600

x 900 60 Hz" message comes up, disconnect the cable from the computer while the monitor

is still powered on.

If there is a message coming up on the screen or if the screen goes white, this means the

monitor is in working condition.

In this case, check the computer for trouble.

Check List

Note

Before calling for assistance, check the information in this section to see if you can remedy

any problems yourself. If you do need assistance, please call the phone number on the In-

formation section or contact your dealer.

No images on the screen. I cannot turn on the monitor.

Q: Is the power cord connected properly?

A: Check the power cord connection and supply.

Q: Can you see "Check Signal Cable" on the screen?

A: Check the signal cable connection.

(Connected using the DVI cable)

Press ‘ ’ button to have the monitor double-check the input signal source.

Q: If the power is on, reboot the computer to see the initial screen (the login screen), which

can be seen.

A: If the initial screen (the login screen) appears, boot the computer in the applicable mode

(the safe mode for Windows ME/XP/2000) and then change the frequency of the video

card.

(Refer to the Preset Timing Modes)

If the initial screen (the login screen) does not appear, contact the Service Center or

your dealer.

Q: Can you see "Not Optimum Mode", "Recommended Mode 1600 x 900 60 Hz" on the

screen?

A: You can see this message when the signal from the video card exceeds the maximum

resolution and frequency that the monitor can handle properly.

Troubleshooting
