Samsung SyncMaster P2450H Manuale utente

SyncMaster P2450H

LCD MONITOR

quick start guide

Installing the Product 1-1

1 Installing the Product

1-1 Package Contents

• Unpack the product and check if all of the following contents have been included.

• Store the packaging box in case you need to move the Product at a later stage.

Monitor

The cleaning cloth is supplied with black high-glossy models only.

CONTENTS

Installation Manual Product Warranty

(Not available in all locations)

User Manual D-Sub Cable

Power Cord Cleaning Cloth Cable Arrangement Link Stand Connector

Stand

OPTIONAL PARTS

DVI Cable HDMI Cable

1-2 Installing the Product

1-2 Installing the Stand

Before assembling the product, place the product down on a flat and stable surface so that the screen is facing downwards.

Insert the Stand Connector into the Stand in the direction shown by the figure.

Check if the Stand Connector is firmly connected.

Turn the connecting screw at the bottom of the stand fully so that it is completely fixed.

Place a soft cloth over the table to protect the product and place the product onto the

cloth so that the front of the product is facing downwards.

Installing the Product 1-2

Hold the main body of the product with your hand as shown by the figure.

Push the assembled stand into the main body in the direction of the arrow as shown in

the figure.

- Caution

Do not lift the product holding only the stand

1-3 Installing the Product

1-3 Removing the Stand

Before removing the stand, place the product down on a flat and stable surface so that the screen faces downwards.

Place a soft cloth over the table to protect the product and place the product onto the

cloth so that the front of the product faces downwards.

Hold the main body of the product with your hand as shown by the figure.

Pull the stand in the direction of the arrow as shown in the figure to separate it.

Turn the connecting screw at the bottom of the stand to separate it.

Take the Stand Connector out of the Stand by pulling it in the direction of the arrow as

shown in the figure.

Installing the Product 1-4

1-4 Installing the Stand for the Wall Mount

This product provides a stand mount of 100 mm x 100 mm that complies with the VESA specifications.

1. Turn the product off and unplug the power cord from the wall outlet.

2. Place a soft cloth or cushion on a flat surface to protect the panel and place the product down on the cloth so that the front of

the product faces downwards.

3. Separate the stand.

4. Align the groove of the part of the product that is to be connected to the stand with the groove in the stand (desk-top stand,

wall mount stand or another stand) and firmly fix the stand by fastening the screw.

• If you use a screw that is longer than the standard specifications, the inside of the product may be damaged.

• For wall mounts that are not compatible with the standard VESA specifications, the length of the screw may differ

depending on the corresponding specifications.

• Do not use screws that are incompatible with the standard VESA specifications and do not assemble them using

excessive force.

This may result in damage to the product or injury due to the product falling.

The company shall not be held liable for any damage or injury.

• The company shall not be held liable for any damage to the product or injury caused by using a stand that is not

compatible with the specified specifications or due to an installation not performed by an authorized installation

engineer.

• When installing the product using a wall mount, purchase a wall mount that provides at least 10 cm of space from the

wall.

• The company shall not be held liable for any problems caused by using a stand that is not compatible with the specified

specifications.

• Use the wall mount according to the international specifications.

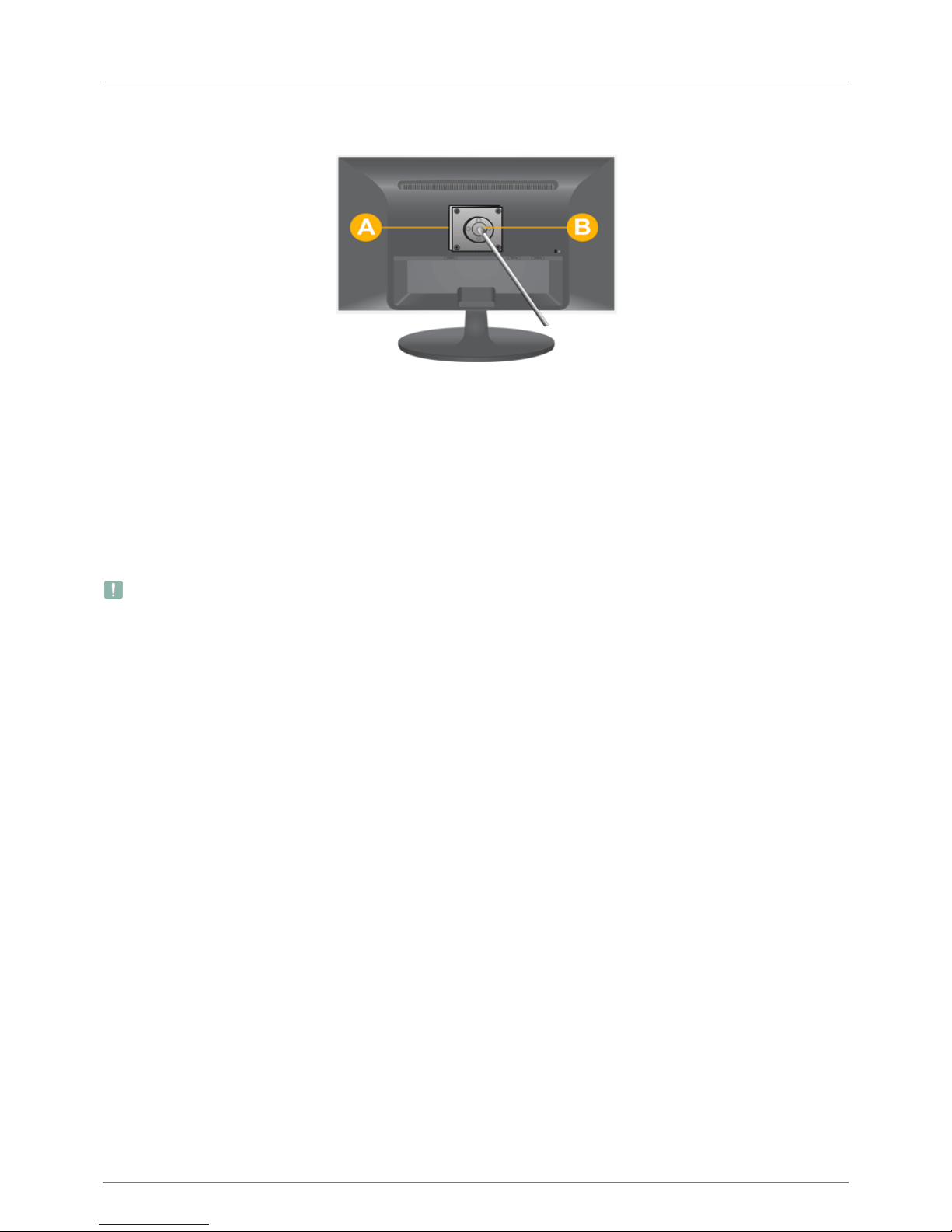

A. Stand Mount

B. Stand (Optional)

1-5 Installing the Product

1-5 Connecting with a PC

The connecting part may differ depending on the product model.

1. Connect the product to a PC depending on the video output supported by the PC.

• When the graphics card provides D-Sub (analog) output

• Connect the [RGB IN] port of the product to the [D-Sub] port of the PC with the D-Sub cable.

• When the graphics card provides DVI (digital) output

• Connect the [DVI IN] port of the product to the DVI port of the PC with the DVI cable.

2. Connect one end of the power cord to the [POWER] port of the product and connect the other end of the power cord to the

220V or 110V wall outlet.

(The input voltage is switched automatically.)

When the product is connected to a PC, you can turn the product on and use it.

When both the DVI (<Digital>) and D-Sub (<Analog>) cables are connected, you can select the input signal <Analog/

Installing the Product 1-5

Digital> by pressing the button.

1-6 Installing the Product

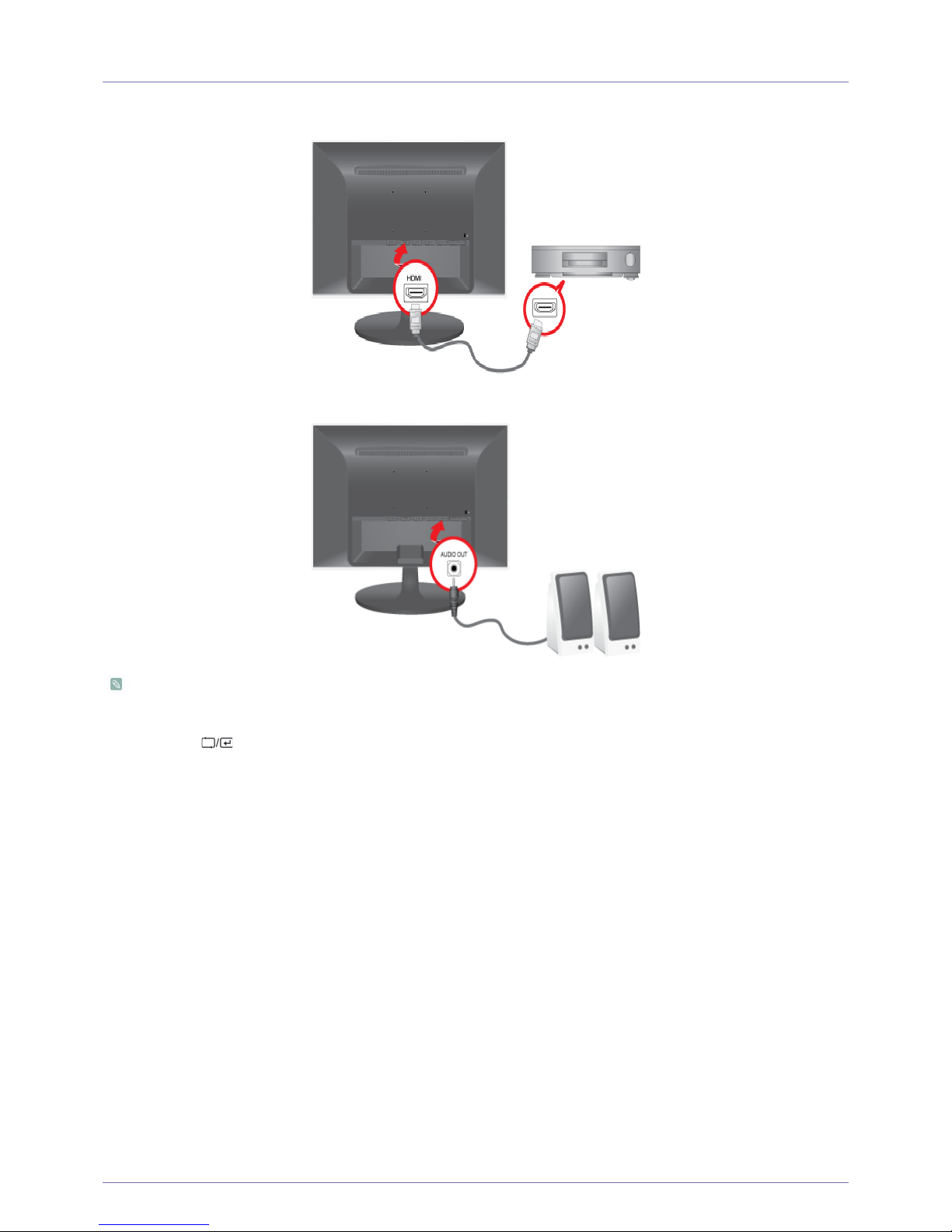

1-6 Connecting a HDMI cable

1. Connect the HDMI output port of your digital output device to the [HDMI] port of the product using the HDMI cable.

2. Connect a speaker to the [AUDIO OUT] port of the product.

This product won't make any sound when only the HDMI cable is connected without a speaker connected.

When all the connections are complete, you can turn on and use the product and your DVD player (or digital output device).

Press the [ ] button and select <HDMI> as an input signal.

Installing the Product 1-7

1-7 Connecting to an Amplifier

1. Connect the [DIGITAL AUDIO OUT] terminal of your monitor to the optical input of your amplifier using an optical cable.

• If no sound is emitted from the monitor, you need to use an amplifier.

• For information on how to connect a speaker and amplifier, refer to the respective user manuals provided by their

manufacturers.
