Samsung WA65C Manuale utente

- 1 -

Interactive Display

User Manual

WA65C*, WA75C



Samsung owns the copyright for this manual. Use or reproduction of this manual in

parts or entirety without the authorization of Samsung is prohibited. Trademarks other

than Samsung are property of their respective owners.

The color and the appearance may differ depending on the product, and the content

in the manual is subject to change without prior notice to improve the performance.

Recommended hours of use per day of this product is under 16 hours. If the product

is used for longer than 16 hours a day, the warranty may be void.

- 2 -

Contents

I. Introduction

1. Product Information

2. Product Installation

3. Wall mount kit specifications (VESA)

4. Remote Control

II. Android OS and Software User Guide

1. Getting Started (OOBE)

2. Home Screen and Widget

2.1 Widgets

2.2 System bar

3. Default Apps

3.1 Note

3.2 Palette

3.3 Visualizer

3.4 Screen Share

3.5 Finder

3.6 Cloud Drive

3.7 Photo

3.8 Music

3.9 Video

4. More tools

4.1 Tool list

4.2 Tools Customize

5. System Settings

5.1 Wireless & Network

5.2 Personal

5.3 Input & Output

5.4 Application

5.5 System

5.6 Administrator

5.7 About

6. References

6.1 F&Q

6.2 Supported Video Codec

- 3 -

I. Introduction

SAMSUNG Interactive Display that provides an engaging educational experience

for the classroom of the future. As an Android OS-based product, it offers a familiar

and intuitive user experience for teachers and students. Teachers can engage

        

Android devices and intelligent apps that can be added to the custom home screen

bar for convenience. Content can be shared back and forth between the large

display and individual Android devices for an interactive lesson that ensures every

student is included.

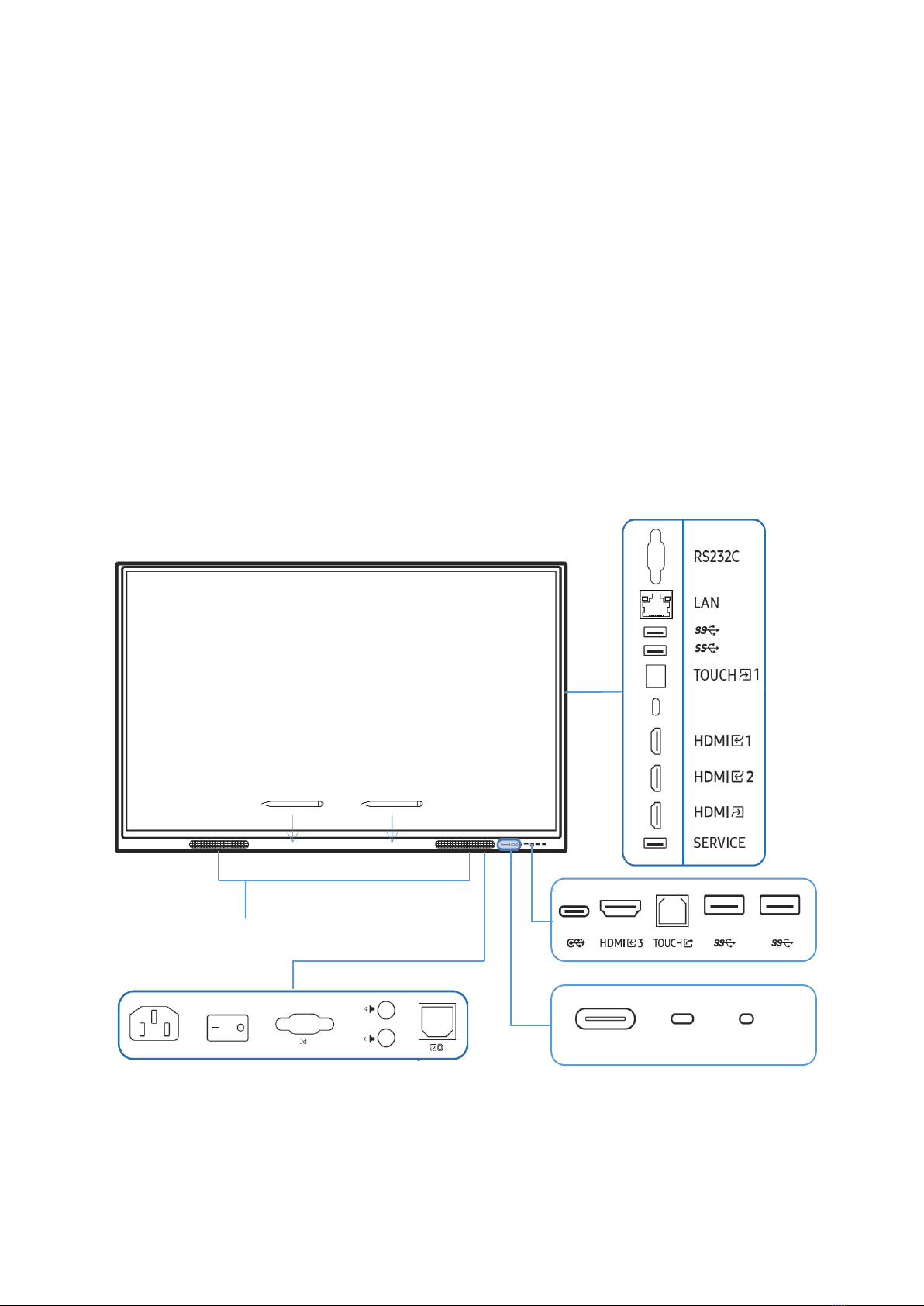

1. Product Information

Power

Indicator

Light sensor

Speaker

- 4 -

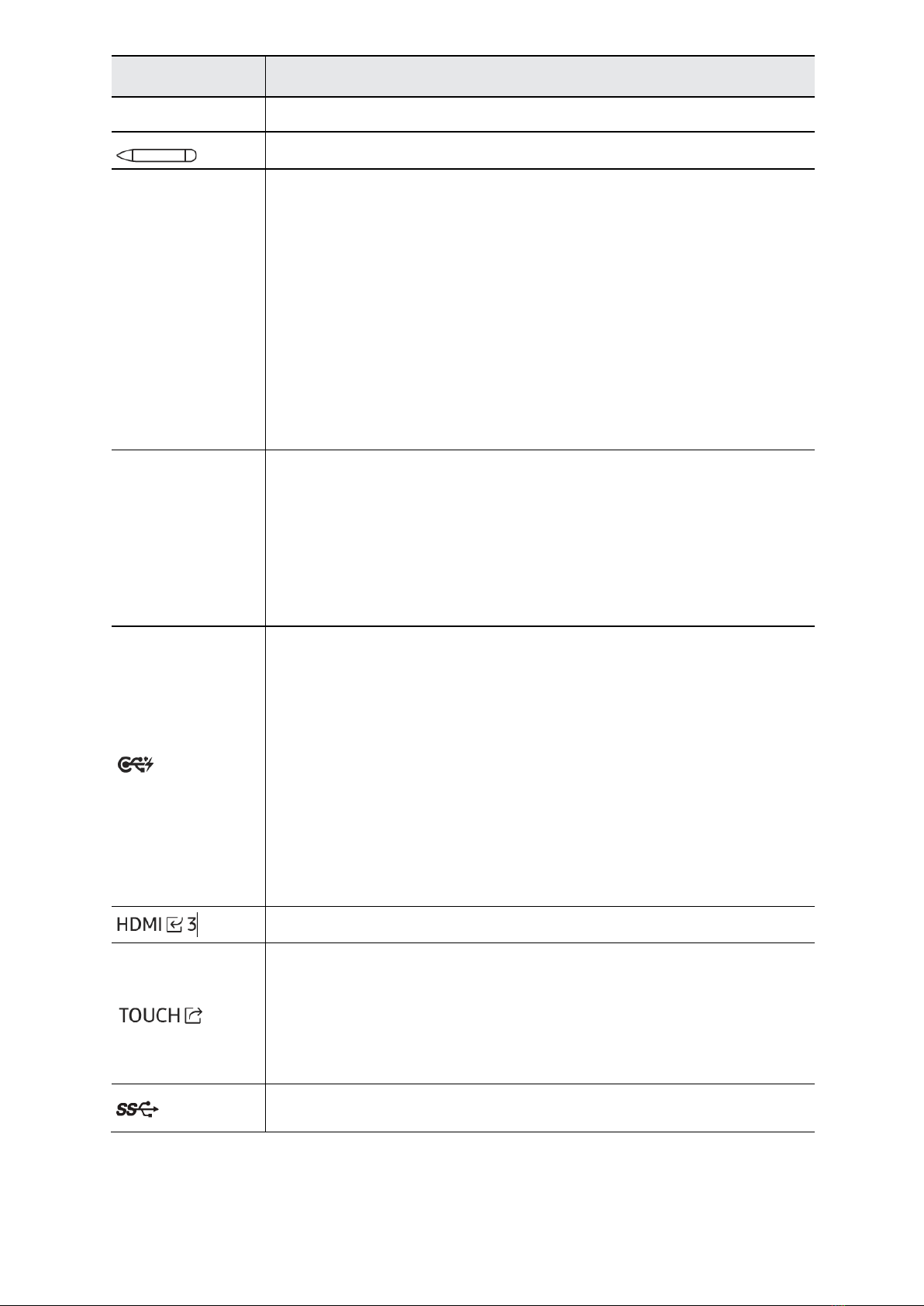

Part

Description

Speaker

Speaker output (12W x 2)

The pen is magnetic. Keep it by attaching to the marked location.

Power button &

indicator

Press the button to turn on the product and press and hold the

button to turn off the product.

The power indicator is off when the product is on.

The power indicator is on when the product is off.

In writing mode, shortly press the Power button to switch to the

screen saver mode.

In case the PIP screen is in Full Screen mode, press the Power button

to display the adjustment menu. Press again to hide.

Light sensor

The light sensor is used to detect ambient light for the Brightness

Optimization function.

You can turn on or off the Brightness Optimization function at

[MenuSettings][SystemAdvanced SettingsBrightness

Optimization]

You can connect a device using a USB-C cable.

USB-C connection allows video output and touch-based control of

the device.

You must use a USB-C cable that supports video transmission. Use

a cable that supports DP ALT Mode (Video transmission).

Use a USB-C cable that is 1 m or shorter in length.

Charging is also supported up to 65 W. Charging with USB-C

cable is only available when the product is on.

An HDMI port for displaying input from an external source.

Allows touch-based control of the PC screen connected through the

HDMI port.

Use the supplied USB cable to connect between the TOUCH port on

the rear of the product and the PC.

Connect to a USB memory device.

- 5 -

The USB ports on the product accept a maximum constant current

of 1.0 A. If the maximum value is exceeded, USB ports may not work.

Connect to a USB memory device.

The USB ports on the product accept a maximum constant current

of 1.0 A. If the maximum value is exceeded, USB ports may not work.

Serial interface, used for mutual transfer of data between devices.

Connects to a network using a LAN cable. (1000 Mbps)

Below port: Connect RJ45 output terminal

Above port: Connect RJ45 input terminal

Connect to a USB memory device.

The USB ports on the product accept a maximum constant current

of 1.0 A. If the maximum value is exceeded, USB ports may not work.

Connect to a USB memory device.

The USB ports on the product accept a maximum constant current

of 1.0 A. If the maximum value is exceeded, USB ports may not work.

Allows touch-based control of the PC screen connected through the

HDMI port.

Use the supplied USB cable to connect between the TOUCH port on

the rear of the product and the PC.

Connects to a source device using a HDMI cable.

Connects to a sink device using a HDMI cable.

Used for updating OS Firmware

Carry multichannel sound via optical signals.

Audio output to the external speaker.

Microphone audio input.

VGA input port.

- 6 -

2. Product Installation

Part

Description

OPS Slot

It provides an OPS slot to allow a customer to mount a device for

additional computing (windows, android, etc.) if desired. OPS

module is a separate sale.

Be sure that the device must be powered off before you plug-

in OPS module

OPS stands for Open Pluggable Specification.

OPS cover needs to be removed before installing.

OPS power supply: 16V/4.5 A

Wi-Fi Slot&Module

(SI07B)

The Wi-Fi module only works when it is properly inserted into the

designated slot in the product.

Step : Remove Wi-

Step : Fully insert the Wi-Fi module into the slot.

Warning: The device must be powered off while installing.





OPS

Wi-Fi Module

- 7 -

3. Wall mount kit specifications (VESA)

Samsung wall mount kits contain a detailed installation manual and all parts

necessary for assembly are provided.

Do not use screws that are longer than the standard length or do not comply with

the VESA standard screw specifications.

Screws that are too long may cause damage to the inside of the product. For wall

mounts that do not comply with the VESA standard screw specifications, the length

of the screws may differ depending on the wall mount specifications.

Do not fasten the screws too firmly. This may damage the product or cause the

product to fall, leading to personal injury.

Samsung is not liable for these kinds of accidents. Samsung is not liable for product

damage or personal injury when a non-VESA or non-specified wall mount is used or

the consumer fails to follow the product installation instructions.

Always have at least two people mount the product on a wall. Standard

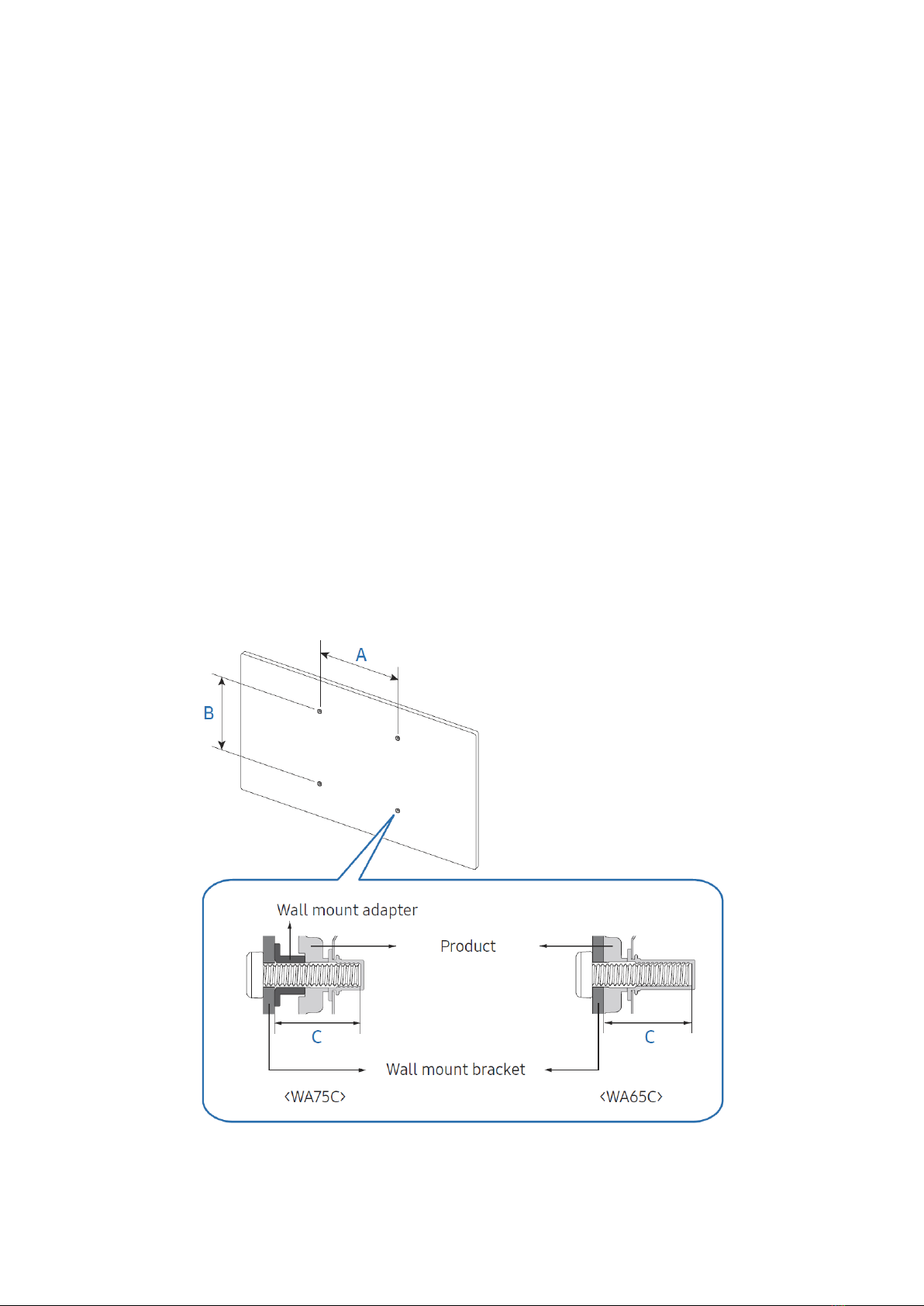

dimensions for wall mount kits are shown in the table below.

- 8 -

Model

VESA screw hole specs (AxB) in

millimeters

C (mm)

Standard

screw

Qty.

WA65C

600 x 400

28.3 - 30.3

WA75C

800 x 400

28.3 - 30.3

Do not install your Wall Mount Kit while your product is turned on. It may

result in personal injury due to electric shock.

Install your wall mount on a solid wall perpendicular to the floor. To install

the product on the other wall area, contact the nearest agency. If you install

the product on a slanted wall, it may fall and result in severe personal injury.

- 9 -

4. Remote Control

If there is other display device used in the same space as the remote control of

this product, the different display device may be unintentionally controlled.

Buttons that are not described in the image below are not supported by the

product.

The remote control button function may vary depending on the product.

Power On/Off

Same as [Windows] button

Same as [Space bar]

Displaying Channel

Input Source

[Home] key for Android

[Menu] key

Panel On/Off

Up/Down/Left/Right

Open [Note] app

[Back] key

Enter key

Back space

[Freeze] key

[Numeric] key

[Alt+F4] to terminate Window

Mute

[Alt+Tab] to manage

Window

[Touch Lock] key

Lock Power button

[Touch Lock] & Lock Power

button

Page Up/Down

[Volume] key

Windows function key

- 10 -

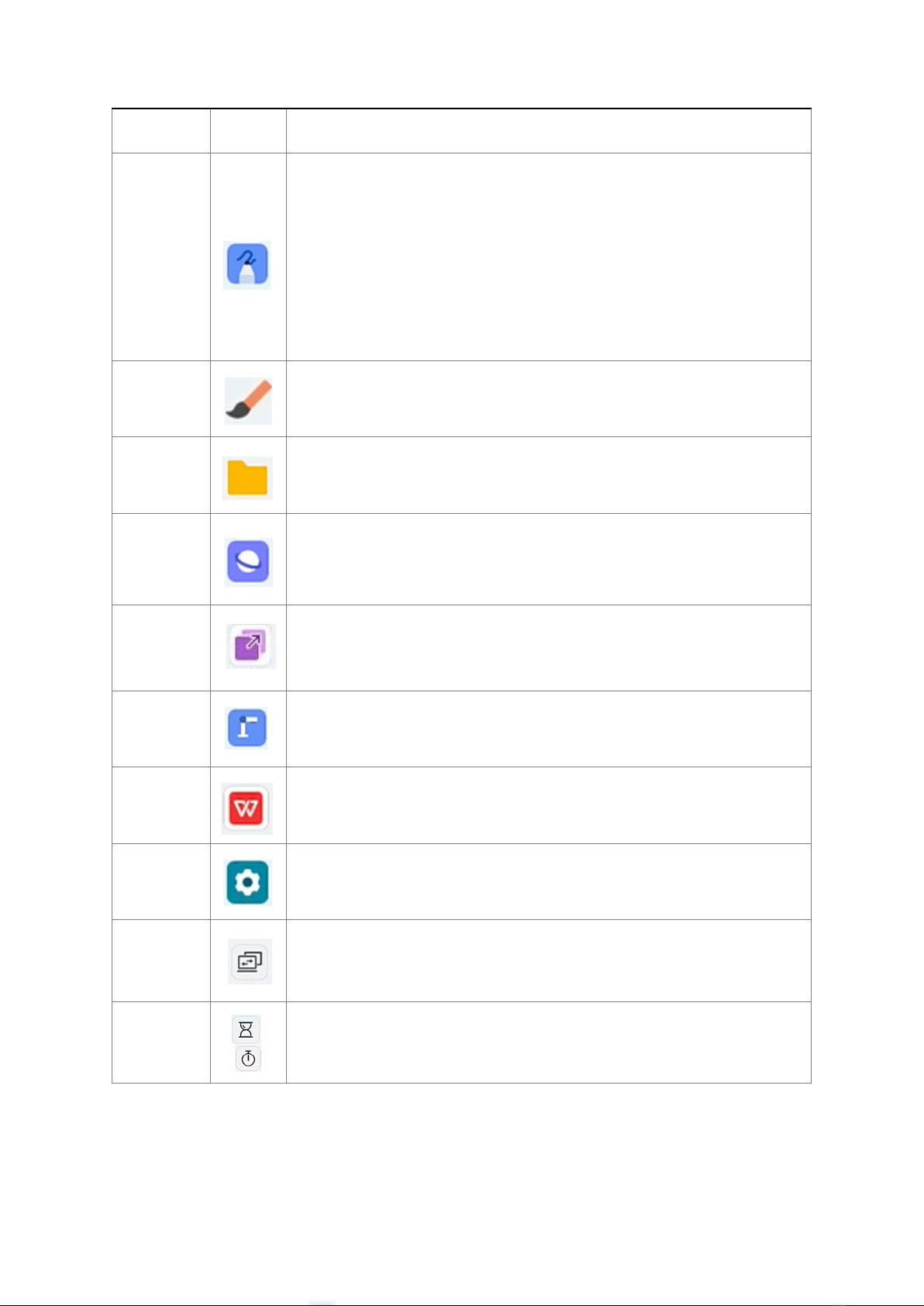

5. Key S/W Features

Name

Icon

Description

Note

Basic whiteboard application with 20-points writing, dual pen and

variety of tools

- Export/Import files from local storage, external storage device

(e.g. USB memory driver) and cloud storage services.

- Handwriting recognition feature transforms handwriting to texts of

designed fonts. When converted, texts can be utilize for search through

embedded web browser.

- Useful Tools like Rulers / Shapes / Sticky Notes are available.

Palette

Drawing application with many art various art tools.

Finder

Able to view files in local storage / USB / personal cloud

Browser

Web browser based on chromium web engine

Currently, Chromium version 110 and subject to update when new

version is available.

Screen

Bi-direction Screen Share app to (1) to display up to 9 devices' screen

on the screen or (2) to broadcast its screen to connected devices.

Apps available for Windows, Android, MacOS, iOS, and Chrome OS.

Visualizer

With webcam connected, Visualizer can be used to capture documents or

objects to show on large display.

WPS

Office

Document viewer supporting various document types (PPT,Doc,PDF, etc).

Settings

Device Setting Menu

Able to switch between input sources, including PC, Android, HDMI,

VGA

Timer/

Stopwatch

Basic Timer & Stopwatch
