Samsung PL-50D4H Manuale di istruzioni

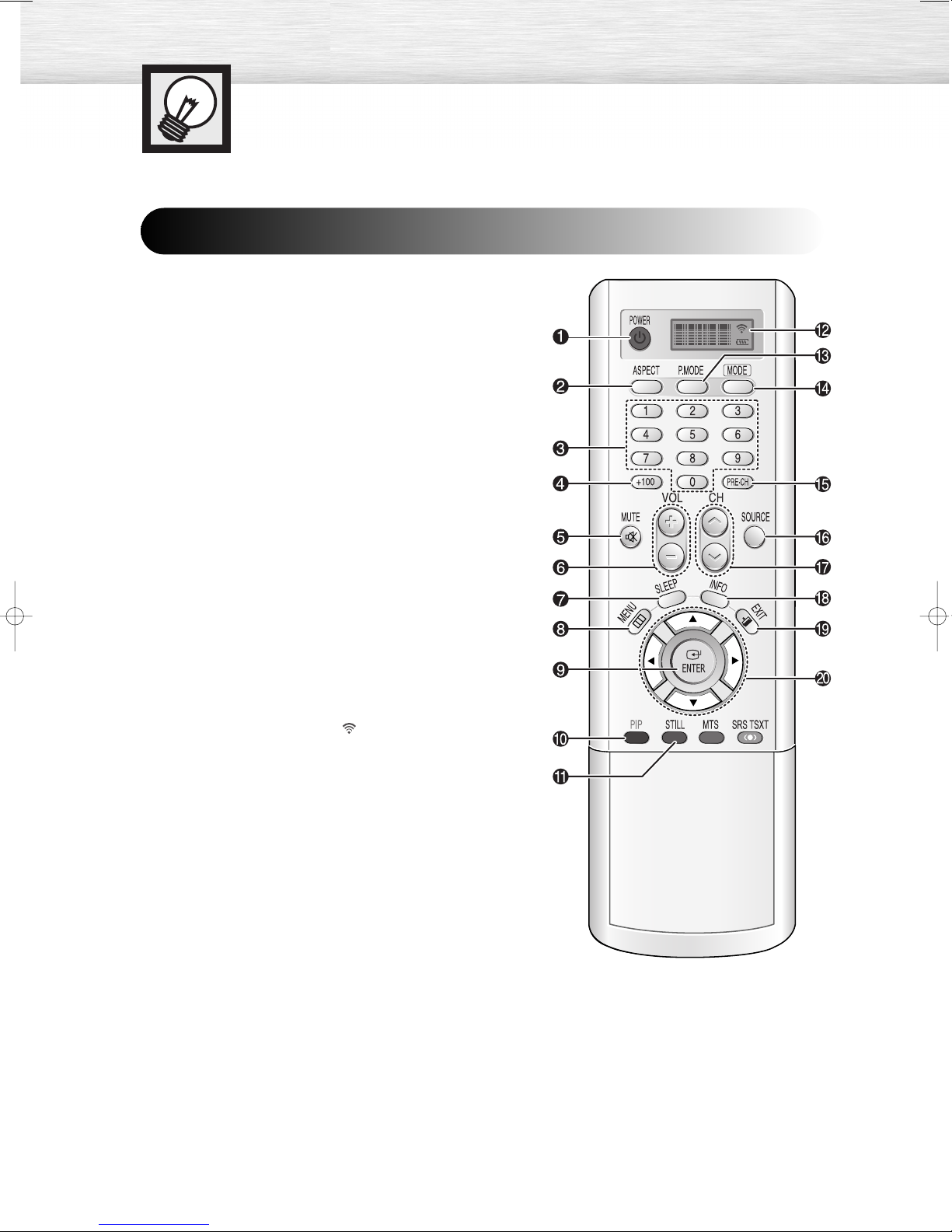

Remote Control Buttons

ŒPOWER button

Turns the PDP on and off.

´ASPECT button

Press to change the screen size.

ˇNumber buttons

¨+100 button

Press to select channels over 100. For example, to select

channel 121, press “+100”, then press “2” and “1.”

ˆMUTE button

Press to mute the PDP sound.

ØVOL (Volume) buttons

Use it to adjust volume.

∏SLEEP button

Press to select a preset time interval for automatic shutoff.

”MENU button

Displays the main on-screen menu.

’ENTER button

Confirms a selection.

˝PIP button

Activates picture in picture.

ÔSTILL button

Press to pause the current screen.

LCD Display

When you press a button, ‘ ‘ appears along with

selected mode (TV, VCR, CATV, DVD or STB) and

the remote's battery charge status.

ÒP.MODE button

Adjust the PDP picture by selecting one of the preset

factory settings (or select your personal, customized

picture settings.)

ÚMODE button

Selects a target device to be controlled by the Samsung

remote control (i.e., VCR, Cable, DVD players or Samsung

STB). If you change modes, the new mode is momentarily

displayed on LCD.

ÆPRE-CH button

Tunes to the previous channel.

ıSOURCE button

Press to display all of the available video sources

(TV, AV1, AV2 S-VIDEO, COMPONENT1, COMPONENT2,

PC, DVI).

˜CH (Channel) buttons

Use it to switch channels.

¯INFO button

Press to display information on the PDP screen.

˘EXIT button

Press to exit the menu.

¿Up/Down Left/Right buttons

Control the cursor in the menu.

Remote Control

BN68-00714D-00_002~25 7/20/04 1:50 PM Page 8

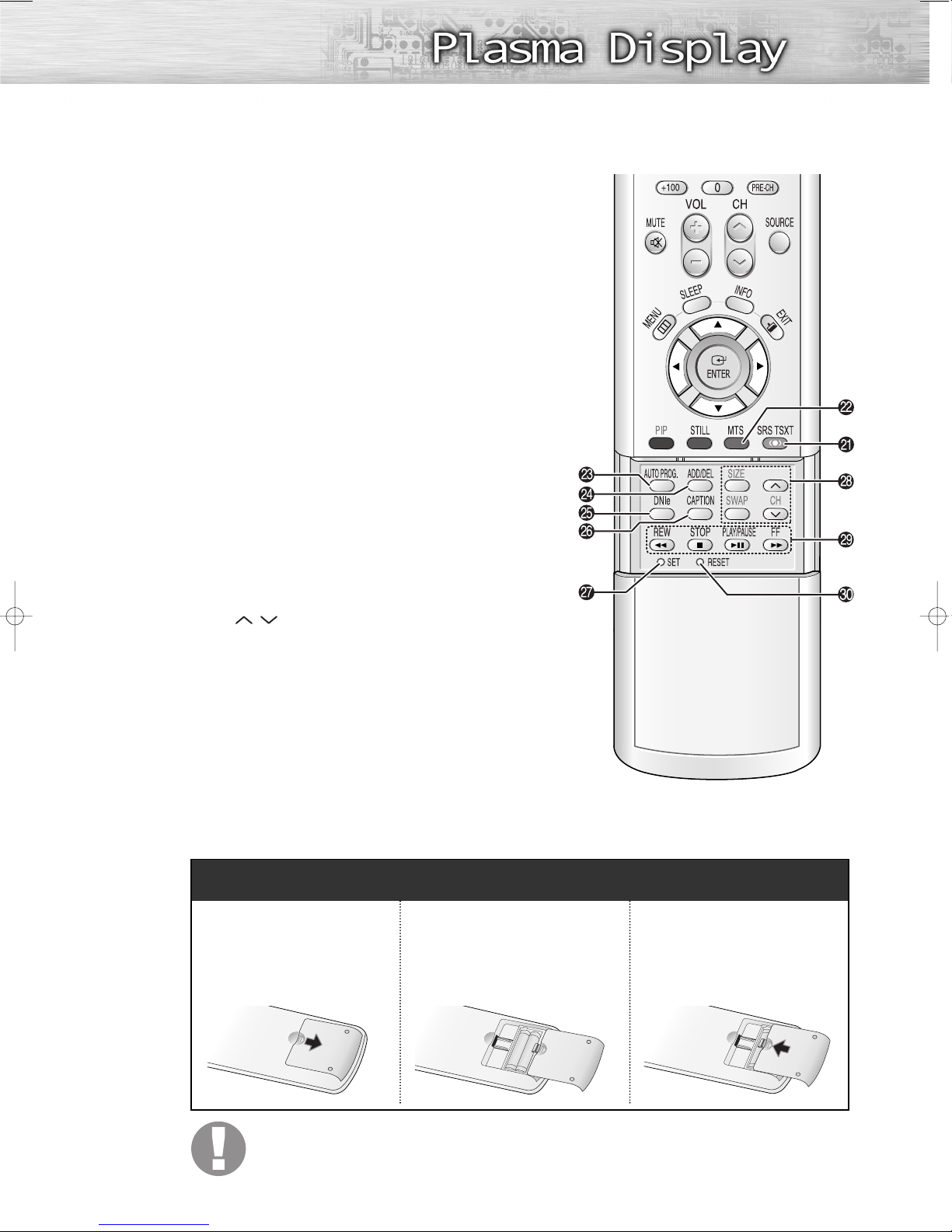

¸SRS TSXT button

Selects Trusurround XT mode.

˛MTS button

Press to choose stereo, mono or Separate Audio Pro-

gram (SAP broadcast).

◊AUTO PROG. button

The TV automatically cycles through all of the avail-

able channels and stores them in memory.

±ADD/DEL button

Press to add or delete channels in the TV’s memory.

≠DNIe button

Activates DNIe (Digital Natural Image engine).

–CAPTION button

Controls the caption decoder.

—SET button

Used during set up of this Samsung remote control,

so that it will work compatibly with other devices

(VCR, Cable Box, DVD)

÷PIP control buttons

SIZE : Press to make the PIP window Large,

Small or Double.

SWAP : Exchanges the video signal that is

currently displayed on the main screen

with the signal in the PIP window.

:Displays the available channels in

sequence. (These buttons change channels

in the PIP window only).

®VCR, DVD control buttons

Controls VCR tape or DVD disc functions: Stop,

Rewind, Play/Pause, Fast Forward.

∑RESET button

If your remote control is not functioning properly, take

out the batteries and press the reset button for about

2~3 seconds. Re-insert the batteries and try using the

remote control again.

Installing the Batteries in Your Remote Control

1Slide the back cover

to open the battery

compartment of the

remote control.

3Slide the cover back into

place.

2Install two AAA size batter-

ies. Make sure to match the

“+” and “-” ends of the bat-

teries with the diagram

inside the compartment.

Remote Control Operation Range.

You can use your remote control within a distance of 23 feet and an angle of 30 degrees

from the left and right sides of the PDP’s remote control receiver.

BN68-00714D-00_002~25 7/20/04 1:50 PM Page 9

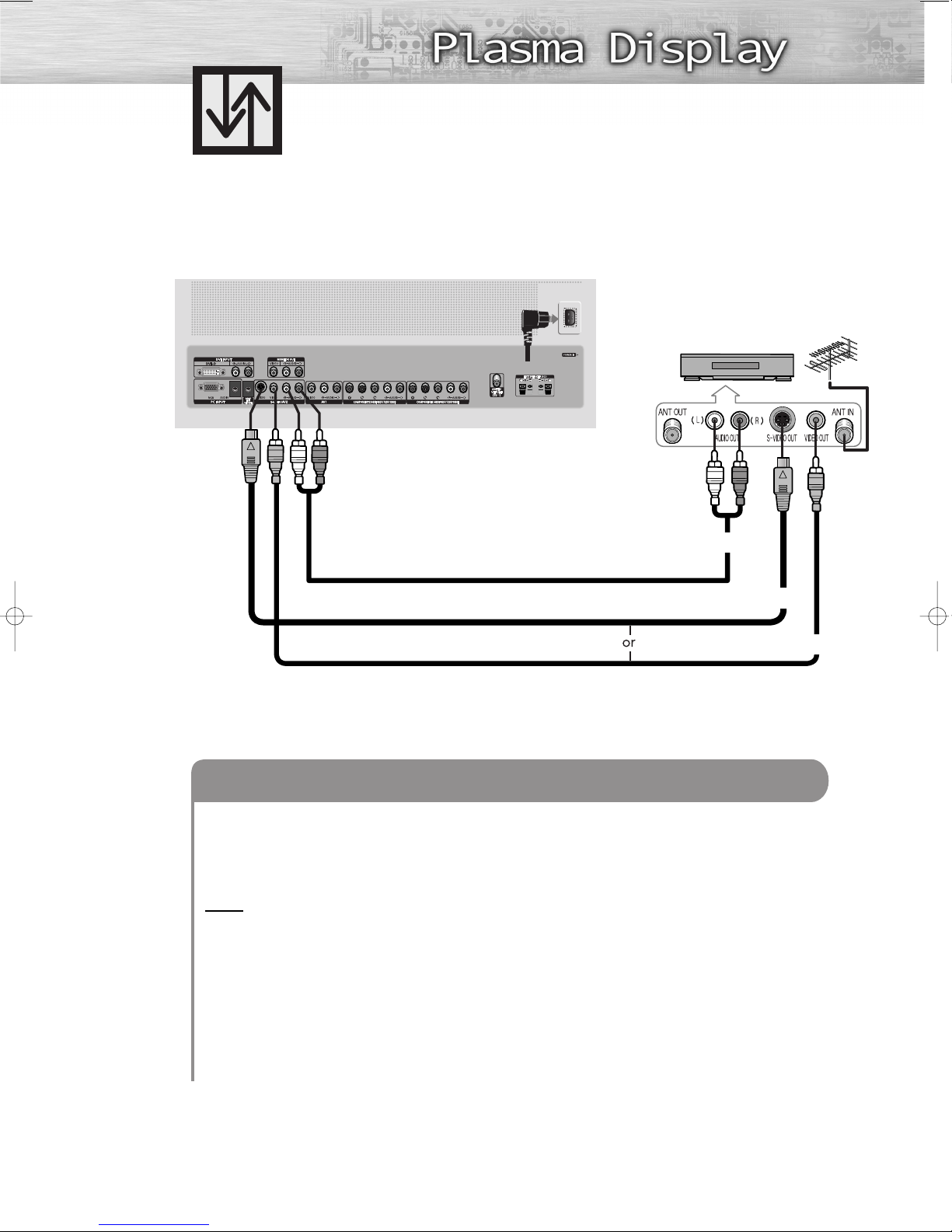

Connecting a VCR

Connecting a VCR to the Video or S-Video/Audio jack

S-Video Cable

Audio Cable

Video Cable

Power Plug

Connect the Video/Audio cables between the VIDEO or S-VIDEO / L - AUDIO - R jacks on the PDP

and VIDEO or S-VIDEO / L - AUDIO - R output jacks on the VCR. (Note: For better video, you can use

an S-Video cable.)

Videotape Playback:

1. Turn on your PDP.

2. Press the SOURCE button to select “Video(AV1 or AV2)” or “S-Video”.

3. Turn on your VCR, insert a videotape and press the play button.

How to Connect

PDP

VCR

Note

•Please be sure to match he color coded input terminals and cable jacks.

BN68-00714D-00_002~25 7/20/04 1:50 PM Page 21

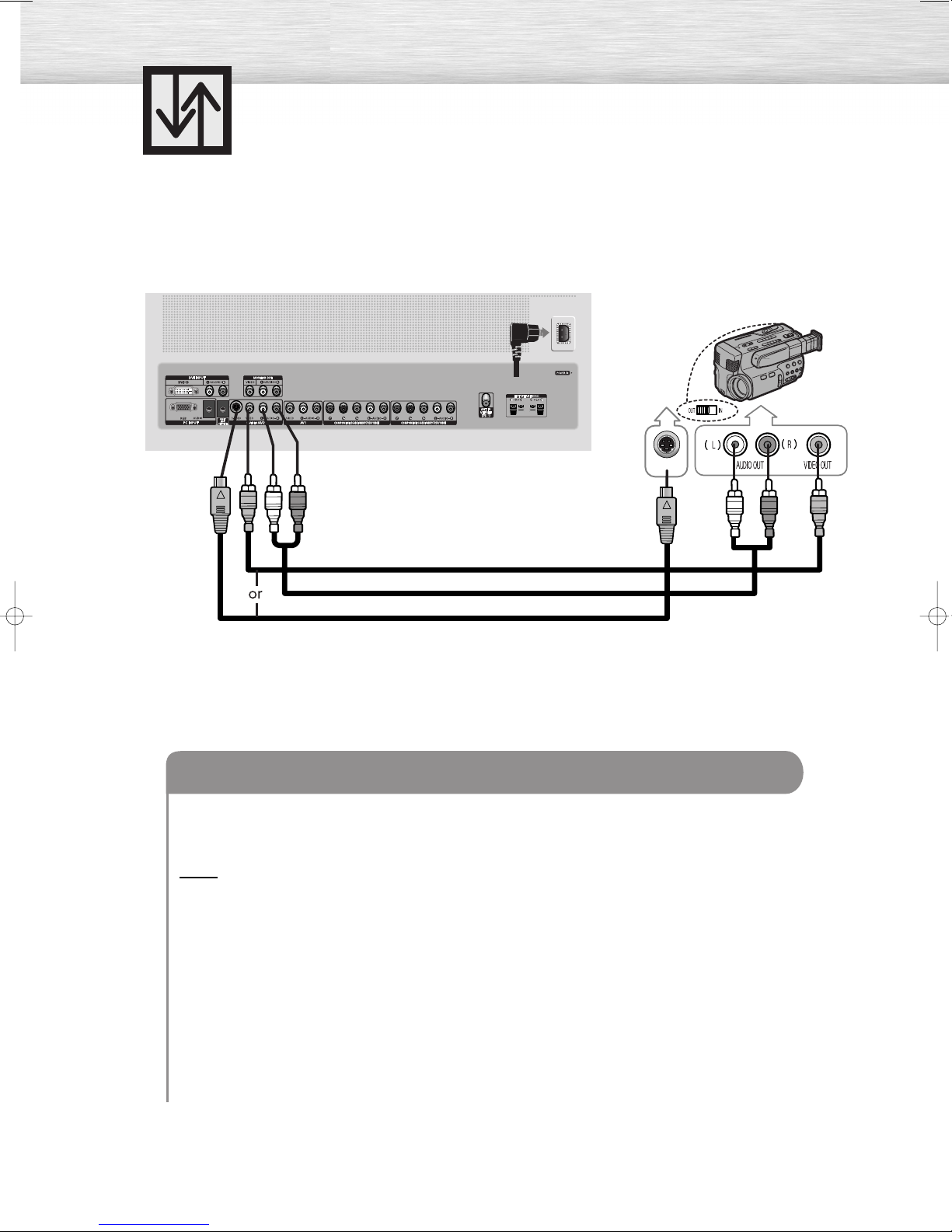

Connecting a Camcorder

S-VIDEO

Audio Cable

S-Video Cable

Video Cable

Power Plug

Connect a Video/Audio cable between the VIDEO or S-VIDEO / L - AUDIO - R jacks on the PDP

and the VIDEO or S-VIDEO / AUDIO output jacks on the camcorder.

Viewing Tapes

1. Turn on your PDP.

2. Press the SOURCE button to select “Video(AV1 or AV2)” or “S-Video”.

3. Turn on your camcorder and set it to Video Mode. (For details, refer to your camcorder

Owner’s instructions.)

4. Set the IN/OUT switch on your camcorder to OUT.

5. Insert the tape into the camcorder and press the Play button.

How to Connect

Viewing camcorder tapes

PDP

Camcorder

Note

•Please be sure to match he color coded input terminals and cable jacks.

BN68-00714D-00_002~25 7/20/04 1:50 PM Page 22

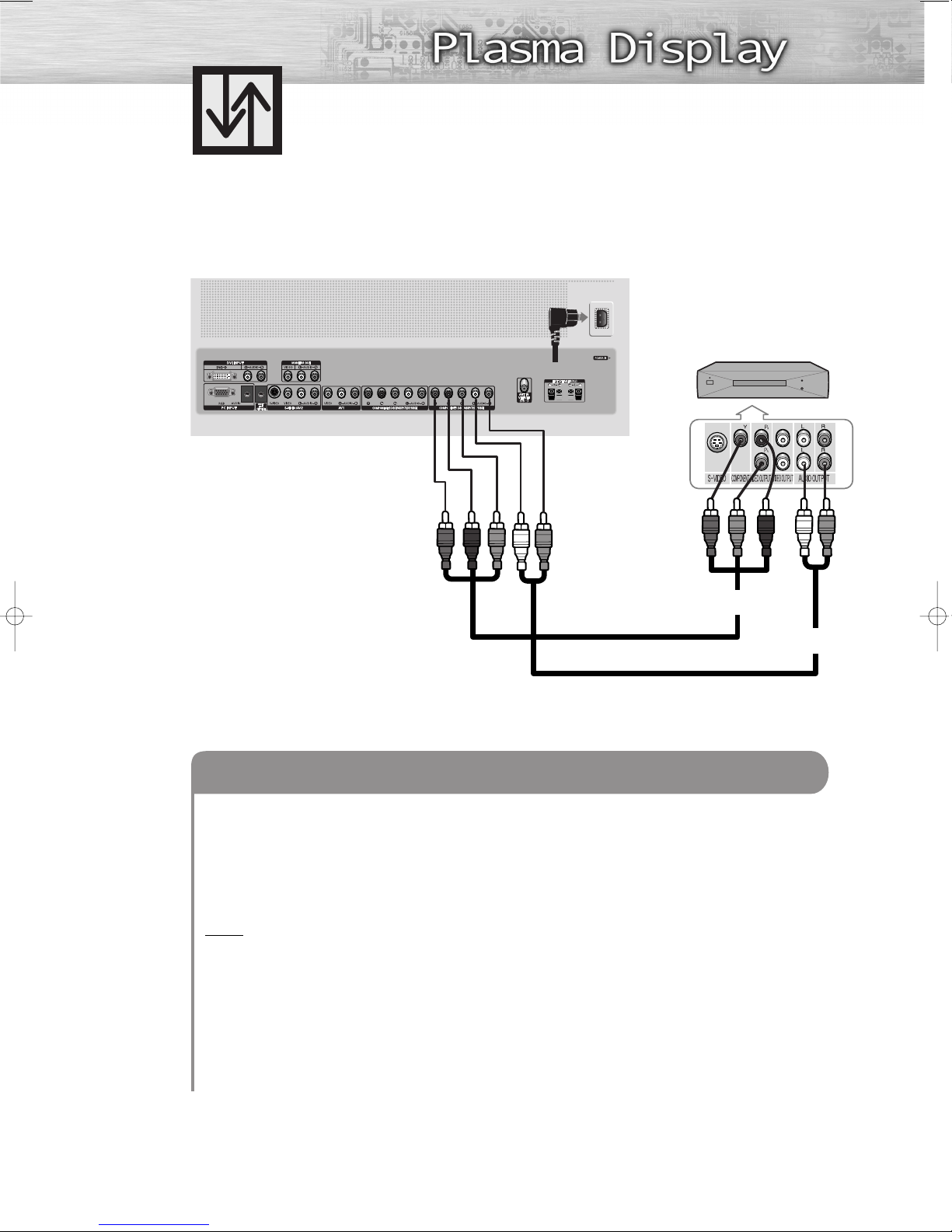

Connecting a DVD Player (480i, 480p)

This PDP displays the optimum picture in 720p mode.

Playing DVD

Audio Cable

Video Cable

Power Plug

Connect a Video Cable between the Y, Pb, Pr(COMPONENT1, 2) input jacks on the PDP

and Y/PB/PRoutput jacks on the DVD player.

Connect a Audio Cable between the AUDIO L/R(COMPONENT1, 2) input jacks on the PDP

and the AUDIO output jacks on the DVD player.

To Play DVD:

1. Turn on your PDP.

2. Press the SOURCE button to select “COMPONENT1” or “COMPONENT2”.

3. Turn on your DVD player, insert a DVD disc and press the Play button.

• For an explanation of Component video, see your DVD owner’s instructions.

How to Connect

PDP

DVD Player

Note

•Please be sure to match he color coded input terminals and cable jacks.

BN68-00714D-00_002~25 7/20/04 1:50 PM Page 23

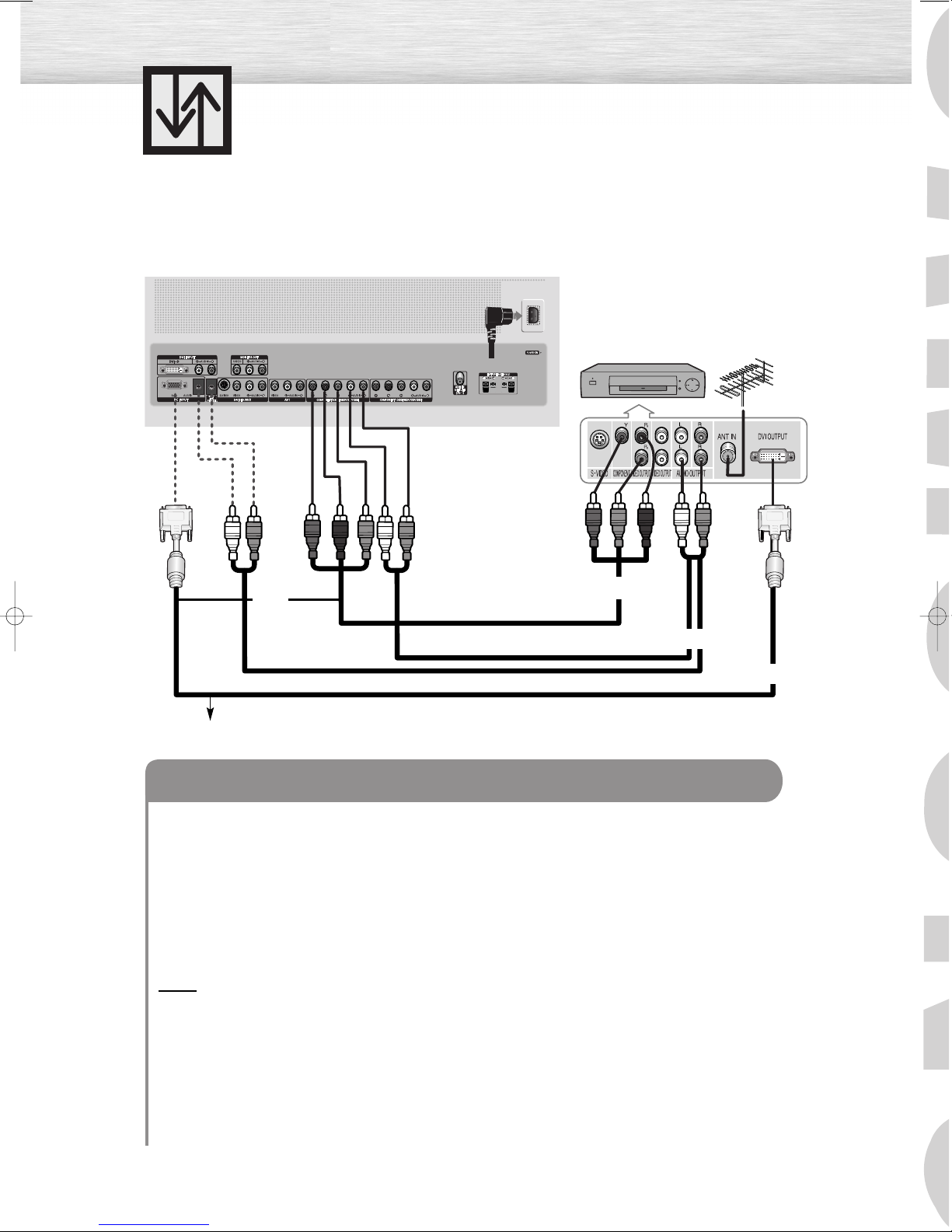

Connecting a DTV Receiver

(480p, 720p, 1080i)

This PDP displays the optimum picture in 720p mode.

Watching DTV

Video Cable

Audio Cable

DVI Cable

Power Plug

Connect the cable or antenna to the antenna input jack on the DTV.

Connect a Video cable between the Y, Pb, Pr(COMPONENT 1, 2) or DVI jack on the PDP

and the Y, PB, PR(COMPONENT) or DVI output jacks on the DTV receiver.

Connect an Audio cable between the COMPONENT 1, 2 (L/R AUDIO) or DVI (L/R AUDIO)

jacks on the PDP and the AUDIO output jacks on the DTV receiver.

To Watch DTV:

1. Turn on your PDP.

2. Press the SOURCE button to select “COMPONENT1”, “COMPONENT2” or “DVI”.

3. Turn on your DTV receiver.

• For an explanation of Component video, see your DTV receiver owner’s instructions.

How to Connect

Use a DVI-D connection cable. (sold separately)

PDP

DTV Receiver

Note

•Please be sure to match he color coded input terminals and cable jacks.

BN68-00714D-00_002~25 7/20/04 1:50 PM Page 24
