Samsung PS-42P3ST Manuale utente

PDP-MONITOR

(PLASMA DISPLAY PANEL)

PS42P3ST

Owner’s Instructions

Before operating the unit,

please read this manual thoroughly,

and retain it for future reference.

ON-SCREEN MENUS

PICTURE INPICTURE (PIP)

MDC (MULTIPLE DISPLAY CONTROL)

Intended for Commercial Use and Operation

BN68-00528A-01_ENG 2003.11.20 4:13 PM Page 1

ENG

Warning! Important Safety Instructions

CAUTION: TO PREVENT ELECTRICAL SHOCK, DO NOT

REMOVE REAR COVER, NO USER SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

The lightning flash and arrow

head within the triangle is a

warning sign alerting you of

“dangerous voltage” inside

the product.

The exclamation point within

the triangle is a warning sign

alerting you of important

instructions accompanying

the product.

Note to CATV system installer: This reminder is provided to call CATV system installer's attention to Article 820-

40 of the National Electrical Code (Section 54 of Canadian Electrical Code, Part I), that provides guidelines for

proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of

the building as close to the point of cable entry as practical.

Caution: FCC/CSA regulations state that any unauthorized changes or modifications to this equipment may void

the user's authority to operate it.

Caution: To prevent electric shock, match the wide blade of plug to the wide slot, and fully insert the plug.

Attention: pour eviter les chocs electriques, introduire la lame le plus large de la fiche dans la borne

correspondante de la prise et pousser jusqu'au fond.

Important: One Federal Court has held that unauthorized recording of copyrighted TV programs is an

infringement of U.S. copyright laws.Certain Canadian programs may also be copyrighted and any unauthorized

recording in whole or in part may be in violation of these rights.

TO PREVENT DAMAGE WHICH MAY RESULT IN FIRE OR ELECTRIC SHOCK HAZARD, DO NOT

EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

BN68-00528A-01_ENG 2003.11.20 4:13 PM Page 2

ENG

Important Warranty Information Regarding PDP Format

Viewing

Wide screen format PDP Displays (16:9,the aspect ratio of the screen width to height) are primarily

designed to view wide screen format full-motion video. The images displayed on them should primarily

be in the wide screen 16:9 ratio format, or expanded to fill the screen if your model offers this feature and

constantly moving. Displaying stationary graphics and images on screen, such as the dark side-bars on

non-expanded standard format PDP video and programming, should be limited to no more than 5% of

the total PDP viewing per week.

Additionally, viewing other stationary images and text such as stock market reports, video game displays,

station logos, web sites or computer graphics and patterns, should be limited as described above for all

PDP displays. Displaying stationary images that exceed the above guidelines can cause uneven aging of

PDP Displays that leave subtle, but permanent burned-in ghost images in the PDP picture. To avoid

this, vary the programming and images, and primarily display full screen moving images, not stationary

patterns or dark bars. On PDP models that offer picture sizing features, use these controls to view

different formats as a full screen picture.

Be careful in the selection and duration of PDP formats used for viewing. Uneven PDP aging as a result

of format selection and use, as well as burned-in images, are not covered by your Samsung limited

warranty.

BN68-00528A-01_ENG 2003.11.20 4:13 PM Page 3

ENG

User Instructions

◆Screen Image retention

Do not display a still image (such as on a video game or when hooking up a PC to this PDP) on the

plasma display panel for more than 2 hours as it can cause screen image retention. This image

retention is also known as “screen burn”. To avoid such image retention, reduce the degree of

brightness and contrast of this screen when displaying a still image.

◆Cell Defect

The plasma display panel consists of fine cells. Although the panels are produced with more than

99.9 percent active cells, there may be some cells that do not produce light or remain lit.

◆Height

The PDP can normally operate only under 2000m in height. It might abnormally function at a place

over 2000m in height and do not install and operate there.

◆Warranty

-Warranty does not cover any damage caused by image retention.

-Burn-in is not covered by the warranty.

BN68-00528A-01_ENG 2003.11.20 4:13 PM Page 4

ENG

DNIeTM (Digital Natural Image engine)

This feature bring you more detailed image with 3D noise reduction, detail enhancement, contrast

enhancement and white enhancement. New image compensation Algorithm gives brighter, clearer,

much detailed image to you. DNIeTM technology will fit every signals into your eyes.

Owner’s Instructions Remote Control/

AAA Batteries

Ferrite Cores for

Speaker Wire

(2EA)

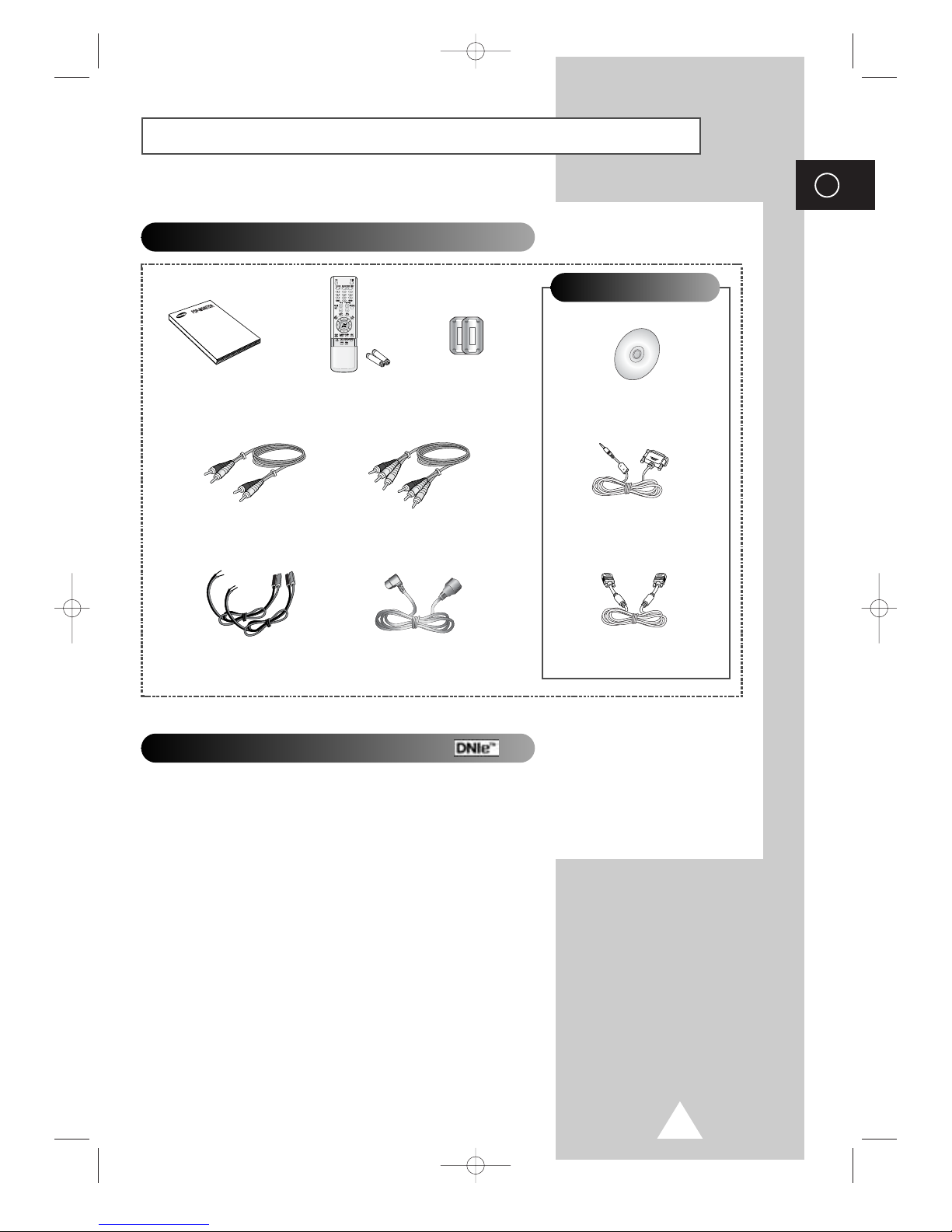

Checking Parts

A/V Cable

(1EA)

A/V Cable

(1EA)

Speaker Wires

(2EA)

Power Cord

User Instructions

MDC Cable

(RS232C)

Install CD

- MDC Software (RS232C)

PC Cable

A Separated Sales

BN68-00528A-01_ENG 2003.11.20 4:13 PM Page 5

ENG

Contents

◆FOREWORD

■Warning! Important Safety Instructions ......................................................... 2

■Important Warranty Information Regarding PDP Format Viewing................. 3

■User Instructions............................................................................................ 4

◆CONNECTING AND PREPARING YOUR DISPLAY

■Your New Plasma Display Panel................................................................... 8

■Becoming Familiar with the Remote Control ................................................. 10

■Inserting the Batteries in the Remote Control................................................ 11

■Assembling the Stand-Base .......................................................................... 11

■Installing the Display on the Wall Attachment Panel ..................................... 12

■Connecting Speakers .................................................................................... 14

■Switching On and Off..................................................................................... 16

■Choosing Your Language.............................................................................. 16

◆USING YOUR DISPLAY

■Selecting the Color System (Video or S-Video Mode)................................... 17

■Changing the Picture Mode........................................................................... 17

■Adjusting the Picture Settings........................................................................ 18

■Adjusting the Picture Settings (PC or DVI Mode) .......................................... 19

■Selecting the Picture Size.............................................................................. 20

■Activating/Deactivating the Digital Noise Reduction Feature ........................ 20

■Freezing the Current Picture ......................................................................... 21

■Changing the Sound Mode............................................................................ 21

■Adjusting the Sound Settings ........................................................................ 22

■Extra Sound Settings..................................................................................... 23

Auto Volume

Melody

Pseudo Stereo / Virtual Surround

■Adjusting the Image Preferences (PC Mode) ................................................ 24

BN68-00528A-01_ENG 2003.11.20 4:13 PM Page 6

ENG

Contents (continued)

◆USING YOUR DISPLAY (CONTINUED)

■Locking the Control buttons........................................................................... 25

■Setting the MDC (Multiple Display Control) ................................................... 25

■Protecting the Screen Burning....................................................................... 26

■Displaying the PC Information ....................................................................... 27

■Displaying the Setting Information................................................................. 27

■Setting and Displaying the Current Time....................................................... 28

■Switching On and Off Automatically .............................................................. 29

■Setting the Film Mode.................................................................................... 30

■Viewing the Picture In Picture (PIP) .............................................................. 31

■Listening to the Sound of the Sub Picture ..................................................... 33

■Viewing Pictures From External Sources ...................................................... 33

◆ADDITIONAL INFORMATION AND CONNECTIONS

■Connecting to the Audio/Video Input............................................................. 34

■Connecting to the S-Video Input.................................................................... 35

■Connecting to the DVD/DTV RECEIVER Input ............................................. 35

■Connecting to the DVI Input .......................................................................... 36

■Connecting to the RGB(PC) Input ................................................................. 36

■Setting up Your PC Software (Windows only) ............................................... 37

■Pin Configurations ......................................................................................... 38

■Input Mode (PC/DVI) ..................................................................................... 39

■Power Saver (PC mode only) ........................................................................ 40

◆RECOMMENDATIONS FOR USE

■Troubleshooting: Before Contacting Service Personnel................................ 41

■Care and Maintenance .................................................................................. 41

☛➢

Press Important Note

Symbols

BN68-00528A-01_ENG 2003.11.20 4:13 PM Page 7

ENG

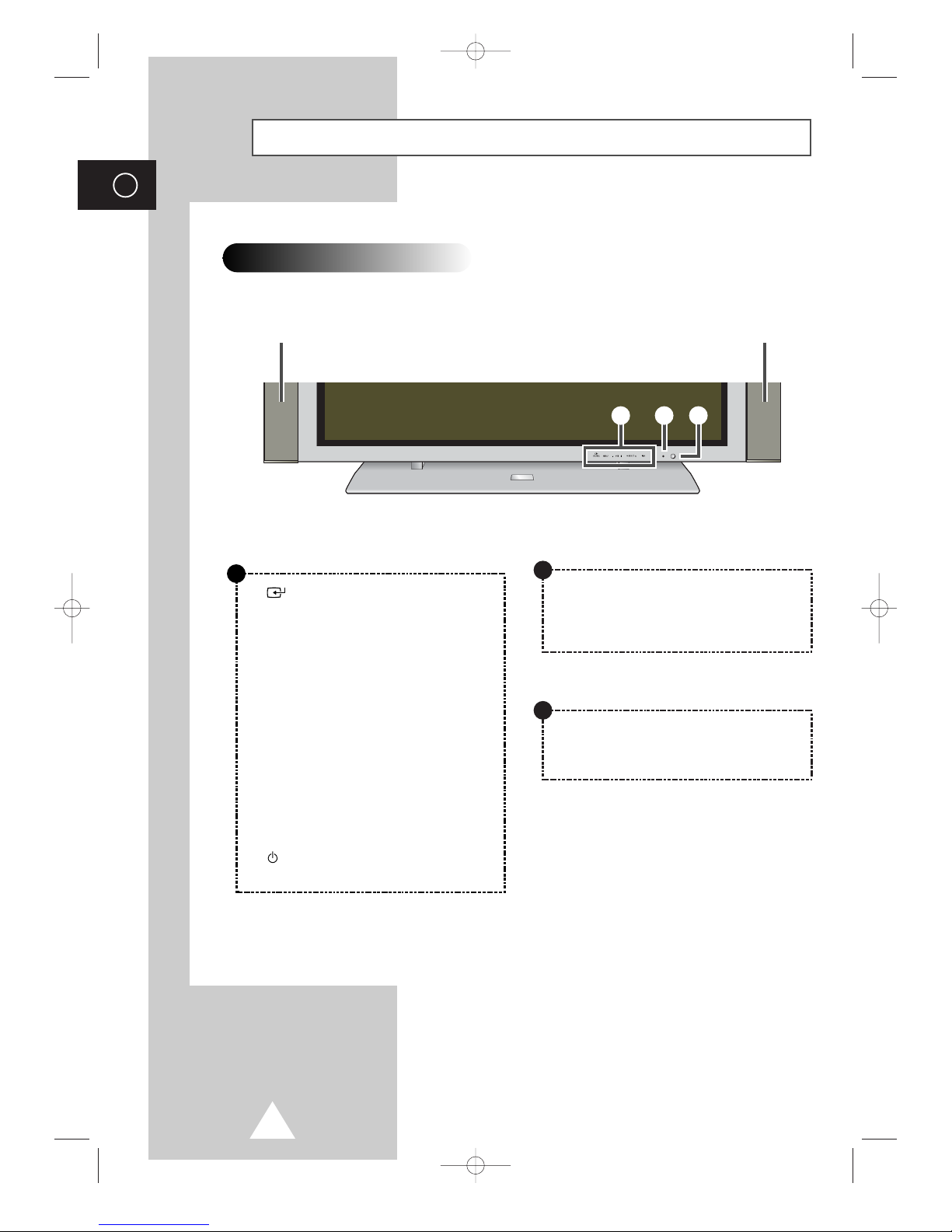

Your New Plasma Display Panel

Front Panel

➢

The actual configuration on your PDP may be different,

depending on your model.

SOURCE

-External input selection.

-Store your settings in the menu.

-When the Main menu is displayed on screen,

the Main menu is not operated with source key.

Menu display and exit.

VOL +

-Volume adjustment.

-Adjust an option value respectively.

(VOL + : Enter to the selected menu.)

▼ SELECT ▲

Control the cursor in the menu.

I /

Press to turn the PDP on and off.

Speaker Speaker

abc

Power Indicator

-Power Off; Red

-Power On; Off

-Timer On; Green

Remote Control Signal Receiver

Aim the remote control towards this spot on the

PDP.

BN68-00528A-01_ENG 2003.11.20 4:13 PM Page 8

Your New Plasma Display Panel

ENG

➢

The actual configuration on your PDP may be different,

depending on your model.

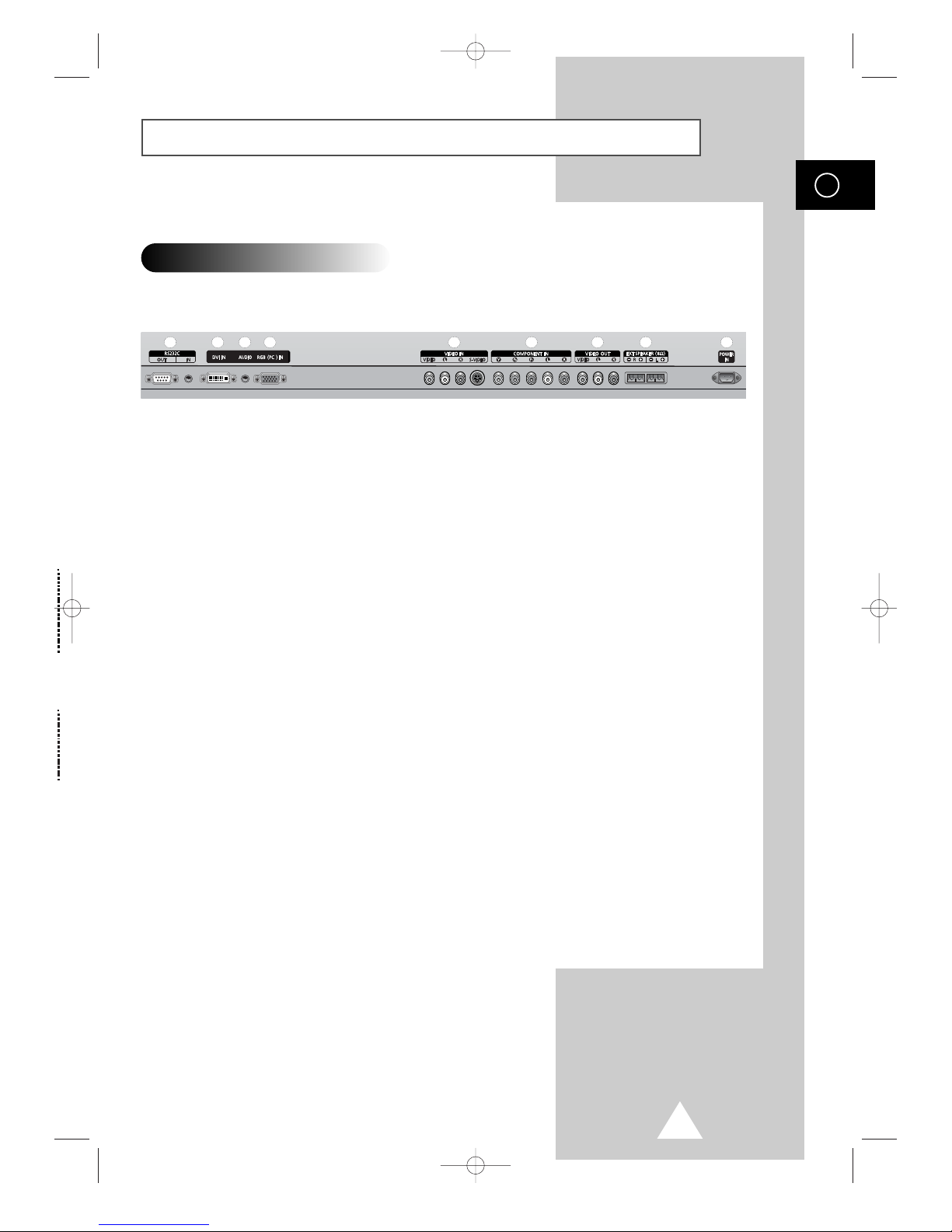

Rear Panel

a) RS232C

IN :Used for the MDC function when connecting

PC or RS232C output of another PDP.

OUT :Used for the MDC function when

connecting with RS232C input of another

PDP.

b) DVI IN

Connect to the video output jack for device with

DVI output.

c) AUDIO

Connect to the audio output jack on your PC or any

device with DVI output. (It is audio input for b, d,

and e.)

d) RGB(PC) IN

Connect to the video output jack on your PC.

e) VIDEO IN

Video and audio inputs for external devices, such as

VCR, DVD, video game device or video disc players

(or for external devices with an S-Video output;

S-VIDEO).

f) COMPONENT IN

Video (Y/Pb/Pr) and audio (L/R) inputs for

component.

g) VIDEO OUT (VIDEO / L-AUDIO-R)

Used to output screen of Video or S-Video in PDP

when connecting video and/or audio input of

external devices.

h) EXT SPEAKER (8Ω)

Connect external speakers.

i) POWER IN

Connect the supplied power cord.

➢For further details about connection, refer to pages 34~36.

BN68-00528A-01_ENG 2003.11.20 4:13 PM Page 9

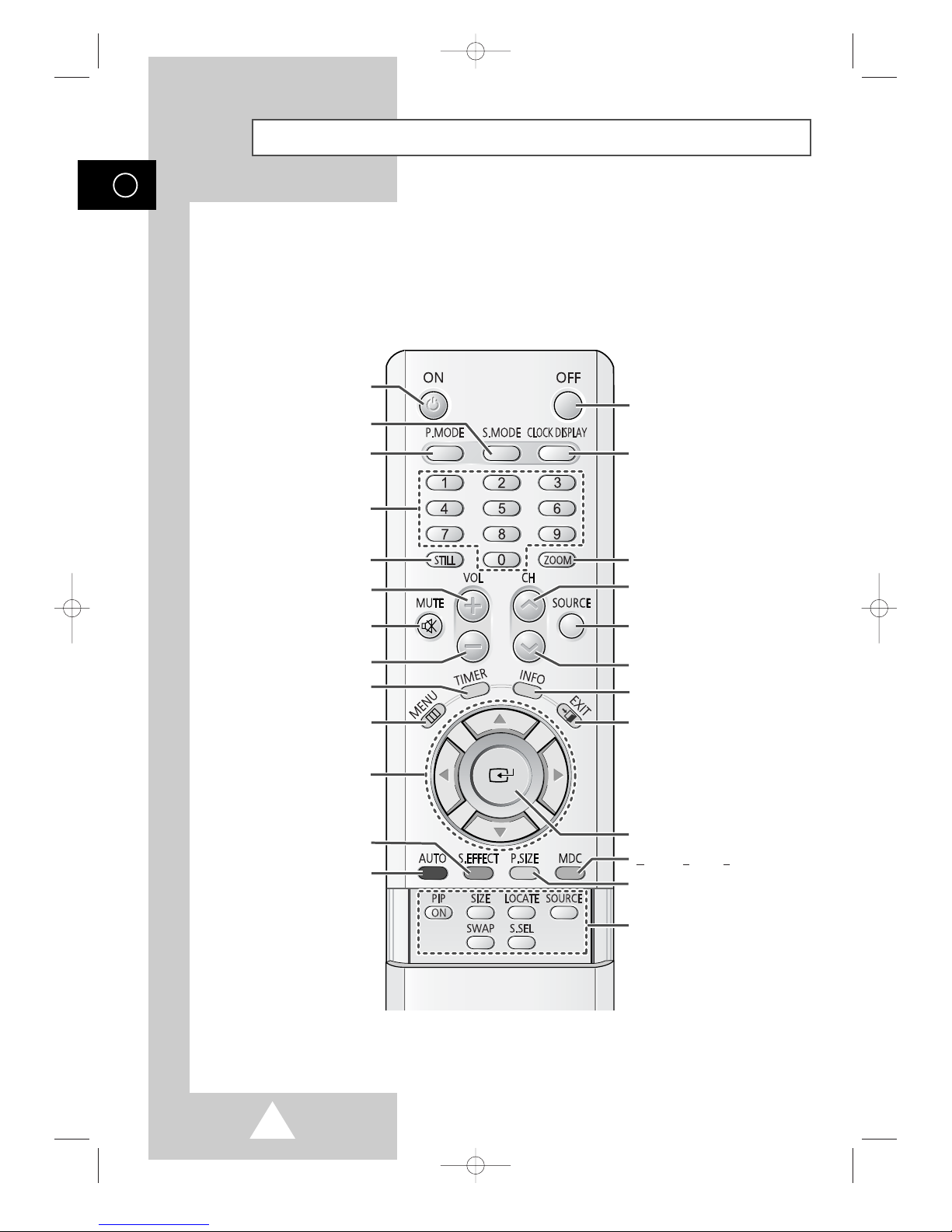

Becoming Familiar with the Remote Control

ENG

PDP ON

NUMERIC BUTTONS

VOLUME INCREASE

TEMPORARY SOUND SWITCH-OFF

➣Press it again , or

/+ button

to turn the sound back on.

DISPLAY AND CLOSE THE MENU/

RETURN TO THE PREVIOUS MENU

MOVE TO THE REQUIRED MENU

OPTION/

ADJUST AN OPTION VALUE

RESPECTIVELY

SCREEN EFFECT SELECTION

(BURNING PROTECTION)

PICTURE MODE SELECTION

EXTERNAL INPUT SELECTION

CURRENT TIME DISPLAY

SOUND MODE SELECTION

EXIT FROM ANY DISPLAY

PREVIOUS CHANNEL

(NOT AVAILABLE FOR THIS MONITOR)

CHANGE CONFIRMATION

INFORMATION DISPLAY

PIP FUNCTIONS;

- PIP ON/OFF

- SIZE SELECTION (SIZE)

- LOCATION SELECTION (LOCATE)

-INPUT SOURCE SELECTION

(SOURCE)

-INTERCHANGE THE MAIN AND THE

SUB PICTURE (SWAP)

- SOUND SELECTION (S.SEL)

PICTURE SIZE SELECTION

PICTURE STILL

SETTING THE TIMER

AUTO ADJUSTMENT IN PC MODE

PDP OFF

ZOOM/PANNING MENU DISPLAY

(ONLY PC MODE)

MULTIPLE DISPLAY CONTROL

VOLUME DECREASE

NEXT CHANNEL

(NOT AVAILABLE FOR THIS MONITOR)

The remote control is used mainly to:

◆Change sources and adjust the volume

◆Set up the PDP using the on-screen menu system

➢The performance of the remote control may be affected by bright light.

BN68-00528A-01_ENG 2003.11.20 4:13 PM Page 10

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Samsung TV al plasma

Samsung

Samsung PS51F8500A Manuale utente

Samsung

Samsung PN51F8500AF Guida

Samsung

Samsung 5+ SERIES Manuale utente

Samsung

Samsung PN58C500G2FXZA Manuale utente

Samsung

Samsung PN50B550T2F Manuale utente

Samsung

Samsung PL51E530A3F Manuale utente

Samsung

Samsung pl43d450 Manuale utente

Samsung

Samsung PS50C550G1W Manuale utente

Samsung

Samsung PN58B560 Manuale utente

Samsung

Samsung PS42C430A1W Manuale utente

Samsung

Samsung 4500 series Manuale utente

Samsung

Samsung 5 Series Manuale utente

Samsung

Samsung Series 4+ Manuale utente

Samsung

Samsung PS42B450 Manuale utente

Samsung

Samsung PS43F4500AW Manuale utente

Samsung

Samsung PN58C680 Manuale utente

Samsung

Samsung PN58C550 Manuale utente

Samsung

Samsung PS60E530A3W Manuale utente

Samsung

Samsung PS50A566S2M Manuale utente

Samsung

Samsung LED 6500 series Manuale utente

Samsung

Samsung PN58B850Y1FXZA Manuale utente

Samsung

Samsung PE43H4000A Manuale utente

Samsung

Samsung R4232 - SP - 42" Plasma TV Guida all'installazione

Samsung

Samsung PS42C450B1W Manuale utente

Manuali TV al plasma popolari di altre marche

Hitachi

Hitachi 50PD9800TA Manuale utente

Pioneer

Pioneer PDP-LX508G Manuale utente

LG 60PM9700 Manuale utente

LG 50PX4D Manuale utente

Panasonic

Panasonic Viera TH-37PA20 Manuale utente

Panasonic

Panasonic TH-103PF12E Manuale utente

Panasonic

Panasonic VIERA TH-42PZ80Q Manuale utente

LG 60PA5500 Manuale utente

Sony

Sony WEGA KE-P42M1 Manuale utente

VESTEL

VESTEL PL2000 Manuale utente

VisionQuest

VisionQuest PVQ-32VGB Manuale utente

Maxent

Maxent MX-5020HPM Manuale utente

XOCECO

XOCECO PH-42T8 Manuale utente

Maxent

Maxent MX-42VM7 Manuale utente

Sampo

Sampo PME-42S6 Manuale utente

Hitachi

Hitachi 32PD7800 Manuale utente

LG 50PK550 Manuale utente

Haier

Haier P42A1-AK Manuale utente
