Samsung Series 4+ Manuale utente
English -4
¦¦Connecting¦a¦AV¦device
HD¦connection
DVD / Blu-ray player
/ HD Cable Box / HD
STB (Set-Top-Box)
satellite receiver
Using an HDMI Cable
HDMI OUT
VCR / DVD
Using a Scart Cable
EXT
W
R
Y
Y
W
R
W
R
W
RRG
B
RG
B
W
R
HD¦connection
DVD /
Blu-ray player
Using an HDMI to DVI Cable
DVI OUT
AUDIO OUT
Component connection
DVD, Blu-ray
player, cable
box, STB satellite
receiver, VCR
Using a Component Cable
AUDIO OUTCOMPONENT OUT
VCR
AUDIO OUTVIDEO OUT
Using an Audio/Video Cable
W
R
Y
Y
W
R
W
R
W
RRG
B
RG
B
W
R
[PC490-QSG]BN68-03147A-00Eng.indd 1 2010-07-09 오후 12:58:06
¦¦The¦Supplied¦Accessories
yRemote Control & Batteries (AAA x 2)
yOwner’s Instructions
yQuick Setup Guide
yCleaning Cloth
yPower Cord
yBlanking Bracket
yFerrite Core (1EA)
(depending on the country)
See separate guide for installing the stand.
yStand (1EA)
yGuide Stand (1EA)
yScrews (8EA)
✎
Ferrite Core: The ferrite cores are used to shield the cables from interference. When connecting a cable, open the ferrite core
and clip it around the cable near the plug as shown in the figure.
x
Distance between the ferrite core and one end of the cord put into the TV set
A
B
B
D
yA : below 50 mm
yB : 100 ~ 150 mm
(Switzerland only)
Plasma TV
QUICK SETUP GUIDE
English - 1
BN68-03147A-00
4EA (M4 X L10)
4EA (M4 X L12)
[PC490-QSG]BN68-03147A-00Eng.indd 2 2010-07-09 오후 12:58:07

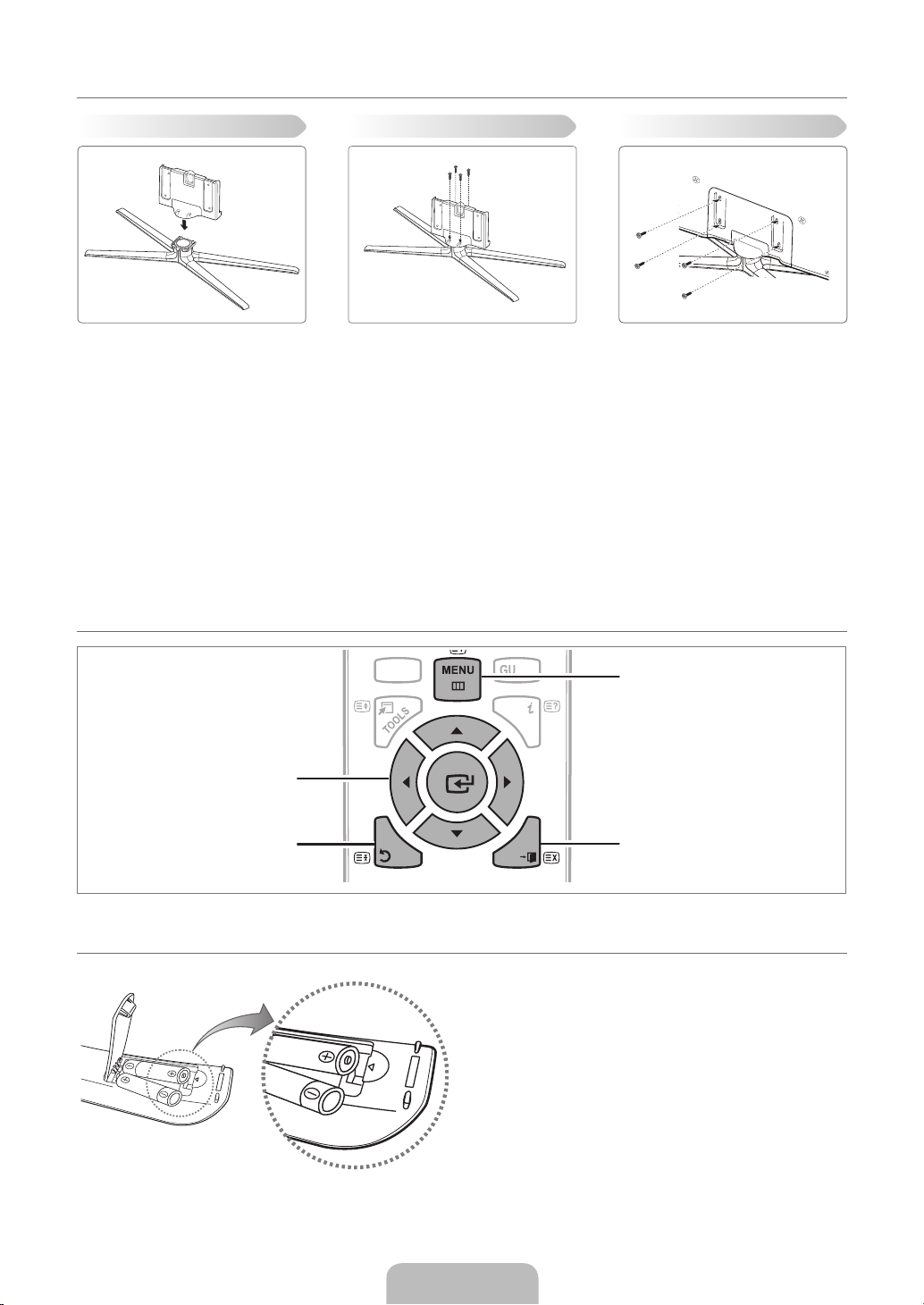

¦¦Installing¦the¦Stand
✎
Preset: Place the Guide Stand and Cover Neck onto the stand and fasten it using the screws. Applicable to models
(Depending on the model)
Step¦1.¦ Connect the Guide Stand to the Stand using five screws (M4 X L12) as shown.
✎
Make sure to distinguish between the front and back of the Stand and Guide Stand when assembling them.
✎
Make sure that at least two persons lift and move the PDP TV.
✎
Stand the product up and fasten the screws. If you fasten the screws with the PDP TV placed down, it may lean to
one side.
Step¦2.¦Fasten two screws (M4 X L12) at position 1, and then fasten two screws (M4 X L12) at position 2.
✎
Stand the product up and fasten the screws. If you fasten the screws with the PDP TV placed down, it may lean to
one side.
¦¦Using¦the¦remote¦control¦buttons
¦¦Installing¦Batteries¦in¦the¦Remote¦Control
English - 2
S
.M
O
D
E
MEDIA
.
P
GU
IDE
RETURN
ΕΧΙΤ
INFO
S
LEEP
DU
AL
P
.M
O
D
E
P
.SIZ
E
E
.SAVIN
G
S
OURC
E
C
H LI
ST
A
B
C
D
T
TX
/
MI
X
2
3 4
RETURN Button
Return to the previous menu.
ENTER
E
/ DIRECTION Buttons
Move the cursor and select an
item. Select the currently selected
item. Confirm the setting.
EXIT
Exit the on-screen menu.
MENU Button
Display the main on-screen menu.
ss
ss
Preset Step¦1 Step¦2
Back
Front
[PC490-QSG]BN68-03147A-00Eng.indd 3 2010-07-09 오후 12:58:09
English - 3

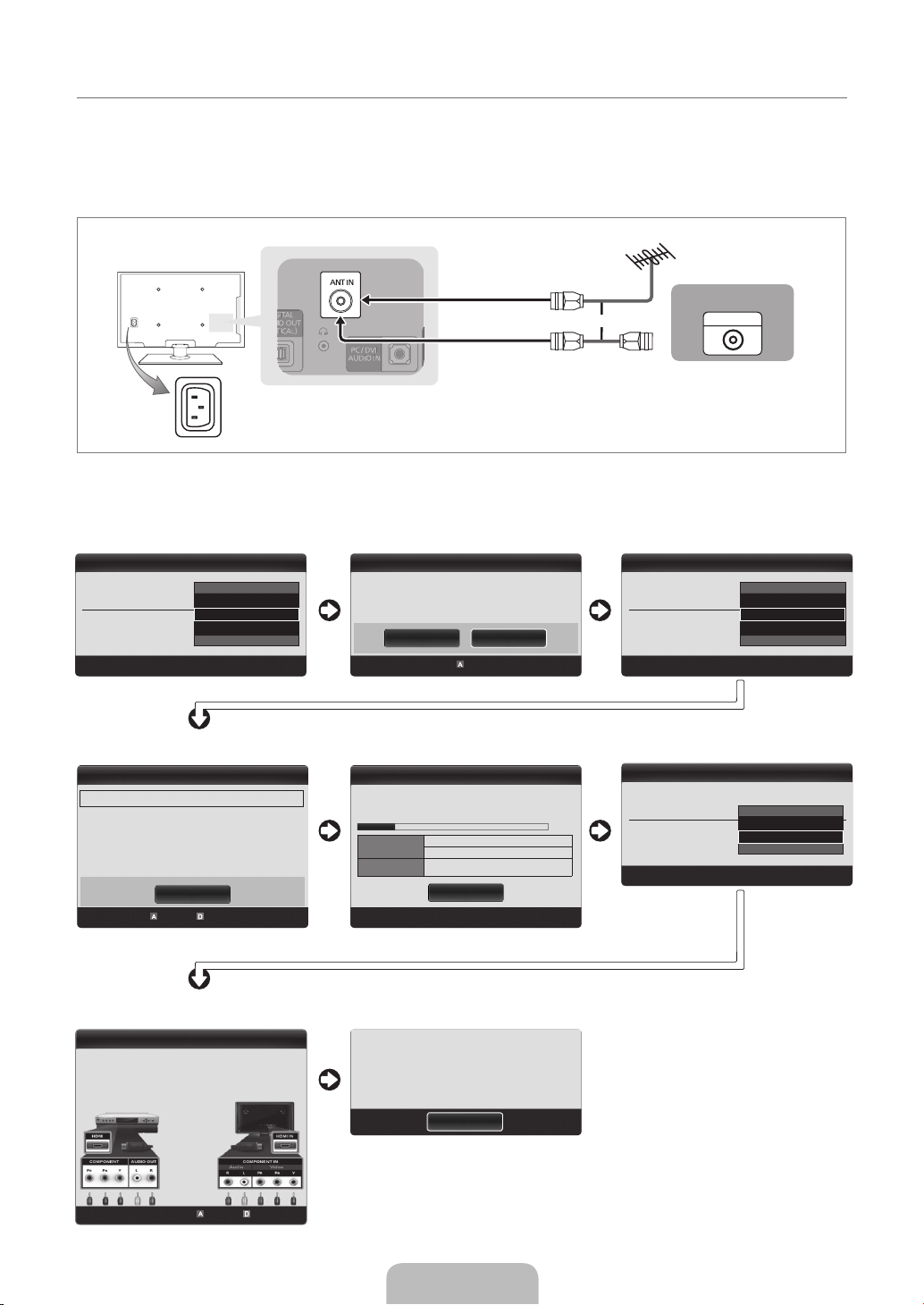

¦¦Plug¦&¦Play
When the TV is initially powered on, basic settings proceed automatically and subsequently.
✎
Preset: Connecting the power cord and antenna.
✎
The PDP device may interfere with an amateur radio or AM radio.
If you want to reset this feature, press the MENU button to display menu.
You can set the Plug & Play by selecting ‘Setup → Plug & Play’.
On the screen, you can set as follows.
✎
The each step may vary depending on the Antenna source.
ANT OUT
VHF/UHF Antenna
or
Cable
Power Input
Step 1 Step¦2 Step¦3
Step¦4 Step¦5 Step¦6
Step¦7 Step¦8
Plug & Play
Select the OSD Language.
Menu Language : : English
▲
Nederlands
English
Eesti
▼
U
Move
E
Enter
Plug & Play
Select Country.
Country :
▲
Turkey
United Kingdom
Estonia
▼
U
Move
E
Enter
Plug & Play
Enjoy your TV.
OK
Plug & Play
Select the usage mode.
Store Demo Home Use
Previous
U
Move
E
Enter
Plug & Play
Antenna Source : Air ►
Channel Source : Digital & Analogue
Previous Skip
U
Move
E
Enter
Serch
Plug & Play
Auto Store in progress.
Channels : 7
15%
Digital 2
TV:2 Radio:0 Data/Other: 0
Analogue 0
E
Enter
Stop
Plug & Play
Set the Clock Mode.
Clock Mode : Manual ►
U
Move
E
Enter
Auto
Manual
Plug & Play
How to get the best perfotmance from your new HDTV
1/2
Step 1. Connect the HD Box to the using HDMI or Component
cables.
TV rear view ►
HDMI Cable
HDMI Cable
Previous Skip ► Next
[PC490-QSG]BN68-03147A-00Eng.indd 4 2010-07-09 오후 12:58:10
