2_ before you begin
before you begin
ABOUT THIS MANUAL
READ THESE INSTRUCTIONS COMPLETELY AND CAREFULLY.
Important note to the installer
• Read all instructions contained in these installation instructions before
installing the range.
• Remove all packing materials from the oven compartments before connecting
the electric and gas supply to the range.
• Observe all governing codes and ordinances.
• Be sure to leave these instructions with the consumer.
• Installation of this appliance requires basic mechanical skills.
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not covered under the Warranty.
Important note to the consumer
Keep these instructions with your user manual for future reference.
• As when using any appliance generating heat, there are certain safety
precautions you should follow.
• Be sure your range is installed and grounded properly by a qualified installer
or service technician.
• Make sure the wall coverings around the range can withstand the heat
generated by the range.
• Cabinet storage space above the surface burners should be a minimum of 30
in (76.2 cm).
Important note to the servicer
The electrical diagram is in an envelope attached to the back of the range.
(Install)NX58H56_DG68-00524A_EN+CFR.indb 2 08/02/2014 11:54:38
safety instructions _3
SAFETY INSTRUCTIONS
safety instructions
SAFETY SYMBOLS
What the icons and signs in this user manual mean:
WARNING
You can be killed or seriously injured if you don’t follow
instructions.
CAUTION
Minor injury or property damage can result if you don’t follow
instructions.
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions explicitly.
Unplug the power cord from the electrical outlet.
Make sure the range is plugged into an earth grounded
electrical outlet to prevent electric shock. An outlet equipped
with a Ground Fault Interrupter (GFI) is highly recommended.
Call the service center for help. See page 40
Note
These warning signs are here to prevent injury to you and others.
Please follow them explicitly.
Do not discard this manual. Please keep it in a safe place for future reference.
(Install)NX58H56_DG68-00524A_EN+CFR.indb 3 08/02/2014 11:54:39
4_ safety instructions
IMPORTANT SAFETY
INSTRUCTIONS
WARNING: If the information in this manual is not followed
exactly, a fire or explosion may result causing property
damage, personal injury or death.
– DO NOT store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
– WHAT TO DO IF YOU SMELL GAS:
• DO NOT try to light any appliance.
• DO NOT touch any electrical switch.
• DO NOT use any phone in your building.
• Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire
department.
– Installation and service must be performed by a qualified
installer, service agency, or the gas supplier.

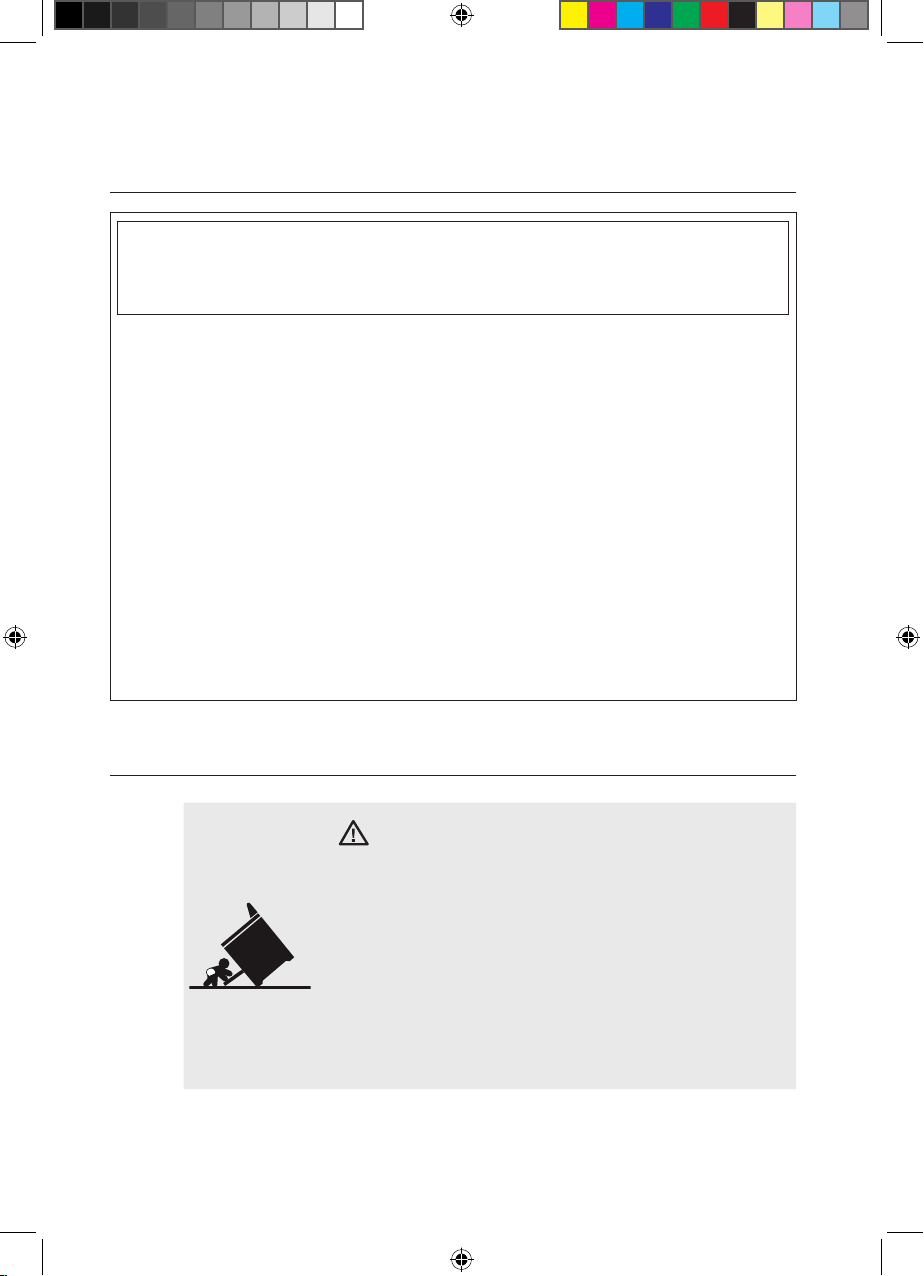

ANTI-TIP DEVICE
WARNING WARNING
Tip-Over Hazard
• A child or adult can tip the range and be killed.
• Install anti-tip device to range and/or structure
per installation instructions.
• Engage the range to the anti-tip device installed
to the structure.
• Re-engage anti-tip device if range is moved.
• Failure to follow these instructions can result in
death or serious burns to children or adults.
(Install)NX58H56_DG68-00524A_EN+CFR.indb 4 08/02/2014 11:54:39
safety instructions _5
SAFETY INSTRUCTIONS
To prevent accidental tipping of the range, attach an approved and packed
anti-tip device to the floor. (See Install the Anti-Tip Device on page 31 in this
manual.) check for proper installation by carefully tipping the range forward.
The anti-tip device should engage and prevent the range from tipping over.
If the range is pulled out away from the wall for any reason, make sure the anti-
tip device is reengaged after the range has been pushed back into place.
Never completely get rid of the leveling legs or the range will not be secured to
the anti-tip device properly.
Follow the installation instructions found on page 28 of this manual. Failure to
follow these instructions can result in death, serious personal injury, and / or
property damage.
DO NOT step / sit / lean on the door or drawer to prevent accidental tipping of
the range.
IMPORTANT SAFETY
PRECAUTIONS
WARNING
Follow basic precautions when installing and using this range to reduce the risk
of fire, electrical shock, injury, or death to persons, including:
Installation and Service
This range must be properly installed and located in accordance with the
installation instructions before it is used.
Professional installation is strongly recommended.
Due to the size and weight of the range, it is highly recommended that two or
more people move or install this appliance.
All ranges can tip over and cause severe injuries. Install the anti-tip device
packed with this range following the instructions found on page 32 in this
manual.
Never try to repair or replace this appliance on your own unless it is specifically
recommended in this manual. This appliance should be serviced only by a
qualified service technician.
Know the location of the gas shut-o valve and how to shut it o if necessary.
Properly remove or destroy the packaging materials after the appliance is
unpacked.
Electrical/Mechanical
Unplug or disconnect power before servicing.
(Install)NX58H56_DG68-00524A_EN+CFR.indb 5 08/02/2014 11:54:39
6_ safety instructions
Do not tamper with the controls.
Danger to Children
Do not store any object of interest to children on the cooktop or backguard
of the range. Children climbing on the range to reach items could be killed or
seriously injured.
Keep children away from the door when opening or closing it as they may
bump themselves on the door or catch their fingers in the door.
Keep all packaging materials out of reach of children. Failure to dispose of
plastic bags could result in suocation.
Do not leave children alone or unattended in an area where a range is in use.
They should never be allowed to sit or stand on any part of a range.
Teach children not to touch or play with the controls or any part of the range.
Do not leave the oven door open. An opened door could entice children to
hang on the door or crawl inside the oven. It is recommended to utilize the
control / door lockout feature to reduce the risk of mis-use from children.
Before disposing of the range, cut o the power cord to prevent it being
connected to a power source. Remove the door to prevent children and
animals from getting trapped.
Fire
Do not touch oven burners, drawer burners, or interior surfaces of the oven.
Cooking surfaces, grates, cooktop burners and caps, as well as oven walls
may be hot even though they are dark in color. Interior oven surfaces can
become hot enough to cause burns. During and after use, do not touch or let
clothing or other flammable materials contact oven burners, drawer burners, or
interior surfaces of the oven until they have had sucient time to cool.
Keep oven vent ducts unobstructed. Clean vents frequently to avoid grease
buildup.
Do not let a pot holder touch a hot heating element. Do not use a towel or
other bulky cloth as a pot holder.
Do not use your range to heat unopened food containers or to dry
newspapers.
Keep oven vent ducts unobstructed. Clean vents frequently to avoid grease
buildup.
(Install)NX58H56_DG68-00524A_EN+CFR.indb 6 08/02/2014 11:54:39
safety instructions _7
SAFETY INSTRUCTIONS
Never use your range for warming or heating a room. Doing so could result in
carbon monoxide poisoning and/or overheating of the oven.
Loose-fitting or hanging garments should not be worn while using this
appliance.
DO NOT STORE OR USE combustible materials, gasoline, or other flammable
vapors or liquids in the vicinity of this appliance. See “WHAT TO DO IF YOU
SMELL GAS” under the Gas Warnings.
Do not use water on a grease fire. Water might cause a grease fire to explode,
spreading the fire and creating a larger fire and health hazard. Turn o heat
source and smother with tight-fitting lid or use a multipurpose dry chemical or
foam-type fire extinguisher.
Never leave surface units unattended at high heat settings. Boilovers cause
smoking, and greasy spillovers could ignite.
Do not use a flame to check for gas leaks. Use a soapy water mixture around
the area you are checking instead.
Do not place portable appliances, or any other object other than cookware on
the cooktop. Damage or fire could occur if cooktop is hot.
Do not attempt to operate this appliance if it is damaged, malfunctioning, or
has missing or broken parts.
Never place plastic, paper, or other items that could melt or burn near the oven
vents or any of the surface burners.
If the self-clean mode malfunctions, turn the oven o and disconnect the power
supply. Refer to page 77 and 78 in the User Manual to contact a qualified
service technician.
Steam and Vapors
Use care when opening the oven door. Let hot air or steam escape before
removing or placing food in a hot oven.
Use only dry pot holders. Moist or damp pot holders on hot surfaces may
result in burns from steam.
(Install)NX58H56_DG68-00524A_EN+CFR.indb 7 08/02/2014 11:54:39
8_ safety instructions
GAS WARNINGS
WARNING
If the information in this manual is not followed exactly, a fire or explosion may
result, causing death, personal injury, or property damage.
1. DO NOT light a match, candle, or cigarette.
2. DO NOT turn on any gas or electric appliances.
3. DO NOT touch any electrical switches.
4. DO NOT use any phone in your building.
5. Clear the room, building, or area of all occupants.
6. Immediately call your gas supplier from a neighbor’s phone. Follow the gas
supplier’s instructions.
7. If you cannot reach your gas supplier, call the fire department.
Read instructions completely and carefully.
Installation of this range must conform with local codes or, in the absence of
local codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA.54, latest
edition. In Canada, installation must conform with the current Natural Gas
Installation Code, CAN/CGA-B149.1, or the current Propane Installation Code,
CAN/CGA-B149.2, and with local codes where applicable. This range has
been design-certified by ETL according to ANSI Z21.1, latest edition, and
Canadian Gas Association according to CAN/CGA-1.1, latest edition.
Installation and service must be performed by a qualified installer, service
agency, or gas supplier.
Have the installer show you the location of the gas shut-o valve and how to
shut it o.
Always use NEW flexible connectors when installing a gas appliance. Never
reuse old flexible connectors. The use of old flexible connectors can cause gas
leaks and personal injury.
Never use this appliance as a space heater to heat or warm the room. Doing
so may result in carbon monoxide poisoning and overheating of the oven.
Never block the oven vents (air openings). They provide the air inlet and
exhaust that are necessary for the oven to operate properly with correct
combustion.
(Install)NX58H56_DG68-00524A_EN+CFR.indb 8 08/02/2014 11:54:39
safety instructions _9
SAFETY INSTRUCTIONS
CALIFORNIA SAFE DRINKING
WATER AND TOXIC
ENFORCEMENT ACT
The California Safe Drinking Water and Toxic Enforcement Act requires the
Governor of California to publish a list of substances known to the state to
cause birth defects or other reproductive harm and requires businesses to
warn customers of potential exposure to such substances.
WARNING
Gas appliances can cause minor exposure to four of these substances,
namely, carbon monoxide, formaldehyde, and soot, caused primarily by the
incomplete combustion of natural gas or LP fuels. Properly adjusted burners,
indicated by a bluish rather than yellow flame, will minimize incomplete
combustion. Exposure to these substances can be minimized by venting with
an open window or by using a ventilation fan or hood.
IN THE COMMONWEALTH OF
MASSACHUSETTS
This product must be installed by a qualified plumber or gas fitter by the State
of Massachusetts.
When using ball-type gas shut-o valves, they shall be the T-handle type.
Multiple flexible gas lines must not be connected in series.
(Install)NX58H56_DG68-00524A_EN+CFR.indb 9 08/02/2014 11:54:39
10_ safety instructions
WARNING ELECTRICAL WARNINGS
Comply with the following electrical instructions and requirements to avoid
death, personal injury from electric shock, and/or property damage from fire:
1. Plug into a grounded 3-prong outlet.
2. DO NOT remove ground prong.
3. DO NOT use an adapter.
4. NEVER use an extension cord.
Use a dedicated 120-volt, 60-Hz, 20-amp, AC, fused electrical circuit for this
appliance. A time-delay fuse or circuit breaker is recommended. DO NOT plug
more than one appliance in this circuit.
The range is supplied with a 3-prong grounded plug. This cord MUST be
plugged into a mating, grounded 3-prong outlet that meets all local codes and
ordinances. If you are unsure your electrical outlet is properly grounded, have it
checked by a licensed electrician.
If codes permit the use of a separate ground wire, it is recommended that a
qualified electrician determine the proper path for this ground wire.
Electrical service to the range must conform to local codes. Barring local
codes, it should meet the latest ANSI/NFPA No. 70 – Latest Revision (for the
U.S.) or the Canadian Electrical Code CSA C22.1 – Latest Revisions.
It is the personal responsibility of the appliance owner to provide the correct
electrical service for this appliance.
NEVER connect ground wire to plastic plumbing lines, gas lines, or hot water
pipes.
DO NOT modify the plug provided with the appliance.
DO NOT a have fuse in a neutral or ground circuit.
(Install)NX58H56_DG68-00524A_EN+CFR.indb 10 08/02/2014 11:54:39
Questo manuale è adatto per i seguenti modelli
2
Indice
Lingue:
Altri manuali Samsung Allineare
Samsung
Samsung NE63 811 Series Manuale utente
Samsung
Samsung NX58H5600S series Manuale utente
Samsung
Samsung NX58K3310S series Manuale utente
Samsung
Samsung NX60A6711ST/AA-00 Manuale utente
Samsung
Samsung NX60 81 S Series Manuale utente
Samsung
Samsung FCQ321HTUB Manuale utente
Samsung
Samsung NE63 675 Series Manuale utente
Samsung
Samsung NE63A6511SB Manuale utente
Samsung
Samsung NX60 871 AP Series Manuale utente
Samsung
Samsung NE595N0PBSR/AA Manuale utente
Samsung
Samsung NE59N6650SS Manuale utente
Samsung
Samsung NE63 831 Series Manuale utente
Samsung
Samsung NE597N0PBSR Istruzioni per la costruzione
Samsung
Samsung NX58M9960PS/AA Manuale utente
Samsung
Samsung DG68-00297A Manuale utente
Samsung
Samsung NX58K9850S series Manuale utente
Samsung
Samsung NX60CB831512AA Manuale utente
Samsung
Samsung FTQ387LWGX Manuale utente
Samsung
Samsung NE58K9852 Series Manuale utente
Samsung
Samsung NE63 671 S Series Manuale utente
