Samsung SCC-B5398 Manuale utente

ENG

DIGITAL COLOR DOME

CAMERA

user manual

SCC-B5398

SCC-B5396

imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service,

please register your product at

www.samsungsecurity.com

ENG FRE

GER

SPA

ITA

2– DIGITAL COLOR DOME CAMERA

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates that dangerous voltage consisting a risk of electric shock is

present within this unit.

This exclamation point symbol is intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in the literature accompanying the

appliance.

WARNING

To prevent damage which may result in ﬁre or electric shock hazard, do not expose this appliance to rain

or moisture.

WARNING

Be sure to use only the standard adapter that is speciﬁed in the speciﬁcation sheet. Using any other adapter

could cause ﬁre, electrical shock, or damage to the product

Incorrectly connecting the power supply or replacing battery may cause explosion, ﬁre, electric shock, or

damage to the product.

Do not connect multiple cameras to a single adapter. Exceeding the capacity may cause abnormal heat

generation or ﬁre.

Securely plug the power cord into the power receptacle. Insecure connection may cause ﬁre.

When installing the camera, fasten it securely and ﬁrmly. A falling camera may cause personal injury.

Do not place conductive objects (e.g. screwdrivers, coins, metal things, etc.) or containers ﬁlled with water

on top of the camera. Doing so may cause personal injury due to ﬁre, electric shock, or falling objects.

Do not install the unit in humid, dusty, or sooty locations. Doing so may cause ﬁre or electric shock.

•

Safety information

English – 3

ENG

Safety information

If any unusual smells or smoke come from the unit, stop using the product. In such case, immediately

disconnect the power source and contact the service center. Continued use in such a condition may cause

ﬁre or electric shock.

If this product fails to operate normally, contact the nearest service center. Never disassemble or modify

this product in any way. (SAMSUNG is not liable for problems caused by unauthorized modiﬁcations or

attempted repair.)

When cleaning, do not spray water directly onto parts of the product. Doing so may cause ﬁre or electric shock.

CAUTION

Do not drop objects on the product or apply strong shock to it. Keep away from a location subject to

excessive vibrationor magnetic interference.

Do not install in a location subject to high temperature (over 50°C), low temperature (below -10°C), or high

humidity. Doing so may cause ﬁre or electric shock.

If you want to relocate the already installed product, be sure to turn off the power and then move or reinstall

it.

Remove the power plug from the outlet when then there is a lightning. Neglecting to do so may cause ﬁre or

damage to the product.

Keep out of direct sunlight and heat radiation sources. It may cause ﬁre.

Install it in a place with good ventilation.

Avoid aiming the camera directly towards extremely bright objects such as sun, as this may damage the

CCD image sensor.

Apparatus shall not be exposed to dripping or splashing and no objects ﬁlled with liquids, such as vases,

shall be placed on the apparatus.

The Mains plug is used as a disconnect device and shall stay readily operable at any time.

10.

4– DIGITAL COLOR DOME CAMERA

Important Safety Instructions

WARNING

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

Do not use this apparatus near water.

Clean only with dry cloth.

Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

Do not install near any heat sources such as radiators, heat registers, or other apparatus (including

ampliﬁers) that produce heat.

Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades

with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide

blade or the third prong is provided for your safety. If the provided plug does not ﬁt into your outlet, consult

an electrician for replacement of the obsolete outlet.

Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and

the point where they exit from the apparatus.

Only use attachments/accessories speciﬁed by the manufacturer.

Use only with cart, stand, tripod, bracket, or table speciﬁed by the manufacturer, or

sold with the apparatus.

Unplug this apparatus when a card is used. Use caution when moving the cart/

apparatus combination to avoid injury from tip-over.

Refer all servicing to qualiﬁed service personnel. Servicing is required when the apparatus has been

damaged in any way, such as powersupply cord or plug is damaged, liquid has been spilled or objects have

fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or

has been dropped.

10.

11.

12.

13.

14.

English – 5

ENG

Contents

Introduction

Features 6

Product & Accessories 7

Part Names and Functions 8

Installation

s Installation procedure 11

Adjusting the camera direction 12

How to use OSD Menu

Using Icons in the Menu 14

Main Menu 14

Proﬁle 15

Camera Setup 17

Intelligence 24

Privacy Zone Setup

Other Set 28

System Information 29

Language 29

Speciﬁcations

Speciﬁcations 30

6– DIGITAL COLOR DOME CAMERA

Introduction

FEATURES

High Resolution

This camera has realized high resolution of 600 lines using the top-notch full digital image processing and special

algorithm technologies.

Intelligent Motion Detection & Tracking

This is an intelligent function that automatically detects a motion of an object. You can set a virtual fence so it displays an

alert if an object passes / enters /exits the virtual fence or virtual area.

XDR (eXtended Dynamic Range)

Actively controls the gamma compensation in the way it operates the ambient luminance contrast in a certain pixel

unit to determine the optimal visibility.

High Sensitivity

It implements images of high sensitivity using the up-to-date SONY Super-HAD IT CCD..

Low Illumination

It uses the digital signal technologies such as low illumination and Day/Night functions that make your camera identify

objects even in the worst environment.

Superior Backlight Adjustment

When an object has a bright illumination or sunlight behind it, this camera automatically improves the shaded object

picture quality.

Digital Power Synchronization

The full digital Line Lock function directly adjusts the vertical camera synchronization to enhance the operationability

and reliability of this camera.

Output Signal Setting

You can set the following Video output signals: Image reversion (Horizontal, Vertical, or both), Privacy, Horizontal/

Vertical proﬁling, and digital zooming.

OSD(On Screen Display) Menu

OSD menu is provided to display the status of camera and to conﬁgure the functions interactively.

❖

•

❖

•

❖

•

❖

•

❖

•

❖

•

❖

•

❖

•

❖

•

Coaxial Cable Communication

This is a remote control function that overlaps the coaxial cable (for a transfer of the video signal) with the

control signal. In installation or repair, this helps you control the communication controller (optional) without

additional cabling.

❖

•

English – 7

ENG

Introduction

Components

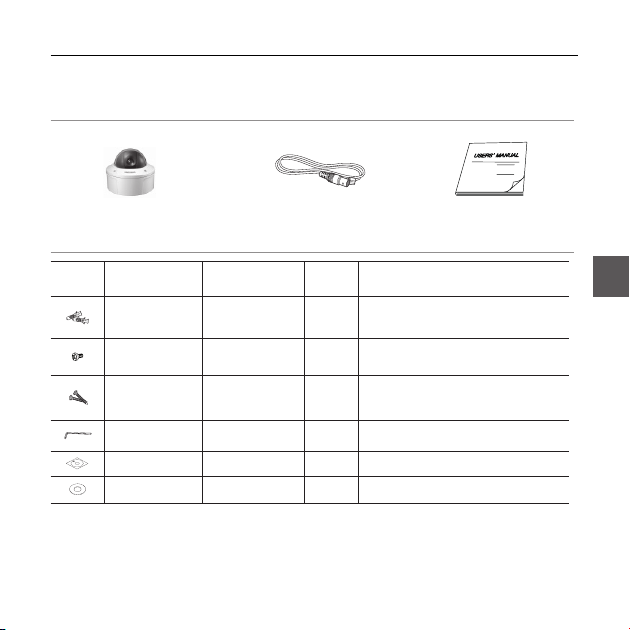

Checking components in the package

Camera

Test Monitor Cable User’s Guide

Image Part name Standard Quantity Usage

Plastic anchor HUD 5 4 (EA)

Attach each piece to screw connection holes for

strengthening connection

ASSY screw

machine

BH M5 X L6.

(White+o-ring)

8Used for ﬁlling in the holes when installing

pipe and wall mount

ASSY screw

tapping

TH M4xL30 (Black+

o-ring)

4Used when installing your camera on the

ceiling or wall。

L-Wrench TROX T-20 1 Used for assembling/disassembling the

Dome cover

Template 1 Used for guiding the installation

Gasket-pipe hole T2.5 W56 1 Used to make a wiring hole when installing

the camera on the ceiling or wall

NOTE

The test monitor cable is used to test the camera by connecting to a portable display. If you

really want to connect the camera to a monitoring display, use the BNC cable.

。

–

8– DIGITAL COLOR DOME CAMERA

Introduction

Lens

910

Video connector

Power connector

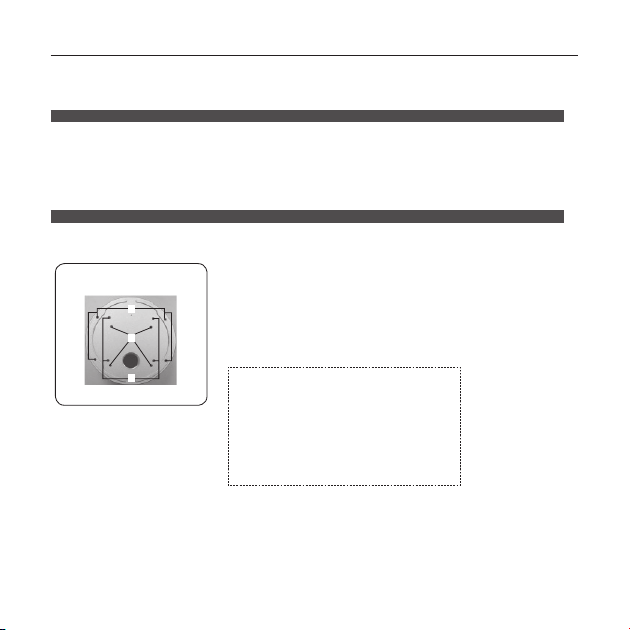

1.Dome cover: Covers the inner cover, lens, and

main body to protect them.

2.Cover screw: Use it to assemble or

disassemble both dome cover and case.

3.Inner cover: Covers the main body to protect it.

4.Wing locker: Push a long thin screwdriver into

its narrow spot and press it outward when you want

to remove the inner cover.

5.Main body: Includes a lens, a switch board, a

PCB board, screws, and such.

6.Screws for assembly and disassembly: Using

these 2 screws, the Main

body is closely connected to the Case.

7.Hooker: By pulling the left/right levers in the

arrow direction, the Main body can be detached

from the Case.

8.Case: Used as a ceiling or wall ﬁxture. It is

ﬁxed using four screws provided in the package.

9.Zoom lever: Using this lever, the lens zoom can

be adjusted and ﬁxed.

10.Focus lever: Using this lever, the lens focus can

be adjusted and ﬁxed.

11.Tilt ﬁxing screw: Using this screw, the slope of

the lens can be adjusted and ﬁxed.

12.Cable: Connect the Video connector to BNC

cable and Power connector to power adapter.

Components of your camera

Your camera has the following components:

❖

•

English – 9

ENG

Introduction

Setting switches❖

SETUP Switch

This switch is used to set the function or property. When this switch is pressed for at least 2 seconds, the

MAIN MENU appears.

(Left/Right)

: By pressing this switch left or right, you can move left or right on the menu or change the

displayed value.

(Up/Down) :

By pressing this switch up or down, you can move up or down on the menu.

: When you press this switch in the menu, the selected function is conﬁrmed. To enter a submenu, press

this button..

•

10 – DIGITAL COLOR DOME CAMERA

Installation

Bottom of camera

Installing camera

Before installation

Before installing your camera, you have to read the following cautions:



You have to check whether the location (ceiling or wall) can bear ﬁve times the weight of your camera.



Don’t let the cable to be caught in improper place or the electric line cover to be damaged. Otherwise it may

cause a breakdown or ﬁre. You can use wall mount adaptor (SADT-102WM), and pole mount adaptor (SADT-

100PM) for installing the camera on the wall or pipeline.



When installing your camera, don’t allow any person to approach the installation site. If you have any valuable

things under the place, move th

em away.

About the installation holes

A:Use these holes when directly installing your camera on the ceiling or

wall.

While those are not used, ﬁll in the holes using the screw machine (M5

X L6.) for waterprooﬁng.

B: Use four holes when directly installing your camera on the junction box

You can use the 4 1/8 diameter round type junction box for assembly.

(The junction box, gasket, and cover are separately purchased items.)

C: Use these holes when installing the wall mount adapter (SADT-

102WM)

While those are not used, ﬁll in the holes using the screw machine (M5

X L6.)

for waterprooﬁng.

The holes that are not used should be tightly

sealed up using the screws provided for

waterprooﬁng. When the screws don’t have rubber

rings inside or are not closely attached, note that it

can cause waterprooﬁng problem.

For attaching screws, see page 16

“Disassembling/assembling the Main body from

the Case.”

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Samsung Telecamera di sicurezza

Samsung

Samsung SHC-721AH Manuale utente

Samsung

Samsung SNZ-5200 Manuale utente

Samsung

Samsung SCD-2080R Manuale utente

Samsung

Samsung iPolis SNO-5080R Manuale utente

Samsung

Samsung SNF-7010 Manuale utente

Samsung

Samsung SNV-5080R Manuale utente

Samsung

Samsung SCZ-2370 Manuale utente

Samsung

Samsung SCC-B53X Series Manuale utente

Samsung

Samsung SCC-B5393 Manuale utente

Samsung

Samsung SDZ-370 Series Manuale utente

Samsung

Samsung iPolis SND-5011 Manuale utente

Samsung

Samsung SNV-5010 Manuale utente

Samsung

Samsung SCO-2030R Series Manuale utente

Samsung

Samsung SCV-3080 Series Manuale utente

Samsung

Samsung SCC-C7478 Manuale utente

Samsung

Samsung SCV-5085 Manuale utente

Samsung

Samsung SCC-B5313 Manuale utente

Samsung

Samsung SCB-2010 Manuale utente

Samsung

Samsung SID-70 Series Manuale utente

Samsung

Samsung SmartCam SNH-1010N Manuale utente

Samsung

Samsung SCC-B5351 Manuale utente

Samsung

Samsung iPolis SNO-5080R Manuale utente

Samsung

Samsung SVD-4700 Manuale utente

Samsung

Samsung SCC-C7413N Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Vicon

Vicon V662-D-1 Istruzioni operative

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Vitek

Vitek VTC-C544 Manuale utente

Lumens

Lumens VC-A50PNW Manuale utente
