Samsung SCD-6080 Manuale utente

HD-SDI CAMERA

User Manual SCD-6080

Trademark

is the registered logo of Samsung Techwin Co., Ltd.

The name of this product is the registered trademark of Samsung Techwin Co., Ltd.

Other trademarks mentioned in this manual are the registered trademark of their respective company.

Restriction

Samsung Techwin Co., Ltd shall reserve the copyright of this document. Under no circumstances, this

document shall be reproduced, distributed or changed, partially or wholly, without formal authorization

of Samsung Techwin.

Disclaimer

Samsung Techwin makes the best to verify the integrity and correctness of the contents in this

document, but no formal guarantee shall be provided. Use of this document and the subsequent

results shall be entirely on the user’s own responsibility. Samsung Techwin reserves the right to

change the contents of this document without prior notice.

Warranty

If the product does not operate properly in normal conditions, please let us know. Samsung Techwin

will resolve the problem for free of charge. The warranty period is 3 years. However, the followings

are excluded:

• If the system behaves abnormally because you run a program irrelevant to the system operation.

• Deteriorated performance or natural worn-out in process of time

YDesign and specifications are subject to change without prior notice.

YThe default password can be exposed to a hacking thread so it is recommended to

change the password after installing the product.

Note that the security and other related issues caused by the unchanged password shall

be responsible for the user.

HD-SDI Camera

User Manual

English _3

●OVERVIEW

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings, Install in accordance with the manufacturer’s

instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other

apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized

plug has two blades with one wider than the other. A grounding type plug has two

blades and a third grounding prong. The wide blade or the third prong are provided for

your safety. If the provided plug does not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/ accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by

the manufacturer, or sold with the apparatus. When a cart is used,

use caution when moving the cart/apparatus combination to avoid

injury from tip-over.

13. Unplug this apparatus during lighting storms or when unused for

long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power-supply cord or plug is

damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus

has been exposed to rain or moisture, does not operate normally, or has been dropped.

overview

4_ overview

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE

THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC

OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS

ON THE EQUIPMENT.

Apparatus shall not be exposed to dripping or splashing and that no objects

filled with liquids, such as vases, shall be placed on the apparatus.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

EXPLANATION OF GRAPHICAL SYMBOLS

The lightning flash with arrowhead symbol, within an

equilateral triangle, is intended to alert the user to the

presence of “dangerous voltage” within the product’s

enclosure that may be of sufficient magnitude to constitute a

risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended

to alert the user to the presence of important operating

and maintenance (servicing) instructions in the literature

accompanying the product.

English _5

●OVERVIEW

Class construction

An apparatus with CLASS construction shall be connected to a MAINS

socket outlet with a protective earthing connection.

Battery

Batteries(battery pack or batteries installed) shall not be exposed to excessive

heat such as sunshine, fire or the like.

Disconnection Device

Disconnect the main plug from the apparatus, if it’s defected. And please call

a repair man in your location.

When used outside of the U.S., it may be used HAR code with fittings of

an approved agency is employed.

CAUTION

These servicing instructions are for use by qualified service personnel only.

To reduce the risk of electric shock do not perform any servicing other than

that contained in the operating instructions unless you are qualified to do so.

Please use the input power with just one camera and other devices must not

be connected.

overview

6_ overview

Please read the following recommend safety precautions carefully.

yDo not place this apparatus on an uneven surface.

yDo not install on a surface where it is exposed to direct sunlight, near

heating equipment or heavy cold area.

yDo not place this apparatus near conductive material.

yDo not attempt to service this apparatus yourself.

yDo not place a glass of water on the product.

yDo not install near any magnetic sources.

yDo not block any ventilation openings.

yDo not place heavy items on the product.

yDo not expose the camera to radioactivity.

User’s Manual is a guidance book for how to use the products.

The meaning of the symbols are shown below.

yReference : In case of providing information for helping of product’s usages

yNotice : If there’s any possibility to occur any damages for the goods and

human caused by not following the instruction

Please read this manual for the safety before using of goods and keep it in

the safe place.

English _7

●OVERVIEW

CONTENTS

OVERVIEW

3Important Safety Instructions

8Product Features

9What’s Included

10 At a Glance

INSTALLATION &

CONNECTION

12 Installation

15 Connecting with other Device

OPERATING YOUR CAMERA

18 Menu Configuration

19 Menu Setup

APPENDIX

32 Specification

34 Product Overview

35 Troubleshooting

overview

8_ overview

PRODUCT FEATURES

•Supports Full HD-SDI Video

By adopting a diagonal 6mm (1/3”) 2M pixel CMOS, the camera produces clear picture

quality.

•Excellent low-illumination image quality

By adopting high-sensitive colour CMOS, the camera provides clear image quality under a

severe low illumination condition of 0.017 Lux (with SENS-UP, x60).

•SSNR3 (Samsung Super Noise Reduction) Function

The high-performance WN2 DSP chip effectively removes low-light gain noise and afterimage

to provide clear images even in dark environments.

•Electrical Day&Night

This camera has a function that automatically selects the mode that is appropriate for

daytime or night-time conditions. The COLOR mode operates in daytime conditions to

provide optimum colors, and B/W mode operates in night-time conditions to enhance the

definition of the image.

•Motion Detection

Since the camera detects motion without any additional external sensor, you can monitor

activity more efficient.

•SSDR (Samsung Super Dynamic Range)

For images with high contrast between bright and dark areas from difficult lighting conditions

such as backlighting, this camera selectively illuminates darker areas while retaining the same

light level for brighter areas to even out the overall brightness.

•Miscellaneous Functions

HLC(High Light Compensation), SENS-UP, FLIP (H/V-REV), D-ZOOM and PRIVACY

functions are provided.

•OSD

By providing multi-lingual user-friendly OSD (On-screen Display) menu, the camera provides

easy handling of the camera.

English _9

●OVERVIEW

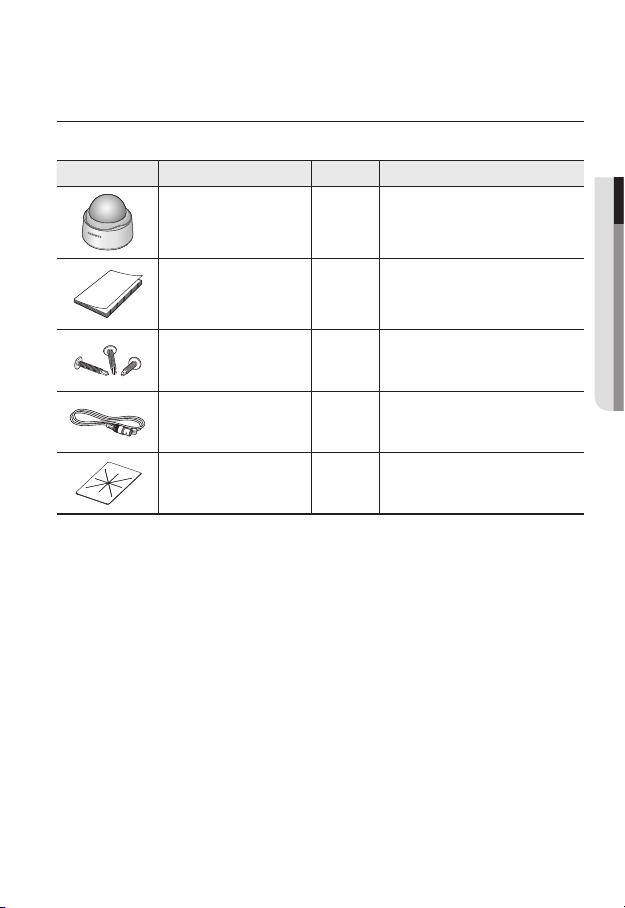

WHAT’S INCLUDED

Check if the main unit and all the following accessories are included in the product package.

Appearance Item Name Quantity Description

Camera 1

User Manual 1

Iron Screw

Used for fixing to an iron plate

Cable for the testingmonitor

Used to test the camera connection to a

portable display device

Dustproof Plate

Preventing dust inflow

overview

10_ overview

AT A GLANCE

Appearance

Item Description

Top cover Case cover used to protect the lens and the main unit.

Camera Case Covers the lens and camera body.

Power Port Used to plug the power cable.

I/O Port

1:GND Earth-grounding port for external signal.

2:EXT_D/N External signal reception port for Day/Night mode setup.

3:MD_OUT Output port that signals when a motion is detected.

4:RS-485+ RS-485+ signal port for RS-485 communication.

5:RS-485– RS-485– signal port for RS-485 communication.

HD-SDI Video Out

terminal BNC terminal for HD-SDI video signal output.
