Samsung SCP-3430 Manuale utente
Smart Dome Camera
User Manual SCP-3430(P)
Z6806125501A-SCP-3430(P)-ENGLISH1 1Z6806125501A-SCP-3430(P)-ENGLISH1 1 2010-05-04 오후 2:35:552010-05-04 오후 2:35:
2_ overview
overview
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR
BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
This symbol indicates that dangerous voltage consisting a risk of
electric shock is present within this unit.
This symbol indicates that there are important operating and
maintenance instructions in the literature accompanying this unit.
WARNING
To reduce the risk of fire or electric shock, do not expose this appliance to rain or
moisture.
To prevent injury, this apparatus must be securely attached to the floor/wall in
accordance with the installation instructions.
Use only the 24V, 60Hz AC adaptor for power supply.
WARNING
Be sure to use only the standard adapter that is specified in the specification sheet.
Using any other adapter could cause fire, electrical shock, or damage to the
product.
Incorrectly connecting the power supply or replacing battery may cause explosion,
fire, electric shock, or damage to the product.
Do not connect multiple cameras to a single adapter. Exceeding the capacity may
cause abnormal heat generation or fire.
Securely plug the power cord into the power receptacle. Insecure connection may
cause fire.
y
y
y
1.
2.
3.
4.
Z6806125501A-SCP-3430(P)-ENGLISH2 2Z6806125501A-SCP-3430(P)-ENGLISH2 2 2010-05-04 오후 2:36:282010-05-04 오후 2:36:
English _3
● OVERVIEW
When installing the camera, fasten it securely and firmly. The fall of camera may
cause personal injury.
Do not place conductive objects (e.g. screwdrivers, coins, metal parts, etc.) or
containers filled with water on top of the camera. Doing so may cause personal
injury due to fire, electric shock, or falling objects.
Do not install the unit in humid, dusty, or sooty locations. Doing so may cause fire
or electric shock.
If any unusual smells or smoke come from the unit, stop using the product. In such
case, immediately disconnect the power source and contact the service center.
Continued use in such a condition may cause fire or electric shock.
If this product fails to operate normally, contact the nearest service center. Never
disassemble or modify this product in any way. (SAMSUNG is not liable for
problems caused by unauthorized modifications or attempted repair.)
When cleaning, do not spray water directly onto parts of the product. Doing so may
cause fire or electric shock
Do not expose the product to the direct airflow from an air conditioner.
Otherwise, it may cause moisture condensation inside the Clear Dome due to
temperature difference between internal and external of the dome camera.
If you install this product in a low-temp area such as inside a cold store, you must
seal up the wiring pipe with silicon, so that the external air can not flow inside the
housing.
Otherwise, external high, humid air may flow inside the housing, pooling moisture
or vapor inside the product due to a difference between internal and external
temperature.
5.
6.
7.
8.
9.
10.
11.
12.
Z6806125501A-SCP-3430(P)-ENGLISH3 3Z6806125501A-SCP-3430(P)-ENGLISH3 3 2010-05-04 오후 2:36:292010-05-04 오후 2:36:
overview
4_ overview
CAUTION
Do not drop objects on the product or apply strong blows to it. Keep away from a
location subject to excessive vibration or magnetic interference.
Do not install in a location subject to high temperature (over 50°C), low temperature
(below -10°F), or high humidity. Doing so may cause fire or electric shock.
If you want to relocate the already installed product, be sure to turn off the power
and then move or reinstall it.
Remove the power plug from the outlet when there is a lighting storm. Neglecting
to do so may cause fire or damage to the product.
Keep out of direct sunlight and heat radiation sources. It may cause fire.
Install it in a place with good ventilation.
Avoid aiming the camera directly towards extremely bright objects such as sun, as
this may damage the CCD image sensor.
Apparatus shall not be exposed to dripping or splashing and no objects filled with
liquids, such as vases, shall be placed on the apparatus.
The Mains plug is used as a disconnect device and shall stay readily operable at
any time.
When using the camera outdoors, moisture may occur inside the camera due
to temperature difference between indoors and outdoors. For this reason, it is
recommended to install the camera indoors. For outdoor use, use the camera with
built-in fan and heater.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Z6806125501A-SCP-3430(P)-ENGLISH4 4Z6806125501A-SCP-3430(P)-ENGLISH4 4 2010-05-04 오후 2:36:302010-05-04 오후 2:36:
English _5
● OVERVIEW
FCC STATEMENT
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions :
1) This device may not cause harmful interference, and
2) This device must accept any interference received including interference that may
cause undesired operation.
CAUTION
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated
in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to
correct the interference at his own expense.
IC Compliance Notice
This Class A digital apparatus meets all requirements of the Canadian
Interference.-Causing Equipment Regulations of ICES-003.
Z6806125501A-SCP-3430(P)-ENGLISH5 5Z6806125501A-SCP-3430(P)-ENGLISH5 5 2010-05-04 오후 2:36:312010-05-04 오후 2:36:
overview
6_ overview
IMPORTANT SAFETY INSTRUCTIONS
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
Do not install near any heat sources such as radiators, heat registers, or other
apparatus (including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding-type plug.
A polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or the third prong
is provided for your safety. If the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
Only use attachments/accessories specified by the manufacturer.
Use only with the cart, stand, tripod, bracket, or table specified
by the manufacturer, or sold with the apparatus. When a
cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
Unplug this apparatus during lightning storms or when unused
for long periods of time.
Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as powersupply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
Apparatus shall not be exposed to dripping or splashing and no objects
filled with liquids, such as vases, shall be placed on the apparatus
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
Z6806125501A-SCP-3430(P)-ENGLISH6 6Z6806125501A-SCP-3430(P)-ENGLISH6 6 2010-05-04 오후 2:36:322010-05-04 오후 2:36:
English _7
● OVERVIEW
CONTENTS
OVERVIEW
2
6Important Safety Instructions
7Contents
8Features
8What’s Included
9At a Glance
INSTALLATION &
CONNECTION
10
10 Preparing Installation
10 Installation
14 Initial Setup
17 Connecting with Other Device
SETUP
20
20 How to use the Keyboard
Controller
21 Main Menu
22 Profile
24 Camera Set
33 Intelligent Video
35 Privacy Zone
36 Preset
38 Auto Set
42 Zone Set
43 Alarm Set
45 Clock Set
45 Other Set
47 Communication
48 System Info
APPENDIX
49
49 Shortcut Keys
50 Specifications
52 Product Appearance
Z6806125501A-SCP-3430(P)-ENGLISH7 7Z6806125501A-SCP-3430(P)-ENGLISH7 7 2010-05-04 오후 2:36:332010-05-04 오후 2:36:
overview
8_ overview
FEATURES
With the state-of-the-art digital signal processing technology, full digital image
processing and special algorithm of 600-line high resolution implemented
High performance surveillance camera, equipped with x43 zoom lens and digital
zoom IC, enabling monitoring up to 688 times
WDR to cover the full screen irregardless of its brightness
DAY/NIGHT to improve the sensitivity by automatic conversion into the black and
white mode at night or in the environment with low illumination
White Balance to control the brightness to the illumination
Backlight Compensation under spotlight or utmost bright illumination
Auto Focus to automatically adjust the focus to the subject movement
Privacy zone to hide a specific area for personal privacy
PAN/TILT for precise control at high speed

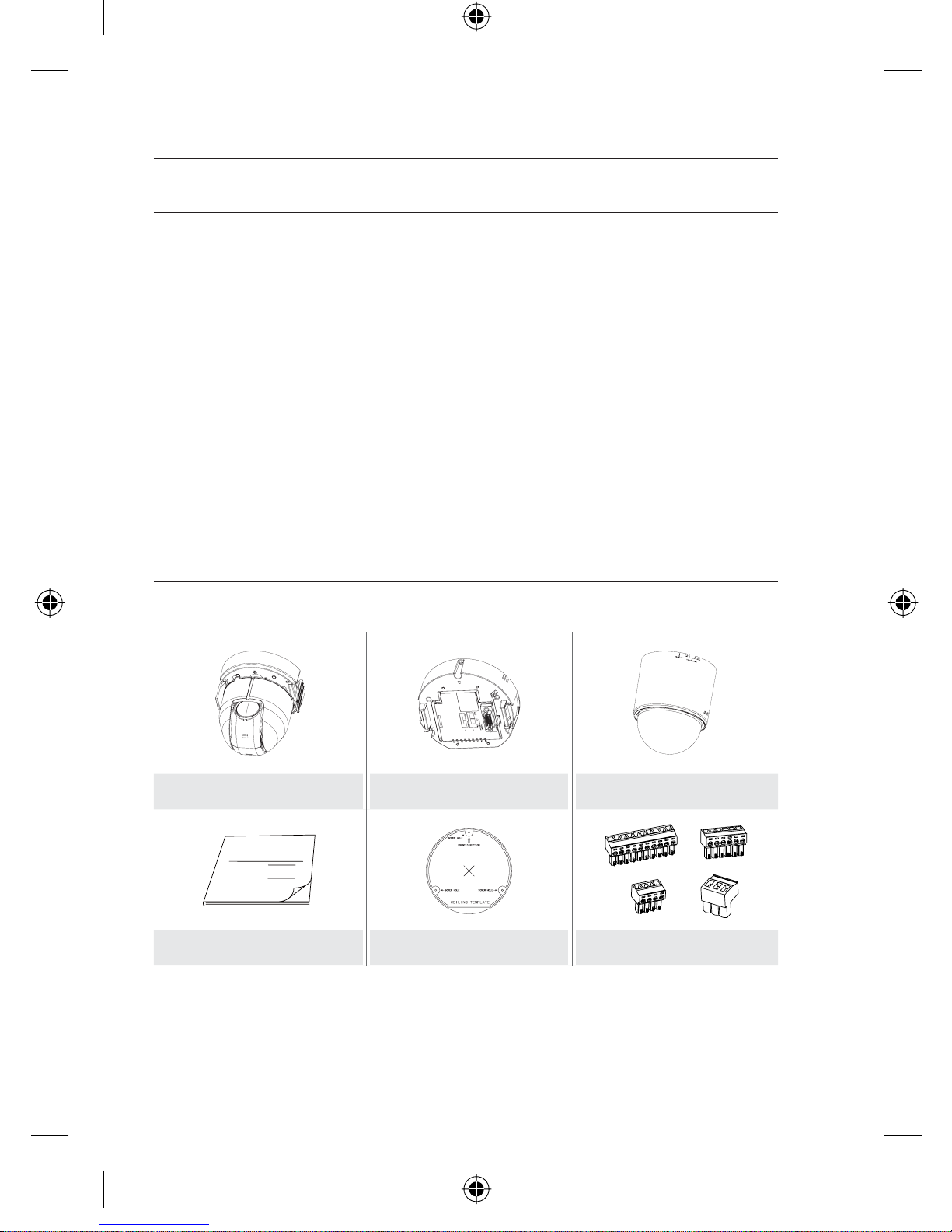

WHAT’S INCLUDED
Please check if your camera and accessories are all included in the product package.
SW602
Camera Frame Set Cover
User Manual
User Manual Template Connectors
y
y
y
y
y
y
y
y
y
Z6806125501A-SCP-3430(P)-ENGLISH8 8Z6806125501A-SCP-3430(P)-ENGLISH8 8 2010-05-04 오후 2:36:342010-05-04 오후 2:36:
English _9
● OVERVIEW

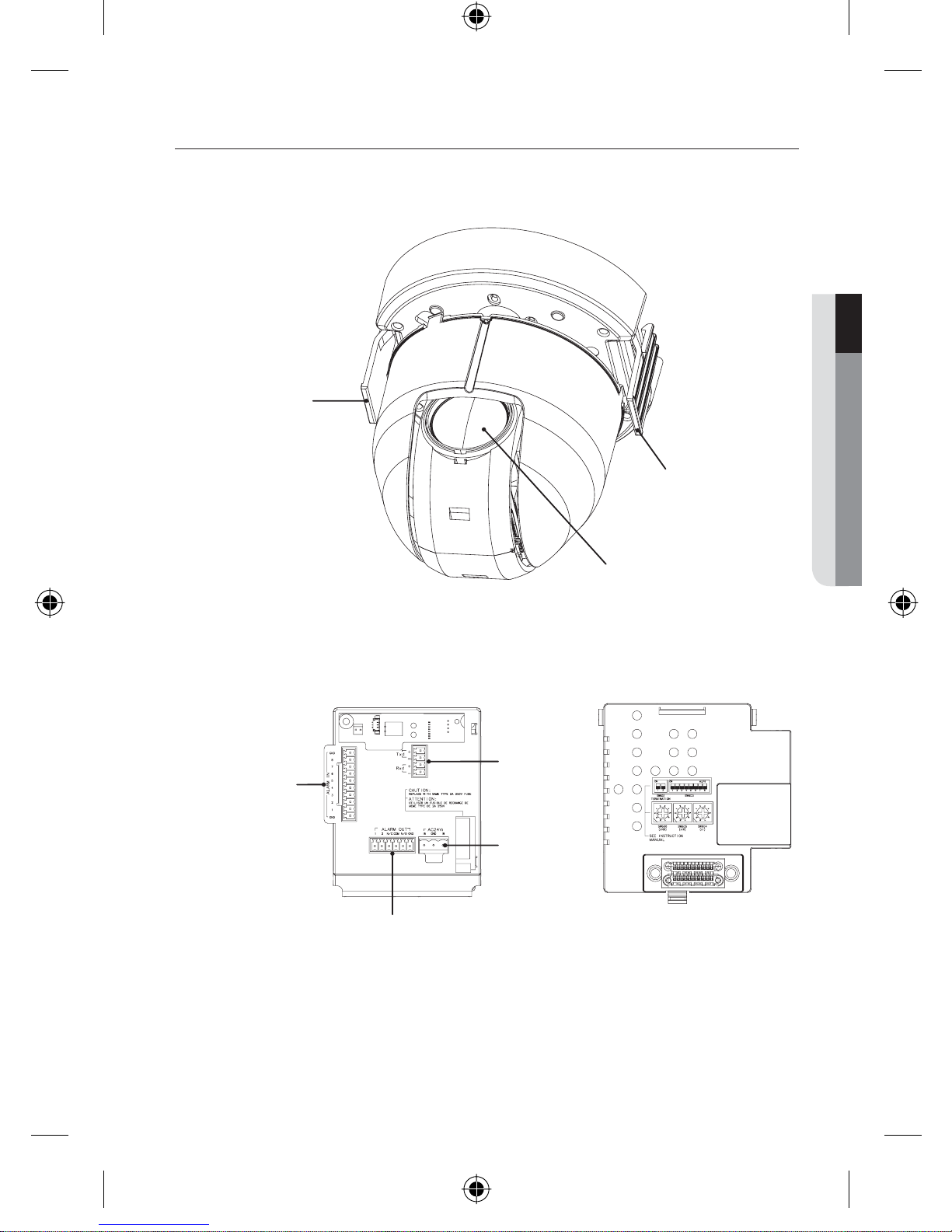

AT A GLANCE
CAMERA
FRAME SET
Wipe out a dirty surface of the lens softly with a lens tissue or cloth to which you
have applied ethanol.
M
LENS
HOOK
HOOK
ALARM IN
ALARM OUT
RS-485
POWER
INPUT
Z6806125501A-SCP-3430(P)-ENGLISH9 9Z6806125501A-SCP-3430(P)-ENGLISH9 9 2010-05-04 오후 2:36:382010-05-04 오후 2:36:
10_ installation & connection
installation & connection
PREPARING INSTALLATION
Use the ceiling installation template when you install the camera on the ceiling on
your own.
Run the cables through the “” shaped hole on the center of the template, and
remove films on the adhesives, and then attach the template on the desired location
on the ceiling.
When installing the frames set, align all template’s screw holes and those of the
frames set.
This template prevents dust entering from the ceiling into the camera assembly.
INSTALLATION
Press the “SNAP FIT” on the “ADAPTOR” to open the “ADAPTOR”, and arrange
cables so they pass out of the “FRAME SET”.
y
y
y
y
1.
EXTERNAL
CABLES
FRAME SET FRAME SET
ADAPTOR SNAP FIT
ADAPTOR
SNAP FIT
<TEMPLATE>
CABLESCEILING CABLESCEILING TEMPLATE
Z6806125501A-SCP-3430(P)-ENGLISH10 10Z6806125501A-SCP-3430(P)-ENGLISH10 10 2010-05-04 오후 2:36:432010-05-04 오후 2:36:
Altri manuali per SCP-3430
1
Questo manuale è adatto per i seguenti modelli
1
Indice
Altri manuali Samsung Telecamera di sicurezza
Samsung
Samsung SCC-B2313 Manuale utente
Samsung
Samsung SCC-B5300(G)(P) Manuale utente
Samsung
Samsung SCB-3020 Manuale utente
Samsung
Samsung SCC-C7453N Manuale utente
Samsung
Samsung SCB-2000 Manuale utente
Samsung
Samsung COMPACT SPD-1000 Manuale utente
Samsung
Samsung SCD-2010F Series Manuale utente
Samsung
Samsung SCZ-2430 Manuale utente
Samsung
Samsung SCD-6080 Manuale utente
Samsung
Samsung SVD-4700 Manuale utente
Samsung
Samsung SNC-B2315 Manuale utente
Samsung
Samsung SIR-4260 Manuale utente
Samsung
Samsung SDC-313B Manuale utente
Samsung
Samsung SCC-B1311(P) Manuale utente
Samsung
Samsung SCZ-3250PD Manuale utente
Samsung
Samsung SCO-2370N Manuale utente
Samsung
Samsung iPOLiS SNP-3120 Manuale utente
Samsung
Samsung SID-500 Manuale utente
Samsung
Samsung SCZ-3250P Manuale utente
Samsung
Samsung SCC-C6455N Manuale utente
