Samsung SND-7084R Manuale utente

NETWORK CAMERA

User Manual SND-7084R/

SNO-7084R/SNV-7084R

Trademark

is the registered logo of Samsung Techwin Co., Ltd.

The name of this product is the registered trademark of Samsung Techwin Co., Ltd.

Other trademarks mentioned in this manual are the registered trademark of their respective company.

Restriction

Samsung Techwin Co., Ltd shall reserve the copyright of this document. Under no circumstances, this document shall

be reproduced, distributed or changed, partially or wholly, without formal authorization of Samsung Techwin.

Disclaimer

Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but no

formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user’s own

responsibility. Samsung Techwin reserves the right to change the contents of this document without prior notice.

Design and specifications are subject to change without prior notice.

The initial administrator ID is “admin” and the password should be set when logging in for the first time.

Please change your password every three months to safely protect personal information and to prevent

the damage of the information theft.

Please, take note that it’s a user’s responsibility for the security and any other problems caused by

mismanaging a password.

Network Camera

User Manual

English _3

●OVERVIEW

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings, Install in accordance with the manufacturer’s

instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other

apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized

plug has two blades with one wider than the other. A grounding type plug has two

blades and a third grounding prong. The wide blade or the third prong are provided for

your safety. If the provided plug does not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/ accessories specified by the manufacturer.

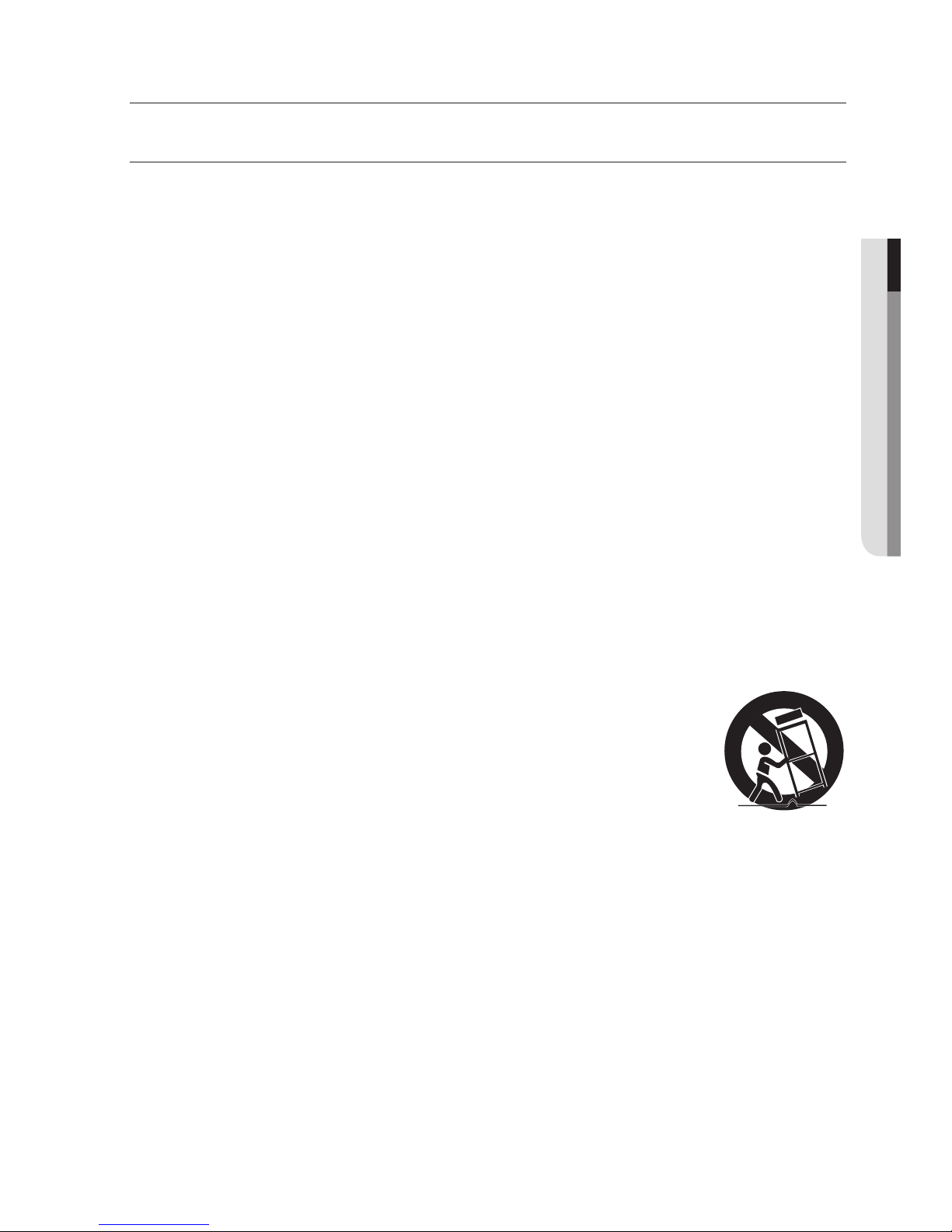

12. Use only with the cart, stand, tripod, bracket, or table specified by

the manufacturer, or sold with the apparatus. When a cart is used,

use caution when moving the cart/apparatus combination to avoid

injury from tip-over.

13. Unplug this apparatus during lighting storms or when unused for

long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power-supply cord or plug is

damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus

has been exposed to rain or moisture, does not operate normally, or has been dropped.

overview

4_ overview

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE

THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC

OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS

ON THE EQUIPMENT.

Apparatus shall not be exposed to dripping or splashing and that no objects

filled with liquids, such as vases, shall be placed on the apparatus.

To prevent injury, this apparatus must be securely attached to the Wall/ceiling

in accordance with the installation instructions.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

EXPLANATION OF GRAPHICAL SYMBOLS

The lightning flash with arrowhead symbol, within an

equilateral triangle, is intended to alert the user to the

presence of “dangerous voltage” within the product’s

enclosure that may be of sufficient magnitude to constitute a

risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended

to alert the user to the presence of important operating

and maintenance (servicing) instructions in the literature

accompanying the product.

English _5

●OVERVIEW

Class construction

An apparatus with CLASS construction shall be connected to a MAINS

socket outlet with a protective earthing connection.

Battery

Batteries(battery pack or batteries installed) shall not be exposed to excessive

heat such as sunshine, fire or the like.

Disconnection Device

Disconnect the main plug from the apparatus, if it’s defected. And please call

a repair man in your location.

When used outside of the U.S., it may be used HAR code with fittings of

an approved agency is employed.

CAUTION

Risk of explosion if battery is replaced by an incorrect type.

Dispose of used batteries according to the instructions.

These servicing instructions are for use by qualified service personnel only.

To reduce the risk of electric shock do not perform any servicing other than

that contained in the operating instructions unless you are qualified to do so.

The CVBS out terminal of the product is provided for easier installation, and is

not recommended for monitoring purposes.

Please use the input power with just one camera and other devices must not

be connected.

The ITE is to be connected only to PoE networks without routing to the

outside plant.

overview

6_ overview

Please read the following recommended safety precautions carefully.

yDo not place this apparatus on an uneven surface.

yDo not install on a surface where it is exposed to direct sunlight, near

heating equipment or heavy cold area.

yDo not place this apparatus near conductive material.

yDo not attempt to service this apparatus yourself.

yDo not place a glass of water on the product.

yDo not install near any magnetic sources.

yDo not block any ventilation openings.

yDo not place heavy items on the product.

User’s Manual is a guidance book for how to use the products.

The meaning of the symbols are shown below.

yReference : In case of providing information for helping of product’s usages

yNotice : If there’s any possibility to occur any damages for the goods and

human caused by not following the instruction

Please read this manual for the safety before using of goods and keep it in

the safe place.

English _7

●OVERVIEW

CONTENTS

OVERVIEW

3Important Safety Instructions

9Product Features

10 Recommended PC Specifications

11 Recommended Micro SD/

SDHC/SDXC Memory Card

Specifications

11 NAS recommended specs

12 What’s Included

15 At a Glance (SND-7084R)

19 At a Glance (SNO-7084R)

23 At a Glance (SNV-7084R)

INSTALLATION &

CONNECTION

26 Installation (SND-7084R)

28 Installation (SNO-7084R)

30 Installation (SNV-7084R)

39 Inserting/Removing a Micro SD

Memory Card (SND-7084R/

SNV-7084R)

41 Memory Card Information

(Not Included)

42 Connecting with other Device

NETWORK CONNECTION

AND SETUP

51 Connecting the Camera Directly

to Local Area Networking

52 Connecting the Camera Directly

to a DHCP Based DSL/Cable

Modem

53 Connecting the Camera Directly

to a PPPoE Modem

54 Connecting the Camera to a

Broadband Router with the

PPPoE/Cable Modem

55 Buttons used in IP Installer

56 Static IP Setup

60 Dynamic IP Setup

Port Range Forward (Port Mapping)

Setup

63 Connecting to the Camera from a

Shared Local PC

63 Connecting to the Camera from a

Remote PC via the Internet

overview

8_ overview

SETUP SCREEN

82 Setup

82 Video & Audio Setup

101 Network Setup

112 Event Setup

117 NAS (Network Attached Storage)

guide

134 System Setup

APPENDIX

143

143 Specification

149 Product Overview

152 Troubleshooting

154 Open Source Announcement

WEB VIEWER

64 Connecting to the Camera

66 Password setting

66 Login

67 Installing Silverlight Runtime

70 Installing STW WebViewer Plugin

72 Using the Live Screen

75 Playing the recorded video

English _9

●OVERVIEW

PRODUCT FEATURES

•Dustproof/Waterproof (IP66) (SNO-7084R/SNV-7084R)

The dustproof and waterproof design makes you feel at ease when installing the product

outdoors or exposing it to rain.

•IR mode

If the IR indicator turns on, the product switches to the IR mode for preventing an object

from being too bright, which helps you identify the object in near distance.

•Visibility: 25m (SND-7084R/SNV-7084R)

In B/W mode, the IR indicator turns on with the effective visibility of 25m at 0 Lux.

•Visibility: 30m (SNO-7084R)

In B/W mode, the IR indicator turns on with the effective visibility of 30m at 0 Lux.

•Full HD Video Quality

•Multi-Streaming

This network camera can display videos in different resolutions and qualities

simultaneously using different CODECs.

•Web Browser-based Monitoring

Using the Internet web browser to display the image in a local network environment.

•Alarm

When an event occurs, video is either sent to the email address registered by the user, sent

to the FTP server, saved in a Micro SD card or NAS, or a signal is sent to the alert output

terminal.

•Built-in SD Memory (SNO-7084R)

This product is equipped with an internal 4GB memory card (SDHC).

•Tampering Detection

Detects tempering attempts on video monitoring.

•Motion Detection

Detects motion from the camera’s video input.

•Intelligent Video Analysis

Analyzes video to detect logical events of specified conditions from the camera’s video

input.

•Face Detection

Detects faces from the camera’s video input.

•Audio Detection

Detects sound louder than a certain level specified by user.

overview

10_ overview

•Smart Codec

Adaptively applies codecs for a portion of the camera’s field of view to improve the quality

of such area specified by user.

•Auto Detection of Disconnected Network

Detects network disconnection before triggering an event.

•ONVIF Compliance

This product supports ONVIF Profile-S.

For more information, refer to www.onvif.org.

RECOMMENDED PC SPECIFICATIONS

•CPU : Intel Core 2 Duo 2.4 GHz or higher (for using 1920x1080 30 fps)

Intel Core i7 2.8 GHz or higher (for using 1920x1080 60 fps)

`Web Plug-in is optimized to SSE 4.1 Instruction Set.

•Resolution : 1280X1024 pixels or higher (32 bit color)

•RAM : 2GB or higher

•Supported OS : Windows XP / VISTA / 7, MAC OS X 10.7

•Supported Browser : Microsoft Internet Explorer (Ver. 8~10)

Mozilla Firefox (Ver. 9~19), Google Chrome (Ver. 15~25),

Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 only), 5.1.7)

`Windows 8 is supported only in the Desktop mode.

`Neither a beta test version unlike the version released in the company website nor the developer version will

be supported.

`For IPv6 connection, Window 7 or higher is recommended.

`For Mac OS X, only the Safari browser is supported.

•Video Memory : 256MB or higher

`If the driver of the video graphic adapter is not installed properly or is not the latest version, the

video may not be played properly.

`For a multi-monitoring system involving at least 2 monitors, the playback performance can be

deteriorated depending on the system.

Altri manuali per SND-7084R

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Samsung Telecamera di sicurezza

Samsung

Samsung SCP-3430H Manuale utente

Samsung

Samsung SCC-B2335 Manuale utente

Samsung

Samsung SmartDome SCC-C6403P Manuale utente

Samsung

Samsung SCZ-2430 Manuale utente

Samsung

Samsung SDC-415 Series Manuale utente

Samsung

Samsung IPOLIS SNC-570 Manuale utente

Samsung

Samsung SNZ-6320 Manuale utente

Samsung

Samsung SDZ-330 Manuale utente

Samsung

Samsung SCV-3120 Manuale utente

Samsung

Samsung SNV-6013 Manuale utente

Samsung

Samsung SCB-1001P Manuale utente

Samsung

Samsung SCC-C6475(P) Manuale utente

Samsung

Samsung SDZ-375 Manuale utente

Samsung

Samsung SPD-3300 Manuale utente

Samsung

Samsung SCC-B2315P Manuale utente

Samsung

Samsung SCV-6023R Manuale utente

Samsung

Samsung SNP-6320RH Manuale utente

Samsung

Samsung Wisenet SDC-9443BV Manuale utente

Samsung

Samsung C4235(P) Manuale utente

Samsung

Samsung SPD-3000 Manuale utente

Samsung

Samsung SNH-1011 Manuale utente

Samsung

Samsung SCC-641 - 22x Zoom Smart Dome Camera Manuale utente

Samsung

Samsung SCC-C6403 Manuale utente

Samsung

Samsung SCC-C6433(P) Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Vicon

Vicon V662-D-1 Istruzioni operative

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Vitek

Vitek VTC-C544 Manuale utente

Lumens

Lumens VC-A50PNW Manuale utente
