Samsung SOD14DC Manuale utente

User's Guide

Color Observation Camera

SOD14DC

SSC-21DC

SOD14DC/12DC-eng 10/10/03 4:59 PM Page 1

Overview

CCTV COLOR DOME CAMERA is the monitoring

camera incorporated with the recent CCD that

provides the best monitoring function in connection

with the CCTV system equipment.

✔

Number of CCD pixels

•

270,000 pixels

✔

Power supply

•

SOD14DC : DC12V From Monitor(SOD-14M)

•

SSC-21DC : DC12V From Monitor(SSC-21M)

✔

Automatic function and special function

•

ATW

•

ELC(Electronic shutter iris)

✔

SOD14M(Monitor) only

Part Names and Function

Fixed Focus Lens

Fixed-focus that has a lens attached to the camera.

Keep the camera free of dust or dirt.

PCB Board

It is an important part of the camera that carries out the

main function.

Handle with care.

Camera Frame

Frame that provides support to the camera.

Dome Cover

Clear plastic cover that protects the camera.

Take care not to scratch the cover.

6Pin modular jack

Used to connect the monitor.

SOD14DC/12DC-eng 10/10/03 4:59 PM Page 2

Installation

✔

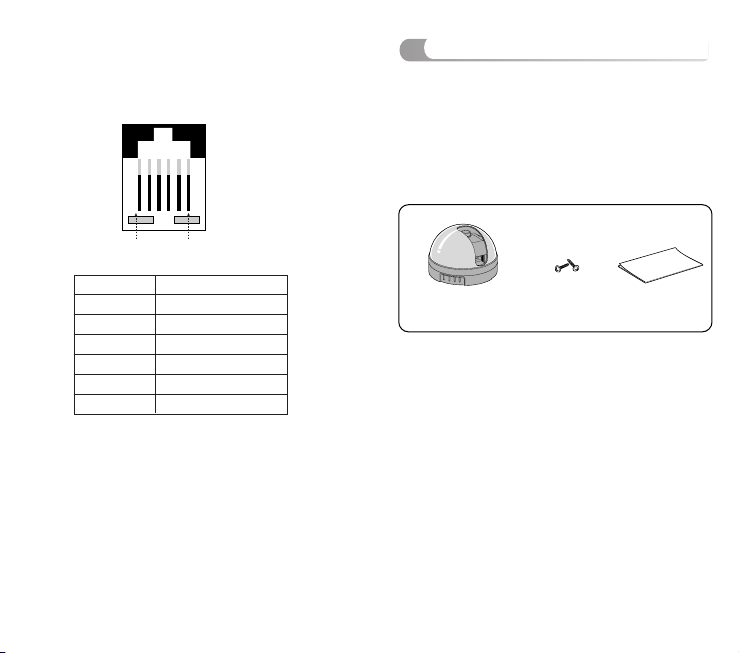

Check what is inside the package

•

Check to see if the following parts are included in

the purchased package.

Camera tab screw User’s guide

!@#$%^

PIN NUMBER SPEC

1N.C

2 VIDEO_OUT

3 GND

4N.C

5N.C

6 12V DC

✽

Fixed Dome Camera does not support alarm in

feature or audio feature.

✔

Notes on installation and usage

1. Users should not disassemble the camera from

the front direction.

2. Always handle the camera with care.

Please do not apply a shock or vibration as

much as possible and take cautions not to cause

damage or make a scratch on the camera due to

careless storage.

3. Please do not install the camera with the rainy

place or highly humid areas. And do not operate

the camera in the wet place.

SOD14DC/12DC-eng 10/10/03 4:59 PM Page 4

•

Connect the camera cable to the camera cable

jack on the dome camera, then connect,and the

other end of the cable to the monitor s channel

input jack.

4. Do not clean the camera body with the strong

abrasives or soaps. When the camera becomes

dirty, clean it with the dry rugs. Especially, make

sure to use the dedicated rugs for lens to clean

the dome cover.

5. Please select the camera in the cool area that is

not exposed to the direct sunlight. If you do, it

can cause bad effects on the product.

✔

Cable connection

•

Remove the dome cover from the main body of

the camera by turning the cover in a counter

clockwise direction with one hand while holding

the body with the other. < SSC-21DC >

< SOD14DC >

SOD14DC/12DC-eng 10/10/03 4:59 PM Page 6

•

Attach the camera to the wall or ceiling using the

supplied tap screws.

•

Adjust the video location by swiveling the camera

(PCB board) up and down, and adjust the focus

by turning the lens clockwise and counter

clockwise.

Wall or ceiling

Main body

Screw Driver Tab screw

•

Put the dome cover back on the camera by

rotating the cover clockwise.

Caution : When removing or closing the dome cover,

do not get dirt or dust on the cover.

Wall or ceiling

Adjust the

image upward

or downward

Adjust focus by

turning left or right

SOD14DC/12DC-eng 10/10/03 4:59 PM Page 8

1110

Specifications

SOD14DC / SSC-21DC : Fixed Dome Camera

Model Name

SOD14DC / SSC-21DC

Broadcast System

NTSC STANDARD

Imaging Device

SOD14DC : 1/4”SUPER HAD IT CCD

SSC-21DC :

1/3”

SUPER HAD IT CCD

Effective Pixels

510(H) x 492 (V)

Synchronization

Internal

Resolution

SOD14DC :H : 330 TV Lines,

V : 350 TV Lines

SSC-21DC :

H : 330 TV Lines

Signal Output

VBS 1.0Vp-p(75ohm composite)

S/N Ratio

SOD14DC :

≤48 dB

SSC-21DC :

≤50 dB

Minimum Object

SOD14DC :

2lux(F2.0, 50 IRE)

Illumination

SSC-21DC :

0.2lux(F2.0, 50 IRE)

Gamma Correction

0.45

Lens

Focal Length (f) : 3.8mm,

Relative Aperture (F) : 2.0

Auto Exposure

Electronic Shutter lris

I/O Connectors

SOD14DC :

Modular jack

SSC-21DC :A/C input, Video outputs:

MODULAR CABLE(60ft)

Shutter System

SSC-21DC :

Electronic Shutter lris

Operating Temperature -10 ~ + 50°C

Power Source

DC 12V

Power Consumption Approx. 2W

Dimensions

57(W)X47.2(H)X100.5(L)

Weight

SOD14DC :

130g

SSC-21DC :

150g

SOD14DC/12DC-eng 10/10/03 4:59 PM Page 10

AB68-?????

Printed in Korea
