HW-M4500

USER MANUAL

ENG - ii

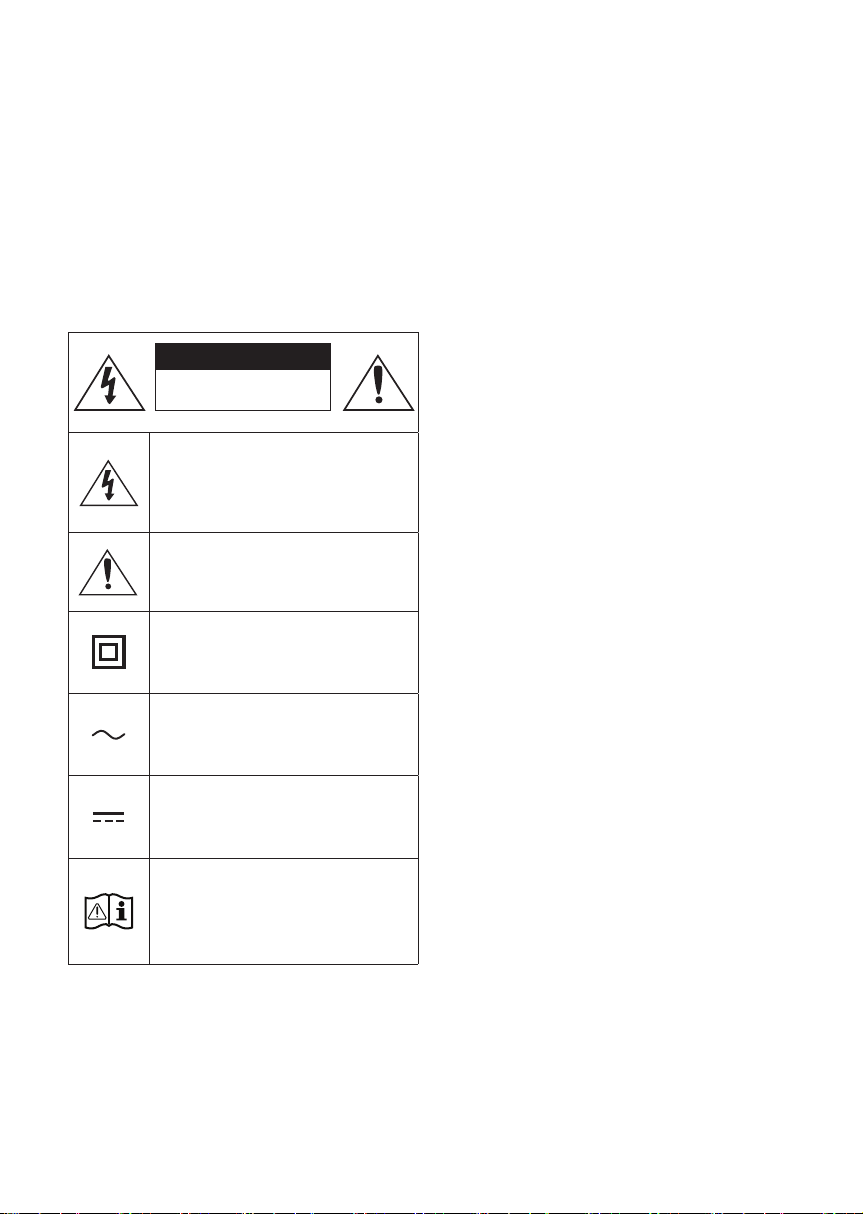

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE THE COVER (OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

This symbol indicates that high voltage

is present inside. It is dangerous to

make any kind of contact with any

internal part of this product.

This symbol indicates that this product

has included important literature

concerning operation and maintenance.

Class II product : This symbol indicates

that it does not require a safety

connection to electrical earth (ground).

AC voltage : This symbol indicates that

the rated voltage marked with the

symbol is AC voltage.

DC voltage : This symbol indicates that

the rated voltage marked with the

symbol is DC voltage.

Caution, Consult instructions for use :

This symbol instructs the user to

consult the user manual for further

safety related information.

WARNING

•To reduce the risk of re or electric shock, do

not expose this appliance to rain or moisture.

CAUTION

•TO PREVENT ELECTRIC SHOCK, MATCH WIDE

BLADE OF PLUG TO WIDE SLOT, FULLY

INSERT.

•This apparatus shall always be connected to a

AC outlet with a protective grounding

connection.

•To disconnect the apparatus from the mains,

the plug must be pulled out from the mains

socket, therefore the mains plug shall be

readily operable.

•Do not expose this apparatus to dripping or

splashing. Do not put objects lled with

liquids, such as vases on the apparatus.

•To turn this apparatus off completely, you

must pull the power plug out of the wall

socket. Consequently, the power plug must

be easily and readily accessible at all times.

ENG - iii

PRECAUTIONS

1. Ensure that the AC power supply in your

house complies with the power

requirements listed on the identication

sticker located on the back of your product.

Install your product horizontally, on a

suitable base (furniture), with enough space

around it for ventilation (7~10 cm). Make sure

the ventilation slots are not covered. Do not

place the unit on ampliers or other

equipment which may become hot. This unit

is designed for continuous use. To fully turn

off the unit, disconnect the AC plug from the

wall outlet. Unplug the unit if you intend to

leave it unused for a long period of time.

2. During thunderstorms, disconnect the AC

plug from the wall outlet. Voltage peaks due

to lightning could damage the unit.

3. Do not expose the unit to direct sunlight or

other heat sources. This could lead to

overheating and cause the unit to

malfunction.

4. Protect the product from moisture (i.e.

vases), and excess heat (e.g. a replace) or

equipment creating strong magnetic or

electric elds. Unplug the power cable from

the AC wall socket if the unit malfunctions.

Your product is not intended for industrial

use. It is for personal use only. Condensation

may occur if your product has been stored in

cold temperatures. If transporting the unit

during the winter, wait approximately

2 hours until the unit has reached room

temperature before using.

5. The battery used with this product contains

chemicals that are harmful to the

environment. Do not dispose of the battery

in the general household trash. Do not

expose the battery to excess heat, direct

sunlight, or re. Do not short circuit,

disassemble, or overheat the battery.

Danger of explosion if the battery is replaced

incorrectly. Replace only with the same or

equivalent type.

ABOUT THIS MANUAL

The user manual has two parts: this simple paper

USER MANUAL and a detailed FULL MANUAL you

can download.

USER MANUAL

See this manual for safety instructions,

product installation, components,

connections, and product specications.

FULL MANUAL

You can access the customer support centre

by scanning the QR code. To see the manual on

your PC or mobile device, download the

manual in document format from the website.

(http://www.samsung.com/support)

Design and specications are subject to change

without prior notice.

ENG - iv

CONTENTS

01 Checking the Components 2

Inserting Batteries before using the Remote Control (AA batteries X 2) ------------------------- 2

02 Product Overview 3

Top Panel / Front Panel of the Soundbar ------------------------- 3

Bottom Panel of the Soundbar ------------------------- 3

03 Connecting the Soundbar 4

Connecting Electrical Power ------------------------- 4

Connecting the Soundbar to the Subwoofer ------------------------- 5

– Automatic connection between the subwoofer and the Soundbar ------------------------- 5

– Manually connecting the subwoofer if automatic connection fails ------------------------- 6

04 Connecting to your TV 7

Method 1. Connecting with a Cable ------------------------- 7

– Connecting using an Optical Cable ------------------------- 7

– Connecting a TV using an HDMI Cable ------------------------- 8

Method 2. Connecting Wirelessly ------------------------- 9

– Connecting a TV via Bluetooth ------------------------- 9

05 Connecting an External Device 11

Connecting using an Optical or Analogue Audio (AUX) Cable ------------------------- 11

Connecting using an HDMI Cable ------------------------- 12

06 Connecting a USB 13

Software Update ------------------------- 13

ENG - v

07 Connecting a Mobile Device 14

Connecting via Bluetooth ------------------------- 14

08 Using the Remote Control 15

How to Use the Remote Control ------------------------- 15

Adjusting the Soundbar volume with a TV remote control ------------------------- 17

09 Installing the Wall Mount 18

Installation Precautions ------------------------- 18

Wallmount Components ------------------------- 18

10 Troubleshooting 20

11 Licence 21

12 Open Source Licence Notice 21

13 Important Notes About Service 21

14 SpecicationsandGuide 22

Specications ------------------------- 22

ENG - 2

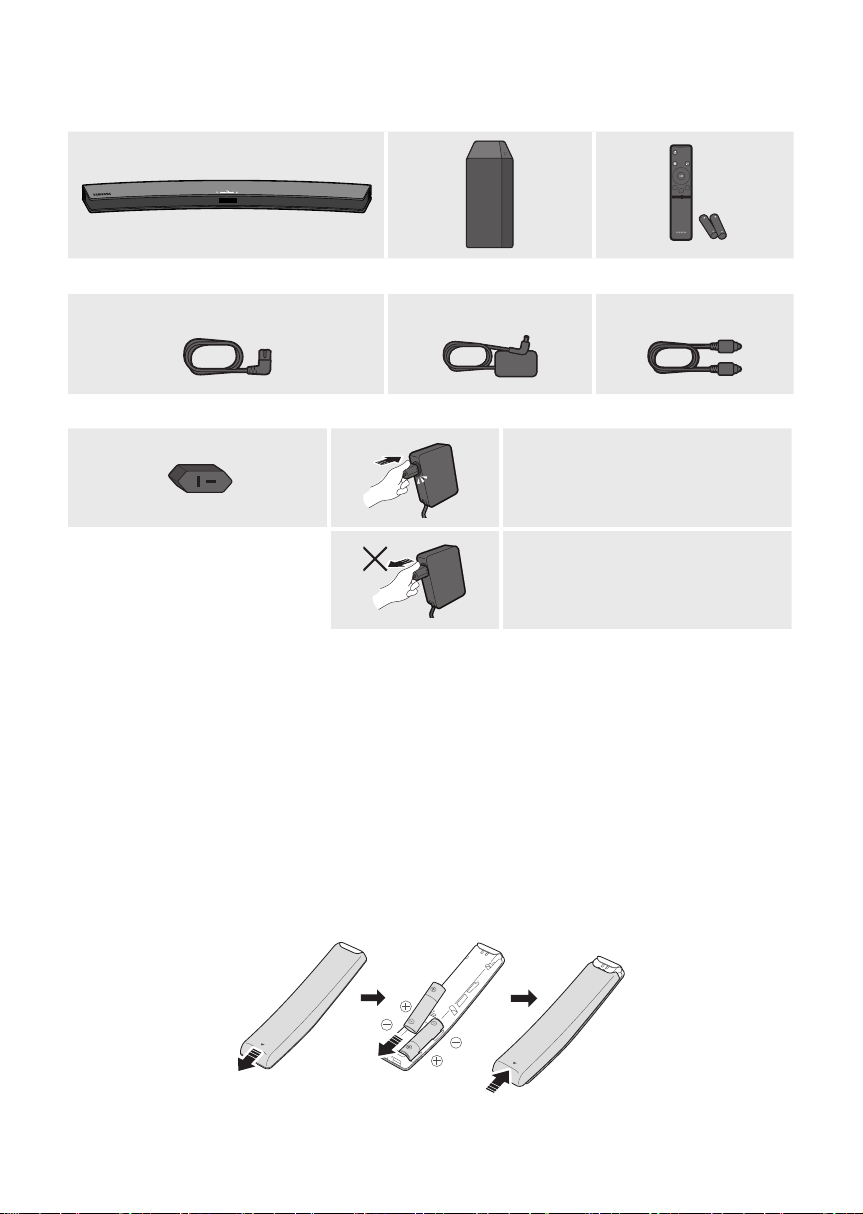

01 CHECKING THE COMPONENTS

Surround

VOL WOOFER

SOUNDBAR

SOUND

MODE

Bluetooth

POWER

Soundbar Main Unit Subwoofer Remote Control / Batteries

1 3

Power Cord (Subwoofer) AC/DC Adapter (Main Unit) Optical Cable

2Connect the AC plug to the adapter

until you hear a “snapping” sound to

ensure they are securely fastened.

AC Plug

(Depending on the country and

model)

Do not detach the AC plug from the

adapter (it will not be removed once it

has been attached).

•The power connection steps are labelled (1, 2, 3). For more information about power

connections, see page 4.

•For Soundbar wall mounting components, see page 18.

•HDMI cable is sold separately. To purchase, contact a Samsung Service Centre or Samsung Customer Care.

•Depending on the region, the AC plug may vary in appearance, or it may be supplied integrated with

the AC/DC adapter.

Inserting Batteries before using the Remote Control (AA batteries X 2)

Slide the battery cover in the direction of the arrow until it is completely removed. Insert 2 AA batteries

(1.5V) oriented so that their polarity is correct. Slide the battery cover back into position.

ENG - 3

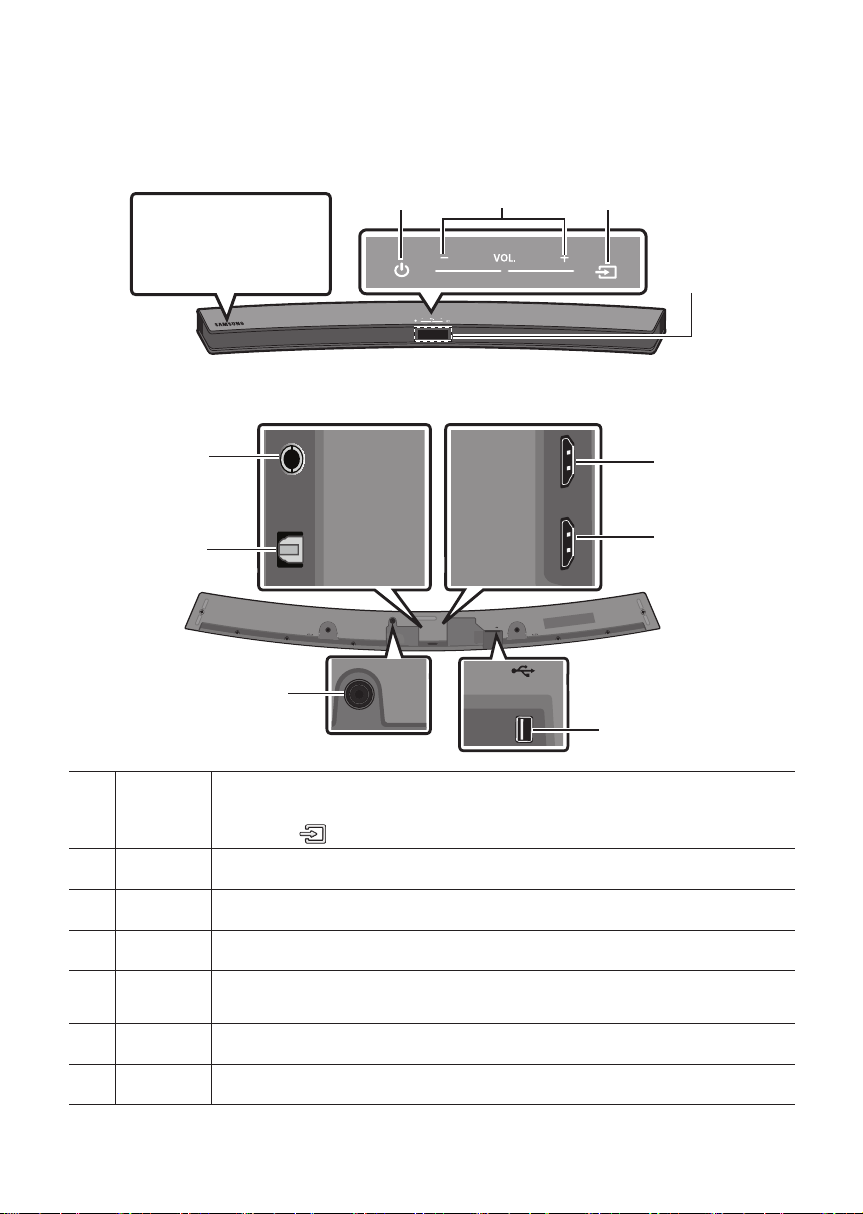

02 PRODUCT OVERVIEW

Top Panel / Front Panel of the Soundbar

󱂓

Display

Volume

Power

Position the product so

that the SAMSUNG logo

is located on the top.

Bottom Panel of the Soundbar

HDMIIN

5V0.5A

HDMIOUT

(TV-ARC)

AUXIN

DC19V

OPTICALIN

DC 19V

5V 0.5A

HDMI IN

HDMI OUT

(TV-ARC)

AUX IN

OPTICAL IN

5V 0.5A

HDMIIN

5V0.5A

HDMIOUT

(TV-ARC)

AUXIN

DC19V

OPTICALIN

DC 19V

5V 0.5A

HDMI IN

HDMI OUT

(TV-ARC)

AUX IN

OPTICAL IN

5V 0.5A

HDMIIN

5V0.5A

HDMIOUT

(TV-ARC)

AUXIN

DC19V

OPTICALIN

DC 19V

5V 0.5A

HDMI IN

HDMI OUT

(TV-ARC)

AUX IN

OPTICAL IN

5V 0.5A

HDMIIN

5V0.5A

HDMIOUT

(TV-ARC)

AUXIN

DC19V

OPTICALIN

DC 19V

5V 0.5A

HDMI IN

HDMI OUT

(TV-ARC)

AUX IN

OPTICAL IN

5V 0.5A

HDMIIN

5V0.5A

HDMIOUT

(TV-ARC)

AUXIN

DC19V

OPTICALIN

DC 19V

5V 0.5A

HDMI IN

HDMI OUT

(TV-ARC)

AUX IN

OPTICAL IN

5V 0.5A

󱂔󱂗

󱂙

󱂕󱂘

󱂖

󱂓Source

Selects the source input mode. (D.IN / AUX / HDMI / BT / USB)

•To turn on “BT PAIRING” mode, change the source to “BT” mode, and then press and

hold the (Source) button for more than 5 seconds.

󱂔AUX Connect to the Analogue output of an external device.

󱂕D.IN Connect to the digital (optical) output of an external device.

󱂖DC 19V Connect the AC/DC power adapter. (Power Supply In)

󱂗HDMI IN Inputs digital video and audio signals simultaneously using an HDMI cable.

Connect to the HDMI output of an external device.

󱂘HDMI OUT Connect to the HDMI (ARC) jack on a TV.

󱂙USB Connect a USB device here to play music les on the USB device through the Soundbar.

ENG - 4

03 CONNECTING THE SOUNDBAR

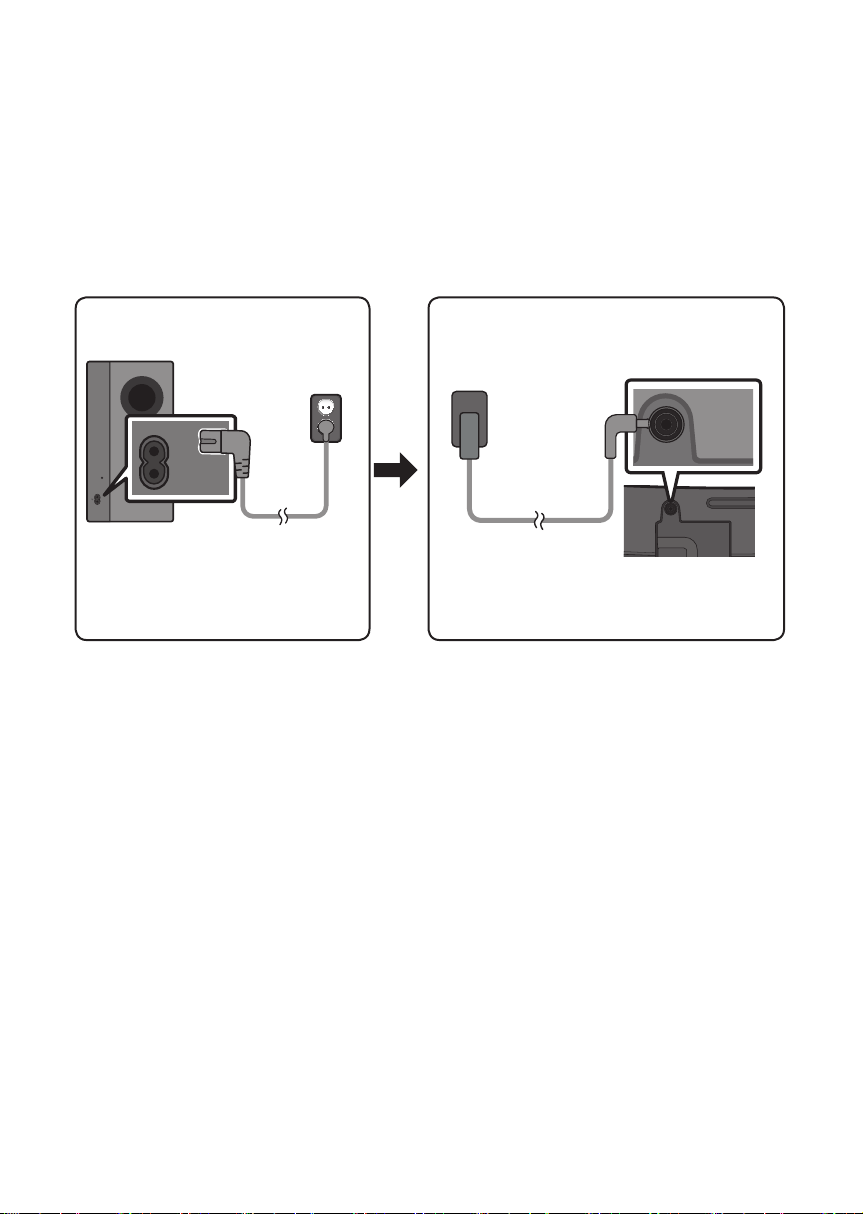

Connecting Electrical Power

Use the power components (1, 2, 3) to connect the units to electrical outlets in the following order:

1.) Subwoofer 2.) Soundbar Main Unit. See the illustrations below.

•For more information about the required electrical power and power consumption, refer to the

label attached to the product. (Label : Bottom of the Soundbar Main Unit)

AUX IN

DC 19V

OPTICAL IN

DC 19V

(Power Jack)

Bottom of the

Soundbar Main Unit

ID SET

POWER

Rear of Subwoofer

1Power Cord

Connecting

Electrical Power

3 AC/DC Adapter

2 AC Plug

ENG - 5

Connecting the Soundbar to the Subwoofer

When the subwoofer is connected, you can enjoy rich bass sound.

Automatic connection between the subwoofer and the Soundbar

When you turn the power on after connecting the power cables to the Soundbar and subwoofer, the

subwoofer is automatically connected to the Soundbar.

•When auto pairing is complete, the blue indicators at the top of the subwoofer turn on.

LED Indicator Lights on the top of Subwoofer

LED Status Description Resolution

Blue

On Successfully connected

(normal operation) -

Blinking Recovering the connection

Check if the power cable to the main

Soundbar unit is connected properly or

wait for a while. (If blinking persists, try

manually connecting the subwoofer.

See page 6.)

Red On

Standby (with the Soundbar

main unit turned off)

Check if the power cable to the main

Soundbar unit is connected properly.

Connection failed Connect again. See the instructions for

manual connection on page 6.

Red and

blue Blinking Malfunction See the contact information for the

Samsung Service Centre in the manual.

ENG - 6

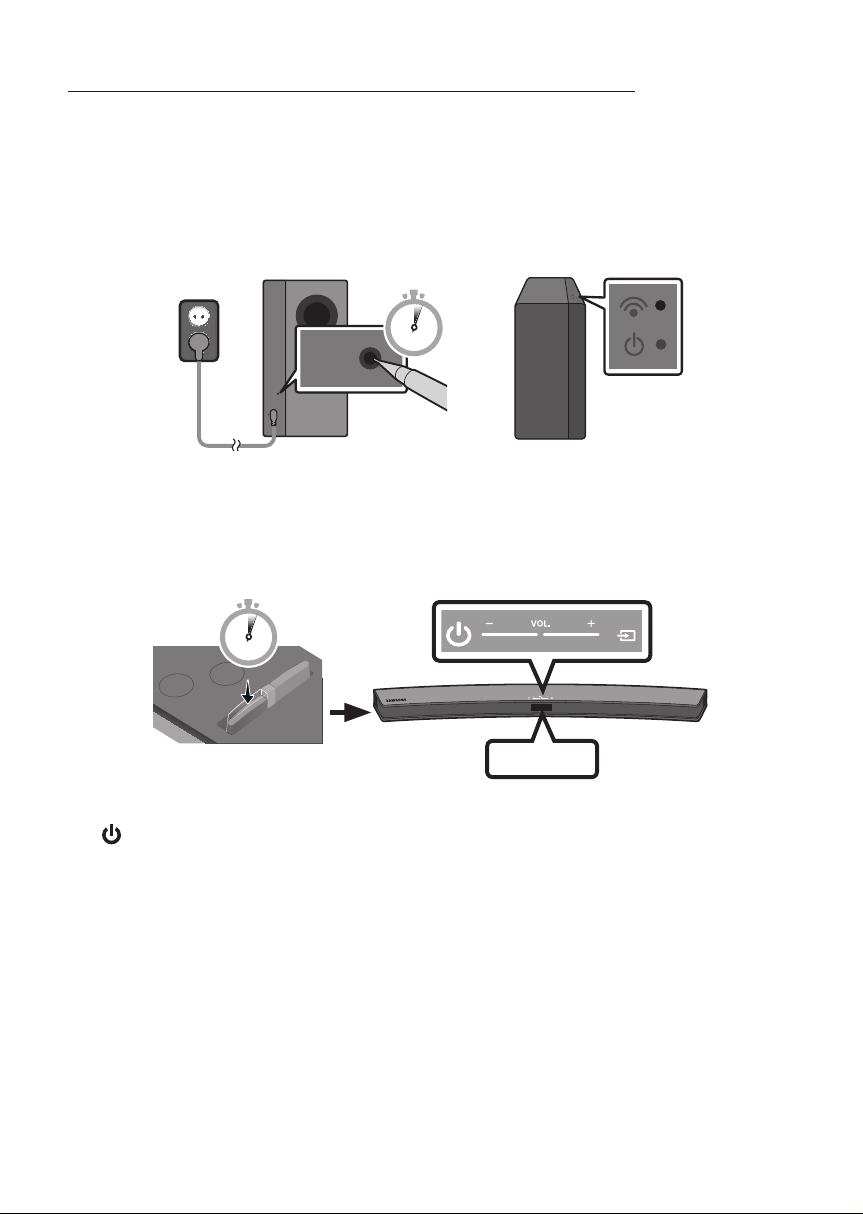

Manually connecting the subwoofer if automatic connection fails

Check before performing the manual connection

•Check whether the power cables for the Soundbar and subwoofer are connected properly.

•Make sure that the Soundbar is turned on.

1. Press and hold ID SET on the rear of the subwoofer for at least 5 seconds.

The red indicator on the top of the subwoofer turns off and the blue indicator blinks.

ID SET

POWER

ID SET

5 Sec

Rear of the Subwoofer Top of the Subwoofer

2. Turn off the Soundbar.

3. Press and hold the VOL button on the remote control for at least 5 seconds with the Soundbar

turned off (OFF).

4. The ID SET message appears on the display of the Soundbar for 1.3 seconds, and then disappear.

ID SET

Surround

SOUND

MODE

Bluetooth

POWER

VOL WOOFER

SOUNDBAR

5 Sec

5. When the blue indicator on the subwoofer blinks, turn on the Soundbar’s power by pressing

(Power) button on the top panel of the main unit or on the remote control.

6. When the connection is successfully established, the blue indicator on the top of the subwoofer

stops blinking and glows continuously.

•If the connection process fails, the blue indicator will ash continuously. Go to Step 1 and start again.

Expand to true wireless surround sound by connecting the Samsung Wireless Rear Speaker

Kit (SWA-8500S) to your Soundbar (Sold separately). For more information, see the

Samsung Wireless Rear Speaker Kit manual.

Altri manuali per HW-M4500

Indice

Lingue:

Altri manuali Samsung Sistema di altoparlanti

Samsung

Samsung HW-D450 Manuale utente

Samsung

Samsung HW-A560 Istruzioni per l'installazione

Samsung

Samsung HW-N400 Manuale utente

Samsung

Samsung HW-A650 Istruzioni per l'installazione

Samsung

Samsung HW-K950 Manuale utente

Samsung

Samsung HARMAN/KARDON HW-Q60R Istruzioni per l'installazione

Samsung

Samsung HW-Q950A/ZA Istruzioni per l'installazione

Samsung

Samsung Crystal Surround Air Track HW-F550 Manuale utente

Samsung

Samsung HW-S50B Istruzioni per l'installazione

Samsung

Samsung HW-M4500 Istruzioni per l'installazione

Samsung

Samsung HW-R450 Manuale utente

Samsung

Samsung HW-M4500 Manuale utente

Samsung

Samsung HW-MM45 Istruzioni per l'installazione

Samsung

Samsung HW-Q990B Manuale utente

Samsung

Samsung HW-S811B Istruzioni per l'installazione

Samsung

Samsung HW-B67C Istruzioni per l'installazione

Samsung

Samsung HW-T450 Manuale utente

Samsung

Samsung HW-B45E Istruzioni per l'installazione

Samsung

Samsung A Series Istruzioni per l'installazione

Samsung

Samsung HW-M360 Istruzioni per l'installazione

Samsung

Samsung HW-H450 Manuale utente

Samsung

Samsung HW-T450 Manuale utente

Samsung

Samsung HW-C400 Istruzioni per l'installazione

Samsung

Samsung HW-Q995C Manuale utente

Manuali Sistema di altoparlanti popolari di altre marche

JVC

JVC CA-MXK5R Manuale utente

LG NB4532B Manuale utente

JVC

JVC CA-FSH100 Manuale utente

5Core

5Core Pro Series Manuale utente

EAW

EAW MQV1394e Manuale utente

Lynx

Lynx GXR-LA10A Manuale utente

iLive

iLive ITB066B Manuale utente

RDX

RDX QuickStation 4 Manuale utente

Electro-Voice

Electro-Voice S-122 Manuale utente

Sven

Sven SPS-619 GOLD Manuale utente

Pioneer

Pioneer CS-7070 Manuale utente

EAW

EAW UB82e Manuale utente

Sondpex

Sondpex Active Speaker System and Digital Music... Manuale utente

JVC

JVC NX-PN7 Manuale utente

Marshall Amplification

Marshall Amplification AR-DM61-BT Manuale utente

Yamaha

Yamaha NX-A01 - Speaker Sys Manuale utente

SE Audiotechnik

SE Audiotechnik I-LINE Manuale utente

Gemini

Gemini WRX-843 Series Manuale utente
