HW-N300

USER MANUAL

ENG - 2

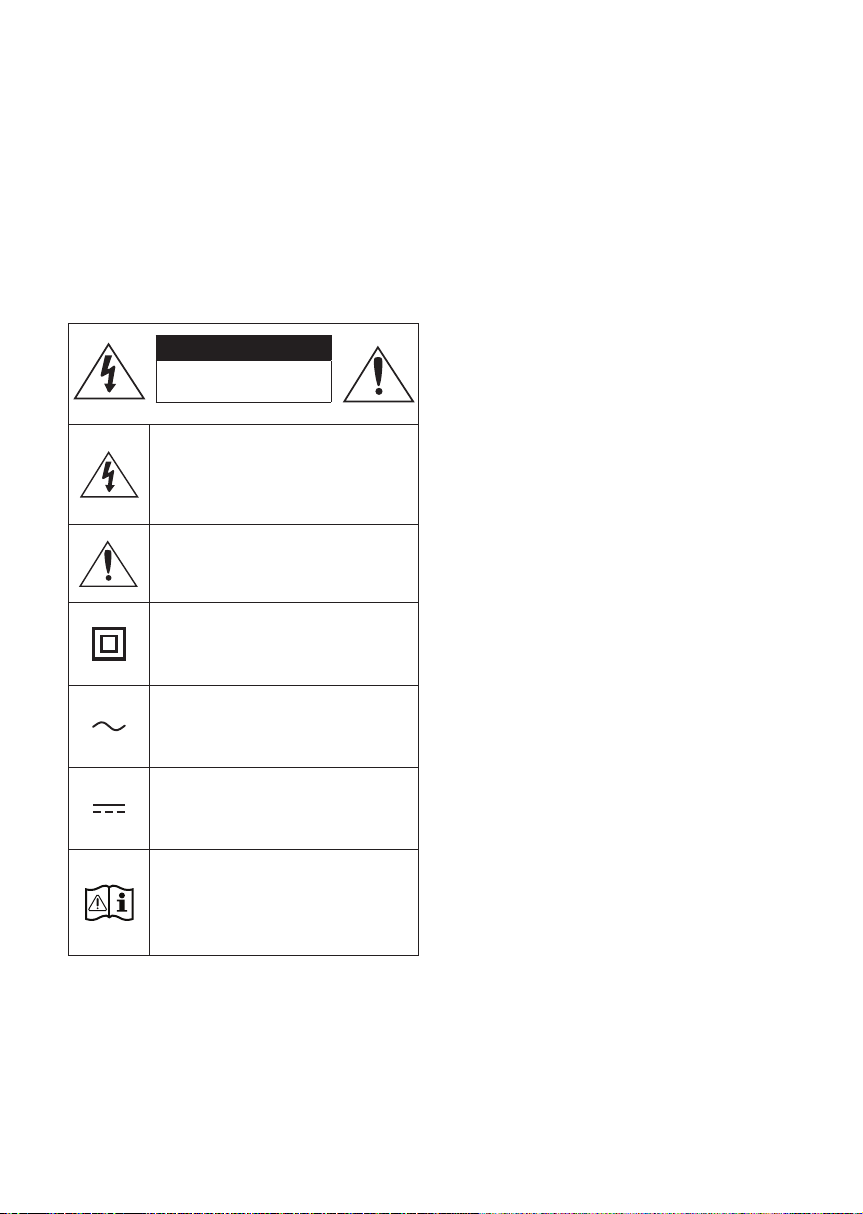

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE THE COVER (OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

This symbol indicates that high voltage

is present inside. It is dangerous to

make any kind of contact with any

internal part of this product.

This symbol indicates that this product

has included important literature

concerning operation and maintenance.

Class II product : This symbol indicates

that it does not require a safety

connection to electrical earth (ground).

AC voltage : This symbol indicates that

the rated voltage marked with the

symbol is AC voltage.

DC voltage : This symbol indicates that

the rated voltage marked with the

symbol is DC voltage.

Caution, Consult instructions for use :

This symbol instructs the user to

consult the user manual for further

safety related information.

WARNING

•To reduce the risk of re or electric shock, do

not expose this appliance to rain or moisture.

CAUTION

•TO PREVENT ELECTRIC SHOCK, MATCH WIDE

BLADE OF PLUG TO WIDE SLOT, FULLY

INSERT.

•This apparatus shall always be connected to a

AC outlet with a protective grounding

connection.

•To disconnect the apparatus from the mains,

the plug must be pulled out from the mains

socket, therefore the mains plug shall be

readily operable.

•Do not expose this apparatus to dripping or

splashing. Do not put objects lled with

liquids, such as vases on the apparatus.

•To turn this apparatus off completely, you

must pull the power plug out of the wall

socket. Consequently, the power plug must

be easily and readily accessible at all times.

ENG - 3

PRECAUTIONS

1. Ensure that the AC power supply in your

house complies with the power

requirements listed on the identication

sticker located on the bottom of your

product. Install your product horizontally, on

a suitable base (furniture), with enough

space around it for ventilation (7~10 cm).

Make sure the ventilation slots are not

covered. Do not place the unit on ampliers

or other equipment which may become hot.

This unit is designed for continuous use. To

fully turn off the unit, disconnect the AC plug

from the wall outlet. Unplug the unit if you

intend to leave it unused for a long period of

time.

2. During thunderstorms, disconnect the AC

plug from the wall outlet. Voltage peaks due

to lightning could damage the unit.

3. Do not expose the unit to direct sunlight or

other heat sources. This could lead to

overheating and cause the unit to

malfunction.

4. Protect the product from moisture (i.e.

vases), and excess heat (e.g. a replace) or

equipment creating strong magnetic or

electric elds. Unplug the power cable from

the AC wall socket if the unit malfunctions.

Your product is not intended for industrial

use. It is for personal use only. Condensation

may occur if your product has been stored in

cold temperatures. If transporting the unit

during the winter, wait approximately

2 hours until the unit has reached room

temperature before using.

5. The battery used with this product contains

chemicals that are harmful to the

environment. Do not dispose of the battery

in the general household trash. Do not

expose the battery to excess heat, direct

sunlight, or re. Do not short circuit,

disassemble, or overheat the battery.

Danger of explosion if the battery is replaced

incorrectly. Replace only with the same or

equivalent type.

ABOUT THIS MANUAL

The user manual has two parts: this simple paper

USER MANUAL and a detailed FULL MANUAL you

can download.

USER MANUAL

See this manual for safety instructions,

product installation, components,

connections, and product specications.

FULL MANUAL

You can access the FULL MANUAL on

Samsung’s on-line customer support centre by

scanning the QR code. To see the manual on

your PC or mobile device, download the

manual in document format from Samsung’s

website. (http://www.samsung.com/support)

Design and specications are subject to change

without prior notice.

ENG - 4

CONTENTS

01 Checking the Components 6

Inserting battery into the Remote Control ------------------------- 6

02 Product Overview 7

Front / Right Side Panel of the Soundbar ------------------------- 7

Bottom Panel of the Soundbar ------------------------- 8

03 The Remote Control 9

Adjusting the Soundbar volume with a TV remote control ------------------------- 10

04 Connecting the Soundbar 12

Connecting Electrical Power ------------------------- 12

05 Connecting to a TV 13

Connecting using an Optical Cable ------------------------- 13

Connecting a TV or Bluetooth Device via Bluetooth ------------------------- 15

06 Connecting an External Device 17

Connecting using an Optical Cable ------------------------- 17

Connecting using an Analogue Audio (AUX) Cable ------------------------- 18

07 Connecting a USB Storage Device 19

Setting Repeat Play Options ------------------------- 20

Software Update ------------------------- 20

ENG - 5

08 Installing the Wall Mount (Optional) 21

Installation Precautions ------------------------- 21

Wall mount Components ------------------------- 21

09 Troubleshooting 24

10 Licence 25

11 Open Source Licence Notice 25

12 Important Notes About Service 25

13 SpecicationsandGuide 26

Specications ------------------------- 26

ENG - 6

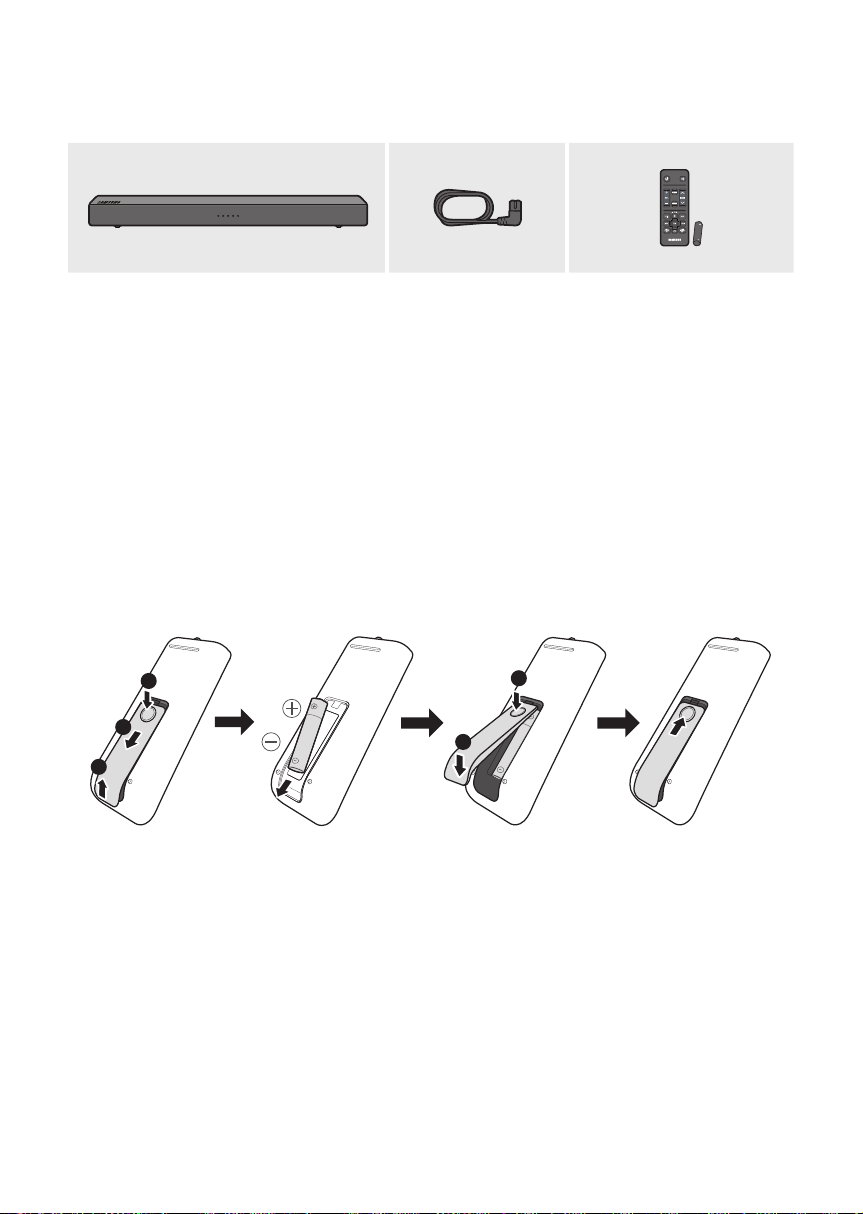

01 CHECKING THE COMPONENTS

Soundbar Main Unit Power Cord Remote Control / Battery

(AAA x 1, Not available in some

locations)

•User Manual / Warranty Card / Regulatory Guide (Not available in some locations).

•For more information about the power supply and power consumption, refer to the label attached

to the product. (Label : Bottom of the Soundbar Main Unit)

•To purchase additional components or optional cables, contact a Samsung Service Centre or

Samsung Customer Care.

Inserting battery into the Remote Control

Match the polarity of the battery to the symbols on the battery compartment.

ENG - 6 ENG - 7

01 CHECKING THE COMPONENTS

Soundbar Main Unit Power Cord Remote Control / Battery

(AAA x 1, Not available in some

locations)

•User Manual / Warranty Card / Regulatory Guide (Not available in some locations).

•For more information about the power supply and power consumption, refer to the label attached

to the product. (Label : Bottom of the Soundbar Main Unit)

•To purchase additional components or optional cables, contact a Samsung Service Centre or

Samsung Customer Care.

Inserting battery into the Remote Control

Match the polarity of the battery to the symbols on the battery compartment.

02 PRODUCT OVERVIEW

Front / Right Side Panel of the Soundbar

AUX IN

POWER DIGITAL AUDIO IN

(OPTICAL)

USB (5V 0.5A)

AUX IN

POWER DIGITAL AUDIO IN

(OPTICAL)

USB (5V 0.5A)

Volume

Power

Position the product so that the

SAMSUNG logo is located on the top.

Front of the Soundbar Right Side of the Soundbar

󱂓󱂔

󱂓LED

indicator

The LED Indicator ashes, glows, or changes colour depending on the Soundbar's current

mode or status. The colour of the LED indicator and the number of lights indicate the active

mode as described below.

WWhite LED BBlue LED RRed LED GGreen LED

Mode Remote control

Button LED indicator

D.IN W

Bluetooth

BConnected status

Slow-Blinking

Disconnected status

Bluetooth

pairing 5 Sec B

Fast-Blinking

AUX W W

USB WWW

󱂔Source

Selects the source input mode. (D.IN / Bluetooth / AUX / USB)

•To turn on “Bluetooth pairing” mode, change the source to “Bluetooth” mode and then

press and hold the button for more than 5 seconds.

ENG - 8

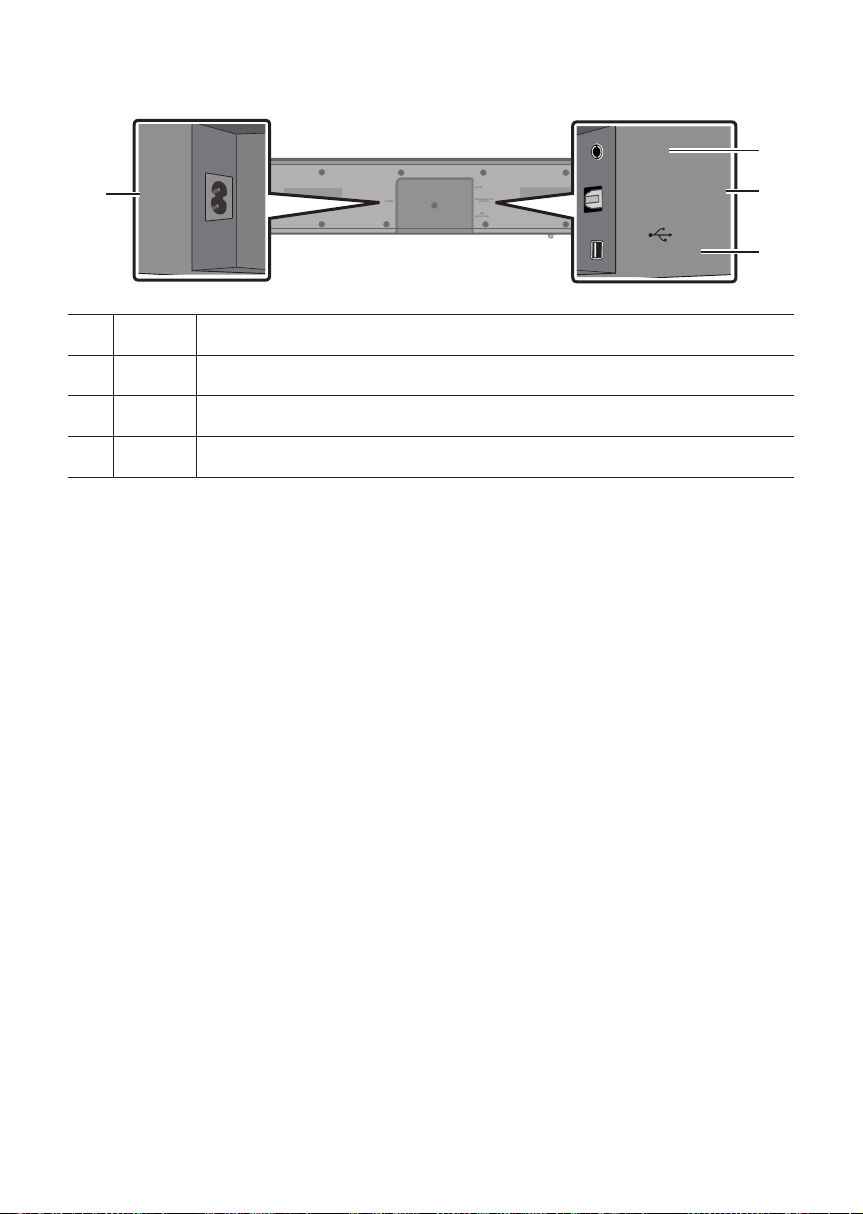

Bottom Panel of the Soundbar

Bottom of the Soundbar

AUX IN

POWER DIGITAL AUDIO IN

(OPTICAL)

USB (5V 0.5A)

POWER

AUX IN

DIGITAL AUDIO IN

(OPTICAL)

USB (5V 0.5A)

POWER

AUX IN

DIGITAL AUDIO IN

(OPTICAL)

USB (5V 0.5A)

󱂓󱂕

󱂔

󱂖

󱂓POWER Connect the Soundbar's AC power cord.

󱂔AUX Connect to the Analogue output of an external device.

󱂕D.IN Connect to the digital (optical) output of an external device.

󱂖USB Connect a USB device here to play music les on the USB device through the Soundbar.

ENG - 9

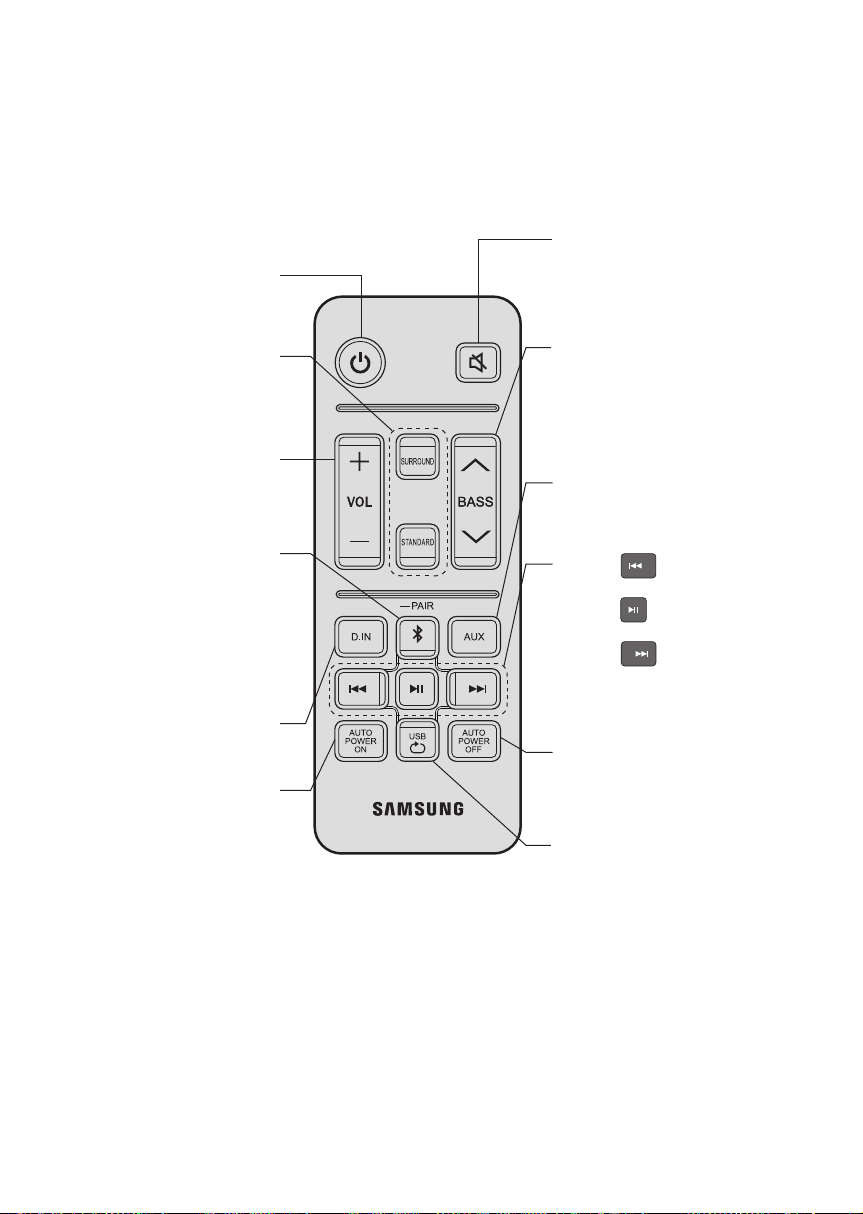

03 THE REMOTE CONTROL

•The images, buttons, and functions of the remote control may differ depending on the model.

Turns the Soundbar on and off.

Press this button to mute the sound.

Press it again to unmute the sound.

Press this button to turn off the Auto

Power Link function.

Press to enter the "USB" mode.

Push this button up or down to

adjust the bass volume within a -6 to

+6 range.

Press to enter the "AUX" mode.

Press the button to select the

previous music le.

Press the button to play/pause

a music le.

Press the button to select the

next music le.

Press to select the desired

sound effect by choosing

SURROUND or STANDARD.

Push this button up or down to

adjust the volume.

Press this button to turn on the

Auto Power Link function. See

"Connecting using an Optical

Cable" on pages 13 and 14

for details.

Press to enter the “D.IN” mode.

Press to enter the “Bluetooth”

mode.

You can use your Bluetooth

device in this mode.

To pair a new Bluetooth device,

press and hold this button for

5 seconds or more.

ENG - 10

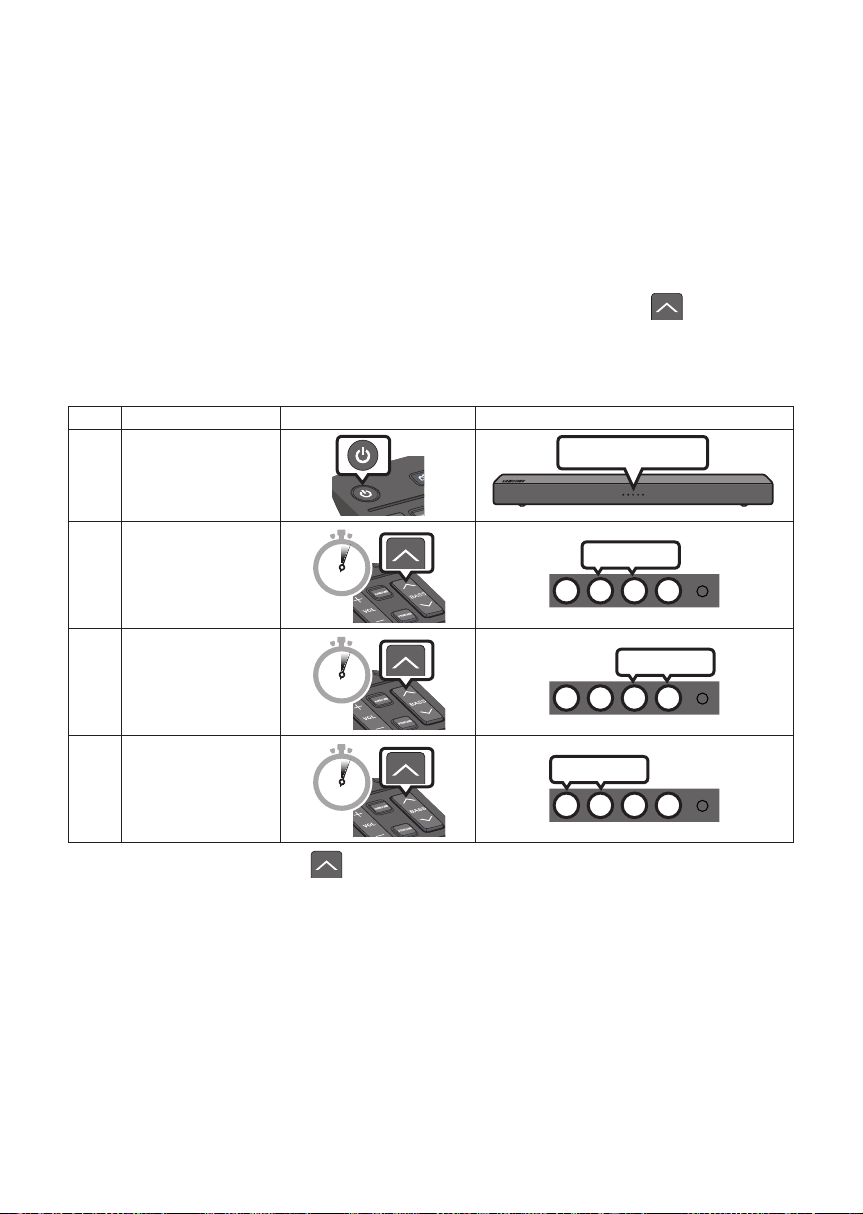

Adjusting the Soundbar volume with a TV remote control

If you have a Samsung TV, you can adjust the Soundbar’s volume using the IR remote

control that came with your Samsung TV.

First use the TV menu to set the TV audio on your Samsung TV to external speakers, then use your

Samsung remote to control the Soundbar’s volume. For more information, see the TV’s user manual.

The default mode for this function is control by a Samsung TV.

1. If your TV is not a Samsung TV and you want your TV’s remote to control the Soundbar’s volume,

you can change the settings of this function by pressing and holding the BASS button

repeatedly. To have your TV’s remote adjust the Soundbar’s volume, follow Steps 1 through 3

below.

2. If you want to turn off this function completely, follow Steps 1 and 2.

Mode Remote control Button LED indicator

1. Turn off

All LED’s Off

2. “Off” mode 5 Sec WWWW

Blinking

3. “All TV” mode 5 Sec WWWW

Blinking

4. “Samsung TV” mode

(Default mode) 5 Sec WWWW

Blinking

– Each time you press the BASS button and hold it for 5 seconds, the mode switches in the

following order:

“Samsung TV” (Default mode) → “Off” → “All TV”.

– The LED’s blink for 3~4 seconds, then return to the standby power off mode.

– This function may not be available, depending on your TV`s remote control.

– For a list of manufacturers that support this feature, refer to the FULL MANUAL of your Soundbar

on the Samsung web site (www.samsung.com/support).

Altri manuali per HW-N300

Indice

Lingue:

Altri manuali Samsung Sistema di altoparlanti

Samsung

Samsung HW-Q950A Istruzioni per l'installazione

Samsung

Samsung HW-Q900A Istruzioni per l'installazione

Samsung

Samsung HW-B450 Istruzioni per l'installazione

Samsung

Samsung Harman Kardon HW-Q60R Manuale utente

Samsung

Samsung HW-J6000R Manuale utente

Samsung

Samsung HW-M4500 Istruzioni per l'installazione

Samsung

Samsung HW-J7500R Manuale utente

Samsung

Samsung SWA-W700 Manuale utente

Samsung

Samsung HW-KM37 Manuale utente

Samsung

Samsung Crystal Surround Air Track HW-F750 Manuale utente

Samsung

Samsung HW-Q950A/ZA Istruzioni per l'installazione

Samsung

Samsung HW-E550 Manuale utente

Samsung

Samsung HW-N950 Istruzioni per l'installazione

Samsung

Samsung HW-J260 Manuale utente

Samsung

Samsung HW-Q700C Manuale utente

Samsung

Samsung HW-M369 Manuale utente

Samsung

Samsung HW-T47M Istruzioni per l'installazione

Samsung

Samsung HW-A450 Istruzioni per l'installazione

Samsung

Samsung HW-MS6500 Istruzioni per l'installazione

Samsung

Samsung Q Series Istruzioni per l'installazione

Samsung

Samsung HW-Q990C Manuale utente

Samsung

Samsung HW-J6060 Manuale utente

Samsung

Samsung HW-C450/ZA Istruzioni per l'installazione

Samsung

Samsung HW-H551 Manuale utente

Manuali Sistema di altoparlanti popolari di altre marche

JVC

JVC CA-MXK5R Manuale utente

LG NB4532B Manuale utente

JVC

JVC CA-FSH100 Manuale utente

5Core

5Core Pro Series Manuale utente

EAW

EAW MQV1394e Manuale utente

Lynx

Lynx GXR-LA10A Manuale utente

iLive

iLive ITB066B Manuale utente

RDX

RDX QuickStation 4 Manuale utente

Electro-Voice

Electro-Voice S-122 Manuale utente

Sven

Sven SPS-619 GOLD Manuale utente

Pioneer

Pioneer CS-7070 Manuale utente

EAW

EAW UB82e Manuale utente

Sondpex

Sondpex Active Speaker System and Digital Music... Manuale utente

JVC

JVC NX-PN7 Manuale utente

Marshall Amplification

Marshall Amplification AR-DM61-BT Manuale utente

Yamaha

Yamaha NX-A01 - Speaker Sys Manuale utente

SE Audiotechnik

SE Audiotechnik I-LINE Manuale utente

Gemini

Gemini WRX-843 Series Manuale utente
