Samsung HW-R470 Istruzioni per l'installazione

FULL MANUAL

Imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register

your product at www.samsung.com/register

HW-R470

ENG - ii

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE THE COVER (OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

Refer to the table below for an explanation of

symbols which may be on your Samsung product.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

This symbol indicates that high voltage

is present inside. It is dangerous to

make any kind of contact with any

internal part of this product.

This symbol indicates that this product

has included important literature

concerning operation and maintenance.

Class II product : This symbol indicates

that it does not require a safety

connection to electrical earth (ground).

If this symbol is not present on a

product with a power cord, the product

MUST have a reliable connection to

protective earth (ground).

AC voltage : This symbol indicates that

the rated voltage marked with the

symbol is AC voltage.

DC voltage : This symbol indicates that

the rated voltage marked with the

symbol is DC voltage.

Caution, Consult instructions for use :

This symbol instructs the user to

consult the user manual for further

safety related information.

WARNING

•To reduce the risk of re or electric shock, do

not expose this appliance to rain or moisture.

CAUTION

•TO PREVENT ELECTRIC SHOCK, MATCH WIDE

BLADE OF PLUG TO WIDE SLOT, FULLY

INSERT.

•This apparatus shall always be connected to a

AC outlet with a protective grounding

connection.

•To disconnect the apparatus from the mains,

the plug must be pulled out from the mains

socket, therefore the mains plug shall be

readily operable.

•Do not expose this apparatus to dripping or

splashing. Do not put objects lled with

liquids, such as vases on the apparatus.

•To turn this apparatus off completely, you

must pull the power plug out of the wall

socket. Consequently, the power plug must

be easily and readily accessible at all times.

ENG - iii

PRECAUTIONS

1. Ensure that the AC power supply in your

house complies with the power

requirements listed on the identication

sticker located on the bottom of your

product. Install your product horizontally, on

a suitable base (furniture), with enough

space around it for ventilation (7~10 cm).

Make sure the ventilation slots are not

covered. Do not place the unit on ampliers

or other equipment which may become hot.

This unit is designed for continuous use. To

fully turn off the unit, disconnect the AC plug

from the wall outlet. Unplug the unit if you

intend to leave it unused for a long period of

time.

2. During thunderstorms, disconnect the AC

plug from the wall outlet. Voltage peaks due

to lightning could damage the unit.

3. Do not expose the unit to direct sunlight or

other heat sources. This could lead to

overheating and cause the unit to

malfunction.

4. Protect the product from moisture (i.e.

vases), and excess heat (e.g. a replace) or

equipment creating strong magnetic or

electric elds. Unplug the power cable from

the AC wall socket if the unit malfunctions.

Your product is not intended for industrial

use. It is for personal use only. Condensation

may occur if your product has been stored in

cold temperatures. If transporting the unit

during the winter, wait approximately

2 hours until the unit has reached room

temperature before using.

5. The battery used with this product contains

chemicals that are harmful to the

environment. Do not dispose of the battery

in the general household trash. Do not

expose the battery to excess heat, direct

sunlight, or re. Do not short circuit,

disassemble, or overheat the battery.

Danger of explosion if the battery is replaced

incorrectly. Replace only with the same or

equivalent type.

ABOUT THIS MANUAL

The user manual has two parts: this simple paper

USER MANUAL and a detailed FULL MANUAL you

can download.

USER MANUAL

See this manual for safety instructions,

product installation, components,

connections, and product specications.

FULL MANUAL

You can access the FULL MANUAL on

Samsung’s on-line customer support centre by

scanning the QR code. To see the manual on

your PC or mobile device, download the

manual in document format from Samsung’s

website. (http://www.samsung.com/support)

Design and specications are subject to change

without prior notice.

ENG - iv

CONTENTS

01 Checking the Components 2

Inserting Batteries before using the Remote Control (AA batteries X 2) ------------------------- 3

02 Product Overview 4

Front Panel / Right Side Panel of the Soundbar ------------------------- 4

Bottom Panel of the Soundbar ------------------------- 5

03 Connecting the Soundbar 6

Connecting Electrical Power ------------------------- 6

Connecting the Soundbar to the Subwoofer ------------------------- 7

– Automatic connection between the Subwoofer and the Soundbar ------------------------- 7

– Manually connecting the Subwoofer if automatic connection fails ------------------------- 8

Connecting an SWA-8500 to your Soundbar ------------------------- 10

04 Connecting to your TV 13

Method 1. Connecting with a Cable ------------------------- 13

– Connecting using an Optical Cable ------------------------- 13

Method 2. Connecting Wirelessly ------------------------- 14

– Connecting a TV via Bluetooth ------------------------- 14

05 Connecting an External Device 16

Connecting using an Optical or Analogue Audio (AUX) Cable ------------------------- 16

06 Connecting a USB Storage Device 17

ENG - v

07 Connecting a Mobile Device 19

Connecting via Bluetooth ------------------------- 19

Using the Samsung Audio Remote App ------------------------- 22

– Installing the Samsung Audio Remote App ------------------------- 22

– Launching the Samsung Audio Remote App ------------------------- 22

08 Using the Remote Control 23

How to Use the Remote Control ------------------------- 23

Adjusting the Soundbar volume with a TV remote control ------------------------- 26

Using the Hidden Buttons (Buttons with more than one function) ------------------------- 27

Output specications for the different sound effect modes ------------------------- 27

09 Installing the Wall Mount 28

Installation Precautions ------------------------- 28

Wallmount Components ------------------------- 28

Detaching the Soundbar from the Wall ------------------------- 30

10 Software Update 31

Updating Procedure ------------------------- 31

If UPDATE is not displayed ------------------------- 32

11 Troubleshooting 33

12 Licence 34

13 Open Source Licence Notice 34

14 Important Notes About Service 34

15 SpecicationsandGuide 35

Specications ------------------------- 35

ENG - 2

01 CHECKING THE COMPONENTS

VOL WOOFER

SOUNDBAR

SOUND

MODE

PAIR

Soundbar Main Unit Subwoofer Remote Control /

Batteries

Optical Cable

1 3

Power Cord (Subwoofer) AC/DC Adapter

(Main Unit)

Wall Mount Guide

2Connect the AC plug to the adapter until you hear

a “snapping” sound to ensure they are securely

fastened.

AC Plug

(Depending on the country and

model)

Do not detach the AC plug from the adapter (it will

not be removed once it has been attached).

x 2 x 2

Holder-Screw Screw Bracket-Wall Mount L Bracket-Wall Mount R

Wireless Surround Speaker SET (SWA-8500)

STANDBY

LINK

x 2

Surround Speaker Power Cord

x 2

Wireless Receiver Module Speaker Cable

•For more information about the power supply and power consumption, refer to the label attached

to the product. (Label: Bottom of the Soundbar Main Unit)

•The appearance of the accessories may differ slightly from the illustrations above.

•The power components are labelled (1, 2, 3). For more information about power connections,

see page 6.

ENG - 3

•To purchase additional components or optional cables, contact a Samsung Service Centre or

Samsung Customer Care.

•Depending on the region, the AC plug may vary in appearance, or it may be supplied integrated with

the AC/DC adapter.

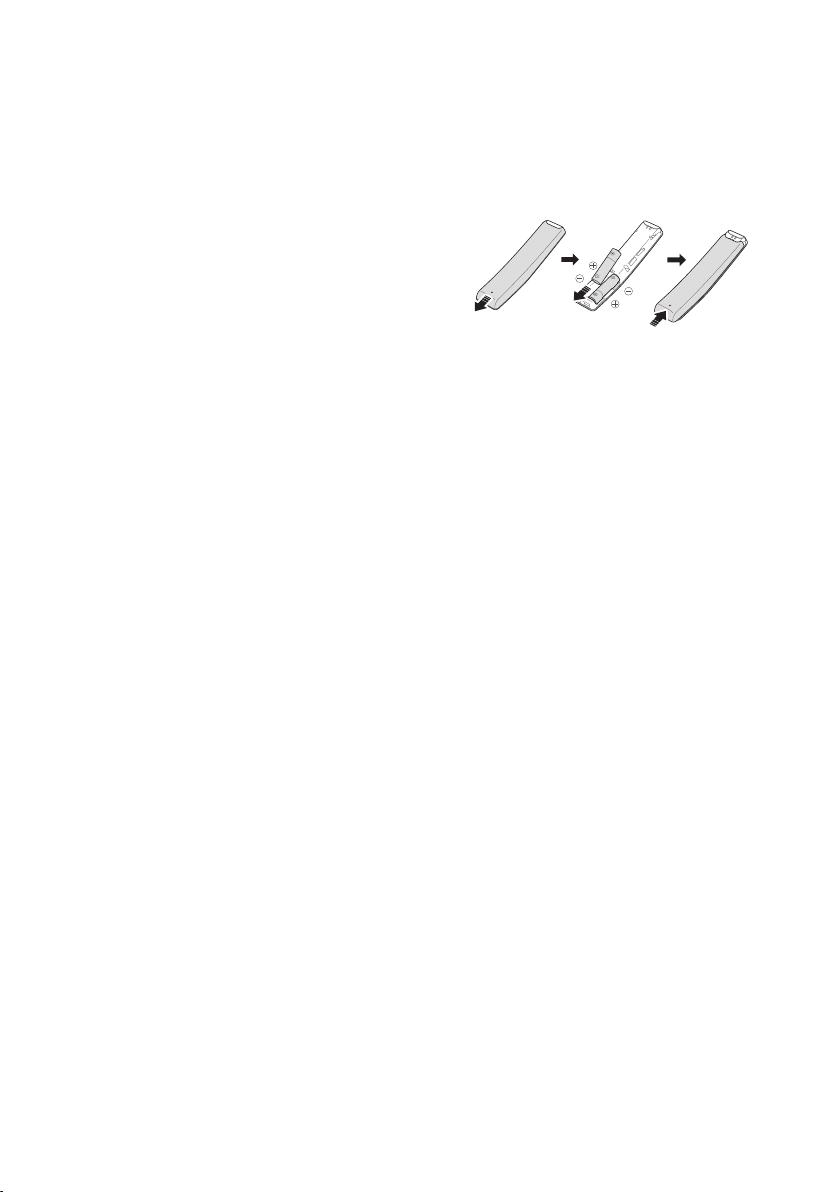

Inserting Batteries before using the Remote Control (AA batteries X 2)

Slide the battery cover in the direction of the arrow

until it is completely removed. Insert 2 AA batteries

(1.5V) oriented so that their polarity is correct. Slide

the battery cover back into position.

ENG - 4

02 PRODUCT OVERVIEW

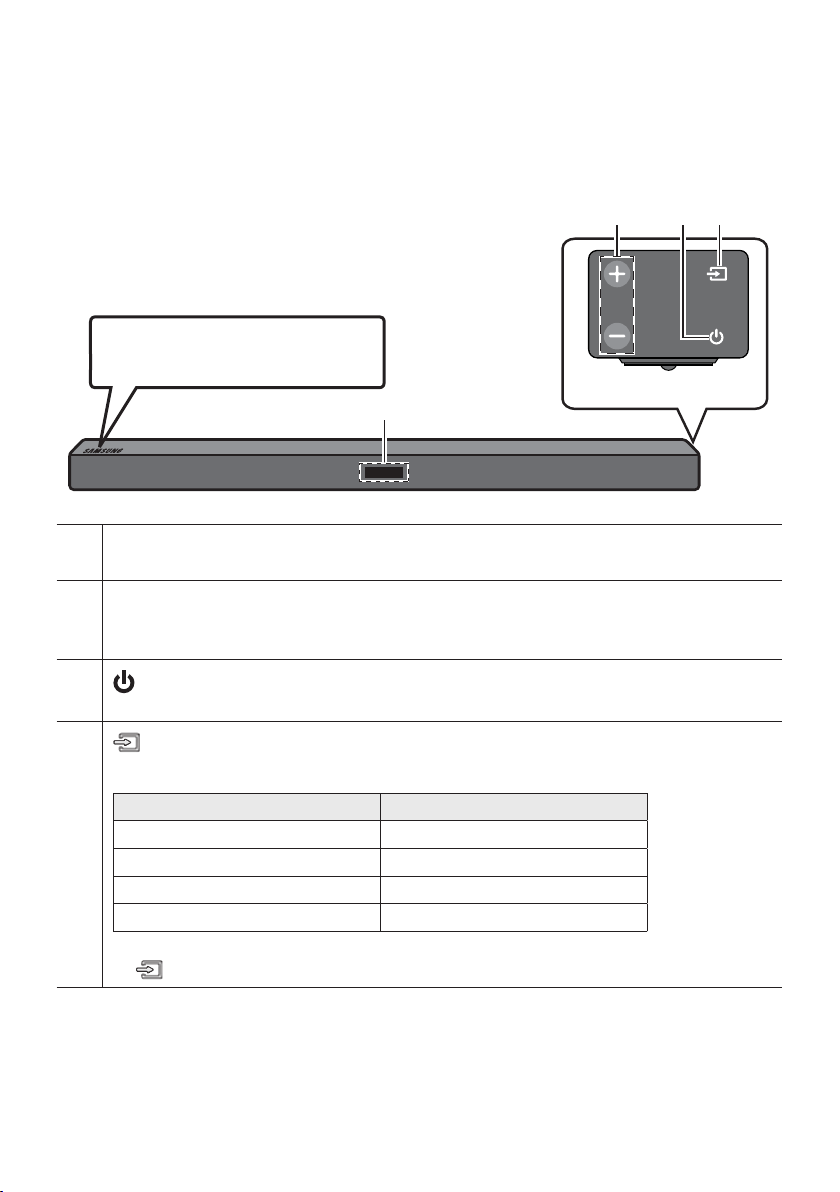

Front Panel / Right Side Panel of the Soundbar

󱂔

󱂓

󱂕 󱂖

Right Side of the Soundbar

Position the product so that the

SAMSUNG logo is located on the top.

󱂓Display

Displays the product’s status and current mode.

󱂔

+/- (Volume) Button

Adjusts the volume.

•When adjusted, the volume level appears on the Soundbar’s front display.

󱂕(Power) Button

Turns the power on and off.

󱂖

(Source) Button

Selects the source input mode.

Input mode Display

Optical Digital input D.IN

AUX input AUX

BLUETOOTH mode BT

USB mode USB

•To turn on “BT PAIRING” mode, change the source to “BT” mode, and then press and hold the

(Source) button for more than 5 seconds.

•When you plug in the AC cord, the power button will begin working in 4 to 6 seconds.

•When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.

•If you want to enjoy sound only from the Soundbar, you must turn off the TV’s speakers in the Audio

Setup menu of your TV. Refer to the owner’s manual supplied with your TV.

ENG - 5

Bottom Panel of the Soundbar

USB (5V 0.5A)

AUX IN

DIGITAL AUDIO IN

(OPTICAL)

DC 19V

DIGITAL AUDIO IN

(OPTICAL)

USB (5V 0.5A)

AUX IN

DC 19V

󱂓

󱂖

󱂔

󱂕

󱂓DIGITAL AUDIO IN (OPTICAL)

Connect to the digital (optical) output of an external device.

󱂔USB (5V 0.5A)

Connect a USB device here to play music les on the USB device through the Soundbar.

󱂕AUX IN

Connect to the Analogue output of an external device.

󱂖DC 19V (Power Supply In)

Connect the AC/DC power adapter.

•When disconnecting the power cord from a wall outlet, pull the plug. Do not pull the cable.

•Do not connect this unit or other components to an AC outlet until all connections between

components are complete.

ENG - 6

03 CONNECTING THE SOUNDBAR

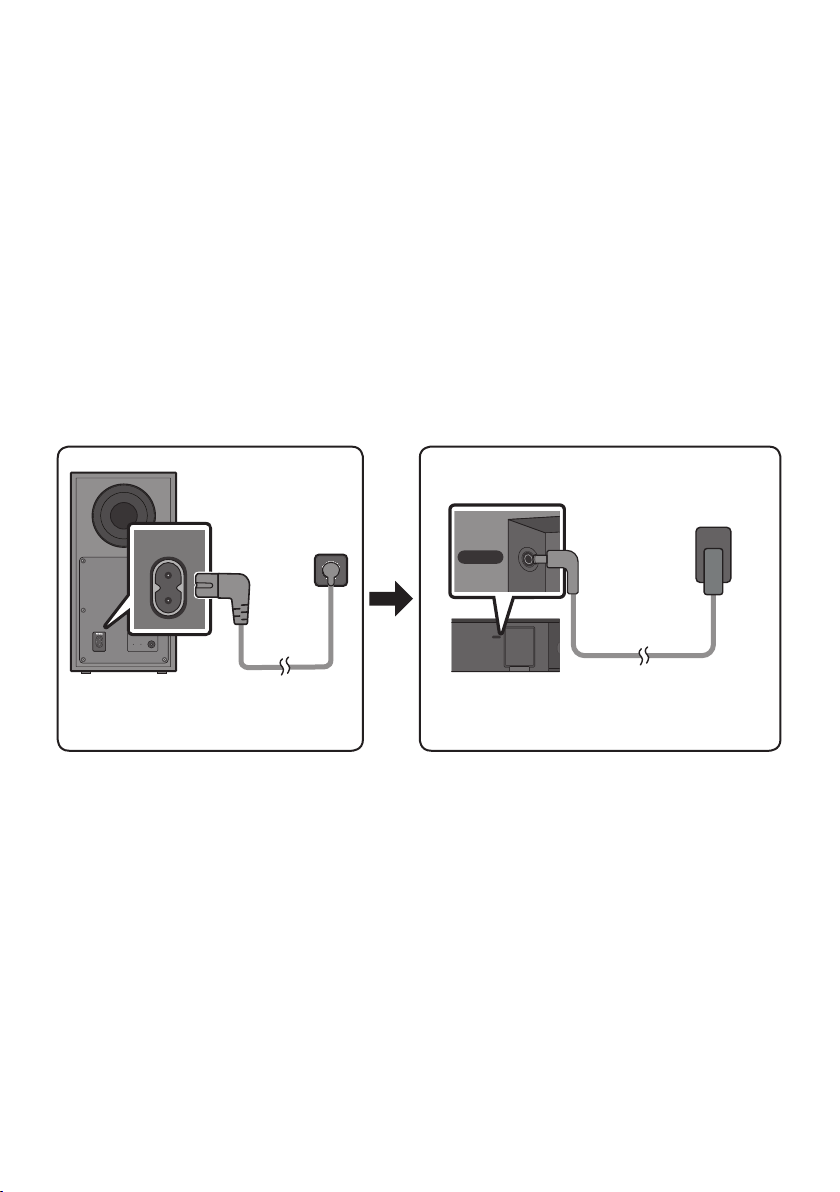

Connecting Electrical Power

Use the power components (1, 2

, 3

) to connect the Subwoofer and Soundbar to an electrical outlet in

the following order:

1 Connect the power cord to the Subwoofer.

2 Connect the AC plug to the adapter.

Connect the power adapter to the Soundbar and then to a wall socket.

See the illustrations below.

•For more information about the required electrical power and power consumption, refer to the

label attached to the product. (Label: Bottom of the Soundbar Main Unit)

POWER

Rear of Subwoofer

1Power Cord

Connecting

Electrical Power

DC 19V

Bottom of the

Soundbar Main Unit

DC 19V

(Power Jack)

3 AC/DC Adapter

2 AC Plug

•Make sure to rest the AC/DC Adapter at on a table or the oor. If you place the AC/DC Adapter so

that it is hanging with the AC cord input facing upwards, water or other foreign substances could

enter the Adapter and cause the Adapter to malfunction.

Altri manuali per HW-R470

Indice

Lingue:

Altri manuali Samsung Sistema di altoparlanti

Samsung

Samsung HW-Q990C Manuale utente

Samsung

Samsung HW-M550 Istruzioni per l'installazione

Samsung

Samsung HW-K950 Manuale utente

Samsung

Samsung HW-Q990B Istruzioni per l'installazione

Samsung

Samsung HW-M550 Manuale utente

Samsung

Samsung HW-K850 Manuale utente

Samsung

Samsung HW-Q930C Manuale utente

Samsung

Samsung HW-K440 Manuale utente

Samsung

Samsung S-2400 Manuale utente

Samsung

Samsung HW-Q700C Manuale utente

Samsung

Samsung HW-E550 Manuale utente

Samsung

Samsung HW-JM6000C Manuale utente

Samsung

Samsung HW-B660 Istruzioni per l'installazione

Samsung

Samsung MAX-DVD9920 Manuale utente

Samsung

Samsung HW-Q700B Manuale utente

Samsung

Samsung HW-C451 Manuale utente

Samsung

Samsung HW-S40T Istruzioni per l'installazione

Samsung

Samsung HW-H551 Manuale utente

Samsung

Samsung HW-Q700C Manuale utente

Samsung

Samsung HW-M360 Istruzioni per l'installazione

Samsung

Samsung Harman/Kardon HW-Q70R Manuale utente

Samsung

Samsung HW-JM4000 Manuale utente

Samsung

Samsung HW-Q950A Manuale utente

Samsung

Samsung HW-H560 Manuale utente

Manuali Sistema di altoparlanti popolari di altre marche

JVC

JVC CA-MXK5R Manuale utente

LG NB4532B Manuale utente

JVC

JVC CA-FSH100 Manuale utente

5Core

5Core Pro Series Manuale utente

EAW

EAW MQV1394e Manuale utente

Lynx

Lynx GXR-LA10A Manuale utente

iLive

iLive ITB066B Manuale utente

RDX

RDX QuickStation 4 Manuale utente

Electro-Voice

Electro-Voice S-122 Manuale utente

Sven

Sven SPS-619 GOLD Manuale utente

Pioneer

Pioneer CS-7070 Manuale utente

EAW

EAW UB82e Manuale utente

Sondpex

Sondpex Active Speaker System and Digital Music... Manuale utente

JVC

JVC NX-PN7 Manuale utente

Marshall Amplification

Marshall Amplification AR-DM61-BT Manuale utente

Yamaha

Yamaha NX-A01 - Speaker Sys Manuale utente

SE Audiotechnik

SE Audiotechnik I-LINE Manuale utente

Gemini

Gemini WRX-843 Series Manuale utente
