CONTENTS

01 Checking the Components 6

Inserting Batteries before using the Remote Control (AA batteries X 2) ------------------------- 6

02 Product Overview 7

Top Panel of the Soundbar ------------------------- 7

Bottom Panel of the Soundbar ------------------------- 9

03 Using the Remote Control 10

How to Use the Remote Control ------------------------- 10

Using the Hidden Buttons (Buttons with more than one function) ------------------------- 13

Output specications for the different sound effect modes ------------------------- 13

Adjusting the Soundbar volume with a TV remote control ------------------------- 14

04 Connecting the Soundbar 15

Connecting Electrical Power ------------------------- 15

Connecting an SWA-9100S (Sold Separately), SWA-W500

(Sold Separately) to your Soundbar ------------------------- 15

05 Using a wired connection to the TV 16

Method 1. Connecting with HDMI ------------------------- 16

Method 2. Connecting using an Optical Cable ------------------------- 18

06 Using a wireless connection to the TV 19

Method 1. Connecting via Bluetooth ------------------------- 19

Method 2. Connecting via Wi-Fi ------------------------- 21

07 Connecting an External Device 22

Connecting using an Optical Cable ------------------------- 22

ENG - 5

08 Connecting a Mobile Device 23

Method 1. Connecting via Bluetooth ------------------------- 23

Method 2. Connecting via Wi-Fi (Wireless Network) ------------------------- 26

Getting Started with Amazon Alexa (Built-in Alexa) ------------------------- 27

Getting Started with Alexa on Amazon Product (Works with Alexa) ------------------------- 29

Using the Tap Sound ------------------------- 31

09 Connecting To Apple AirPlay 2 32

10 Installing the Wall Mount 33

Installation Precautions ------------------------- 33

Wallmount Components ------------------------- 33

11 Installing the Soundbar in front of TV 35

12 Software Update 36

Auto Update ------------------------- 36

USB Update ------------------------- 36

Reset ------------------------- 37

13 Troubleshooting 38

14 License 40

15 Open Source License Notice 40

16 Important Notes About Service 40

17 SpecicationsandGuide 41

Specications ------------------------- 41

ENG - 6

01 CHECKING THE COMPONENTS

VOL WOOFER

SOUNDBAR

SOUND

MODE

PAIR

Soundbar Main Unit Soundbar Remote Control

Batteries (Not available in

some locations or models)

HDMI Cable

AC/DC Adapter

(Soundbar)

Power Cord

(Soundbar)

Wall Mount Guide

x 2 x 2

(M4 x L10)

x 2

Holder-Screw Bracket-Wall Mount Screw

•For more information about the power supply and power consumption, refer to the label attached

to the product. (Label: Bottom of the Soundbar Main Unit)

•To purchase additional components or optional cables, contact a Samsung Service Center or

Samsung Customer Care.

•For more information about the wallmount see page 33.

•Design, specications, and App screen are subject to change without prior notice.

•The appearance of the accessories may differ slightly from the illustrations above.

Inserting Batteries before using the Remote Control (AA batteries X 2)

Slide the back cover in the direction of the arrow

until it is completely removed. Insert 2 AA batteries

(1.5V) oriented so that their polarity is correct. Slide

the back cover back into position.

ENG - 7

02 PRODUCT OVERVIEW

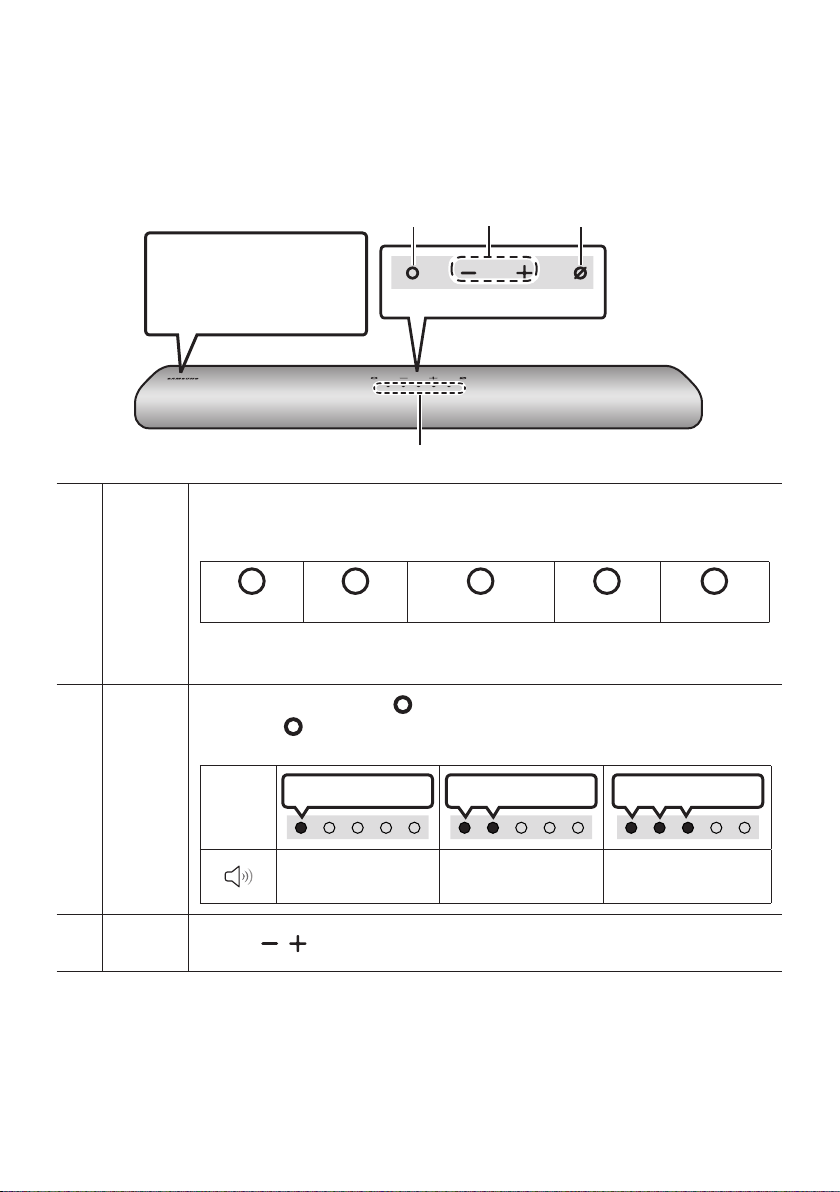

Top Panel of the Soundbar

Top Panel

Position the product so that

the SAMSUNG logo is

located on the top.

󱂔 󱂖󱂕

󱂓

󱂓LED

indicator

The LED Indicator ashes, glows, or changes color depending on the Soundbar's current

mode or status. The color of the LED indicator and the number of lights indicate the active

mode as described below.

White LED

Multicolor LED

White LED

•The Multicolor LED changes to White, Cyan, Green, Red, and Blue depending on the

mode or status.

󱂔

Multi

Function

Button

•In standby mode, press the (Multi Function)button to turn on the Soundbar.

•Press the (Multi Function) button to change the mode. Each time you change the

mode, the LED lights in white and then turns off.

LED

Indicator

White On -> Off White On -> Off White On -> Off

“Digital Audio In” or

“TV ARC”“Wi-Fi” “Bluetooth”

󱂕Volume

Button Press the (Volume) button to adjust the volume.

ENG - 8

󱂖

Mic

On/Off

Button

Press the (Mic On/Off) button to turn on or off the microphone.

LED Indicator

Red On

“Mic Off”“Mic On”

•When you plug in the AC cord, the power button will begin working in 4 to 6 seconds.

•When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.

•If you hear sounds from both the TV and Soundbar, go to the Settings menu for the TV audio and

change the TV speaker to External Speaker.

•You can turn on and off audio feedback by using SmartThings app. To learn about using the

SmartThings app, refer to “Method 2. Connecting via Wi-Fi (Wireless Network)”.

ENG - 9

Bottom Panel of the Soundbar

SERVICE DC 19V

HDMI

(ARC)

DIGITALAUDIO IN

(OPTICAL)

ID SET NETWORK

SERVICE DC 19V

HDMI

(ARC)

DIGITAL AUDIO IN

(OPTICAL)

SERVICE DC 19V

HDMI OUT

(TV-ARC)

DIGITAL AUDIO IN

(OPTICAL)

DIGITAL AUDIO IN

(OPTICAL)

ID SET NETWORK

SERVICE DC 19V

HDMI

(ARC)

DIGITALAUDIO IN

(OPTICAL)

ID SET NETWORK

SERVICE DC 19V

HDMI

(ARC)

DIGITAL AUDIO IN

(OPTICAL)

SERVICE DC 19V

HDMI OUT

(TV-ARC)

DIGITAL AUDIO IN

(OPTICAL)

DIGITAL AUDIO IN

(OPTICAL)

ID SET NETWORK

SERVICE DC 19V

HDMI

(ARC)

DIGITALAUDIO IN

(OPTICAL)

ID SET NETWORK

SERVICE DC 19V

HDMI

(ARC)

DIGITAL AUDIO IN

(OPTICAL)

SERVICE DC 19V

HDMI OUT

(TV-ARC)

DIGITAL AUDIO IN

(OPTICAL)

DIGITAL AUDIO IN

(OPTICAL)

ID SET NETWORK

SERVICE DC 19V

HDMI

(ARC)

DIGITALAUDIO IN

(OPTICAL)

ID SET NETWORK

SERVICE DC 19V

HDMI

(ARC)

DIGITAL AUDIO IN

(OPTICAL)

SERVICE DC 19V

HDMI OUT

(TV-ARC)

DIGITAL AUDIO IN

(OPTICAL)

DIGITAL AUDIO IN

(OPTICAL)

ID SET NETWORK

󱂓 󱂔 󱂕 󱂖 󱂗 󱂘

󱂓

ID SET

Press to connect the Soundbar to Surround speakers and a subwoofer wirelessly.

(The surround speaker, subwoofer are sold separately.)

󱂔NETWORK

Press to connect to a wireless network (Wi-Fi) via the SmartThings app.

󱂕SERVICE

Connect a USB storage device to upgrade the product's software.

󱂖DC 19V (Power Supply In)

Connect the AC/DC power adapter. (See page 15)

󱂗DIGITAL AUDIO IN (OPTICAL)

Connect to the digital (optical) output of an external device. (See page 22)

󱂘HDMI (ARC)

Connect to the HDMI (ARC) port on a TV. (See page 16)

•When disconnecting the power cable of the AC/DC power adapter from a wall outlet, pull the plug.

Do not pull the cable.

•Do not connect this unit or other components to an AC outlet until all connections between

components are complete.

ENG - 10

03 USING THE REMOTE CONTROL

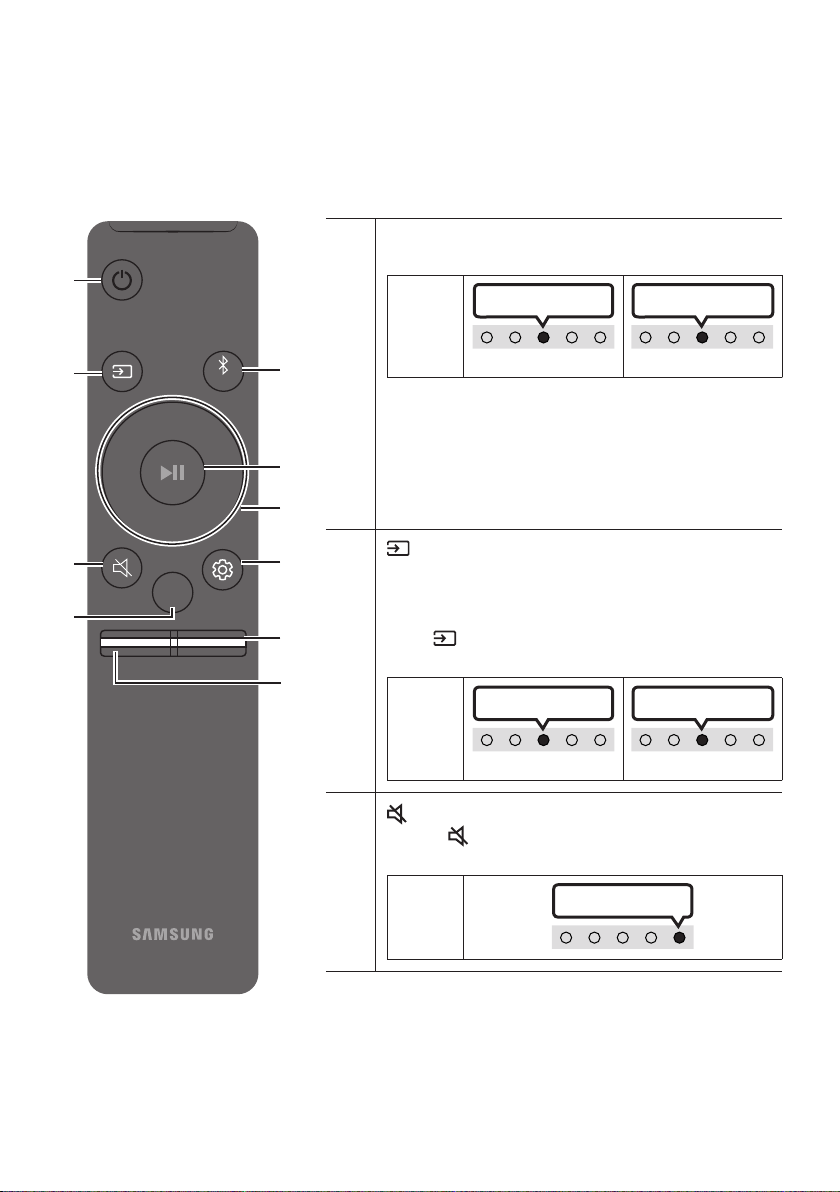

How to Use the Remote Control

VOL WOOFER

SOUNDBAR

SOUND

MODE

PAIR

󱂓

󱂔

󱂕

󱂖

󱂗

󱂙

󱂘

󱂚

󱂜

󱂛

󱂓Power

Turns the Soundbar on and off.

LED

Indicator

Cyan Blinks X1

On Off

Red Blinks X3

•Auto Power Down Function

The unit turns off automatically in the following

situations:

– In “Digital Audio In” or “TV ARC”/ “Wi-Fi” /

“Bluetooth” mode if there is no audio signal for 18

minutes.

󱂔(Source)

Press to select a source connected to the Soundbar.

•Audio Feedback On/Off

You can turn on or off the Audio Feedback. Press and hold

the (Source) button on the remote control for

5 seconds while the Soundbar is off (Standby mode).

LED

Indicator

Cyan Blinks X1

On Off

Red Blinks X1

󱂕(Mute)

Press the (Mute) button to mute the sound.

Press it again to unmute the sound.

LED

Indicator

Blinks X Repeatly

Altri manuali per HW-S60A

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Samsung Sistema di altoparlanti

Samsung

Samsung HW-C400 Istruzioni per l'installazione

Samsung

Samsung HW-MS550 Manuale utente

Samsung

Samsung HW-S68CB Istruzioni per l'installazione

Samsung

Samsung HW-Q710C Manuale utente

Samsung

Samsung HW-N950 Istruzioni per l'installazione

Samsung

Samsung HW-Q700C Manuale utente

Samsung

Samsung HW-FM55C Manuale utente

Samsung

Samsung HW-H570 Manuale utente

Samsung

Samsung HW-JM6000C Manuale utente

Samsung

Samsung HW-A40R Istruzioni per l'installazione

Samsung

Samsung MAX-DA66 Manuale utente

Samsung

Samsung HW-M460 Istruzioni per l'installazione

Samsung

Samsung HW-K850 Manuale utente

Samsung

Samsung HW-M4500 Istruzioni per l'installazione

Samsung

Samsung HW-J7500 Manuale utente

Samsung

Samsung HW-T450 Istruzioni per l'installazione

Samsung

Samsung HW-H750 Manuale utente

Samsung

Samsung HW-S50B Istruzioni per l'installazione

Samsung

Samsung Crystal Surround Air Track HW-F450 Manuale utente

Samsung

Samsung HW-T450 Manuale utente

Samsung

Samsung HW-N300 Manuale utente

Samsung

Samsung HW-KM38 Manuale utente

Samsung

Samsung HW-Q60T Istruzioni per l'installazione

Samsung

Samsung HW-A670 Manuale utente

Manuali Sistema di altoparlanti popolari di altre marche

JVC

JVC CA-MXK5R Manuale utente

LG NB4532B Manuale utente

JVC

JVC CA-FSH100 Manuale utente

5Core

5Core Pro Series Manuale utente

EAW

EAW MQV1394e Manuale utente

Lynx

Lynx GXR-LA10A Manuale utente

iLive

iLive ITB066B Manuale utente

RDX

RDX QuickStation 4 Manuale utente

Electro-Voice

Electro-Voice S-122 Manuale utente

Sven

Sven SPS-619 GOLD Manuale utente

Pioneer

Pioneer CS-7070 Manuale utente

EAW

EAW UB82e Manuale utente

Sondpex

Sondpex Active Speaker System and Digital Music... Manuale utente

JVC

JVC NX-PN7 Manuale utente

Marshall Amplification

Marshall Amplification AR-DM61-BT Manuale utente

Yamaha

Yamaha NX-A01 - Speaker Sys Manuale utente

SE Audiotechnik

SE Audiotechnik I-LINE Manuale utente

Gemini

Gemini WRX-843 Series Manuale utente
