Samsung HW-T42E Istruzioni per l'installazione

FULL MANUAL

Imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register

your product at www.samsung.com/register

HW-T42E

ENG - ii

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE THE COVER (OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

Refer to the table below for an explanation of

symbols which may be on your Samsung product.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

This symbol indicates that high voltage

is present inside. It is dangerous to

make any kind of contact with any

internal part of this product.

This symbol indicates that this product

has included important literature

concerning operation and maintenance.

Class II product : This symbol indicates

that it does not require a safety

connection to electrical earth (ground).

If this symbol is not present on a

product with a power cord, the product

MUST have a reliable connection to

protective earth (ground).

AC voltage : This symbol indicates that

the rated voltage marked with the

symbol is AC voltage.

DC voltage : This symbol indicates that

the rated voltage marked with the

symbol is DC voltage.

Caution, Consult instructions for use :

This symbol instructs the user to

consult the user manual for further

safety related information.

WARNING

•To reduce the risk of re or electric shock, do

not expose this appliance to rain or moisture.

CAUTION

•TO PREVENT ELECTRIC SHOCK, MATCH WIDE

BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

•This apparatus shall always be connected to a

AC outlet with a protective grounding

connection.

•To disconnect the apparatus from the mains,

the plug must be pulled out from the mains

socket, therefore the mains plug shall be

readily operable.

•Do not expose this apparatus to dripping or

splashing. Do not put objects lled with

liquids, such as vases on the apparatus.

•To turn this apparatus off completely, you

must pull the power plug out of the wall

socket. Consequently, the power plug must

be easily and readily accessible at all times.

ENG - iii

PRECAUTIONS

1. Ensure that the AC power supply in your

house complies with the power

requirements listed on the identication

sticker located on the bottom of your

product. Install your product horizontally, on

a suitable base (furniture), with enough

space around it for ventilation (7~10 cm).

Make sure the ventilation slots are not

covered. Do not place the unit on ampliers

or other equipment which may become hot.

This unit is designed for continuous use. To

fully turn off the unit, disconnect the AC plug

from the wall outlet. Unplug the unit if you

intend to leave it unused for a long period of

time.

2. During thunderstorms, disconnect the AC

plug from the wall outlet. Voltage peaks due

to lightning could damage the unit.

3. Do not expose the unit to direct sunlight or

other heat sources. This could lead to

overheating and cause the unit to

malfunction.

4. Protect the product from moisture (i.e.

vases), and excess heat (e.g. a replace) or

equipment creating strong magnetic or

electric elds. Unplug the power cable from

the AC wall socket if the unit malfunctions.

Your product is not intended for industrial

use. It is for personal use only. Condensation

may occur if your product has been stored in

cold temperatures. If transporting the unit

during the winter, wait approximately

2 hours until the unit has reached room

temperature before using.

5. The battery used with this product contains

chemicals that are harmful to the

environment. Do not dispose of the battery

in the general household trash. Do not

expose the battery to excess heat, direct

sunlight, or re. Do not short circuit,

disassemble, or overheat the battery.

Danger of explosion if the battery is replaced

incorrectly. Replace only with the same or

equivalent type.

ABOUT THIS MANUAL

The user manual has two parts: this simple paper

USER MANUAL and a detailed FULL MANUAL you

can download.

USER MANUAL

See this manual for safety instructions,

product installation, components,

connections, and product specications.

FULL MANUAL

You can access the FULL MANUAL on

Samsung’s on-line customer support centre by

scanning the QR code. To see the manual on

your PC or mobile device, download the

manual in document format from Samsung’s

website. (http://www.samsung.com/support)

Design and specications are subject to change

without prior notice.

ENG - iv

CONTENTS

01 Checking the Components 2

Inserting Batteries before using the Remote Control (AA batteries X 2) ------------------------- 2

02 Product Overview 3

Front Panel / Top Panel of the Soundbar ------------------------- 3

Bottom Panel of the Soundbar ------------------------- 4

03 Connecting the Soundbar 5

Connecting Electrical Power ------------------------- 5

Connecting the Subwoofer to the Soundbar ------------------------- 5

04 Connecting to your TV 6

Method 1. Connecting with a Cable ------------------------- 6

– Connecting using an Optical Cable ------------------------- 6

Method 2. Connecting Wirelessly ------------------------- 7

– Connecting a TV via Bluetooth ------------------------- 7

05 Connecting an External Device 9

Connecting using an Optical Cable ------------------------- 9

06 Connecting a USB Storage Device 10

07 Connecting a Mobile Device 12

Connecting via Bluetooth ------------------------- 12

ENG - v

08 Using the Remote Control 15

How to Use the Remote Control ------------------------- 15

Adjusting the Soundbar volume with a TV remote control ------------------------- 18

Using the Hidden Buttons (Buttons with more than one function) ------------------------- 19

Output specications for the different sound effect modes ------------------------- 19

09 Installing the Wall Mount 20

Installation Precautions ------------------------- 20

Wallmount Components ------------------------- 20

10 Software Update 22

Update Procedure ------------------------- 23

If UPDATE is not displayed ------------------------- 23

11 Troubleshooting 24

12 Licence 25

13 Open Source Licence Notice 25

14 Important Notes About Service 25

15 SpecicationsandGuide 26

Specications ------------------------- 26

ENG - 2

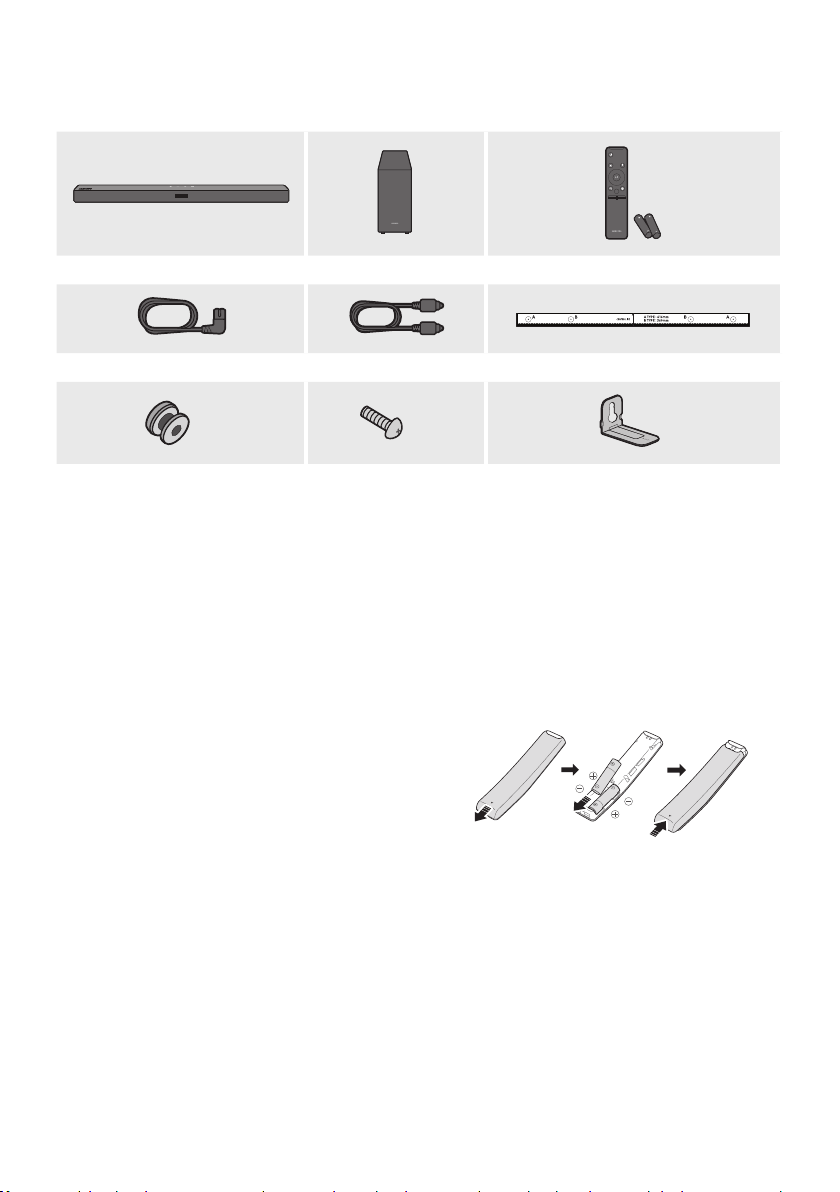

01 CHECKING THE COMPONENTS

VOL WOOFER

SOUNDBAR

SOUND

MODE

PAIR

Soundbar Main Unit Subwoofer Remote Control / Batteries

Power Cord Optical Cable Wall Mount Guide

x 2 x 2

x 2

Holder-Screw Screw

Bracket-Wall Mount

•For more information about the power supply and power consumption, refer to the label attached

to the product. (Label: Bottom of the Soundbar Main Unit)

•To purchase additional components or optional cables, contact a Samsung Service Centre or

Samsung Customer Care.

•The appearance of the accessories may differ slightly from the illustrations above.

Inserting Batteries before using the Remote Control (AA batteries X 2)

Slide the back cover in the direction of the arrow

until it is completely removed. Insert 2 AA batteries

(1.5V) oriented so that their polarity is correct. Slide

the back cover back into position.

ENG - 3

02 PRODUCT OVERVIEW

Front Panel / Top Panel of the Soundbar

Position the product so that

the SAMSUNG logo is

located on the top. Top Panel

󱂖

󱂓

󱂔 󱂕

󱂓Display

Displays the product’s status and current mode.

󱂔

(Power) Button

Turns the power on and off.

•Auto Power Down Function

The unit turns off automatically in the following situations:

– In D.IN / BT / USB Mode : If there is no audio signal for 18 minutes.

󱂕

-/+ (Volume) Button

Adjusts the volume.

•When adjusted, the volume level appears on the Soundbar’s front display.

󱂖

(Source) Button

Selects the source input mode.

Input mode Display

Optical Digital input D.IN

BLUETOOTH mode BT

USB mode USB

•To turn on “BT PAIRING” mode, change the source to “BT” mode, and then press and hold the

(Source) button for more than 5 seconds.

•When you plug in the AC cord, the power button will begin working in 4 to 6 seconds.

•When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.

•If you want to enjoy sound only from the Soundbar, you must turn off the TV’s speakers in the Audio

Setup menu of your TV. Refer to the owner’s manual supplied with your TV.

ENG - 4

Bottom Panel of the Soundbar

USB (5V 0.5A)

DIGITAL AUDIO IN

(OPTICAL)

POWERSUBWOOFER

POWER

SUBWOOFER

USB (5V 0.5A)

DIGITAL AUDIO IN

(OPTICAL)

󱂓

󱂕

󱂖

󱂔

󱂓DIGITAL AUDIO IN (OPTICAL)

Connect to the digital (optical) output of an external device.

󱂔USB (5V 0.5A)

Connect a USB device here to play music les stored on the USB device through the Soundbar.

󱂕SUBWOOFER

Connect the speaker cable on the subwoofer.

󱂖POWER

Connect the Soundbar's AC power cable.

•When disconnecting the power cord from a wall outlet, pull the plug. Do not pull the cable.

•Do not connect this unit or other components to an AC outlet until all connections between

components are complete.

ENG - 5

03 CONNECTING THE SOUNDBAR

Connecting Electrical Power

For more information about the required electrical power and power consumption, refer to the label

attached to the product. (Label: Bottom of the Soundbar Main Unit)

POWER

Bottom of the Soundbar Main Unit

Connecting Electrical Power

Power Cord

Connecting the Subwoofer to the Soundbar

When the subwoofer is connected, you can enjoy rich bass sound.

USB (5V 0.5A)

DIGITAL AUDIO IN

(OPTICAL)

POWER

SUBWOOFER

Bottom of the Soundbar Main Unit

Connect the Subwoofer

to the SUBWOOFER jack

of the Soundbar.

Rear of Subwoofer

ENG - 6

04 CONNECTING TO YOUR TV

Hear TV sound from your Soundbar through wired or wireless connections.

•When the Soundbar is connected to selected Samsung TVs, the Soundbar can be controlled using

the TV’s remote control.

– This feature is supported by 2017 and later Samsung Smart TVs that support Bluetooth when

you connect the Soundbar to the TV using an optical cable.

– This function also allows you to use the TV menu to adjust the sound eld and various settings

as well as the volume and mute.

Method 1. Connecting with a Cable

When the audio in a broadcast is encoded in Dolby Digital and the “Digital Output Audio Format” on

your TV is set to PCM, we recommend that you change the setting to Dolby Digital. When the setting on

the TV is changed, you will experience better sound quality. (The TV menu may use different words for

Dolby Digital and PCM depending on the TV manufacturer.)

Connecting using an Optical Cable

USB (5V 0.5A)

DIGITAL AUDIO IN

(OPTICAL)

OPTICAL OUT

Top of the Soundbar

D.IN

Optical Cable

󱂓

󱂔

Bottom of the Soundbar

1. Connect the DIGITAL AUDIO IN (OPTICAL) jack on the Soundbar to the OPTICAL OUT jack of the TV

with a digital optical cable.

2. Press the (Source) button on the top panel or remote control, and then select the “D.IN” mode.

Indice

Altri manuali Samsung Sistema di altoparlanti

Samsung

Samsung HW-Q900T Istruzioni per l'installazione

Samsung

Samsung CRYSTAL SURROUND AIR TRACK HW-D451 Manuale utente

Samsung

Samsung Crystal Surround Air Track HW-F750 Manuale utente

Samsung

Samsung HW-B550 Istruzioni per l'installazione

Samsung

Samsung HW-B67C Istruzioni per l'installazione

Samsung

Samsung HW-E550 Manuale utente

Samsung

Samsung 2020 Q Series Istruzioni per l'installazione

Samsung

Samsung HW-J450 Manuale utente

Samsung

Samsung HW-JM45C Manuale utente

Samsung

Samsung HW-Q800A Istruzioni per l'installazione

Samsung

Samsung HW-A430 Istruzioni per l'installazione

Samsung

Samsung HW-C450 Manuale utente

Samsung

Samsung HW-Q995C Manuale utente

Samsung

Samsung HW-NW700/ZA Istruzioni per l'installazione

Samsung

Samsung HW-Q990C Manuale utente

Samsung

Samsung Crystal Surround Air Track HW-F450 Manuale utente

Samsung

Samsung HW-J650 Manuale utente

Samsung

Samsung Crystal Surround Air Track HW-F750 Manuale utente

Samsung

Samsung HW-A550 Istruzioni per l'installazione

Samsung

Samsung HW-J8500R Manuale utente

Samsung

Samsung HW-M360/ZA Istruzioni per l'installazione

Samsung

Samsung HW-S800B Istruzioni per l'installazione

Samsung

Samsung HW-Q935C Manuale utente

Samsung

Samsung HW-Q800T Manuale utente

Manuali Sistema di altoparlanti popolari di altre marche

JVC

JVC CA-MXK5R Manuale utente

LG NB4532B Manuale utente

JVC

JVC CA-FSH100 Manuale utente

5Core

5Core Pro Series Manuale utente

EAW

EAW MQV1394e Manuale utente

Lynx

Lynx GXR-LA10A Manuale utente

iLive

iLive ITB066B Manuale utente

RDX

RDX QuickStation 4 Manuale utente

Electro-Voice

Electro-Voice S-122 Manuale utente

Sven

Sven SPS-619 GOLD Manuale utente

Pioneer

Pioneer CS-7070 Manuale utente

EAW

EAW UB82e Manuale utente

Sondpex

Sondpex Active Speaker System and Digital Music... Manuale utente

JVC

JVC NX-PN7 Manuale utente

Marshall Amplification

Marshall Amplification AR-DM61-BT Manuale utente

Yamaha

Yamaha NX-A01 - Speaker Sys Manuale utente

SE Audiotechnik

SE Audiotechnik I-LINE Manuale utente

Gemini

Gemini WRX-843 Series Manuale utente
