Samsung Q Series Istruzioni per l'installazione

HW-Q600C

FULL MANUAL

Imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register

your product at www.samsung.com/register

ENG - 2

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE THE COVER (OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

Refer to the table below for an explanation of

symbols which may be on your Samsung product.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

This symbol indicates that high voltage

is present inside. It is dangerous to

make any kind of contact with any

internal part of this product.

This symbol indicates that this product

has included important literature

concerning operation and maintenance.

Class II product : This symbol indicates

that it does not require a safety

connection to electrical earth (ground).

If this symbol is not present on a

product with a power cord, the product

MUST have a reliable connection to

protective earth (ground).

AC voltage : This symbol indicates that

the rated voltage marked with the

symbol is AC voltage.

DC voltage : This symbol indicates that

the rated voltage marked with the

symbol is DC voltage.

Caution, Consult instructions for use :

This symbol instructs the user to

consult the user manual for further

safety related information.

WARNING



not expose this appliance to rain or moisture.

CAUTION

TO PREVENT ELECTRIC SHOCK, MATCH WIDE

BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

This apparatus shall always be connected to a

AC outlet with a protective grounding

connection.

To disconnect the apparatus from the mains,

the plug must be pulled out from the mains

socket, therefore the mains plug shall be

readily operable.

Do not expose this apparatus to dripping or



liquids, such as vases on the apparatus.

To turn this apparatus off completely, you

must pull the power plug out of the wall

socket. Consequently, the power plug must

be easily and readily accessible at all times.

ENG - 3

PRECAUTIONS

1. Ensure that the AC power supply in your

house complies with the power



sticker located on the bottom of your

product. Install your product horizontally, on

a suitable base (furniture), with enough

space around it for ventilation (7~10 cm).

Make sure the ventilation slots are not



or other equipment which may become hot.

This unit is designed for continuous use. To

fully turn off the unit, disconnect the AC plug

from the wall outlet. Unplug the unit if you

intend to leave it unused for a long period of

time.

2. During thunderstorms, disconnect the AC

plug from the wall outlet. Voltage peaks due

to lightning could damage the unit.

3. Do not expose the unit to direct sunlight or

other heat sources. This could lead to

overheating and cause the unit to

malfunction.

4. Protect the product from moisture (i.e.



equipment creating strong magnetic or



the AC wall socket if the unit malfunctions.

Your product is not intended for industrial

use. It is for personal use only. Condensation

may occur if your product has been stored in

cold temperatures. If transporting the unit

during the winter, wait approximately

2 hours or until the unit has reached room

temperature before using.

5. The battery used with this product contains

chemicals that are harmful to the

environment. Do not dispose of the battery

in the general household trash. Do not

expose the battery to excess heat, direct



disassemble, or overheat the battery.

CAUTION : Danger of explosion if the battery

is replaced incorrectly. Replace only with the

same or equivalent type.

ENG - 4

CONTENTS

01 Checking the Components 6

02 Product Overview 7

Front Panel / Top Panel of the Soundbar ------------------------- 7

Bottom Panel of the Soundbar ------------------------- 8

03 Using the Remote Control 9

Inserting Batteries before using the Remote Control (AAA batteries X 2) ------------------------- 9

How to Use the Remote Control ------------------------- 9

Using the Hidden Buttons (Buttons with more than one function) ------------------------- 13

 ------------------------- 13

Adjusting the Soundbar volume with a TV remote control ------------------------- 14

04 Connecting the Soundbar 15

Connecting Electrical Power ------------------------- 15

Connecting the Samsung Wireless Rear Kit to your Soundbar ------------------------- 18

05 Connecting to a TV 19

Method 1. Connecting with HDMI ------------------------- 19

Method 2. Connecting using an Optical Cable ------------------------- 21

Method 3. Connecting via Bluetooth ------------------------- 23

06 Connecting an External Device 25

Method 1. Connecting using an HDMI Cable

(Capable of Dolby Atmos®/DTS:X decoding and playback) ------------------------- 25

Method 2. Connecting using an Optical Cable ------------------------- 26

ENG - 5

07 Connecting a USB drive 27

08 Connecting a Mobile Device 28

Connecting via Bluetooth ------------------------- 28

Using Tap Sound ------------------------- 32

09 Installing the Wall Mount 33

Installation Precautions ------------------------- 33

Wallmount Components ------------------------- 33

10 Installing the Soundbar in front of TV 35

11 Software Update 36

USB Update ------------------------- 36

Reset ------------------------- 37

12 Troubleshooting 38

13 Licence 40

14 Open Source Licence Notice 41

15 Important Notes About Service 41

  

 ------------------------- 42

ENG - 6

01 CHECKING THE COMPONENTS

SOUND

MODE

WOOFER

TONE

CONTROL

CHLEVEL

Soundbar Main Unit Subwoofer Remote Control / Batteries

x 2

Power Cord

(Subwoofer, Soundbar)

AC/DC Adapter

(Soundbar)

HDMI Cable

x 2 x 2

(M4 x L10)

x 2

Wall Mount Guide Holder-Screw

Bracket-Wall Mount

Screw

For more information about the power supply and power consumption, refer to the label attached

to the product. (Label: Bottom of the Soundbar Main Unit)

To purchase additional components or optional cables, contact a Samsung Service Centre or

Samsung Customer Care.

For more information about the wallmount see page 33.



The appearance of the components may differ slightly from the illustrations above.

ENG - 7

02 PRODUCT OVERVIEW

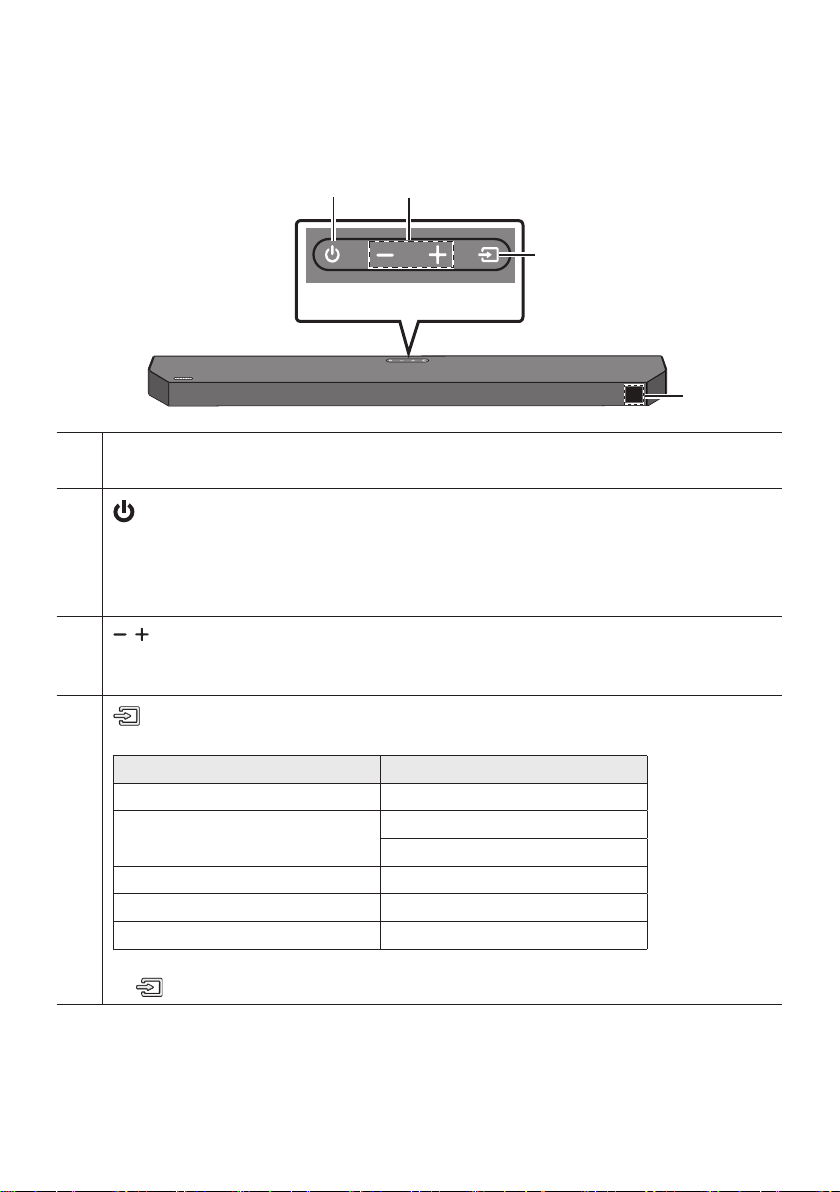

Front Panel / Top Panel of the Soundbar

Top Panel

󱂔 󱂕

󱂖

󱂓

󱂓Display

Displays the product’s status and current mode.

󱂔

(Power) Button

Turns the power on and off.

Auto Power Down Function

The unit turns off automatically in the following situations:

– In D.IN / HDMI / BT / USB Mode : If there is no audio signal for 18 minutes.

󱂕

(Volume) Button

Adjusts the volume.

When adjusted, the volume level appears on the Soundbar’s front display.

󱂖

(Source) Button

Selects the source input mode.

Input mode Display

Optical D.IN

eARC/ARC (HDMI OUT) *D.IN TV eARC (Auto conversion)

D.IN TV ARC (Auto conversion)

HDMI HDMI

BLUETOOTH mode BT

USB mode USB

To turn on “BT PAIRING” mode, change the source to “BT” mode, and then press and hold the

(Source) button for more than 5 seconds.

“*” mode is supported when the eARC function in the TV setting is On.

When you plug in the AC cord, the power button will begin working in 4 to 6 seconds.

ENG - 8

When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.

If you hear sounds from both the TV and Soundbar, go to the Settings menu for the TV audio and

change the TV speaker to External Speaker.

Bottom Panel of the Soundbar

HDMI

HDMI TO TV

(eARC/ARC)

DIGITAL AUDIO IN (OPTICAL)

USB (5V 0.5A)

DC 24V

HDMI

HDMI TO TV

(eARC/ARC)

DIGITAL AUDIO IN (OPTICAL)

USB (5V 0.5A)

DC 24V

HDMI

HDMI TO TV

(eARC/ARC)

DIGITAL AUDIO IN (OPTICAL)

USB (5V 0.5A)

DC 24V

HDMI

HDMI TO TV

(eARC/ARC)

DIGITAL AUDIO IN (OPTICAL)

USB (5V 0.5A)

DC 24V

HDMI

HDMI TO TV

(eARC/ARC)

DIGITAL AUDIO IN (OPTICAL)

USB (5V 0.5A)

DC 24V

HDMI

HDMI TO TV

(eARC/ARC)

DIGITAL AUDIO IN (OPTICAL)

USB (5V 0.5A)

DC 24V

󱂕

󱂖

󱂗

󱂓

󱂔

󱂓

USB (5V 0.5A)



(See page

27)

󱂔DC 24V (Power Supply In)

Connect the AC/DC power adapter.

(See page 15)

󱂕

HDMI

Inputs digital video and audio signals simultaneously using an HDMI cable.

Connect to the HDMI output of an external device.

(See page 25)

󱂖HDMI TO TV (eARC/ARC)

Connect to the HDMI IN (eARC) port on a TV.

(See page 19)

󱂗DIGITAL AUDIO IN (OPTICAL)

Connect to the digital (optical) output of an external device.

(See page 26)

When disconnecting the power cable of the AC/DC power adapter from a wall outlet, pull the plug.

Do not pull the cable.

Do not connect this unit or other components to an AC outlet until all connections between

components are complete.

ENG - 9

03 USING THE REMOTE CONTROL

Inserting Batteries before using the Remote Control (AAA batteries X 2)

Slide the back cover in the direction of the arrow

until it is completely removed.

Insert 2 AAA batteries (1.5V) so that their

orientation is correct. Slide the back cover back into

position.

How to Use the Remote Control

SOUND

MODE

WOOFER

TONE

CONTROL

CH LEVEL

󱂓

󱂔

󱂕

󱂖

󱂗

󱂘

󱂙

󱂚

󱂛

󱂜

󱂝

󱂞

󱂟

󱂓

SOUND

MODE

WOOFER

TONE

CONTROL

CH LEVEL

Power

Turns the Soundbar on and off.

󱂔

SOUND

MODE

WOOFER

TONE

CONTROL

CH LEVEL

Source

Press to select a source connected to the

Soundbar.

󱂕

SOUND

MODE

WOOFER

TONE

CONTROL

CH LEVEL

Mute

Press the (Mute) button to mute the sound.

Press it again to unmute the sound.

󱂖

SOUND

MODE

WOOFER

TONE

CONTROL

CH LEVEL

Volume

CH LEVEL

TONE

CONTROL

WOOFER

SOUND

MODE

CH LEVEL

TONE

CONTROL

WOOFER

SOUND

MODE

CH LEVEL

TONE

CONTROL

WOOFER

SOUND

MODE

CH LEVEL

TONE

CONTROL

WOOFER

SOUND

MODE

Push the button up or down to adjust the

volume.

Mute

Press the Volume button in to mute the

sound. Press it in again to unmute the sound.

ENG - 10

󱂗

SOUND

MODE

WOOFER

TONE

CONTROL

CH LEVEL

By pressing the button, you can adjust the volume of the each speaker.

Press the button to select CENTER LEVEL or TOP LEVEL and then adjust the volume

between -6~+6 by using the Up/Down buttons.

If the Rear Speakers (sold separately) are connected, the setting REAR LEVEL is

supported. To adjust the volume of the REAR LEVEL between -6 to +6 by using the Up/

Down buttons.

󱂘

SOUND

MODE

WOOFER

TONE

CONTROL

CH LEVEL

Sound Control

By pressing the button, you can set the audio function. The desired settings can be

adjusted using the Up/Down buttons.

VOICE ENHANCE ON/OFF NIGHT MODE ON/OFF SYNC VIRTUAL ON/OFF

– VOICE ENHANCE ON/OFF

This mode is makes it easier to hear spoken dialog in movies and TV.

– NIGHT MODE ON/OFF

This mode is optimized for nighttime viewing with the settings adjusted to bring the

volume down but keep the dialog clear.

– SYNC

If the video on the TV and audio from the Soundbar are not synchronized, press the

(Sound Control) button to select SYNC and then set the audio delay between

Up/Down buttons. (Not available in “USB” or “BT”

mode.)

– VIRTUAL ON/OFF

Dolby Virtual function can be turned ON/OFF.

The VOICE ENHANCE, NIGHT MODE, and VIRTUAL audio function can be turned ON/

OFF by using the Up/Down buttons. (VIRTUAL function is not available in “USB” or “BT”

mode.)

Press and hold the (Sound Control) button for about 5 seconds to adjust the sound

for each frequency band. 150Hz, 300Hz, 600Hz, 1.2kHz, 2.5kHz, 5kHz, and 10kHz are

selectable using the Left/Right buttons and each can be adjusted to a setting between

-6 to +6 using the Up/Down buttons.

(Make sure the Sound mode is set to “STANDARD”.)

󱂙

SOUND

MODE

WOOFER

TONE

CONTROL

CH LEVEL

Bluetooth

PAIR

Switch the Soundbar to Bluetooth pairing mode.

Press the PAIR button and wait for the “BT PAIRING” screen to connect to a new

Bluetooth device.

󱂚

Play / Pause

VOL WOOFER

SOUND

MODE

PAIR

You can also play or pause music by pressing the button.

Altri manuali per Q Series

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Samsung Sistema di altoparlanti

Samsung

Samsung HW-A50C Istruzioni per l'installazione

Samsung

Samsung MultiXpress K430 SERIES Manuale utente

Samsung

Samsung HW-C450/ZA Istruzioni per l'installazione

Samsung

Samsung HW-K650 Manuale utente

Samsung

Samsung Harman/Kardon HW-Q70R Manuale utente

Samsung

Samsung HW-A40R Istruzioni per l'installazione

Samsung

Samsung Harman/Kardon HWQ6CR/ZA Istruzioni per l'installazione

Samsung

Samsung S-2000 Manuale utente

Samsung

Samsung HW-S60B Istruzioni per l'installazione

Samsung

Samsung Harman/Kardon HW-Q70R Istruzioni per l'installazione

Samsung

Samsung HW-C47M Istruzioni per l'installazione

Samsung

Samsung HW-N660 Manuale utente

Samsung

Samsung HW-Q60T Istruzioni per l'installazione

Samsung

Samsung HW-N400 Manuale utente

Samsung

Samsung HW-J4000 Manuale utente

Samsung

Samsung HW-KM45 Manuale utente

Samsung

Samsung HW-Q700A Istruzioni per l'installazione

Samsung

Samsung HW-Q930C Manuale utente

Samsung

Samsung HW-T450 Manuale utente

Samsung

Samsung HW-N400/XN Istruzioni per l'installazione

Samsung

Samsung HW-S50A Istruzioni per l'installazione

Samsung

Samsung HW-T40M Istruzioni per l'installazione

Samsung

Samsung HW-Q900A Istruzioni per l'installazione

Samsung

Samsung HW-A550 Istruzioni per l'installazione

Manuali Sistema di altoparlanti popolari di altre marche

JVC

JVC CA-MXK5R Manuale utente

LG NB4532B Manuale utente

JVC

JVC CA-FSH100 Manuale utente

5Core

5Core Pro Series Manuale utente

EAW

EAW MQV1394e Manuale utente

Lynx

Lynx GXR-LA10A Manuale utente

iLive

iLive ITB066B Manuale utente

RDX

RDX QuickStation 4 Manuale utente

Electro-Voice

Electro-Voice S-122 Manuale utente

Sven

Sven SPS-619 GOLD Manuale utente

Pioneer

Pioneer CS-7070 Manuale utente

EAW

EAW UB82e Manuale utente

Sondpex

Sondpex Active Speaker System and Digital Music... Manuale utente

JVC

JVC NX-PN7 Manuale utente

Marshall Amplification

Marshall Amplification AR-DM61-BT Manuale utente

Yamaha

Yamaha NX-A01 - Speaker Sys Manuale utente

SE Audiotechnik

SE Audiotechnik I-LINE Manuale utente

Gemini

Gemini WRX-843 Series Manuale utente
