Samsung HW-H600 Manuale utente

Wireless Audio - SoundStand

Imagine the possibilities

Thank you for purchasing this Samsung product.

To receive a more complete service, please register your product at

www.samsung.com/register

User manual

HW-H600

FEATURES

TV SoundConnect

TV SoundConnect lets you listen to audio from your TV on your SoundStand via a Bluetooth connection and lets you

control the sound.

HDMI

HDMI transmits video and audio signals simultaneously, and provides a clearer picture.

The unit is also equipped with the ARC function which lets you listen to sound from your TV through the SoundStand

via an HDMI cable.This function is only available if you connect the unit to an ARC compliant TV.

Surround Sound Expansion

The Surround Sound Expansion feature adds depth and spaciousness to your listening experience. Surround Sound

Expansion is powered by Sonic Emotion.

Special Sound Modes

You can select different sound modes - CINEMA / SPORTS / VOICE / MUSIC / STANDARD (OFF) - depending on the

type of content you want to enjoy.

Multi-function Remote Control

You can use the supplied remote control to control various operations with the simple press of a button.

USB Host Support

You can connect and play music files from external USB storage devices such as MP3 players, USB flash memory,

etc. using the SoundStand's USB HOST function.

Bluetooth Function

You can use connect a Bluetooth device to the SoundStand and enjoy music with high quality stereo sound, all

without wires!

NFC

Connect your NFC compatible device via Bluetooth to the SoundStand using this simple set-up procedure and play

music on the device through the SoundStand.

ENG

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This symbol indicates “dangerous voltage” inside

the product that presents a risk of electric shock or

personal injury.

This symbol indicates important instructions

accompanying the product.

WARNING : To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

• This apparatus shall always be connected to a AC outlet with a protective grounding connection.

• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug

shall be readily operable.

CAUTION

• Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on the apparatus.

• To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power plug

must be easily and readily accessible at all times.

SAFETY INFORMATION

During thunderstorms, disconnect the AC plug from the

wall outlet. Voltage peaks due to lightning could damage

the unit.

Protect the product from moisture (i.e. vases), and

excess heat (e.g. a fireplace) or equipment creating

strong magnetic or electric fields. Disconnect the power

cable from the AC supply if the unit malfunctions. Your

product is not intended for industrial use. It is for

personal use only.

Condensation may occur if your product has been

stored in cold temperatures. If transporting the unit

during the winter, wait approximately 2 hours until the

unit has reached room temperature before using.

Do not expose the unit to direct sunlight or other heat

sources.

This could lead to overheating and cause the unit to

malfunction.

The batteries used with this product contain chemicals

that are harmful to the environment.

Do not dispose of batteries in the general household

trash.

Do not dispose of batteries in a fire.

Do not short circuit, disassemble, or overheat the

batteries.

Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type.

Di h d di hACl f

(

)

Dhidilihhh

Th b tt i d ith thi d t t i h i

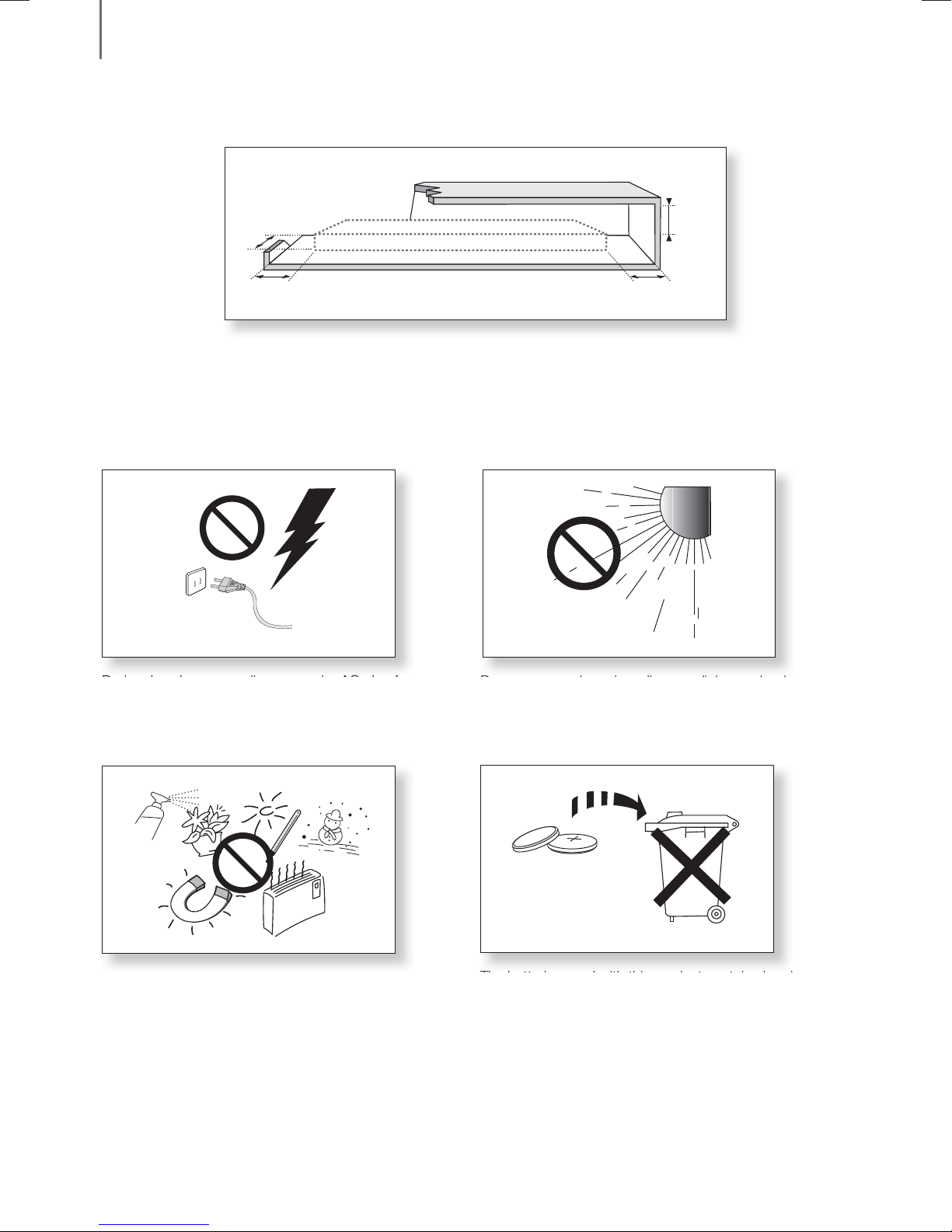

PRECAUTIONS

Ensure that the AC power supply in your house complies with the power requirements listed on the identification

sticker located on the back of your product. Install your product horizontally, on a suitable base (furniture), with enough

space around it for ventilation 7~10 cm. Make sure the ventilation slots are not covered. Do not place the unit on

amplifiers or other equipment which may become hot. This unit is designed for continuous use. To fully turn off the

unit, disconnect the AC plug from the wall outlet. Unplug the unit if you intend to leave it unused for a long period of

time.

99.1mm 99.1mm

68.6

99.1mm

ENG

CONTENTS

FEATURES

SAFETY INFORMATION

3 Safety warnings

4 Precautions

GETTING STARTED

6 Before reading the user’s manual

6 What’s included

DESCRIPTIONS

7 Top/front panel

8 Rear panel

REMOTE CONTROL

9 Tour and using the remote control

INSTALLATION

11 SoundStand installation

CONNECTIONS

12 Connecting an external device using an

HDMI cable

13 Connecting an external device using

OPTICAL (DIGITAL) cable or AUDIO

(ANALOGUE) cable

CONTENTS

FUNCTIONS

14 Input mode

14 ARC (HDMI OUT)

15 Bluetooth

17 NFC

18 TV SoundConnect

19 USB

20 Software upgrade

TROUBLESHOOTING

APPENDIX

22 Specifications

22 License

GETTING STARTED

BEFORE READING THE USER’S MANUAL

Note the following terms before reading the user manual.

+Icons used in this manual

Icon Term Definition

Caution

Indicates a situation where a function does not operate or settings may be canceled.

Note

Indicates tips or instructions on the page that help you operate a function.

+Safety Instructions and Troubleshooting

1) Be sure to familiarise yourself with the Safety Instructions before using this product. (See page 3)

2) If a problem occurs, check Troubleshooting. (See page 21)

+Copyright

Samsung Electronics Co.,Ltd.

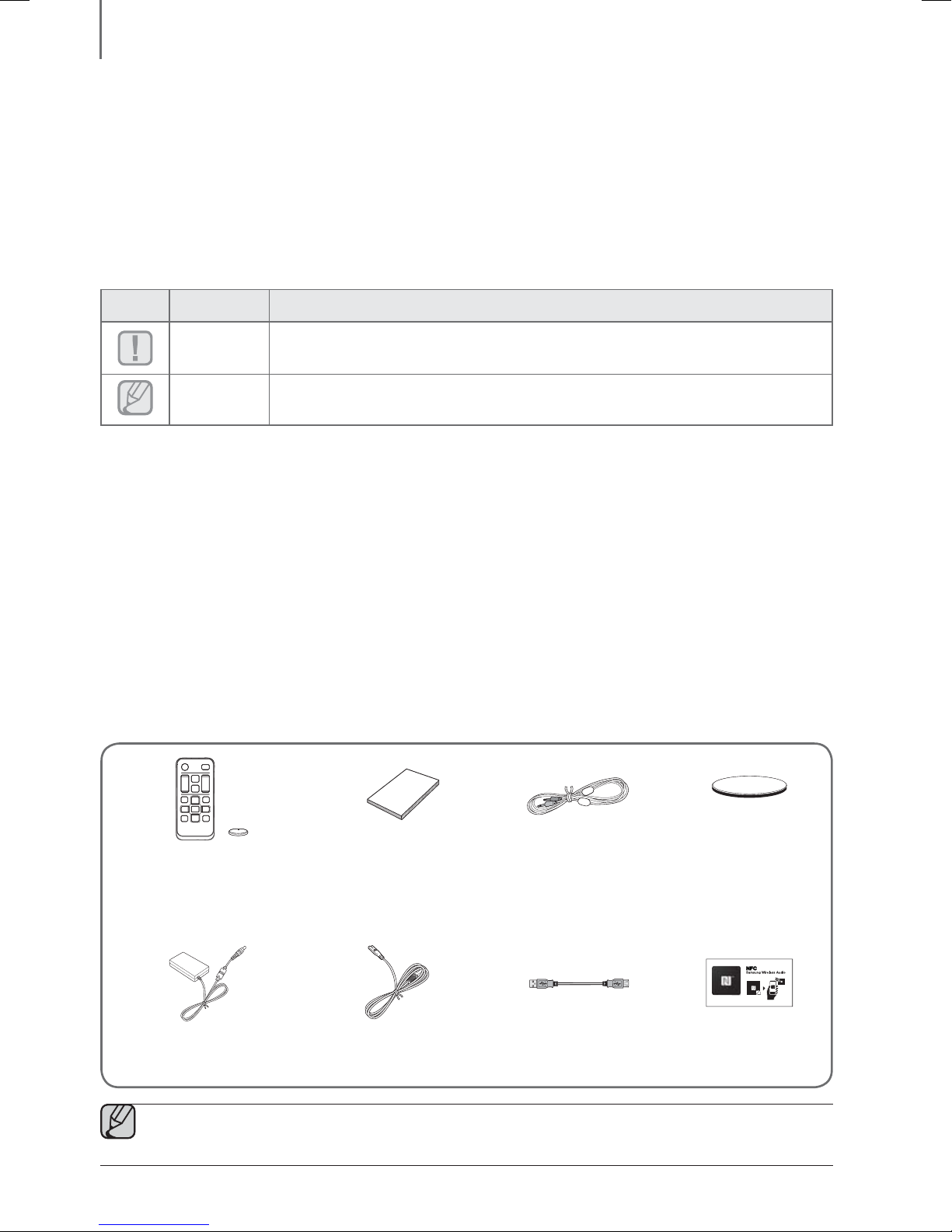

WHAT’S INCLUDED

Check for the supplied accessories shown below.

(Protection pad : 4ea)

Remote Control /

Lithium Battery

(3V : CR2032)

User Manual AUX Cable Pad

Adapter Power Cord USB Cable NFC Sticker

●The appearance of the accessories may differ slightly from the illustrations above.

●Use the dedicated USB cable to connect external USB devices to the unit.

ENG

DESCRIPTIONS

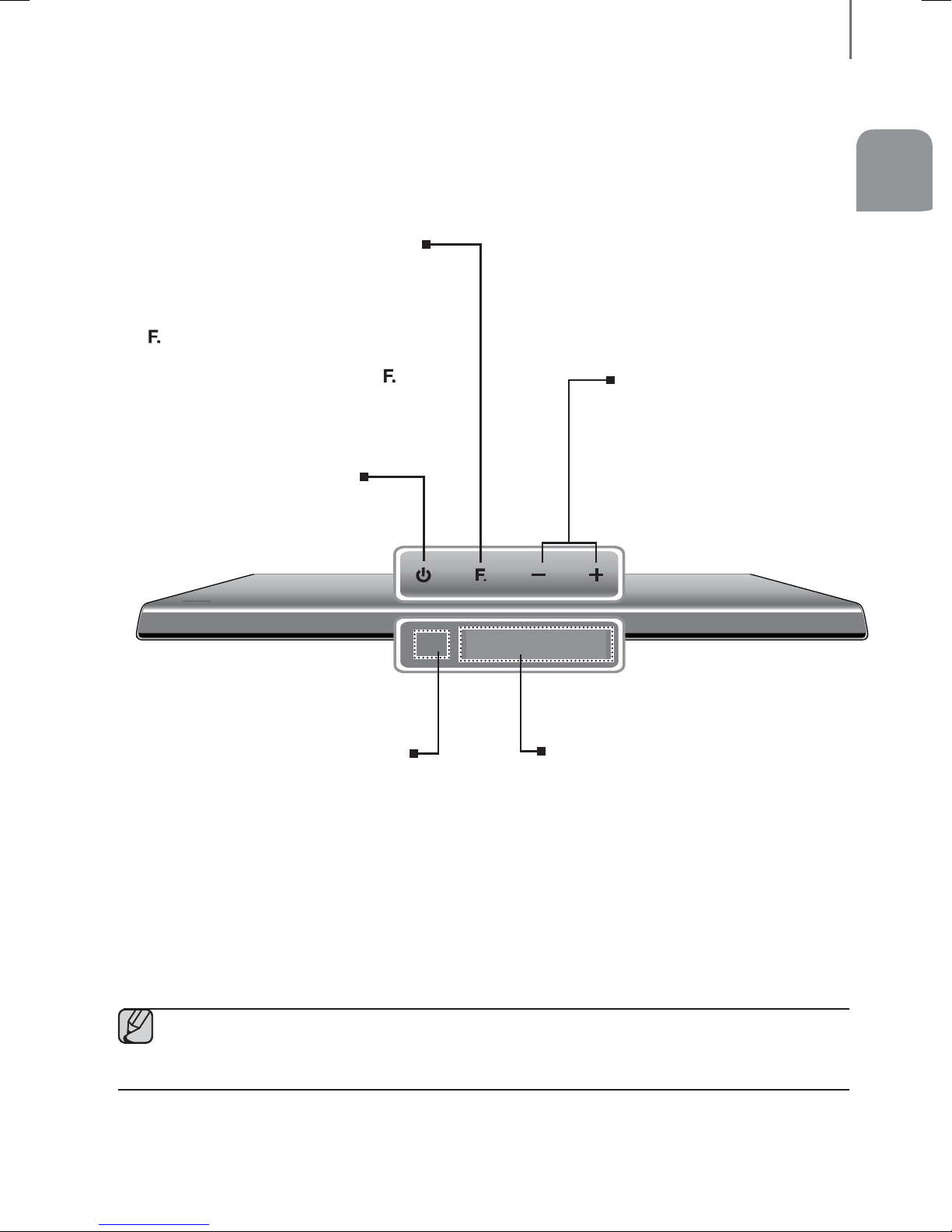

TOP/FRONT PANEL

POWER BUTTON

Turns the power on and off.

REMOTE CONTROL SENSOR

The remote control can operate

SoundStands made by SAMSUNG only.

VOLUME +/-

Controls the volume level.

The numeric value of the volume level

appears in the front panel display.

DISPLAY

Displays the current mode.

FUNCTION BUTTON

Selects the D.IN, AUX, HDMI, BT, TV, USB

input.

●While the unit is powered on, pressing the

( ) button for more than 3 seconds sets

the button to act as MUTE button. To

cancel MUTE button setup, press the ( )

button for more than 3 seconds again.

●When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.

●If you want to enjoy the sound only from the SoundStand, you must turn off the TV's speakers in the Audio

Setup menu of your TV. Refer to the owner's manual supplied with your TV.

DESCRIPTIONS

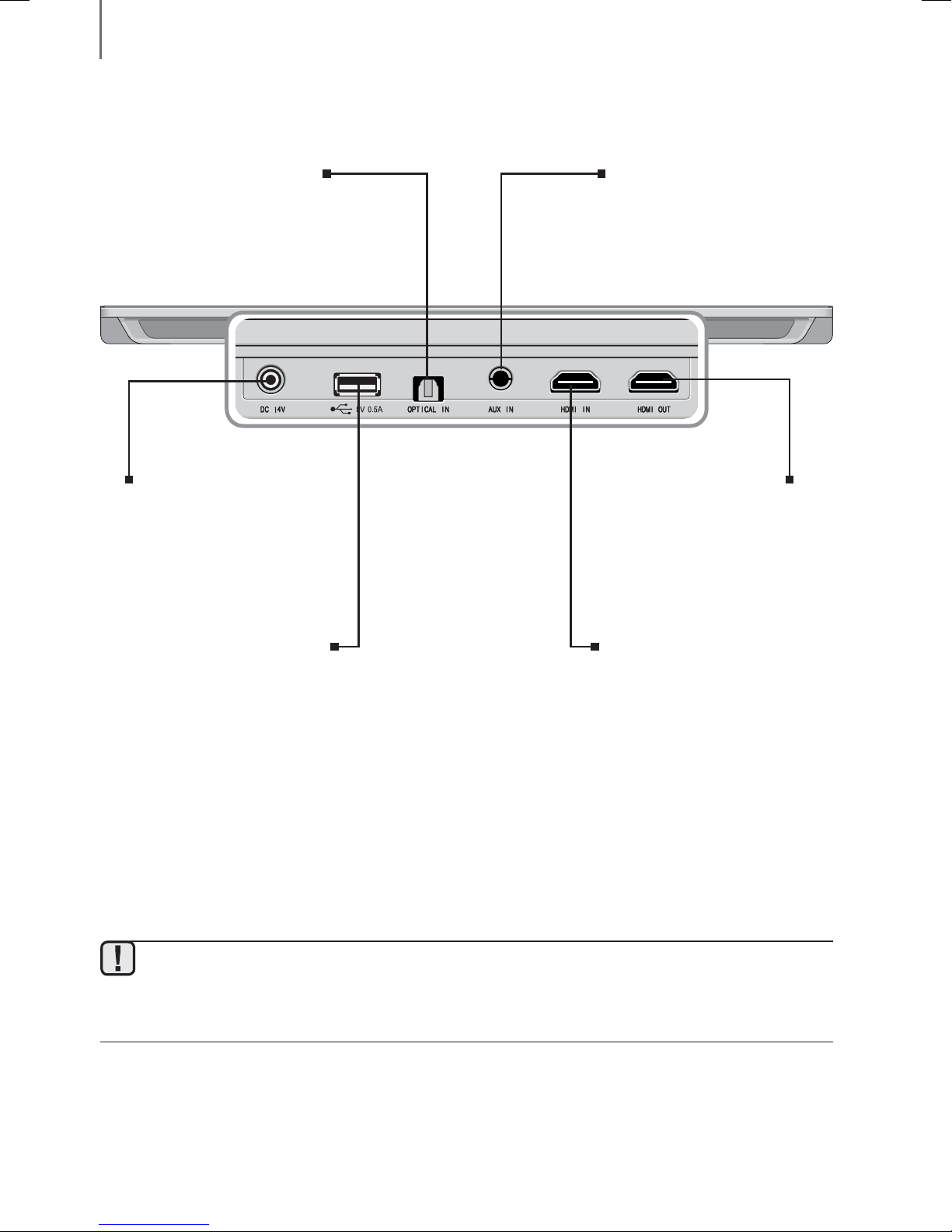

REAR PANEL

Power Supply IN

Connect the AC power adaptor to

the power supply jack, and then

connect the AC power adaptor plug

to a wall outlet.

USB PORT

Connect USB devices such as

MP3 players here to the play files

on the devices.

AUX IN

Connect to the Analogue output

of an external device.

HDMI IN Jack

Connects both video and audio

signals using an HDMI cable.Use

when connecting a supported

external device.

HDMI OUT Jack

Outputs digital video and audio

signals simultaneously using an HDMI

cable.

OPTICAL IN

Connect to the digital (optical)

output of an external device.

●When disconnecting the power cable of the AC power adaptor from the wall outlet, pull the plug. Do not

pull the cable.

●Do not connect this unit or other components to an AC outlet until all connections between components

are complete.

ENG

REMOTE CONTROL

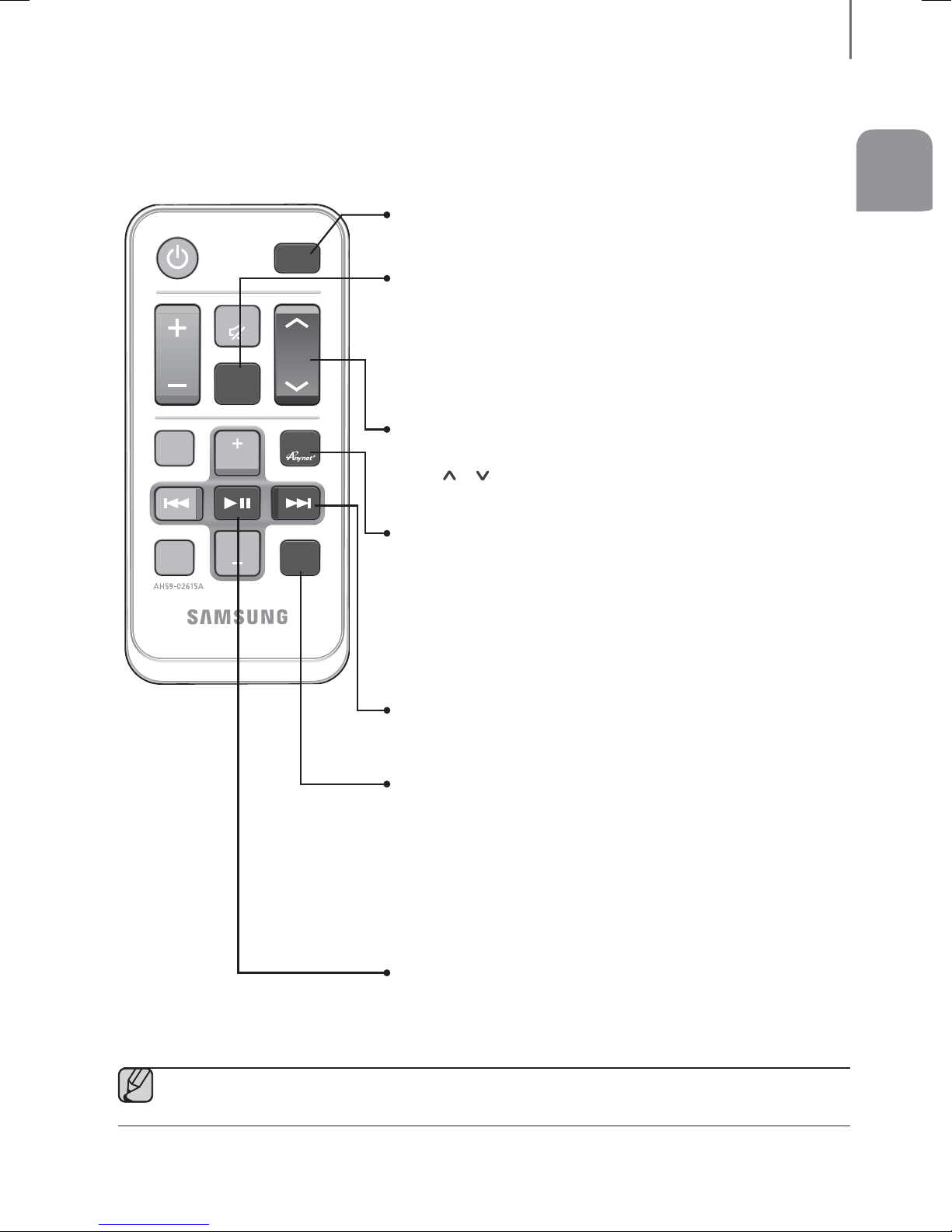

TOUR AND USING THE REMOTE CONTROL

Play/Pause

Press the

►

button again to pause playing the file temporarily.

Press the

►

button again to play the selected file.

SOURCE

MUTE

SYNC

POWER

SOUND

EFFECT

REPEAT

Bluetooth

POWER

VOL

WOOFER

LEVEL

Surr.

Sound

DIMMER

SOURCE

Press to select a source connected to the SoundStand.

Skip Forward

If there is more than one file on the device you are playing, and you

press the $button, the next file is selected.

REPEAT

You can set the REPEAT function during music playback from a USB

device.

REPEAT OFF : Cancels Repeat Playback.

REPEAT FILE : Repeatedly play a track.

REPEAT ALL : Repeatedly play all tracks.

REPEAT RANDOM : Plays tracks in random order. (A track that has

already been played may be played again.)

DIMMER/ANYNET+

DIMMER : Press the DIMMER/ANYNET+ button on the remote to

control the brightness of the display.

ANYNET+ : Turns on the ANYNET+ function which lets the remote

from your ANYNET+ Samsung TV control the SoundStand. The

ANYNET+ function toggles on and off each time the DIMMER/

ANYNET+ button is pressed and held for more than 5 seconds.

Surr.Sound (Surround Sound Expansion)

Press the Surr.Sound button on the remote to control the adds depth

and spaciousness to the sound.

SURROUND SOUND AUTO : If the sound source is more than 2

channels then SURROUND SOUND ON turns on automatically. On the

other hand, if the sound source is less than 2 channels (STEREO), then

mode is automatically set to SURROUND SOUND OFF.

WOOFER LEVEL

You can control the woofer volume.

Press or button on the WOOFER LEVEL button to increase or

decrease the woofer volume. You can set it from SW -6 to SW +6.

●SoundStand is a Samsung proprietary name.

●Operate the TV using the TV's remote control.

REMOTE CONTROL

Bluetooth POWER

Press the Bluetooth POWER button on the remote to turn the

Bluetooth Power function on and off.

See pages 16 and 18 for details.

POWER

Turns the SoundStand on and off.

VOLUME

Adjusts the volume level of the unit.

SOUND EFFECT

Press SOUND EFFECT on the remote control to select a sound

mode. Select the STANDARD mode if you want to enjoy the original

sound. We recommend that you select a Sound Effect mode based on

the source material and your personal taste.

Skip Back

If there is more than one file on the device you are playing, and you

press the #button, the previous file is selected.

MUTE

You can turn the volume down to 0 with the push of a button. Press

again to restore the sound to the previous volume level.

SOURCE

MUTE

SYNC

POWER

SOUND

EFFECT

REPEAT

Bluetooth

POWER

VOL

WOOFER

LEVEL

Surr.

Sound

DIMMER

AUDIO SYNC

If the SoundStand is connected to a digital TV and the video appears

out of sync with the audio, press the Audio Sync buttons to sync the

audio with the video.

Press the AUDIO SYNC +/- buttons to set the audio delay from 0 to

300 ms. In USB mode, TV mode, or BT mode, the Audio Sync

function may not work.

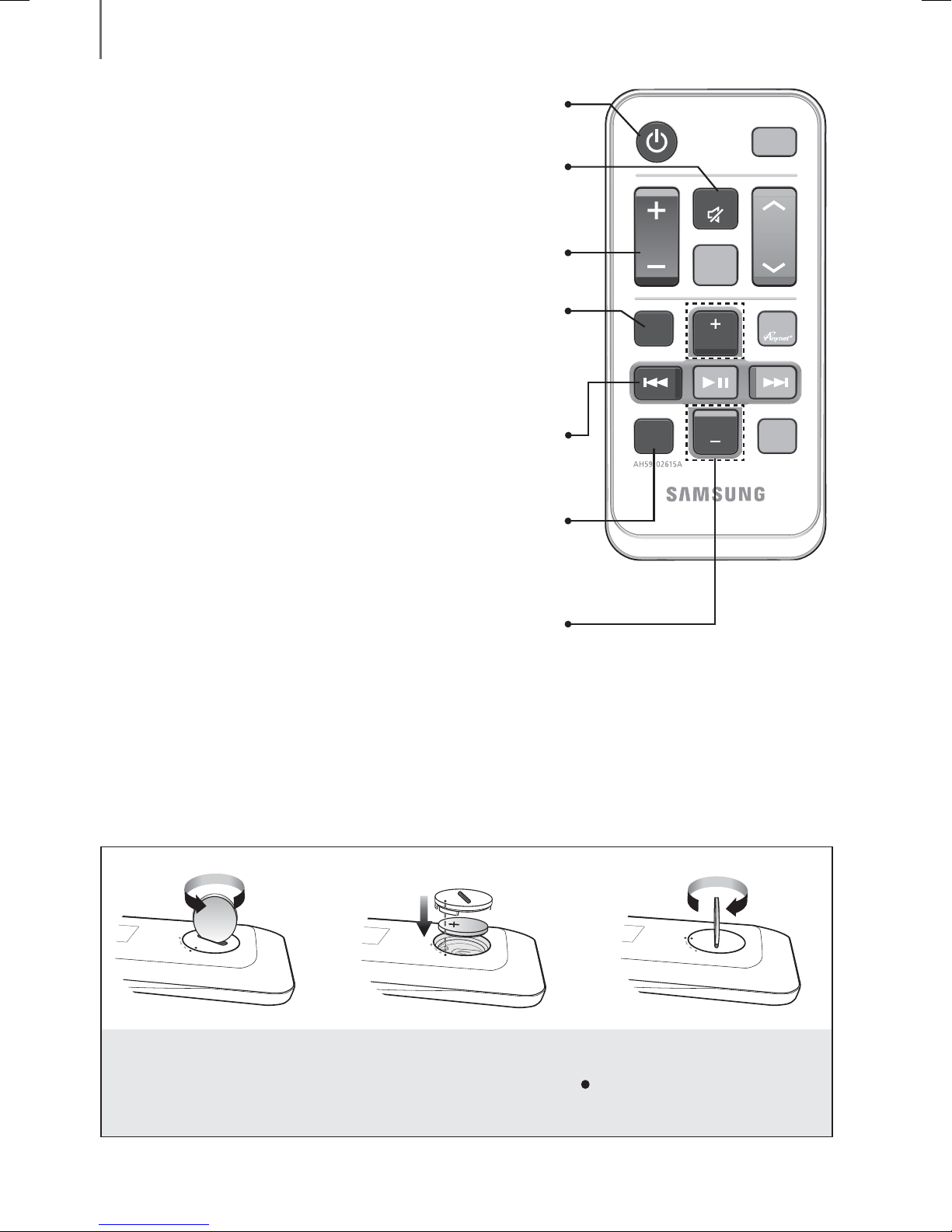

+Installing Batteries in the Remote Control

1. Use a coin to turn the

remote control cover

counterclockwise to

remove it as shown in the

figure above.

2. Insert a 3V lithium battery. Keep the positive

(+) pole facing up when inserting the battery.

Put the battery cover on and align the ' '

marks side by side as shown in the figure

above.

3. Use a coin to turn the

cover clockwise as far as

it will go to fix it in place.

Altri manuali per HW-H600

Indice

Altri manuali Samsung Impianto stereo

Samsung

Samsung MM-D330 Manuale utente

Samsung

Samsung MM-T8 Manuale utente

Samsung

Samsung M5 Manuale utente

Samsung

Samsung MX-T70 Istruzioni per l'installazione

Samsung

Samsung MAX-DX55 Manuale utente

Samsung

Samsung SPS-210 Manuale utente

Samsung

Samsung MX-F830B Manuale utente

Samsung

Samsung MAX-DN54 Manuale utente

Samsung

Samsung MX-FS9000 Manuale utente

Samsung

Samsung MM-S8 Manuale utente

Samsung

Samsung HW-K350 Manuale utente

Samsung

Samsung MM-ZB9 Guida all'installazione

Samsung

Samsung MAX-DJ750 Manuale utente

Samsung

Samsung MAX-DA66 Manuale utente

Samsung

Samsung MAX-DS990 Manuale utente

Samsung

Samsung MM-L4 Manuale utente

Samsung

Samsung MAX-DA79 Manuale utente

Samsung

Samsung MAX-G55 Manuale utente

Samsung

Samsung MM-L2G Manuale utente

Samsung

Samsung Shape WAM-750 Manuale utente

Samsung

Samsung MAX-VJ550 Manuale utente

Samsung

Samsung AH68-02275X Manuale utente

Samsung

Samsung MAX-DJ14500 Manuale utente

Samsung

Samsung MX-FS9000 Manuale utente

Manuali Impianto stereo popolari di altre marche

LG CM3330B Manuale utente

Sony

Sony SS-CEP50 Manuale utente

Cetacea Sound

Cetacea Sound CVS-II Manuale utente

Aiwa

Aiwa XR-H66MD Manuale utente

Denon

Denon UCD-250 Manuale utente

Sanyo

Sanyo DC-MX41i Manuale utente

Sharp

Sharp CD-ES600V Manuale utente

Exibel

Exibel BDX600-UK Manuale utente

Sanyo

Sanyo DC-F320 Manuale utente

Philips

Philips FWM583X Manuale utente

Sharp

Sharp CD-C462 Manuale utente

Onkyo

Onkyo CBX 300 - CD / MP3 Clock Radio Manuale utente

Aiwa

Aiwa XR-EM70 Manuale utente

Cyrus

Cyrus Lyric Manuale utente

Philips

Philips MCM159/98 Manuale utente

Philips/Magnavox

Philips/Magnavox Magnavox FW 62C Manuale utente

RCA

RCA RS3965SB Manuale utente

Sharp

Sharp XL-UH240 Manuale utente
