Samsung SBB-NT Manuale utente
Tuner Box
User Manual
Starting
•Size
•Auto Wide
•16:9
•Wide Zoom
•Zoom
•4:3
•Just Scan
•Screen Mode
•16:9
•Wide Zoom
•Zoom
•4:3
Channel
•Country
•Auto Store
•Manual Store
•Programme
•Colour System
•Sound System
•Channel
•Search
•Store
•Channel Manager
•Channel List
•Child Lock
•Sort
•Name
•Fine Tune
•LNA
Setup
•Plug & Play
•Language
Digital Menu
•guide
•Now & Next Guide
•Full Guide
•Scheduled List
•Default Guide
•Digital Channel
•Country
•Auto Store
•Manual Store
•Edit Favourite Channels
•Channel List
•Setup
•Menu Transparency
•Change PIN
•Parental Lock
•Subtitle
•Subtitle Mode
•Audio Format
•Audio Description
•Digital Text
•Time Zone
•Common Interface
•System
•Language
•Audio Language
•Subtitle Language
•Teletext Language
•Preference

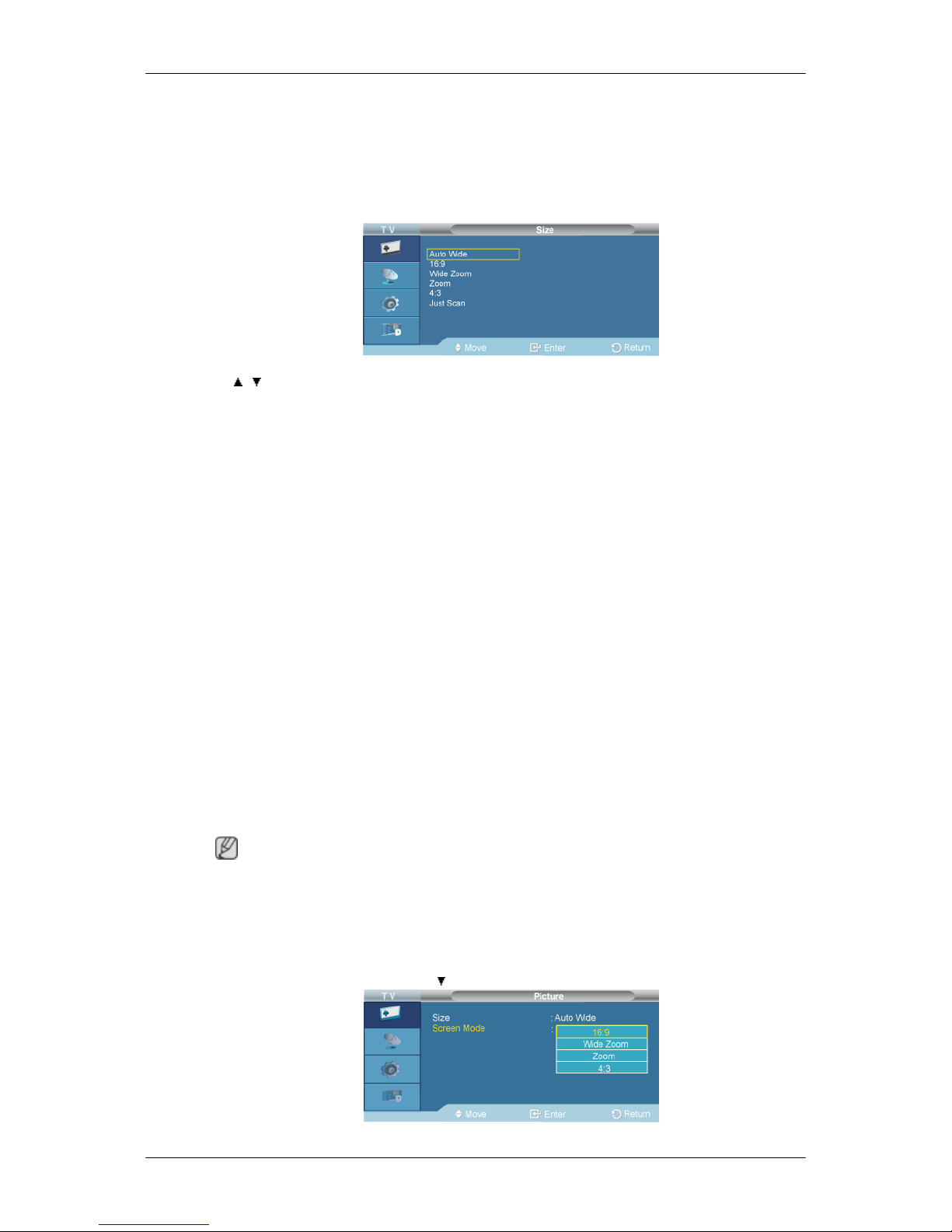

Size
D.MENU →[Picture] → ENTER → ENTER→[Size]
→ , → ENTER
Use to select PC, DVI or other external input sources connected to the LCD Display. Use to select the
screen of your choice.
1. Auto Wide
: Automatically adjusts the picture size to the "16:9" aspect ratio.
2. 16:9
: Sets the picture to 16:9 wide mode.
3. Wide Zoom
: Magnify the size of the picture more than 4:3.
4. Zoom
: Magnifies the size of the picture on the screen.
5. 4:3
: Sets the picture to 4:3 normal mode.
6. Just Scan
: Use the function to see the full image without any cutoff when HDMI (720p/1080i/1080p), DTV
(1080i) signals are input.
Note
Auto Wide function is available only in TV, DTV, AV mode.
In PC Mode, only 16:9 and 4:3 mode can be adjusted.
Screen Mode
D.MENU →[Picture] → ENTER → → ENTER
→ , → ENTER
Only when setting the picture size to Auto Wide can the user determine the Screen mode. Each
individual European country requires a different picture size so this function is intended to help users
to select it.
“Screen mode” is supported in TV, Ext., Component (480i/1080i) and HDMI (480i/1080i)
Picture Size is available in Auto Wide mode
This function is not available in PC or Component, Ext., HDMI mode.
1. 16:9
2. Wide Zoom
3. Zoom
4. 4:3
Channel

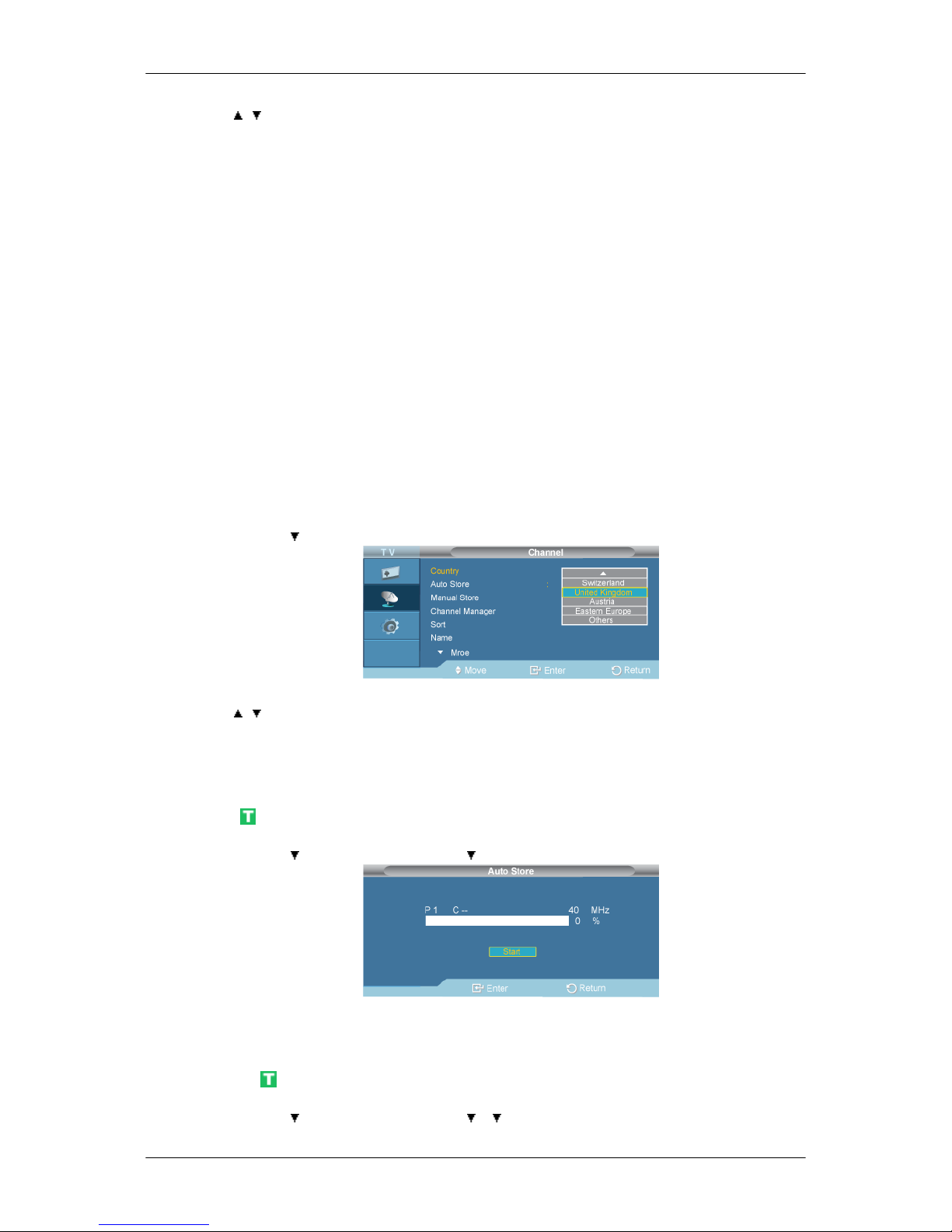

Country
D.MENU → →[Channel] → ENTER→ ENTER →[Country]
→ , → ENTER
Select the country in which the product is being used before you use the Auto Store feature. If you do
not see your country in the list, select Others.
Auto Store
D.MENU → →[Channel] → ENTER → → ENTER →[Auto Store]
You can scan the frequency ranges available on your television in your area and store all the channels
found automatically.

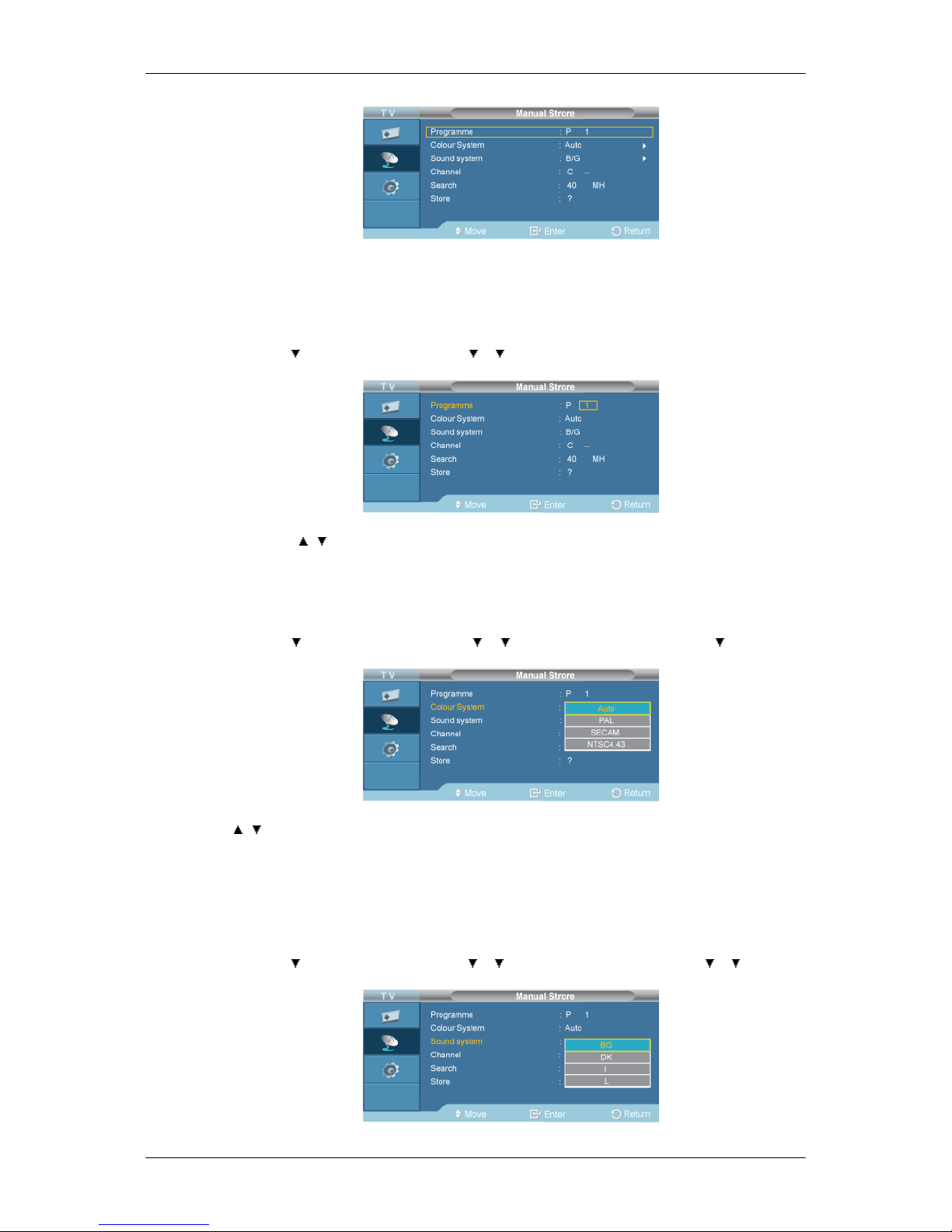

Manual Store
D.MENU → →[Channel] → ENTER → → → ENTER →[Manual Store]
You can scan the frequency ranges available on your television in your area and store all the channels
found manually.
Programme
D.MENU → →[Channel] → ENTER → → → ENTER →[Manual Store] → ENTER →[Pro-
gramme]
→ENTER → , → ENTER
Inputting the appropriate program number on the screen.
Colour System
D.MENU → →[Channel] → ENTER → → → ENTER →[Manual Store] → →ENTER→
[Colour System]
→ , → ENTER
Adjusts repeatedly until the colour is of the best quality.
(Auto <-> PAL <-> SECAM <-> NTSC4.43 )
Sound System
D.MENU → →[Channel] → ENTER → → → ENTER →[Manual Store] → → →ENTER
→ [Sound System]
→ , → ENTER
Adjusts repeatedly until the sound is of the best quality.

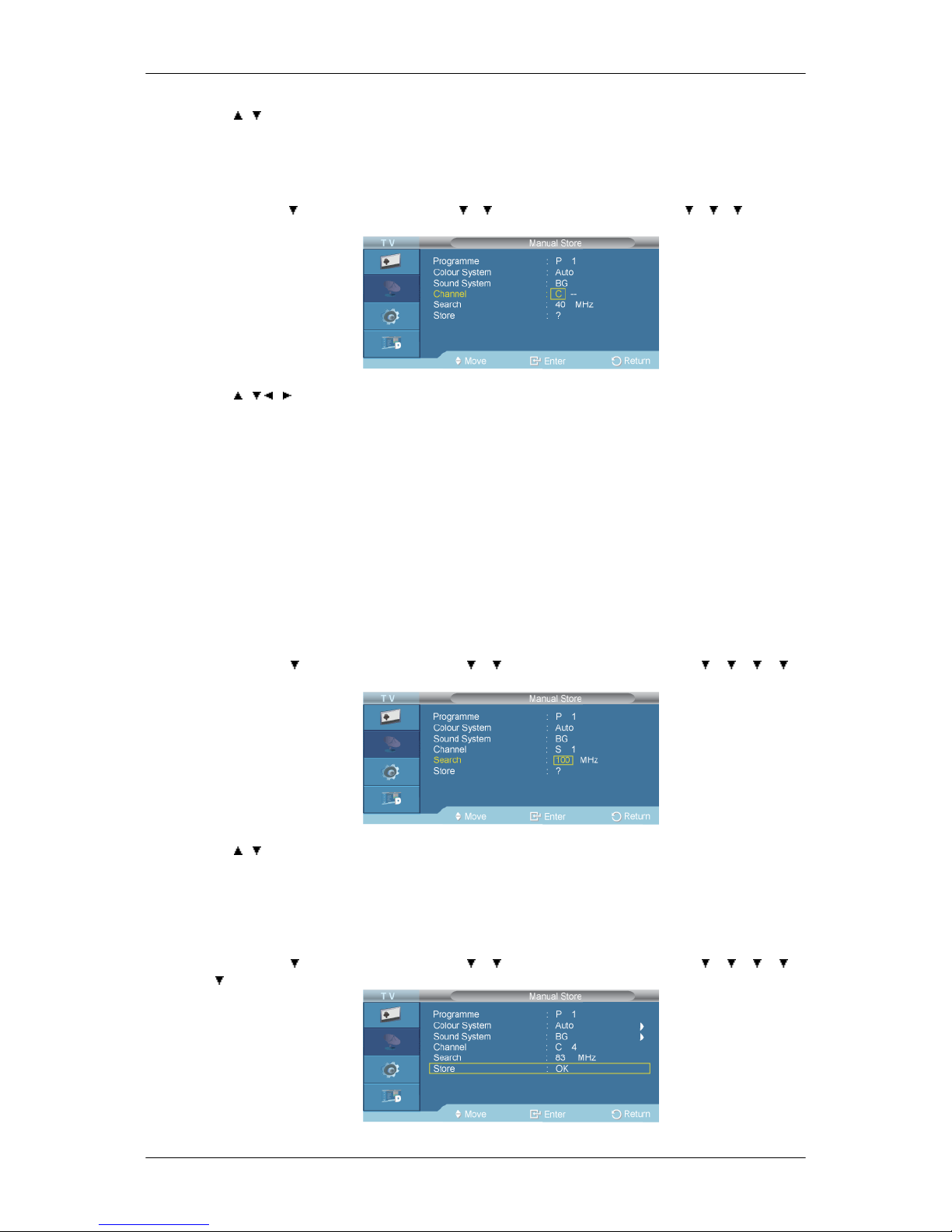

Channel
D.MENU → →[Channel] → ENTER → → → ENTER →[Manual Store] → → → →ENTER
→ [Channel]
→ , / , → ENTER
You can store television channels, including those received via cable networks.
When storing channels manually, you can choose:
Whether or not to store each of the channels found. The Programme number of each stored channel
which you wish to identify
- C (Air channel mode): You can select a channel by entering the assigned number to each air broad-
casting station in this mode.
- S (Cable channel mode): You can select a channel by entering the assigned number for each cable
channel in this mode.
Search
D.MENU → →[Channel] → ENTER → → → ENTER →[Manual Store] → → → → →
ENTER→ [Search]
→ , → ENTER
The tuner scans the frequency range until the first channel or the channel that you selected is received
on your screen.
Store
D.MENU → →[Channel] → ENTER → → → ENTER →[Manual Store] → → → → →
→ENTER→ [Store]
→ ENTER
It's used to restore the number user inputs.

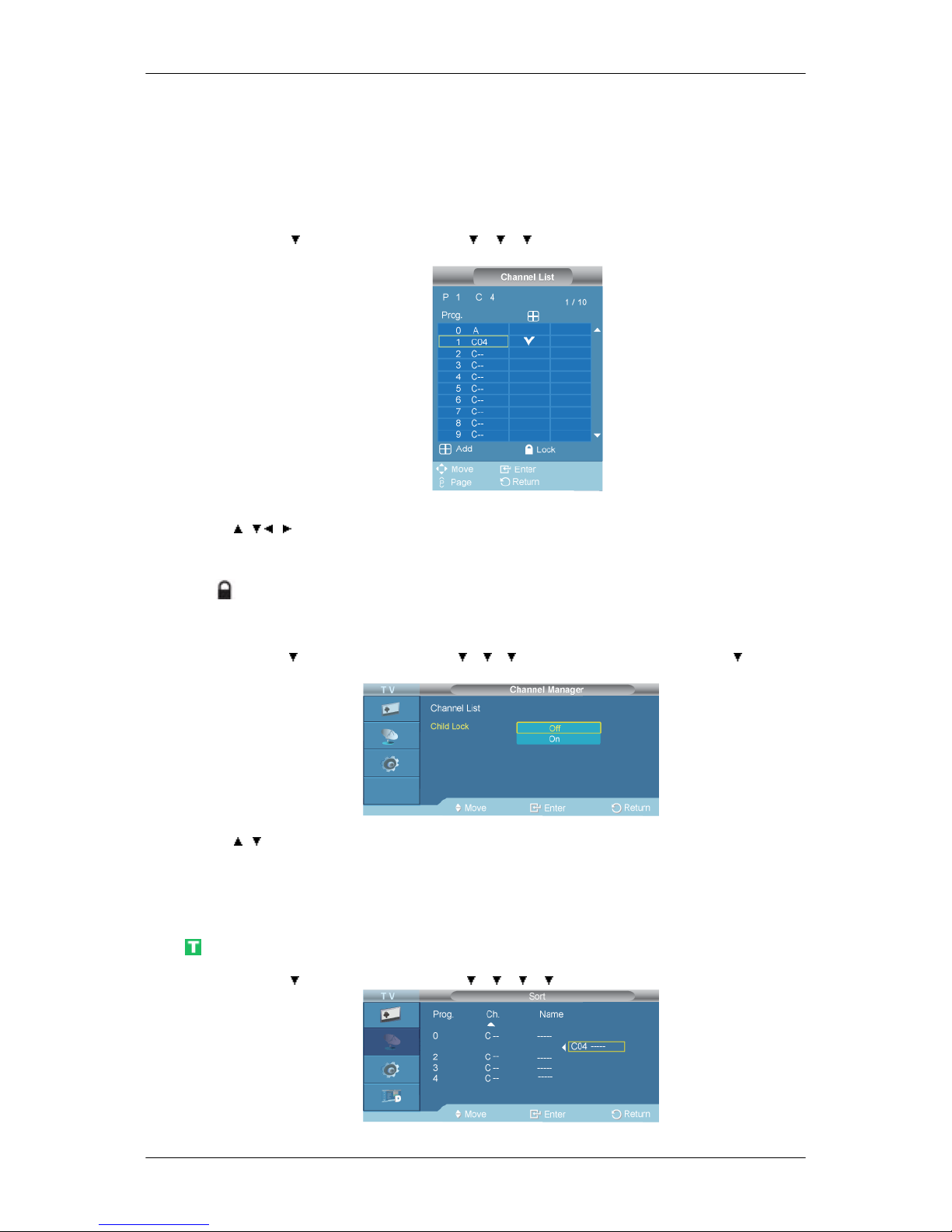

Channel Manager
Channel List
D.MENU → →[Channel] → ENTER → → → → ENTER →[Channel Manager] →ENTER
→ [Channel List]
→ , / , → ENTER
You can add or delete a channel so only channels you want are displayed.
is active when Child Lock is selected to On.
Child Lock
D.MENU → →[Channel] → ENTER → → → → ENTER →[Channel Manager] → →ENTER
→ [Child Lock]
→ , → ENTER
Protects children from viewing inappropriate programs by blocking certain broadcast or video pro-
grams.
The Child Lock feature can be selected only from the remote.
Sort
D.MENU → →[Channel] → ENTER → → → → → ENTER →[Sort]
→ , / , → ENTER
It's used to exchange the numbers of two channels.
Name
D.MENU → →[Channel] → ENTER → → → → → → ENTER →[Name]
→ ENTER → , / , → ENTER
Name the device connected to the input jacks to make your input source selection easier.
The following characters are available: Letters of the alphabet (A~Z) / Numbers (0~9) / Special char-
acters (+, -, *, /, space)
Fine Tune
D.MENU → →[Channel] → ENTER → → → → → → → ENTER →[Fine Tune]
→ , / , → ENTER
Due to weak signals or an incorrect antenna configuration, some of the channels may not be tuned
correctly.
LNA
D.MENU → →[Channel] → ENTER → → → → → → → → ENTER →[LNA]
→ , → ENTER
Turns the low noise amplifier on or off.
Setup

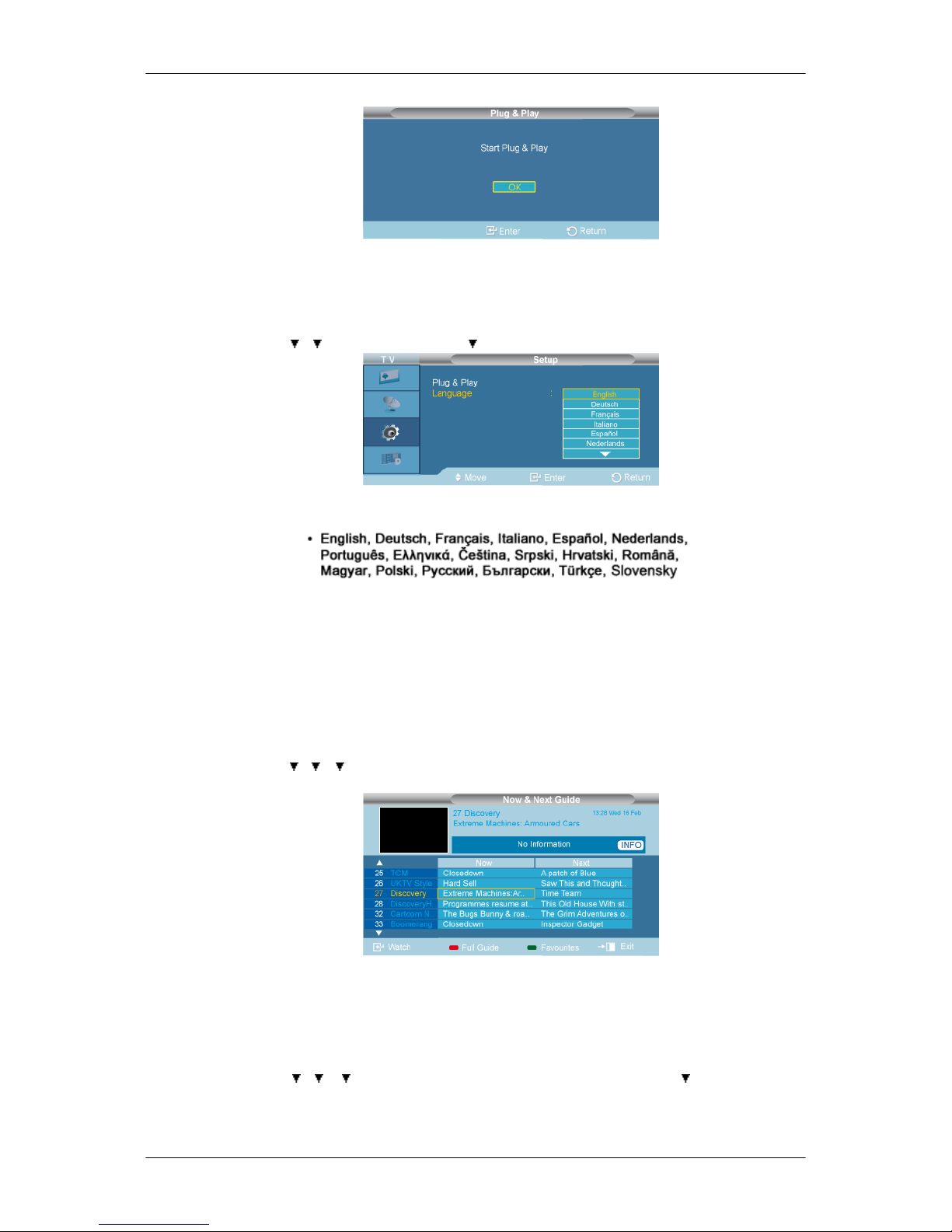

Plug & Play
D.MENU → → →[Setup] → ENTER →ENTER →[Plug & Play]
You can manage the entire configuration.
Language
D.MENU → → →[Setup] → ENTER→ →ENTER →[Language]
You can choose one of 18 languages.
The language chosen affects only the language of the OSD.
Digital Menu
Guide
Now & Next Guide
D.MENU → → → →[Digital Menu] → ENTER→[Guide] → ENTER→ENTER →[Now & Next
Guide]
For the six channels indicated in the left-hand column, displays the Current programme and the Next
programme information.
Full Guide
D.MENU → → → →[Digital Menu] → ENTER→[Guide] → ENTER→ →ENTER →[Full
Guide]
