Thank you for purchasing this Samsung product.

To receive more complete service, please register

your product at

www.samsung.com/register

Model ____________ Serial No. _____________

✎If you have any questions, please call us at 1-800-SAMSUNG (1-800-726-7864) for assistance.

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care

center.

Country Customer Care

Center

Web Site Address

CANADA 1-800-SAMSUNG

(726-7864)

www.samsung.com/ca/support

(English)

www.samsung.com/ca_fr/support

(French)

Samsung Electronics Canada Inc. 2050

Derry Road West, Mississauga, Ontario

L5N 0B9 Canada

U.S.A 1-800-SAMSUNG

(726-7864)

www.samsung.com/us/support Samsung Electronics America, Inc. 85

Challenger Road Ridgefield Park, NJ

07660

BN68-06547D-01

[UH5005-ZA]BN68-06547D-00ENG.indb 1 2014-08-05  10:11:47

Important Safety Instructions

• The slots and openings in the cabinet and in the back or bottom are provided for necessary ventilation. To ensure

reliable operation of this apparatus, and to protect it from overheating, these slots and openings must never be

blocked or covered.

‐ Do not cover the slots and openings with a cloth or other materials.

‐ Do not block the slots and openings by placing this apparatus on a bed, sofa, rug or other similar surface.

‐ Do not place this apparatus in a confined space, such as a bookcase or built-in cabinet, unless proper ventilation

is provided.

• Do not place this apparatus near or over a radiator or heat register, or where it is exposed to direct sunlight.

• Do not place a vessel containing water (vases etc.) on this apparatus, as this can result in a risk of fire or electric

shock.

• Do not expose this apparatus to rain or place it near water (near a bathtub, washbowl, kitchen sink, or laundry tub,

in a wet basement, or near a swimming pool etc.). If this apparatus accidentally gets wet, unplug it and contact an

authorized dealer immediately.

• Make sure to pull out the power cord from the outlet before cleaning.

• This apparatus use batteries. In your community, there might be regulations that require you to dispose of these

batteries properly to protect the environment. Please contact your local authorities for disposal or recycling

information.

• Do not overload wall outlets, extension cords, or adaptors beyond their capacity, since this can result in fire or electric

shock.

• Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or

against them. Pay particular attention to cords at the plug end, where connected to adaptors, and at the point where

they exit from the apparatus.

• To protect this apparatus from a lightning storm, or when it is left unattended and unused for long periods of time,

unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the set due to

lightning and power line surges.

• Before connecting the AC power cord to the DC adaptor outlet, make sure the voltage designation of the DC

adaptor corresponds to the local electrical supply (depending on the model).

Warning! Important Safety Instructions

This symbol indicates that high voltage is

present inside. It is dangerous to make any

kind of contact with any internal part of this

product.

This symbol indicates that important

literature concerning operation and

maintenance has been included with this

product.

Please read the safety instructions below before installing and using the product.

CAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE COVER (OR BACK). THERE ARE NO USER

SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO

QUALIFIED PERSONNEL.

RISK OF ELECTRIC SHOCK. DO NOT OPEN.

English - 2

[UH5005-ZA]BN68-06547D-00ENG.indb 2 2014-08-05  10:11:47

• Never insert anything metallic into the open parts of this apparatus. Doing so may create a danger of electric shock.

• To avoid electric shock, never touch the inside of this apparatus. Only a qualified technician should open this apparatus.

• Make sure to plug the power cord in until it is firmly inserted. Pull on the plug, not the cord, when removing the power

cord from the outlet. Do not touch the power cord with wet hands.

• If this apparatus does not operate normally - in particular, if there are any unusual sounds or smells coming from it -

unplug it immediately and contact an authorized dealer or service center.

• Be sure to pull the power plug out of the outlet if the TV is to remain unused or if you are to leave the house for an

extended period of time (especially when children, elderly, or disabled people will be left alone in the house).

‐ Accumulated dust can cause an electric shock, an electric leakage, or a fire by causing the power cord to generate

sparks and heat, or cause the insulation to deteriorate.

• Be sure to contact an authorized service center, when installing your set in a location with heavy dust, high or low

temperatures, high humidity, chemical substances or where it will operate for 24 hours a day such as in an airport, a train

station, etc. Failure to do so may cause serious damage to your set.

• Use only a properly grounded plug and receptacle.

‐ An improper ground may cause electric shock or equipment damage. (Class l Equipment only.)

• To turn off the apparatus completely, you must pull the power plug out of the wall socket. Consequently, the power

plug should be readily accessible at all times.

• Do not allow children to hang on the product.

• Store the accessories (batteries, etc.) in a location safely out of the reach of children.

• Do not install the product in an unstable location such as a shaky self, a slanted floor, or a location exposed to

vibration.

• Do not drop or impart a shock to the product. If the product is damaged, disconnect the power cord and contact a

service center.

• To clean the product, unplug the power cord from the power outlet and wipe the product using a soft cloth dipped

in a small amount of water. Do not use any chemicals such as wax, benzene, alcohol, thinners, insecticide, air

freshener, lubricant or detergent. These chemicals candamage the appearance or erase the printing on the product.

• Do not expose the apparatus to dripping or splashing.

• Do not dispose of batteries in a fire.

• Do not short circuit, disassemble, or overheat the batteries.

• There is a danger of explosion if you replace the batteries with the wrong type of battery. Replace only with the same

or equivalent type.

• WARNING - TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OTHER OPEN FLAMES AWAY FROM

THIS PRODUCT AT ALL TIMES.

English - 3

[UH5005-ZA]BN68-06547D-00ENG.indb 3 2014-08-05  10:11:48

A detailed User’s Manual is built into your TV. For more information about how to view this e-Manual, see page 11.

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product

appearances. Product design and specifications may be changed without notice.

Still image warning

Avoid displaying still images (such as jpeg picture files) or still image elements (such as TV channel logos, the panorama

or 4:3 image format, stock or news bars at the screen bottom etc.) on the screen. Displaying still images for long

periods of time can cause image burn-in, which will affect image quality. To reduce risk of this effect, follow the

recommendations below:

• Avoid displaying the same TV channel for long periods.

• Try to display images in full screen mode. Use the TV's picture format menu or the remote's P.Size button to adjust

the size of the picture so that images fill the screen.

• Reduce brightness and contrast values to the minimum required to achieve desired picture quality. Exceeding these

values may speed up the burn-in process.

• Frequently use all TV features designed to reduce image retention and screen burn-in. Refer to the proper section of

the e-manual for details.

Providing Proper Ventilation for Your TV

When you install your TV, maintain a distance of at least 4 inches between the TV and other objects (walls, cabinet sides,

etc.) to ensure proper ventilation. Failing to maintain proper ventilation may result in a fire or a problem with the product

caused by an increase in its internal temperature.

✎

Whether you install your TV using a stand or a wall-mount, use parts provided by Samsung Electronics only.

• If you use parts provided by another manufacturer, it may cause difficulties with the product or result in injury

caused by the product falling.

Installation with a stand. Installation with a wall-mount.

4 inches

4 inches 4 inches

4 inches

List of Features

• Media Play: Media Play lets you access, view, or play photos, videos, or music located on USB devices, digital

cameras, cell phones, and PCs.

• e-Manual: Provides a detailed, on-screen user's manual built into your TV. See page 11.

English - 4

[UH5005-ZA]BN68-06547D-00ENG.indb 4 2014-08-05  10:11:48

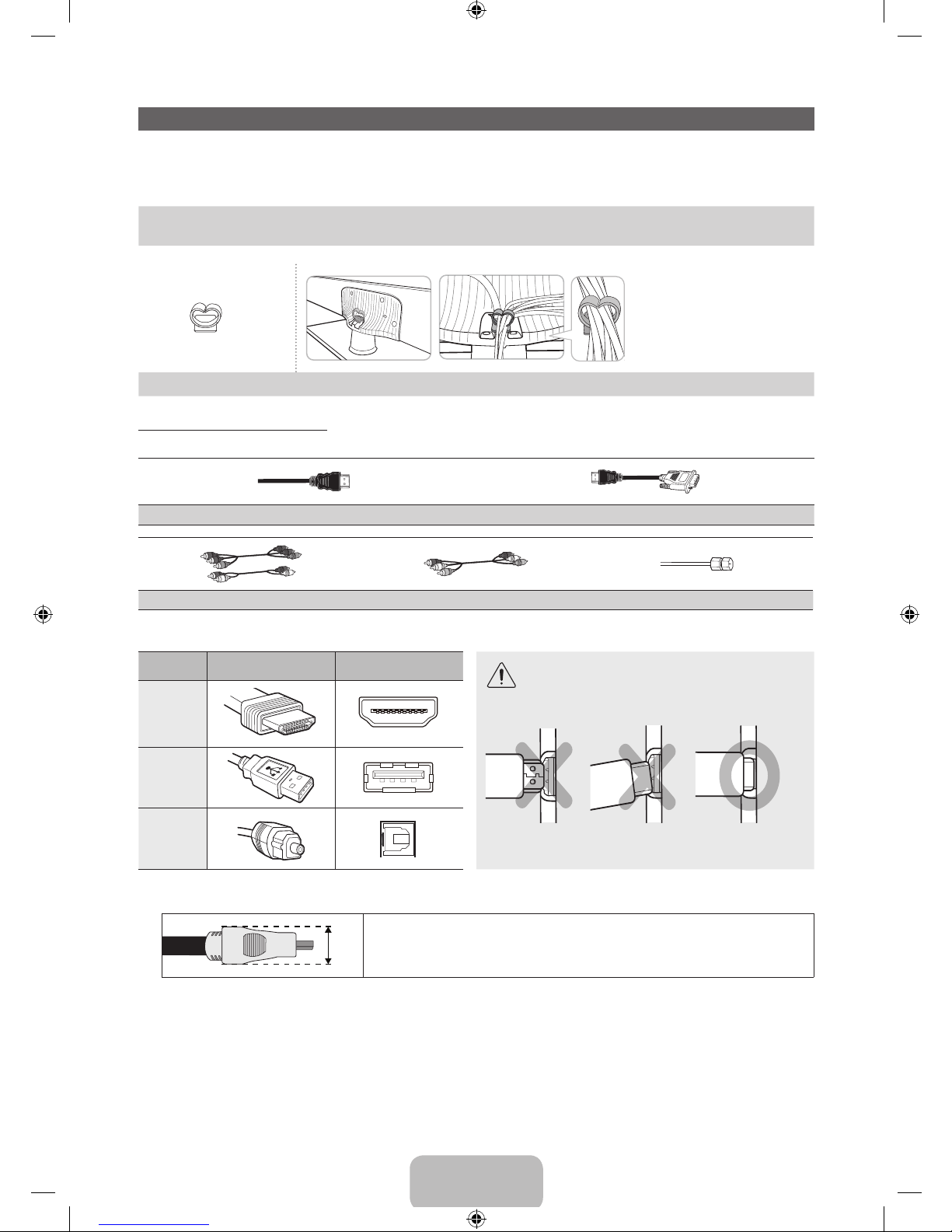

Accessories and Cables

✎

Please make sure the following items are included with your TV. If any items are missing, contact your dealer.

✎

The items’ colors and shapes may vary depending on the model.

✎

Check that there are no accessories hidden behind or under packing materials after you open the box.

• Remote Control & Batteries (AAA x 2)

• Owner’s Instructions

• Power Cord

• Warranty Card / Regulatory Guide

• Cable Holder Assembling the Cable Holder

Input Cables (Sold Separately)

To purchase an HDMI cable, contact www.SamsungParts.com.

HDMI HDMI-DVI

Component Composite (AV) Coaxial (RF)

✎

Make sure you have the correct cable before plugging it in. Illustrations of common plugs and jacks are below.

Cable Plugs Ports/Jacks Do not insert cable plugs in the wrong or

opposite direction. You can damage the TV

port/jack.

HDMI

USB

Optical

✎

For the best cable connection to this product, use cables no thicker than the cable illustrated below:

• Maximum thickness - 0.55 inches (14mm)

English - 5

[UH5005-ZA]BN68-06547D-00ENG.indb 5 2014-08-05  10:11:50

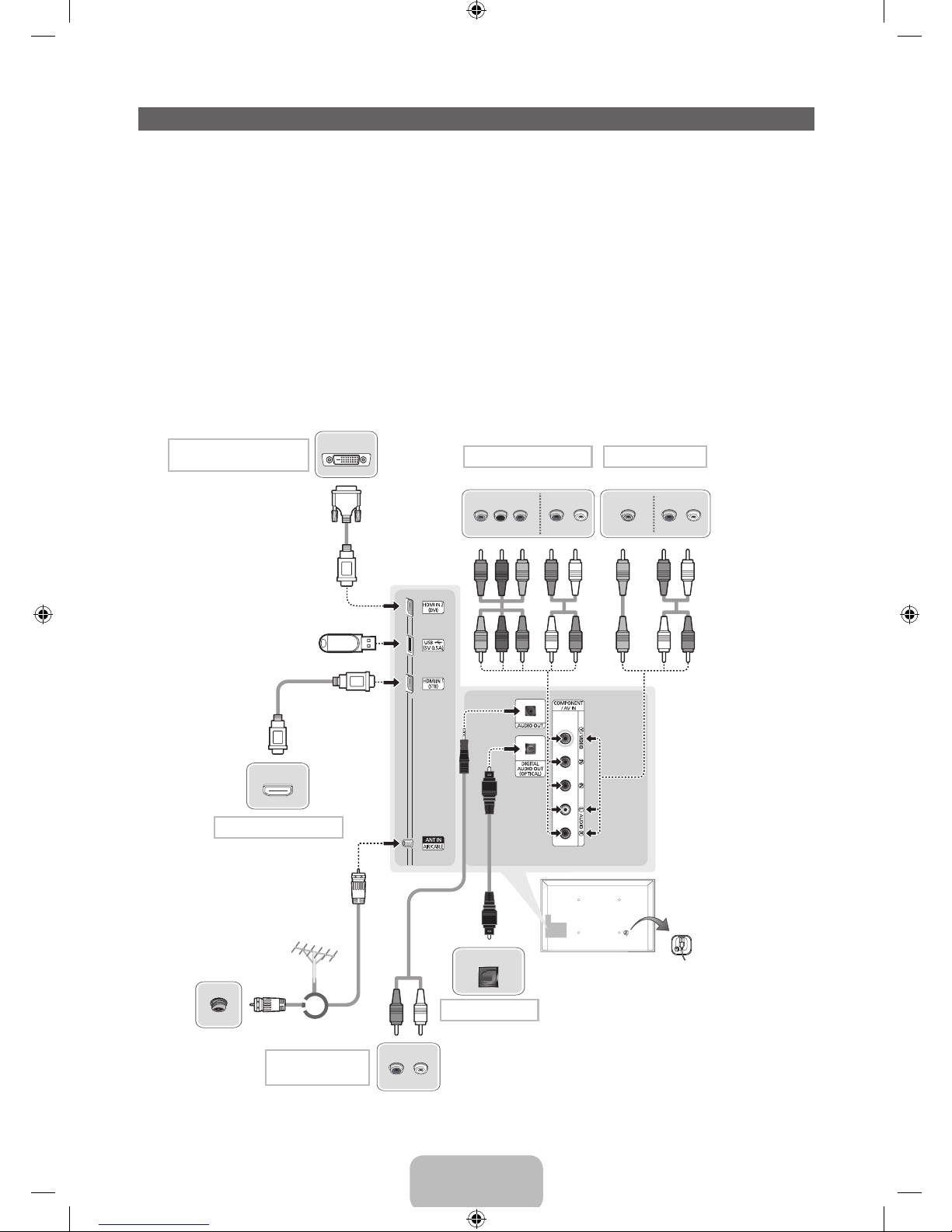

Making Connections

Connect your TV to an antenna or cable connection, and then connect your peripherals. When done, connect the

power cord to the TV, and then connect the power cord to an AC wall outlet. If you are connecting your TV to a cable

or satellite box using HDMI, Component, or Composite connections, you do not need to connect the ANT IN jack to an

antenna or a cable connection.

• For the best picture and audio quality, connect digital devices using an HDMI cable.

• If you connect an external device to the TV that uses an older version of HDMI, the video and audio may not work. If this occurs,

ask the manufacturer of the device about the HDMI version and, if it is out of date, request an upgrade.

• Be sure to purchase a certified HDMI cable. Otherwise, the picture may not display or a connection error may occur.

• PC/DVI AUDIO IN input is not supported.

• For a set-top box connection using an HDMI cable, we highly recommend you connect the cable to the HDMI IN 1(STB) port.

• For an HDMI to DVI cable connection, you must use the HDMI IN 2(DVI) jack.

• If you connect a device to the HDMI IN 2(DVI) port using an HDMI to DVI cable, the audio will not work. DVI does not transmit

audio. You must add a separate audio connection.

• For PCs with DVI video out jacks, use an HDMI to DVI cable to connect the DVI out on the PC to the HDMI IN 2(DVI) jack on the

TV. Use the PC's speakers for audio.

HDMI OUT

DVI OUT

OPTICAL

AUDIO OUT

R-AUDIO-L

VIDEO OUT

AUDIO OUT

R-AUDIO-L

PRPBY

COMPONENT OUT

R B R

R W

AUDIO IN

R-AUDIO-L

VHF/UHF

Antenna

Cable

TV Rear Panel

TV Side Panel

VCR

AV connection

Blu-ray player / DVD

Component connection

Set-top box / Blu-ray player

HDMI connection

PC connection

(Using an HDMI (to DVI) Cable)

Digital Audio System

Audio connection

✎

The position of the port may

differ depending on the model.

✎

Using two-way radio mobile or portable

units, amateur radio, or AM radio near

your TV may cause the TV to malfunction.

USB connection

The TV does not support HDDs

(Hard Disk Drives) connected to

the USB port.

Amplifier /

DVD home theater

English - 6

[UH5005-ZA]BN68-06547D-00ENG.indb 6 2014-08-05  10:11:50

HDMI Input Display Modes.

If you have attached your TV to a PC (or other external device) through an HDMI port, you can select one of the

standard resolutions listed in the Resolution column for your PC's video output. The TV will automatically adjust to

the resolution you choose. However, we recommend setting your PC (or other external device) to the TV's optimal

resolution. The optimal resolution for Series 4 TVs is 1024 x 768@60Hz. The optimal resolution for Series 5 TVs is 1920 x

1080@60 Hz.

Mode Resolution Horizontal Frequency

(KHz) Vertical Frequency (Hz) Pixel Clock Frequency

(MHz)

Sync Polarity

(H / V) 1024 x 768 1920 X 1080

IBM 720 x 400 31,469 70,087 28,322 -/+

c c

MAC

640 x 480 35,000 66,667 30,240 -/-

c c

832 x 624 49,726 74,551 57,284 -/-

c c

1152 x 870 68,681 75,062 100,000 -/-

VESA

DMT

640 x 480 31,469 59,940 25,175 -/-

c c

640 x 480 37,861 72,809 31,500 -/-

c c

640 x 480 37,500 75,000 31,500 -/-

c c

800 x 600 37,879 60,317 40,000 +/+

c c

800 x 600 48,077 72,188 50,000 +/+

c c

800 x 600 46,875 75,000 49,500 +/+

c c

1024 x 768 48,363 60,004 65,000 -/-

c c

1024 x 768 56,476 70,069 75,000 -/-

c c

1024 x 768 60,023 75,029 78,750 +/+

c c

1152 x 864 67,500 75,000 108,000 +/+

1280 x 720 45,000 60,000 74,250 +/+

1280 x 800 49,702 59,810 83,500 -/+

1280 x 1024 63,981 60,020 108,000 +/+

1280 x 1024 79,976 75,025 135,000 +/+

1366 x 768 47,712 59,790 85,500 +/+

1440 x 900 55,935 59,887 106,500 -/+

1600 x 900RB 60,000 60,000 108,000 +/+

1680 x 1050 65,290 59,954 146,250 -/+

1920 x 1080 67,500 60,000 148,500 +/+

✎

The interlaced mode is not supported.

✎

The TV might operate abnormally if you select a non-standard video format.

English - 7

[UH5005-ZA]BN68-06547D-00ENG.indb 7 2014-08-05  10:11:51

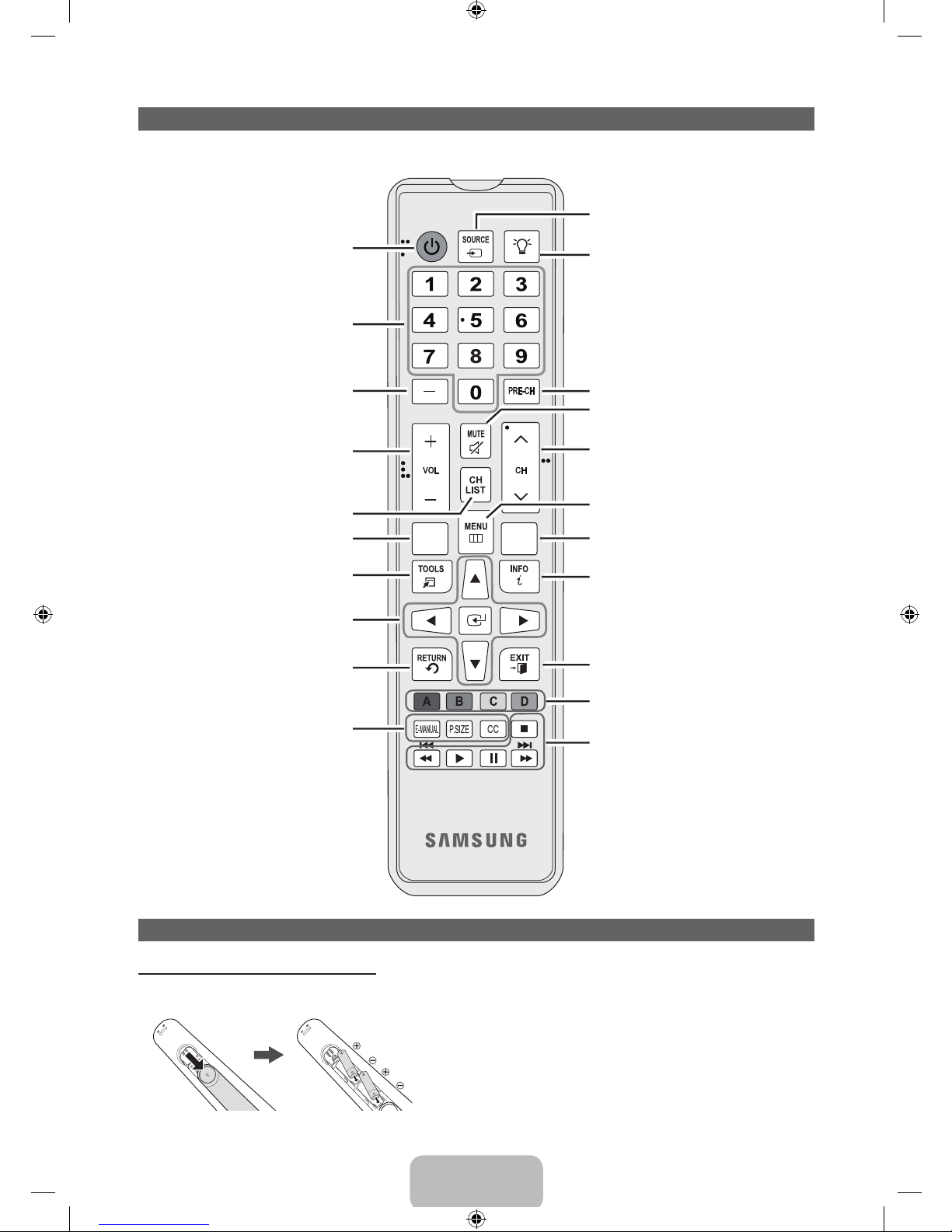

Installing the Batteries Into the Remote

Installing batteries (Battery size: AAA)

✎

NOTE

• Install the batteries so that the polarity of the batteries (+/-)

matches the illustration in the battery compartment.

• Use the remote control within 23 feet of the TV.

• Bright light may affect the performance of the remote

control. Avoid using when near fluorescent lights or neon

signs.

• The color and shape may vary depending on the model.

The Remote Control Buttons

✎

This remote control has Braille points on the Power, Channel, and Volume buttons and can be used by visually

impaired persons.

Press to select additional digital

channels being broadcasted by the

same station. For example, to select

channel ‘54-3’, press ‘54’, then press

‘-’ and ‘3’.

Return to the previous channel.

Turn on the backlight for the buttons.

When on, the buttons become

illuminated for a moment when

pressed. (Using the remote control

with this button set to On will reduce

the battery usage time.)

Press to directly access to channels.

Turns the TV on and off.

Use these buttons when using a

specific feature.

E-MANUAL: Displays the e-Manual.

P.SIZE: Lets you choose the picture

size.

CC: Controls the caption

decoder.

Cut off the sound temporarily.

Automatically shuts off the TV at a

preset time.

Displays the channel list on the screen.

Displays information on the TV screen.

Quickly select frequently used

functions.

Moves the cursor, selects the on-

screen menu items, and changes the

values seen on the menu.

Exit the menu.

Press to return to the previous menu.

Press to display and select the available

video sources.

Use these buttons according to the

directions on screen.

Change channels.

Displays the main on-screen menu.

View Media Play.

Adjusts the volume.

MEDIA.P

SLEEP

English - 8

[UH5005-ZA]BN68-06547D-00ENG.indb 8 2014-08-05  10:11:52

Changing the Input Source

Source

When you are watching TV and you want to watch a movie on your DVD player or Blu-ray player or

switch to your cable box or STB satellite receiver, you need to change the Source.

1. Press the SOURCE button on your remote.

2. Select a desired external input source.

■TV / HDMI1 / HDMI2/DVI / AV / Component

✎

You can only choose external devices that are connected to the TV. In the Source list, connected

inputs are highlighted.

How to Use Edit Name

Edit Name lets you associate a device name to an input source, for example, Blu-ray to HDMI 1 To access Edit Name,

press the TOOLS button when the Source list is displayed. The following selections appear under Edit Name:

VCR / DVD / Cable STB / Satellite STB / PVR STB / AV Receiver / Game / Camcorder / PC / DVI PC / DVI Devices / TV / IPTV

/ Blu-ray / HD DVD / DMA

Select the name of the device connected to each input jack to make your input source selection easier. When you view

the Source list,the device name and the input jack will be displayed together.

✎

If you have connected a PC to the HDMI IN 2(DVI) port with an HDMI cable, select PC under Edit Name when you

enter a device name.

✎

If you have connected a PC to the HDMI IN 2(DVI) port with an HDMI to DVI cable, select DVI PC under Edit Name

when you enter a device name.

✎

If you connected an AV device to the HDMI IN 2(DVI) port with an HDMI to DVI cable, select DVI Devices under

Edit Name when you enter a device name.

Information (in the Edit Name function)

Displays detailed information about the connected external device.

Conﬁguring the Basic Settings in Initial Setup

When you turn the TV on for the first time, a sequence of screens and on-screen prompts will assist you in configuring

the TV’s basic settings. Plug the power cord into a wall outlet, and then press the POWER button to turn on the TV.

Configure your TV's basic settings in the initial setup by following the instructions on your TV's screen.

✎

Setup is available only when the Source is set to TV.

✎

If you are not using a cable box or satellite box, make you sure have connected the TV to an antenna or cable

connection before you turn on the TV.

If You Want to Re-run Setup...

MENU → System → Setup → ENTER

English - 9

[UH5005-ZA]BN68-06547D-00ENG.indb 9 2014-08-05  10:11:52

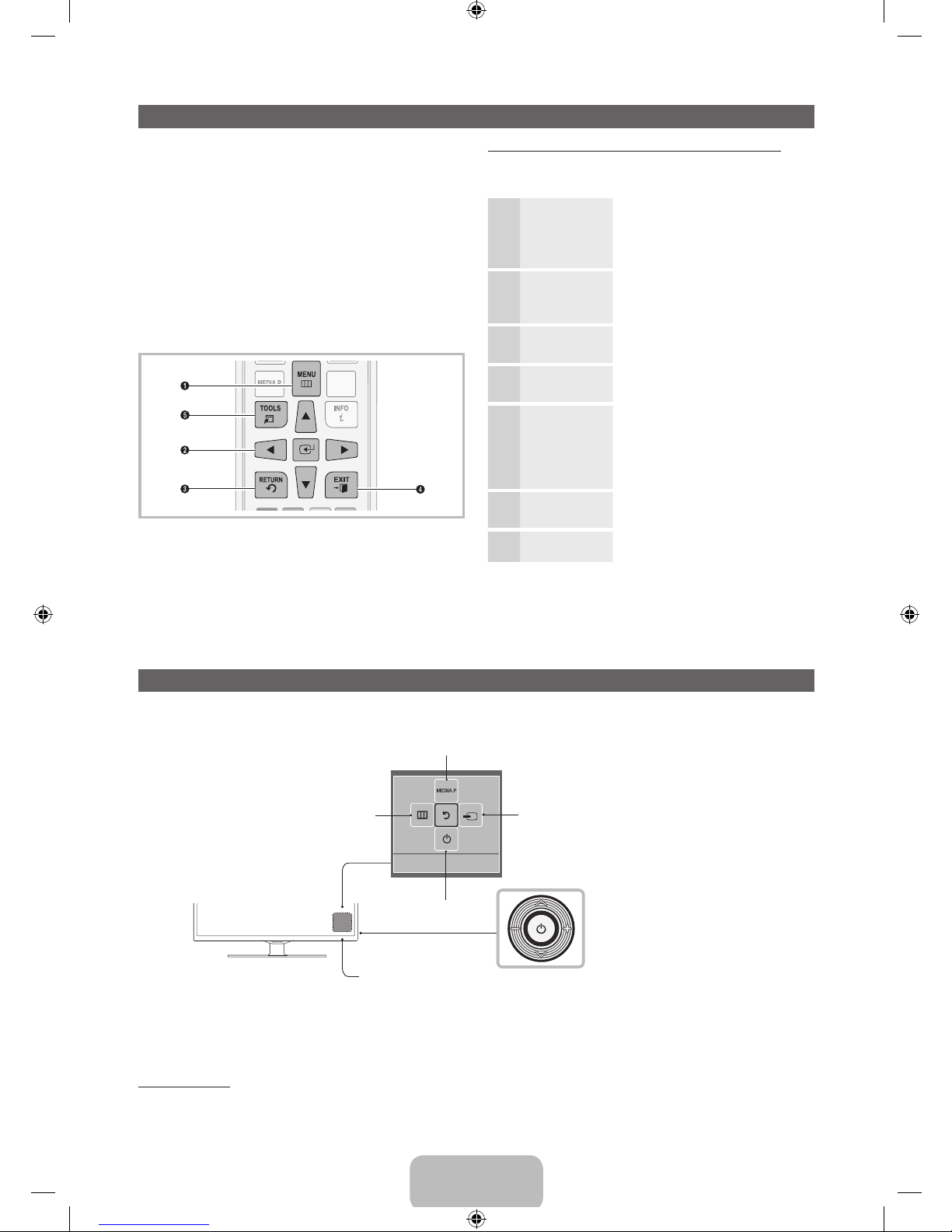

Your TV’s Main and Tools menus contains functions that let

you control the TV’s features. For example, in the Main menu

you can change the size and configuration of the picture, its

brightness, its contrast and so on. There are also functions

that let you control the TV’s sound, channel configuration,

energy use, and a host of other features. To access the main,

on-screen menu, press the MENU (m) button on your

remote. To access Tools menus, press the TOOLS button.

Tools menus are available when the TOOLS menu Icon is

displayed on the bottom right of the screen.

The illustration below displays the buttons on the remote you

use to navigate the menus and select and adjust different

functions.

FÚTBOL

FÚ

MEDIA

IDE

1 MENU button: Displays the main on-screen menu.

2 ENTERE and Direction buttons: Use the Direction

buttons to move the cursor and highlight an item. Use

the Enter button to select an item or confirm the setting.

3 RETURN button: Returns to the previous menu.

4 EXIT button: Exits the on-screen menu.

5 TOOLS button: Displays the Tools menus when available.

How to Operate the Main Menu (OSD - On Screen Display)

The access steps may differ depending on the menu option

you select.

1MENU The main menu options appear

on the screen:

Picture, Sound, Broadcasting,

Applications, System, Support.

2▲ / ▼ Select a main menu option on

the left side of the screen with

the ▲ or ▼ button.

3ENTER

Press ENTER

to access the

sub-menus.

4▲ / ▼ Select the desired submenu with

the ▲ or ▼ button.

5◄ / ► Adjust the value of an item

with the ◄ or ► button. The

adjustment in the OSD may

differ depending on the selected

menu.

6ENTER

Press ENTER

to confirm the

selection.

7EXIT

Press EXIT.

Using the TV’s Controller (Panel Key)

You can turn on the TV using the Remote Control or the TV’s Controller, a small joystick-like button on the back of the

TV in its lower-left corner. You can also use the TV's Controller to operate the TV without the Remote Control.

Remote control sensor

TV Controller

The image is drawn as if you are

facing the front side of the TV.

Function menu

Return

Select Media Play

Select a Source

Power Off

Select the Menu

✎

To close the Menu, Media Play, or Source screens, press the Controller for more than 1 second.

✎

When selecting a function by moving the controller backwards, forwards, left, or right, be sure not to press up on

the controller. If you press up first, it will not operate properly when you move it.

✎

The product color and shape may vary depending on the model.

Standby mode

Your TV enters Standby mode when you turn it off and continues to consume a small amount of electric power. To be

safe and to decrease power consumption, do not leave your TV in standby mode for long periods of time (when you are

away on vacation, for example). It is best to unplug the power cord.

How to Navigate Menus

English - 10

[UH5005-ZA]BN68-06547D-00ENG.indb 10 2014-08-05  10:11:53

Altri manuali per 500 series 5

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Samsung TV

Samsung

Samsung LN32R51B Istruzioni per l'installazione

Samsung

Samsung QE49Q60R Manuale utente

Samsung

Samsung 650 Series Manuale utente

Samsung

Samsung CT-29V10MQ Manuale utente

Samsung

Samsung WS-32M166T Manuale utente

Samsung

Samsung UN46F8000 Manuale utente

Samsung

Samsung CS21B500HU Manuale utente

Samsung

Samsung COLOR TELEVISION Manuale utente

Samsung

Samsung UE50TU7022KXXH Manuale utente

Samsung

Samsung Series 4+ 450 Manuale utente

Samsung

Samsung CT-15K10MJ Manuale utente

Samsung

Samsung UN46ES6100G Guida

Samsung

Samsung CT-17N11MJ Manuale utente

Samsung

Samsung HG24ND470 Manuale utente

Samsung

Samsung EB40D Manuale utente

Samsung

Samsung CL21K30M16 Manuale utente

Samsung

Samsung HC-P4252W Manuale di istruzioni

Samsung

Samsung QE98C Manuale utente

Samsung

Samsung Galaxy 8 Manuale utente

Samsung

Samsung QE65Q65TAUXXC Manuale utente

Samsung

Samsung PS42C7HX/XEC Manuale utente

Samsung

Samsung The Sero GQ43LS05T Manuale utente

Samsung

Samsung TX-S2040X Manuale utente

Samsung

Samsung UN46D6500VF Manuale utente

Manuali TV popolari di altre marche

Philips

Philips Colour Television Manuale utente

Toshiba

Toshiba 27A10 Manuale utente

Philips

Philips 42PF9630A/37 Manuale utente

Hitachi

Hitachi 32FX48B Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuale utente

Changhong Electric

Changhong Electric uhd55b6000is Manuale utente

Philips

Philips Matchline 21CE7551 Manuale utente

Panasonic

Panasonic Genus TX-G10 Manuale utente

Toshiba

Toshiba 19A20 Manuale utente

Philips

Philips 25PT4523-16 Manuale utente

Sony

Sony XBR-100Z9D Manuale utente

Philips

Philips PR0930X3 Manuale utente

Philips

Philips Brilliance 231P4QPY Manuale utente

Philips

Philips 32HF9385D Guida alla risoluzione dei problemi

Sharp

Sharp LC-40FI5012E Manuale utente

Loewe

Loewe Table Stand Reference 55 Manuale utente

Philips

Philips 32PFH5300 Manuale utente

Sylvania

Sylvania 6427FB Manuale utente
