Samsung CB21K5ML Manuale utente

COLOUR

TELEVISION

Owner’s Instructions

ENG

REMOTE CONTROL

ON-SCREEN MENUS

ENJOY GAME

Before operating the unit,

please read this manual thoroughly,

and retain it for future reference

Mode System

CS PAL-B/G, D/K, I, SECAM-B/G,D/K, I,

NTSC4.43 (NTSC3.58; option)

CB PAL-B/G

☛

The lightning flash and arrow head

within the triangle is a warning sign

alerting you of “dangerous voltage”

inside the product.

The exclamation point within the

triangle is a warning sign alerting

you of important instructions

accompanying the product.

CZ PAL-B/G, D/K, I, SECAM-B/G,D/K, I,

NTSC4.43

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION : TO PREVENT ELECTRICAL SHOCK,DO

NOT REMOVE REAR COVER, NO USER SERVICEABLE

PARTS INSIDE. REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

WARNING : TO PREVENT DAMAGE WHICH MAY

RESULT IN FIRE OR SHOCK HAZARD. DO NOT EXPOSE

THIS APPLIANCE TO RAIN OR MOISTURE.

The main voltage is indicated on the rear of

the TV set and the frequency is 50 or 60Hz.

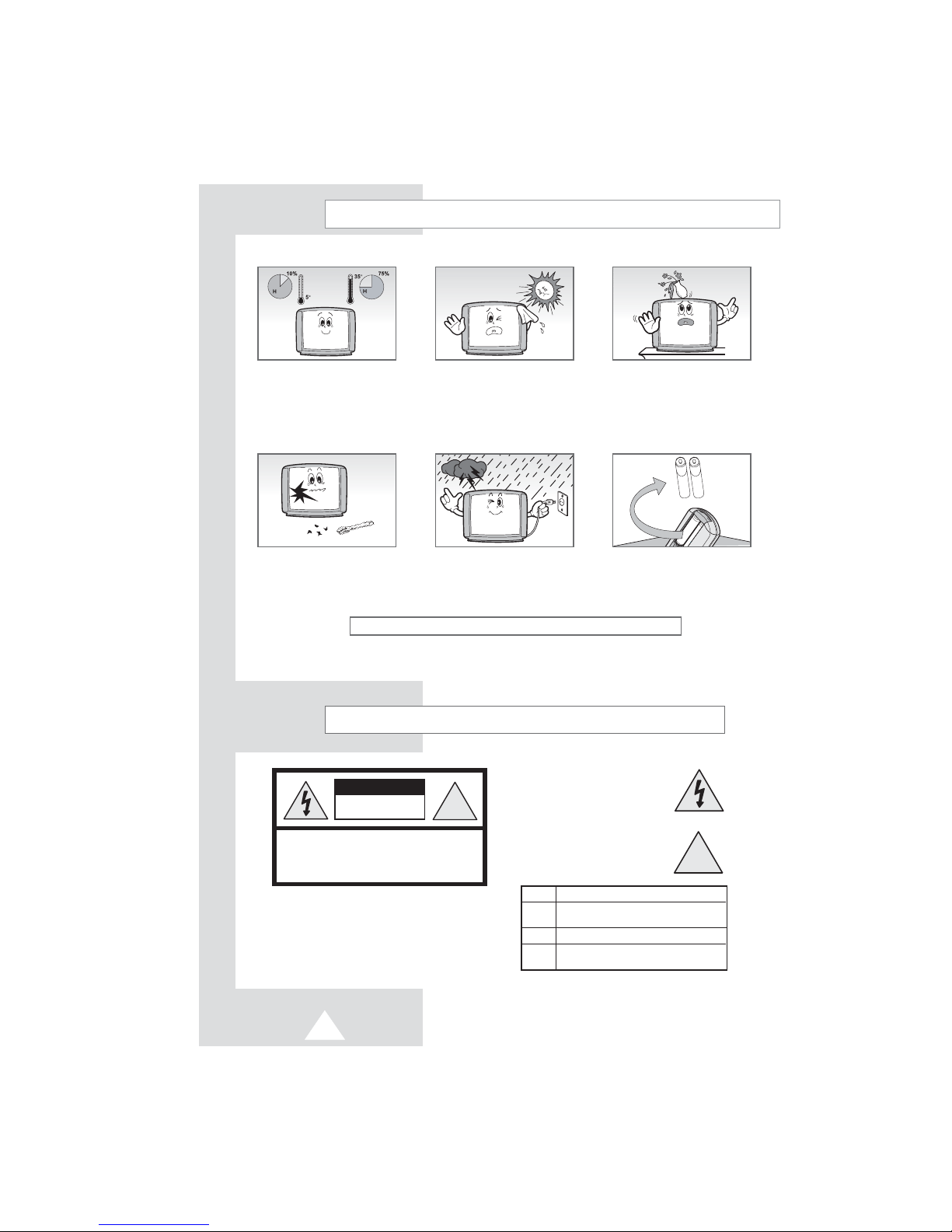

Safety Instructions

Caution

THIS DEVICE IS NOT FOR USE IN INDUSTRIAL ENVIRONMENTS

➢Please use a soft and dry cloth (not containing volatile matter) when you clean the TV.

The following illustrations represent the precautions to be taken when using and moving your television

Do NOT expose the television to

extreme temperature conditions

(below 50C and above 350C) or

to extreme humidity conditions

(less than 10% and more than

75%).

Do NOT expose the television to

direct sunlight.

Do NOT expose the television to

any liquids.

If the television is broken, do not

try to repair it yourself. Contact

qualified survice personnel.

During a storm conditions

(especially when there is

lightening) unplug the television

from the mains socket & aerial.

If the remote control is not used

for a long period of time, remove

the batteries and store it in a cool,

dry place.

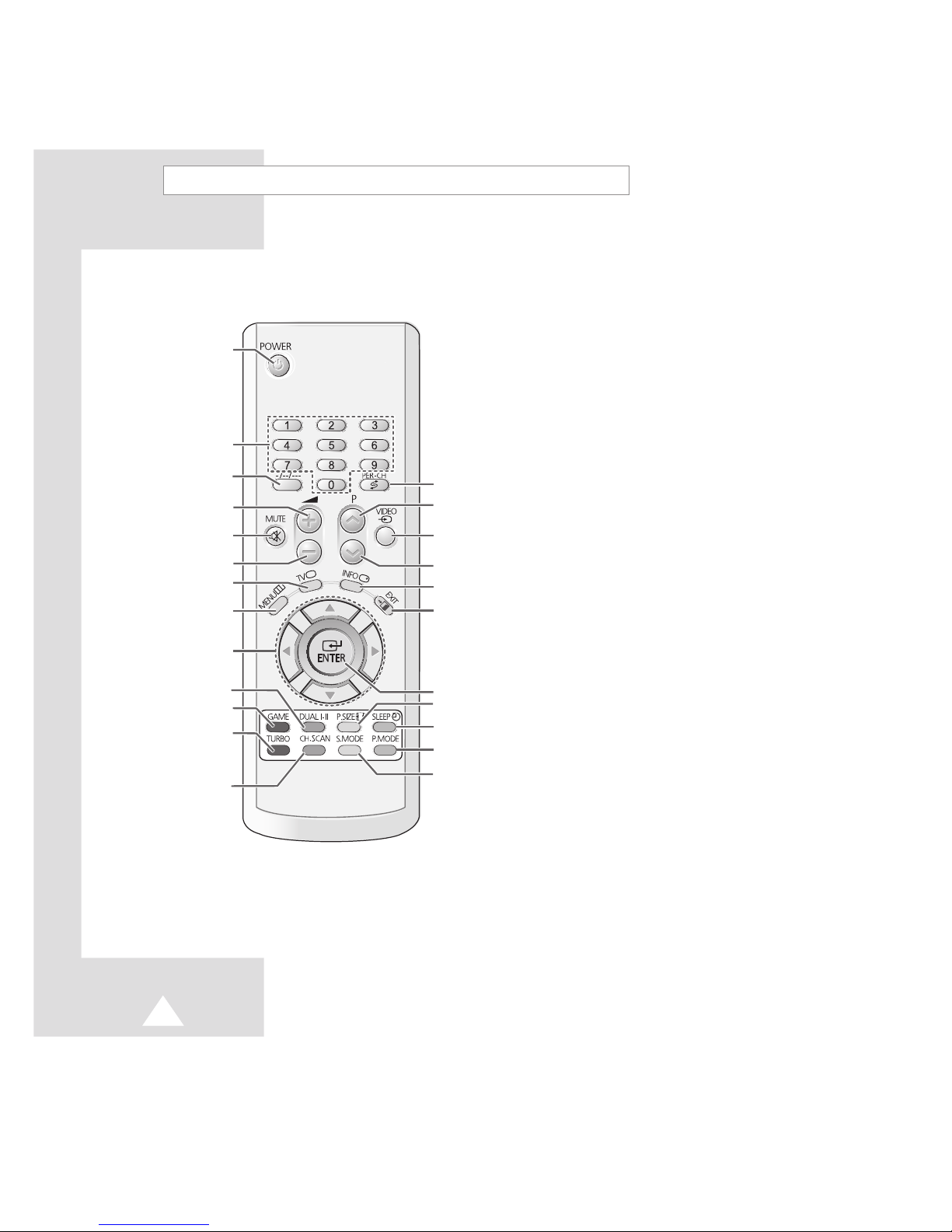

Infrared Remote Control (Depending on Model)

Buttons and markings are subject to change

➣

The performance of the remote control may be affected by bright light.

TELEVISION STAND-BY

DIRECT CHANNEL SELECTION

VOLUME INCREASE

TEMPORARY SOUND SWITCH-OFF

MENU DISPLAY

MOVE TO THE REQUIRED MENU

OPTION/

ADJUST AN OPTION VALUE

RESPECTIVELY

GAME KEY

EXTERNAL INPUT SELECTION

EXIT FROM ANY DISPLAY

PREVIOUS CHANNEL

CHANGE CONFIRMATION

INFORMATION DISPLAY

AUTOMATIC SWITCH OFF

ONE/TWO /THREE-DIGIT

CHANNEL SELECTION

TUNER/CABLE NETWORK

SELECTION

SWITCH REPEATEDLY

BETWEEN THE LAST TWO

CHANNELS DISPLAYED

PICTURE SIZE

VOLUME DECREASE

NEXT CHANNEL

SOUND EFFECT SELECTION

TURBO SOUND

CHANNEL SCAN KEY

PICTURE MODEL SLECTION

SOUND MODE SELECTION

1 Press the POWER button on the remote control.

Result : The screen is turned off and the standby indicator on

the front of the television lights up.

4 To swith your television off, press the POWER (ON/OFF) button

again on the front of the television,

3 Press the POWER button on the remote control to switch the

television on.

Result : The last watched programme reselected automatically.

2 Press the POWER (ON/OFF) button on the front of the television.

Result : The standby indicator lights up on the front panel

2 To switch the screen back on, simply press the power button

again on the remote control.

To view television channel correctly,a signal must be received by

the set from one of the following sources:

The mains lead is attached to the rear of the television

Your television can be placed in Standby mode, in order to reduce:

The Standby mode can be useful when you wish to interrupt

viewing temporarily (during a meal, for example).

The television is placed automatically in Standby mode when you

turn it On.

1 Plug the mains lead into an appropriate socket.

➢ The mains voltage is indicated on the ear of the TV set and the

frequency is 50 or 60Hz.

➢ Do not leave your television in standby mode for long period of time

(when you are away on holiday, for example).

In this case, you should switch it off completely.

Plug the arrial or cable network input cable to the 75 Ω coaxial socket on

the rear of the television.

An outdoor aerial

A cable television network

Power consumption

Wear of the cathode ray tube

Connecting the Aerial (or Cable Television Network)

Switching Your Television On and Off

Placing Your Television in Standby mode

75Ω

Cable

Television

Network

Rear of TV

Plug & play Feature

Choosing Your Language

Plug & Play

RETURN

Ant. Input Check

Move Exit

Clock - - : - - am

Time

ENJOY YOUR WATCHING

When you start using your television for the first time you must

select the language, which will be used for displaying menus and

indications.

1 If the television is in standby mode, press the POWER button on

the remote control.

Result : The The message ‘Plug & Play’ is displayed. It flickers

for little while and then the ‘Language’ menu is

automatically displayed.

2 Press the or button to select required language. Press the

ENTER button to enter the language and then the message

“Ant Input Check” is displayed.

3 Make sure that the antenna is connected to the TV, and then press

the ENTER button to store the channel.

Result : The horizontal bar is displayed, and then channels are

stored in an order which reflects their position in the

frequency range.

4 When searching and storing is complete, the “Time” menu is

displayed.

2 Press +or -button to select the “Language” and select a particular

language by pressing the Enter button repeatedly.

3 When you have finished, press the EXIT button or press the MENU

button repeatedly to return to normal viewing.

5 Press the or button to move to the hour or minute. Set the

hour or minute by pressing the or button.

6 When you have finished, press the MENU button.

Result : The message “ENJOY YOUR WATCHING” is displayed.

7 If you want to reset this feature...

1 Press the MENU button then pess the or button to select

the “Set UP”,and then press Enter button.

2 Select the “Plug & Play” by pressing the or button,and then

press the Enter button.

Result : The message “Plug & Play ” is displayed.



ENTER

ENTER EXIT

STOP

P 1 102MHZ

ENTER

MOVE ENTER RETURN

TV SETUP

LANG. : ENGLISH

PLUG & PLAY

TIME

CHILD LOCK

MOVE ENTER RETURN

TV SETUP

LANG. : ENGLISH

PLUG & PLAY

TIME

CHILD LOCK

“Set UP”.

You can exchange the numbers of two channels, in order to:

Modify the numeric order in which the channels have been

automatically stored.

Give easily remembered numbers to the channels that you

watch most often.

1 Press the MENU button and Press the or button to select the

“Channel” and Press the Enter button.

2 Press the or button to select the “Sort” and Press the Enter

button.

Result : The “Sort” menu is displayed with the “From” selected.

3 Press the or button until the channel number that you wish to

change is displayed.

Result : The Selected channel’s picture is displayed.

4 Press the or button to select the “To”.

5 Press the or button until the new number by which you wish to

identify the channel is displayed.

Result : The seleted channel is exchanged with the one

pervious stored to the chosen number.

Example : If you select “P1” for the “From” and “P3” for the “To” :

Channel 1 become channel 3.

Channel 3 become channel1.

Sorting the Stored Channels

ADJUST RETURN

MOVE

FROM : P 1

SORTTV

TO : P---

STORE : ?

6To Press the...

or button to select the “Store”.

Enter button.

Result : “OK” is displayed.

Confirm the exchange of

channel number

7 When you have finished, sorting channels, Press the EXIT

button or press the MENU button repeatedly to return to normal

viewing.

ENTER RETURN

MOVE

FROM : P 1

SORT

TO : P--3

STORE : OK

You can exchange other channel numbers by seleting “From”

and returning to step 3

ENTER EXITMOVE

AUTO STORE

CHANNEL

MANUAL STORE

ADD/DELETE

SORT

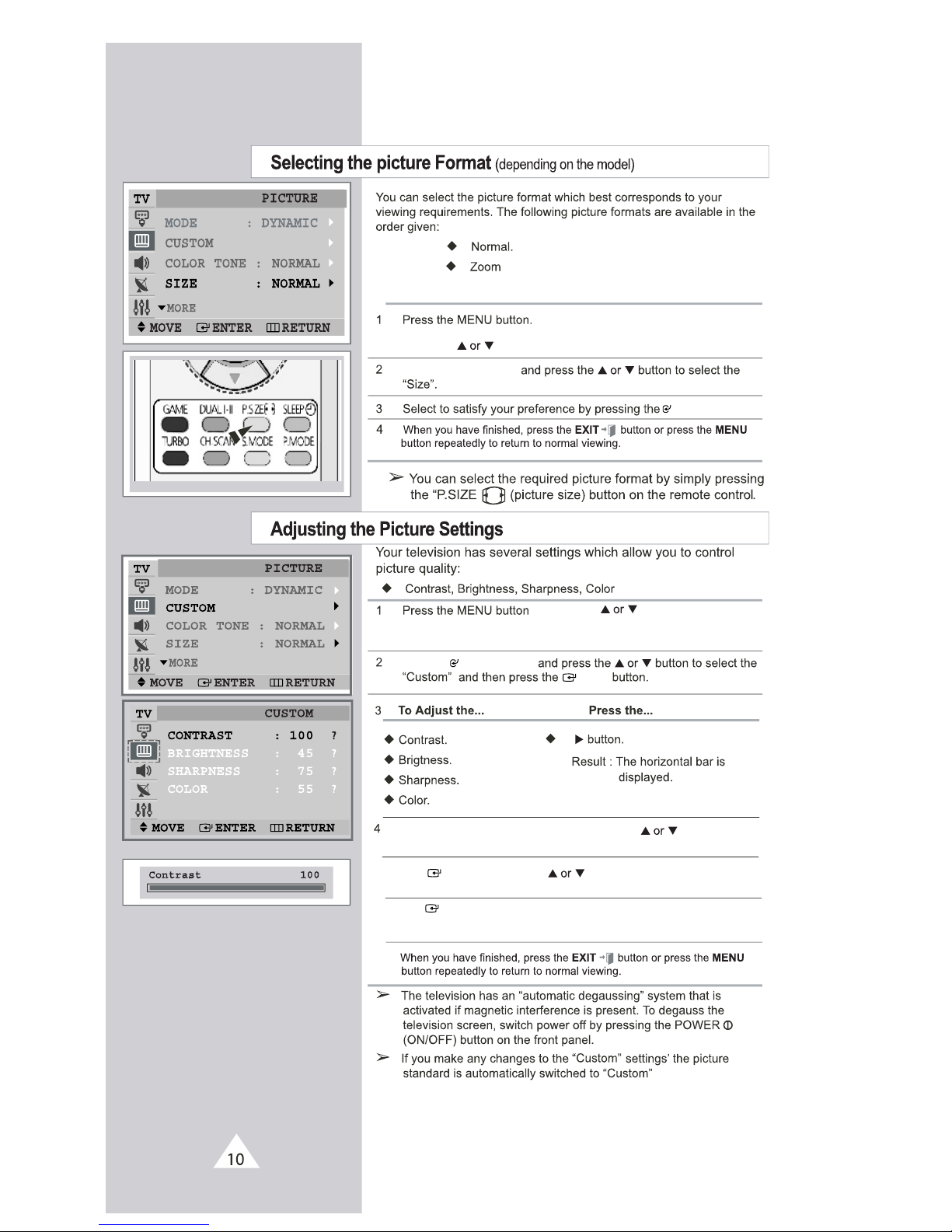

Changing the Picture Standard

You can select the type of picture which best corresponds

to your viewing requirements. The following picture effects are

available in the order given:

Dynamic,Standard,Movie,Custom.

1 Press the MENU button & Press button to select picture.

Result : The “Picture” menu is displayed.

2 Press the ENTER button.

Result : The “Mode” menu is selected.

3 Select to satisfy your preference by pressing the ENTER button.

4When you have finished, press the EXIT button or press the MENU

button repeatedly to return to normal viewing.

You can select the required picture effect by simply pressing

the “P.MODE” button on the remote control.

MOVE ENTER RETURN

MODE : DYNAMIC

CUSTOM

COLOR TONE : NORMAL

SIZE : NORMAL


Press the b utton to select the picture

Press the ENTER button

ENTER button

& press the button to select the picture

Press the ENTER button

To adjust Color Tone Press Menu button & press button to select

pictutre menu.

Press ENTER button to select the required option (Normal, Warm1,

Warm2, Cool2, Cool1.)

ENTER

Press Enter button & press button to select color tone.
