Samsung LT-P2035 Manuale di istruzioni

English-1

YOUR NEW TV

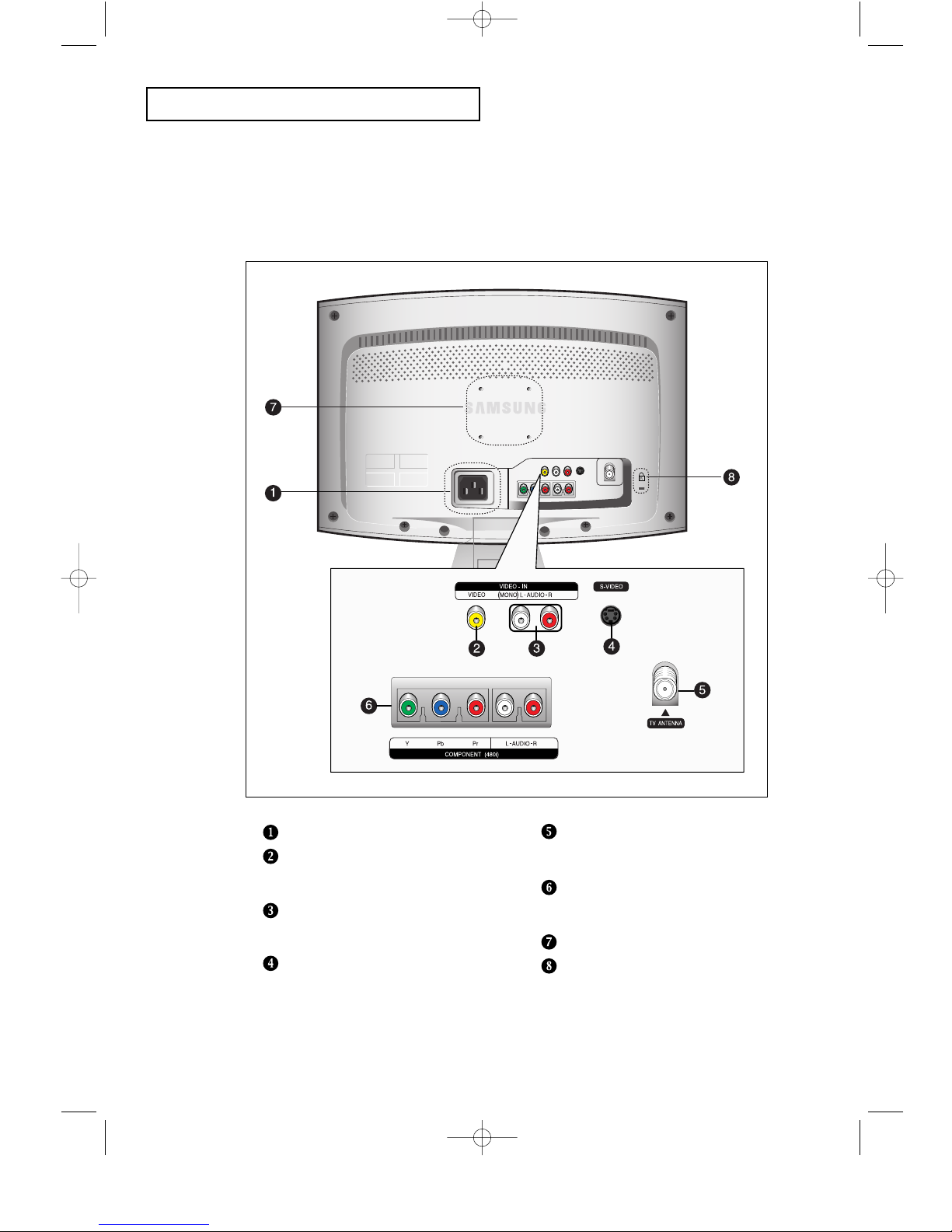

Rear Panel Jacks

Use the rear panel jacks to connect an A/V component that will be connected

continuously, such as a VCR or a DVD player.

POWER INPUT

VIDEO INPUT

Connect a video signal from a

camcorder or VCR.

AUDIO INPUT

Connect audio signal from a

camcorder or VCR.

SUPER VIDEO INPUT

Connect S-Video signal from a

camcorder or VCR.

TV ANTENNA

Connect to an antenna or to a cable

TV system.

COMPONENT

Connect component video/audio from

a DVD player.(only 480i)

WALL MOUNT HOLES

KENSINGTON LOCK

01-12_EN 1/9/04 8:02 PM Page 3

English-2

INSTALLATION

Connect a coaxial

cable between the

ANTENNA OUT

terminal on the VCR

and the antenna

terminal on the TV.

Connect a set of

audio cables

between the AUDIO

OUT jacks on the

VCR and the AUDIO

jacks on the TV.

Connect a video

cable between the

VIDEO OUT jack on

the VCR and the

VIDEO jack on the

TV.

Follow the instructions in “Viewing a VCR or Camcorder Tape” to view your VCR tape.

# Each external input source device has a different back panel configuration.

A coaxial cable is usually included with a VCR. (If not, check your local electronics store).

If you have a “mono” (non-stereo) VCR, use the Y-connector (not supplied) to hook up

to the left and right audio input jacks of the TV. If your VCR is stereo, you must

connect two cables.

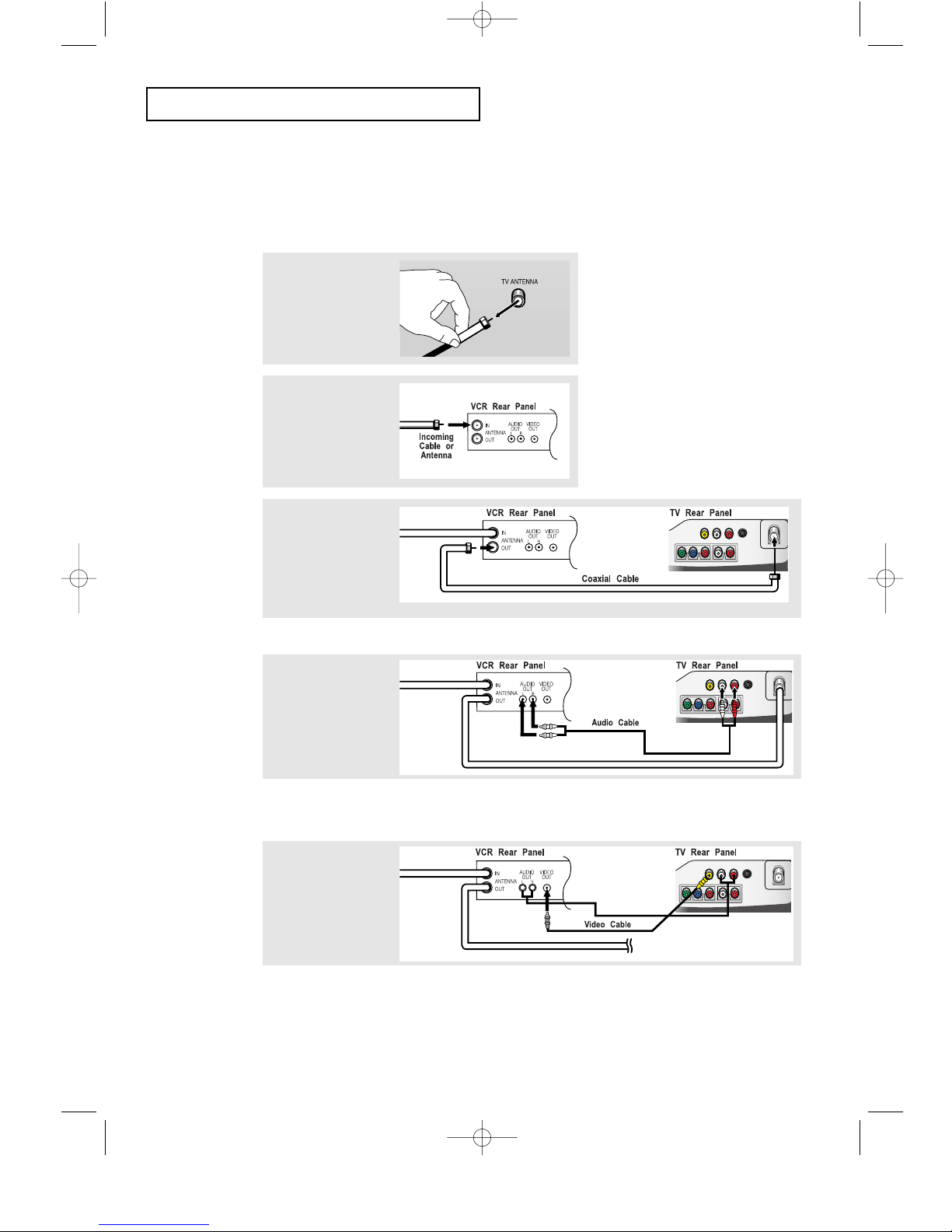

Connecting a VCR

These instructions assume that you have already connected your TV to an antenna or a

cable TV system .

Skip step 1 if you have not yet connected to an antenna or a cable system.

Unplug the cable or

antenna from the

back of the TV.

Connect the cable

or antenna to the

ANTENNA IN terminal

on the back of the

VCR.

01-12_EN 1/9/04 8:02 PM Page 10

English-3

INSTALLATION

Connect an S-video

cable between the

S-VIDEO OUT jack on

the VCR and the

S-VIDEO INPUT jack

on the TV.

An S-video cable is usually included with an S-VHS VCR.

(If not, check your local electronics store.)

# Each external input source device has a different back panel configuration.

To begin, follow

steps 1–3 in the

previous section to

connect the antenna

or cable to your

VCR and your TV.

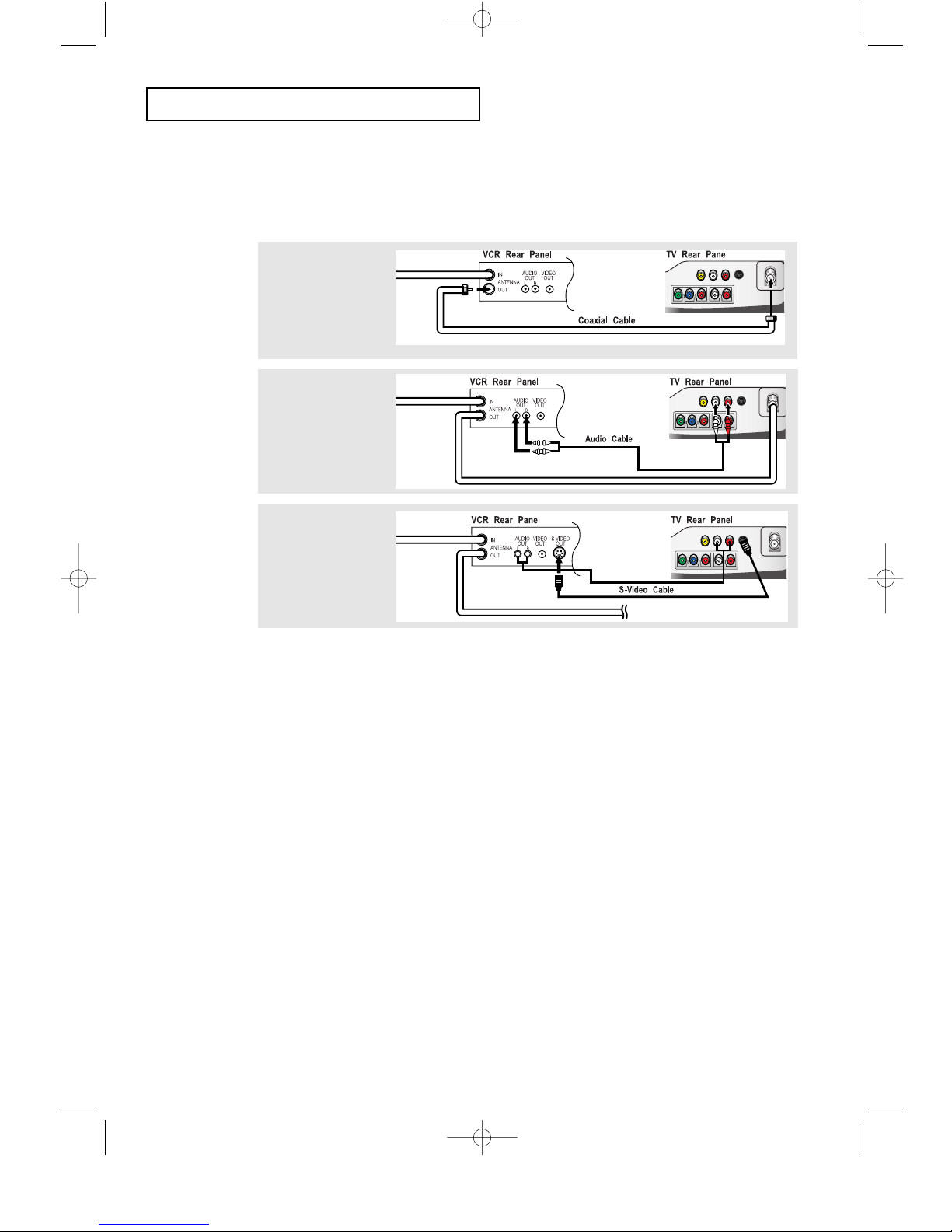

Connecting an S-VHS VCR

Your Samsung TV can be connected to an S-Video signal from an S-VHS VCR.

(This connection delivers a better picture as compared to a standard VHS VCR.)

Connect a set of audio

cables between the

AUDIO OUT jacks on

the VCR and the

AUDIO INPUT jacks

on the TV.

01-12_EN 1/9/04 8:02 PM Page 11

English-4

INSTALLATION

Note: For an explanation of Component video, see your DVD player owner's manual.

The Component input on the TV is 480i only.

# Each external input source device has a different back panel configuration.

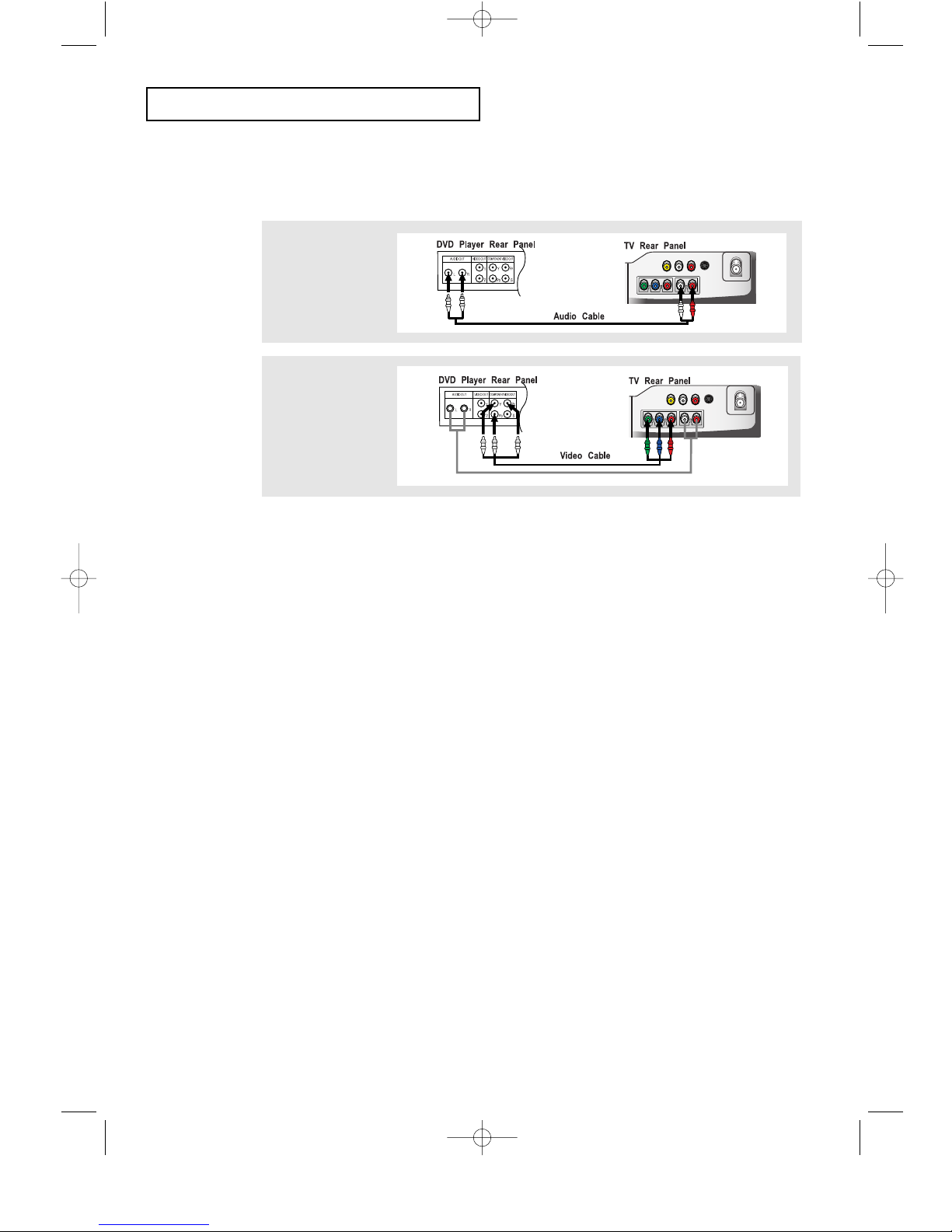

Connecting a DVD Player

The rear panel jacks on your TV make it easy to connect a DVD player to your TV.

Connect a set of audio

cables between the

L, R AUDIO INPUT

jacks on the TV and

the AUDIO OUT jacks

on the DVD player.

Connect a video

cable between the

COMPONENT

(Y, Pb, Pr) jacks on

the TV and the Y, Pb,

Pr jacks on the DVD

player.

01-12_EN 1/9/04 8:02 PM Page 12

English-5

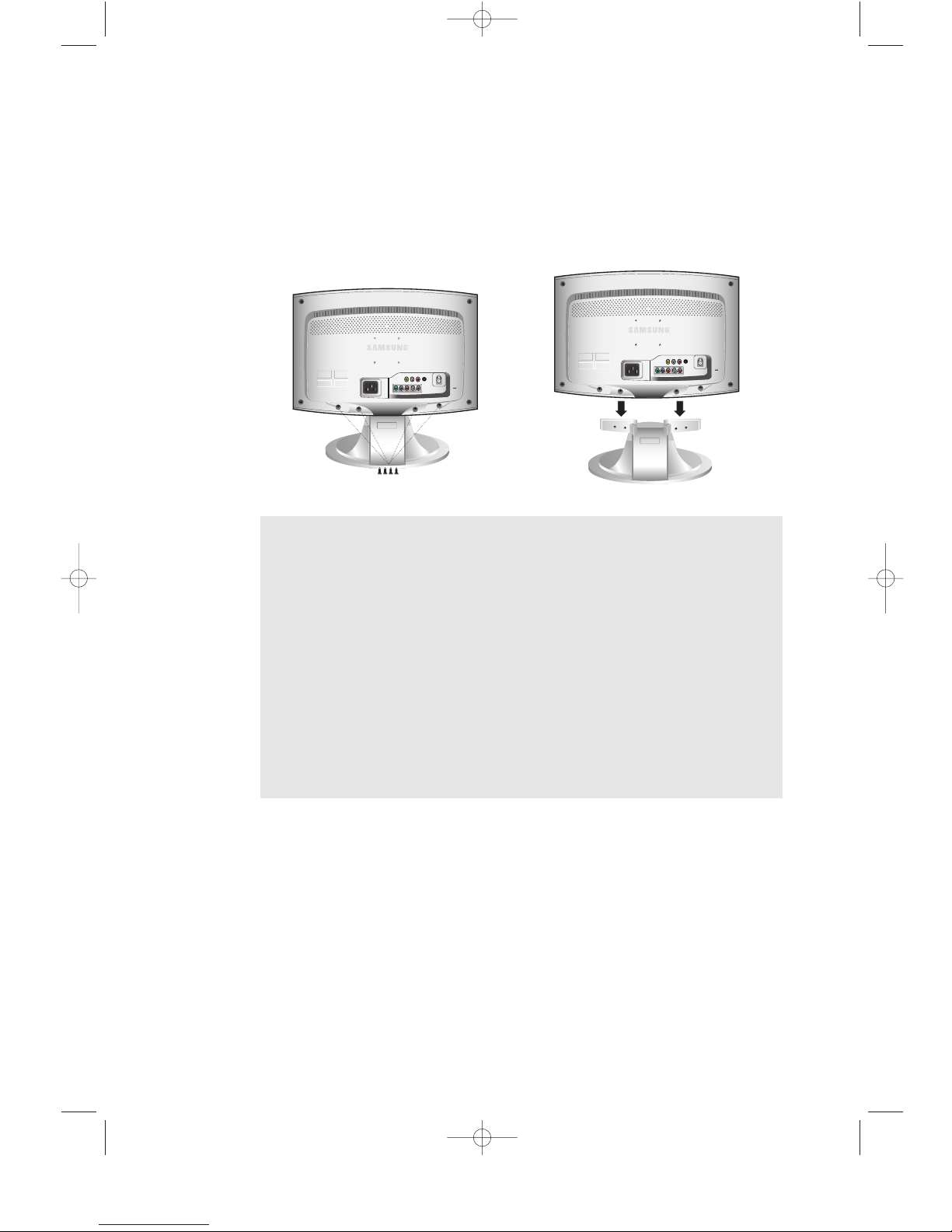

Attaching a Wall or Arm mounting device

The TV supports VESA mounting standard for use with various VESA mounting

devices. To install any VESA mounting device, please follow the instructions given.

<A> <B>

Lay the LCD TV face-down on a flat surface with a cushion or other soft materials

to protect the screen.

Remove all cables connected on the TV.

Remove the four screws and then remove the Stand from the LCD TV. (refer to pictures A&B).

Re-connect all cables you removed in step 2.

Now you are ready to install Wall/Arm mounting device .

Maintenance of Your LCD TV

WARNING: To avoid risk of electric shock, do not disassemble the TV cabinet.

Users cannot service the TV.

User maintenance is restricted to cleaning as explained below:

Unplug the monitor from the power outlet before cleaning.

• To clean your flat panel display screen, lightly dampen a soft, clean cloth with water or mild

detergent. If possible, use a special screen cleaning tissue or solution suitable for the antistatic

coating.

• To clean the monitor cabinet, use a cloth lightly dampened with a mild detergent.

• Never use flammable cleaning material to clean your LCD TV or any other electrical apparatus.

39-43_EN 1/9/04 8:04 PM Page 39

English-6

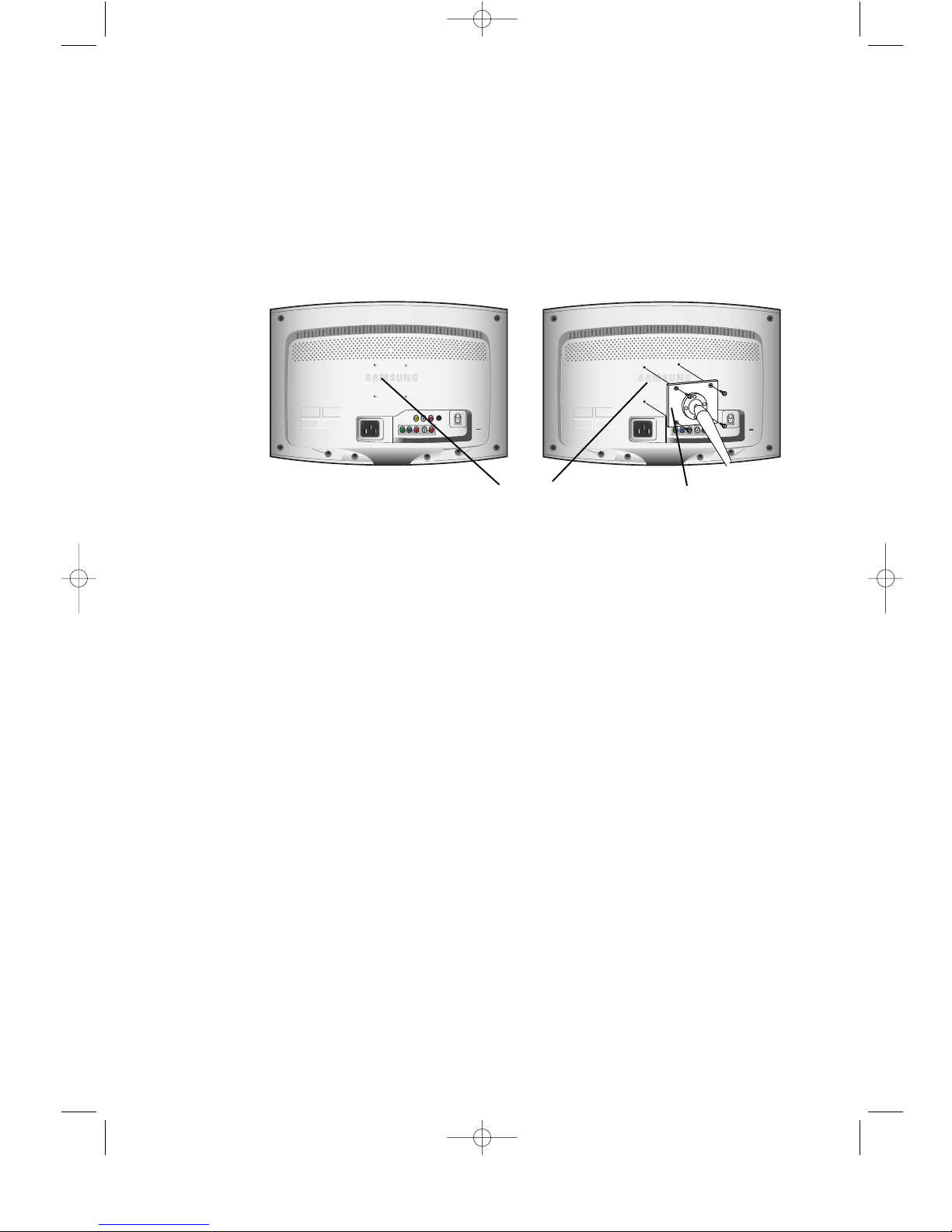

Installing VESA compliant mounting devices

Refer to previous page to remove the base.

Rear cover Mounting pad

Align the mounting interface pad with the holes in the rear cover mounting pad and secure it with

the four screws that come with the arm-type base, wall mount hanger or other bases.

Wall Mount Instructions

The following instructions apply to a hollow sheet-rock wall only. Tools/Hardware needed - Philips

screwdriver, four toggle bolts, 5/8in dia. Drill bit and drill. Contact Ergotron at (800) 888-8458 to

purchase the triple pivot direct mount adapter and wall mount bracket kit.

• LTN1535 (15") : No. 47 - 007 - 099 (Pivot direct mount adapter)

No. 97 - 101 - 003 (Wall mount bracket kit)

• LTN1735 (17") : No. 47 - 007 - 099 (Pivot direct mount adapter)

No. 97 - 101 - 003 (Wall mount bracket kit)

• LTP2035 (20") : No. 47 - 007 - 099 (Pivot direct mount adapter)

No. 97 - 101 - 003 (Wall mount bracket kit)

Align the wall mount bracket on the wall at the desired height, making sure that the bracket will be

mounted between the wall studs. Mark the four corner openings and drill four 5/8-diameter holes.

Assemble the wall mount kit according to the instructions provided with it. Securely attach

Ergotron’s flat panel, triple pivot direct mount adapter to the back of the TV using the four 4mm,

.7 pitch x 10mm screws provided with the arm. Secure the assembly to the wall using four 3/16 by

3-inch long toggle bolts.

39-43_EN 1/9/04 8:04 PM Page 40

English-7

APPENDIX

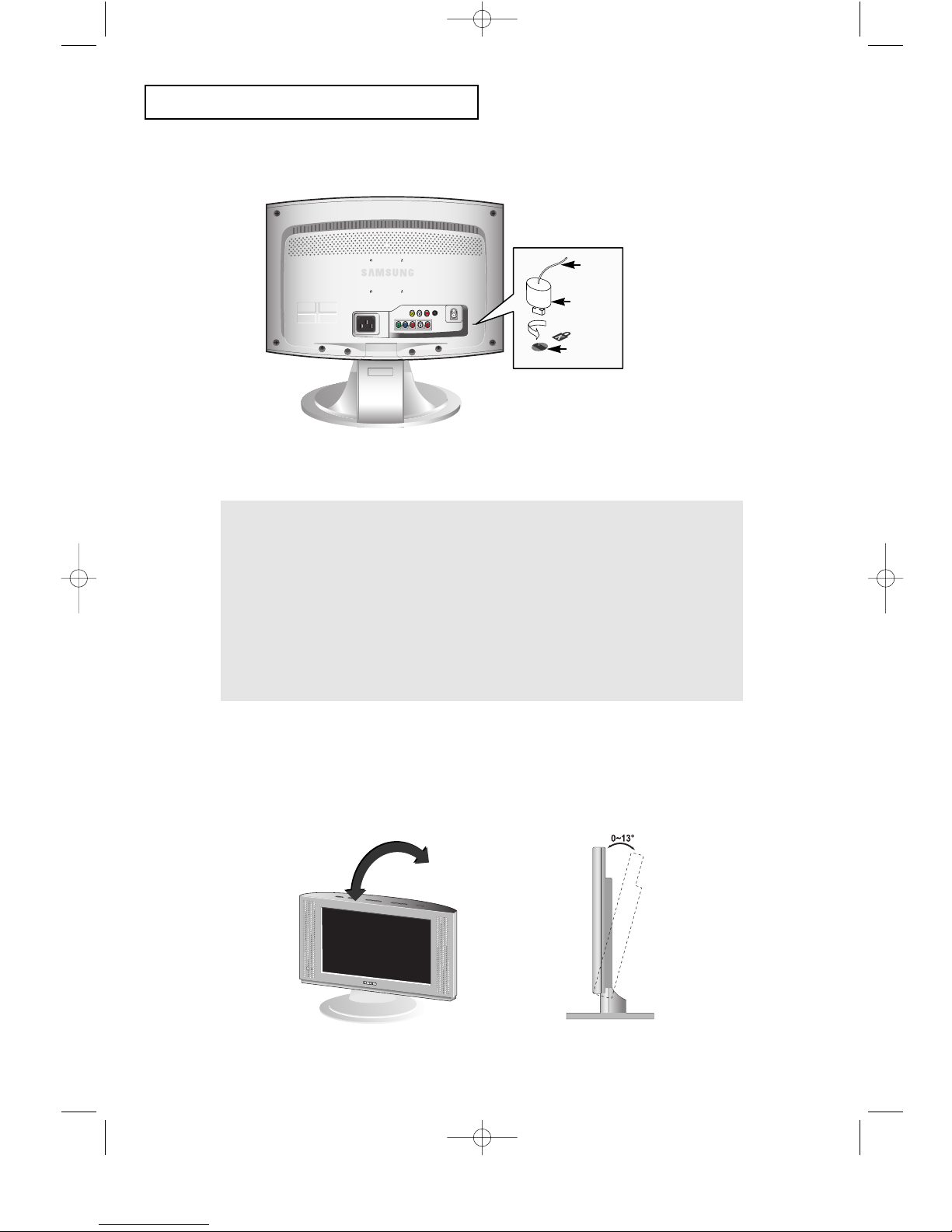

Using the Anti-Theft Kensington Lock

Retractable Stand

Note: The maximum tilt angle is 13 degrees in the backward direction.

Please do not tilt the TV outside the specified range. Using excessive force

to tilt the TV may cause permanent damage to the mechanical part of the stand.

Figure 2

Figure 1

Cable

The Kensington lock is a device used to physically fix the system when using it in a public place. The locking

device has to be purchased separately. The appearance and locking method may differ from the illustration

depending on the manufacturer. Please refer to the manual provided with the Kensington lock for proper use.

Insert the locking device into the Kensington slot on the LCD TV (Figure 1),

and turn it in the locking direction (Figure 2).

Connect the Kensington lock cable.

Fix the Kensington lock to a desk or a heavy stationary object.

39-43_EN 1/9/04 8:04 PM Page 41
