Samsung SP-43T8HL Guida

ENG

Control Panels (depending on the model)

➢The actual configuration on your TV may be different, depending on

your model.

➢

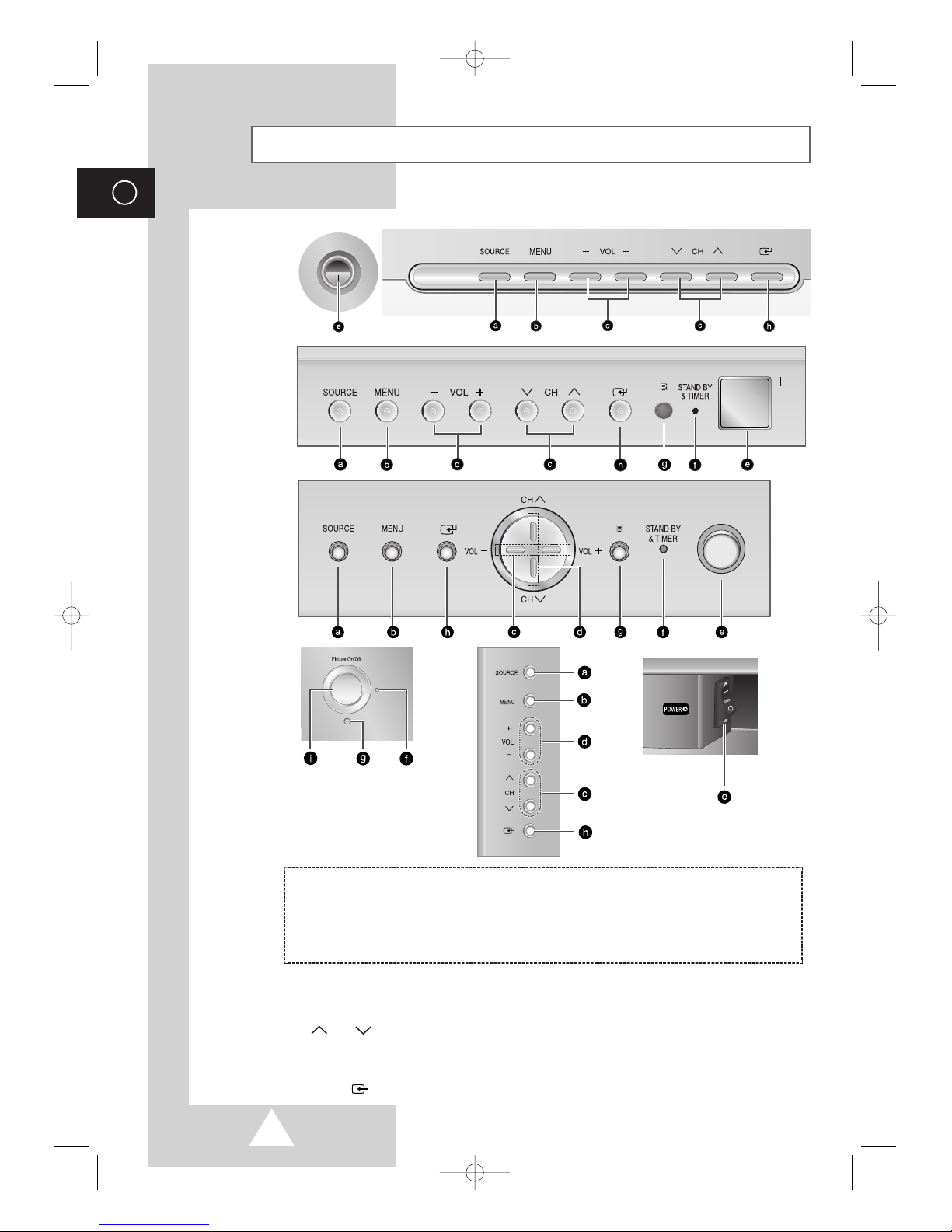

Using the Buttons on the Panel

If the remote control no longer works or you have lost it, you can use controls on the panel of the TV to:

◆Switch on the TV when it is in Standby mode and select channels

(CH or Picture On/Off)

◆Access the menu ( MENU )

◆Adjust the volume (

VOL +)

◆Switch among Video input modes (SOURCE ) and access to the selected option on the menu

system ( )

( a ) Input Source Selection

( b ) Menu Display

( c ) Channel Selection

( d ) Volume Adjustment

( e ) Power On/Off

( f ) Standby & Timer Indicator

( g ) Remote Control Sensor

( h ) Accessing to the Selected Option

on the Menu System

( i ) Picture On/Off

SP43T8

SP54T8

SP43T7

SP43W6

SP42Q2

BP68-00303A(J60A_Asia_ENG) 4/2/04 12:14 AM Page 6

ENG

Connection Panels (depending on the model)

➢The actual configuration on your TV may be different, depending on

your model.

Side of the TV

( a )

Video Input

( b )

Audio Input

( c )

S-Video Input

:➢For further details about connection, refer to pages 7~10.

☛Whenever you connect an audio or video system to your television, ensure that all elements are

switched off. Refer to the documentation supplied with your equipment for detailed connection

instructions and associated safety precautions.

Rear of the TV

( a ) ANT IN VHF/UHF (75Ω)

( b ) AV INPUT

(VIDEO/L-AUDIO-R)-1, 2

( c ) AV OUTPUT

(VIDEO / L-AUDIO-R)

( d ) COMPONENT

VIDEO/AUDIO INPUT

BP68-00303A(J60A_Asia_ENG) 4/2/04 12:14 AM Page 7

ENG

Using a Display Deck (depending on the model)

You can display a VCR or DVD Player, etc. by using the display

deck.

SP54T8

1Hold the center of the door and lift it up in the direction of arrow.

2After placing a component you have in the display deck, hold the

center of the door and pull it down.

➢

You should display only the component that is within

126mm high. When displaying a component in the

display deck, please space it out 30mm from the front,

20mm from either end.

SP43W6

Inserting the Batteries in the Remote Control

You must insert or replace the batteries in the remote control when

you:

◆Purchase the television

◆Find that the remote control is no longer operating

correctly

1Remove the cover on the rear of the remote control by pressing

the symbol ( ) downwards and then pulling firmly to remove it.

2Insert two R03, UM4, “AAA” 1.5V or equivalent batteries taking

care to respect the polarities:

◆

on the battery against

on the remote control

◆

on the battery against

on the remote control

3Replace the cover by aligning it with the base of the remote

control and pressing it back into place.

SP54T8

BP68-00303A(J60A_Asia_ENG) 4/2/04 12:14 AM Page 8

ENG

Infrared Remote Control

➢The performance of the remote control may be affected by bright light.

DIRECT CHANNEL SELECTION

MENU DISPLAY/

TELETEXT INDEX

CONTROL THE CURSOR

IN THE ON-SCREEN MENU

SURROUND ON/OFF DIRECTLY

TELEVISION STANDBY

FASTEXT TOPIC SELECTION

AUTOMATIC SWITCH-OFF

TELETEXT PAGE HOLD

INFORMATION DISPLAY/

TELETEXT REVEAL

EXIT FROM ANY DISPLAY

ONE OR TWO-DIGIT CHANNEL

SELECTION/

TELETEXT STORE

SELF FOCUS

PICTURE FREEZE

TELETEXT SUB-PAGE

TELETEXT CANCEL

EXTERNAL INPUT SELECTION/

TELETEXT MODE (LIST/FLOF)

SELECTION

SWITCH REPEATEDLY BETWEEN THE

LAST TWO CHANNELS DISPLAYED

CONFIRM YOUR CHOICE

(STORE OR ENTER)

NEXT CHANNEL/

TELETEXT NEXT PAGE

PICTURE EFFECT SELECTION

IF YOUR REMOTE CONTROL IS

NOT FUNCTIONING PROPERLY,

TAKE OUT THE BATTERIES AND

PRESS THE RESET BUTTON FOR

ABOUT 2~3 SECONDS. RE-INSERT

THE BATTERIES AND TRY USING

THE REMOTE CONTROL AGAIN.

SOUND MODE SELECTION

PREVIOUS CHANNEL/

TELETEXT PREVIOUS PAGE

MAKE THE REMOTE CONTROL WORKS

FOR TV, STB, VCR, CABLE, DVD

PLAYER

TUNER/CABLE NETWORK

SELECTION

VOLUME INCREASE

TEMPORARY SOUND SWITCH-OFF

VOLUME DECREASE

TELETEXT DISPLAY/

MIX BOTH TELETEXT INFORMATION

AND THE NORMAL BROADCAST

SOUND EFFECT SELECTIOND

PICTURE SIZE/

TELETEXT SIZE SELECTION

VCR/DVD FUNCTIONS;

-REWIND ( )

-STOP ( )

-PLAY/PAUSE ( )

-FAST FORWARD ( )

REMOTE CONTROL SETUP

BP68-00303A(J60A_Asia_ENG) 4/2/04 12:14 AM Page 9

ENG

To view television channels correctly, a signal must be received by

the set from one of the following sources:

◆An outdoor aerial

◆A cable television network

◆A satellite network

1In the first three cases, connect the aerial or network input cable to

the 75Ωcoaxial socket on the rear of the television.

2If you are using an indoor aerial, you may need to turn it when

tuning your television until you obtain a picture that is both sharp

and clear.

For further details, refer to the user manual :

◆“Storing Channels Automatically” on page 20

◆“Storing Channels Manually” on page 22.

Connecting to an Aerial or Cable Television Network

Rear of the TV

Cable Television

Network

BP68-00303A(J60A_Asia_ENG) 4/2/04 12:14 AM Page 10

ENG

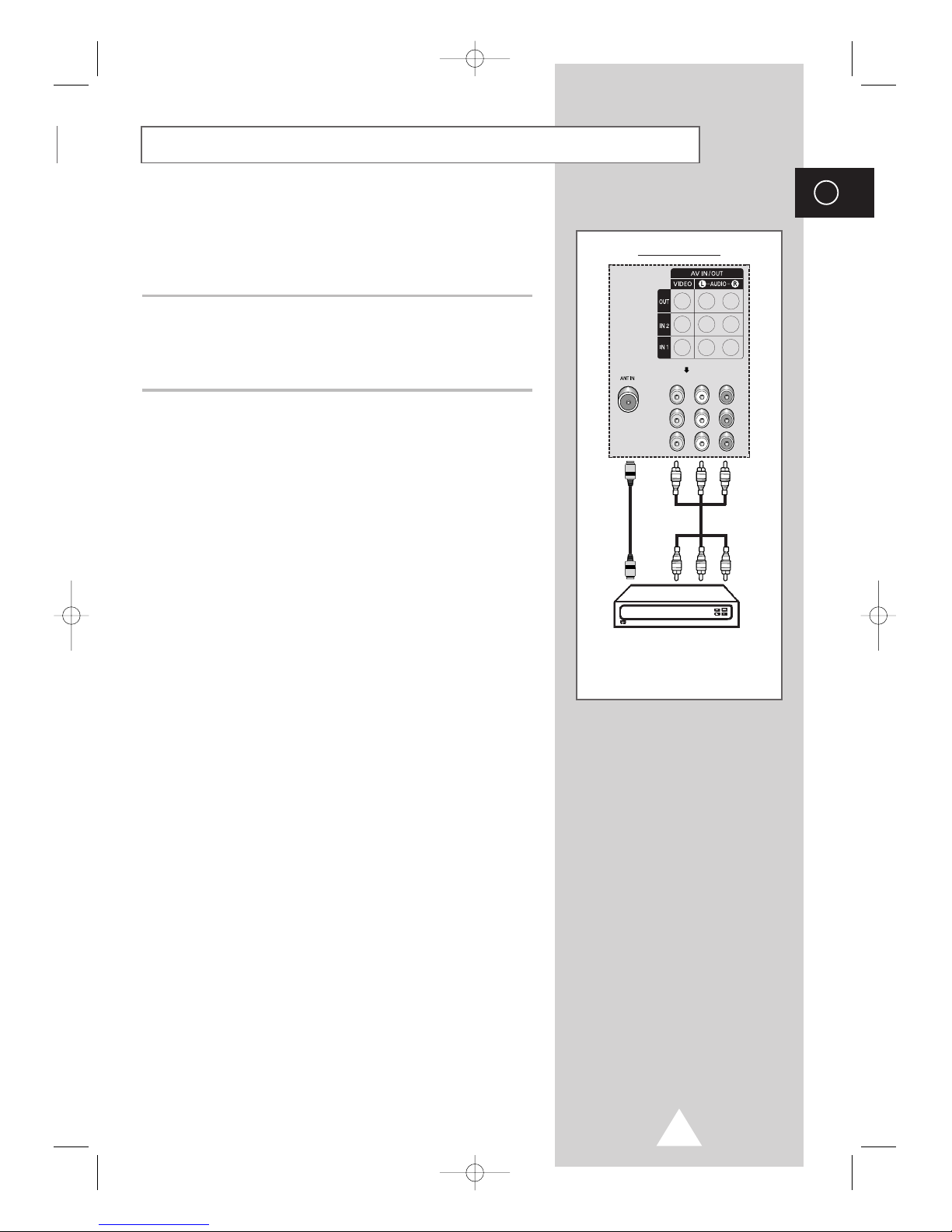

Connecting a Satellite Receiver or Decoder

In order to watch television programmes broadcast via a satellite

network, you must connect a satellite receiver to the rear of TV.

Also, in order to descramble a coded transmission signal, you must

connect a decoder to the rear of TV.

Using a Coaxial cable

Connect a coaxial cable to the:

◆Receiver (or Decoder) output socket.

◆Television aerial input socket.

➢If you wish to connect both a satellite receiver (or decoder)

and a VCR, you should connect the:

◆Receiver (or Decoder) to the VCR

◆VCR to the television

Otherwise, connect the receiver (or decoder) directly to the

television.

Rear of the TV

Satellite receiver/

Decoder

BP68-00303A(J60A_Asia_ENG) 4/2/04 12:14 AM Page 11

ENG

☛Whenever you connect an audio or video system to your

television, ensure that all elements are switched off.

Refer to the documentation supplied with your equipment

for detailed connection instructions and associated safety

precautions.

Connecting to the External Devices

Rear of the TV

(Input/Output)

①

This end can be fitted with:

◆Three RCA connectors (VIDEO + AUDIO-L and R)

②

If you have a second VCR and wish to copy cassettes tape, connect the source VCR to

“IN 1”

and the

target VCR to

“OUT”

so that you can redirect the signal from

source VCR

to target VCR.

③

If you have a decoder, connect the decoder to the VCR and the VCR to the television.

➃

“OUT” is used for displaying the current picture to an external device.

When you wish to record the

current picture, connect the VCR to

“OUT”

①

Side of the TV

(Input)

(depending on the model)

Camcorder

Video disc player

Video game device

VCR

Decoder /

Video game device

Video disc player

Satellite receiver

③

➃

②

BP68-00303A(J60A_Asia_ENG) 4/2/04 12:15 AM Page 49

ENG

➢The AUDIO-L and R connectors are used for equipment, such as an audio system or external amplifier

(to take full advantage of the Surround sound effect).

Audio System/

External Amplifier

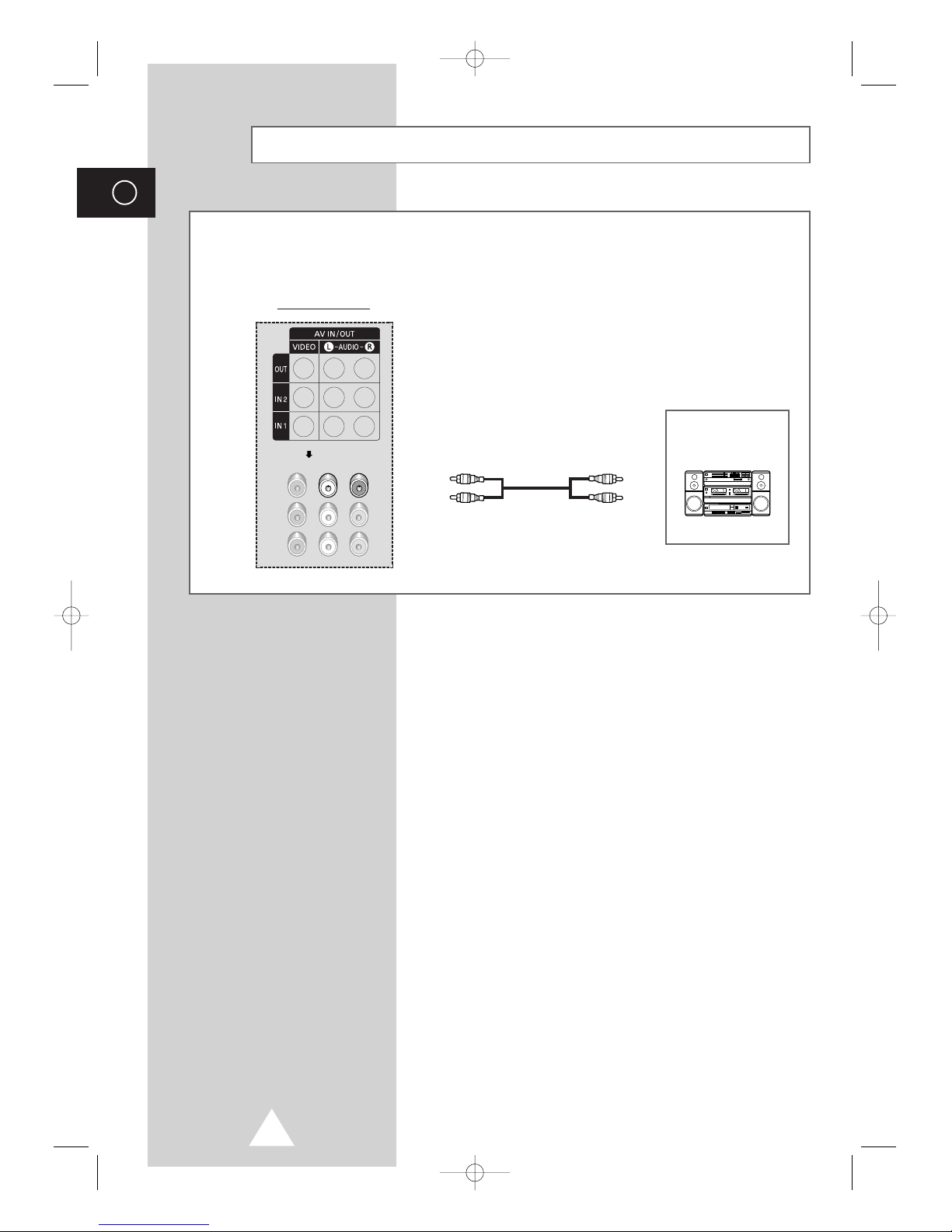

Connecting to the Audio Outputs

Rear of the TV

BP68-00303A(J60A_Asia_ENG) 4/2/04 12:15 AM Page 50

ENG

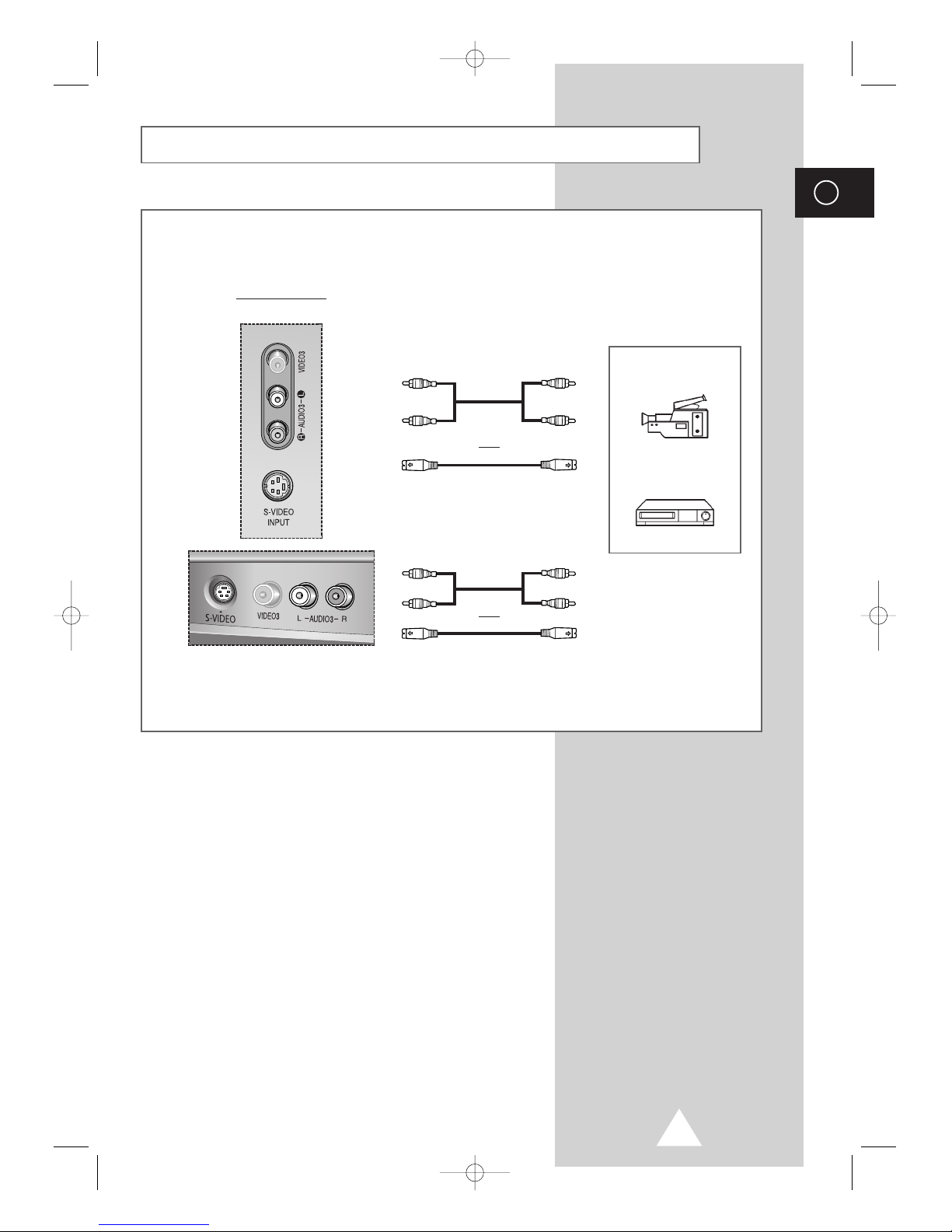

Connecting to the S-Video Input

➢The S-VIDEO (or S-VIDEO INPUT) and RCA (AUDIO3-L and R) connectors are used for

equipment with an S-Video output, such as a camcorder or VCR.

Camcorder

VCR

①

To play pictures and sound, both the S-VIDEO (or S-VIDEO INPUT) and RCA connectors must be used.

and

①

and

①

Side of the TV

(depending on the model)

BP68-00303A(J60A_Asia_ENG) 4/2/04 12:15 AM Page 51

ENG

Connecting to the Component Input

➢The COMPONENT IN connectors are used for equipment with a DVD or DTV receiver output.

(480i, 480p, 576i,576p, 1080i)

DVD

Rear of the TV

DTV receiver

①

②
