Samsung SU3486 Manuale utente

English

✻ Before operating this unit, please read the instructions carefully.

✻ For indoor use only.

Vacuum Cleaner

user manual

imagine the possibilities

Thank you for purchasing a Samsung product.

To receive a more complete service,

please register your product at

www.samsung.com/register

SU34 SERIES

safety information

IMPORTANT SAFETY INSTRUCTIONS

Thank you for purchasing a Samsung vacuum cleaner. When using an electrical

appliance, basic precautions should always be followed, including the following :

PLEASE READ ALL WARNINGS AND INSTRUCTIONS BEFORE USING THIS

VACUUM CLEANER.

WARNING : To reduce the risk of ﬁre, electric shock, or injury.

• Donotleavevacuumcleanerunattendedwhenitispluggedin.

• Unplugfromoutletwhennotinuseandbeforeservicing.

• Donotuseoutdoorsoronwetsurfaces.

• Donotallowchildrentooperatevacuumcleaneroruseasatoy.

• Closeattentionisnecessarywhenusedbyornearchildren.

• Useonlyasdescribedinthismanual.Useonlymanufacturer’srecommended

attachments.

• Donotusewithdamagedcordorplug.

• Ifvacuumcleanerisnotworkingasitshould,orhasbeendropped,damaged,

left outdoors or dropped into water, return it to a service center.

• Donotpullorcarrybycord,usecordasahandle,closeadooroncord,orpull

the cord around sharp edges or corners. Keep cord away from heated surfaces.

• Donotunplugbypullingonthecord.Tounplug,grasptheplug,notthecord.

• Donothandlevacuumcleanerorplugwithwethands.

• Donotputanyobjectintoopenings.Donotusewithanyopeningblocked;keep

openings free of dust, lint, hair and anything that may reduce air ﬂow.

• Keephair,looseclothing,ngersandallpartsofbodyawayfromopeningsand

moving parts.

• Donotpickupanythingthatisburningorsmoking,suchascigarettes,matches

or hot ashes.

• Donotusewithoutdirtcuporltersinplace.Emptydirtcupandcleanlter

frequently when picking up very ﬁne materials such as powder.

• Turnoffallcontrolsbeforeunpluggingvacuumcleaner.

• Useextracarewhencleaningonstairs.

• Donotusetopickupammableorcombustiblematerialssuchasgasolineor

ﬁne wood, ﬁne wood sandings or use in areas where they may be present.

• Storeyourvacuumcleanerindoors,inacoolanddryarea.

2_ safety information

• Avoidpickinguphard,sharpobjectswiththecleaner.Theymaydamagethe

cleaner.

• Alwaysturnoffthisappliancebeforeconnectingordisconnectingthehose,

removing the bottom plate for maintenance.

• Useonlyondry,indoorsurfaces,neverchangethepluginanyway.

• Donotmodifythepolarizedplugtotanon-polarizedoutletorextensioncord.

• Donottouchthebrushrollerwhenitisrotating.

• Keepsuctionawayfromyourfacewhenusingnozzlesandpipe.

• Donotpullthepowercordaroundsharpcornersanddonotallowittobe

trapped.

• Unplugbeforeconnectingturbinenozzle.(onlyusingturbine-brushmodel)

• Thisapplianceisnotintendedforusebypersons(includingchildren)with

reducedphysical,sensoryormentalcapabilities,orlackofexperienceand

knowledge, unless they have been given supervision or instruction concerning

use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the

appliance.

• Theplugmustberemovedfromthesocket-outletbeforecleaningormaintaining

the appliance.

• Ifthesupplycordisdamaged,itmustbereplacedbythemanufacturerorits

serviceagentorasimilarlyqualiedpersoninordertoavoidahazard.

SAVE THESE INSTRUCTIONS

This vacuum cleaner is intended for household use only.

FOR RESIDENTS OF THE UNITED KINGDOM ONLY

IfyourapplianceisttedwithanonrewireableBS1363plugitmustnotbeused

unlessa13amp(ASTAapprovedtoBS1362)fuseisttedinthecarriercontained

intheplug.Ifforanyreasontheplugiscutoff,itmustbedisposedof,asitisan

electricshockhazardshoulditbeinsertedintoa13ampsocket.

safety information

safety information _3

safety information

SAFETY INFORMATION

•Before operating the appliance, please read this manual thoroughly and retain

it for your reference.

•Because these following operating instructions cover various models,

the characteristics of your vacuum cleaner may differ slightly from those

described in this manual.

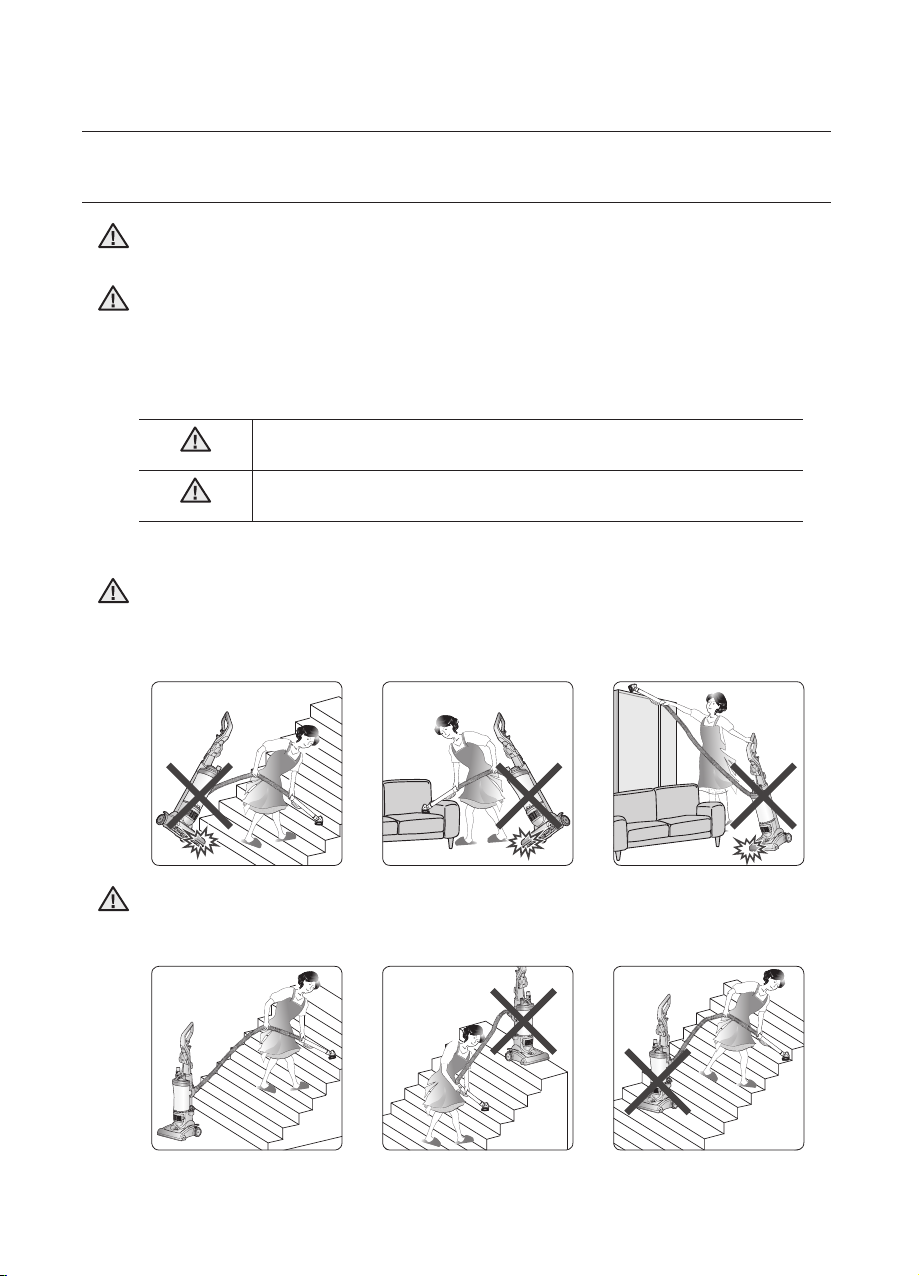

When using the hose attachment, please ensure that vacuum remains ﬂat

and level on the ﬂoor surface to prevent contact from the brush roller with

theoorsurface.Ifthevacuumdoesnotremainatandlevel,thiscould

result in damage to the ﬂooring.

4_ safety information

WARNING

CAUTION

To reduce risk of injury and potential damage to ﬂoor surface, do not use the

vacuumonastaircase.Alwaysusevacuumfromthebottomofthestaircase

and ensure that the vacuum remains securely ﬂat on the ﬂoor surface.

CAUTION

WARNING

CAUTION/WARNING SYMBOLS USED

WARNING Indicatesthatadangerofdeathorseriousinjuryexists.

CAUTION Indicatesthatariskofpersonalinjuryormaterialdamageexists.

ASSEMBLING THE CLEANER

06. Product View

07. Attach Handle to Vacuum

07. Attach Dust Bin to Vacuum

07. Attach Vacuum Hose and Tools

OPERATING THE CLEANER

08. Power Switch

08. Handle Positions

08. Height Adjustment

08. Transporting Cleaner

09. Special On-Board Tools

09. Power Cord Storage

MAINTENANCE

10. Empty Dust Bin

10. Cleaning the Grille

11. Cleaning the Pre-motor Filter

11. Replacing the Post-Motor Filter

12. Check Rotating Brush and Drive Belt

12. Replace Drive Belt

13. Mini Turbo Brush

TROUBLESHOOTING

Contents

contents _5

Assembling the cleaner

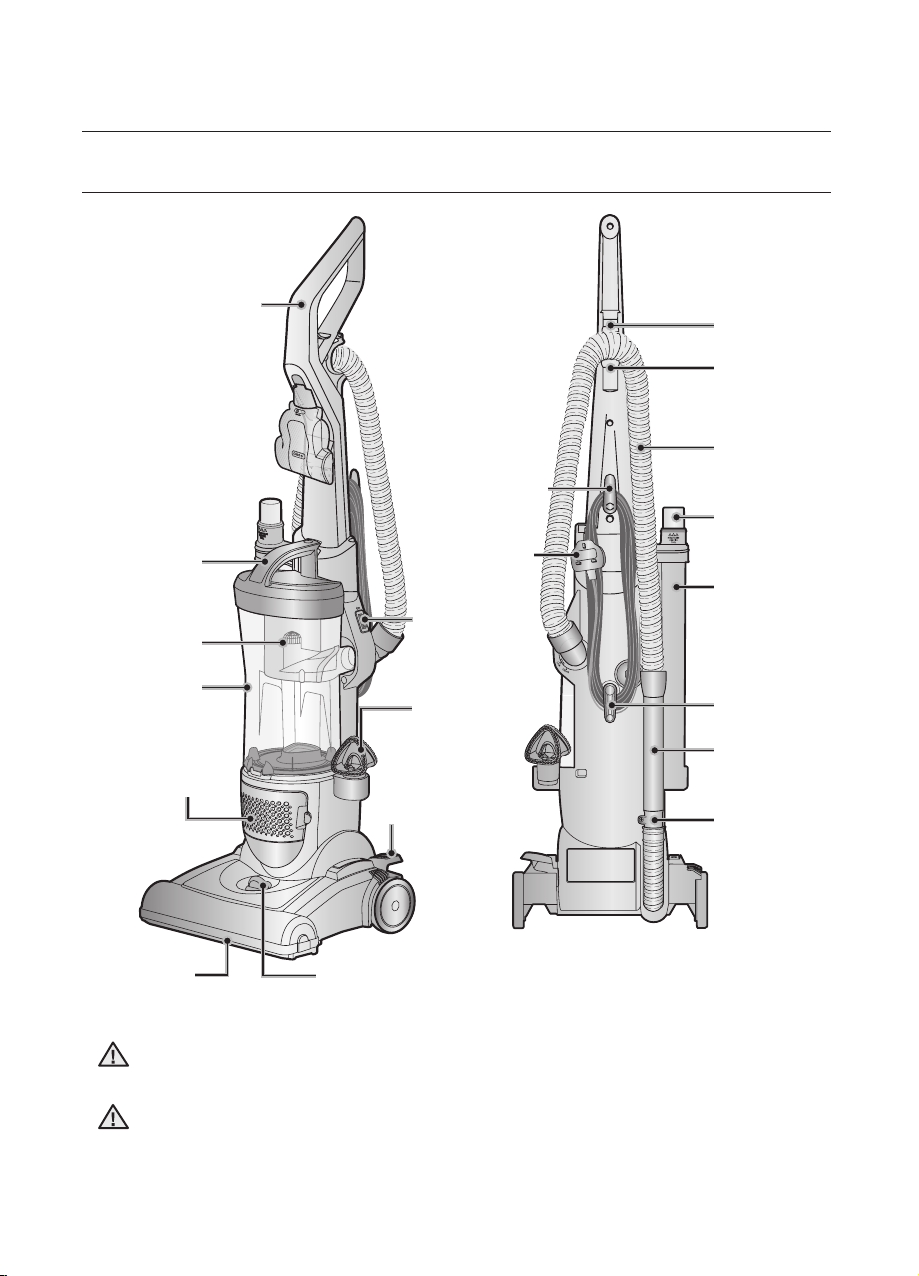

PRODUCT VIEW

6_ assembling the cleaner

Donotpluginyourvacuumcleaneruntilyouarefamiliarwithallinstructions

and operating procedures.

Plastic ﬁlm can be dangerous. To avoid danger of suffocation, keep away from

babies and children.

WARNING

CAUTION

Cord Clip

Hose Clip

Stretch

Hose

Crevice

Tool

Extension

Wand

Hose

Wand

Hose

Wand

Base

Quick

Release

Cord Wrap

Power

Cord

Combination

DustingBrush/

UpholsteryTool

Power

Switch

Handle

Release

Pedal

Handle

Carrying

Handle

Grille

Cyclone

DustBin

Powerfoot HeightAdjustment

Knob

Post-MotorFilter

(Post-MotorFilter

is located behind

thedoor.)

Lower Cord

Wrap

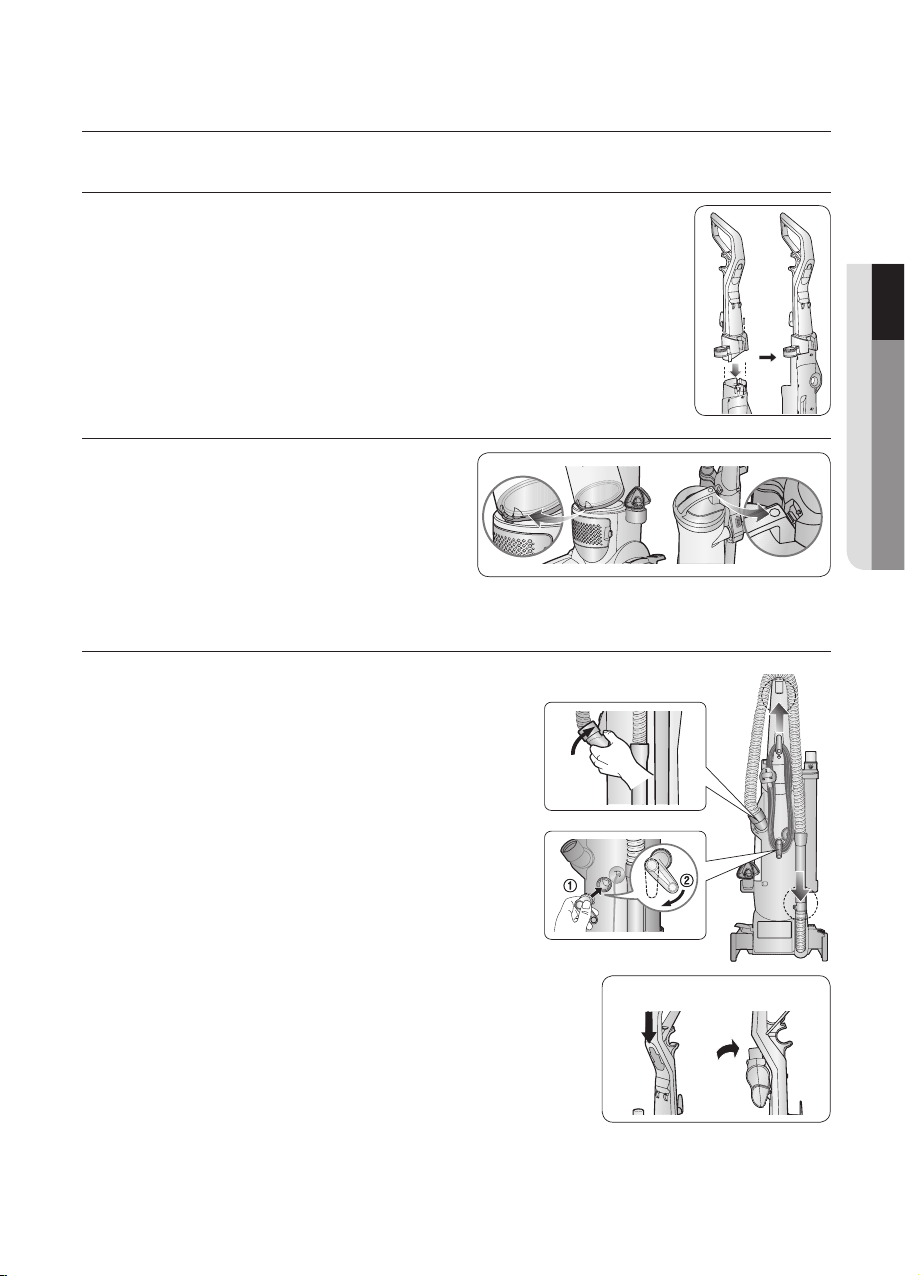

ATTACH HANDLE TO VACUUM

1.Standthevacuumuprightandslidethebaseofthehandle

ﬁrmly into the grooves at the top of the vacuum body.

2.Checktobesurethehandleisttedtothevacuumbody.If

there is a gap, continue to push ﬁrmly until the handle is ﬂush.

3.Insertthescrewprovidedfromthescrewpacketintothe

existinghole.Tightensecurelywithascrewdriver.

ATTACH DUST BIN TO VACUUM

Fit the groove located on the lower

frontsideoftheDustBintothehook

located on the vacuum body and

attach the hook located on the

DustBinHandletothevacuumbody

as shown.

ATTACH VACUUM HOSE AND TOOLS

1.AttachtheTwistSnapHosebyliningupthe

taps on the base with the corresponding

notches on the back of the vacuum as shown.

2.TurntheTwistSnapHoseclockwisetolock

the hose into place.

3.GraspingtheHoseWand,slidetheendofthe

it onto the Hose Wand Base. Snap the Hose

into the Hose Clip.

Note : The vacuum will not operate effectively

unless the Hose Wand is ﬁrmly

attached.

4.AttachtheLowerCordWrapbyliningup

the tab on the base with the corresponding

notch on the back of the vacuum and turn it

clockwise as shown.

5.AttachtheExtensionWandandtheCreviceTool

together into the holder on the right side of the body

as shown.

6.AttachtheCombinationToolintotheholderonthe

left side of the body as shown.

7.AttachtheBracketBrushonthefrontofthehandle

andcliptheMiniTurboBrushintotheBracketBrushasshown.

Assembling the cleaner

assembling the cleaner _7

01 ASEMBLING THE CLEANER

* Select Models Only

8_ operating the cleaner

Operating the cleaner

POWER SWITCH

The Power Switch is located on the side of the vacuum.

Push the rocker switch “ON” to vacuum, and “OFF”

when cleaning is complete.

HANDLE POSITIONS

Press the handle release pedal, located on the lower left side of the vacuum, with

your foot to place your vacuum into one of three cleaning positions.

1. Upright

– For storage and above ﬂoor cleaning with tools.

2. Normal Cleaning

– Press handle release pedal once. Position used for

most household ﬂoor cleaning tasks.

3. Low Cleaning

– With the vacuum in normal cleaning position, press

handlereleasepedalagain.Useforreachingunder

low furniture such as tables, chairs or beds.

HEIGHT ADJUSTMENT

The Powerfoot/Rotating Floor Brush can be adjusted to clean several ﬂoor surfaces.

Note :

Foroptimalcleaningperformance,adjusttothelowestpracticalsetting.Ifyour

cleanerisdifculttopush,adjusttothenexthighersetting.Alwaysensurethat

the correct height setting is used for your ﬂooring type as damage may occur if

the height setting is not changed to reﬂect your ﬂooring type.

1.TurnHeightAdjustmentKnobtodesiredsetting.

Bare ﬂoor Setting

– For bare ﬂoors.

Medium Settings

– For short and medium pile carpets.

Highest Setting

– For plush pile carpet

TRANSPORTING CLEANER

1.Tomoveyourcleanerfromroomtoroom,

put the Handle in the upright position, tilt the

cleaner back on its rear wheels and push

forward.

2.Thecleanercanalsobemovedbyusingthe

Carrying Handle located on the top of the

DustBin.

Carrying

Handle

operating the cleaner _9

02 OPERATING THE CLEANER

SPECIAL ON-BOARD TOOLS

Your vacuum is not only a powerful carpet and rug cleaner, it’s also a versatile

above ﬂoor vacuum cleaner when you select one of the special tools.

1.RaiseHandletoUprightPosition.

2.GrasptheendoftheHoseWandandliftHoseWandtoseparatefromthe

Hose Wand Base.

3.AttachtoolsbyrmlypushingontoVacuumHoseorExtensionWand.

Combination Dusting Brush/

Upholstery Tool:

Two Types of cleaning tools are

included in one attachment :

rotate for desired tool.

•UseBrushsidetodustfurniture,

blinds, books, lamps, shelves,

and baseboards.

•UseUpholsterysideforcurtains,

draperies, cushions, fabrics.

Crevice Tool:

Useintightnarrowspaces.

Extension Wand:

Usewithdesiredattachmentfor

a longer reach.

Mini Turbo Brush (Select Models):

Userotatingbrushactionforsmallareassuchasstairsandupholstery.

Note :

PressgentlywhenusingMiniTurboBrushtogainmaximumcleaning.Too

much pressure could cause the brush to stop rotating.

POWER CORD STORAGE

1.Touseyourvacuum,removethecordandplugitintoanelectricaloutlet.For

your convenience, there is a quick release cord wrap for easy cord removal.

2.Whenyouarenishedcleaning,turnvacuumcleaneroff.

3.Unplugpowercordbygraspingthepolarizedplug(NOTthecord)and

disconnect from outlet.

4. Loop power cord around cord wraps on the back of the vacuum as shown.

5. Clip molded plug to power cord to secure.

*option

SelectModelsOnly

Combination

DustingBrush/

UpholsteryTool

Crevice

Tool

Extension

Wand

Hose

Wand

Hose Wand

Base

Quick Release

Cord Wrap

Power Cord

Operating the cleaner

Maintenance

10_ Maintenance

To maintain maximum cleaning performance, the following maintenance

steps must be performed:

1.EmptytheDustBinwhenthedirtreachesthe

“MAX”lineontheside.

2.CleaningtheGrilleCyclonewhentheDustBin

become clogged.

3.CheckthePre-MotorFilteratleastonceamonth

and clean or replace as needed.

4.ReplacethePost-MotorFiltereverythreetosix

months.

Note :Morefrequentltercleaningorreplacing

may be necessary if you are vacuuming new

carpet, ﬁne dust, or have allergy concerns.

Follow the instructions on the following pages

to perform these simple maintenance steps.

EMPTY DUST BIN

The Dust Bin needs to be emptied when the dirt reaches the “MAX” line on the

side of it.

1.Unplugcleanerfromelectricaloutlet.

2.ToremovetheDustBinfromthevacuumbody,pushtheDustBinrelease

button as shown.

3.Holddustbinandpushdownbinreleaseemptybuttontoemptydirtinto

garbage container as shown.

Note :TheDustBinmaybewashedinwarmwaterwith

a mild detergent. Reassemble and makesure it

is completely dry before using again.

CLEANING THE GRILE

Ifthesuctionisweakalthoughthedustbinisempty,openthecoverandcleantheGrille.

Note :WhenevertheGrilleisclogged,checkthepre-motorlterandclearit.

WARNING

To reduce the risk of electronic

shock, turn Power Switch OFF

and disconnect polarized plug

from electrical outlet before

performing maintenance or

troubleshooting checks.

Tip:

For maximum cleaning

performance, check and

clean or replace all ﬁlters as

suggestsd.

Grille

Cyclone

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Samsung Aspirapolvere

Samsung

Samsung POWERbot VR20J9250U Series Manuale utente

Samsung

Samsung Vacuum cleaner Manuale utente

Samsung

Samsung SC478 Series Manuale utente

Samsung

Samsung VC-8918V Manuale utente

Samsung

Samsung POWERbot SR1 M70 Series Manuale utente

Samsung

Samsung VR20T6001M Series Manuale utente

Samsung

Samsung SC12F50 series Manuale utente

Samsung

Samsung Powerbot SR2AK9000UG Series Manuale utente

Samsung

Samsung SC6200 SERIES Manuale utente

Samsung

Samsung VC-5813 Manuale utente

Samsung

Samsung SC11H4050V Series Manuale utente

Samsung

Samsung Vacuum cleaner Manuale utente

Samsung

Samsung DJ68 Manuale utente

Samsung

Samsung SC44** Series Manuale utente

Samsung

Samsung VAC-5913VB Foglio di istruzioni

Samsung

Samsung Vacuum cleaner Manuale utente

Samsung

Samsung Jet VS20A9580VW Manuale utente

Samsung

Samsung DJ68 Manuale utente

Samsung

Samsung VAU-5200R Manuale utente

Samsung

Samsung SR8730 Manuale utente

Samsung

Samsung VC-S112V Manuale utente

Samsung

Samsung VAU-5863 Manuale utente

Samsung

Samsung VR30T80 Series Manuale utente

Samsung

Samsung VAC-9049B Manuale utente

Manuali Aspirapolvere popolari di altre marche

Bissell

Bissell LittleGreen Proheat 1425 Series Manuale utente

Panasonic

Panasonic MC-YL637S147-AE Manuale utente

NEFF

NEFF N17XH10 0 Series Manuale utente

LG A9 Series Manuale utente

Oreck

Oreck Cordless Captura BK51700 Series Manuale utente

Kogan

Kogan KAVACROBVWA Manuale utente

Kränzle

Kränzle VENTOS 50 ID Guida utente

EVVO

EVVO Ai35 Manuale utente

DeWalt

DeWalt DWH200D Manuale utente

Pontec

Pontec Pondomatic Vacuum Cleaner Manuale utente

Cleanmaxx

Cleanmaxx PC-P007E Manuale utente

Exido

Exido 240-114 Manuale utente

RIDGID

RIDGID WD1685AU0 Manuale utente

Ezviz

Ezviz RE4P Manuale utente

STG global

STG global TANVAC HDV3000 Manuale utente

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Manuale utente

Factory

Factory M3340 Manuale utente

Shop-Vac

Shop-Vac VN92 SERIES Manuale utente
