HA Repair Guide

Front-Load Washer

Potomac-PJT

WF393/WF395/WF405

- 2/39 -

•Vibration

•Noise

Vibration

& Noise

•Water Leakage

Leakage

•Water Supply

•No Power

Improper

Operation

•Error-Mode

Error-

mode

•Test mode / Diagnosis

•Circuit Diagram / PBA

Appendix

Potomac-PJT Repair Guide

[ WF393/WF395/WF405]

- 3/39 -

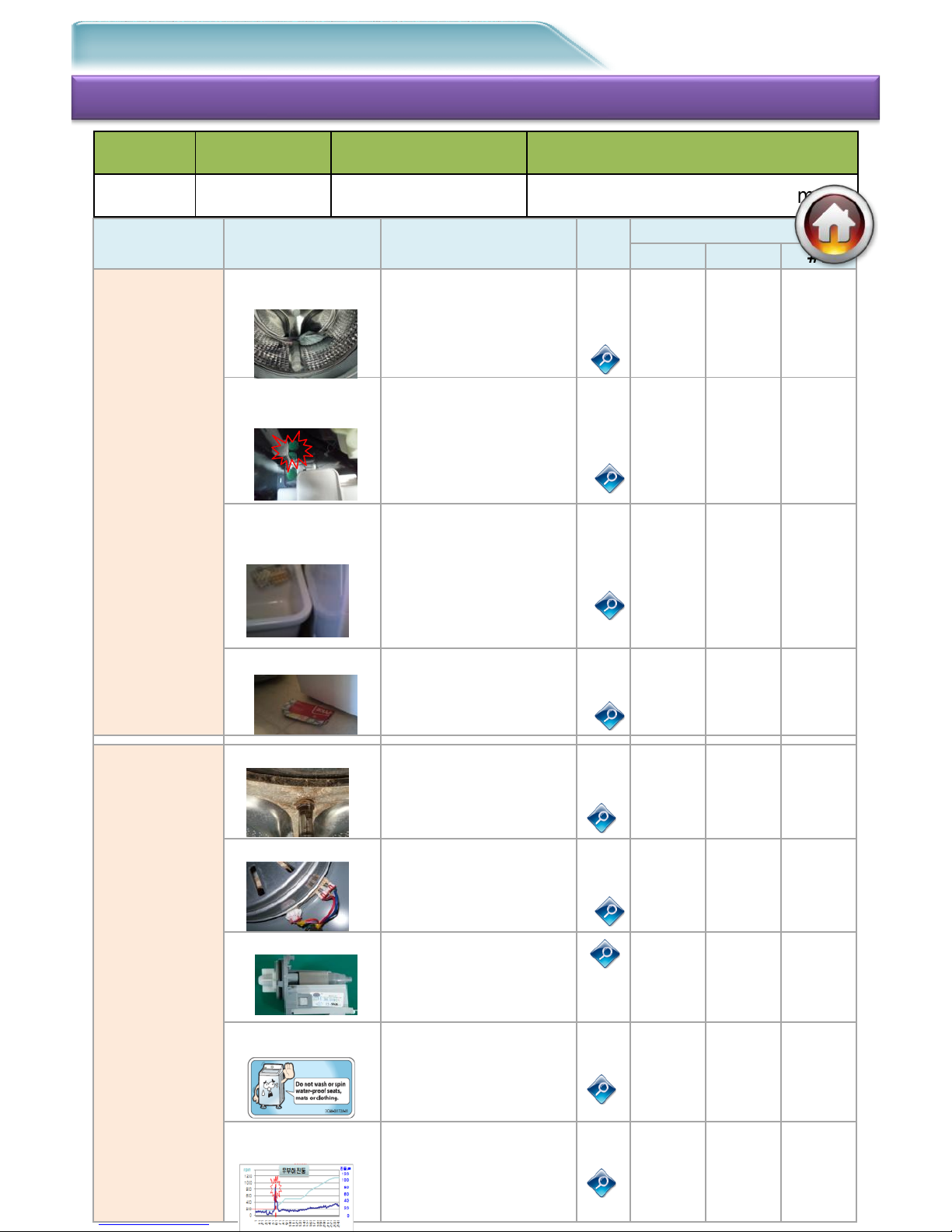

#1. Symptom : Vibration & Noise

1-1. Schematic diagram of Repair

Check-1

Step of Cause

Check-2

Tip

Code

Block

# 1

# 2

# 3

Set-Vibration

1.Spin-basket defect

Leg condition check

Ball-balancer oil-leakage

Weight-Balance

coupling

Spin-Basket

concentration

1-1

Balancer

Weight

Spin

concentra

tion

2.Damper defect

Diagnosis of Tub

movement noise

Hanger-Spring

separation

Damper separation

Loosening of Damper

coupling

1-2

Damper

Hanger

3.Unstable place

for installation

Floor moisture

environment

Installation in low-temp

environment

Dryer Pair installation

narrow

Rear hose interference

Floor shaking

1-3

Place of

installatio

Installatio

n environ

ment

4. Installation defect

Leg level installation

check

Non-Slip Pad Unattached

Moving Pad/Pan-Drain

1-3

Level

installatio

Non-Slip

Sheet

Installatio

Spin-Noise

1.Shaft & Frame

Rotor friction during

spinning mode

Tub Bearing rust

Frame friction

1-4

Motor

-Rotor

Tub-

Bearing

Frame

2.Motor defect

Spin-mode Stator check

Diagnosis of motor Coil

Hall sensor check

1-5

Motor

-Stator

Hall-S/S

3.Pump-Drain defect

Pump-Case Damage

Fixing bolt loosened

Foreign substance in

pump

Impeller Damage

1-6

Pump-

Case

Impeller

Foreign

Substanc

4.Wrong usage of

product

User uses moisture-

proof cloth

Wash little amount

Spin course only

1-7

Moisture-

proof

cloth

5.Product inherent

characteristics

Resonance RPM band

shaking

Shaking at the beginning

Tub Ball Noise

1-7

Resonanc

phenome

non

Balancer

Chassis

Project

Basic Model

Type

Drum

Potomac

WF393/395/405

Front-Load / Power Foam

- 4/39 -

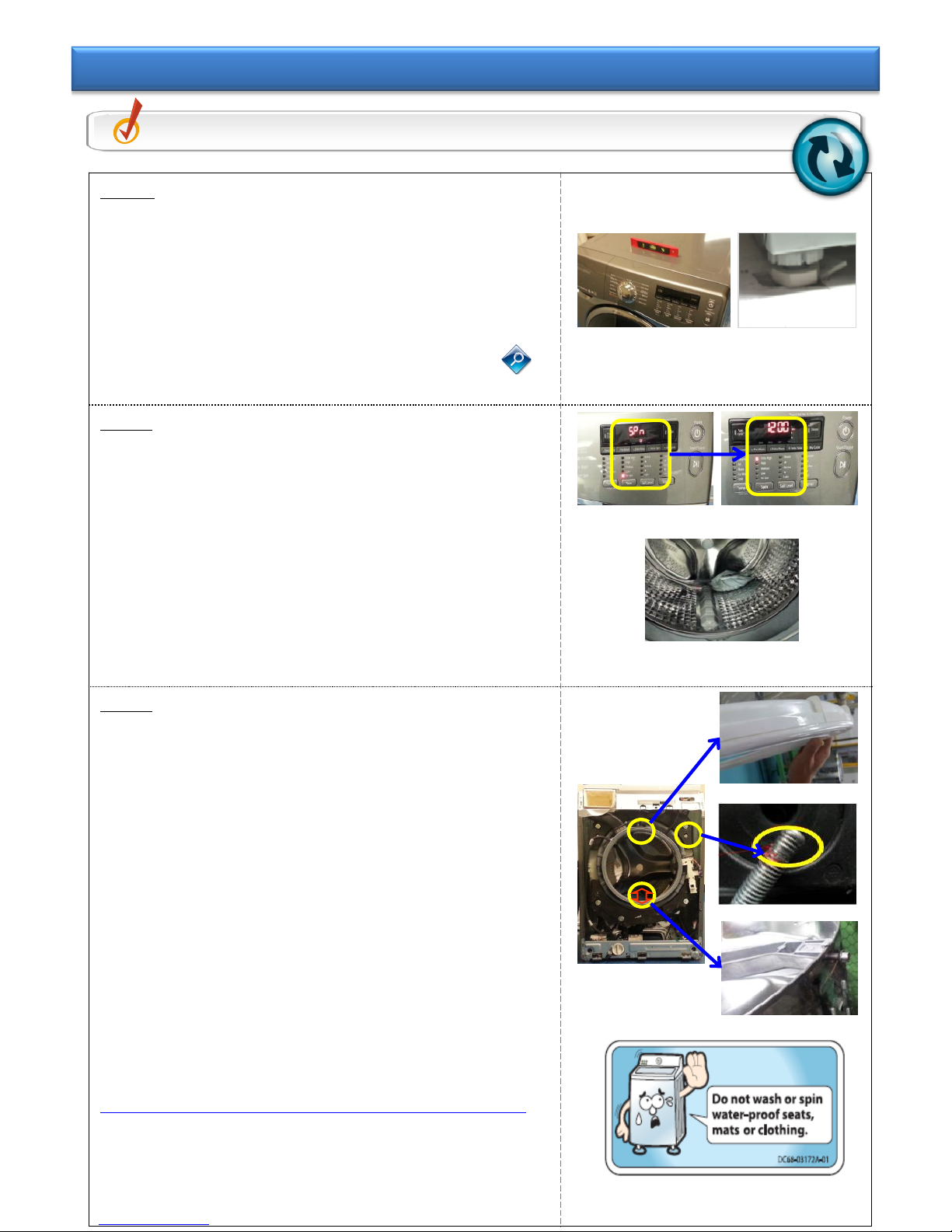

Step 1

①Check deformation of Leg of Frame bottom.

- Leg-bottom Rubber is damaged.

- Right angle is not maintained due to Leg Bolt

deformation.

②Adjust level installation of leg & inspect place

of installation.

- Refer to Level Product Installation Guide Tip 1-3.

Step 2

①Check Spin mode.

- Press Soil+Signal+Power to enter the

Test mode.

- Turn knob and select “SPn” to start.

- Check if Spin reaches Extra-High LED.

②Check Unbalance Test.

- Run Spin Test with 300g placed on one side

unbalanced.

※ 300g – 2 Towels OR Jig for this purpose only

- Check for abnormal noise & Set moving.

Step 3

①Oil leakage of Balancer

- Rotate Spin-Basket to check frictional noise

between balls.

※ If the frictional noise is dull, it is regarded as OK.

②Abrasion of Weight-Balancer

- Check if Weight-Balancer shakes.

- Gap is created if the screw head of fixing bolt wears

out.

- Couple more OR replace it.

③Check the concentration of Spin-Basket.

- Check if Spin-Basket moves up and down.

- Check if Spin-Basket vibrates due to broken fixing

bolt.

※ After SVC, explain to the customer how to use it.

①Check the use condition of Customer.

- Check if moisture-proof cloth is used.

: Water–Proof Sheet, Mats, clothing

Check Point Spin-Basket / Check the user environment condition.

Tip 1-1. Frame & Spin-Basket Abnormality

- 5/39 -

Step 1

①Check Tub for abnormal noise.

- Shake the Tub back and forth to check where the

noise is coming from.

②Hanger Spring connection & Grease application

condition

- Check if grease is properly applied between

Hanger Spring and Hanger Guide friction part.

Step 2

①Check if Damper is separated or unassembled.

- If the bolts connecting damper

- If the dampers are rusted or not fastening,

☞replace.

②Check the condition of loosening of Damper

connection.

- The shape of connected part of Bottom-Plate is

defective, and thus it does not rotate properly.

- It does not rotate properly because it was

connected too much in the assembling process.

☞When it does not rotate properly, “Dda-dda-dda”

noise is generated due to friction between Damper &

Bottom-Plate. Thus, do as in ③.

③What to do when Damper connection is

loosened.

- Add Nut M10.

- Product Name: Nut-Hexagon (6021-001588)

※ Damper connecting force : 250 ~ 350kgf.㎠

Check Point Check the operating condition of Damper.

Tip 1-2. Damper & Hanger Abnormality

- 6/39 -

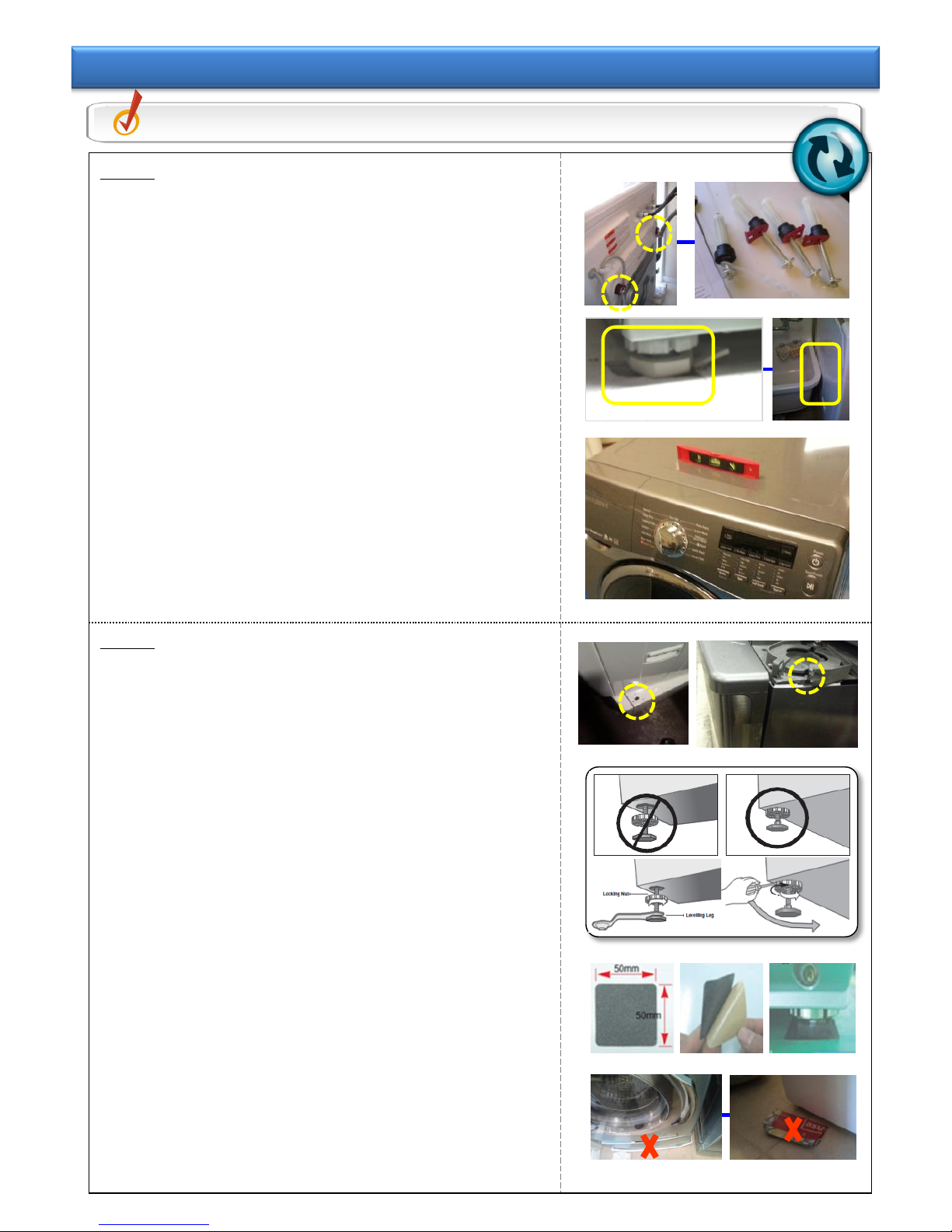

Step 1

①Check if there are any shipping bolts

on the back of washer.

Shipping bolts should be removed & kept.

②When installing, check the frictional relationship

with the surroundings.

- Install a pair of dryers together, causing

interferential noise when the Frame shakes

during spinning mode.

③Check the installation levelness & Floor-moving

phenomenon.

Case #1 - The levelness, which is measured with

levelness-measuring apparatus, is poor.

Case #2 –It shakes due to old floor (lumber) of

laundry room.

☞Re-installation is recommended so that it does not

influence on vibration.

Step 2

①Check if pedestal is installed properly.

- In case of old pedestal, check if all bolts

connecting washer and pedestal are

tightened properly.

②Condition of levelness of Leg installation

- If the rubber of legs is damaged, replace it.

- Lower leg is better for vibration.

Shorten the leg height and lock up the legs

after adjustment.

- Check if washer inclines to one side and

level washer again with adjustment of legs.

③Environment with slippery floor (Tile, Moisture)

- Attach on-Slip Pad.

④Material which is inappropriate for Leg floor

according to rules.

Case#1 Frictional noise of Pan Drain

Case#2 Use floor protection as sub-material for the

Leg bottom.

☞Re-installation is recommended so that it does

not influence on vibration.

Check Point Check the installation place and stability condition.

Tip 1-3. Installation Place & Installation Stability Abnormality

※ Pedestal Damage

Case

※ Installation

Error Case

- 7/39 -

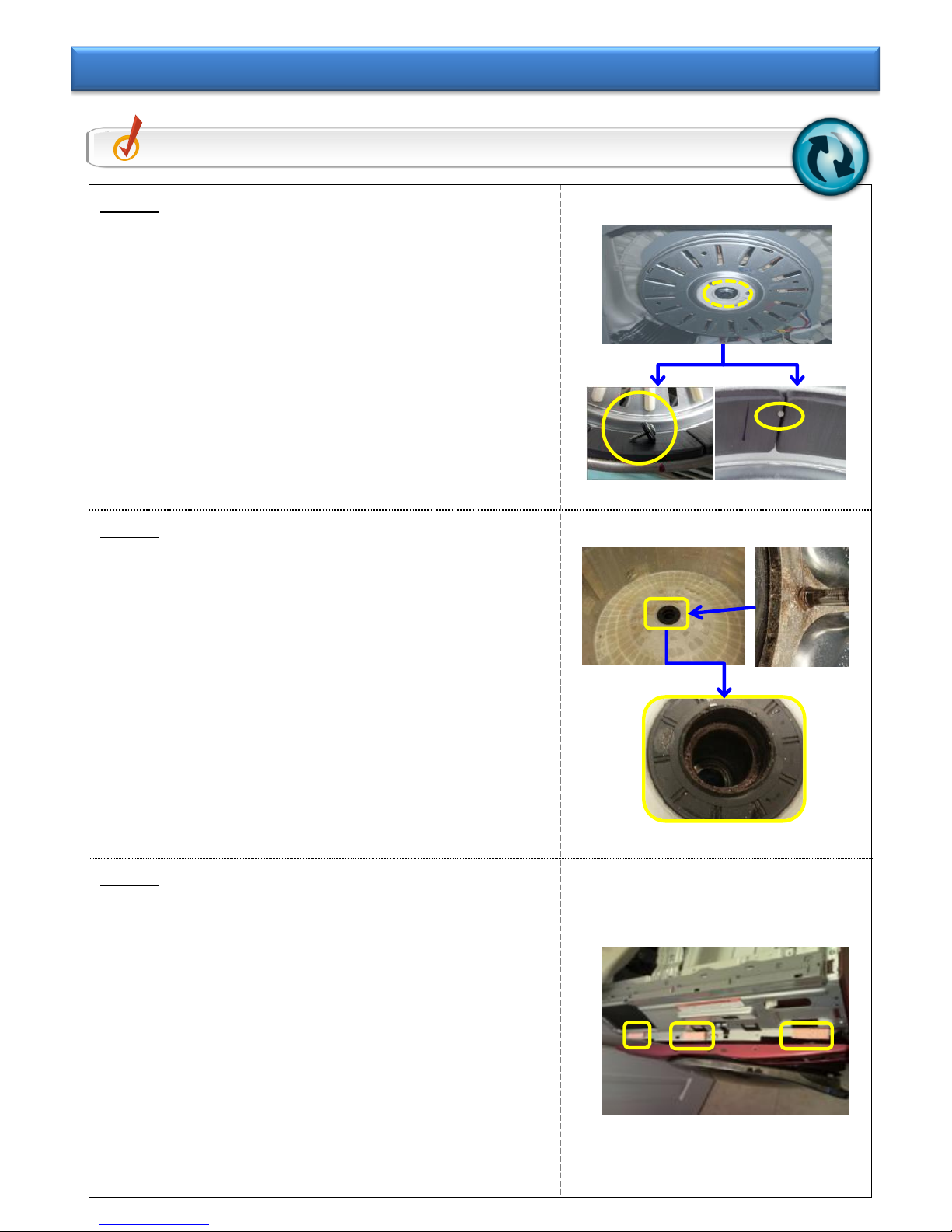

Step 1

①Assembly Bolt of Washing Motor

- Check the assembly status of the bolt.

If the bolt is loose, tighten it.

②When there is abnormal noise, have the

Rotor disassembled for checking.

- When the weight sensor is operating, check

for frictional noise of washing motor while

Motor-L / Motor-R is rotating.

- Remove iron foreign substance, if any,

absorbed by Rotor Magnetic.

Step 2

①Jet Engine noise during spinning mode

- Push Soil+Signal+Power to enter the Test

mode.

- Turn knob and select “SPn” to start.

- Check if Extra-High LED of Spin is reached.

☞If the tub is rotating empty without load,

check the roaring sound during high-speed

rotation.

②In the case of abnormal noise or Bearing

abnormality, replace Tub-back.

Step 3

①Check frictional noise between parts of

Frame.

- Shake the Tub back and forth to check where

the noise is coming from.

②Inspect the main parts from which noise is

generated.

- Add sponge to frictional part of Frame-Front.

☞Add more sponge to noise-generating part.

Check Point Check the operating condition of shafting.

Tip 1-4. Shafting Abnormality

- 8/39 -

Step 1

①Rotor with your hand and check the gap

- If the gap is not the same as in the photo

right,

- it could cause noise during the spin cycle

②Check if Motor Wire Pin fell out

- photo of pin which had fallen out added

- Must check regarding contact fail caused by

the opening of Pin inside the terminal.

Step 2

①Check of Resistance motor (U-V-W).

☞The Resistance : approximately 11Ω

②Check the Hall Sensor.

- Check of ⓐ-VCC(PNK) and ⓓ-GND(ORG)

☞The Voltage : approximately 5.0V

- Check of ⓑ-U(RED)/ⓒ-V(BLU) and ⓓ-

GND(ORG)

☞The Voltage : approximately 0~1.2v Pulse

※ Rotor the slow turning by manually

☞Replace the Motor

Check Point Check the operating condition of Motor.

Tip 1-5. Motor Abnormality

ⓓ

ⓐ

※ⓑ/ⓒ:0↔1.2v

- 9/39 -

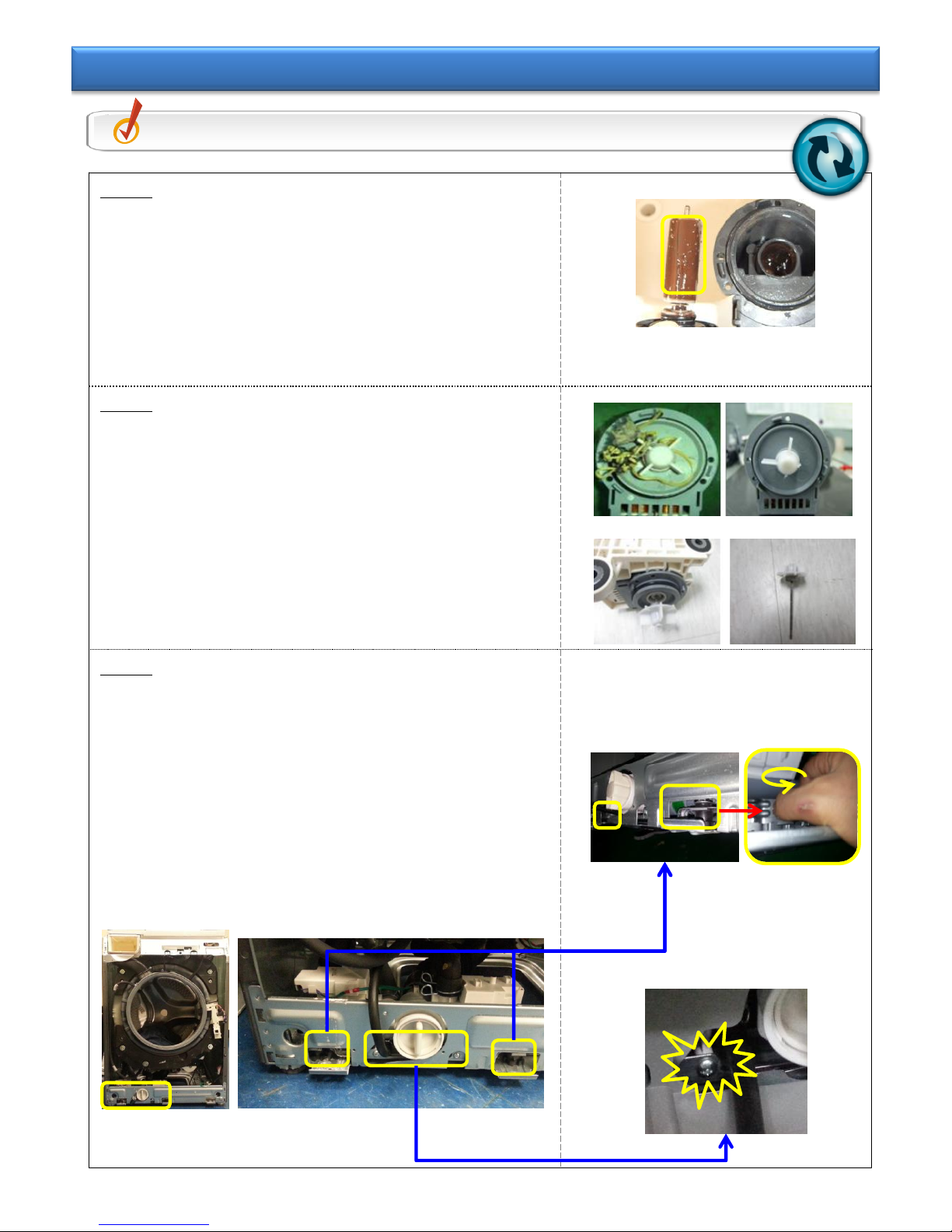

Step 1

①Mechanical Friction Noise

- When pump drain is operating,

it vibrates a little. If drain parts such as

drain hose are near other parts, it may

cause mechanical friction noise.

Step 2

①Foreign materials in Pump Drain

- Open debris filter and check there are

foreign materials such as coins, pins etc.

②Check pump drain impeller is broken.

Step 3

①Check if the fixing part of Pump-Case is loosened.

- Check if the two bolts fixing Frame-Plate bottom

are loosened.

- Check if the fixing part of Pump-Case front is

loosened.

☞Assemble the Pump-Case again.

②One assembly part of Pump-Case front is loosened.

- Frictional noise is generated due to vibrating up

and down.

☞Assemble Pump-Case again.

Check Point Check the condition of Pump-Drain.

Tip 1-6. Pump Noise Abnormality

- 10/39 -

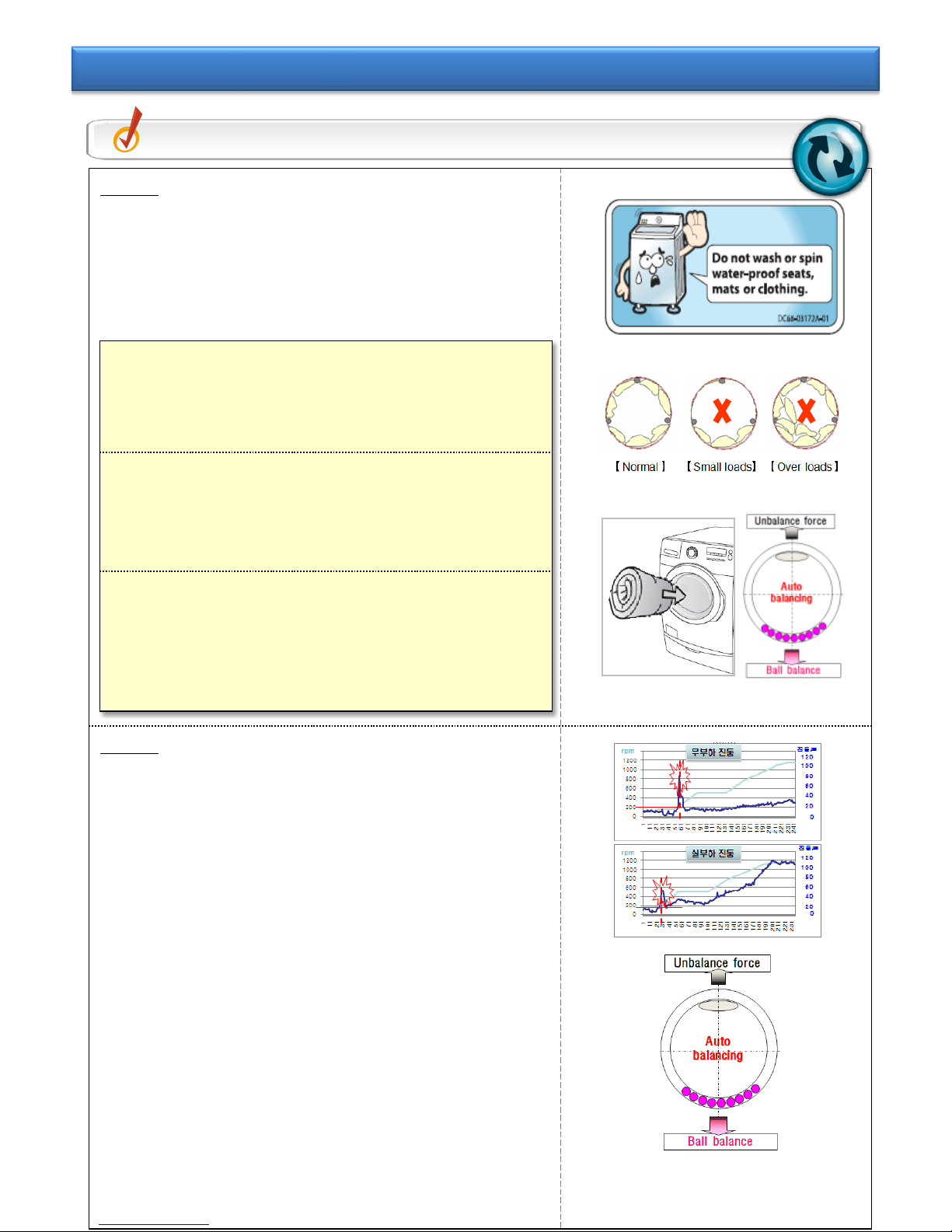

Step 1

※ Explain to NDF customer.

- Check the wrong usage condition of laundry

and explain recommended usage.

- Do not use Water–Proof Sheet, Mats and

clothing.

Step 2

①Resonance phenomenon occurs in the rising

section during spinning mode.

- Resonance Frequency: 200~450rpm section

- In the resonance frequency, Tub moves.

※ It is a resonance phenomenon occurring in

the rpm rising section for water extraction at

the beginning, which is normal.

②Ball friction occurs when Spin-Basket

rotates in low speed.

- Explain that the frictional noise from the Ball,

which is the center of gravity in the Balancer,

is normal.

※ If the Ball in the Balancer makes strong

frictional noise while checking Tub, then it

means that the oil is leaking. Thus, replace

Spin-Basket.

Check Point Explain the NDF and product characteristics.

Tip 1-7. Explanation of NDF and product characteristics

Step 1 : Small Loads Case

: If loading the laundry whose weight is 1kg ±

0.5kg, it is easily inclined to one side.

☞Add more laundry to make it normal.

Step 2 : Unbalance of laundry

: Stop using Water–Proof Sheet, Mats and clothing.

☞Do not input the laundry listed above, since

water does not drain during high-speed spinning

mode, causing unbalance problems.

Step 3 : Unbalance of bedding, carpet, and etc.

: Bedding should be washed alone less than 3.5kg.

☞Solution: Roll up the bedding before putting

into washer.

※ Do not wash Cotton bedding, wool bedding

and mink blanket.

Questo manuale è adatto per i seguenti modelli

Altri manuali Samsung Rondella

Samsung

Samsung WA50M7450A series Manuale utente

Samsung

Samsung WA10T5260B Series Manuale utente

Samsung

Samsung WD-J1255 Manuale utente

Samsung

Samsung WF455ARG SERIES Manuale utente

Samsung

Samsung WF42H5000A Manuale utente

Samsung

Samsung WF1124XAU Manuale utente

Samsung

Samsung WF8100LS Manuale utente

Samsung

Samsung WF8604FF(A/C/D/F/G/H/R/S/T/V/W/Z) Manuale utente

Samsung

Samsung WW11K8412OW Manuale utente

Samsung

Samsung WF435ATGJWR/A1-0002 Manuale utente

Samsung

Samsung WF45M5100A series Manuale utente

Samsung

Samsung WF50A86 A Series Manuale utente

Samsung

Samsung WA91R3 Manuale utente

Samsung

Samsung WA10K2 Manuale utente

Samsung

Samsung WA45K7600A series Manuale utente

Samsung

Samsung WW CGC Series Manuale utente

Samsung

Samsung WF8700EP Manuale utente

Samsung

Samsung WA45T3400AW Manuale utente

Samsung

Samsung WF856U4SA Series Manuale utente

Samsung

Samsung WF42H5400AF/A2 Manuale utente

Samsung

Samsung WW9 J5 6 Series Manuale utente

Samsung

Samsung WF337AAG Manuale utente

Samsung

Samsung WW90H7600E Manuale utente

Samsung

Samsung q1468(S) Manuale utente

Manuali Rondella popolari di altre marche

Tricity Bendix

Tricity Bendix AW 1000 W Guida del prodotto

Panasonic

Panasonic NA-F60L5WRB Manuale utente

GE WSLP1500 Manuale

Electrolux

Electrolux EWF1284EDW Manuale utente

Bosch

Bosch WAN2829BSN Manuale utente

LG TV2516DV3B Manuale utente

LG TH2517DSAV Manuale utente

VESTEL

VESTEL CMH-XL 7510 TE Manuale utente

AEG

AEG 74335 Manuale operativo

Johnson

Johnson JWF721A Manuale utente

Beko

Beko WTE7604XLW0 Manuale utente

Danby

Danby DTT100A1WDB Istruzioni per il montaggio

Amica

Amica WA 14 Ex Manuale utente

Daewoo

Daewoo DWD-F1222 Manuale utente

Bosch

Bosch WAS28461AU Manuale utente

Miele

Miele PW 6080 Vario Manuale utente

Finlux

Finlux FLX108CF220 Manuale utente

Whirlpool

Whirlpool 3LBR5132AN0 Manuale utente
