Sanipex BOTANICAL BDS-BOT-701-XX Manuale utente

BDS-BOT-701-XX

BOTANICAL COUNTERTOP WASH BASIN DIA. 420MM

www.sanipexgroup.com

IMPORT ANT PLEASE READ





            



         



         



 

           



   









         





















 of 

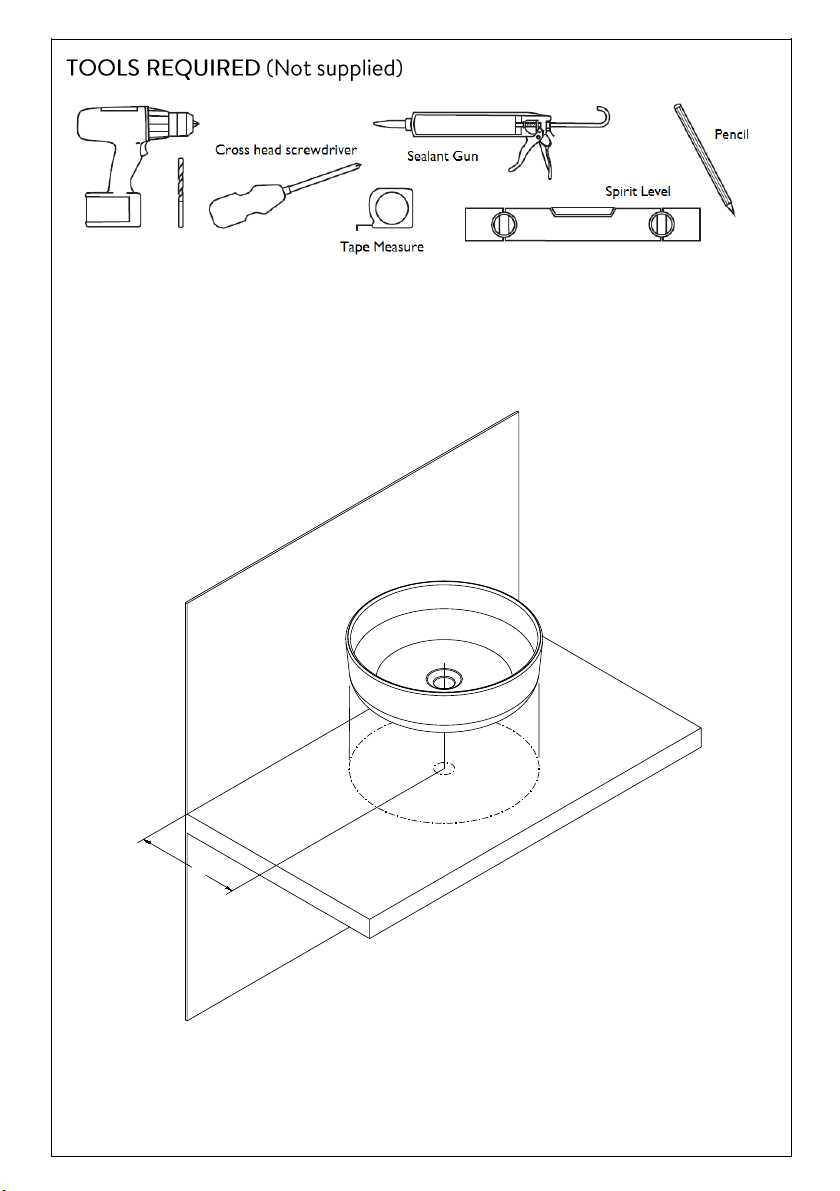

Drill, drill bits & hole-saw:

Required when drilling a wooden counter-top surface, for Marble/Stone

counter-tops please use specialized cutting company.

X

Place the basin on the counter-top, take notice of the spout length of the mixer

so that the distance X is correct. Mark around the perimeter of the basin and

waste hole.

Check that the waste provision is in the correct place, check the bottle trap

dimensions to ensure that the distance Y is achievable.

Drill waste hole allowing for the finished dimensions of the waste outlet. In

this instance its B=75-110 mm, please check your corresponding waste

outlet product.

Y

Ø32mm

Ø75-110mm

B

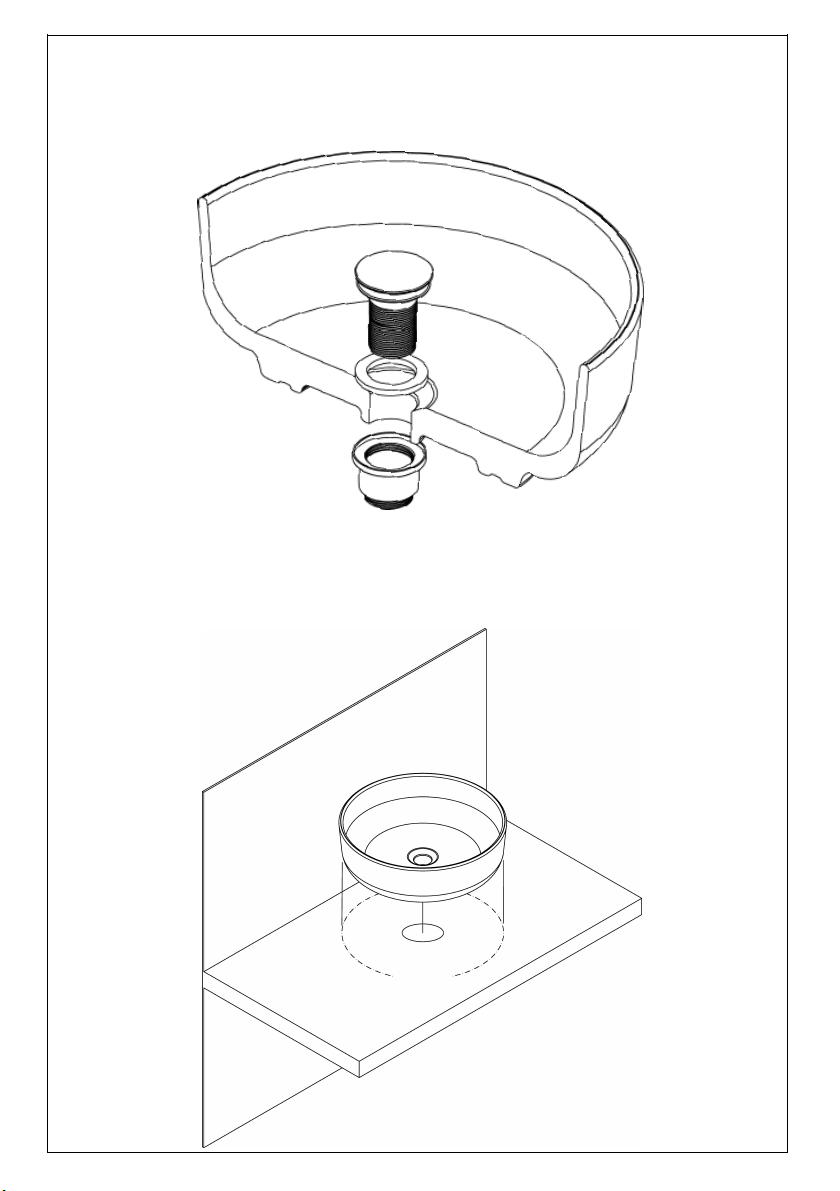

Install the waste assembly into the basin.

If required, place a few dots of silicon on the base of the basin, align, and place in

position, allow the silicon to cure for a few hours.



INSTALLATION COMPLETE!!!

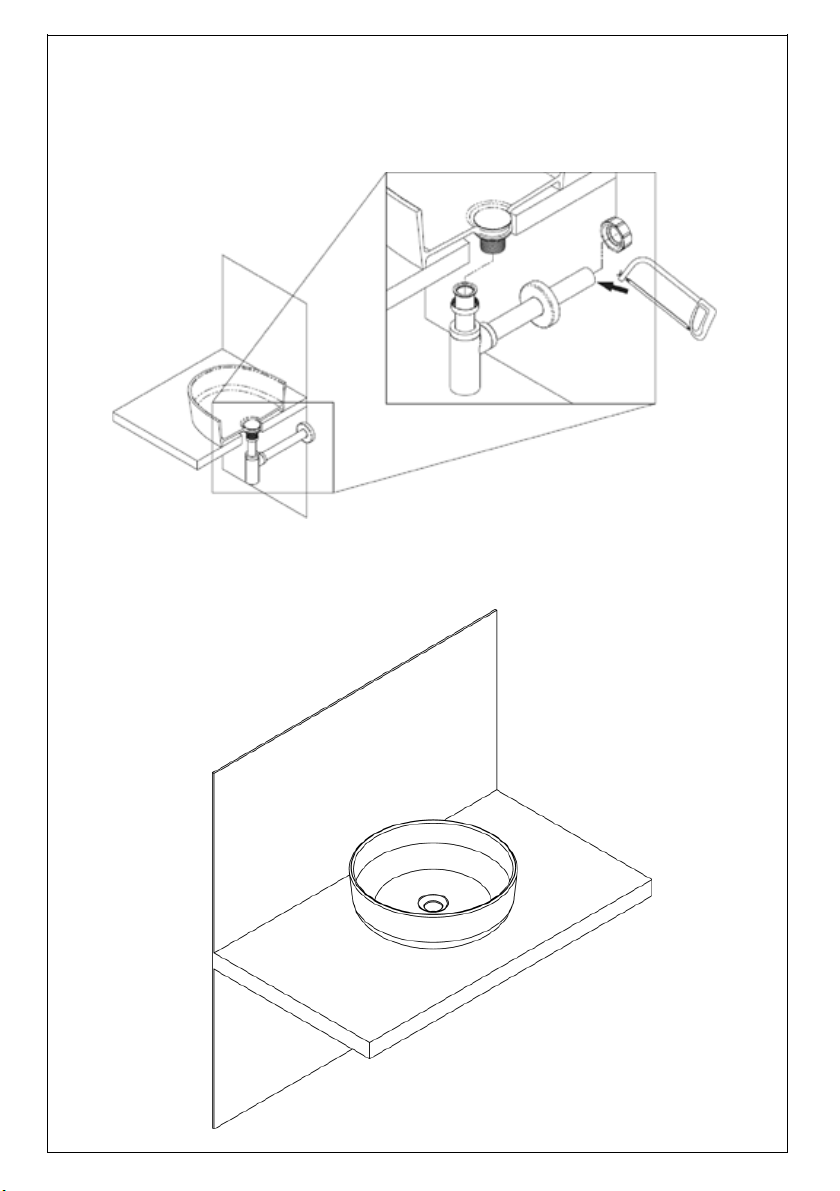

Install the bottle trap onto the waste, cut the horizontal pipe to length and

install into the wall via a waste compression fitting or rubber socket.

If required run a small bead of silicon around the perimeter base.

Note:

INS-BOT-701-XX-09-21

www.sanipexgroup.com
